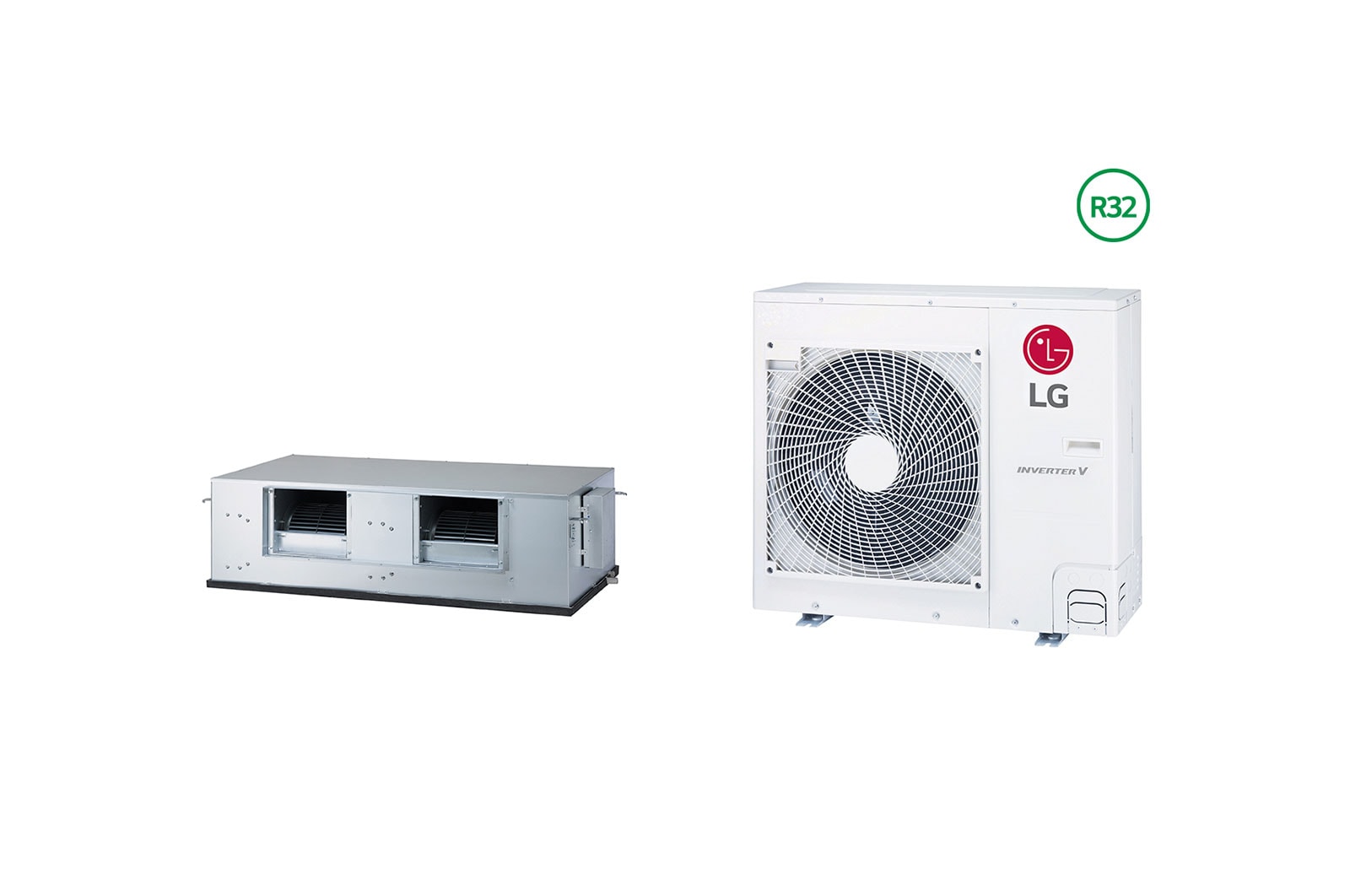

Ducted System - High Static 8.8kW (Cooling) | UHN85B7-UU85WR2

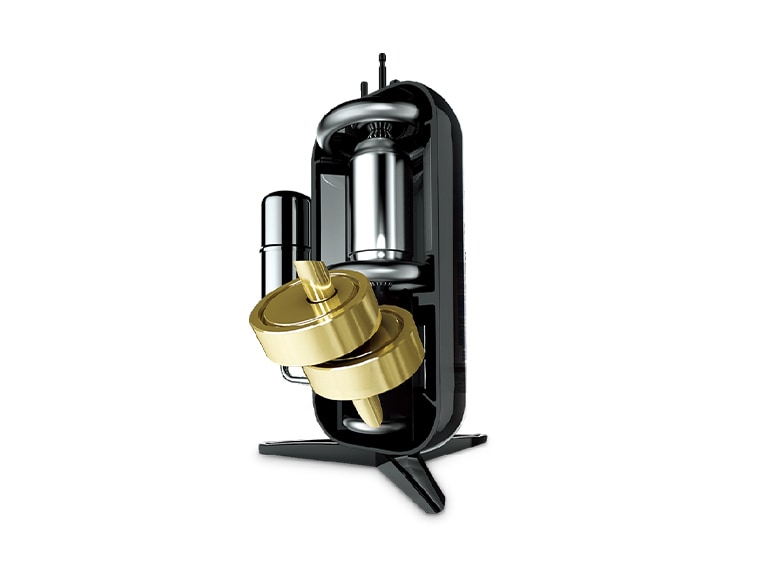

Twin Rotary Inverter Compressor

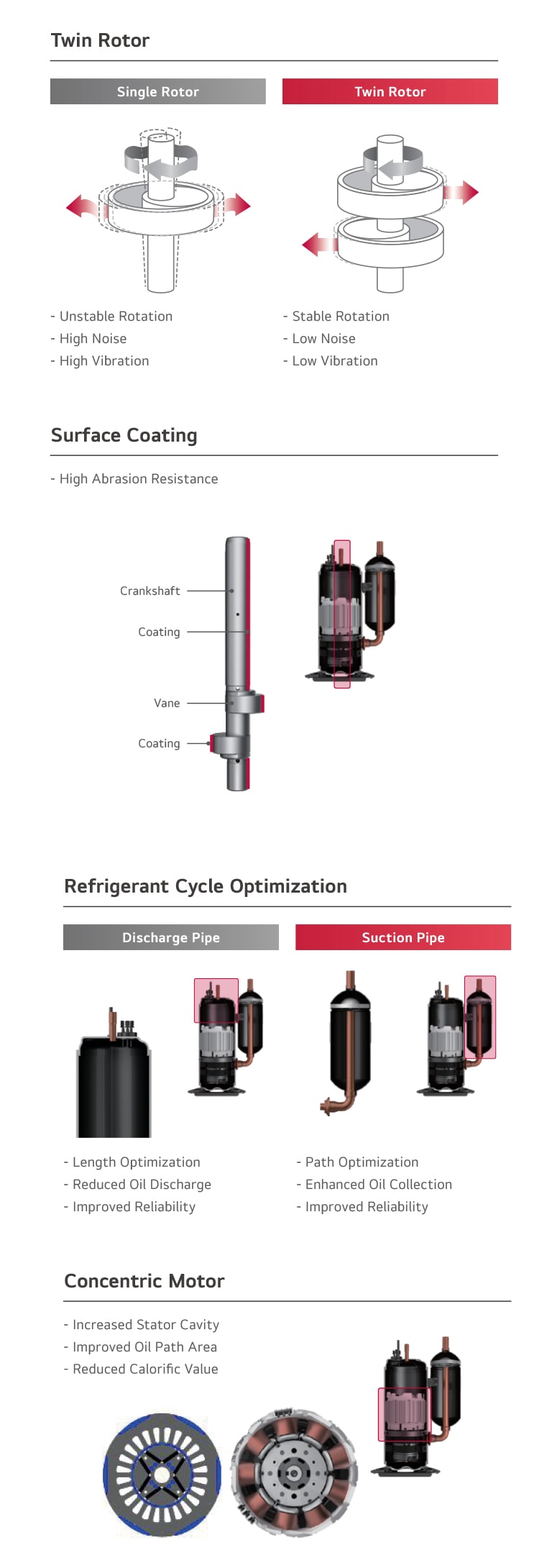

Twin Rotary Inverter Compressor consists of stable and optimised structures with low vibration and low noise characteristic

Twin%20Rotary_Content_1600x1225_D

Night Operation

Night Operation can reduce noise levels at night time by simply setting the dip switch on the PCB of the outdoor unit.

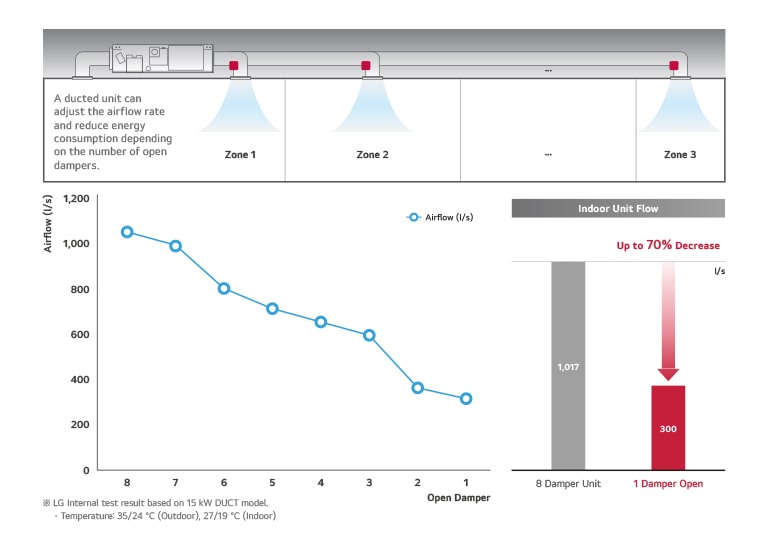

AUTO External Static Pressure + Zone Control* (On/Off)

LG’s high static ducted unit does step control (High-Mid-Low Speed) to supply airflow rate to each zone depending on the number of open dampers.

*Optional Accessory - PREMTB100/PREMTA000, PBZD(C)80 needed

Come Home to Comfort1

Wi-Fi Smart Control Compatible

Come Home to Comfort

The LG ThinQ® App* lets you access and control your air conditioner with your compatible smartphone* even when you're not at home, so you can come home to comfort. (Optional Wi-Fi dongle module sold separately).

*LG ThinQ® app available from Google Play Store or Apple App required, for this feature, compatible with Android or iOS smartphones required (Android OS 7.0 or higher, iOS 14.0 or higher).Phone and Home Wi-Fi Data connection and product registration with LG ThinQ® required. Visit lg.com/au/lg-thinq for features, system compatibility and service availability which may vary by model.

    Corrosion Resistance Black Fin

    The black coating with enhanced epoxy resin is applied for strong protection from various corrosive external conditions such as salt contamination and air pollution including fumes from factories.

    Auto E.S.P. (External Static Pressure) Setting

    E.S.P. control function enables control of air volume easily with a remote controller. The BLDC motor can control fan speed and air volume regardless of the external static pressure.


    Set RPM by simple touch on remote control to change airflow

    D04-01_Premium-Controller_D

    *Sold Separately

    Unoccupied Mode (Optional Accessory)1

    Unoccupied Mode (Optional Accessory)

    When you leave your home unoccupied, instead of turning your system off and letting your home get hot or cold, with optional premium/deluxe controllers, you can press the dedicated unoccupied button which will set the room temperature to stay between a range of two set temperature points. This allows for a quicker return to a comfortable indoor environment when you return.

    *Home Leave Set Temperature function can only be used in a 2 set control mode.

    Premium Controller (Optional Accessory)1

    Touch Colour Screen Controller*

    Premium Controller (Optional Accessory)

    The LG Individual controller provides an intuitive GUI with colour LCD and touchscreen interface. It provides additional visibility on filter cleaning status and energy usage, and the user-friendly button layout allows easy control of features such as Zone Control, Child Lock and Home Leave.

    Zone Control (Optional Accessory)1

    Zone Control (Optional Accessory)

    It is possible to control up to 8 zones from the premium controller and indicate a zone name such as Office, Hallway, etc. There are 18 names to choose from.*

    *Premium Controller sold separately.

    Download Ducted Brochure

    Download Ducted Brochure

    Download a copy of the Ducted brochure for more information.

    Get a quote

    Get a quote

    Looking for the perfect LG Air Conditioner for your home? Contact one of our Specialist Dealers for a FREE, no obligation quote.

    All Spec

    COMBINATIONAL SPECIFICATION

    • Cooling Capacity-Rated 2)(kW)

      8.80

    • Cooling Capacity-Min ~ Max(kW)

      2.50~9.60

    • Heating Capacity-Rated 2)(kW)

      9.40

    • Heating Capacity-Min ~ Max(kW)

      2.70~11.10

    • AEER

      3.384

    • ACOP

      4.017

    • Rated Current-Cooling(A)

      11.40

    • Rated Current-Heating(A)

      10.30

    • Full Load Amps(A)

      17.0

    • Air Flow Rate-Rated(L/s)

      533

    • Air Flow Rate-Min ~ Max(L/s)

      267 ~ 693

    • External Static Pressure-Min ~ Max(Pa)

      50 ~ 200

    • Indoor-Net(W x H x D)(mm)

      1,320 x 400 x 534

    • Indoor-Net Weight(kg)

      47.6

    • Indoor-Cooling ((SH)/H/M/L)(dB(A))

      - / 38.0 / 36.0 / 34.0

    • Outdoor-Net(W x H x D)(mm)

      950 x 834 x 330

    • Outdoor-Net Weight(kg)

      59.0

    • Outdoor-Cooling / Heating (@ 1.5m height)(dB(A))

      51.0 / 52.0

    • Power Supply(Ø , Hz , V)

      1 , 50 Hz, 220-240 V

    • Compressor-Type

      Twin Rotary

    • Compressor-Motor Type

      BLDC

    • Heat Exchanger-Fin Type

      Wide Louver Plus

    • Heat Exchanger-Corrosion Protection (Coating)

      Black 2

    • Refrigerant-Type

      R32

    • Refrigerant-Pre-charge Length(m)

      10

    • Pipe size-Liquid(mm(inch))

      Φ9.52 (3/8)

    • Pipe size-Gas(mm(inch))

      Φ15.88 (5/8)

    • Pipe size-Drain Pipe (Drain Pump) OD/ID-(mm(inch))

      Ø 32(1-1/4) / 26(1-1/32)

    • Piping Length-IDU - ODU (Rated / Max / Min)(m)

      7.5 / 50 / 5.0

    • Maximum Height Difference -IDU - ODU (Max)(m)

      30

    • Supply Air Opening-H x W, Flange (Discharge) (mm)

      287 x 840

    • Return Air Opening-H x W, Flangeless(mm)

      317 x 1,172

    • Continuous Operation-Cooling(°C (DB))

      -15 ~ 48

    • Continuous Operation-Heating(°C (WB))

      -18 ~ 18

    • Wi-Fi Compatible4)

      Optional

    DISCLAIMER

    • Disclaimer

      1. Specifications are correct at the time of printing and may be changed without notice.
      2. Capacities are based on following conditions.
      • Cooling: Indoor Temp 29°C DB / 19°C WB, Outdoor Temp 35°C DB / 24°C WB
      • Heating: Indoor Temp 20°C DB, Outdoor Temp 7°C DB / 6°C WB
      3. This product contains fluorinated greenhouse gases. (R32)
      4. (Sold separately) Dongle required for Wi-Fi Connectivity. Internet connection required.
