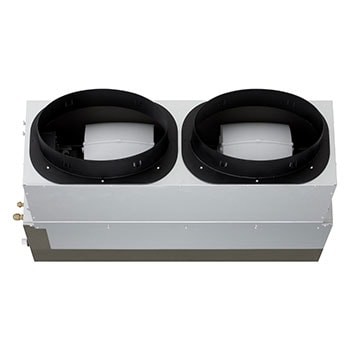

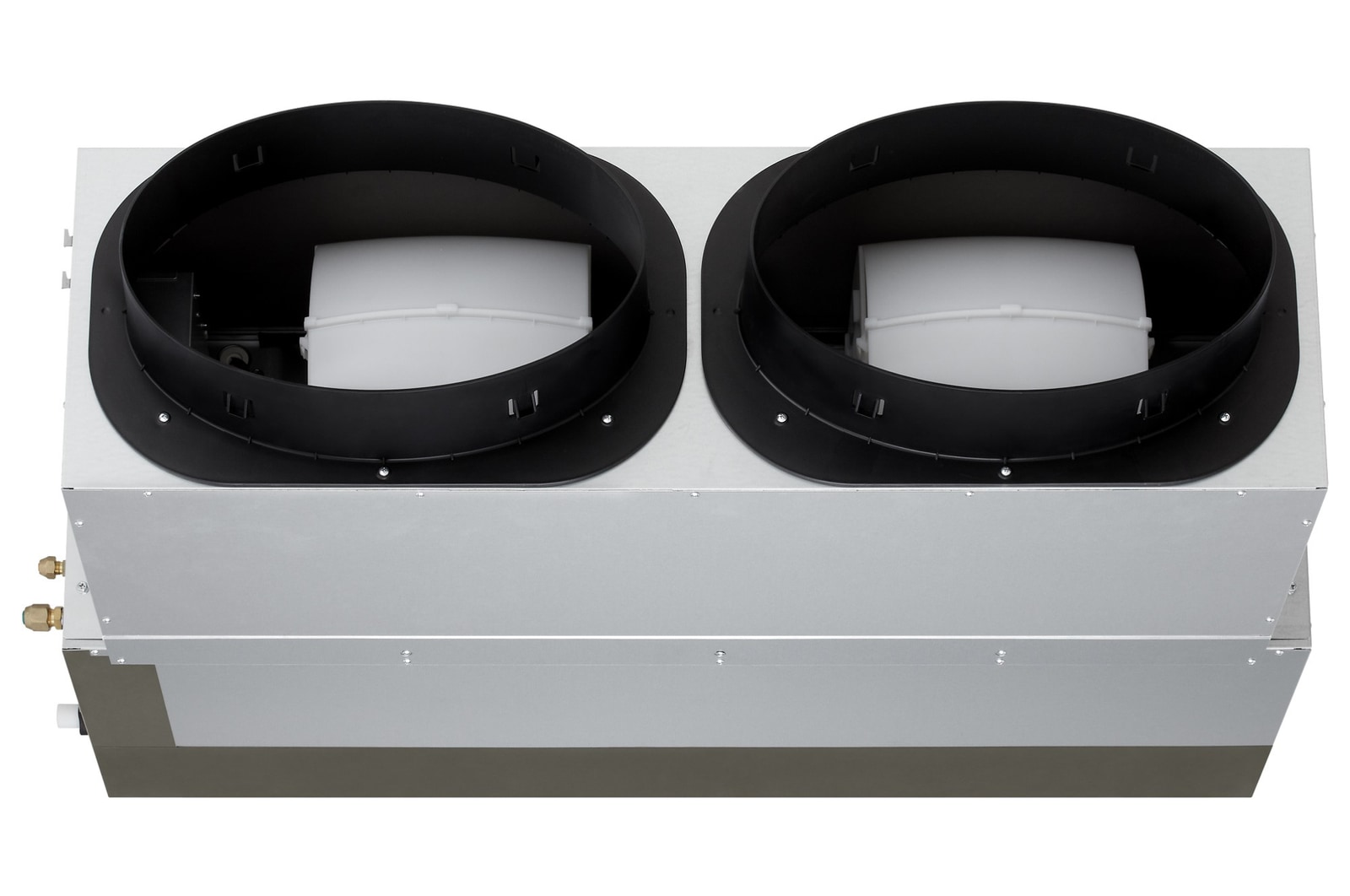

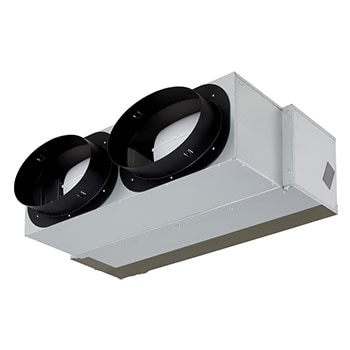

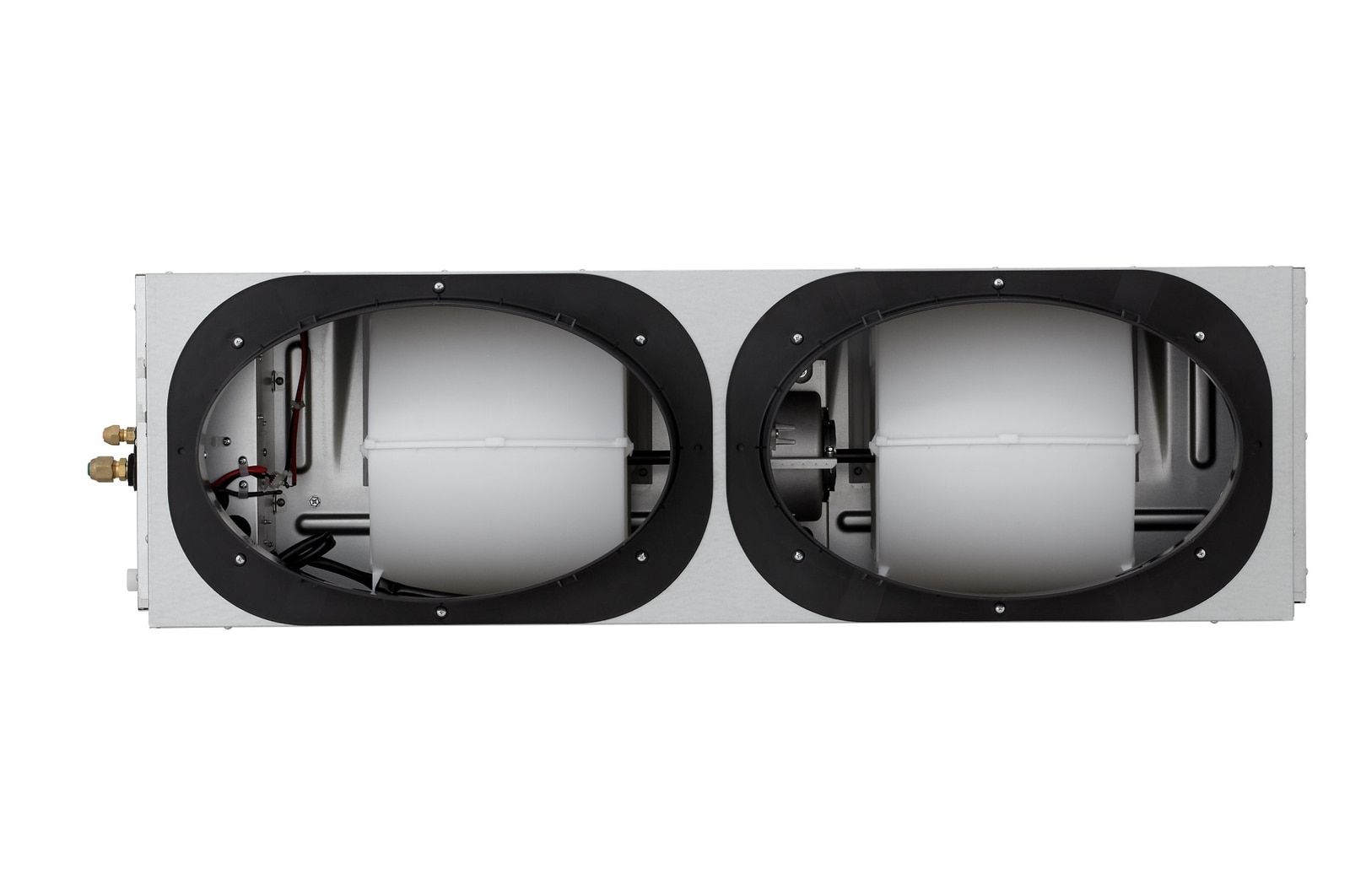

Built in return Plenum

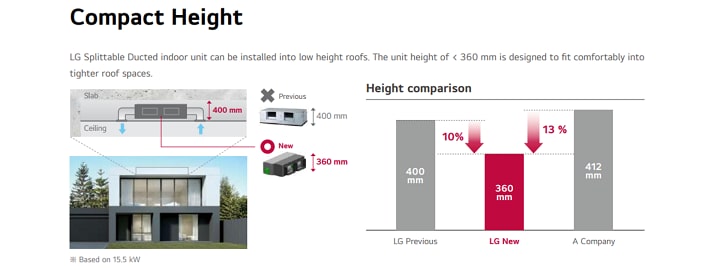

Compact Height
Lighter and Splllitable Structure
Come Home to Comfort1
*Wi-Fi Dongle Module required. Sold separately. Feature can be accessed using LG ThinQ® App on Android (v 4.1 or later) iOS (v iOS9 or later) smartphone. Internet connection required.
*LG ThinQ® app available from Google Play Store or Apple App required, for this feature, compatible with Android or iOS smartphones required (Android OS 7.0 or higher, iOS 14.0 or higher).Phone and Home Wi-Fi Data connection and product registration with LG ThinQ® required. Visit lg.com/au/lg-thinq for features, system compatibility and service availability which may vary by model.
Zone Control<br>1
*Premium Controller sold separately.
Premium Controller1
Premium-Controller_D
*Sold Separately
Unoccupied Mode<br>1
*Home Leave Set Temperature function can only be used in a 2 set control mode.
Get a quote

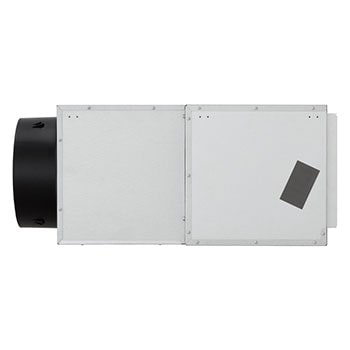

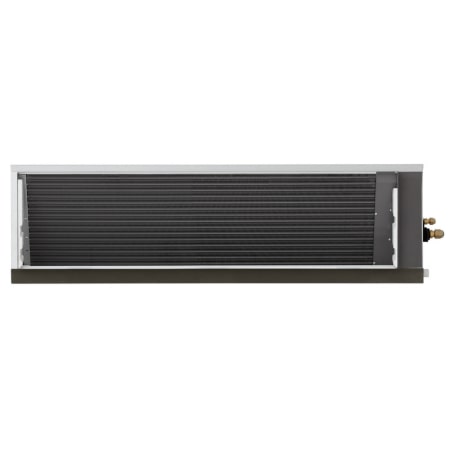

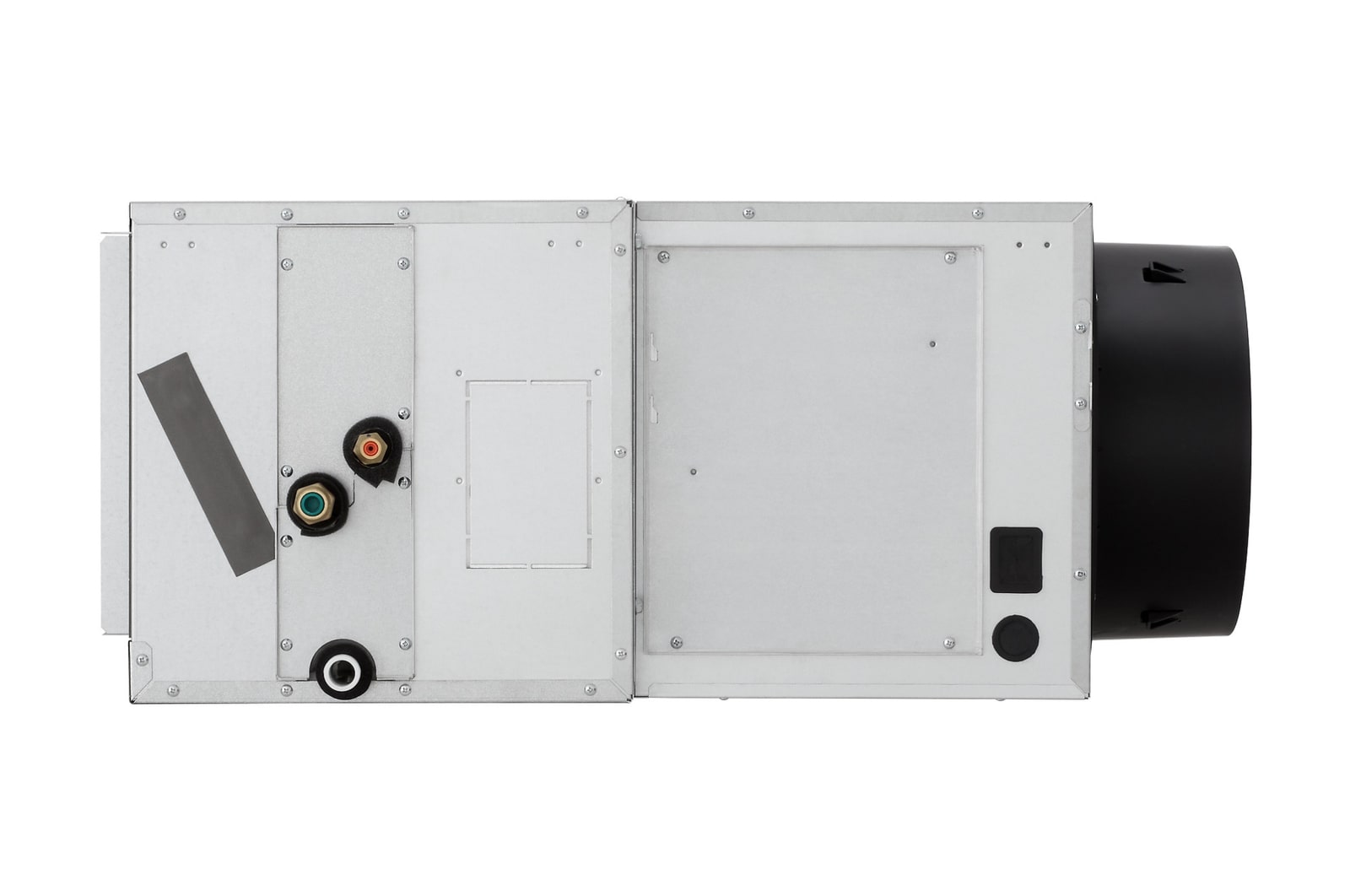

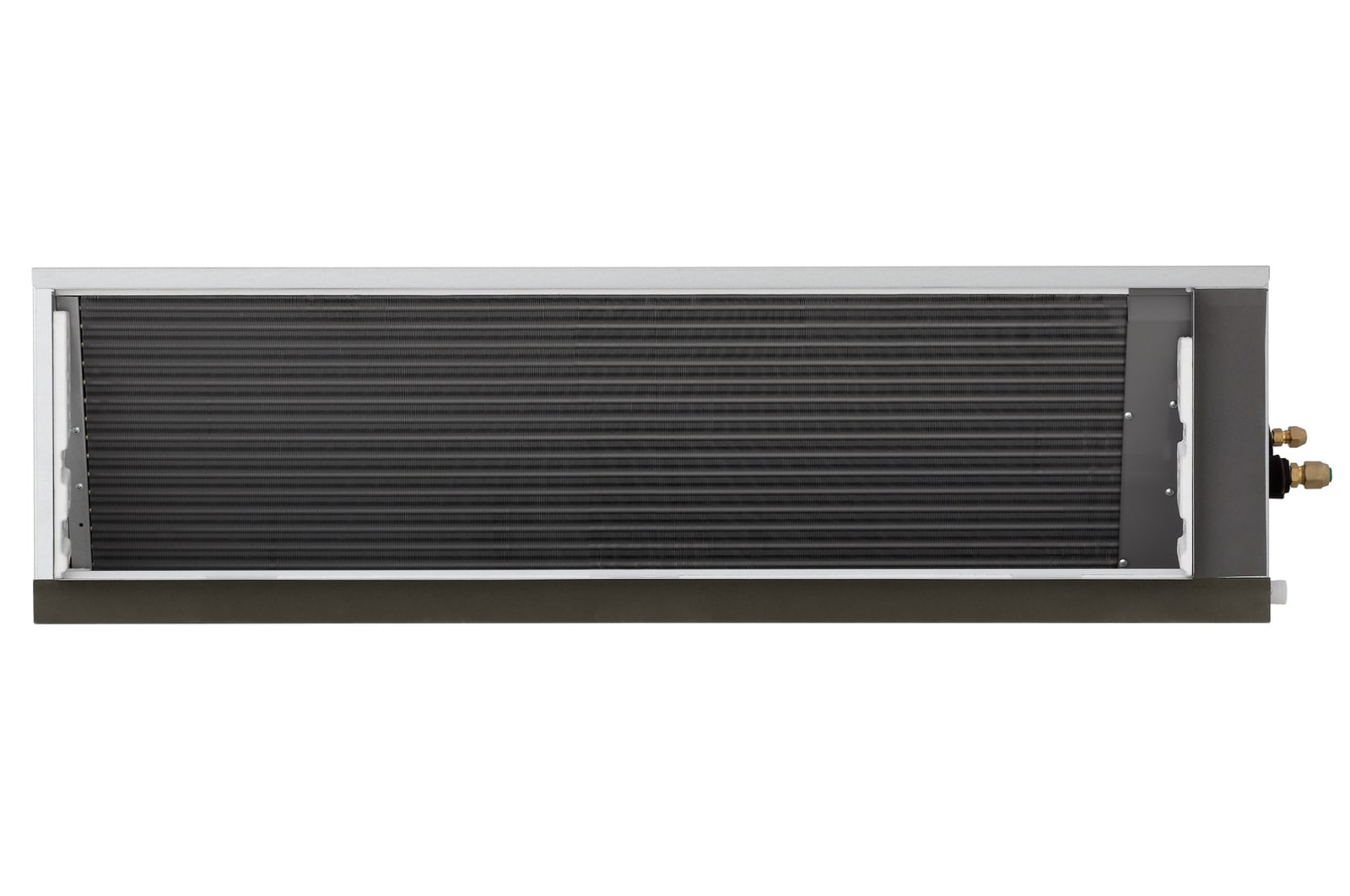

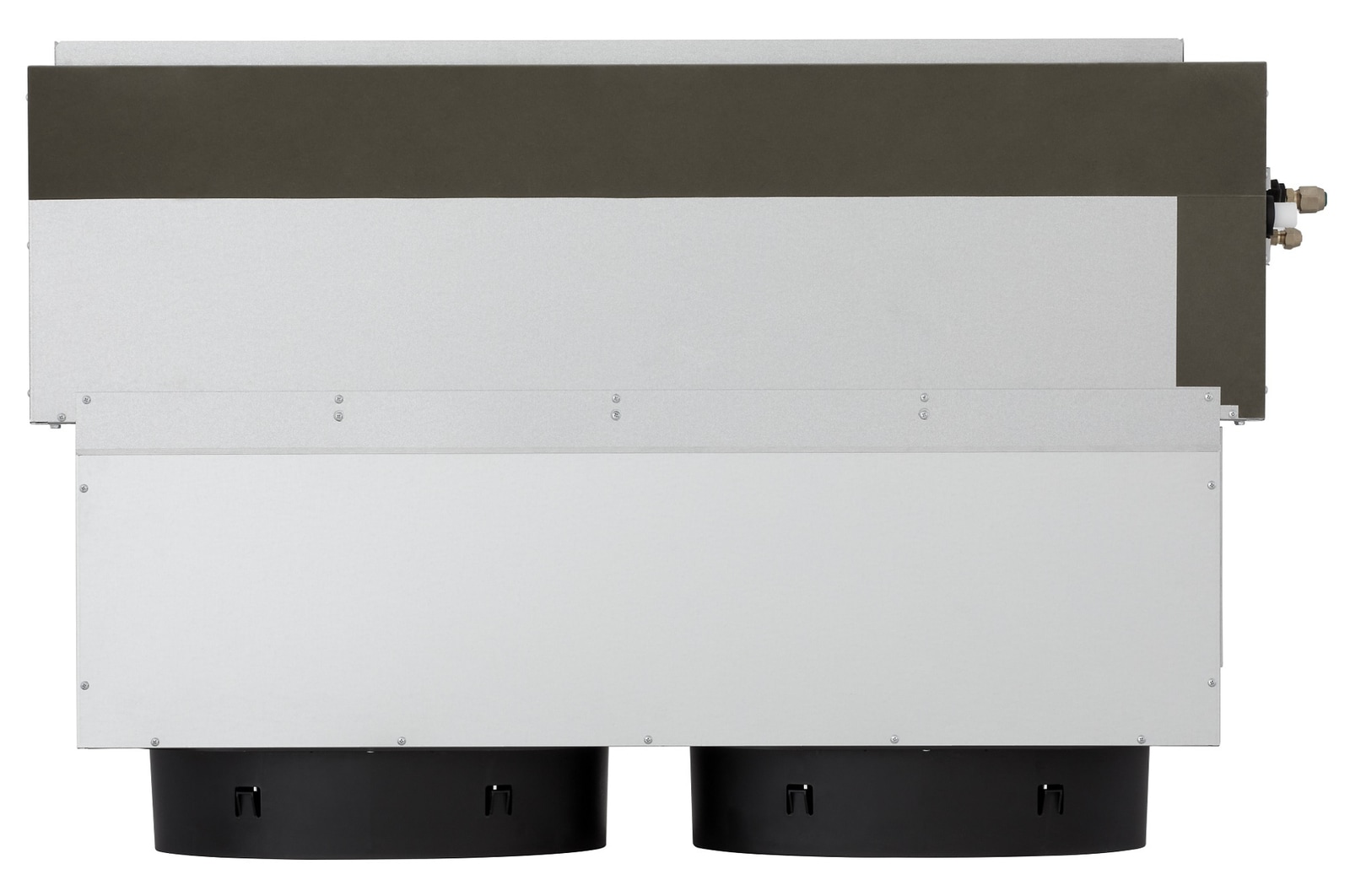

Indoor Unit Dimension_WxHxD(mm)
1250 x 360 x 820
Indoor Unit Weight(kg)
47

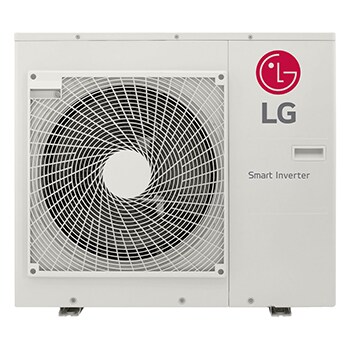

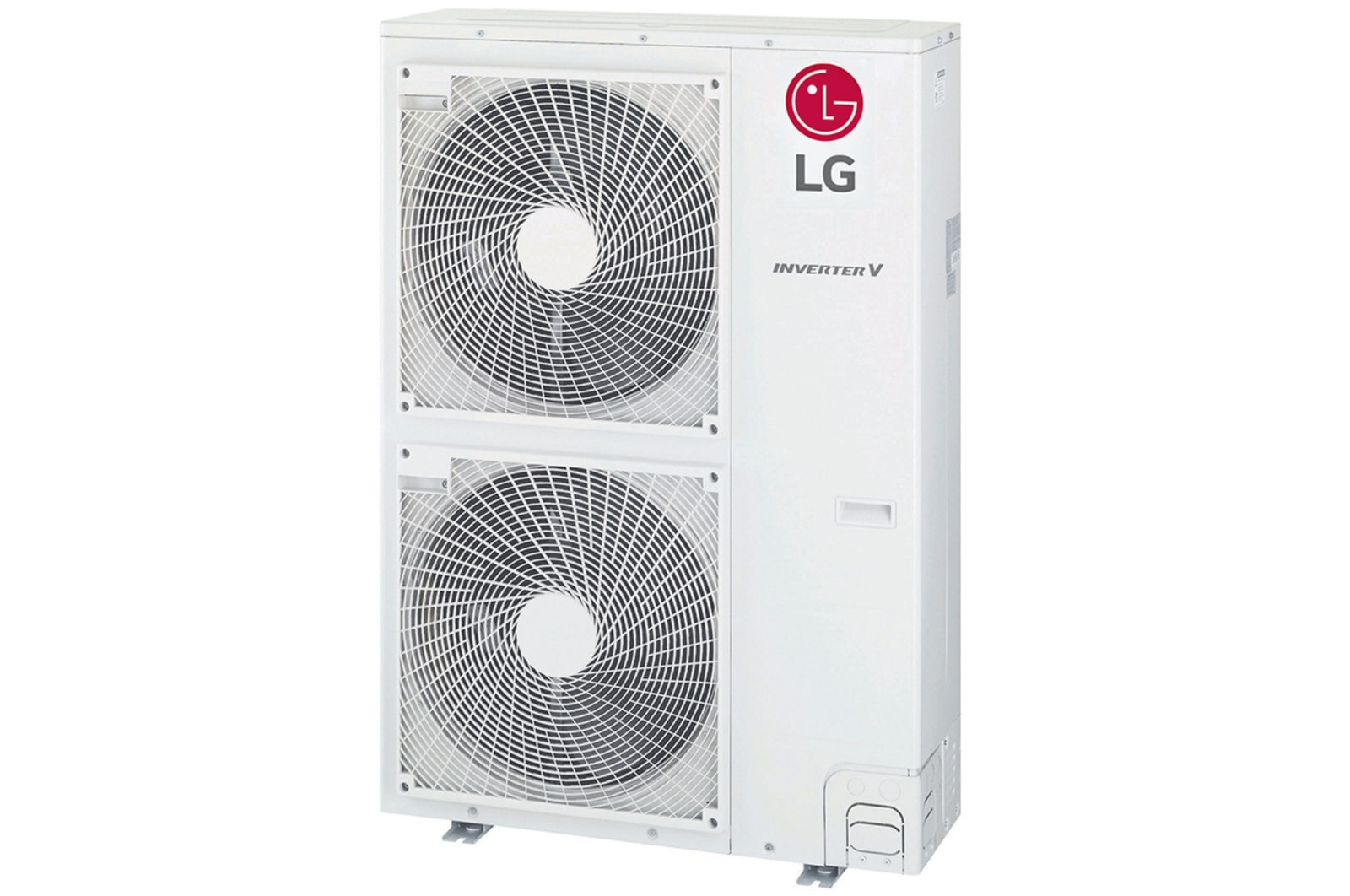

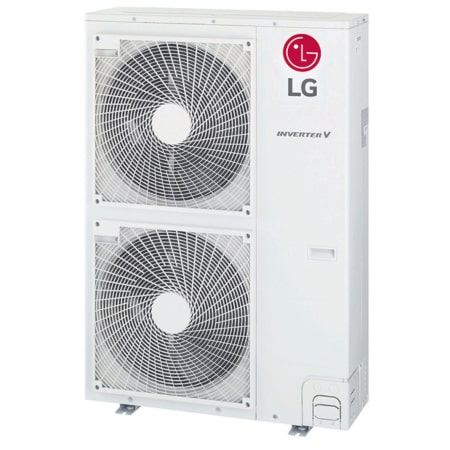

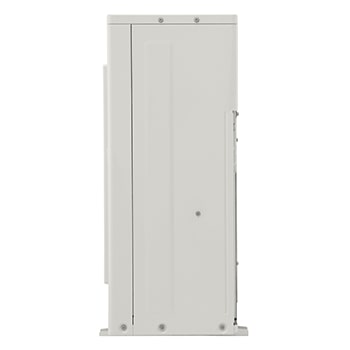

Outdoor Unit Dimension_WxHxD(mm)
950 x 1,380 x 330
Outdoor Unit Weight(kg)
89.0
Refrigerant Type
R32
ThinQ(Wi-Fi)
Optional
Cooling (Min. ~ Rated ~ Max.) (kW) (T1)
5.1 ~ 12.5 ~ 14.3
Heating (Min. ~ Rated ~ Max.) (kW)
6 ~ 15 ~ 16.2
Cooling (Rated) (kW) (T1)
12.5
Heating (Rated) (kW) (HVAC)
15
AEER / ACOP
3.68 / 3.95
HSPF (Hot/Average/Cold)
4.53 / 4.00 / 3.40
TCSPF (Hot/Average/Cold)
4.70 / 4.29 / 4.37
Cooling (A)
14.9
Heating (A)
16.9
Full Load Amps (A)
29.0
Corrosion Protection (Coating)
Black 2
Fin Type
Wide Louver Plus
Return (Oval) (mm)
2x400
Supply (W x H, Flange) (mm)
1148 x 292
Cooling (°C (DB))
-15 ~ 48
Heating (°C (WB))
-18 ~ 18
Dimensions Net (W × H × D) (mm)
1250 x 360 x 820
External static pressure High Mode_Factory Set
60 ~ 200 Pa
Fan Air Flow Rate (H / M / L) (L/sec)
1083 / 833 /480
Fan Motor Type
BLDC
Net Weight (kg)
47
Power Supply (V, Ø, Hz)
220-240 V, 1, 50 Hz
Sound Pressure Level Cooling (H / M / L) (dB(A))
46.0 / 44.0 / 42.0
Compressor Type
Inverter Scroll
Dimensions Net (W × H × D)(mm)
950 x 1,380 x 330
Drain Pipe(Natural Drainage) (mm(inch))
25.4(1) / 19.4(3/4)
Fan Motor Type
BLDC
Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) (m (ft))
30
Net Weight (kg)
89.0
Piping Connections Gas (Outer Dia.) (mm (inch))
Φ15.88 (5/8)
Piping Connections Liquid (Outer Dia.) (mm (inch))
Φ9.52 (3/8)
Piping Length (Max.) (m)
85
Power Supply (V , Ø , Hz)
220-240 V, 1, 50 Hz
Pre-charge Length
20m
Refrigerant Type
R32
Sound Pressure Level Cooling (Rated) (dB(A))
53
Sound Pressure Level Heating (Rated) (dB(A))
54
