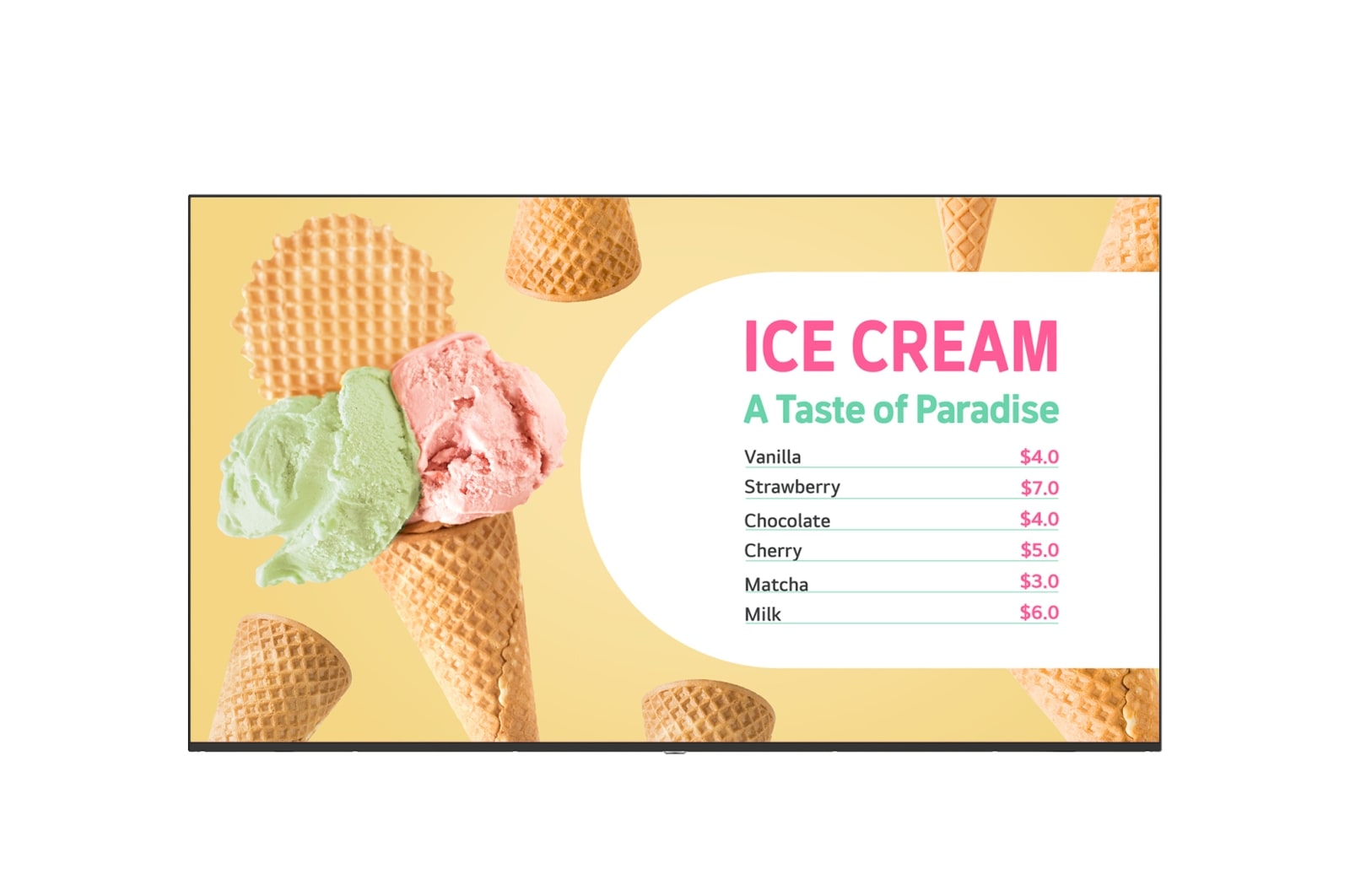

In an ice cream shop, a UM340E is installed on the wall. The screen of the UM340E displays the menu prominently, and the customer is choosing her ice cream.
* All images in this page are for illustrative purposes only.
LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard and TV signage devices. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.
An image listing five screens that can be viewed in the LG ConnectedCare DMS, a device management system.
* LG ConnectedCare DMS needs to be purchased separately.
* The availability of the LG ConnectedCare DMS service differs by region, so please contact the LG sales representative in your region for more details.
The LG ConnectedCare DMS dashboard allows you to view and monitor multiple devices at the same time, thereby saving time and boosting efficiency.
The following features are included:
Summary of connection status and device issues, List of frequently used apps, No response status, filtered by date, Checks of recent issue type, Display of scheduling history for the previous 7 days
* Up to 100 devices can be controlled via LG ConnectedCare DMS.
The user can set a threshold for receiving an warning/error signal for several categories: CPU temperature, CPU usage, etc. The current status of the issue is easily indicated in categories, enabling for quick real-time responses. Issues can be managed remotely with an LG ConnectedCare DMS solution.
Users can set thresholds including CPU Temperature, memory usage, or available storage, and can receive warning or error notifications based on their threshold settings.
An engineer can check the status in real-time and diagnose problems remotely. Also, the current status of issues can be categorized, allowing for easy viewing and quick responses.
Remote issue management can be carried out by the LG ConnectedCare DMS solution. This makes management safer and more efficient, facilitating the stable operation of the devices.
Content such as images, videos, audio messages, and live streaming can be shared from the primary system to specific devices. In case of urgent occasions such as a fire or a natural disaster, alert messages can be distributed manually across the system, which help people promptly take safety action.
Company notices are uniformly displayed on screens in the office, lobby, and break areas.
Frequently used controls such as the screen on/off, scheduling, brightness, and screen lock functions can be applied using a remote control. Additionally, IT manager can remotely install and update the apps on selected devices, which helps lessen the need for on-site response.
The IT manager can remotely control device functions such as screen on/off, scheduling, brightness adjustment, and screen lock, creating a stable usage environment.
Input power
100-240V
Power Consumption (Typ.)
115.3W
Power Consumption (Max)
140W
Power Consumption (Standby)
<0.5W
Screen Size (Diag.)
55inch
Resolution
3840*2160
Aspect Ratio
16:9
Brightness
250cd/m2(Center,Typ);200cd/m2(Center Min)
Static Contrast Ratio
1200:1（typ）
Color Gamut
68%（NTSC)
Brightness Uniformity
65%（1/9 point）
Viewing Angle(CR>10)
178°
Display area
1209.6(H) × 680.4(V)
Backlight Life（25℃）
30000H / 16hr / 7days
refresh rate
60Hz
Display mode
ADS
Surface Treatment
Haze1%,3H
SOC type
MT9632
RAM/ROM(DDR/eMMC)
2G+16G
Language
English, French, Spanish
System
Android 11.0（AOSP）
HDMI ARC、CEC
Y
Web Browser
Y
Miracast via Kindlink
Y
DMS
Yes (/w LGE support)
HDMI
HDMI*3
USB
1
RJ45 in
1
North America (D-TV : ATSC)
1
WIFI
MT7663，2T2R+BT
Built-in Speakers
2*10W
Operating Temp.
0℃~40℃
Operating Humid.
10%-80%
Bezel(off)
T/B/L/R 1.3/15.9/1.3/1.3mm
Back cover
Plastic/PC+ABS V0
Wall hanging size(mm)
200 mm(H) x 200 mm(V)
Wall hanging screws(mm)
M6*10mm
Dimension (WxHxD)
1229.7*714.2*77.1mm (with out Stand)
Stand
small
Packing
Carton
Soft AP
Yes
Bluetooth Audio playback
Yes
USB Auto playback<br> (only play, playlist )
Yes
Fail Over (only off)
Yes (only off)
Time scheduler@DMS
On / Off timer
NTP sync timer (Auto obtain network time)
Yes
To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
