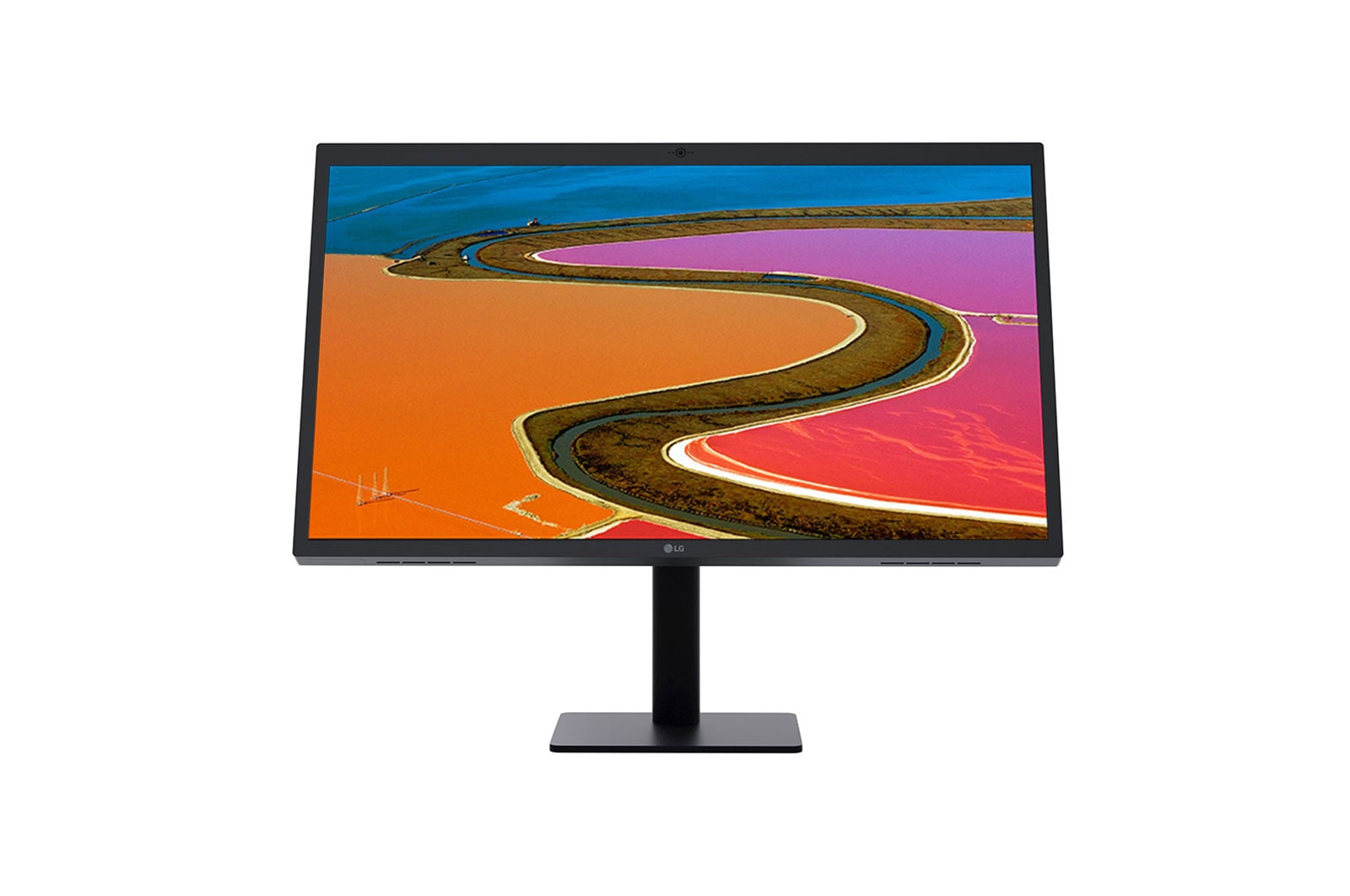

LG 27MD5KL-B 68.58cm (27) UltraFine Display Monitor - Business

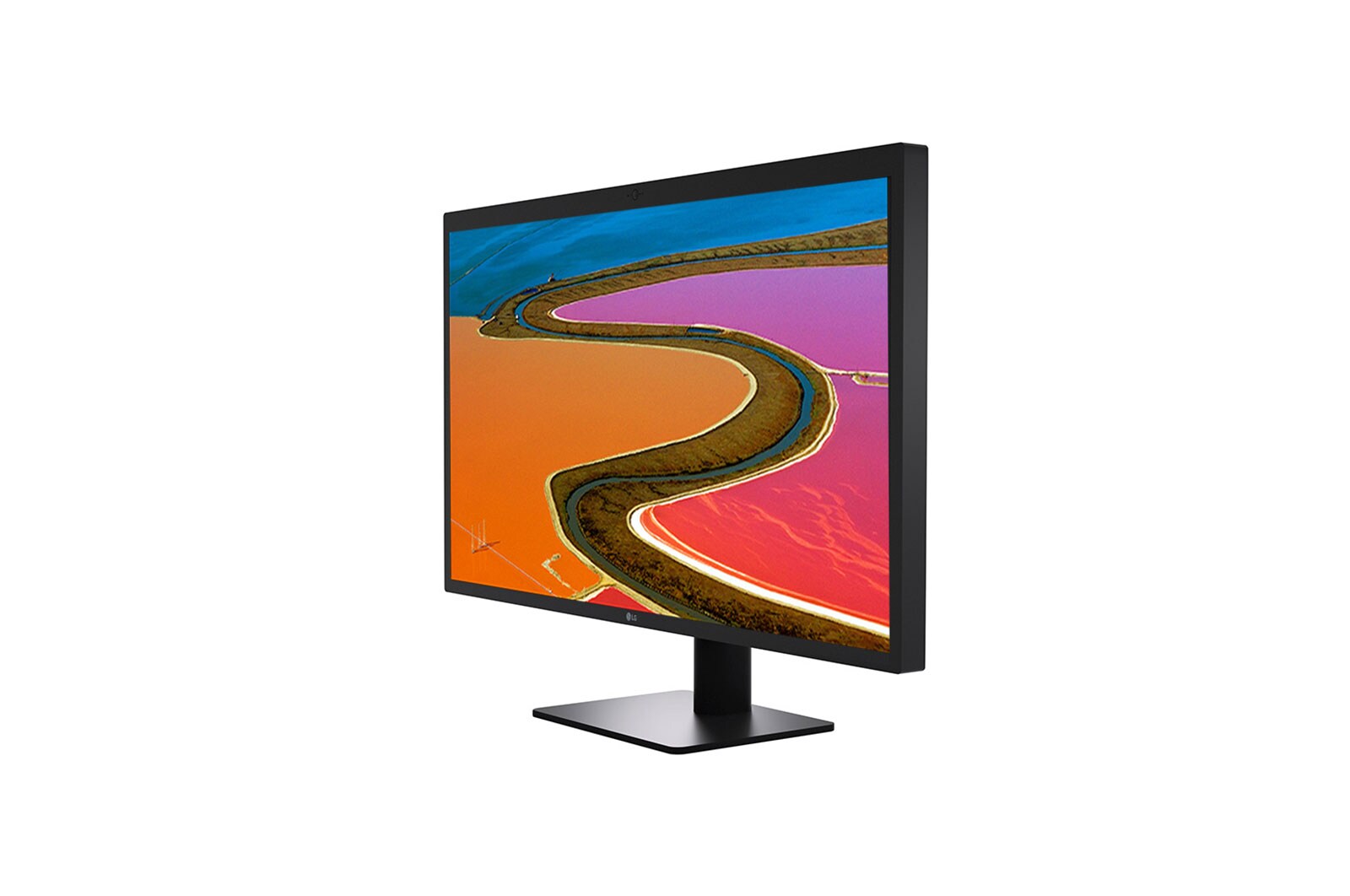

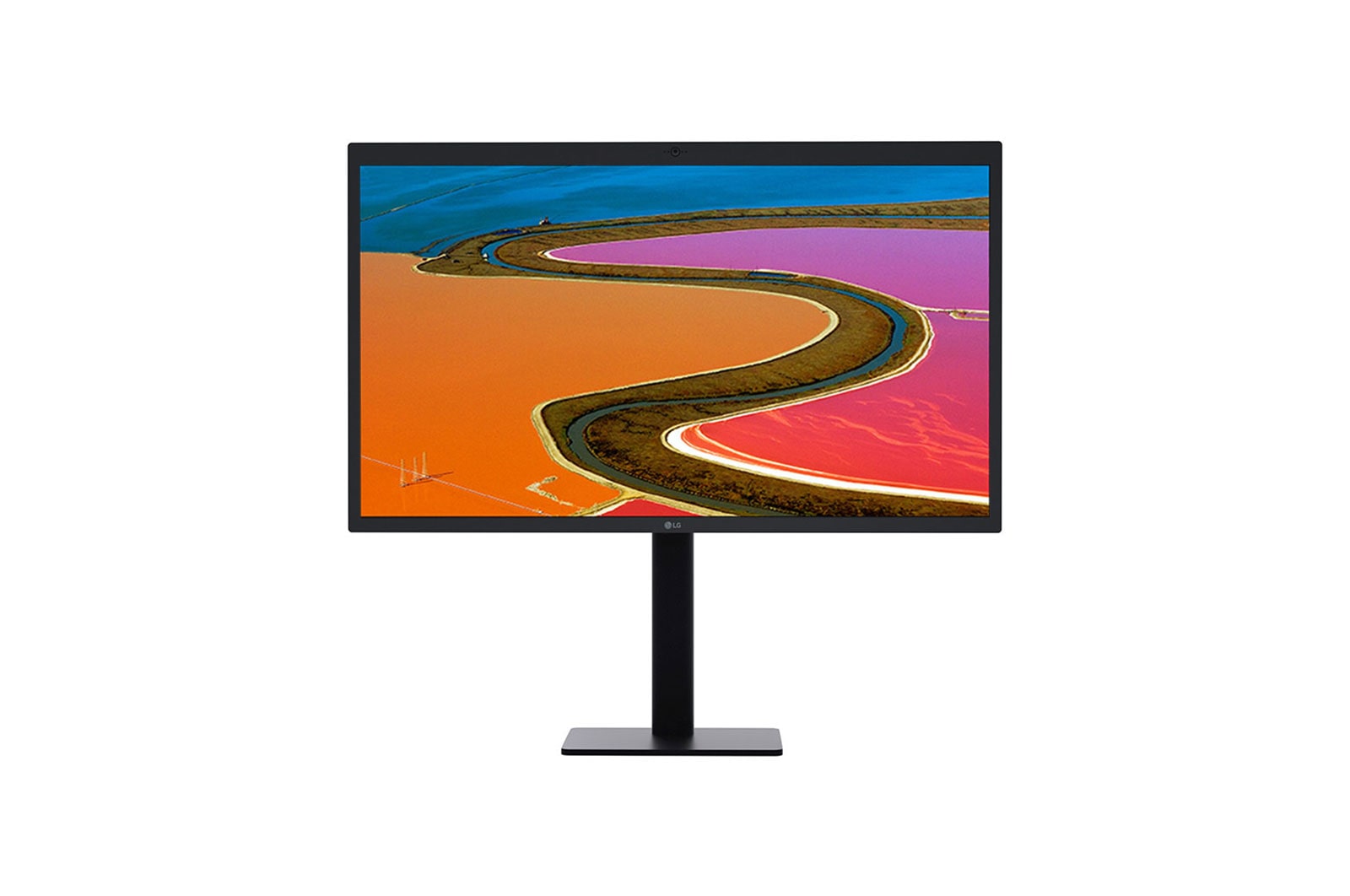

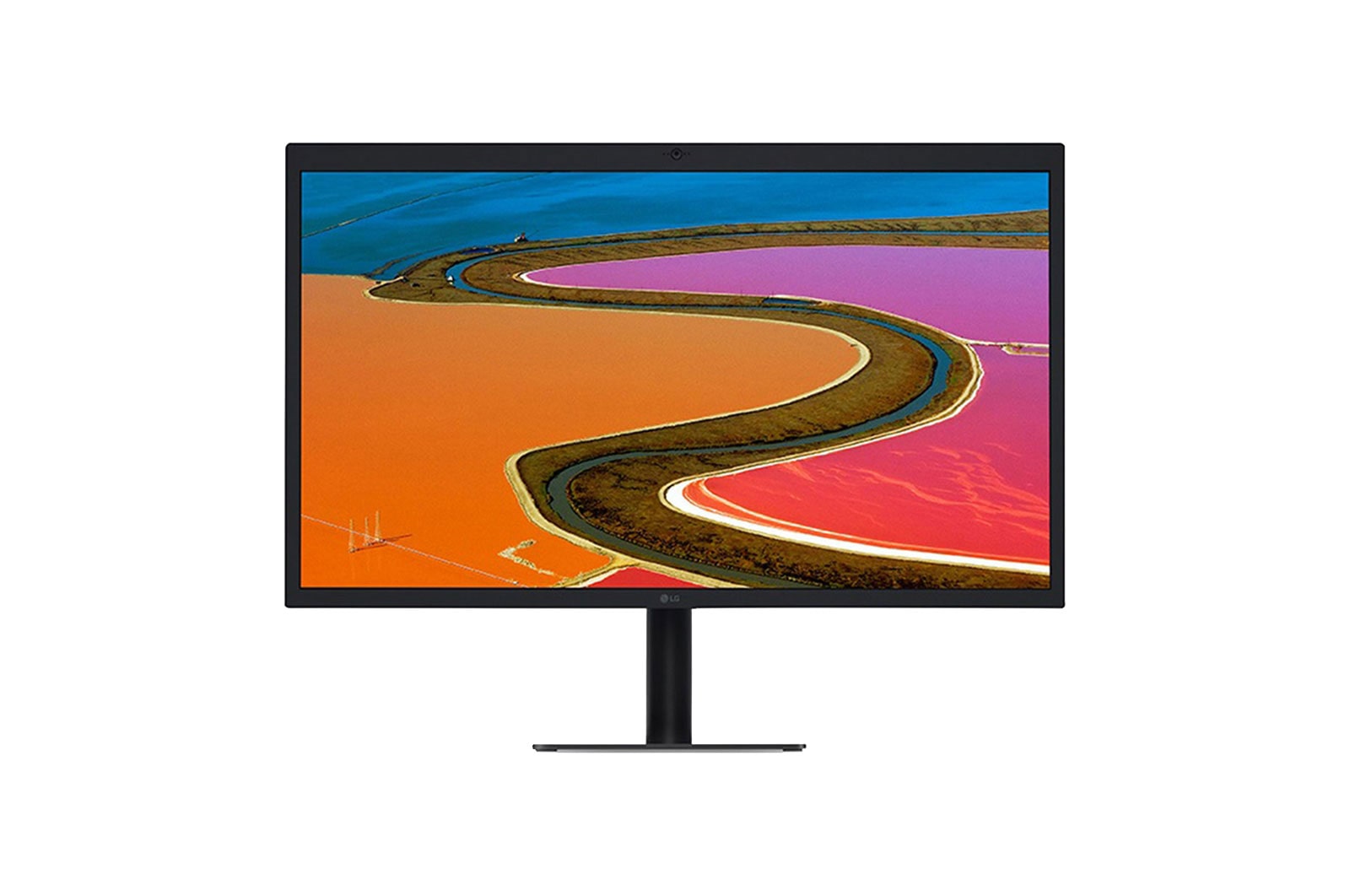

LG 27 (68.58cm) UltraFine 5K UHD Display

27MD5KL-B

Key Features

5K (5120 x 2880) IPS Display
218 PPI
P3 99%
Thunderbolt^TM 3
Built-in Camera & Speaker

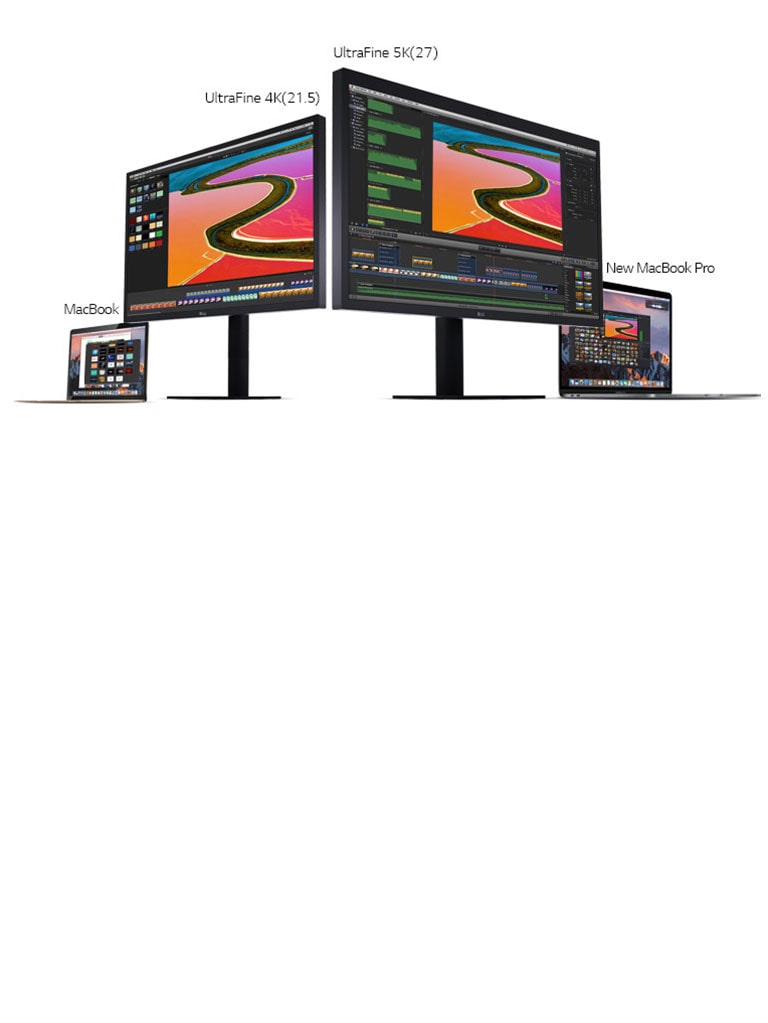

LG UltraFine 5K/4K Display

A New Way to Mac

Many have difficulty finding a compatible external display to use with their Mac, especially New MacBook Pro, but now there is an answer with the perfectly matched LG UltraFine 5K Display. And for those who use a MacBook, there is the LG UltraFine 4K Display.

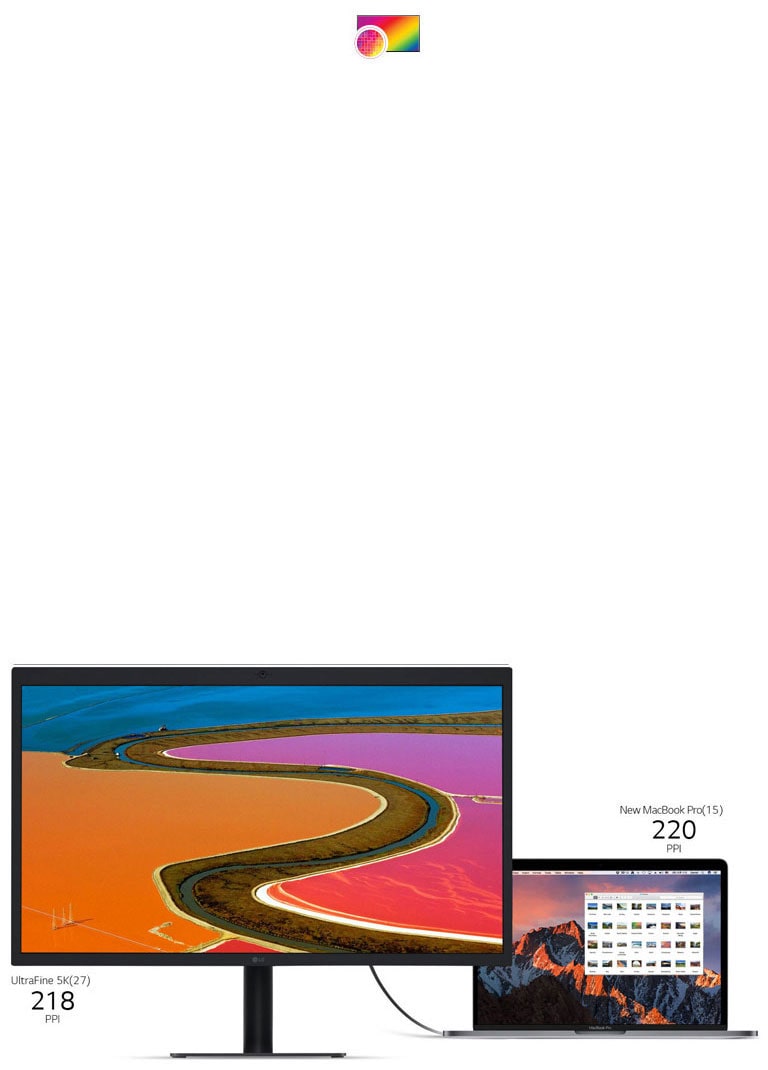

Ultra-Clear 218 PPI 5K Display

Using 218 PPI ultra-fine PPI to embody 5K(5120X2880) resolution, LG UltraFine 5K 68.58 cm (27) display provides the equivalent PPI as a New MacBook Pro Retina's display. Now, you can experience the high definition and detailed image of a Mac on a 5K large-screen display.

*PPI : On displays of the same size, a greater number of PPI produces better, clearer picture quality.

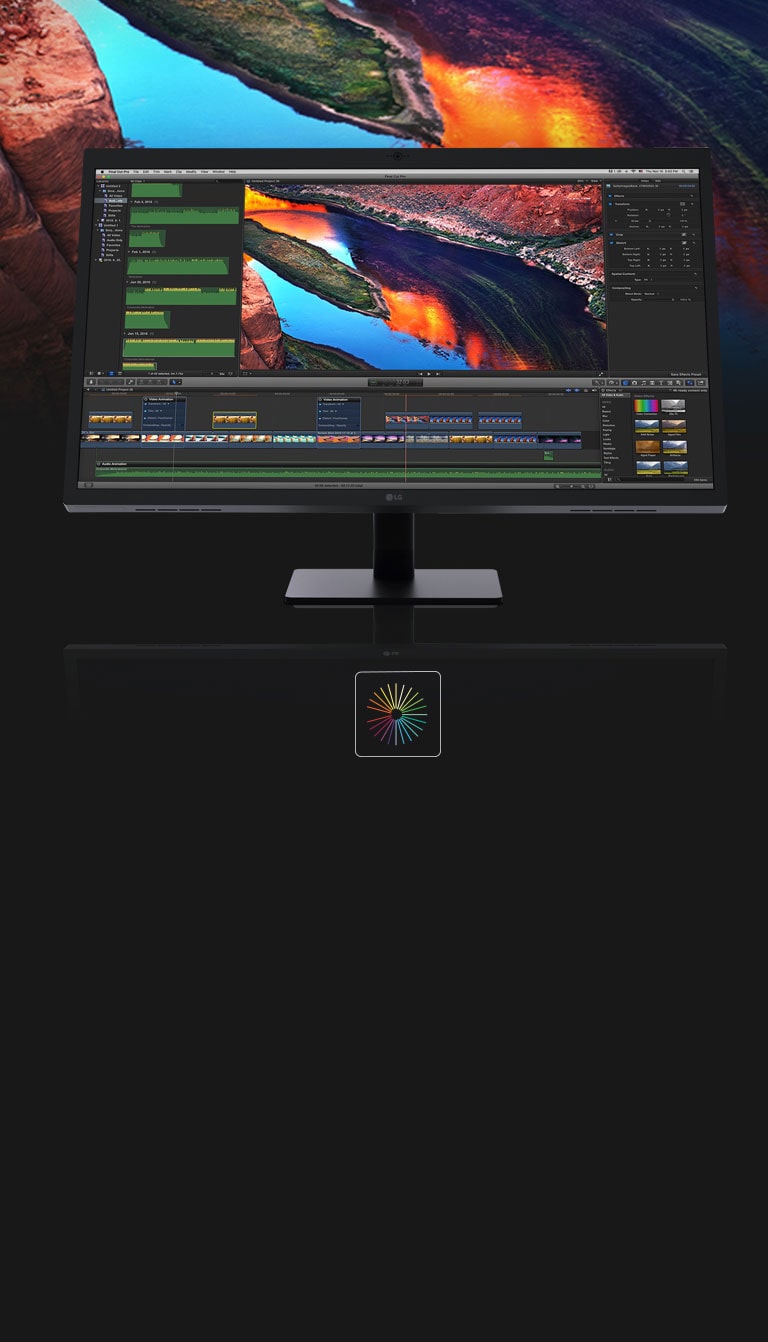

P3 99%

Rich Color, Better Detail

A color spectrum of P3 99% enables you to edit your high-resolution photos precisely and realize a perfect image. You will see more detail and richer color on the 5K high-resolution display.

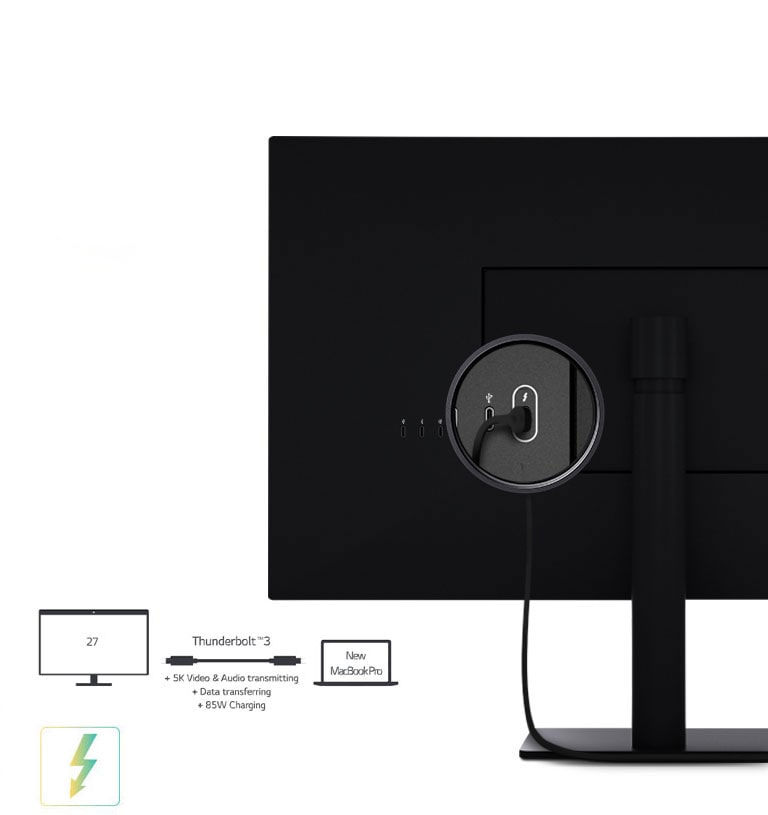

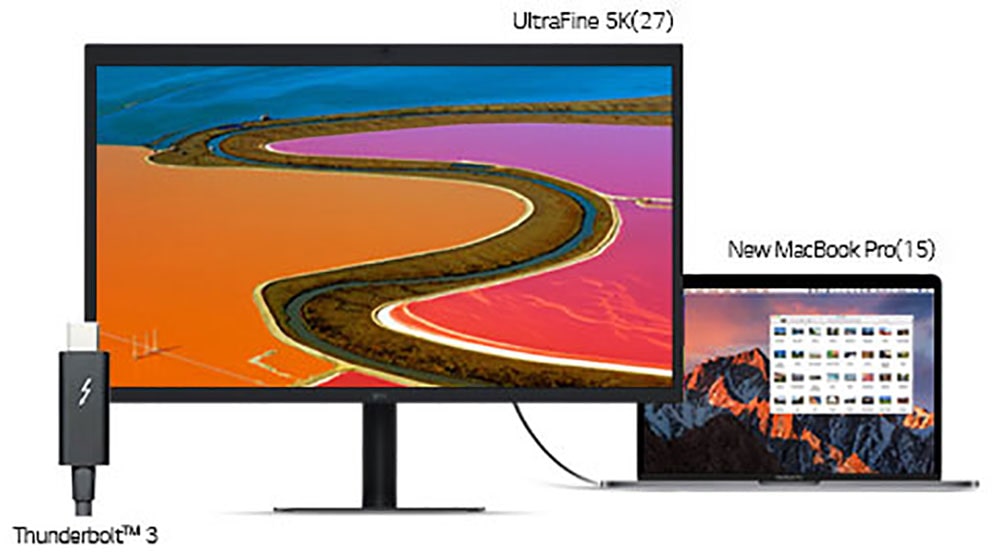

Thunderbolt^TM 3

The World's First 5K Display

The LG UltraFine 5K display boasts the world's first Thunderbolt^TM 3 port that can transmit a 5K video and data and simultaneously charge a New MacBook Pro up to 85W with just one single cable. Plus, three USB-C downstream ports (USB 5 Gbps) let you connect additional devices as needed.

Recommended Connection with UltraFine 5K Display

1. 13/15 New MacBook Pro (Late 2016)
Check your release date of Mac devices.

2. macOS Sierra 10.12.2 or later
Check your macOS version.

3. Use enclosed ‘ThunderboltTM 3 cable' in the box
The Thunderbolt 3 Cable has ‘ThunderboltTM 3 mark' on the cable.

*For more information - UltraFine 5K :
https://support.apple.com/en-us/HT207448

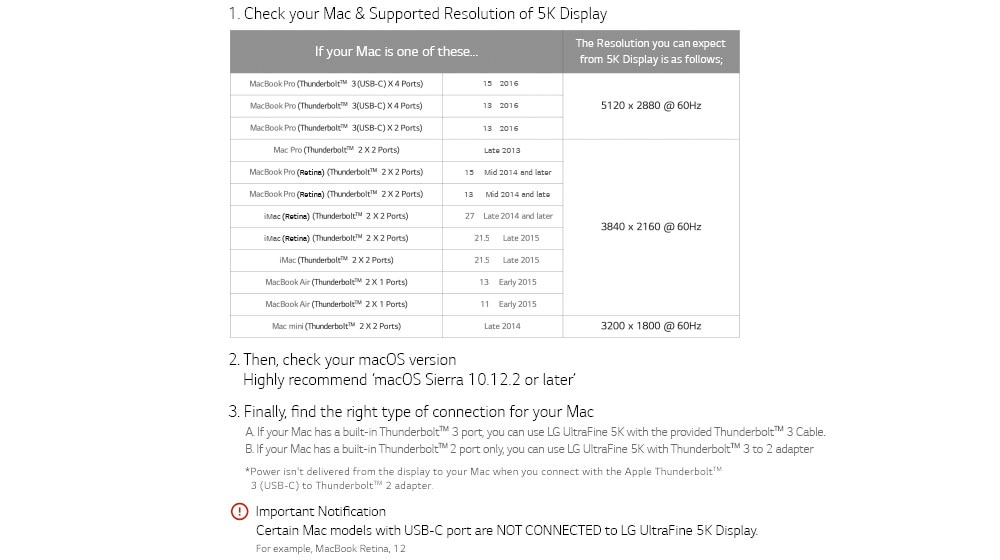

How to Connect LG UltraFine 5K Display with Your Mac

We recommend that you use the LG UltraFine 5K Display as a second monitor with Mac mini and Mac Pro, as the display might not turn on until you boot into macOS. As a result, pre-boot features such as Boot Picker and macOS Recovery might not be available on the display.

*UltraFine 5K display requires a ThunderboltTM3 enabled Mac with macOS 10.12.1 or later.

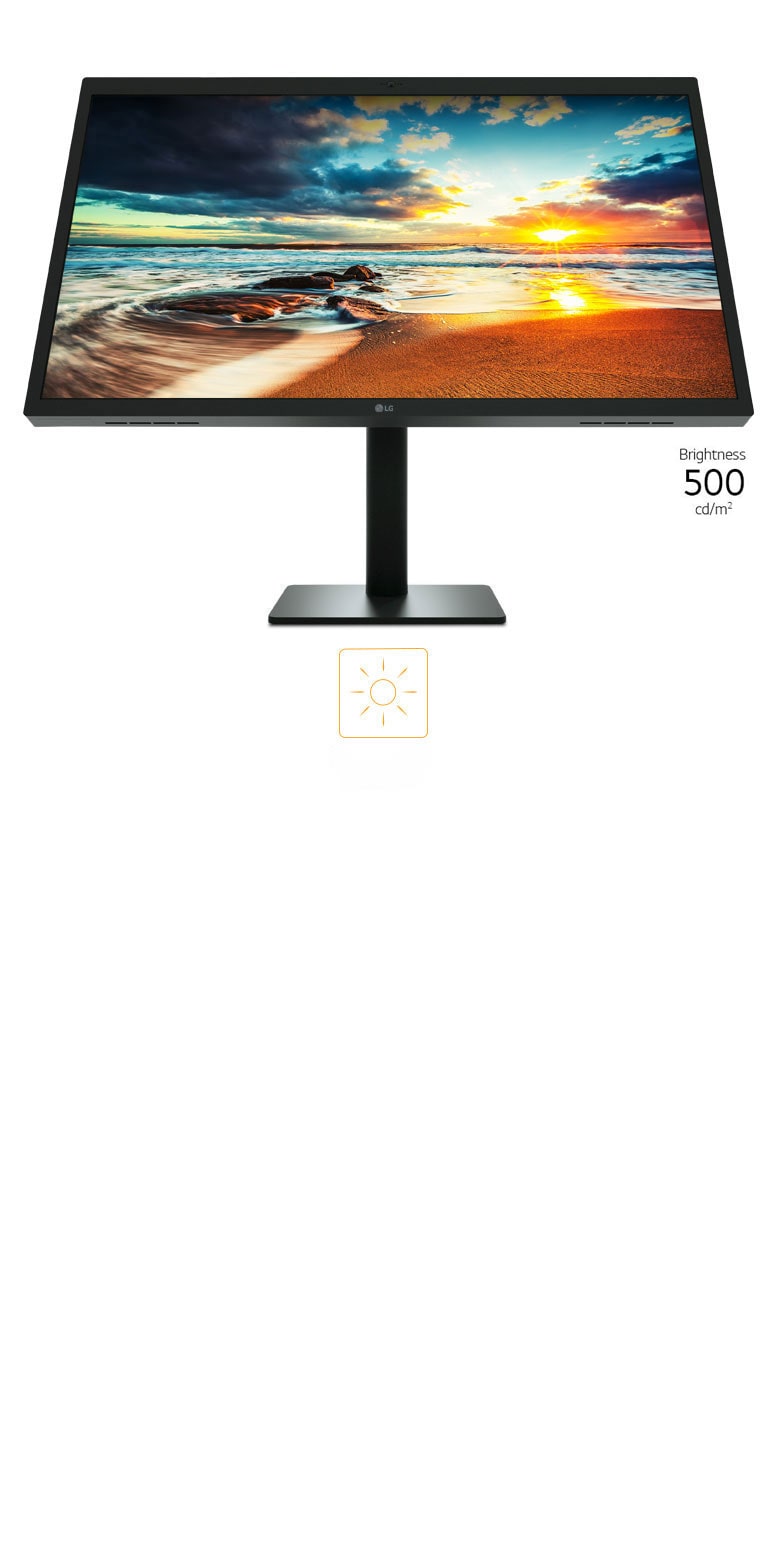

Brightness

Ultimate Visibility, The Finest Brightness

The LG UltraFine 5K display has brightness of 500cd/㎡ and can express a wide range of color and contrast. You can experience vivid, lifelike images on a screen with a 5K resolution display, which provides a truer representation of nature while you edit or work on a visual image.

*The default setting is half of the maximum brightness value, but it can be adjusted.

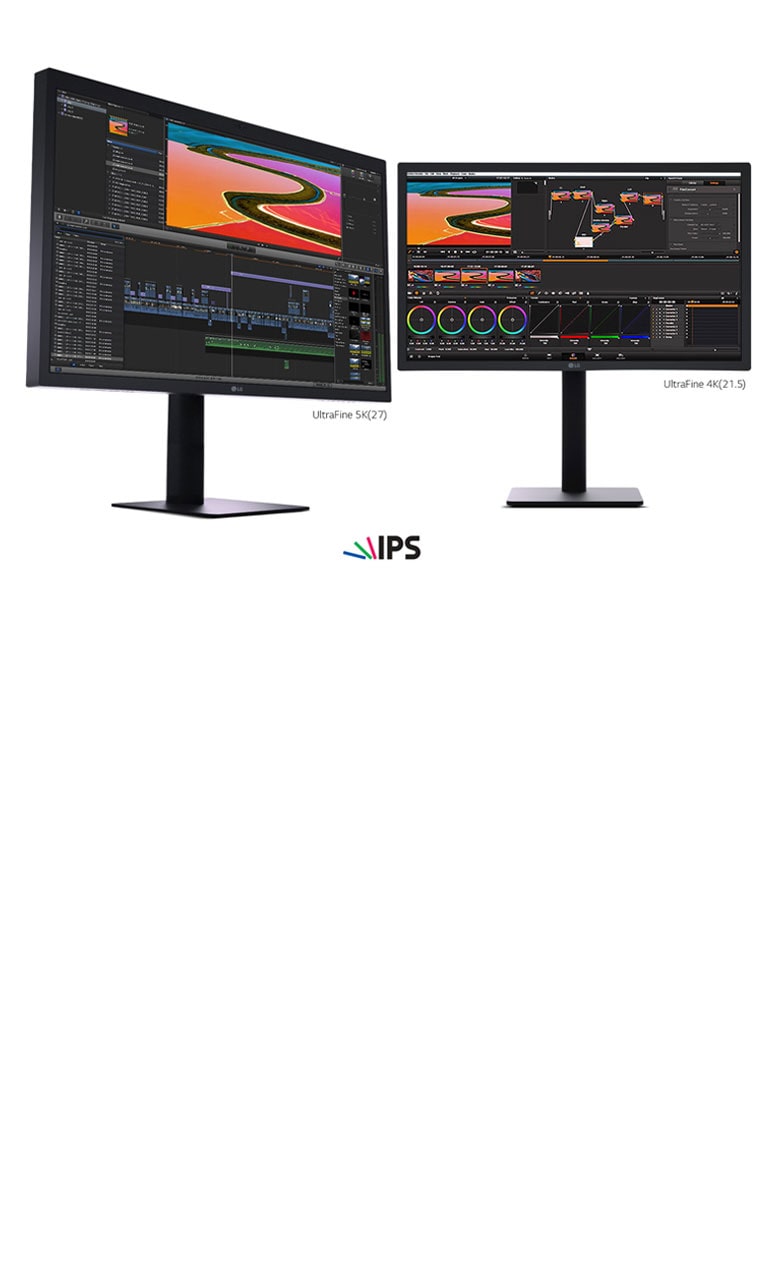

Takes Clear Visual Contents from Any Angle

The 5K high definition display with IPS minimizes color shift and delivers detailed, accurate images on the LG UltraFine 5K display. The color is consistent on the screen from edge to edge, and it conveys the perfect visual output.

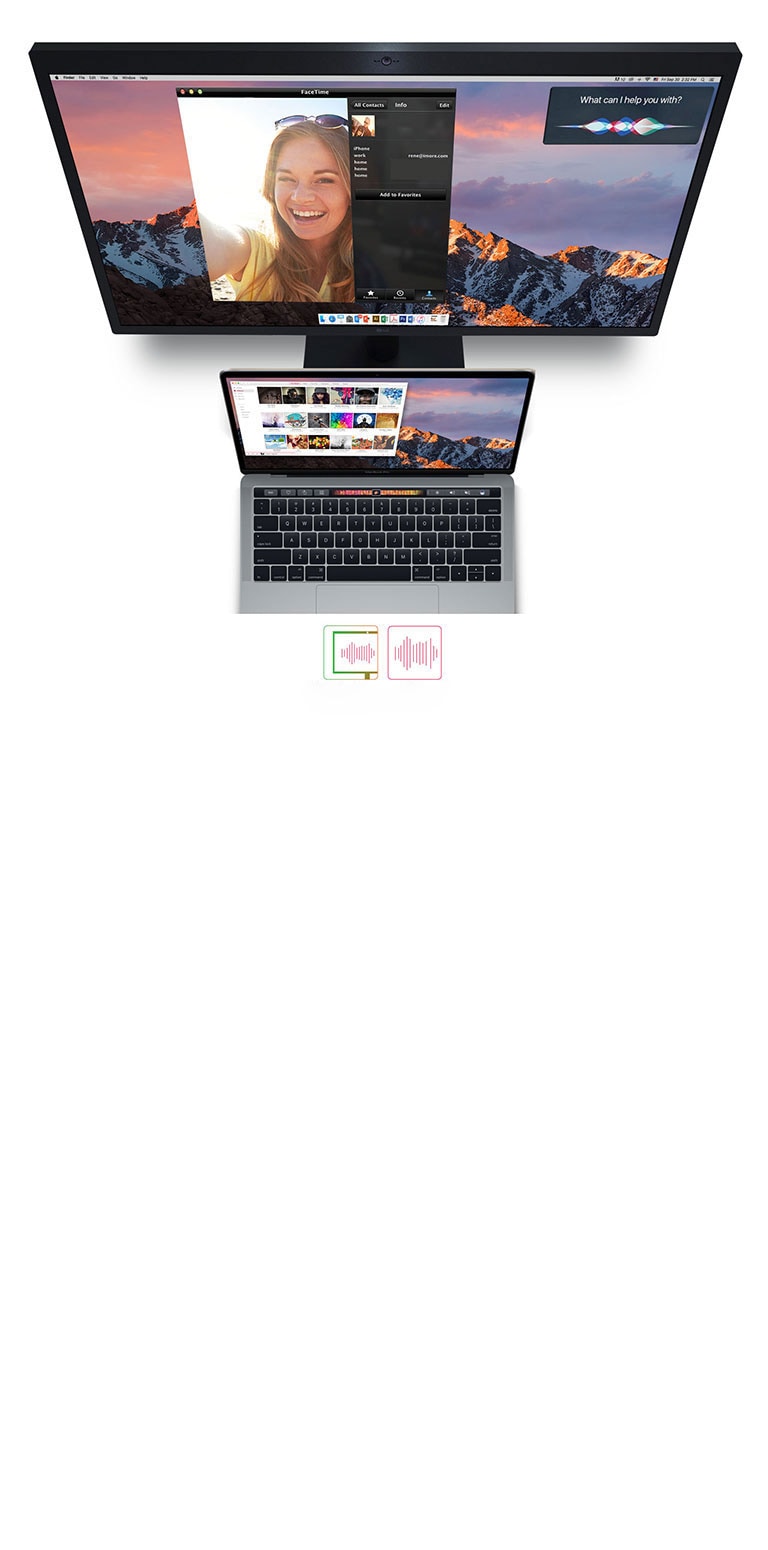

Built-in Camera & Speaker

More Live Sound, More Clear Visual in Every Scenes

The LG UltraFine 5K display* has an internal webcam** and responsive voice speaker that are perfectly suited for entertainment and communication, such as watching movies, making FaceTime calls and online chat with a clear display and great sounding speakers. It offers a more detailed, vivid picture for viewing or keeping in touch.

*UltraFine 5K Display only support ThunderboltTM 3.
**Only UltraFine 5K has built-in Webcam.

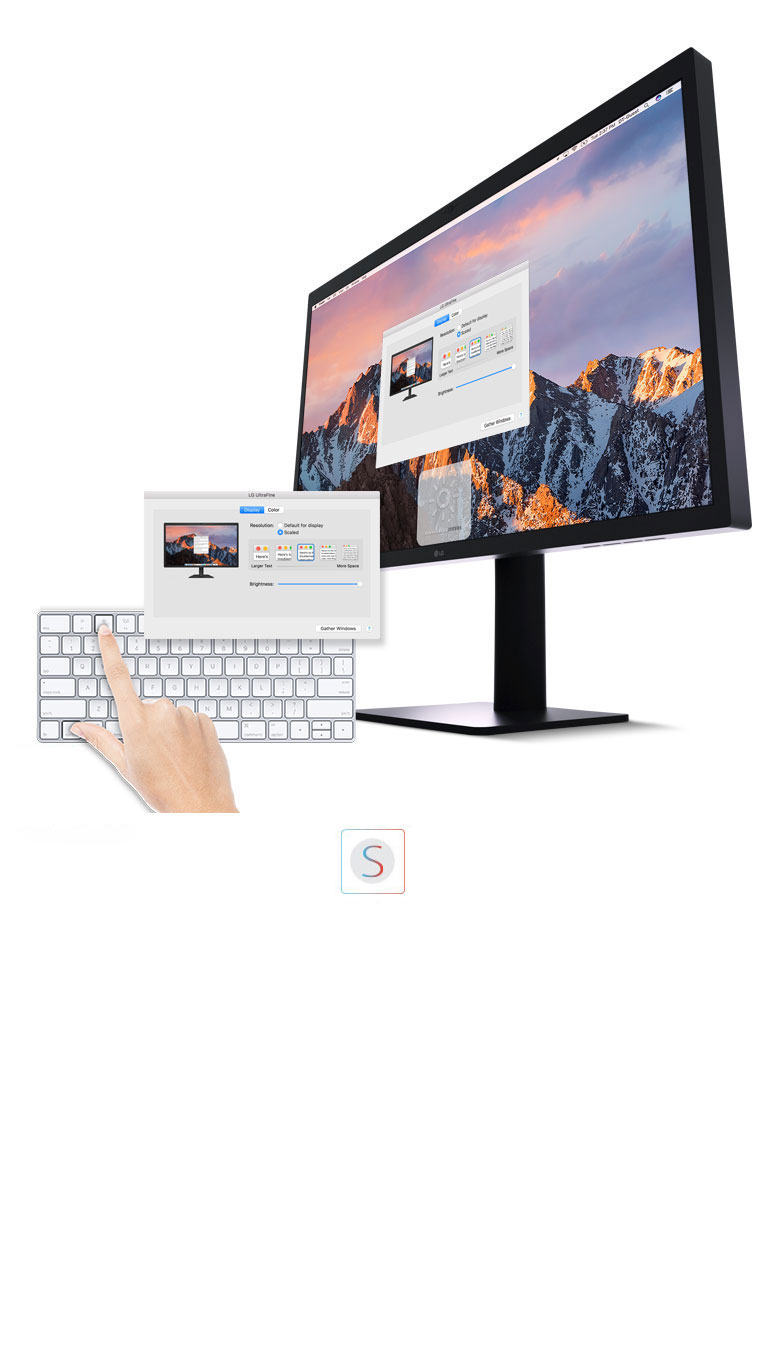

Display Control

Seamless Display Control with macOS

Detailed control of display setting, such as brightness, can be done using macOS without having to use any physical buttons.

*Adjust Display Setting > Brightness Slidebar or Ctrl + Brightness up.

App

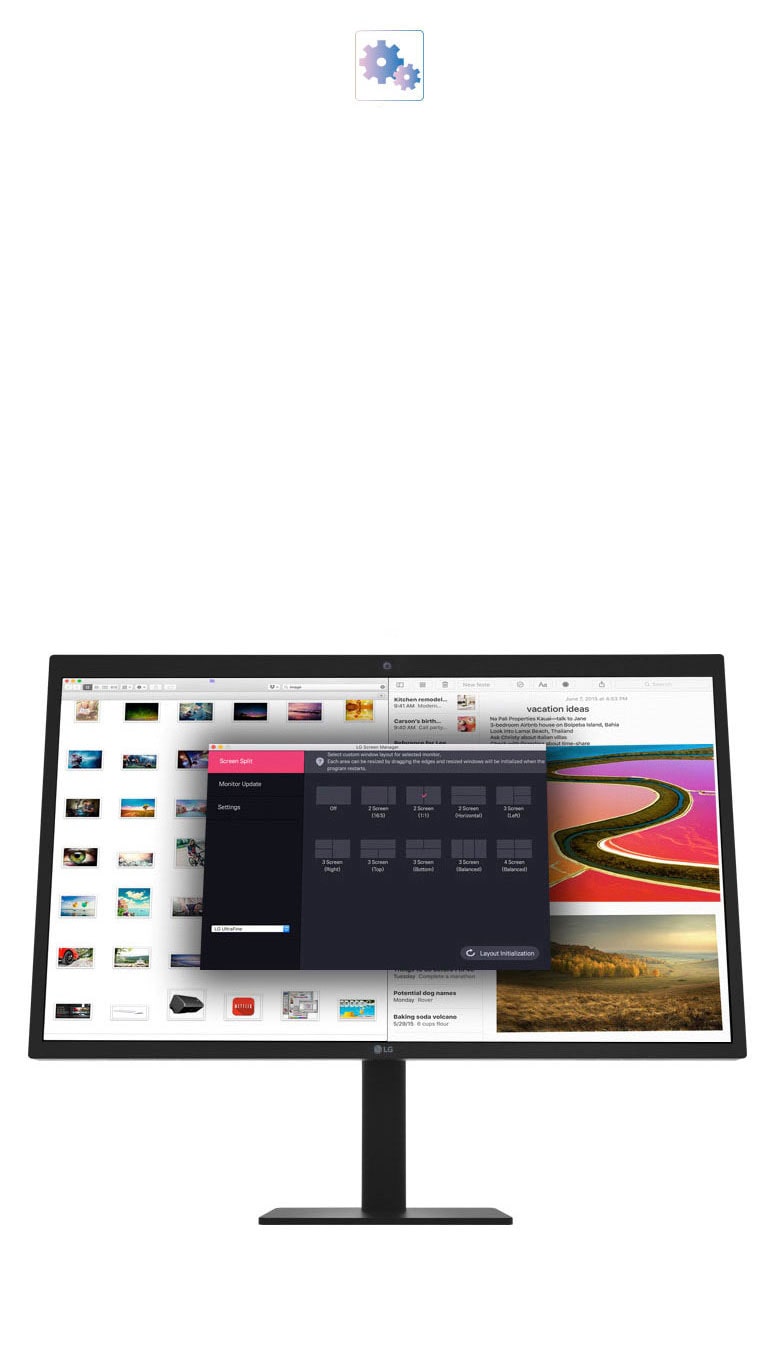

Multi-Function Screen Manager

The LG Screen Manager has been optimized for macOS to provide diverse and powerful multi-screen options. For example, it provides options such as automatic division of the screen into two to four frames in accordance with users' specific needs.

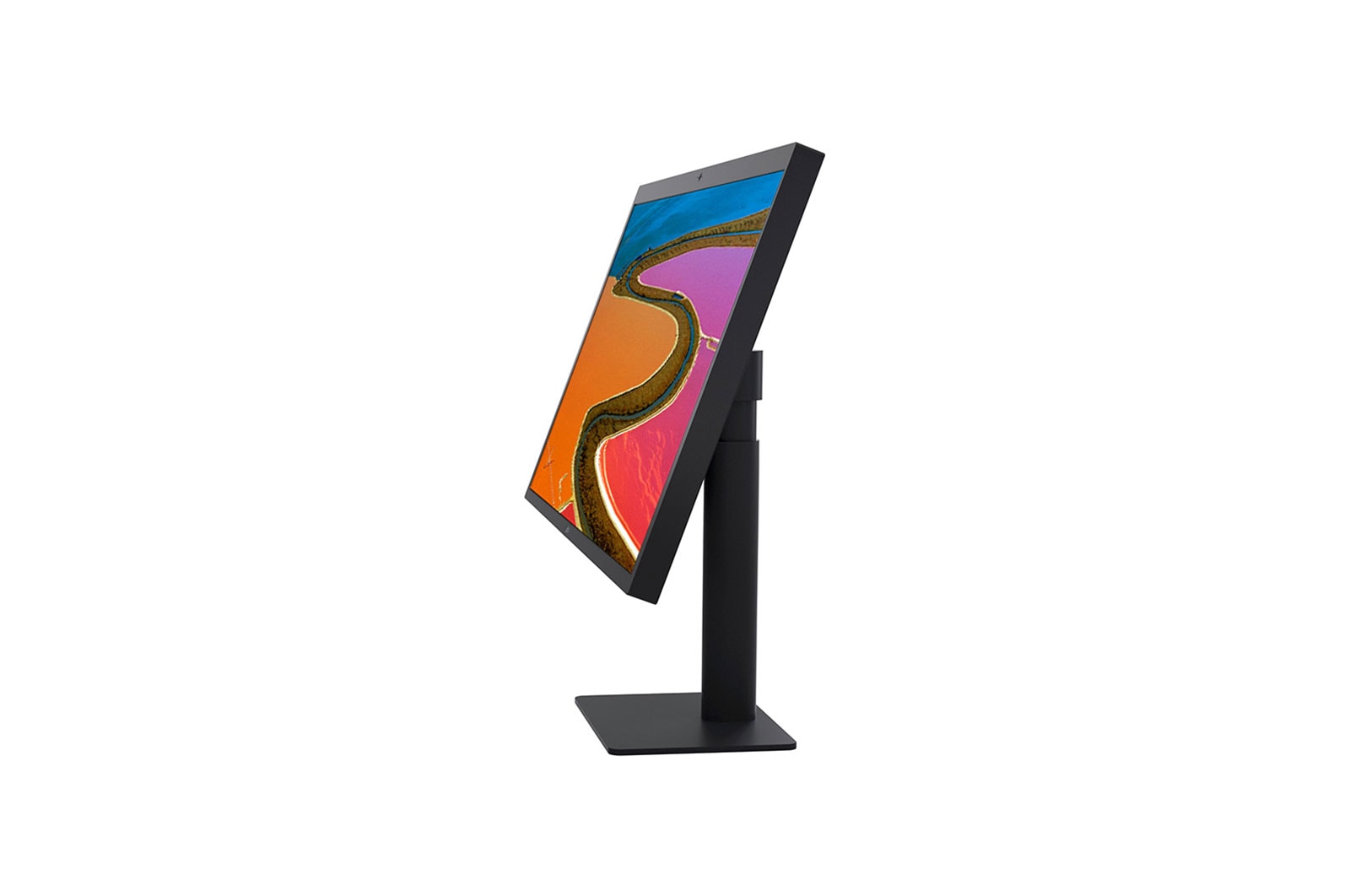

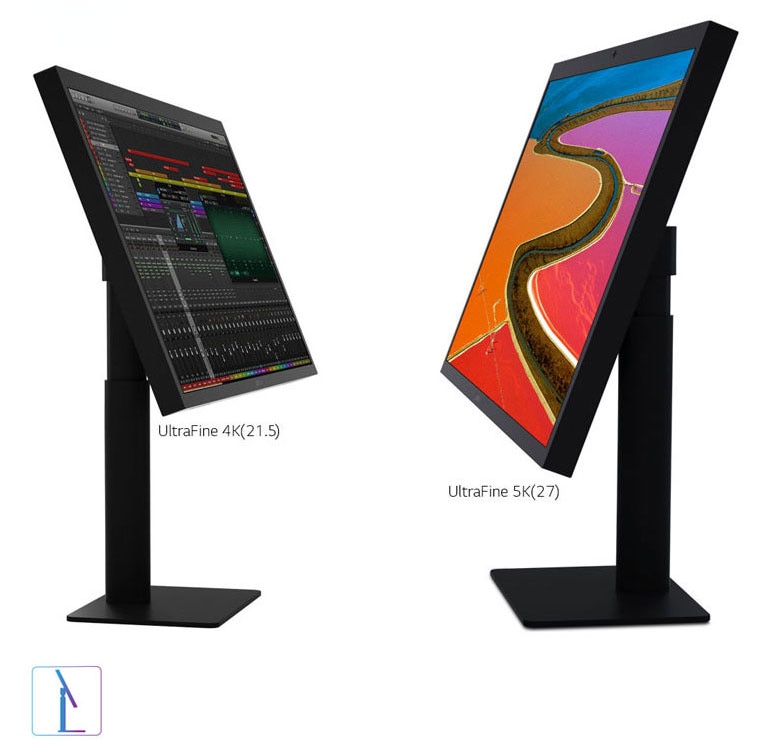

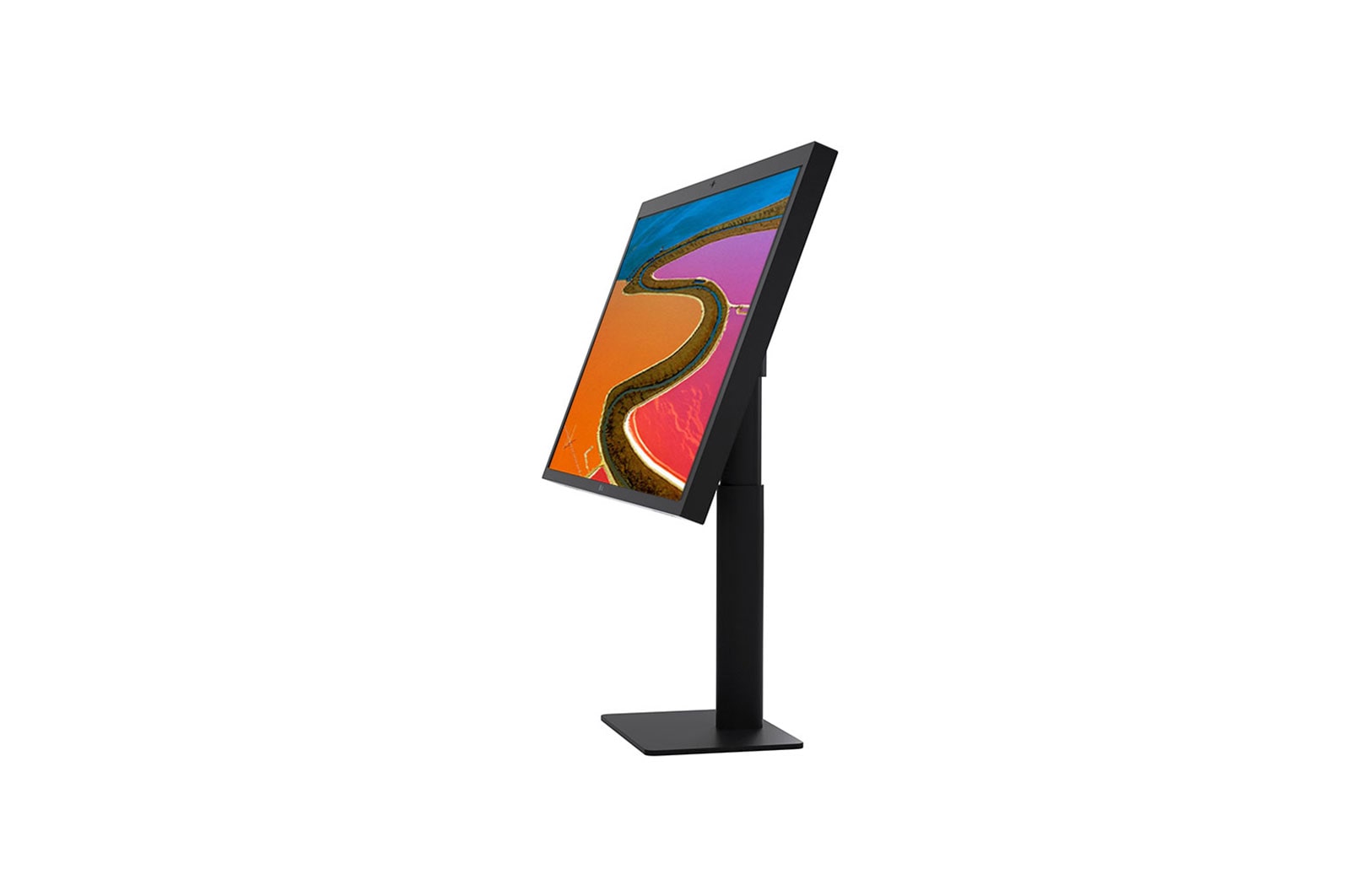

Stand

A Flexible Workstation with Adjustable Stand

LG UltraFine 5K displays have convenient height/tilt adjustment and offer an easy setup wall-mount for utilizing a VESA mount bracket. Users can customize the display height to create a more personal, comfortable environment.

*VESA mount bracket is not included in package.

Key Specs

Size [Inch]
27
Resolution
5120 x 2880
Panel Type
IPS
Aspect Ratio
16:9
Color Gamut (Typ.)
DCI-P3 99% (CIE1976)
Refresh Rate (Max.) [Hz]
60
Response Time
14ms (GtG, Not Support OD)
Display Position Adjustments
Tilt/Height

All Spec

INFO

Product name
UHD
Year
2019

DISPLAY

Size [Inch]
27
Aspect Ratio
16:9
Panel Type
IPS
Resolution
5120 x 2880
Pixel Pitch [mm]
0.11685 x 0.11685
Color Depth (Number of Colors)
1.07B
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Refresh Rate (Max.) [Hz]
60
Contrast Ratio (Typ.)
1100:1
Response Time
14ms (GtG, Not Support OD)
Color Gamut (Typ.)
DCI-P3 99% (CIE1976)
Size [cm]
68.58

CONNECTIVITY

USB Downstream Port
YES(USB-C/3ea/ver3.0)
USB Upstream Port
YES(via Thunderbolt)
Thunderbolt
YES(1ea)
Thunderbolt (Data Transsmission)
YES
Thunderbolt (Max. Resolution at Hz)
5120x2880 at 60Hz
Thunderbolt (Power Delivery)
94W

FEATURES

Camera
YES
Mic
YES

MECHANICAL

Display Position Adjustments
Tilt/Height
Wall Mountable [mm]
100 x 100

DIMENSIONS/WEIGHTS

Dimension in Shiping (W x H x D) [mm]
743 x 573 x 315
Dimension with Stand (W x H x D) [mm]
625.6 x 574.4 x 239.9(↑) 625.6 x 464.4 x 239.9(↓)
Dimension without Stand (W x H x D) [mm]
625.6 x 375.1 x 53.8
Weight in Shipping [kg]
13.5
Weight with Stand [kg]
8.5
Weight without Stand [kg]
6.4

POWER

Power Consumption (DC Off)
Less than 0.3W
Power Consumption (Typ.)
140W
Power Consumption (Max.)
200W
Power Consumption (Sleep Mode)
Less than 1.0W
AC Input
100~240V (50/60Hz)
Power Consumption (Energy Star)
45.65W
Type
Built-in Power

ACCESSORY

Others (Accessory)
Wall Mount Cover
Thunderbolt
YES
USB-C
YES

STANDARD

RoHS
YES

SOUND

Rich Bass
YES
Speaker
5W x 2

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
