LG Open Frame

Features

Gallery

Specs

Support

Resource

Find a Dealer

LG Open Frame

LG Open Frame

75XF3C
()
  • Front view of LG Open Frame 75XF3C
  • LG Open Frame, 75XF3C
  • LG Open Frame, 75XF3C
  • LG Open Frame, 75XF3C
  • LG Open Frame, 75XF3C
  • LG Open Frame, 75XF3C
  • LG Open Frame, 75XF3C
Front view of LG Open Frame 75XF3C
LG Open Frame, 75XF3C
LG Open Frame, 75XF3C
LG Open Frame, 75XF3C
LG Open Frame, 75XF3C
LG Open Frame, 75XF3C
LG Open Frame, 75XF3C

Key Features

  • Brightness : 3,000cd/m² (Typ.)
  • Life Time : 50,000 hours
  • Bezel : 11.8mm (Even bezel)
  • Depth : 123.9mm
  • Interface : HDMI (2) / DP / DVI / RJ45 / IR / RS232C / USB / SD Card / External speaker out (L/R)
More
Outstanding Visibility

High Brightness

With a great brightness of 3,000 cd/㎡, XF series clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility.

Visible with Polarized Sunglasses1
Outstanding Visibility

Visible with Polarized Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.

*Quarter Wave Plate.

Outstanding Visibility

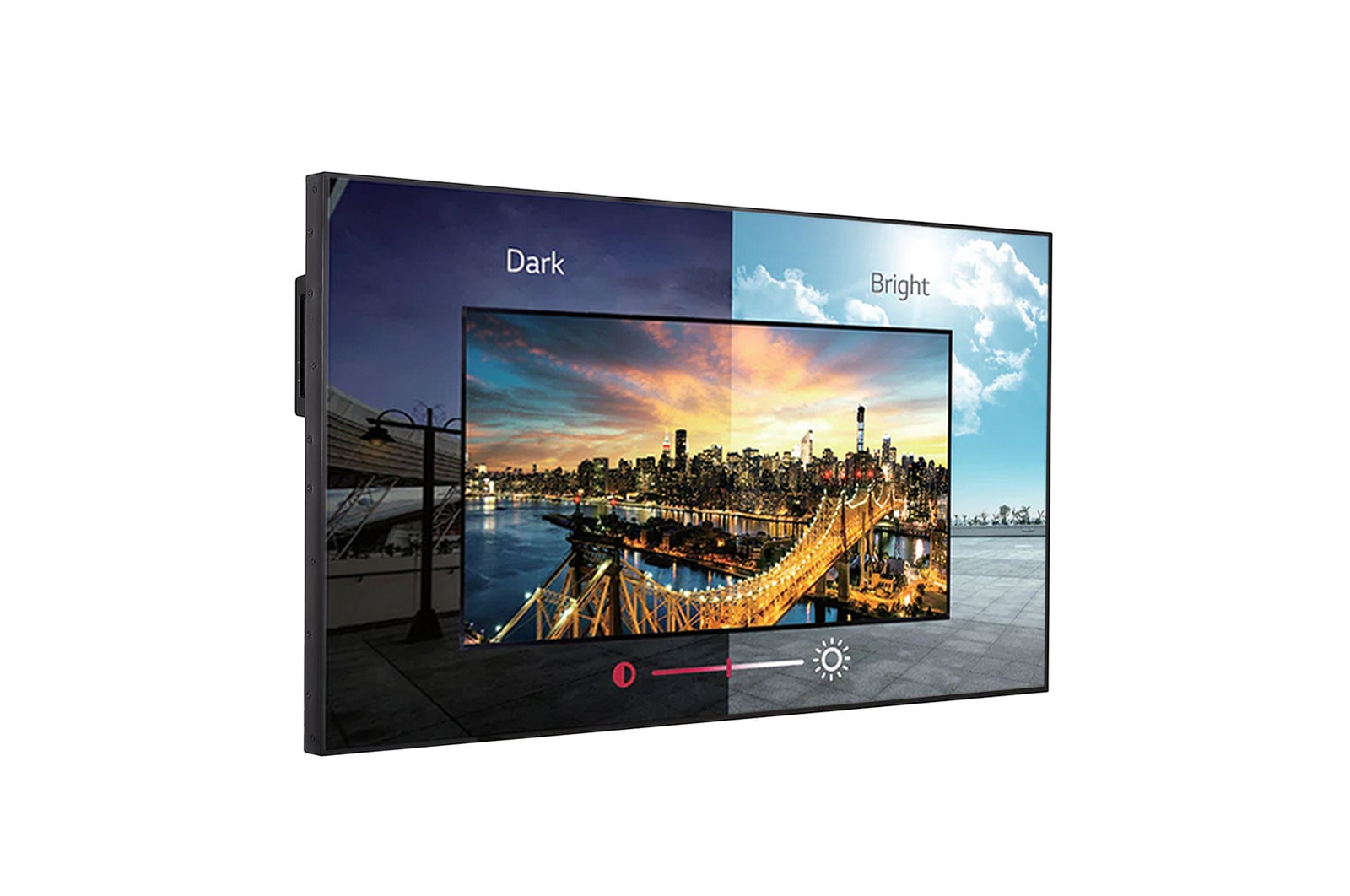

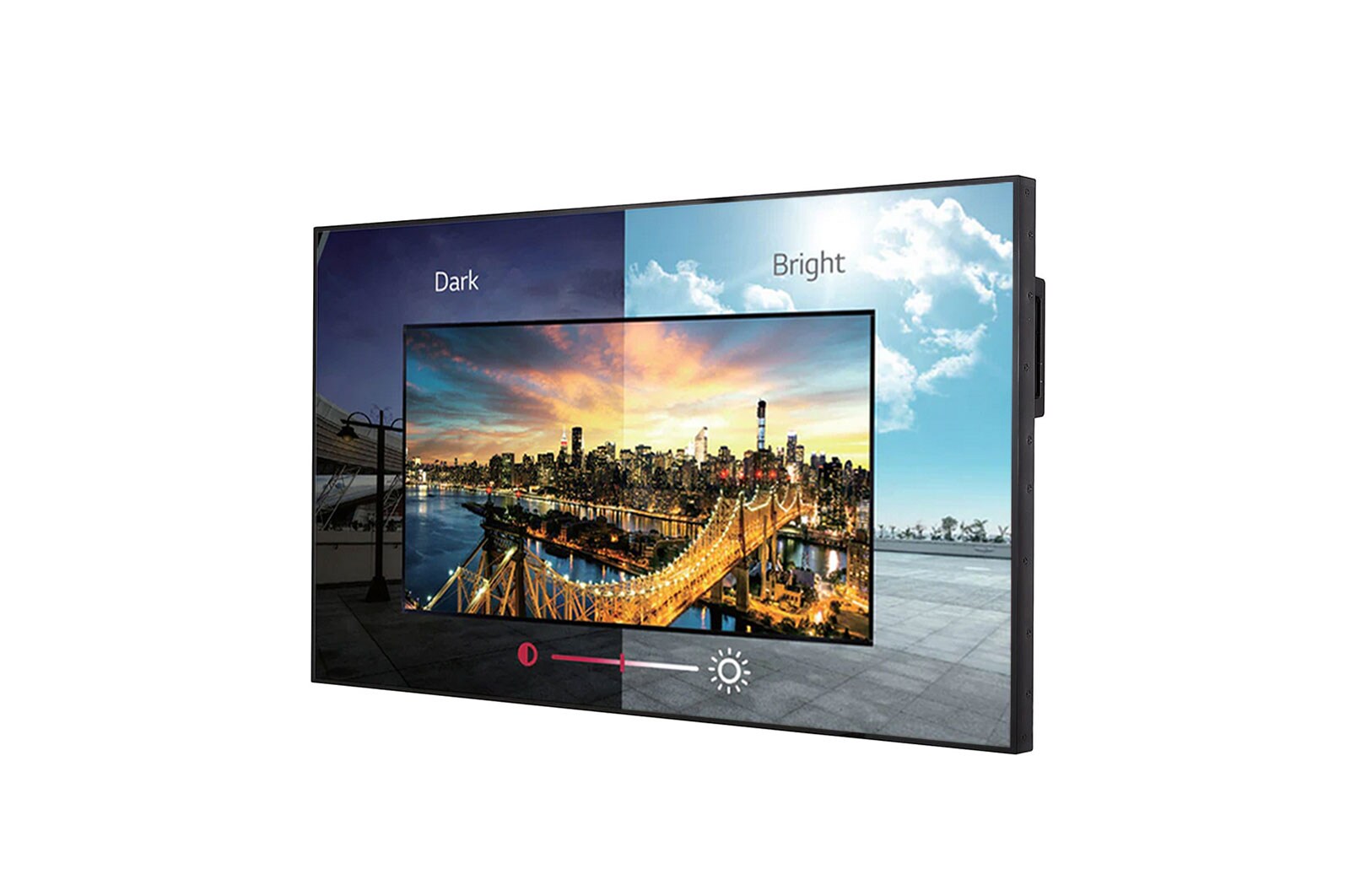

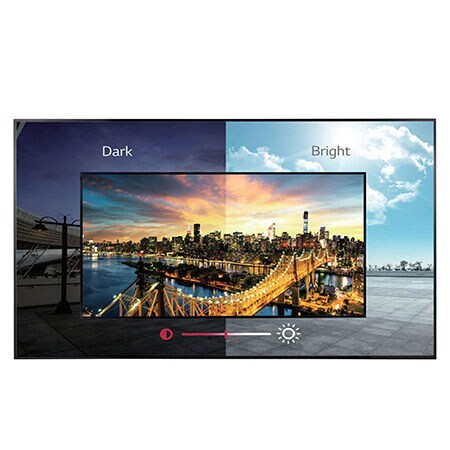

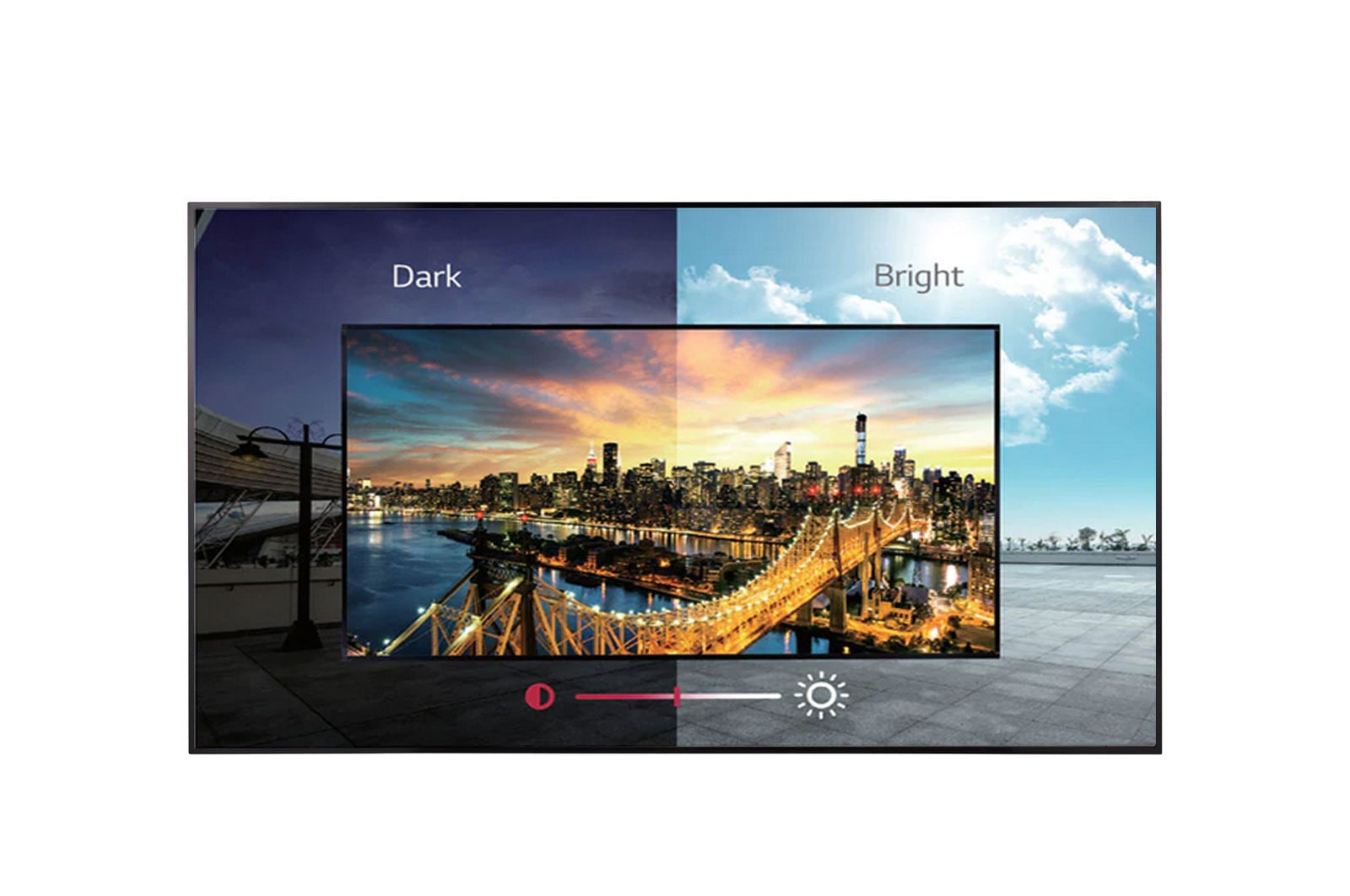

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

Product Reliability

High Operating Temperature

Its high reliability under high operating temperatures reduces additional costs for air conditioning system.

Product Reliability

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.

Easy Maintenance

High-Performance with webOS Smart Platform

Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app development tools.

*System-on-Chip.

Print

All Spec

PANEL

  • Screen Size (Inch)

    75

  • Panel Technology

    IPS / M+

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60Hz

  • Brightness

    3,000nit (Typ., with Glass)

  • Dynamic CR

    500,000:1

  • Color Gamut

    NTSC 72%

  • Viewing Angle (H x V)

    178º x 178º

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    Haze 3%

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    YES / YES

  • Transparency

    N/A

  • QWP (Quarter Wave Plate)

    YES

CONNECTIVITY

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    2.2

  • DP In

    YES (HDCP 1.3)

  • DVI-D In

    YES

  • RGB In

    NO

  • Audio In

    YES

  • RS232C In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • IR In

    YES

  • USB In

    USB3.0 Type A (1ea)

  • HDMI Out

    NO

  • DP Out

    YES

  • Audio Out

    NO

  • Touch USB

    NO

  • External Speaker Out

    YES

  • RS232C Out

    YES

  • RJ45(LAN) Out

    NO

  • IR Out

    NO

  • Daisy Chain

    NO

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    Even bezel : 11.8mm

  • Weight (Head)

    36.7Kg

  • Packed Weight

    46.3Kg

  • Monitor Dimensions (W x H x D)

    1675.2 x 953.6 x 123.9mm

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Handle

    YES

  • VESA Standard Mount Interface

    N/A

  • Carton Dimensions (W x H x D)

    1816 x 1106 x 285mm

  • Weight (Head+Stand)

    N/A

PROTECTION GLASS

  • Thickness

    N/A

  • Degree of Protection

    N/A

  • Tempered / Chemical strengthening

    N/A

  • Anti-Reflective

    N/A

  • Infrared - Resistance (IR)

    N/A

  • Shatter-Proof

    N/A

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    8GB

  • Wi-Fi/BT (Built-in)

    NO

  • Temperature Sensor

    YES

  • Auto Brightness Sensor

    YES

  • Pixel Sensor

    NO

  • Proximity Sensor

    NO

  • Current Sensor

    NO

  • BLU Sensor

    NO

  • Humidity Sensor

    YES

  • Acceleration(Gyro) Sensor

    NO

  • Power Indicator

    NO

  • Local Key Operation

    NO

  • FAN (Built-in)

    YES

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS 3.0

  • Local Contents Scheduling

    YES

  • Group Manager

    NO

  • USB Plug & Play

    YES

  • Fail Over

    YES

  • Booting Logo Image

    YES

  • No Signal Image

    NO

  • RS232C Sync

    NO

  • Local Network Sync

    YES

  • Backlight Sync

    YES

  • PIP

    NO

  • PBP

    NO

  • Screen Share

    NO

  • Video Tag

    YES (2 Video Tag)

  • Play Via URL

    NO

  • Screen Rotation

    YES

  • External Input Rotation

    YES

  • Gapless Playback

    YES

  • Tile Mode Setting

    YES

  • Setting Data Cloning

    YES

  • SNMP

    YES

  • ISM Method

    YES

  • Auto Set ID

    YES

  • Status Mailing

    YES

  • Control Manager

    YES

  • Cisco Certification

    NO

  • Crestron Connected

    NO

  • Smart Energy Saving

    YES

  • PM mode

    YES

  • Wake on LAN

    YES

  • Network Ready

    NO

  • BEACON

    NO

  • HDMI-CEC

    YES

  • SI Server Setting

    YES

  • webRTC

    NO

  • Pro:Idiom

    NO

  • Brightness Compensation

    NO

  • W/B Setting by Grey scale

    NO

  • Scan Inversion

    NO

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 50 °C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 40 °C (Direct Sunlight)

  • Operation Humidity

    10 % to 85 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    2252 BTU/Hr(Typ.), 2371 BTU/Hr(Max.)

  • DPM

    0.5W(DP), 1.0W(DVI-D, HDMI)

  • Power off

    0.5W

  • Max.

    695W

  • Typ.

    660W (Full White) 403W (IEC 62087)

SOUND

  • Speaker (Built-in)

    NO

CERTIFICATION

  • Safety

    UL Recognized / CB

  • EMC

    FCC Class "A" / CE / KC

  • ERP / Energy Star

    NO / NO

  • ePEAT(US only)

    NO

OPS COMPATIBILITY

  • OPS Type compatible

    NO

  • OPS Power Built-in

    NO

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    YES

  • SuperSign Control+

    NO

  • SuperSign WB

    NO

  • SuperSign Cloud

    NO

  • Mobile CMS

    NO

  • Connected Care

    NO

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

  • Basic

    HDMI Cable, Wired IR & Brightness Sensor [5Pin]

  • Optional

    Pixel Sensor

SPECIAL FEATURE

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face up)

    N/A

  • Tilt (Face down)

    N/A

  • IP Rating

    N/A

  • Conformal Coating (Power Board)

    YES

  • Power Protection

    N/A

  • Direct Sunlight

    YES

DEDICATED FEATURE - TOUCH

  • Available Object Size for Touch

    N/A

  • Response Time ('Paint' app on Windows 10 PC)

    N/A

  • Accuracy (Typ.)

    N/A

  • Interface

    N/A

  • Protection Glass Thickness

    N/A

  • Protection Glass Transmission

    N/A

  • Operating System Support

    N/A

  • Multi Touch Point

    N/A

Leaflet

extension : pdf
Information Display Range Catalogue_250221.pdf
Download
extension : pdf
XF Series_XF3C_low.pdf
Download

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
