New High Haze UHD Standard Signage
Contact us

New High Haze UHD Standard Signage

Contact us

New High Haze UHD Standard Signage

43UH5J-H
LG New High Haze UHD Standard Signage, 43UH5J-H
LG New High Haze UHD Standard Signage, 43UH5J-H
LG New High Haze UHD Standard Signage, 43UH5J-H
LG New High Haze UHD Standard Signage, 43UH5J-H
LG New High Haze UHD Standard Signage, 43UH5J-H
LG New High Haze UHD Standard Signage, 43UH5J-H
LG New High Haze UHD Standard Signage, 43UH5J-H
LG New High Haze UHD Standard Signage, 43UH5J-H
LG New High Haze UHD Standard Signage, 43UH5J-H
LG New High Haze UHD Standard Signage, 43UH5J-H
LG New High Haze UHD Standard Signage, 43UH5J-H
LG New High Haze UHD Standard Signage, 43UH5J-H
LG New High Haze UHD Standard Signage, 43UH5J-H
LG New High Haze UHD Standard Signage, 43UH5J-H
LG New High Haze UHD Standard Signage, 43UH5J-H
LG New High Haze UHD Standard Signage, 43UH5J-H

Key Features

  • Brightness (Typ.) : 500 cd/m²
  • Surface Treatement (Haze) : 25%
  • Bezel : 8.4 mm (T/R/L), 14.4 mm (B)
  • Depth : 39.9 mm
  • Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker
More

New High Haze UHD
Standard Signage

LG 55UH5F Superb Picture Quality

*All images in this web page are for illustrative purposes only.

Proper Display Brightness

With a recommend brightness of 500 cd/m² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.

LG 55UH5F ULTRA HD Resolution

*Actual images available may differ from the example images shown.

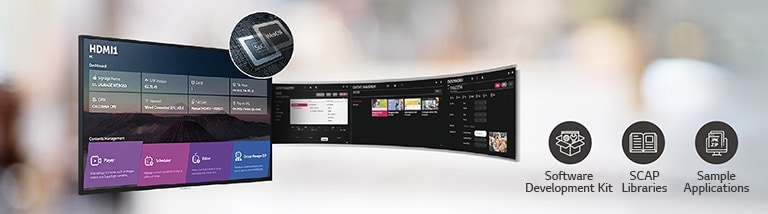

High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

LG 55UH5F Narrow Bezel

Conformal Coating

In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.

LG 55UH5F Built-in Speaker

*Actual images (signage display) available may differ from the example images shown.

Mobile Content Management

You can create a store profile and get template recommendations using the Promota* app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices.

LG 55UH5F IP5x Certified Design

*LG Promota is can be downloaded from the App Store and Google Play store. (Not available for Europe/CIS Region).
*In Korea, the name is not Promota, but Mustard.

LG 55UH5F UHD Signage Standard

LG 55UH5F UHD Signage Standard

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.



LG 55UH5F UHD Signage Standard

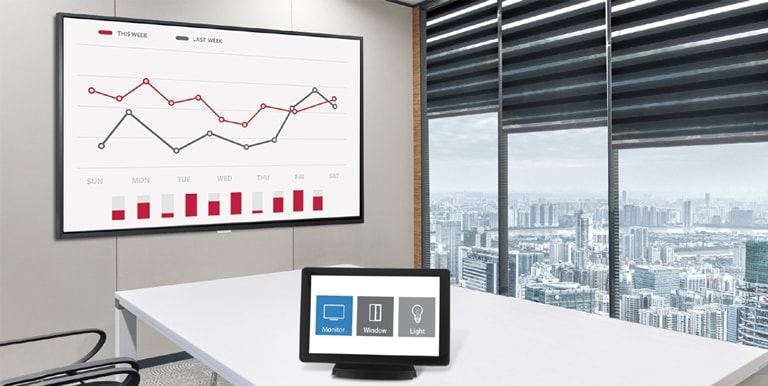

Compatible with AV Control System

The UH5J-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

*Network based control.
Print

All Spec

PANEL

  • Screen Size

    109.22 cm (43)

  • Panel Technology

    IPS

  • Back Light Type

    Edge

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60 Hz

  • Brightness

    500 cd/m² (nits)

  • Contrast Ratio

    1,200:1

  • Dynamic CR

    1,000,000:1

  • Color Gamut

    BT709 95 %

  • Viewing Angle (H x V)

    178 º x 178 º

  • Color Depth (Number of Colors)

    8 bits + FRC, 1.07 Billion colors

  • Response Time

    8 ms (G to G)

  • Surface Treatment (Haze)

    Haze 25 %

  • Life time

    50,000 Hrs (Min.)

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    YES / YES

CONNECTIVITY

  • HDMI In

    Yes (3 ea)

  • HDMI In (HDCP Ver.)

    2.2 / 1.4, (HDMI 3 HDCP : 1.4)

  • DP In

    Yes (HDCP 2.2 / 1.3)

  • DVI-D In

    YES (HDCP 1.4)

  • Audio In

    Yes

  • RS232C In

    Yes (4 Pin Phone Jack)

  • RJ45(LAN) In

    Yes

  • IR In

    Yes

  • USB In

    USB 2.0 Type A (1 ea)

  • HDMI Out

    Yes

  • Audio Out

    Yes

  • RS232C Out

    Yes (4 Pin Phone Jack)

  • Daisy Chain

    Input : HDMI, DP / Output : HDMI

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L: 8.4 mm, B: 14.4 mm

  • Weight (Head)

    11.2 kg

  • Packed Weight

    13.7 kg

  • Monitor Dimension (W x H x D, mm)

    962.5 x 568.0 x 39.9 (with LG Logo)

  • Monitor Dimension with Stand (W x H x D)

    962.5 x 613.1 x 290.0

  • VESA™ Standard Mount Interface (mm)

    200 x 200

  • Carton Dimensions (W x H x D, mm)

    1060.0 x 660.0 x 152.0

  • Weight (Head+Stand)

    11.8 kg

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    16 GB

  • Wi-Fi/BT (Built-in)

    Yes

  • Temperature Sensor

    Yes

  • Auto Brightness Sensor

    Yes

  • Acceleration (Gyro) Sensor

    Yes

  • Local Key Operation

    Yes

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS 6.0

  • Local Contents Scheduling

    Yes

  • Group Manager

    Yes

  • USB Plug & Play

    Yes

  • Fail Over

    Yes

  • Booting Logo Image

    Yes

  • No Signal Image

    Yes

  • RS232C Sync

    Yes

  • Local Network Sync

    Yes

  • PIP

    Yes

  • PBP

    Yes (4 PBP)

  • Screen Share

    Yes

  • Video Tag

    Yes (4 Video Tag)

  • Play Via URL

    Yes

  • Screen Rotation

    Yes

  • External Input Rotation

    Yes

  • Gapless Playback

    Yes

  • Tile Mode Setting

    Yes (Max.15x15)

  • Setting Data Cloning

    Yes

  • SNMP

    Yes

  • ISM Method

    Yes

  • Auto Set ID

    Yes

  • Status Mailing

    Yes

  • Control Manager

    Yes

  • Cisco Certification

    Yes

  • Crestron Connected

    Yes

  • Smart Energy Saving

    Yes

  • PM mode

    Yes

  • Wake on LAN

    Yes

  • Network Ready

    Yes

  • BEACON

    Yes

  • HDMI-CEC

    Yes

  • SI Server Setting

    Yes

  • webRTC

    Yes

  • Pro:Idiom

    Yes

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240 V~, 50/60 Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Max.

    120 W

  • Typ.

    80 W

  • Power off

    0.5 W

  • DPM

    0.5 W

  • Others-BTU (British Thermal Unit)

    273 BTU/Hr (Typ.), 410 BTU/Hr (Max.)

  • Smart Energy Saving (70%)

    56 W

SOUND

  • Speaker (Built-in)

    Yes (10 W x 2)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ERP / Energy Star

    Yes (NewErP) / YES

OPS COMPATIBILITY

  • OPS Type compatible

    Yes (Piggyback)

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control+

    Yes

  • SuperSign WB

    Yes

  • SuperSign Cloud

    Yes

  • Promota

    Yes (Not available for EU/CIS)

  • Mobile CMS

    Yes

  • Connected Care

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Türkçe, Arabic

ACCESSORY

  • Basic

    Remote Controller (include battery 2 ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender

  • Optional

    Stand (ST-653T), Wall bracket (LSW240B), OPS Kit (KT-OPSF)

SPECIAL FEATURE

  • Tilt (Face down)

    Max. 15 degree

  • IP Rating

    IP5X

  • Conformal Coating (Power Board)

    Yes

Leaflet

extension : pdf
Information Display Range Catalogue_250221.pdf
Download

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
