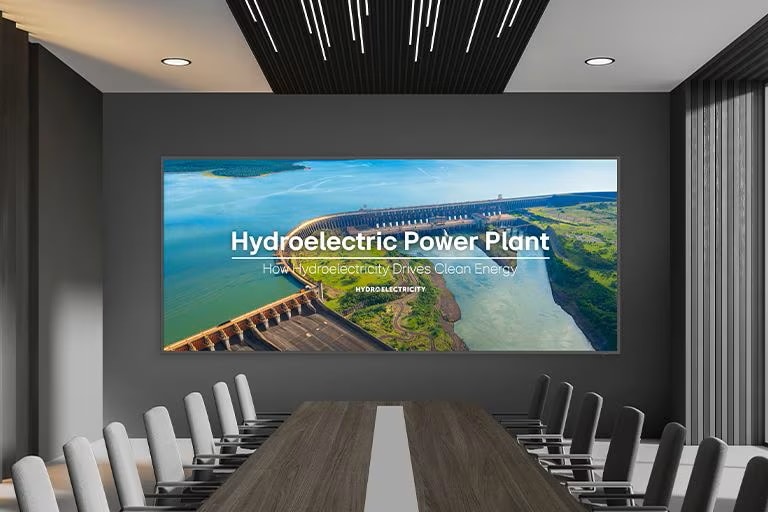

A wide display is installed on the wall of the spacious conference hall, and presentation is prominently and clearly displayed on the large screen.
*All images in this page are for illustrative purposes only.
With support for a 21:9 widescreen aspect ratio, 105BM5P provides an immersive viewing experience with the wider screen than 16:9 display. Its screen specialization helps display 21:9 content including widescreen videoconferencing platforms with the natural details.
The 105BM5P screen with a 21:9 ratio is installed in a meeting room, providing more information than a 16:9 screen.
*Proximity Sensor operates smoothly within a range of 3 meters in an obstacle-free environment.
The 105BM5P offers versatile usage, with the ability to be used in both vertical and horizontal orientations. This flexibility allows it to adapt to various installation and usage scenarios.
*The orientation must be manually adjusted when changing the installation direction.
USB Type-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable.

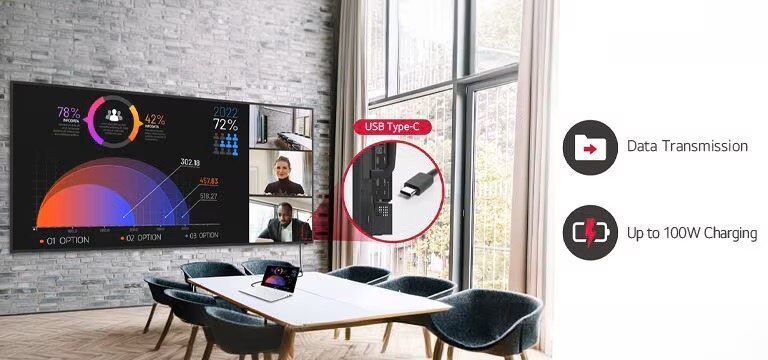

A laptop is connected to the 105BM5P in a meeting room. The 105BM5P supports USB Type-C, allowing simultaneous data transfer and charging through a single cable, promoting a seamless meeting environment.
*USB Type-C cables are sold separately.
The 105BM5P offers a wireless screen sharing feature, known as LG CreateBoard Share, allowing for easy sharing of presentation materials wirelessly, thus eliminating the clutter of wires. This enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device. Also, files from the host can be easily sent to any devices connected to the app.

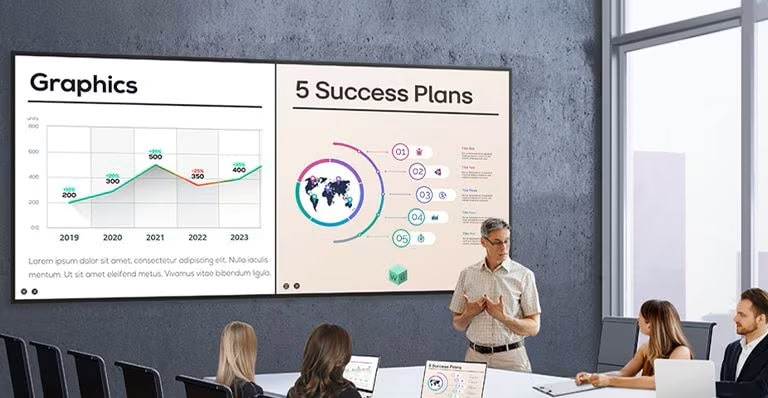

The screens of meeting participants are wirelessly shared on the 105BM5P widescreen, allowing multiple people to share their materials simultaneously on a single screen without any cable interference.
*LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network.
*For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).

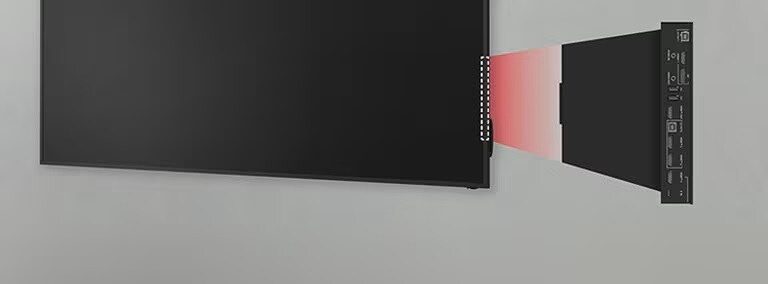

105BM5P supports OPS slots, allowing you to conveniently mount OPS Module at the back of the screen without the hassle of connecting to an external desktop, enabling various PC functions and Windows software even on the 105BM5P.
Through the OPS slots, users can conveniently mount the OPS Module on the 105BM5P, enabling various PC functions and Windows software on the 105BM5P.
*OPS : Open Pluggable Specification.
*OPS Player for 105BM5P supports 4K output and is sold separately.
LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of devices. This feature enables IT managers to manage important resources on operating devices without physically visiting sites.
*LG ConnectedCare DMS needs to be purchased separately.
*The availability of the LG ConnectedCare DMS service differs by region, so please contact the LG sales representative in your region for more details.
*LG ConnectedCare DMS supports TV Signage (UM340E, UR640S), LG CreateBoard (TR3 Series) and Stretch Signage (105BM Series) as of now (plus more to come) under a cloud environment.
The IT administrator can remotely control and set up devices within the meeting room via LG ConnectedCare DMS.
Thanks to LG ConnectedCare DMS, IT manager can select specific devices to be controlled remotely and update their settings all at once. General settings, power settings, application management, and multimedia can all be effectively managed and controlled simultaneously, enabling the stable operation of clients' businesses.

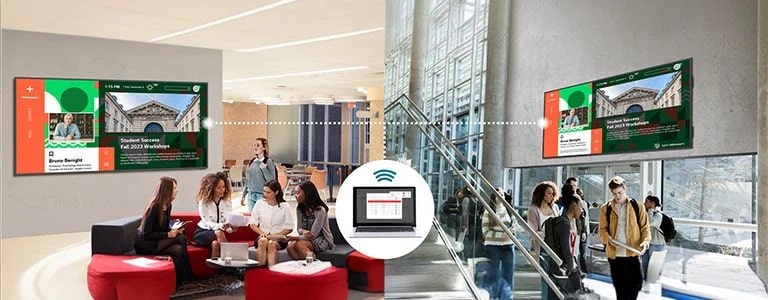

Campus news and announcements are being displayed on wide screens installed in various lobbies. With LG ConnectedCare DMS, the IT manager can remotely broadcast the content to specific devices.
Messages and a range of other content can be sent from the main system's hub to individual devices connected to LG ConnectedCare DMS and you can easily display important company notices or schedules right on your device. In case of urgent occasions such as a fire or a natural disaster, alert messages can be distributed manually across the system, which helps people promptly take a safety action.
Screen Size (Inch)
266.7 cm (105)
Panel Technology
IPS (ADS)
Back Light Type
Direct
Aspect Ratio
21:9
Native Resolution
5120 x 2160 (5K)
Refresh Rate
60Hz
Brightness
440nit (Typ.)
Contrast Ratio
1,200:1
Dynamic CR
5,000:1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178 x 178
Color Depth (Number of Colors)
10bit(8bit + FRC)
Response Time
8ms (G to G)
Surface Treatment (Haze)
25%
Life time
50,000Hrs (Min.)
Operation Hours (Hours/Day)
16/7
Portait / Landscape
Yes/Yes
HDMI In
Yes (4) HDCP 2.3
HDMI In (HDCP Ver.)
2.3
DP In
Yes (1) HDCP 2.3
Audio In
Yes (1)
RS232C In
Yes (1)
RJ45(LAN) In
Yes (1)
USB In
USB 3.0 TypeA(4), USB 2.0 TypeA(3), USB Type C(1), USB 2.0 TypeB Out(3)
HDMI Out
Yes (1)
DP Out
No, HDMI Out (1)
Audio Out
Yes (1, Optical 1(SPDIF))
RJ45(LAN) Out
Yes (1)
Bezel Color
Black
Bezel Width
T/R/L/B : 18/18/18/18mm
Weight (Head)
54.1Kg
Packed Weight
75.9Kg
Monitor Dimensions (W x H x D)
2490 x 1074 x 77mm
Handle
Yes
VESA Standard Mount Interface
1000 x 600
Carton Dimensions (W x H x D)
2668 × 280 × 1233 mm
Internal Memory (eMMC)
64GB
Wi-Fi/BT (Built-in)
Yes (Slot Type)
Auto Brightness Sensor
Yes
Power Indicator
Yes
Local Key Operation
Yes (Power Key)
OS Ver. (webOS)
Android 13.0 (AOSP)
USB Plug & Play
Yes
Fail Over
Yes
PIP
Yes (1 External Source)
Screen Share
Yes ( LG CreateBoard Share)
Crestron Connected
Yes
PM mode
Yes
Wake on LAN
Yes
Network Ready
Yes
HDMI-CEC
Yes
Operation Temperature
10% to 90%
Operation Humidity
0 °C to 40 °C
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
BTU (British Thermal Unit)
1406 BTU/Hr(Typ.), 2156 BTU/Hr(Max)
DPM
≤0.5W
Power off
≤0.5W
Max.
632W
Typ.
412W
Speaker (Built-in)
Yes (16W x 2 + 15W)
Safety
CB / NRTL(cULus)
EMC
FCC Class "A" / CE
ERP / Energy Star
Yes/Yes
OPS Type compatible
Yes (Slot)
OPS Power Built-in
Yes
Connected Care
Yes (LG ConnectedCare DMS)
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil) Russian, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Swedish, Finnish, Norwegian, Danish
Basic
Power cord, HDMI Cable, Remote Controller Remote battery, SI07B, Wall Mount
Optional
OPSJ-5LDJA(4K)
Conformal Coating (Power Board)
Yes
