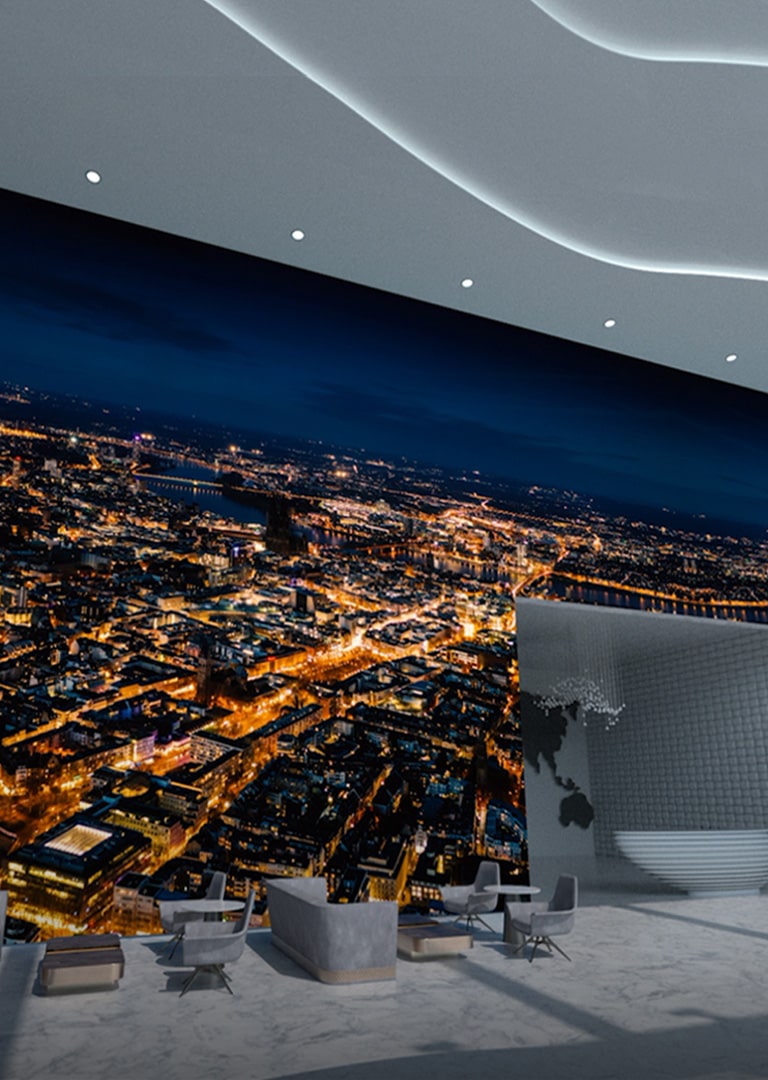

LG MAGNIT
![](/content/dam/channel/wcms/in/images/business/lsab009-m1_atr_eail_in_b/LSAB009-Thumb-450.jpg)
Winner of Design Awards
True Innovation behind
New Depths
Black Immersion,
Enlivened Details
*Based on LG's conventional LED Signage.
Stronger Light and Shadow
Accurate Colors as Intended

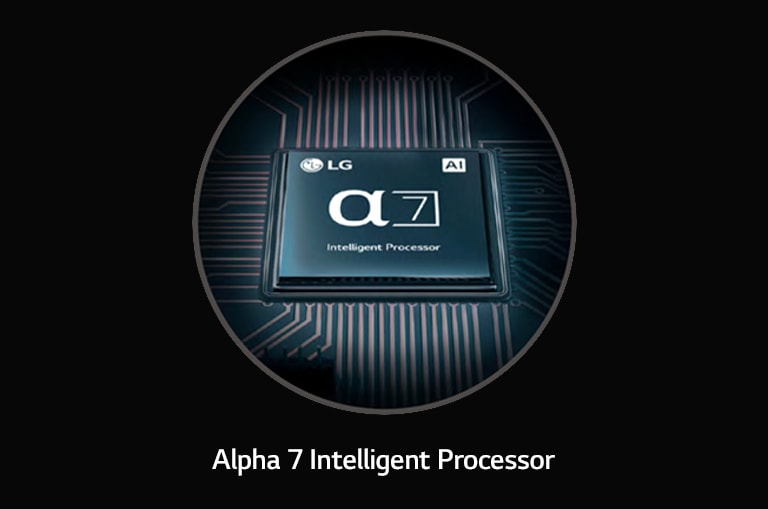

*The above functions are created by using deep learning AI technology to improve the picture quality.
Vivid Color Expression Powered by HDR
*HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.
Wide Color Viewing Angle
Care Less with Sturdy Design
*Based on in-house testing in accordance with the certification criteria, or under actual operating conditions.
Sleek Look with Smooth Surface

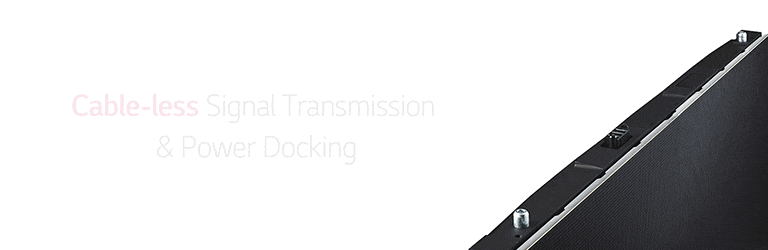

Optimum Cable-less Design for Simple Installation
Efficient Power Consumption by Colors
Power Saving Standby Mode
*Available for over 1,280 × 720 resolution screen.
*Network-based control.
Dedicated Accessories for Tidiness

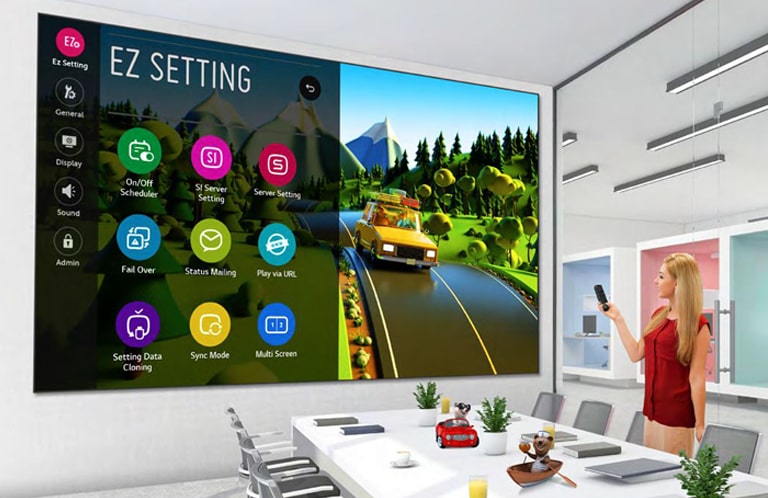

Total Content Management
Real-time ConnectedCare Service
*ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.
Gallery
All Spec
PHYSICAL PARAMETER
-
Pixel Configuration
1R, 1G, 1B (Chip on Board)
-
Pixel Pitch (mm)
0.938
-
Module Resolution (W x H)
160 × 180
-
Module Dimensions (W x H, mm)
150 × 168.8
-
Weight per Module (kg)
0.15
-
No. of Modules per Cabinet (W × H)
8 (4 × 2)
-
Cabinet Resolution (W × H)
640 × 360
-
Cabinet Dimensions (W × H × D, mm)
600 × 337.5 × 44.9
-
Cabinet Surface Area (m²)
0.203
-
Weight per Cabinet (kg/cabinet)
7.0
-
Weight per Square Meter (kg/m²)
34.6
-
Physical Pixel Density (pixels/m²)
1,137,778
-
Flatness of Cabinet (mm)
±0.5
-
Cabinet Material
Die-casting Aluminum
-
Service Access
Front and Rear
(Module : Front Only)
OPTICAL PARAMETER
-
Min. Brightness (After Calibration)
Peak 1,200 / Max. 600
-
Color Temperature
7,300K / 3,200~9,300K
(Adjustable by LED Assistant on PC) -
Visual Viewing Angle (H×V)
160° × 160°
-
Brightness Uniformity
95%
-
Color Uniformity
±0.02Cx, Cy
-
Contrast Ratio (10 lux)
150,000 : 1
-
Processing Depth (bit)
20
-
HDR Compatibility
HDR10, HDR10 Pro
* LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping
ELECTRICAL PARAMETER
-
Power Consumption (W/cabinet, Max.)
125
-
Power Consumption (W/cabinet, Avg.)
85
-
Power Consumption (W/m², Max.)
617
-
Heat Dissipation (BTU/h/Cabinet, Max.)
426
-
Heat Dissipation (BTU/h/Cabinet, Avg.)
290
-
Heat Dissipation (BTU/h/m², Max.)
2,105
-
Power Supply (V)
100 to 240
-
Frame Rate (Hz)
50/60
-
Refresh Rate (Hz)
3,840
OPERATION SPECIFICATIONS
-
Lifetime (Hours to Half Brightness)
100,000
-
Operating Temperature(℃)
0∘ to +40∘
-
Operating Humidity
10-80%RH
-
IP Rating (Front / Rear)
IP50 / IP20
CERTIFICATION
-
Certification
Safety 60950-1,
EMC Class A,
BS476 Part7 Class1
ENVIRONMENT
-
Environment
RoHS
CONTROLLER
-
Controller
CSAB-009X
-
