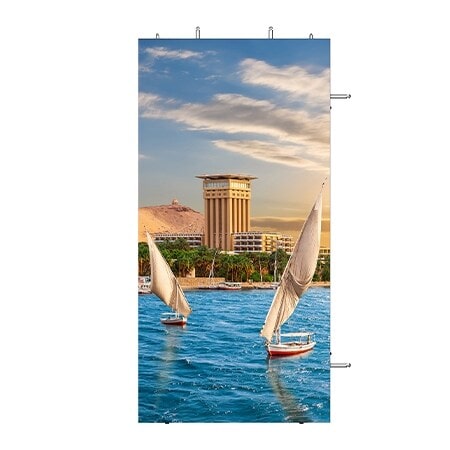

LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD
LG Compact Series, LSBC029-GD

Key Features

  • Pixel Pitch: 2.98 mm
  • Brightness: 1,000 nit
  • Vivid Color Expression Powered by HDR
  • 90° Corner Installation Design Available
  • Front or Rear Serviceability
  • Compatibility with LG Software Solutions
More

LSBC Compact Series

LG LSBC019-GD Compact Series

*All images in this web page are for illustrative purposes only.

LG LSBC019-GD HDR

Vivid Color Expression Powered by HDR

With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.

*HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.

LG LSBC019-GD Corner Installation Available

90° Corner Installation Available

Considering the use of corners, the cabinet is designed to stitch out a seamless 90 degree corner screen.

*Corner option is available as add-ons without additional costs. The option should be included in an ordering form.

Capable of front or rear installation depending on the customers' needs.

Front or Rear Installation & Maintenance

Easy access to front or rear cabinet for maintenance.
LG LSBC019-GD Quick Lock

Quick Lock & Flip Design

Easy installation with quick lock system and maintains an outstanding alignment. Also the flip design makes easy repair and replace of integrated power system and reception card.

Compatibility with
LG Software Solution

Powered by LG’s high performance system controller, the LSBC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.

LG LSBC019-GD Software Solution

*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
*The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power).
*Actual GUI may vary in different webOS versions.

Print

All Spec

CERTIFICATION

  • Certification

    CE/FCC/cTUVus/CB/CCC

PHYSICAL PARAMETERS

  • Pixel Configuration

    3 in 1 SMD

  • Pixel Pitch(mm)

    2.976

  • Module Resolution (WxH)

    84x84

  • Module Dimensions(WxH,mm)

    250x250

  • Weight per Module (kg)

    0.70

  • No. of Modules per Cabinet (WxH)

    2 x 4

  • Cabinet Resolution (WxH)

    168x336

  • Cabinet Dimensions (W x H x D, mm)

    500x1000x68

  • Cabinet Surface Area (㎡)

    0.500

  • Weight per Cabinet (kg/unit)

    12.0

  • Weight per Square Meter (kg/㎡)

    24.0

  • Physical Pixel Density (pixels/㎡)

    112,896

  • Flatness of Cabinet (mm)

    0.5

  • Cabinet Material

    Die casting Aluminum

  • Service access

    Front or Rear

OPTICAL SPECIFICATIONS

  • Max Brightness (After Calibration, nit)

    1,000

  • Color Temperature (K)

    3,200~9,300

  • Visual Viewing Angle (Horizontal)

    160

  • Visual Viewing Angle (Vertical)

    140

  • Brightness Uniformity

    97%

  • Color Uniformity

    ±0.003Cx,Cy

  • Contrast Ratio

    5000:1

  • Processing Depth (bit)

    16(HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

  • Power Consumption (W/cabinet, Max.)

    300

  • Power Consumption (W/cabinet, Avg.)

    100

  • Power Consumption (W/㎡, Max.)

    600

  • Heat Dissipation (BTU/h/Cabinet, Max.)

    1,024

  • Heat Dissipation (BTU/h/Cabinet, Avg.)

    341

  • Heat Dissipation (BTU/h/㎡, Max.)

    2,047

  • Power Supply (V)

    100 to 240

  • Frame Rate (Hz)

    50 / 60

  • Refresh Rate (Hz)

    3,840

OPERATION SPECIFICATIONS

  • LED Lifetime (Half brightness)

    100,000

  • Operating Temperature(℃)

    -20∘to +40∘

  • Operating Humidity

    10-90%RH

  • IP rating Front

    IP5X

  • IP rating Rear

    IP5X

CONTROLLER

  • Controller

    CVBA

ENVIRONMENT

  • Environment

    RoHS/REACH/WEEE

90 DEGREE CORNER CUT

  • 90 Degree Corner Cut

    Yes
