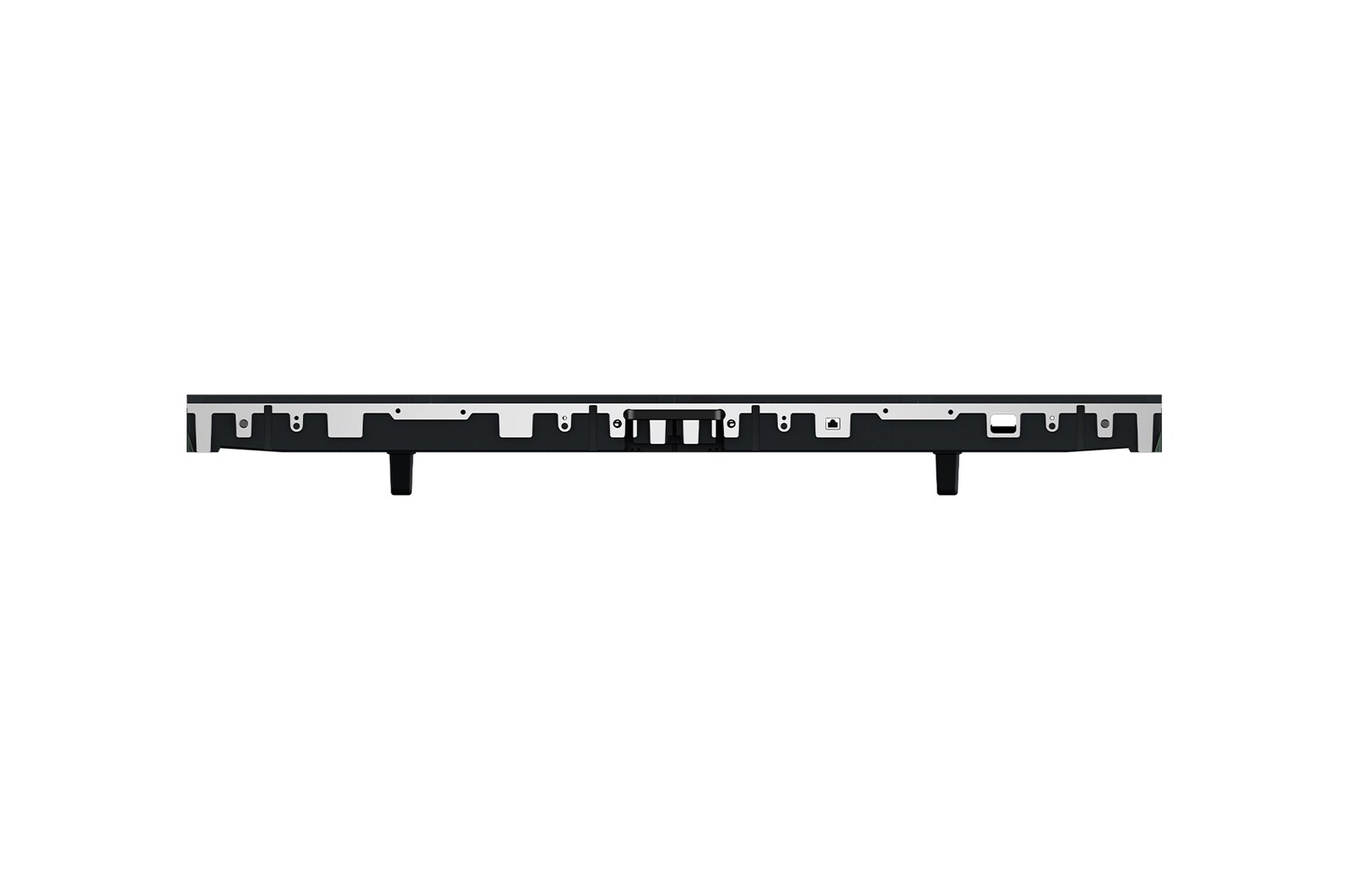

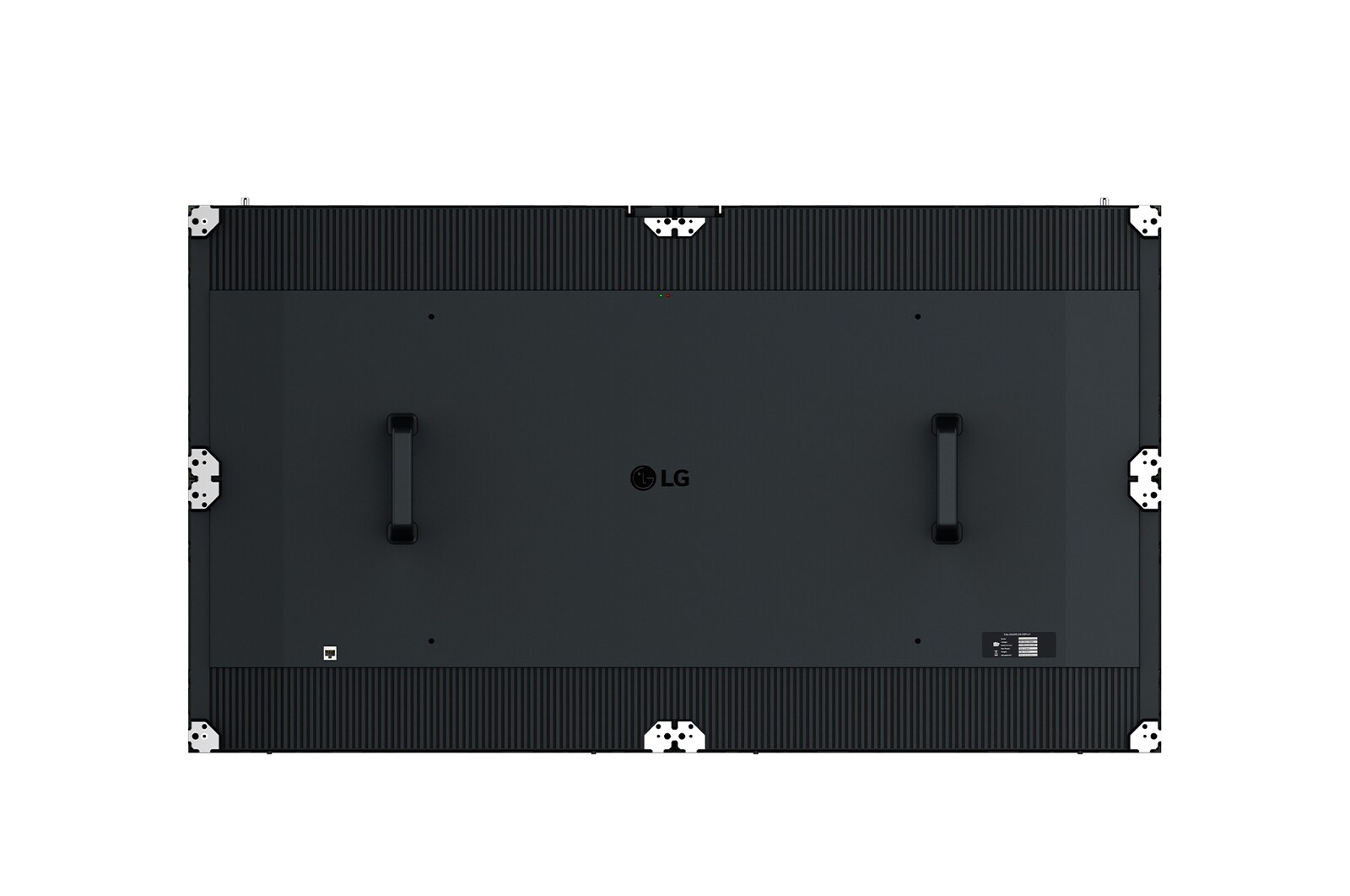

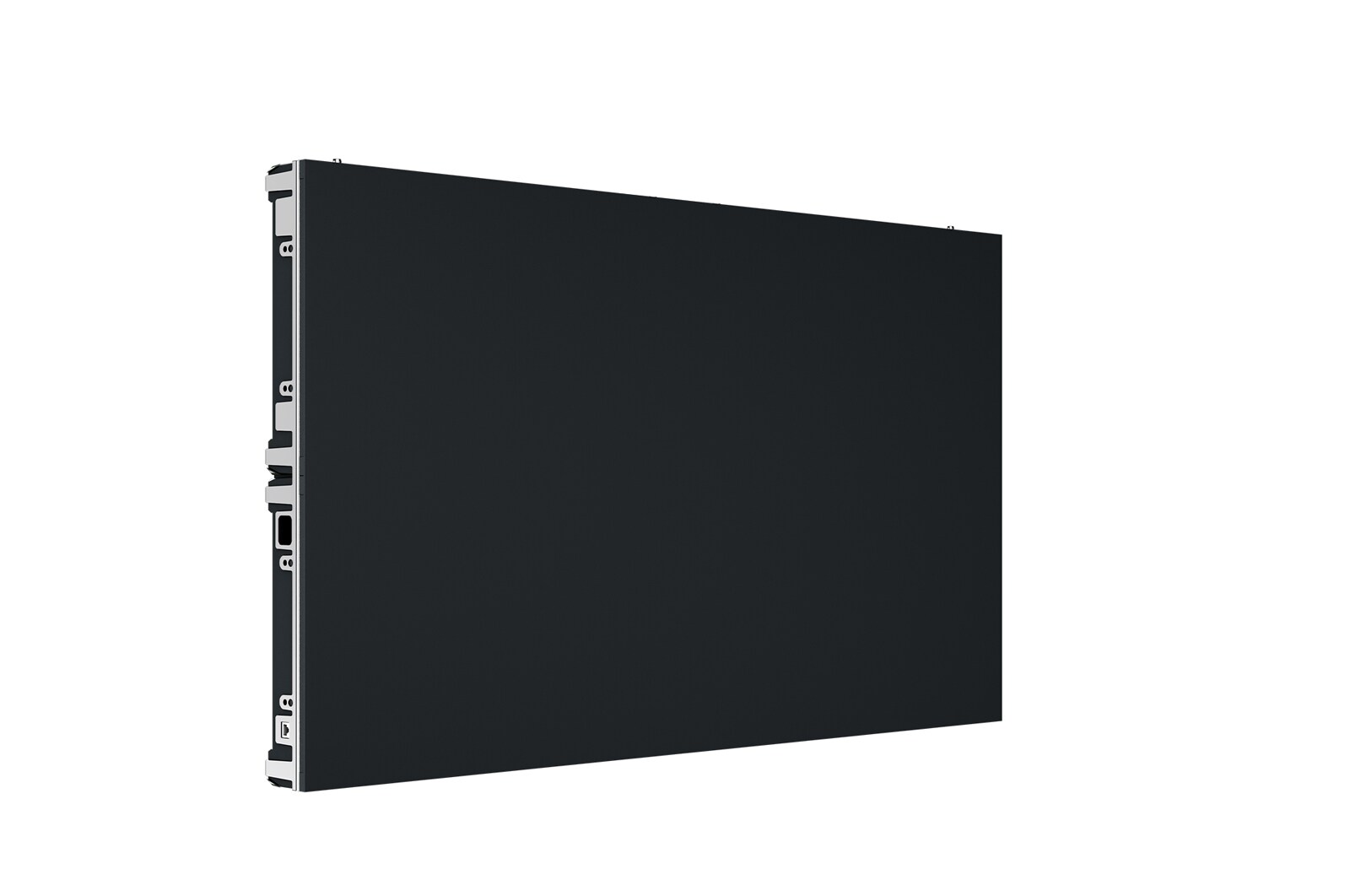

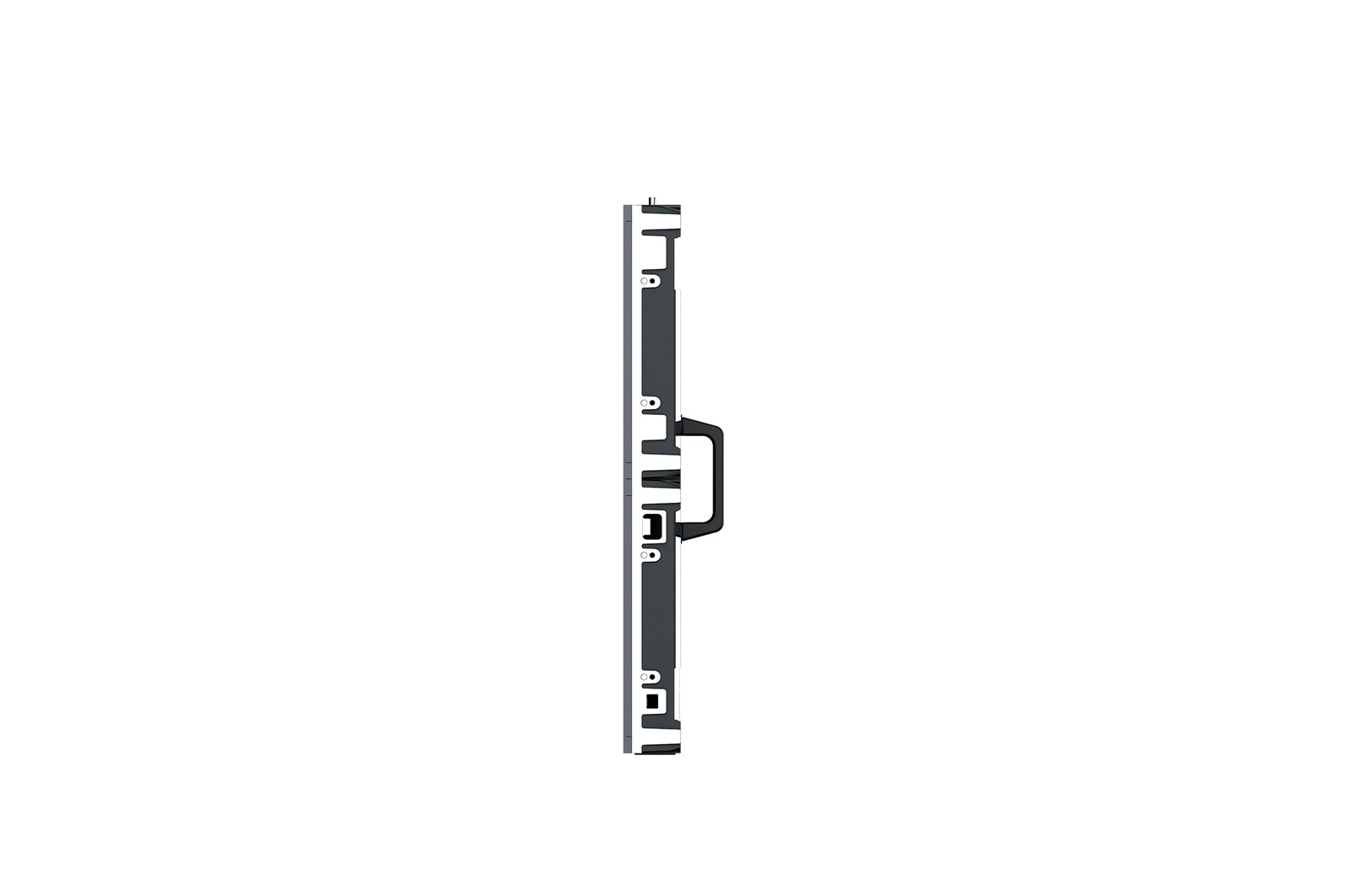

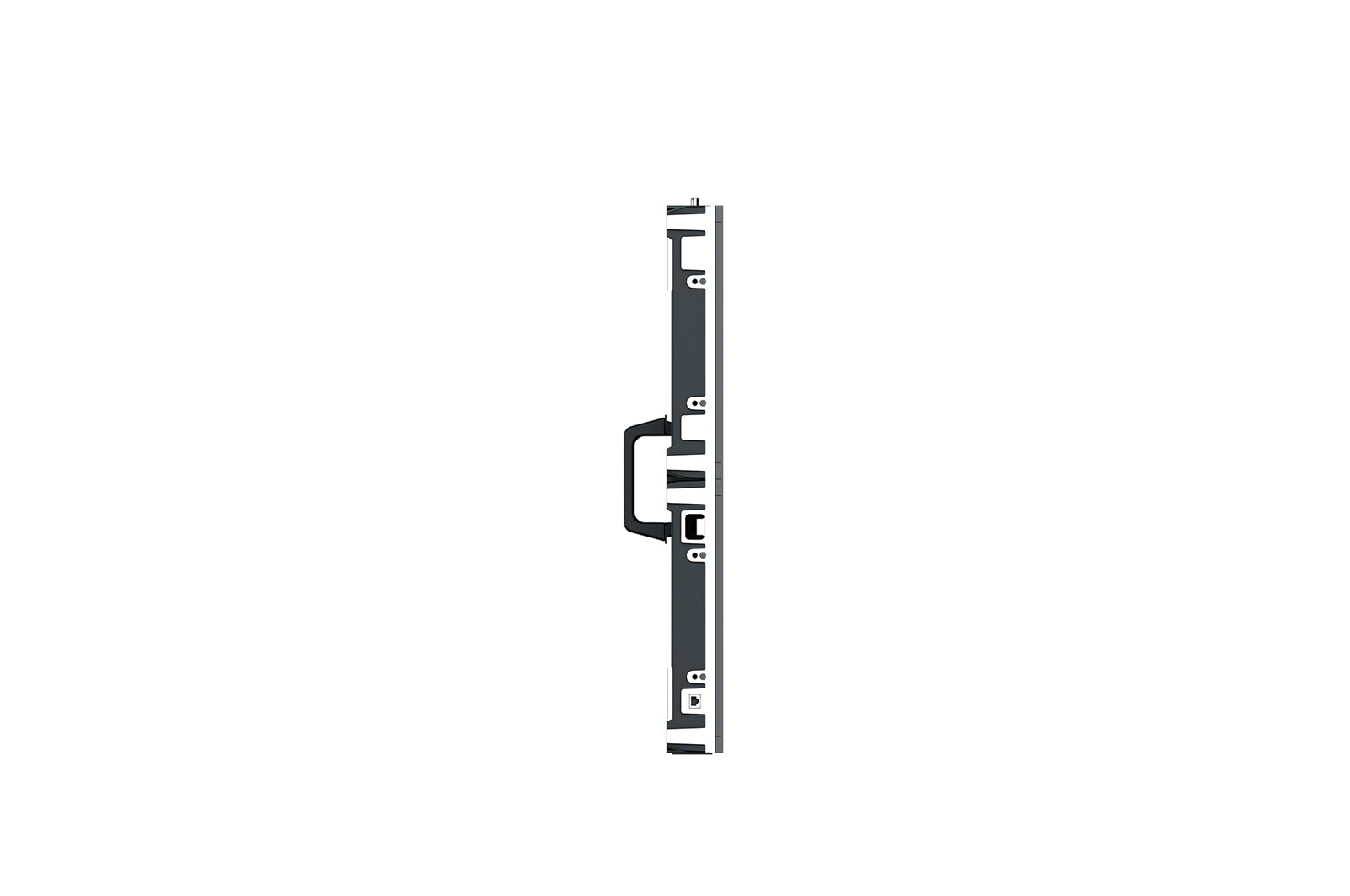

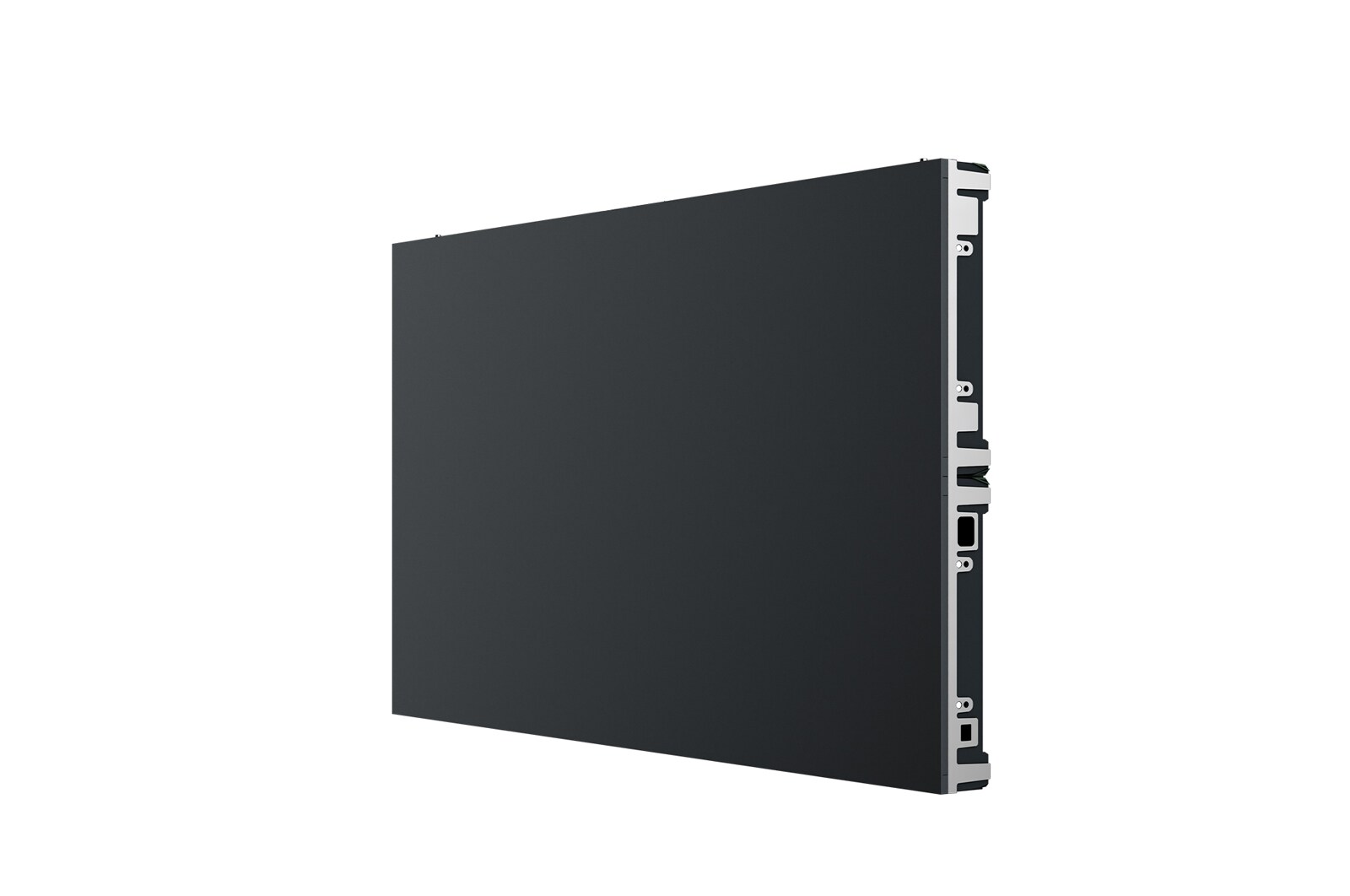

LG LSBF Indoor LED Series

LSBF015-GD

Key Features

LSBF Indoor LED Series

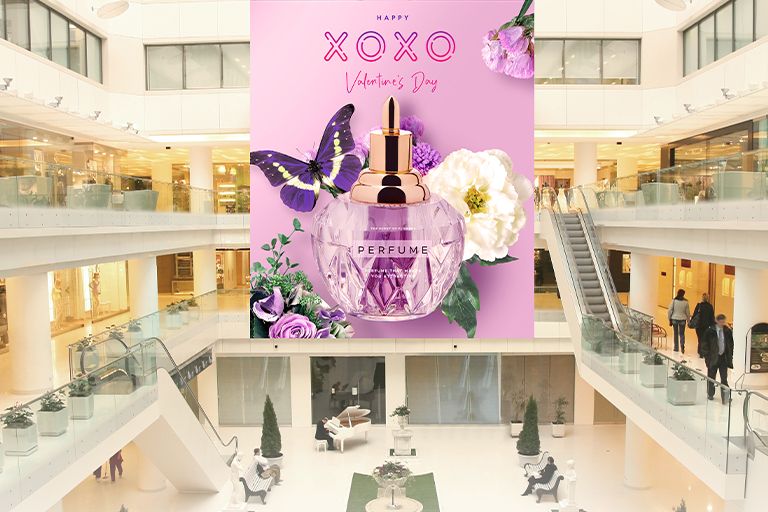

There are large LED displays installed across three floors of a large shopping mall, prominently showcasing perfume advertisements.

* All images in this page are for illustrative purposes only.

Brightness

With a great brightness of 600 nits, it clearly delivers content and attracts public attention, making it ideal for achieving bright indoor visibility.

LSBF consists of a total of 8 modules that create a single cabinet.

Improved Flatness and Easy Maintenance

LSBF is composed of four LSBE modules that form one cabinet with two modules each, allowing it to create a seamless screen. Also, it allows for easy maintenance.

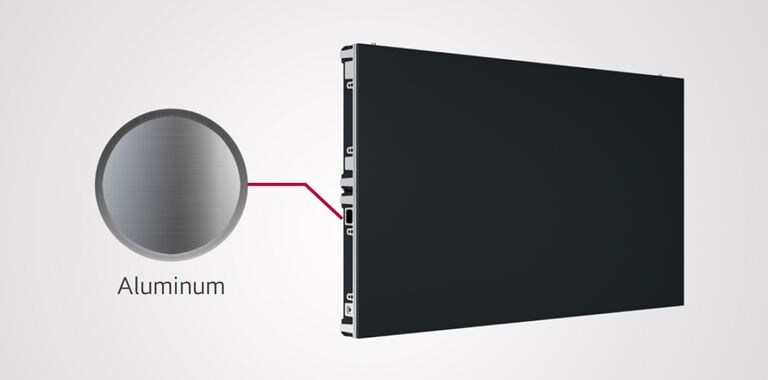

The frame of LSBF is composed of aluminum.

Durable Frame Design

LSBF incorporates an aluminum cabinet that enhances durability, and its high-strength frame, surpassing that of plastic, allows for stable operation.

54(137.16cm) & 27(68.58cm) Combination Installation Available

The LSBF 54(137.16cm) and LSBE 27(68.58cm) models, sharing the same product platform, provide flexible matrix combinations for various spatial configurations. The compatibility between the 54(137.16cm) and 27(68.58cm) models enables versatile sizing options according to space requirements, allowing for installation.

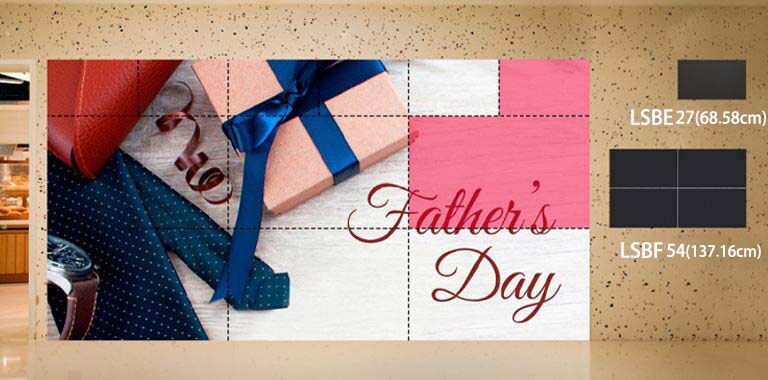

The 27" LSBE and the 54" LSBF are compatible and installed on the shopping mall wall in appropriate sizes.

Compatibility with LG Software Solutions

When connected with LG's CVBA system controller, the LSBF series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

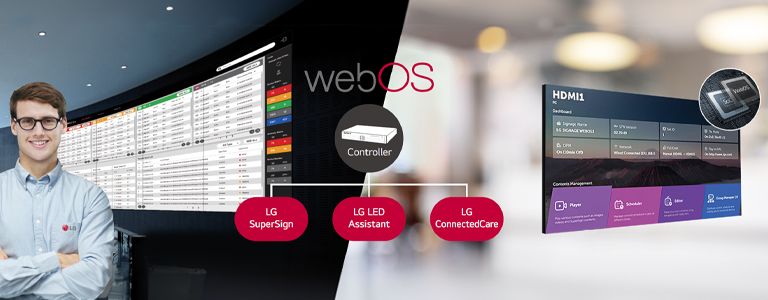

The LG employee is remotely monitoring the LSBF series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBF series to be compatible with LG software solutions.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.

All Spec

90 DEGREE CORNER CUT

90 degree corner cut
X

CONTROLLER

Controller
CVBA

ENVIRONMENT

Environment
RoHS, REACH

OPTICAL SPECIFICATIONS

Brightness Uniformity(%)
0.97
Color Temperature (K)
3,200~9,300
Color Uniformity
±0.003 Cx,Cy
Contrast Ratio
5,000:1
Life Time (Brightness 50%)
100,000
Max Brightness (After Calibration, nit)
600
Processing Depth (bit)
14
Refresh Rate (@24Hz)
3,840
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
150

ELECTRICAL SPECIFICATIONS

Frame Rate (Hz)
50 / 60
Heat Dissipation (BTU/h/Cabinet, Avg.)
621
Heat Dissipation (BTU/h/Cabinet, Max.)
1,460
Heat Dissipation (BTU/h/m², Max.)
1,808
Power Consumption (W/Cabinet, Avg.)
182
Power Consumption (W/Cabinet, Max.)
428
Power Consumption (W/m², Max.)
530
Power Supply (V)
100 to 240

PHYSICAL PARAMETERS

Cabinet Dimensions (W x H x D, mm)
1,200 x 675 x 72
Cabinet material
Die-casting Aluminum
Cabinet Resolution (W x H)
768 x 432
Cabinet Surface Area (m²)
0.81
Flatness of Cabinet (mm)
±0.3
Module Dimensions (W x H, mm)
300 x 337.5 x 13
Module Resolution (W x H)
192 x 216
No. of Modules per Cabinet (W x H)
4 x 2
Physical Pixel Density (pixels/m²)
409,600
Pixel Configuration
Single SMD
Pixel Pitch (mm)
1.56
Service access
Front
Weight per Cabinet (kg/unit)
23
Weight per Module (kg)
0.95
Weight per Square Meter (kg / m²)
28

OPERATION SPECIFICATIONS

IP rating Front
IP50
IP rating Rear
IP50
Operating Humidity
10~80 % RH
Operating Temperature(℃)
-20 ℃ to +40 ℃

STANDARD

Certification
CE (EMC), FCC, cTUVus, CB, CE,
