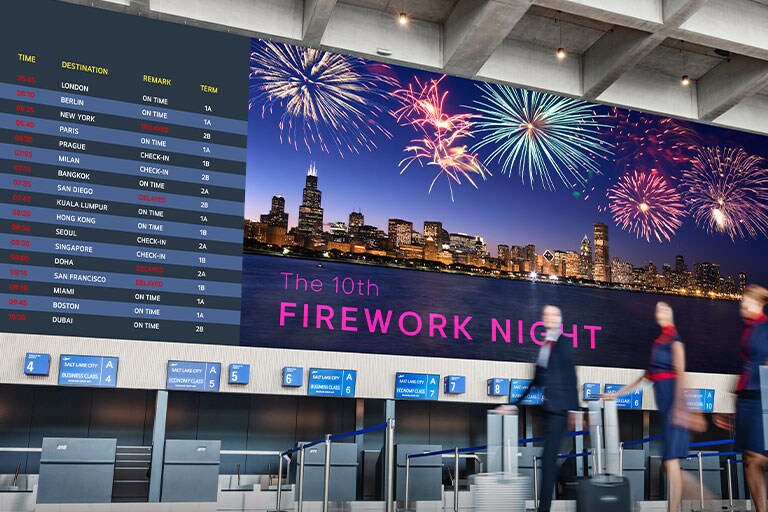

At the airport, a massive fit-to-wall LED screen is installed, and the screen displays flight times and Ads clearly.
*All images in this page are for illustrative purposes only.

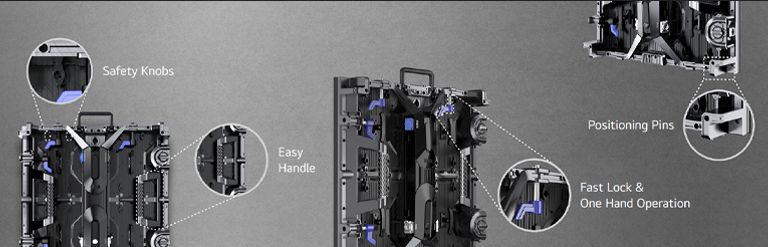

Various factors such as safety knobs, fast locks, handles, and positioning pins facilitate the installer in smoothly setting up and dismantling LED screens without the requirement of extra tools.
The cabinet parts, including 'Safety Knobs', 'Easy Handle', 'Fast Lock & One Hand Operation', and 'Positioning Pins', are depicted in an enlarged manner.

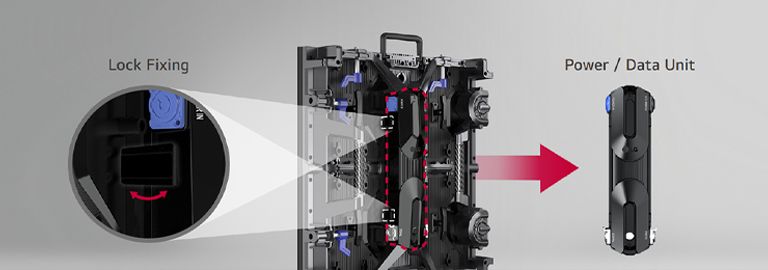

The LSGA series features a lock fixing method that requires no additional tools, simplifying the process of replacing LED modules or power/data units and resulting in time and cost savings for maintenance.
It is demonstrating that a simple Lock Fixing method allows for convenient replacement of the cabinet's Power/Data Unit.
Certification
CE, FCC, cTUVus, CB
90 degree corner cut
X
Controller
CVGA
Frame Rate (Hz)
50 / 60
Heat Dissipation (BTU/h/Cabinet, Avg.)
169
Heat Dissipation (BTU/h/Cabinet, Max.)
508
Heat Dissipation (BTU/h/㎡, Max.)
1,015
Power Consumption (W/Cabinet, Avg.)
62
Power Consumption (W/Cabinet, Max.)
186
Power Consumption (W/㎡, Max.)
372
Power Supply (V)
100 to 240
Refresh Rate (Hz)
3,840
Environment
RoHS, REACH
LED Lifetime (Half brightness)
100,000
IP rating Front
IP40
IP rating Rear
IP20
Operating Humidity
10~80%RH
Operating Temperature(℃)
-10℃ to +40℃
Brightness Uniformity(%)
98%
Color Temperature (K)
3,200~9,300
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
6,500:1
Max Brightness (After Calibration, nit)
800
Processing Depth (bit)
14
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Cabinet Dimensions (W x H x D, mm)
500x1,000x90
Cabinet material
Magnalium
Cabinet Resolution (WxH)
128x256
Cabinet Surface Area (㎡)
0.5
Flatness of Cabinet (mm)
±0.1
Module Dimensions(WxH,mm)
250x250
Module Resolution (WxH)
64x64
No. of Modules per Cabinet (WxH)
2x4
Physical Pixel Density (pixels/㎡)
65,536
Pixel Configuration
Single SMD
Pixel Pitch (mm)
3.91
Service access
Front & Rear
Weight per Cabinet (kg/unit)
10
Weight per Module (kg)
0.55
Weight per Square Meter (kg/㎡)
20
