LG Window Facing LED Display

LG Window Facing LED Display

LWBC039-GD
()
  • LG LWBC039-GD Front View with display
  • LG Window Facing LED Display, LWBC039-GD
  • LG Window Facing LED Display, LWBC039-GD
  • LG Window Facing LED Display, LWBC039-GD
  • LG Window Facing LED Display, LWBC039-GD
  • LG Window Facing LED Display, LWBC039-GD
  • LG Window Facing LED Display, LWBC039-GD
  • LG Window Facing LED Display, LWBC039-GD
  • LG Window Facing LED Display, LWBC039-GD
  • LG Window Facing LED Display, LWBC039-GD
  • LG Window Facing LED Display, LWBC039-GD
  • LG Window Facing LED Display, LWBC039-GD
  • LG Window Facing LED Display, LWBC039-GD

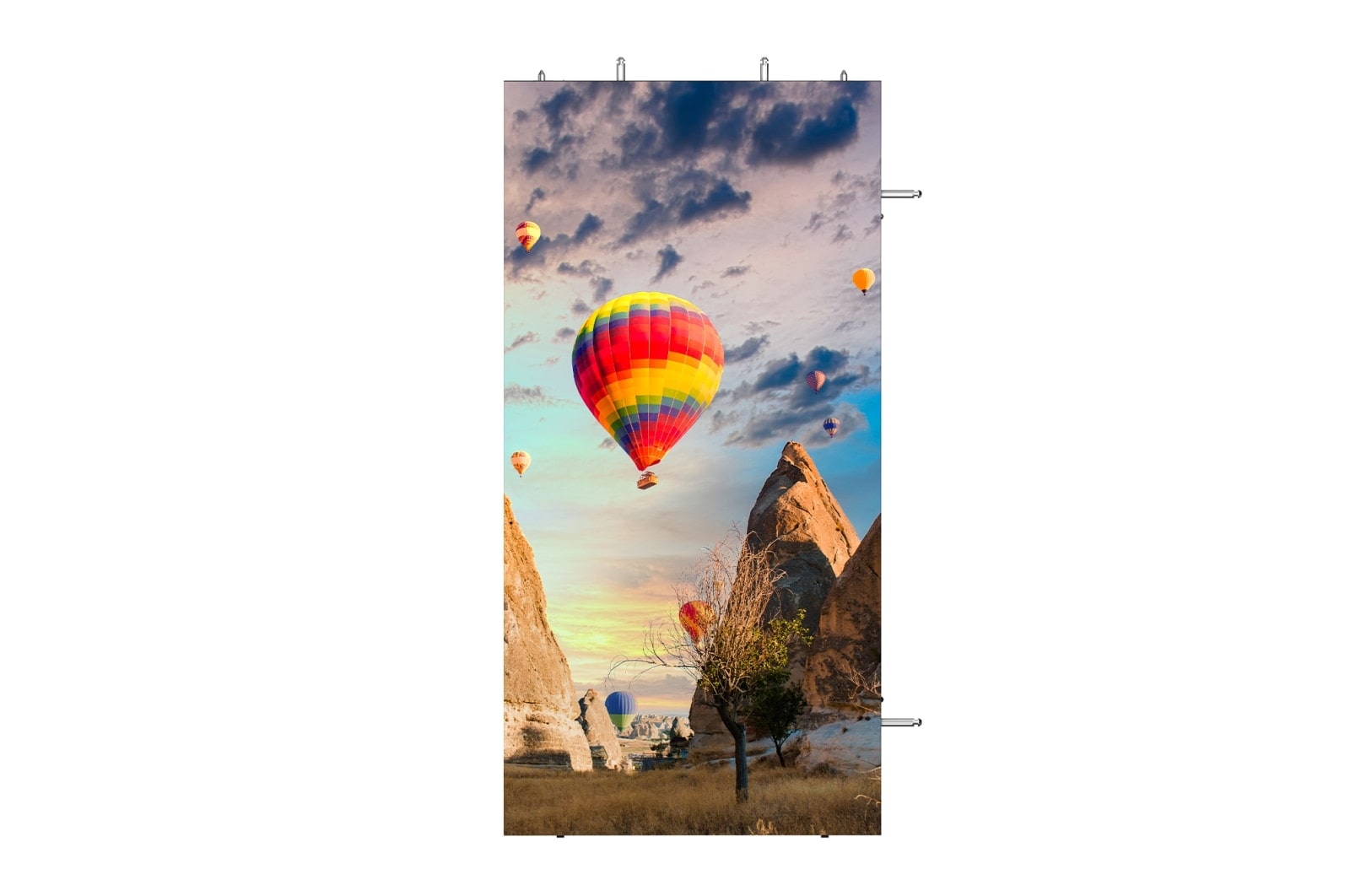

LG LWBC039-GD Front View with display
LG Window Facing LED Display, LWBC039-GD
LG Window Facing LED Display, LWBC039-GD
LG Window Facing LED Display, LWBC039-GD
LG Window Facing LED Display, LWBC039-GD
LG Window Facing LED Display, LWBC039-GD
LG Window Facing LED Display, LWBC039-GD
LG Window Facing LED Display, LWBC039-GD
LG Window Facing LED Display, LWBC039-GD
LG Window Facing LED Display, LWBC039-GD
LG Window Facing LED Display, LWBC039-GD
LG Window Facing LED Display, LWBC039-GD
LG Window Facing LED Display, LWBC039-GD

Key Features

  • Pixel Pitch: 3.91 mm
  • Brightness: 3,500 nit
  • Long-lasting High Performance
  • Quick Lock & Flip Design
  • Front or Rear Serviceability
More

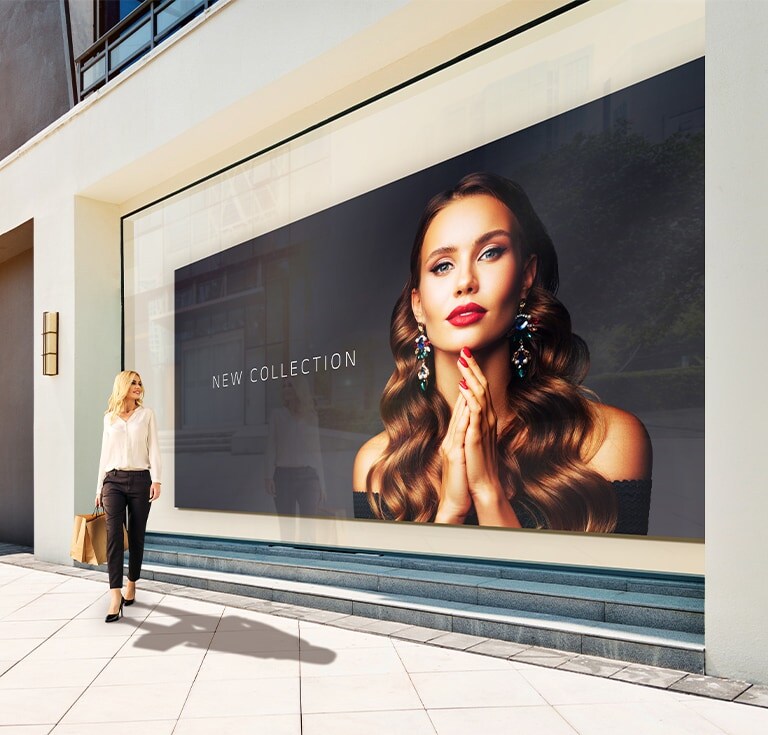

Window Facing LED Display

LG LWBC039-GD Window Facing LED Display

* All images in this web page are for illustrative purposes only.

LG LWBC039-GD High Visibility

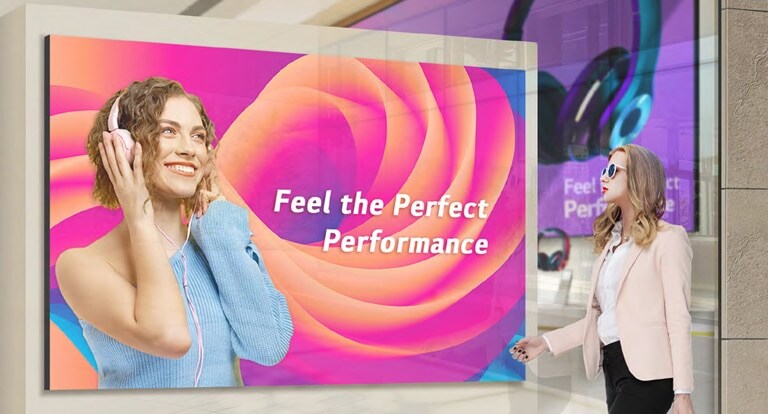

High Visibility Under the Sunlight

With a great brightness of 3,500 nits, LWBC clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility.



LG LWBC039-GD Corner Design

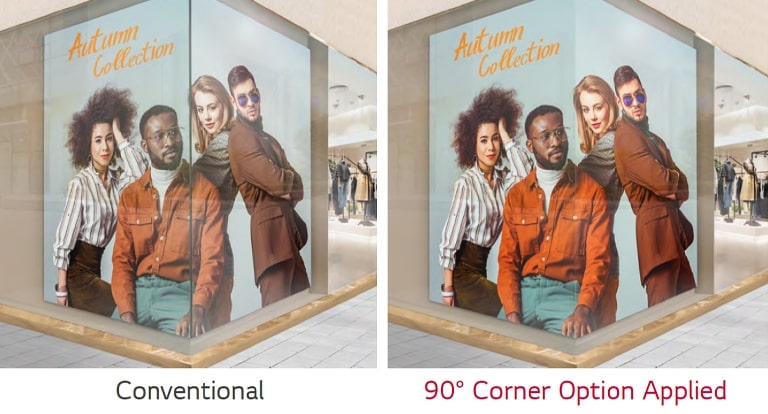

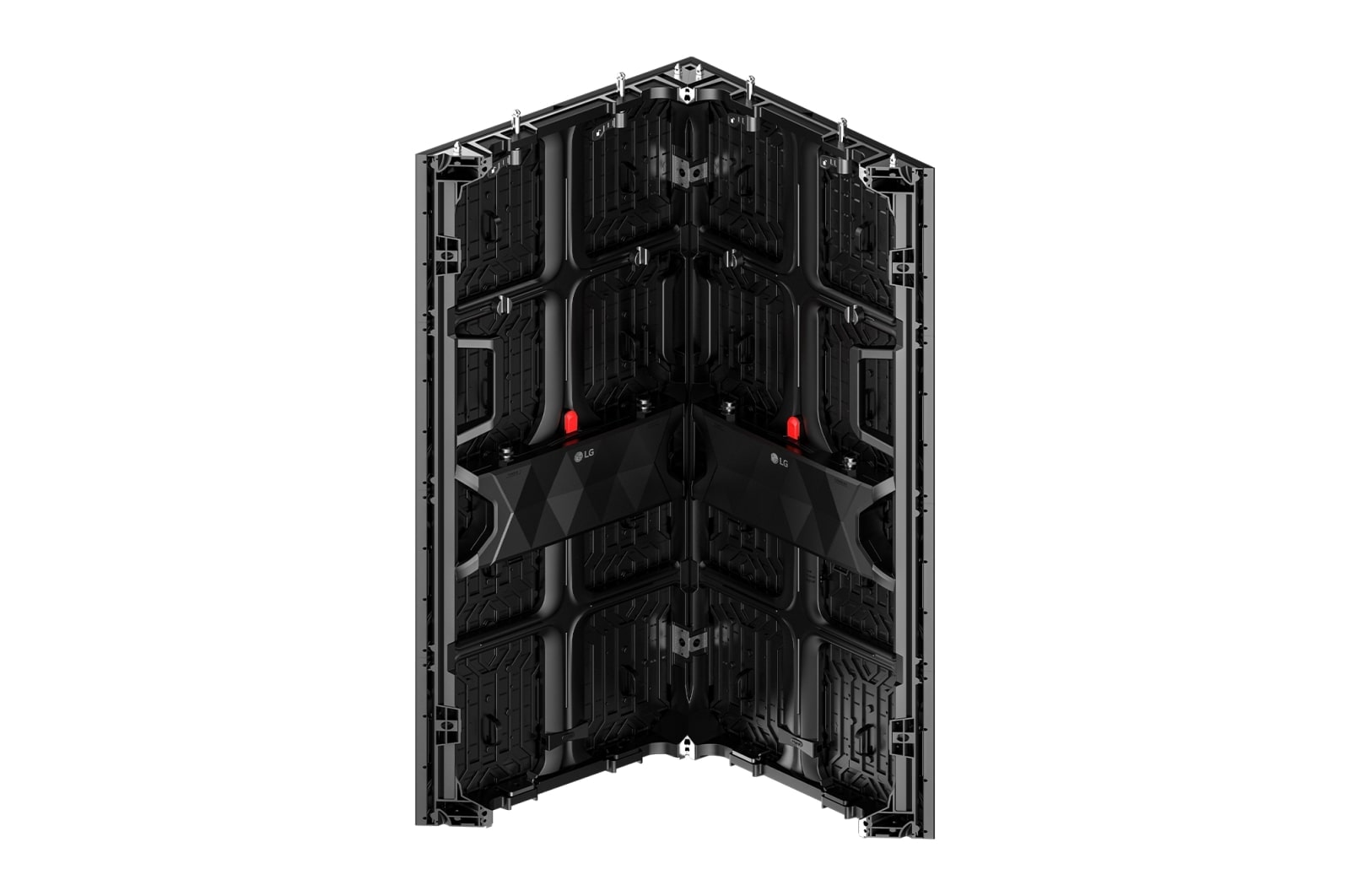

90° Corner Design Available

If you add 90° corner option, the LWBC series fits naturally into the space and delivers smooth & flawless content to customers.



LG LWBC039-GD Easy Installation

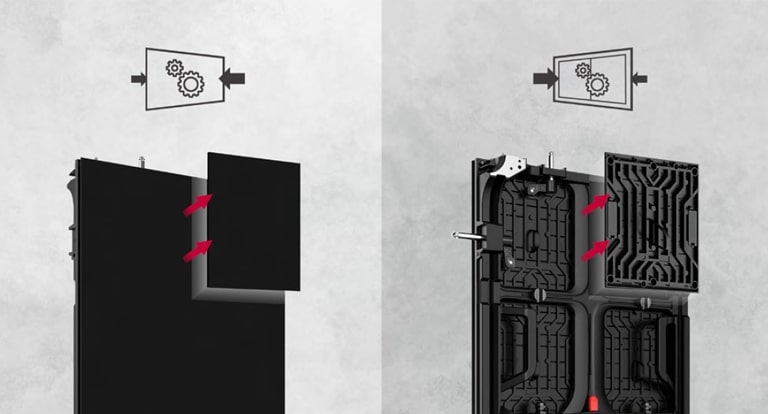

Front or Rear Installation & Maintenance

Easy access to front or rear cabinet for maintenance.



LG LWBC039-GD Quick Lock

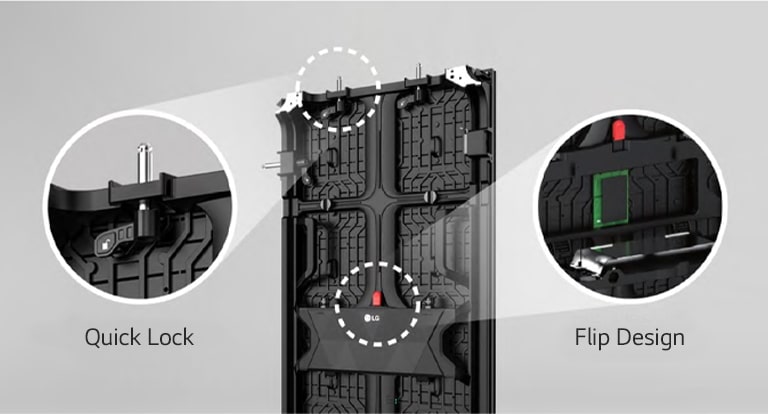

Quick Lock & Flip Design

Easy installation with quick lock system and maintains an outstanding alignment. Also the flip design makes easy repair and replace of integrated power system and reception card.

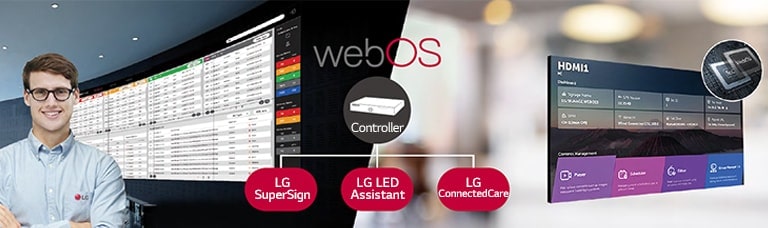

Compatibility with
LG Software Solution

Powered by LG’s high performance system controller, the LWBC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.

LG LWBC039-GD Compatibility with LG Software Solution

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.

Print

All Spec

PHYSICAL PARAMETERS

  • Pixel Configuration

    3 in 1 SMD

  • Pixel Pitch (mm)

    3.906

  • Module Resolution (W × H)

    64 × 64

  • Module Dimensions (W × H, mm)

    250 × 250

  • Weight per Module (kg, ±0.003 kg)

    0.70

  • No. of Modules per Cabinet (W × H)

    2 × 4

  • Cabinet Resolution (W × H)

    128 × 256

  • Cabinet Dimensions (W × H × D, mm)

    500 × 1,000 × 68

  • Cabinet Surface Area (m²)

    0.500

  • Weight per Cabinet (kg/Cabinet)

    12.0

  • Weight per Square Meter (kg/m²)

    24.0

  • Physical Pixel Density (pixels/m²)

    65,536

  • Flatness of Cabinet (mm)

    0.5

  • Cabinet Material

    Die Casting Aluminum

  • Service Access

    Front or Rear

OPTICAL SPECIFICATIONS

  • Max Brightness (After Calibration, nit)

    3,500

  • Color Temperature (K)

    3,200-9,300

  • Visual Viewing Angle (H × V)

    160 × 140

  • Brightness Uniformity

    97%

  • Color Uniformity

    ±0.003 Cx,Cy

  • Contrast Ratio (Typ.)

    5,000

  • Processing Depth (bit)

    16
    (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

  • Power Consumption (W/cabinet, Max.)

    300

  • Power Consumption (W/cabinet, Avg.)

    100

  • Power Consumption (W/m², Max.)

    600

  • Power Consumption (BTU/Cabinet, Max.)

    1,024

  • Power Consumption (BTU/Cabinet, Avg.)

    341

  • Power Consumption (BTU/m², Max.)

    2,047

  • Power Supply (V)

    100 to 240

  • Frame Rate (Hz)

    50 / 60

  • Refresh Rate (Hz)

    3,840

OPERATION SPECIFICATIONS

  • Lifetime (Half brightness)

    100,000

  • Operating Temperature (°C)

    -20 to +40

  • Operating Humidity

    10-90% RH

  • IP Rating Front / Rear

    IP5X / IP5X

Leaflet

extension : pdf
Information Display Range Catalogue_250221.pdf
Download

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
