LG Ultra Light Series

LG Ultra Light Series

GSCD039
(1)
  • front-view
  • 45angle-view
  • front-view
  • detail
  • 45angle-view
  • Signage-side-view
  • 45angle-view
  • side-view
  • 60-view
  • 60-view
  • back-view
  • side-view
  • 45angle-view
  • back-view
  • back-view
front-view
45angle-view
front-view
detail
45angle-view
Signage-side-view
45angle-view
side-view
60-view
60-view
back-view
side-view
45angle-view
back-view
back-view

Key Features

  • Pixel Pitch: 3.94 mm
  • Brightness: 5,000 nit
  • Lightweight Design
  • IP65 Weatherproof Design
  • 90º Corner Option Available
More

GSCD Ultra Light Series

With a lightweight design, the Ultra Light Series can be easily composed of a large screen without providing heavy load to the installing structure. A 90° corner option is provided for seamless right-angled installation.

There is a LED screen installed on the corner of the building.

High Brightness

High Brightness

With a great brightness of 7,000 nits*, it clearly delivers content and attracts public attention, which is the ultimate display for outdoor visibility.

*GSCD100-GR series only

Lightweight Design

Lightweight Design

The weights of the cabinet is very light, so even if a large LED screen is installed on the roof, it puts less pressure on the building's load.

High Brightness

Easy Maintenance

The control unit (PDU) of the cabinet is a modular type which can be easily attached or detached, supporting easy maintenance.



An LED module can be detached from the front side or rear side.

Front or Rear Serviceability

The product offers either front access or rear access, allowing customers to choose installation options according to their environment.

90° Corner Design Available

90° Corner Design Available

If you add a 90° corner option*, the GSCD series can deliver content effectively even when installed on the corners.

*Require purchase of 90° corner installable model.

IP Rated Weatherproof Design

IP Rated Weatherproof Design

The front and back of the cabinet are IP65 certified, allowing stable operation less affected by weather.

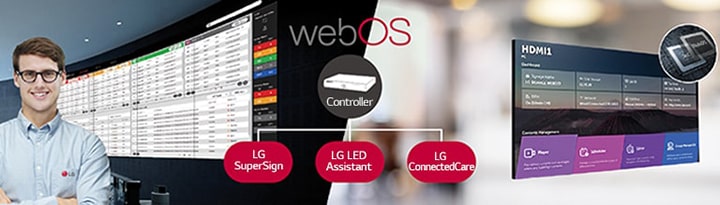

Compatibility with
LG Software Solutions

Powered by LG’s high performance system controller, the GSCD series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.



Compatibility with LG Software Solutions

*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
*The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)

Print

All Spec

PHYSICAL PARAMETERS

  • Cabinet Dimensions (W x H x D, mm)

    1,000x1,000x86.4

  • Cabinet material

    Extrusion Aluminum

  • Cabinet Resolution (WxH)

    256x256

  • Cabinet Surface Area (㎡)

    1

  • Flatness of Cabinet (mm)

    ±0.5

  • Module Dimensions(WxH,mm)

    500x250

  • Module Resolution (WxH)

    128x64

  • No. of Modules per Cabinet (WxH)

    2x4

  • Physical Pixel Density (pixels/㎡)

    65,536

  • Pixel Configuration

    Single SMD

  • Pixel Pitch (mm)

    3.91

  • Service access

    Front or Rear
    (select one only)

  • Weight per Cabinet (kg/unit)

    19.5

  • Weight per Module (kg)

    1.35

  • Weight per Square Meter (kg/㎡)

    19.5

OPTICAL SPECIFICATIONS

  • Brightness Uniformity(%)

    0.97

  • Color Temperature (K)

    3,200~9,000

  • Color Uniformity

    ±0.003Cx,Cy

  • Contrast Ratio

    6,000:1

  • Max Brightness (After Calibration, nit)

    5,000

  • Processing Depth (bit)

    14

  • Visual Viewing Angle (Horizontal)

    160

  • Visual Viewing Angle (Vertical)

    153

ELECTRICAL SPECIFICATIONS

  • Frame Rate (Hz)

    50 / 60

  • Heat Dissipation (BTU/h/Cabinet, Avg.)

    751

  • Heat Dissipation (BTU/h/Cabinet, Max.)

    2,252

  • Heat Dissipation (BTU/h/㎡, Max.)

    2,252

  • Power Consumption (W/Cabinet, Avg.)

    220

  • Power Consumption (W/Cabinet, Max.)

    660

  • Power Consumption (W/㎡, Max.)

    660

  • Power Supply (V)

    100 to 240

  • Refresh Rate (Hz)

    3,840

OPERATION SPECIFICATIONS

  • IP rating Front

    IP65

  • IP rating Rear

    IP65

  • Operating Humidity

    10~99%RH

  • Operating Temperature(℃)

    -30°C to +50°C

STANDARD

  • Certification

    CE, FCC, ETL

ENVIRONMENT

  • Environment

    RoHS

CONTROLLER

  • Controller

    CVCA

90 DEGREE CORNER CUT

  • 90 degree corner cut

    Yes

INFORMATION

  • Model name

    GSCD039

Leaflet

extension : pdf
GSCD Series_Datasheet-India-240205 (1).pdf
Download
extension : pdf
Information Display Range Catalogue_250221.pdf
Download

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
