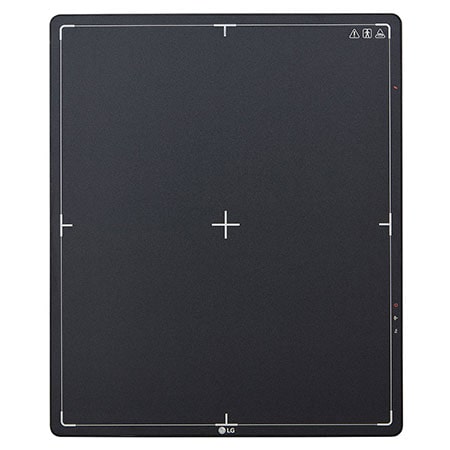

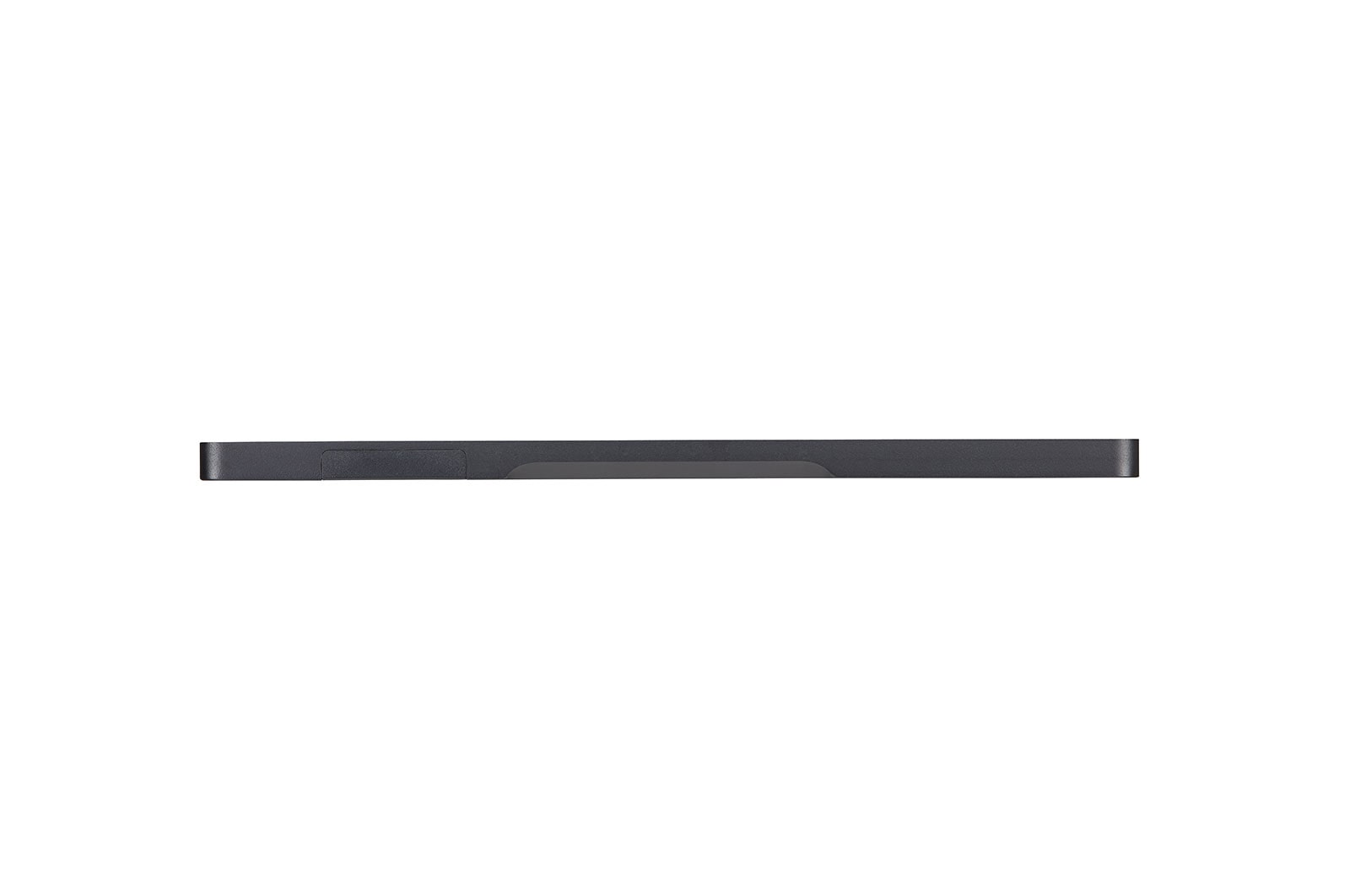

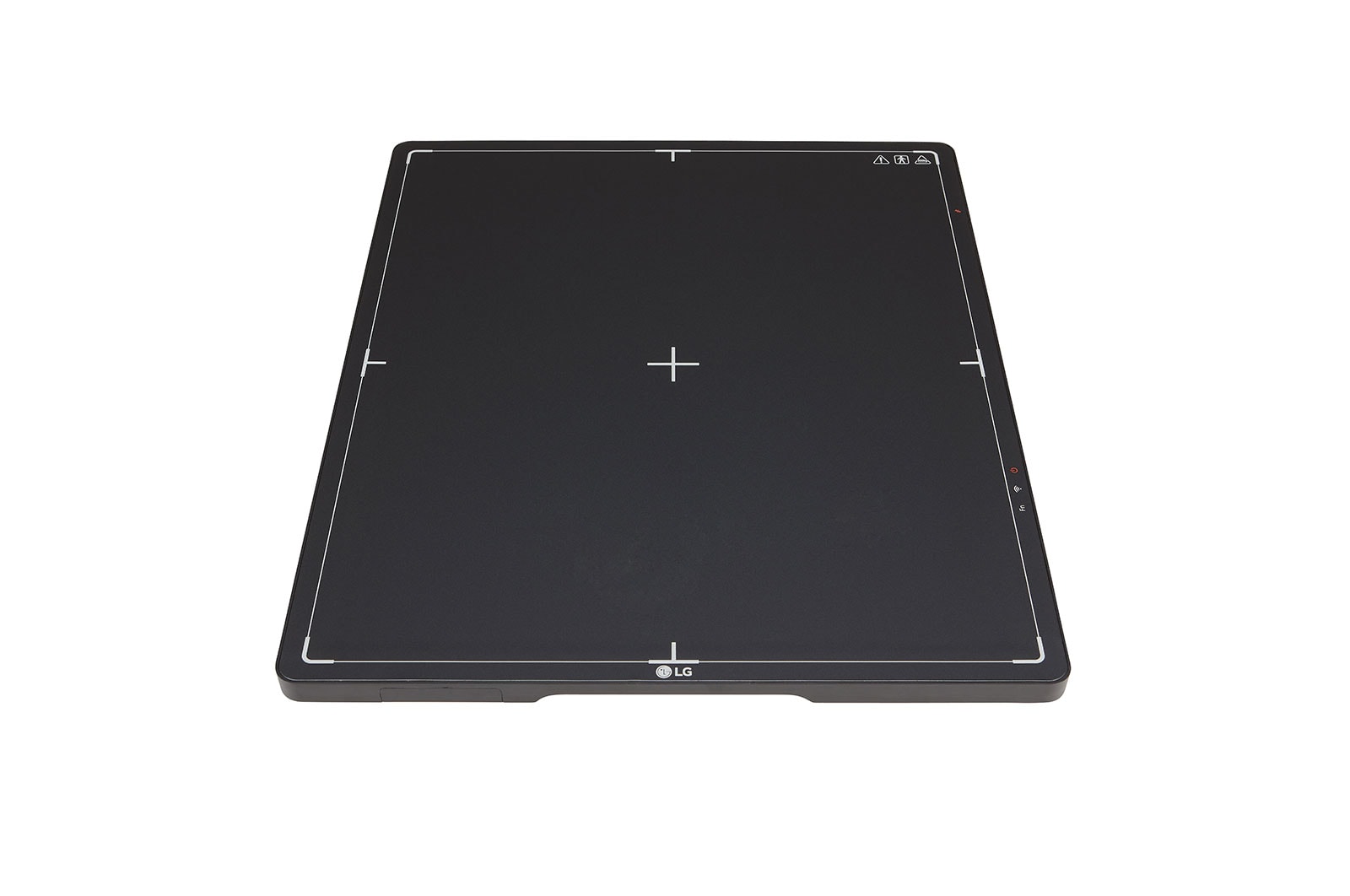

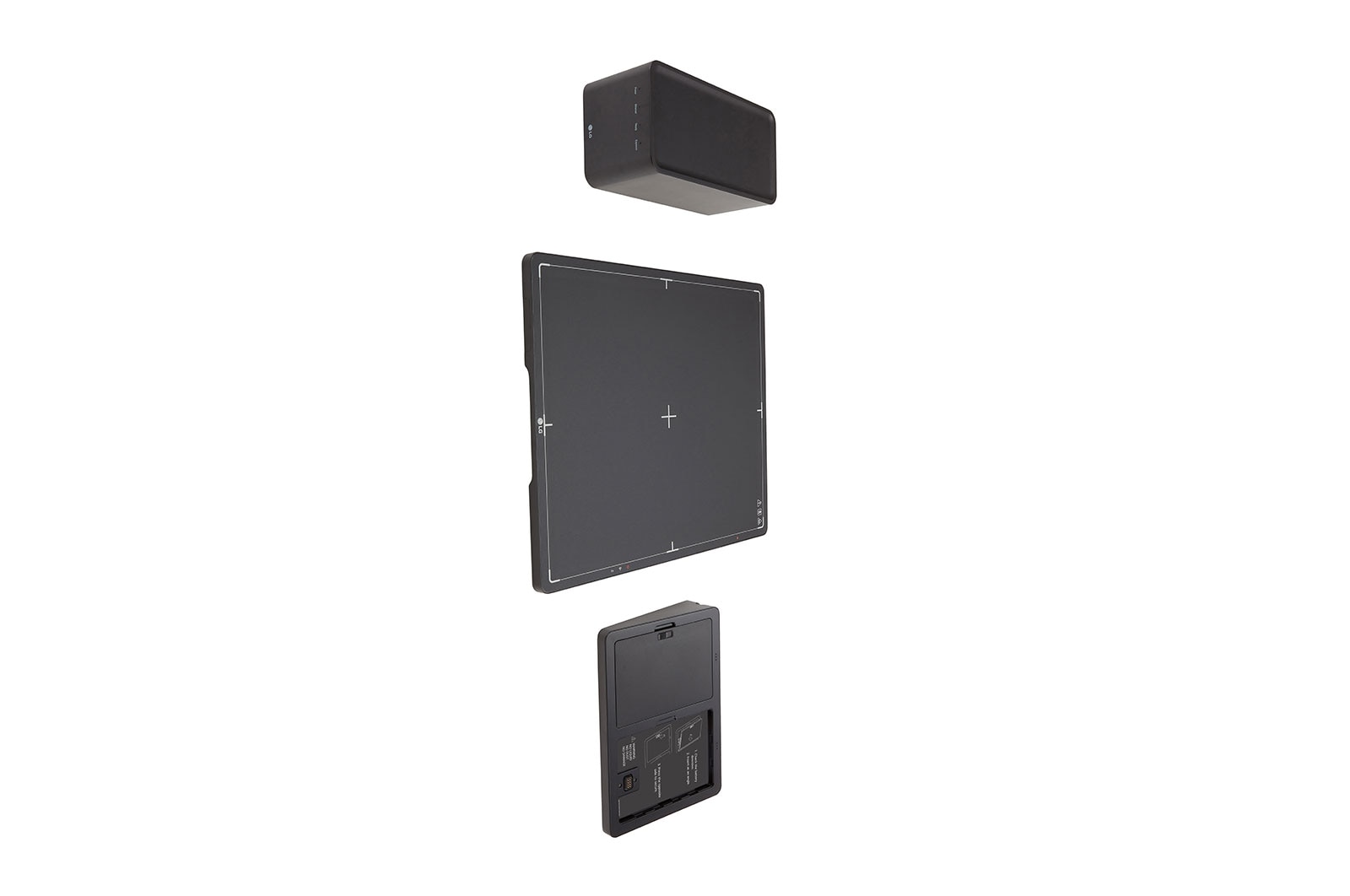

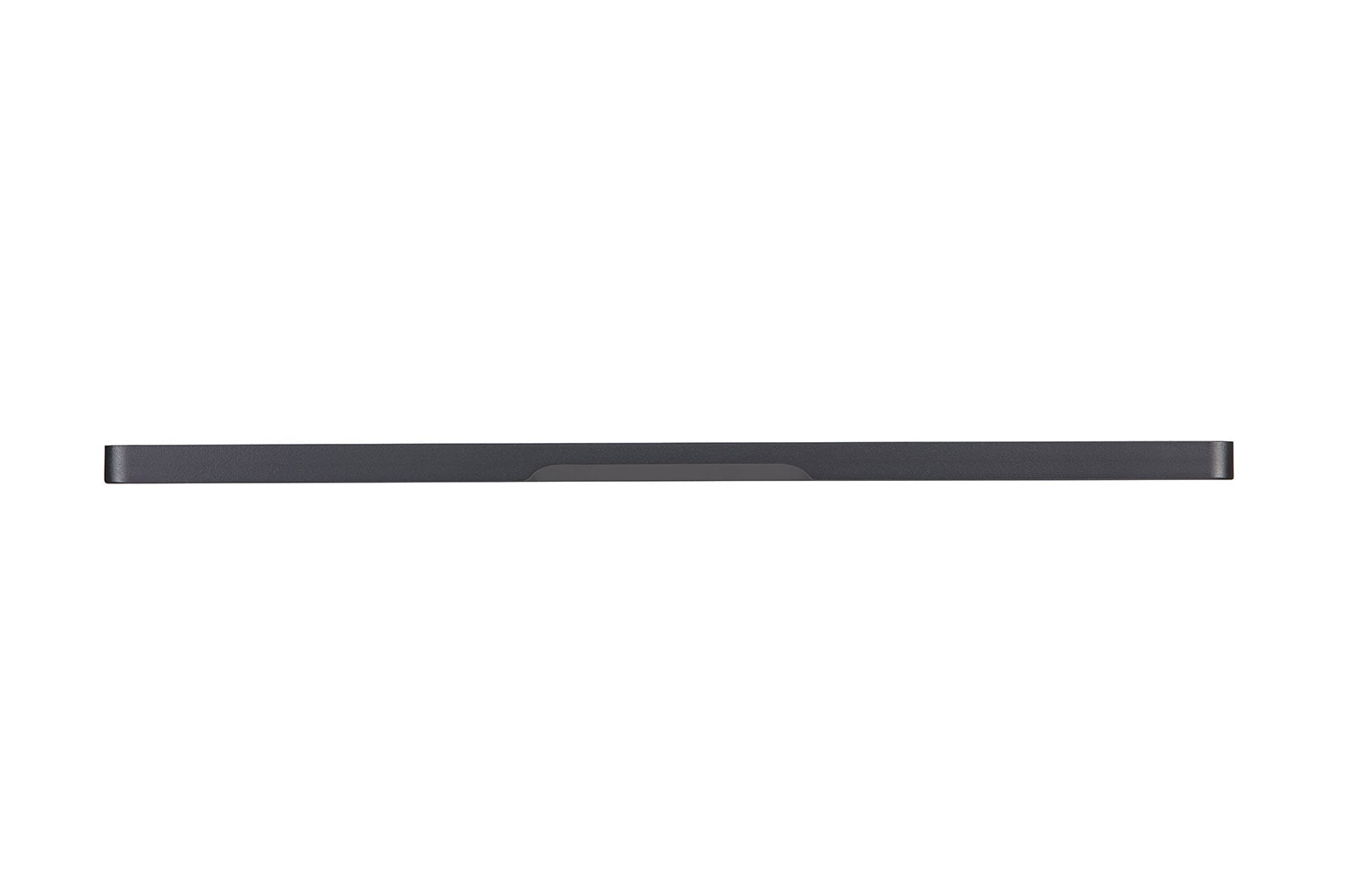

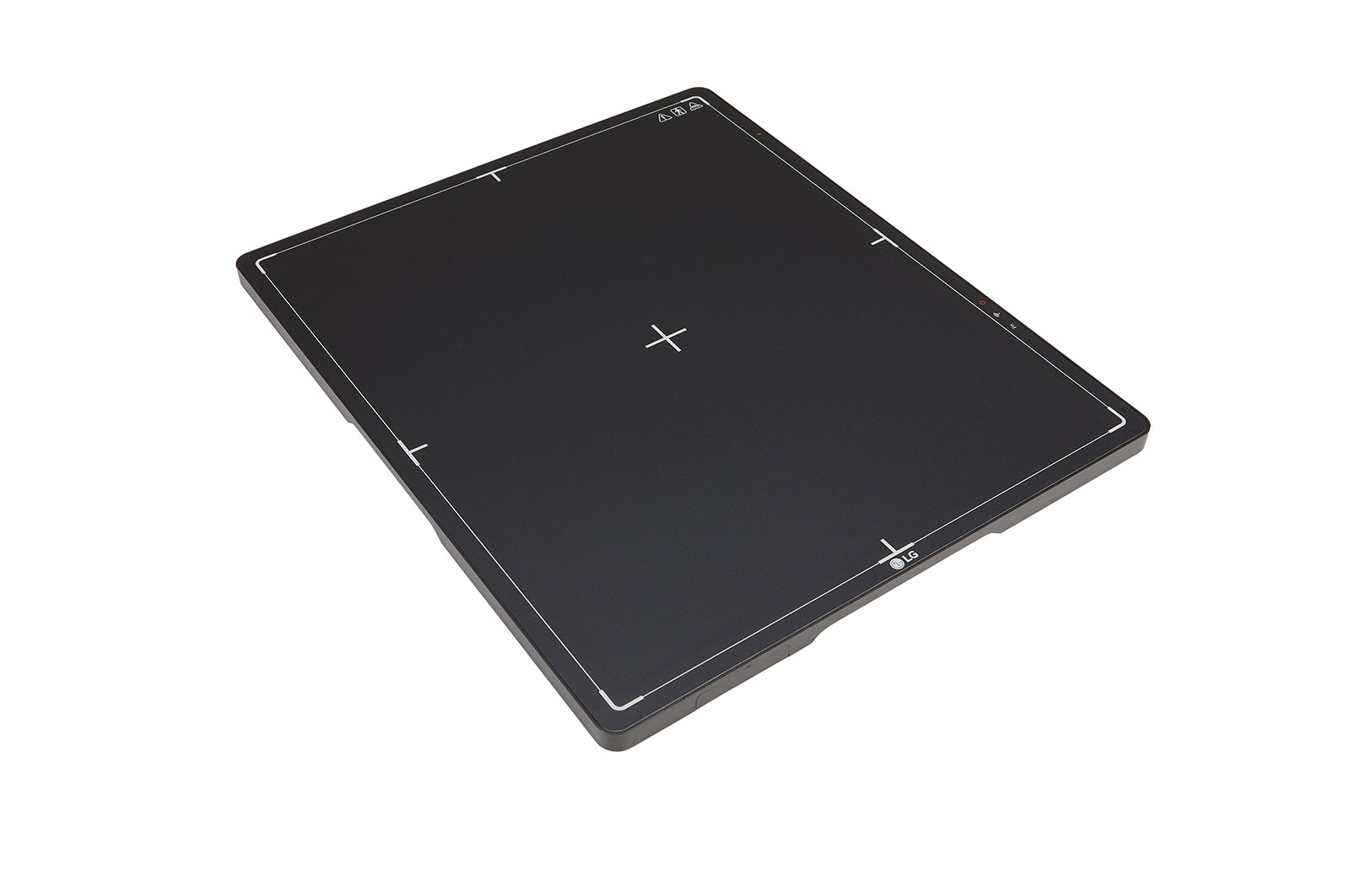

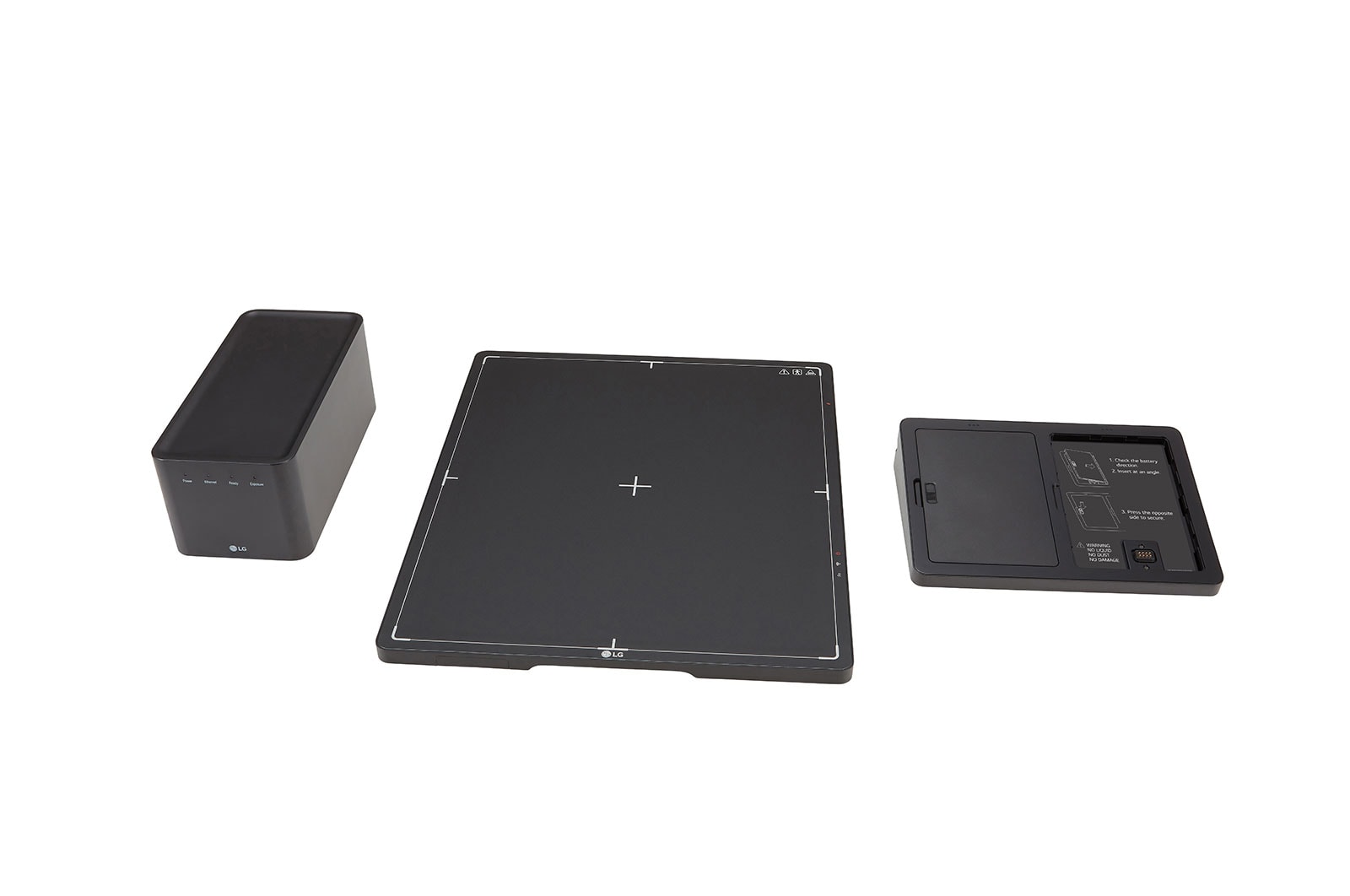

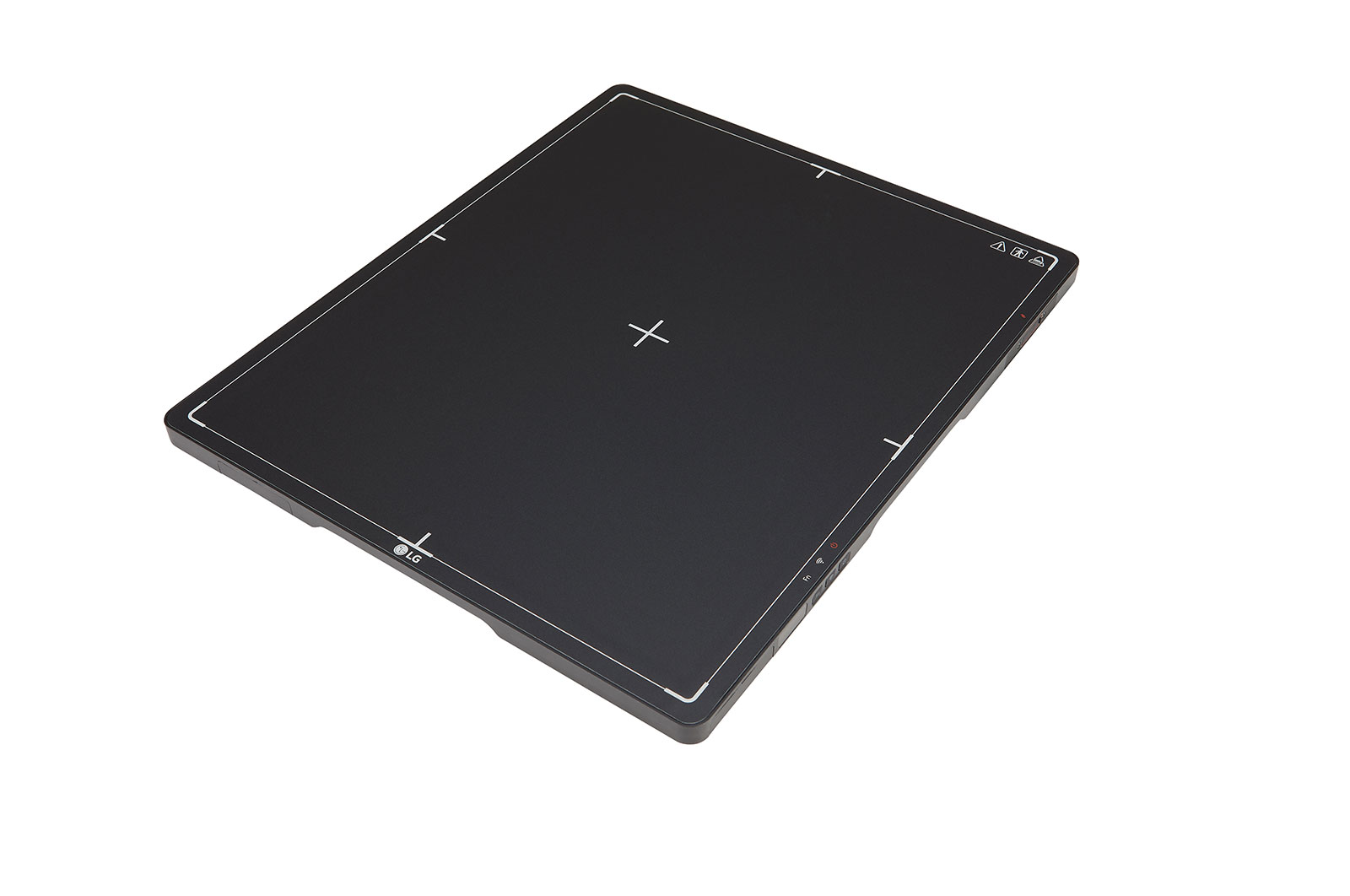

LG Digital X-Ray Detector (DXD)

14HQ901-G

Key Features

140㎛ pixel size
16bit A/D conversion
Raw Image in 2 sec . ( Wireless )
Raw Image in 1.5 sec .( wired )
IP68: Water and Dust Resistance.
Magnesium & Carbon-fiber Body

Designed for Diagnostics

Image Quality you can Trust

LG DXD produces clear images at high resolution with virtually no image distortion through 16bit image processing. Plus, it supports pixel pitches of 140㎛ for high resolution images.

14HQ901G-D02_Global_14HK701G-W_2018_Feature_02_1_1_Exceptional_1536924247049_1556674271205

14HQ901G-Global_14HK701G-W_2018_Feature_02_1_2_Exceptional_1536924256290_1556674287016

14HQ901G-Global_14HK701G-W_2018_Feature_02_1_3_Exceptional_1536924267065_1556674299375

14HQ901G-Global_14HK701G-W_2018_Feature_02_1_4_Exceptional_1536924276083_1556674314492


*Screen image is simulated for illustrative purposes only.

Light yet Durable

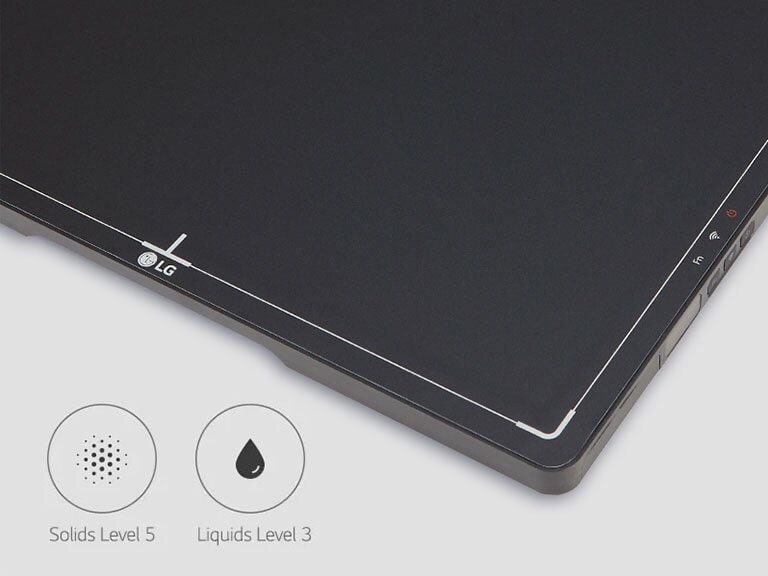

IP68: Water and Dust Resistant

With an IP68 resistance rating*, LG DXD is partially protected against dust that may harm the equipment and moisture spray up to 60 degrees from vertical.

*Ingress protection code IEC standard 60529.

Magnesium & Carbon-fiber Body

With a super strong body that combines carbon-fiber with magnesium, LG DXD is not only lightweight, but also exceptionally strong.

*Maximum load weight: uniform load 300kg (661lb), point load 100kg (220lb).

Improve Work Efficiency

Rapid Image Availability

LG DXD can help increase productivity with fast processing. It takes only 2 seconds with connection or 2.5 seconds for wireless to get a raw image.

*Screen image is simulated for illustrative purposes only.

All Spec

SPECIFICATION

A/D Conversion
16bit
Cycle Time
8sec. (Wired) / 11sec. (Wireless)
Data Output
16bit
External Dimension
35.56 x 43.18 cm
Full Image
Wired 1.5 sec. (Typ.) Wireless 2 sec. (Typ.)
Intended Use
General Radiography
Pixel Size
140μm
Scintillator
CsI
TFT Type
OXIDE
Weight
3 Kg

IMAGE AREA

X-ray Sensitive Area
350 x 427.28 mm
X-ray Sensitive Pixel
2500 x 3052 pixels

MTF

MTF @ 0.5Ip/mm
(Typ.) 84%

DQE

DQE
(Typ.) 78%

COMMUNICATION

AED (Auto Exposure Detection)
Support
Type
Wired / Wireless
Wireless
IEE802.11a/b/g/n/ac, 2.4GHz / 5GHz

DURABILITY

Maximum Load Weight
Full (Uniform Load) : 300kg, 661Ib ; Local (Point Load) : 100kg, 220Ib
Resistance Rating
IP68 rated
Sensor Protection Plate
Carbon Fiber Plate

BATTERY

Charging Time
3hrs.
Duration in Standby Status
(Typ.) 13hrs.
Operating Time
(Typ.) 220 shots / 5.5hrs. (@ Cycle Time 90sec.)
Type
Detachable

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
