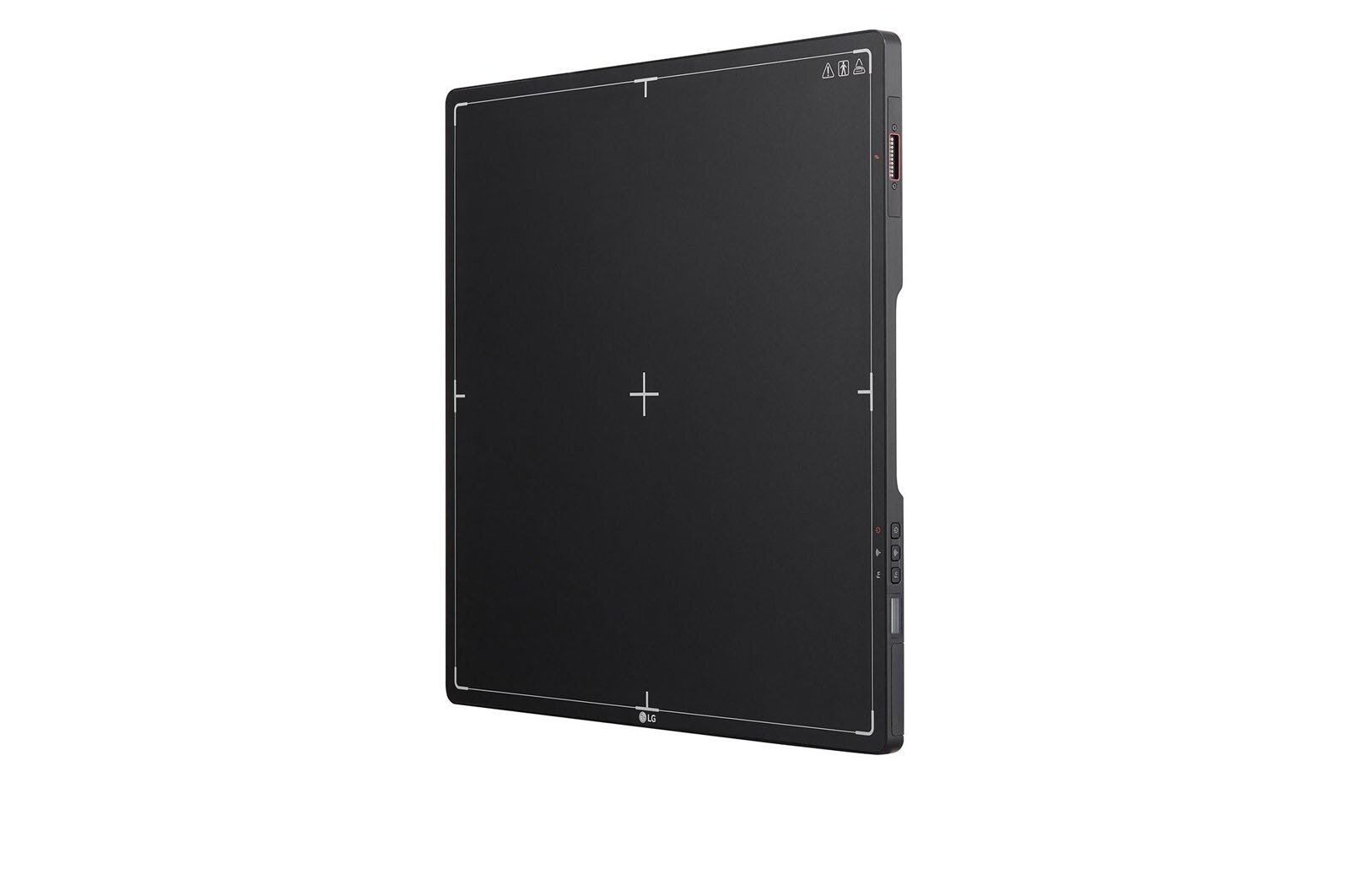

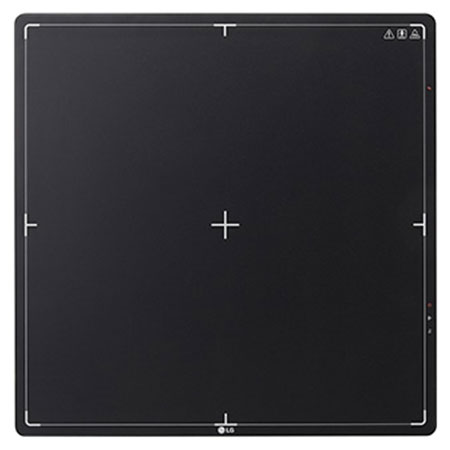

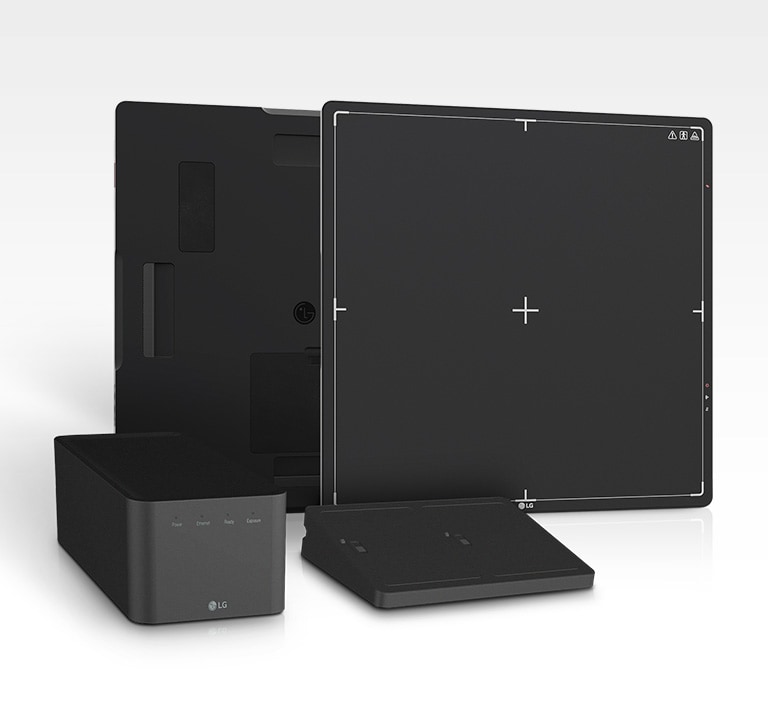

LG Digital X-ray Detector with a-Si TFT
*All images are shown for illustrative purposes only, and may vary from the actual product/usage.
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
*All images are shown for illustrative purposes only, and may vary from the actual product/usage.
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.

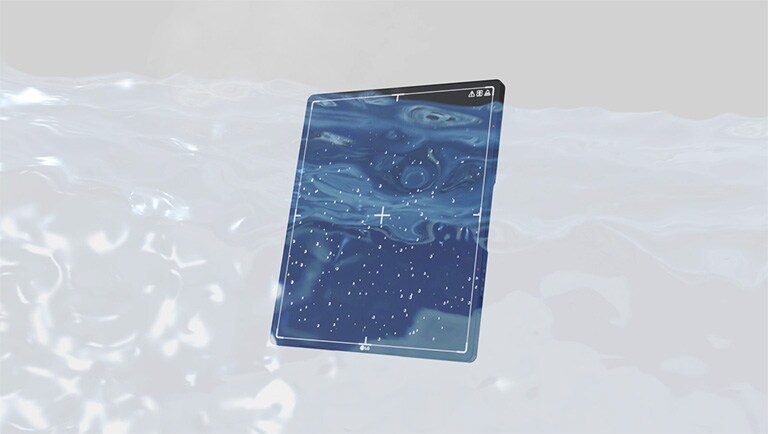

*IP68 includes Solids Level 6 (Dust-tight: no ingress of dust, and Liquid Level 8.
*Tested under controlled laboratory conditions with an IP68 rating. Water resistant up to 1 meter for 30 minutes. Dry before using. Do not charge while wet.
**Maximum total uniform load and maximum point load when tested for 60 seconds.
***IEC 60601-1 drop test in a controlled laboratory environment can differ from actual usage situation.
****All images are shown for illustrative purposes only, and may vary from the actual product/usage.
*****Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
*All images are shown for illustrative purposes only, and may vary from the actual product/usage.
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.

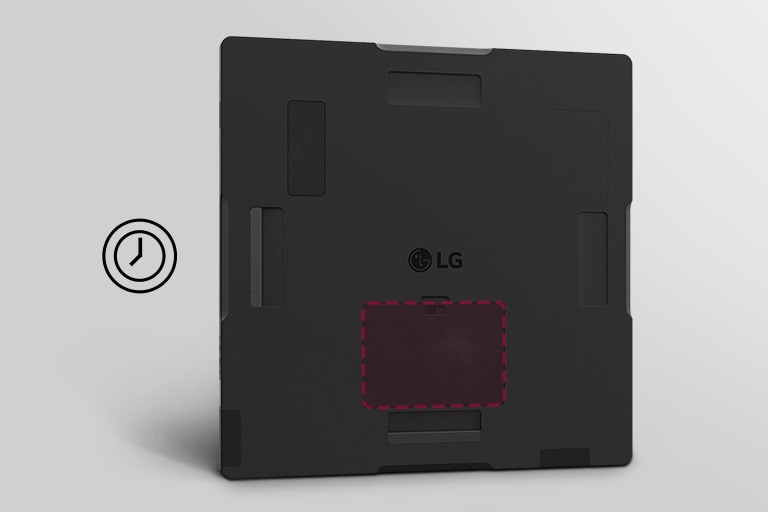

*300 shots / 7.5 hours under conditions of cycle time 90 sec.
**Actual battery usage time and performance may vary depending on network connectivity and application use.
***All images are shown for illustrative purposes only, and may vary from the actual product/usage.
****Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
1.5 sec.(Wired)/2.5 sec.(Wireless)

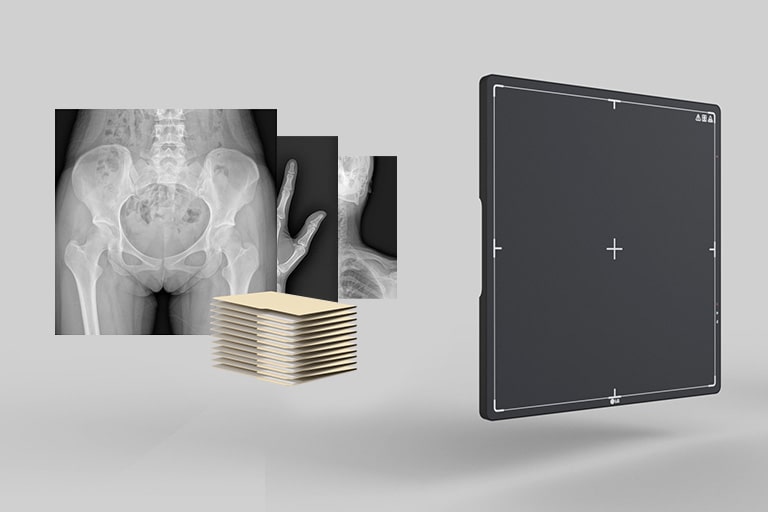

Local Storage
*All images are shown for illustrative purposes only, and may vary from the actual product/usage.
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
CD
Manual, Calibration SW
Cable
Power cord, Main Cable 7m (LAN Cable, Sync cable Option)
Other
Book Manual , Outgonig Inspection sheet
Warranty
36 Month
Type
Detachable
Nominal Capacity
36Wh (7.7V, 4725mAh)
Nominal Voltage
7.7V
Dimensions (WxDxH, mm)
112.2 x 158 x 8.4
Weight (g)
240
Operation Time
Typ. 300 shots/ 7.5 hrs (Condition : Cycle time 90sec)

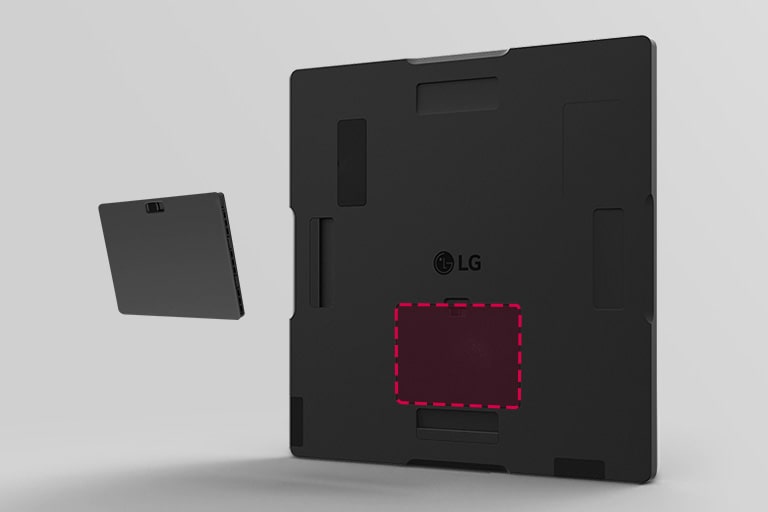

Hot Swap
Yes (1min)
Application
General Radiography
TFT Type
A-Si
Scintillator
Csi
Number of Pixels
3072 x 3072
Pixel Pitch
140㎛
TFT Dimensions (WxDxH, mm)
445 x 445 mm
TFT Active Area (mm)
430.08×430.08 mm
X-ray sensitive Pixel
3072 x 3072
X-ray sensitive Area (mm)
430.08 x 430.08 mm
Sensor protection plate
Carbon Fiber Plate
Input
DC24V/2.1A
Power consumption
Typ. 38W
Dimensions(WxDxH, mm)
460 x 460 x 15.6 mm

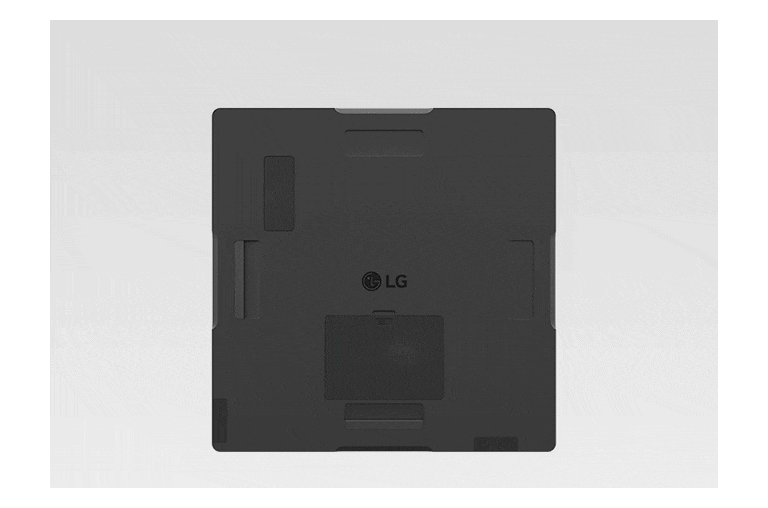

Weight (kg) / Icld. Battery (Typ.)
3.7 kg
Maximum Load Weight
Full (Uniform Load) : 400kg Local (Point Load) : 200kg
Falling (IEC60601-1 Test Condition)
1.5m
Cycle Time (Wired / Wireless)
4.5sec / 5sec
Full Image (Raw Image) (Typ.)*without window time
Wired 1.5 sec / Wireless 2.5sec
Power Input
AC100 to 240V, 47-63Hz
Power Output
DC24V / 2.1A
AC Power Cord
1.5m (Black)
Dimensions (WxDxH, mm)
125 x 255 x 109.8 mm
Weight (kg)
1.3kg
Input voltage
19V
Output voltage
8.7V
Charging Time
3 Hours
Slot Q'ty
2
Bundle battery Q'ty
2
Dimensions (WxDxH, mm)
268.4 x 186.9 x 54.9mm
Weight (kg)
0.5 kg
Dimensions (WxDxH, mm)
134 x 59.8 x 31 mm
DC Cable length
1,500 mm
AC Power Cord
Yes
Input
100 ~ 240VAC
Output
19V/3.42A
Weight (kg)
0.335kg
Watertightness
IP68
Cleaning and desinfecting products
Isopropanel 100%, Ethanol 70%, Cidex OPA, 0.9% Nacl solution
Anti-Bacteria
JIS Z 2801 0.99%
MTF @ 0.5lp/mm
84%
MTF @ 1lp/mm
62%
MTF @ 2lp/mm
31%
MTF @ 3lp/mm
15%
DQE @ 0.1lp/mm
66%
DQE @ 0.5lp/mm
55%
DQE @ 1lp/mm
43%
DQE @ 2lp/mm
28%
DQE @ 3lp/mm
19%
Sensitivity( lsb/uGy ) / Programmable
3.57 lp/mm
A/D Conversion
16 bit
Data Output
16 bit
Auto Exposure Detection
Yes
X-ray period (ms) (=Window Time)
350 ~ 4000ms
Unit Interface
Connect to Control Box
Power unit interface
Connect to Control Box
Wired Communication
Yes
WLAN
IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
AP mode
Yes(Integrated)
Detachable Wire(Easy to plug / unplug)
Yes (Magnetic)
Shock monitoring
Yes
Image storage on DXD
Up to 200 images
Semi-dynamic Acquisition
5 fps
Length
7m
Length
10m
Length
15m
Storage-Temperature
-20 to 60 ℃
Storage-Humidity
Less than 90% RH, No condensation
Storage-Pressure
50 ~ 106 kPa
Storage-Attitude
Less than 12,192 m
Operating-Temperature
10 to 35 ℃
Operating-Humidity
Less than 80% RH, No condensation
Operating-Pressure
70 ~ 106 kPa
Operating-Attitude
Less than 5000 m
Dimension in Shipping (W x H x D)
621 x 352 x 562
Pallet Stuffing (20ft/40ft/40ft HC)
160/360/432
Weight in Shipping
12.0kg
