*ACR-AAPM-SIIM Secondary Review Brightness Guideline : The secondary review brightness guideline developed collaboratively by the American College of Radiology (ACR), the American Association of Physicists in Medicine (AAPM), and the Society for Imaging Informatics in Medicine (SIIM).
Category
Clinical Review Monitor
Aspect Ratio
16:9
Backlight Dimming Technology
Global Dimming
Backlight Technology
LED
Backlight Type
Edge
Brightness (Typ.)
350cd/m²
Brightness (Stabilization)
250cd/m²
Color Bit
10bit
Color Depth (Number of Colors)
1.07B

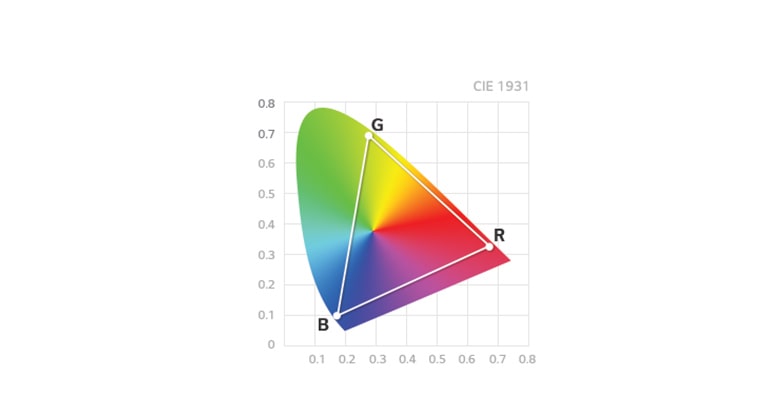

Color Gamut (Typ.)
sRGB over 99%(Coverage)
Contrast Ratio (Typ.)
1000:1
Contrast Ratio with DFC
Mega
Panel Type
IPS
Pixel Pitch (H x V)
0.1554mm x 0.1554mm
Resolution
3840 x 2160
Response Time (GTG)
14ms (Off-setting), 5ms (Faster-setting)
Size (cm)
68.58cm (27)
Surface Treatment
Anti-glare, 3H
Viewing Angle (CR≥10)
178°(Right/Left), 178°(Up/Down)
AC Input
100-240Vac, 50/60Hz
DC Output
19V, 3.42A
Power Consumption (DC Off)
Less than 0.3W
Power Consumption (Max.)
65W
Power Consumption (Sleep Mode)
Less than 0.5W
Type
External Power (Adapter)
Dimension in Shiping (W x H x D)
694 x 504 x 185 mm
Dimension with Stand (W x H x D)
615 x 546.3 x 276.1 mm
Dimension without Stand (W x H x D)
615 x 365.1 x 42.70 mm
Pallet Stuffing (20ft/40ft/40ft HC)
352ea/704ea/832ea
Weight in Shipping
10.3kg
Weight with Stand
7.5kg
Weight without Stand
4.7kg
Time/years
3 (10,000 hr)
Adapter
Yes
Adapter (Color)
Black
Calibration Report (Paper)
Yes
Display Port
Yes
Display Port (Color/Length)
Black/1.5m
HDMI
Yes
HDMI (Color/Length)
Black/1.8m
Power Cord
Yes
Power Cord (Color/Length)
Black/1.8m
USB3.0 Upstream Cable
Yes
USB3.0 Upstream Cable (Color/Length)
Black/1.5m
DisplayPort
Yes (1ea)
DP (HDCP Version)
2.2
DP (Max. Resolution at Hz)
3840 x 2160 @60Hz
DP (H-Frequency)
30~135kHz
DP (V Frequency)
56~61Hz
DP Version
1.2
HDMI
Yes (2ea)
HDMI (HDCP Version)
2.2
HDMI (Max. Resolution at Hz)
3840 x 2160 at 60Hz
HDMI (H Frequency)
30~135kHz
HDMI (V Frequency)
56~61Hz
HDMI Version
2.0
Composite
Yes
S-Video
Yes
Component
Yes
Headphone Out
Yes
USB Downstream Port
Yes (2ea/ver3.0)
USB Upstream Port
Yes(1ea/ver3.0)
[Location]
Rear
Dual Controller
Yes
True Color Pro
Yes
Base Detchable
Yes
Borderless Design
3-Side Virtually Borderless Design
Color (Back Cover)
Black
Color (Middle Cabinet)
Black
Color (Stand Base)
Black
Color (Stand Body)
Black

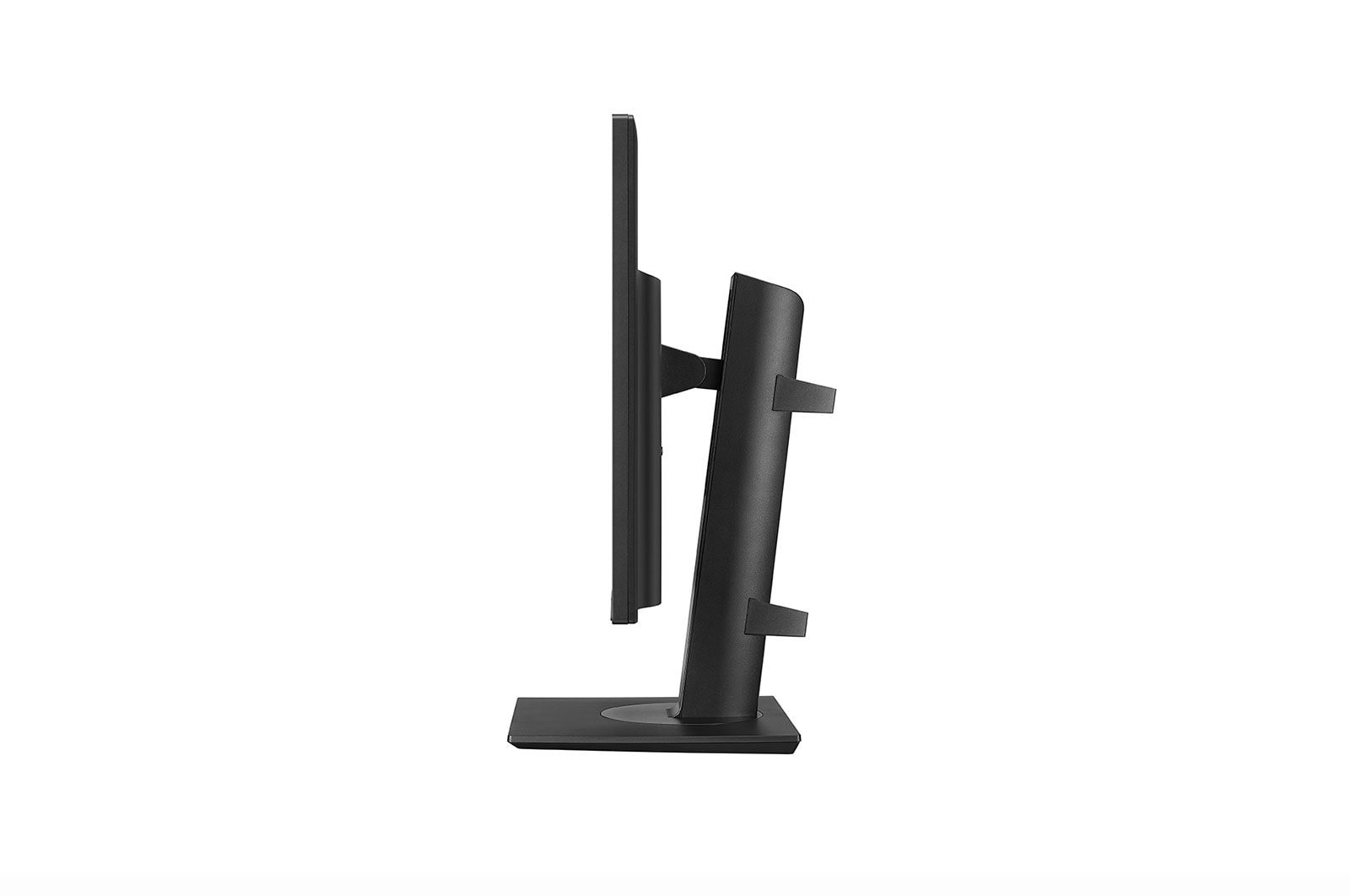

Display Position Adjustments
Tilt/Height/Pivot/swivel
Down Height
49mm

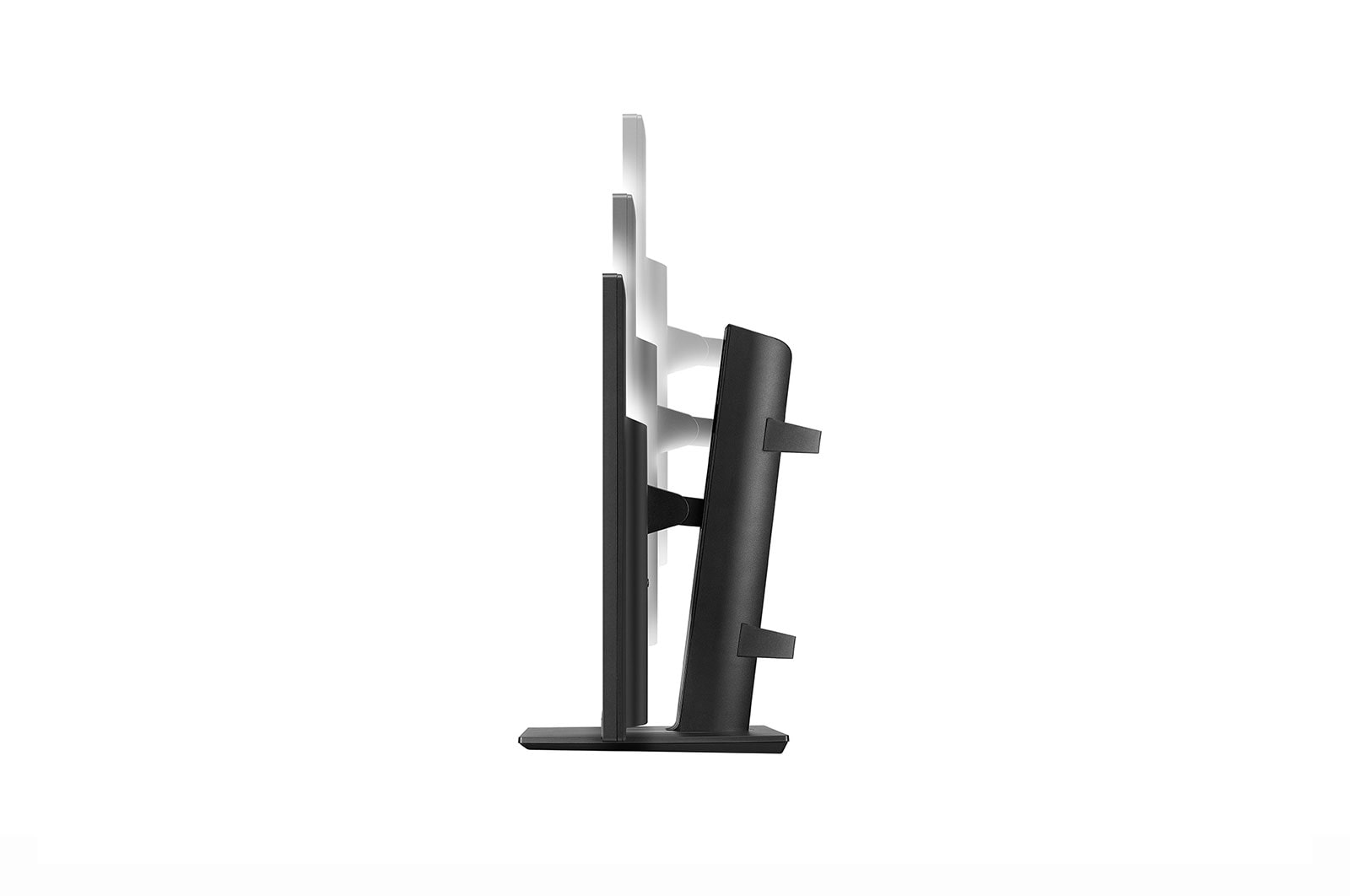

Height Range
150mm
OneClick Stand
Yes

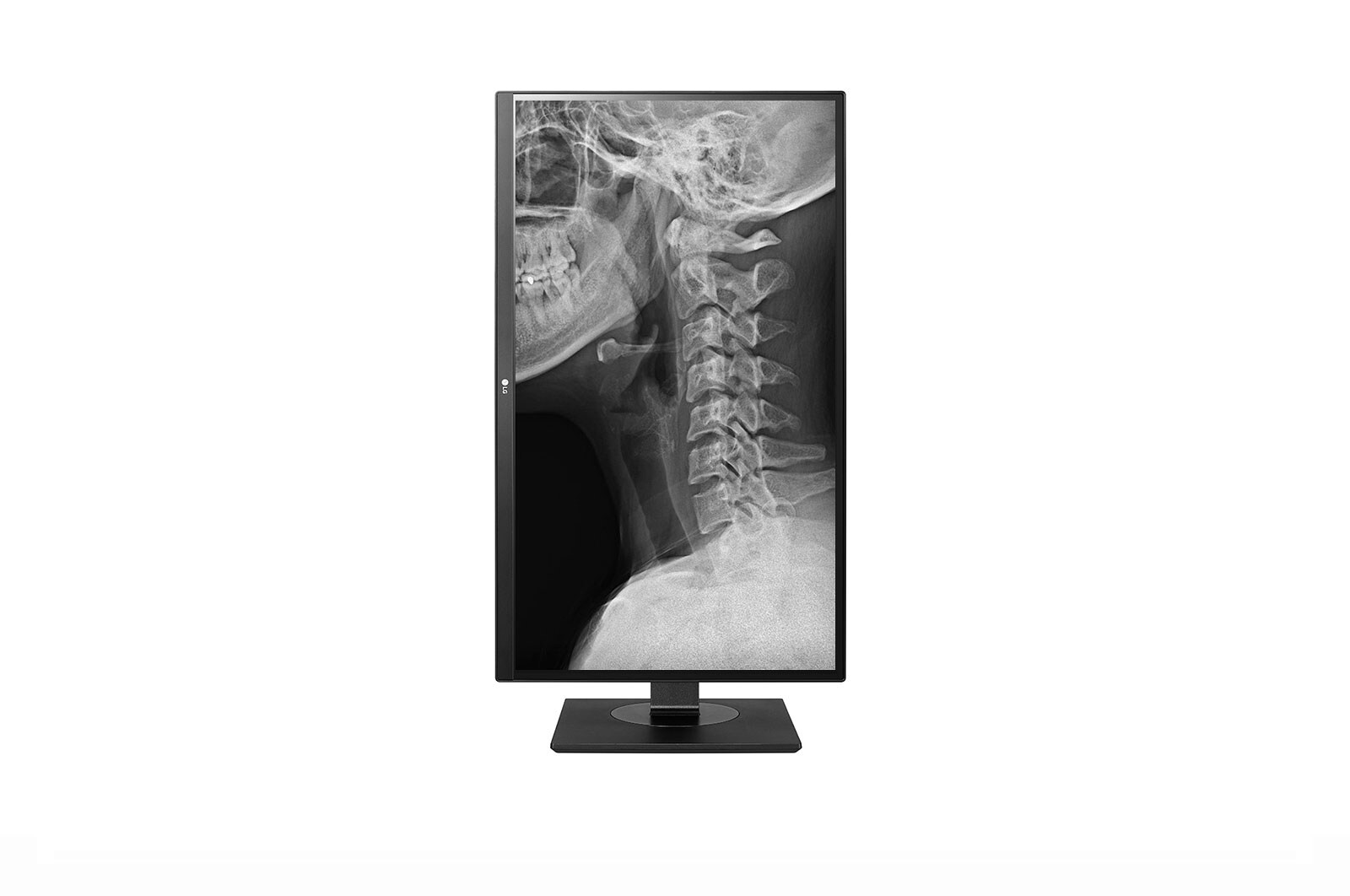

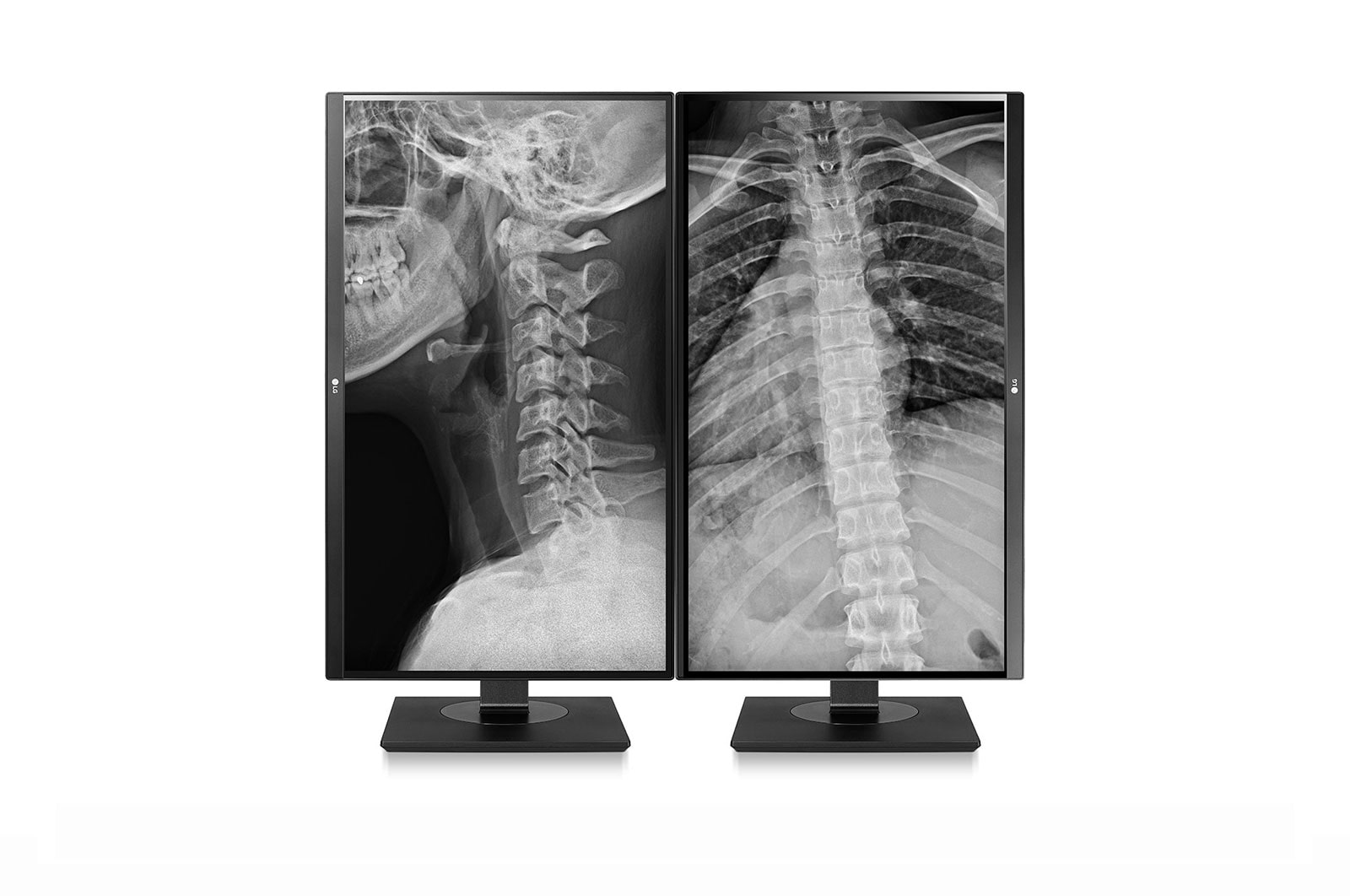

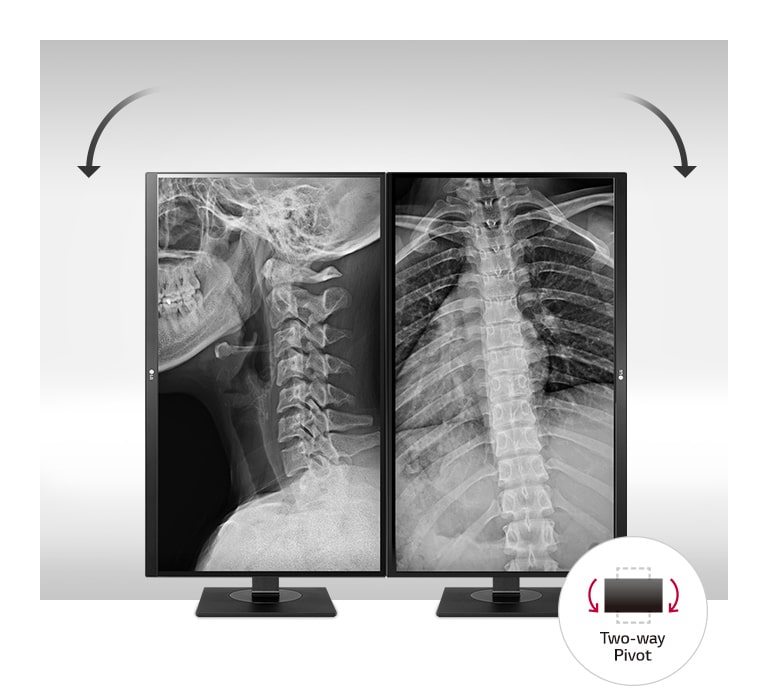

Pivot
Yes (±90°)
Swivel
Yes (±45°)
Tilt
Yes (-5°~25˚)
Wall Mount Size
100 x 100mm
IEC (IEC 60601-1/IEC 60601-1-2)
Yes
EN (EN 60601-1/EN 60601-1-2)
Yes
IEC (IEC 60950-1/IEC 55032, 55024)
Yes
EN (EN 60950-1/EN 55032, 55024)
Yes
cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
Yes
FCC (FCC part 15 Class A)
Yes
FDA
Registration (Class I)
ISO13485
Yes
GMP
Yes
KGMP
Yes
KC
Yes
RoHS
Yes
REACH
Yes
WEEE
Yes
MFDS
Yes
Brightness stabilization
Yes
Factory Calibration
Yes (Delta E<5, Gamma 1.8~2.6/DICOM curve)
HW Calibration
Yes (True Color pro)
DICOM Compliant
Yes
Color Temperature
6500K/8500K/9300KManual (5000K ~ 10000K)
Color Weakness
Yes
Flicker safe
Yes
OSD Language
17 Language
PBP
Yes (2PBP)
Picture Mode
(SDR) Custom, Mono, Reader, sRGB, Color Weakness, EBU, REC709, SMPTE-C, DICOM, Calibration 1, Calibration 2
Reader Mode
Yes
Smart Energy Saving
Yes
Super Resolution+
Yes
Uniformity
Yes
Net Quantity
1 N
Country of Origin
Korea
Manufactured By
LG Electronics Nanjing New Technology Co. Ltd, NO.346, YAOXIN ROAD ECONOMIC & TECHNICAL DEVELOPMENT ZONE, NANJING, 210038, PEOPLE'S REPUBLIC OF CHINA
Imported By
LG Electronics India Pvt. Ltd,A-24/6,Mohan Cooperative Industrial Estate, Mathura Road, New Delhi – 110044
