LG 31.5 (80.01cm) 4K IPS Surgical Monitor

Features

Gallery

Specs

Support

Resource

Find a Dealer

LG 31.5 (80.01cm) 4K IPS Surgical Monitor

LG 31.5 (80.01cm) 4K IPS Surgical Monitor

32HL714S-W
()
  • Front view with infill
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
  • LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W

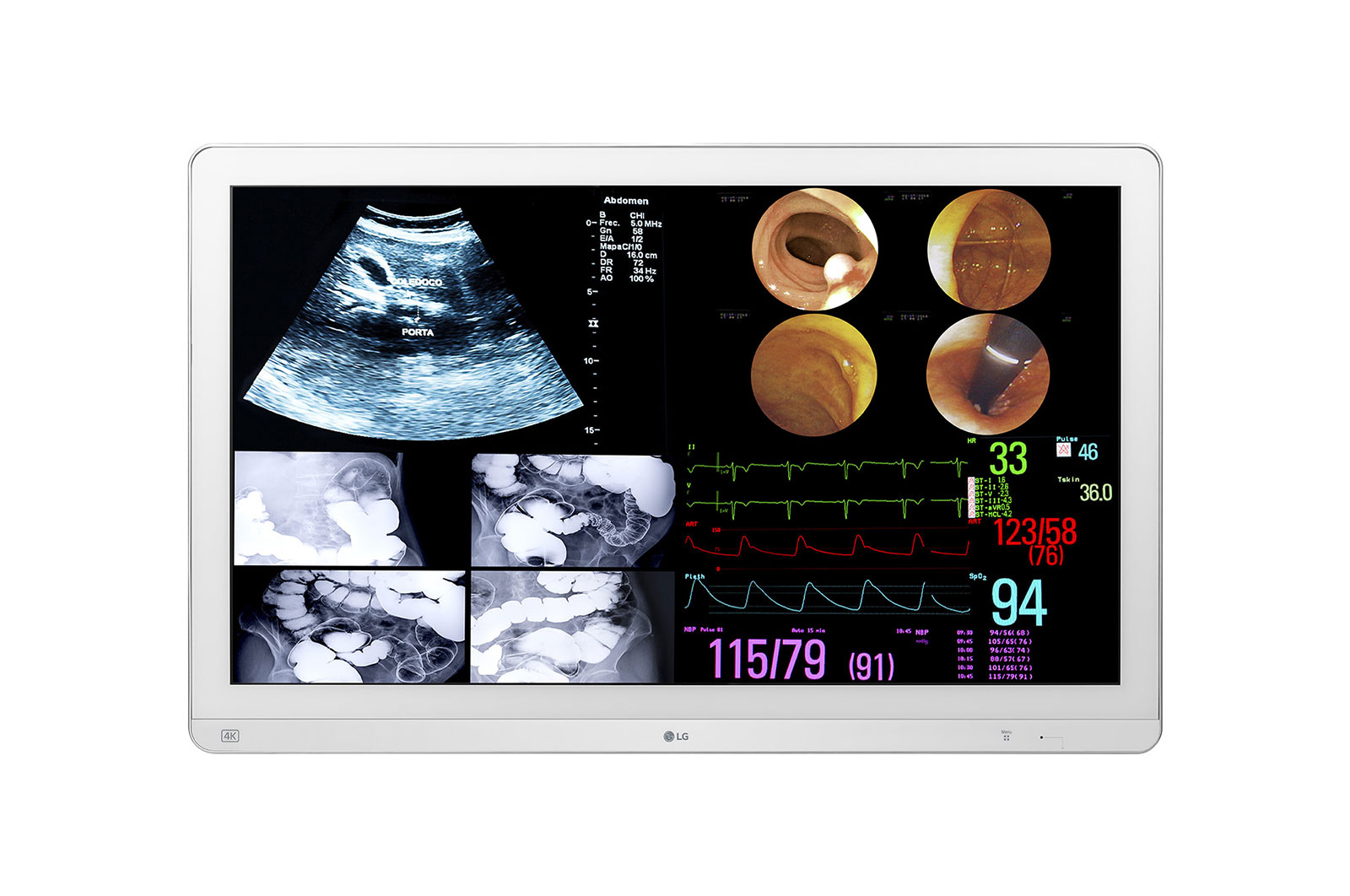

Front view with infill
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W
LG 31.5 (80.01cm) 4K IPS Surgical Monitor, 32HL714S-W

Key Features

  • 31.5 (80.01cm) 4K (3840x2160) IPS
  • Support HDR10
  • Mirror & Rotation Mode
  • Failover Input Switch
  • 12G-SDI Support
  • Up to 4PBP, PIP
More
4K Surgical Display

Large Display for Surgical Precision

LG 4K surgical high-resolution monitor with LG's innovative technology provides accuracy, user convenience and reliability for precise surgery.

Accuracy: 31.5 (80.01cm) 4K IPS / HDR10 / sRGB 115% Area, Convenience: 4PBP

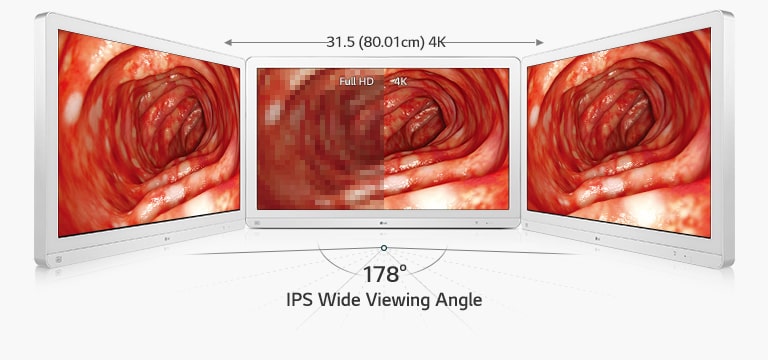

31.5 (80.01cm) 4K IPS

Enhanced Accuracy with Wide View

With 31.5 (80.01cm) 4K IPS display, the LG surgical monitor provides visual comfort for viewing accurate images with others from any angle. So it reduces the risk of misperception and helps to produce better outcomes.

31.5 (80.01cm) 4K : Full HD 4K, IPS Wide Viewing Angle : 178°

CIE 1931 color space diagram sRGB / LG, 15% larger color space

sRGB 115% (Area), Over 99% (Coverage)

Supporting sRGB 115% (Area), Over 99% (Coverage) and the standard DICOM Part 14, the 32HL714S surgical monitor is designed for accurate color recognition and depth perception during invasive surgery. It enables surgeons to view accurate, realistic images and allow precise surgery.
None Brightness Stabilization VS. Brightness Stabilization

Brightness Stabilization

LG surgical monitor with Brightness Stabilization can maintain constant brightness. Its sensor carefully measures the backlight and local lighting conditions. Then it optimizes the correct brightness for the surgical procedure.
None HDR10 VS. HDR10

Support HDR10

LG 4K surgical monitor is compatible with HDR-supported medical devices such as endoscope cameras. It can deliver images from devices vividly without crushing blacks in dark areas.

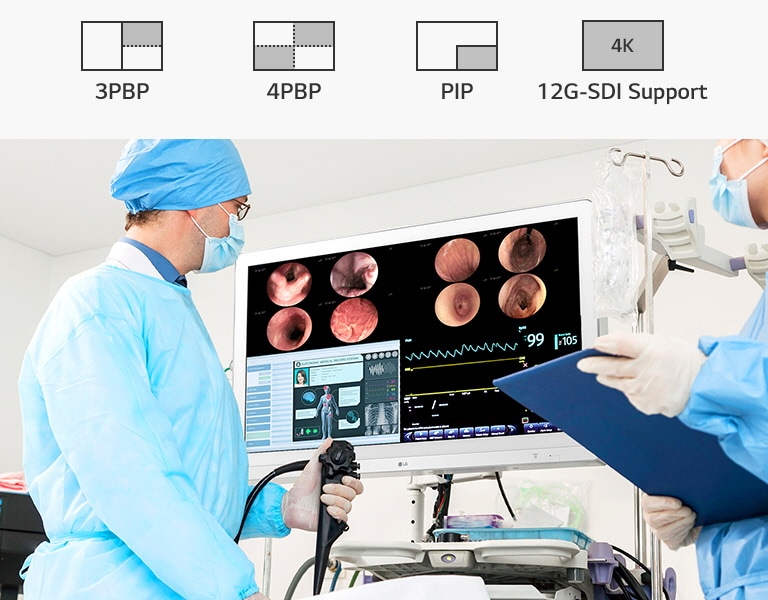

PBP, PIP & 12G-SDI Support

Multiple Signals on One Screen

The 32HL714S supports up to 4PBP, PIP and extended ports, allowing you to see multiple signals from several devices on one screen. You can set a combination screen of the endoscopic video from endoscopic camera, the vital sign imagery and the fluoroscopic imagery.

3PBP / 4PBP / PIP / 12G-SDI Support with 4K

12G-SDI Support : LG 4K Surgical Display enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.

12G-SDI Support

The 32HL714S features a 31.5 (80.01cm) 4K (3840x2160) IPS display with 12G-SDI Support, which enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.(12G-SDI input transmission maximum distance may vary by manufacturers: Up to 50M using BELDEN 1694A cable / Up to 70M using CANARE UHD 5.5C cable)
Failover Input Switch : When the main source is missing, the display will automatically switch to a failover source and restore the main source once the signal is back.

Failover Input Switch

When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.
Original screen, Mirror screen and 180° Rotation
Mirror & Rotation

Find the Perfect Operating View

The 32HL714S with Mirror & Rotation functions, helps you to set the perfectly optimized operating view for improving your convenience in the operating room. You can select the 180 degrees rotated image or the mirror image you want to see.
Dustproof

Dustproof & Water Resistant

To ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the body except for front, securing them from any direction.
Print

All Spec

DISPLAY

  • Category

    Surgical Monitors

  • Aspect Ratio

    16:9

  • Backlight Dimming Technology

    Global Dimming

  • Backlight Technology

    LED

  • Backlight Type

    Edge

  • Brightness (Min.)

    650cd/m²

  • Brightness (Typ.)

    800cd/m²

  • Brightness (Stabilization)

    500cd/m²

  • Color Bit

    10bit

  • Color Depth (Number of Colors)

    1.07B

  • Color Gamut (Typ.)

    sRGB 115% (Area),
    sRGB over 99% (Coverage)

  • Contrast Ratio (Typ.)

    1300:1

  • Contrast Ratio with DFC

    Mega

  • Panel Type

    IPS

  • Peak Brightness (Min.)

    650cd/m² (Peak)

  • Peak Brightness (Typ.)

    800cd/m² (Peak)

  • Pixel Pitch (H x V)

    0.18159mm x 0.18159mm

  • Resolution

    3840 x 2160

  • Response Time (GTG)

    14ms (Off-setting), 5ms (Faster-setting)

  • Size (cm)

    80.01cm (31.5)

  • Surface Treatment

    Protection Glass (1.6t, Anti-Reflection, Anti-fingerprint)

  • Viewing Angle (CR≥10)

    178°(Right/Left), 178°(Up/Down)

FEATURE

  • Hot Key

    Yes (2keys)

  • Brightness stabilization

    Yes

  • Black Stabilizer

    Yes

  • Factory Calibration

    Yes (Delta E<5, Gamma 1.8~2.6/DICOM curve)

  • HW Calibration

    Yes (True Color pro)

  • DICOM Compliant

    Yes

  • Color Temperature

    6500K/7500K/9300K
    Manual (5000K ~ 10000K)

  • Flicker safe

    Yes

  • HDR 10

    Yes

  • HDR Effect

    Yes

  • OSD Language

    17 Languages

  • PBP

    Yes (2PBP/3PBP/4PBP)

  • PIP

    Yes

  • Picture Mode

    (SDR) Custom, Mono, Vivid, HDR Effect, DICOM, Calibration 1, Calibration 2, (HDR) Custom, Vivid, Standard

  • Rotation & Mirror Mode

    Yes

  • Failover Input Switch

    Yes

  • Smart Energy Saving

    Yes

  • User Preset

    Yes

  • Super Resolution+

    Yes

  • Uniformity

    Yes

SW APPLICATION

  • True Color Pro

    Yes

CONNECTIVITY

  • 3G-SDI

    Yes (12G INx1/OUTx1,Single, 2SI, Square, SFP)

  • 12G-SDI

    Yes (12G INx1/OUTx1,Single, 2SI, Square, SFP)

  • DisplayPort

    Yes (in 1ea/out 1ea)

  • DP (HDCP Version)

    2.2

  • DP (Max. Resolution at Hz)

    3840 x 2160 at 60Hz

  • DP (H-Frequency)

    30~135kHz

  • DP (V Frequency)

    56~61Hz

  • DP Version

    1.2

  • DVI

    Yes (1In / 1Out)

  • DVI (Max Resolution at Hz)

    1920 x 1080 at 60Hz

  • DVI (H Frequency)

    30~83kHz

  • DVI (V Frequency)

    56~61Hz

  • HDMI

    Yes (1ea)

  • HDMI (HDCP Version)

    2.2

  • HDMI (Max. Resolution at Hz)

    3840 x 2160 at 60Hz

  • HDMI (H Frequency)

    30~135kHz

  • HDMI (V Frequency)

    56~61Hz

  • HDMI Version

    2.0

  • RS-232

    Yes (1ea)

  • USB Downstream Port

    Yes (1ea/ver2.0)

  • USB Upstream Port

    Yes (1ea/ver2.0)

  • [Location]

    Bottom

MECHANICAL

  • Borderless Design

    Normal

  • Color (Back Cover)

    White

  • Color (Middle Cabinet)

    Silver

  • Display Position Adjustments

    No Stand

  • Down Height

    No Stand

  • Height Range

    No Stand

  • Mechanical Power Switch

    Yes

  • OneClick Stand

    No Stand

  • Pivot

    No Stand

  • Swivel

    No Stand

  • Tilt

    No Stand

  • Wall Mount Size

    200 x 100mm/100 x 100mm

DIMENSIONS/WEIGHT

  • Dimension in Shiping (W x H x D)

    883 x 599 x 200 mm

  • Dimension with Stand (W x H x D)

    No Stand

  • Dimension without Stand (W x H x D)

    764.6 x 480.8 x 94.4 mm

  • Pallet Stuffing (20ft/40ft/40ft HC)

    216EA/405EA/495EA

  • Weight in Shipping

    18.5kg

  • Weight with Stand

    No Stand

  • Weight without Stand

    13.5kg

STANDARD

  • IEC (IEC 60601-1 / IEC 60601-1-2)

    Yes

  • EN (EN 60601-1 / EN 60601-1-2)

    Yes

  • IEC (IEC 60950-1 / IEC 55032, 55024)

    Yes

  • EN (EN 60950-1 / EN 55032, 55024)

    Yes

  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)

    Yes

  • FCC (FCC part 15 Class A)

    Yes

  • FDA

    Registration (Class I)

  • ISO13485

    Yes

  • GMP

    Yes

  • KGMP

    Yes

  • RoHS

    Yes

  • REACH

    Yes

  • WEEE

    Yes

  • MFDS

    Yes

  • IP (front/except for front)

    IP35/IP32

  • Vandal-proof

    IK06

ACCESSORY

  • Adapter

    Yes

  • Adapter (Color)

    White

  • Calibration Report (Paper)

    Yes

  • Display Port

    Yes

  • Display Port (Color/Length)

    Black/1.8m

  • HDMI

    Yes

  • HDMI (Color/Length)

    Black/1.8m

  • Power Cord

    Yes

  • Power Cord (Color/Length)

    White/1.5m

WARRANTY

  • Time/years

    3

  • Time/years

    3 (10,000hr)

PRODUCT DETAILS

  • Net Quantity

    1 N

  • Country of Origin

    Korea

  • Manufactured By

    LG Electronics Nanjing New Technology Co. Ltd, NO.346, YAOXIN ROAD ECONOMIC & TECHNICAL DEVELOPMENT ZONE, NANJING, 210038, PEOPLE'S REPUBLIC OF CHINA

  • Imported By

    LG Electronics India Pvt. Ltd,A-24/6,Mohan Cooperative Industrial Estate, Mathura Road, New Delhi – 110044

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
