LG 8MP Diagnostic Monitor

LG 8MP Diagnostic Monitor

LG 8MP Diagnostic Monitor

32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D
LG 8MP Diagnostic Monitor, 32HL512D

คุณลักษณะที่สำคัญ

  • 31.5-inch 8MP IPS Display
  • 450cd/m², DCI-P3 98% (CIE1976)
  • Multi-resolution Mode (8/6/4MP)
  • Pathology Mode
  • 4-Side Virtually Borderless Design
เพิ่มเติม

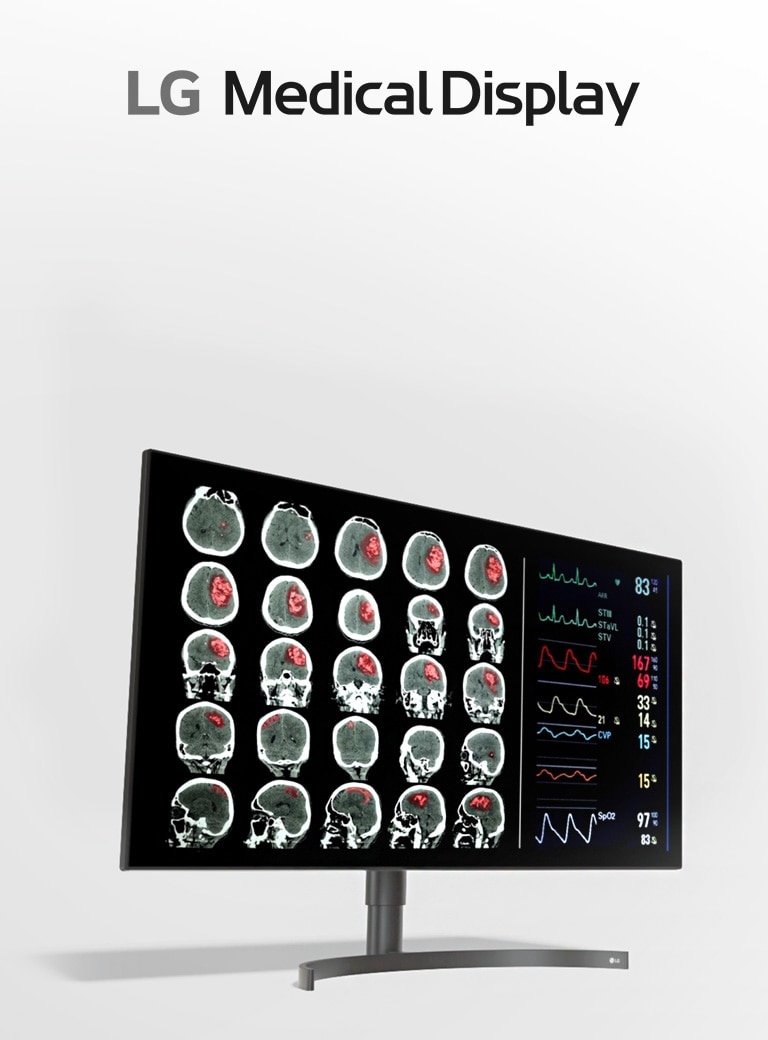

lg 31.5 inch 8MP Diagnostic Monitor


31.5" 8MP Diagnostic Monitor

Display
31.5"" 8MP IPS
Multi-resolution Mode (8/ 6/ 4MP)
Convenience
Pathology Mode
PBP & Dual Controller
Ergonomics
Tilt, Height
2-way Pivot

Optimized Image Quality forDiagnostic Review

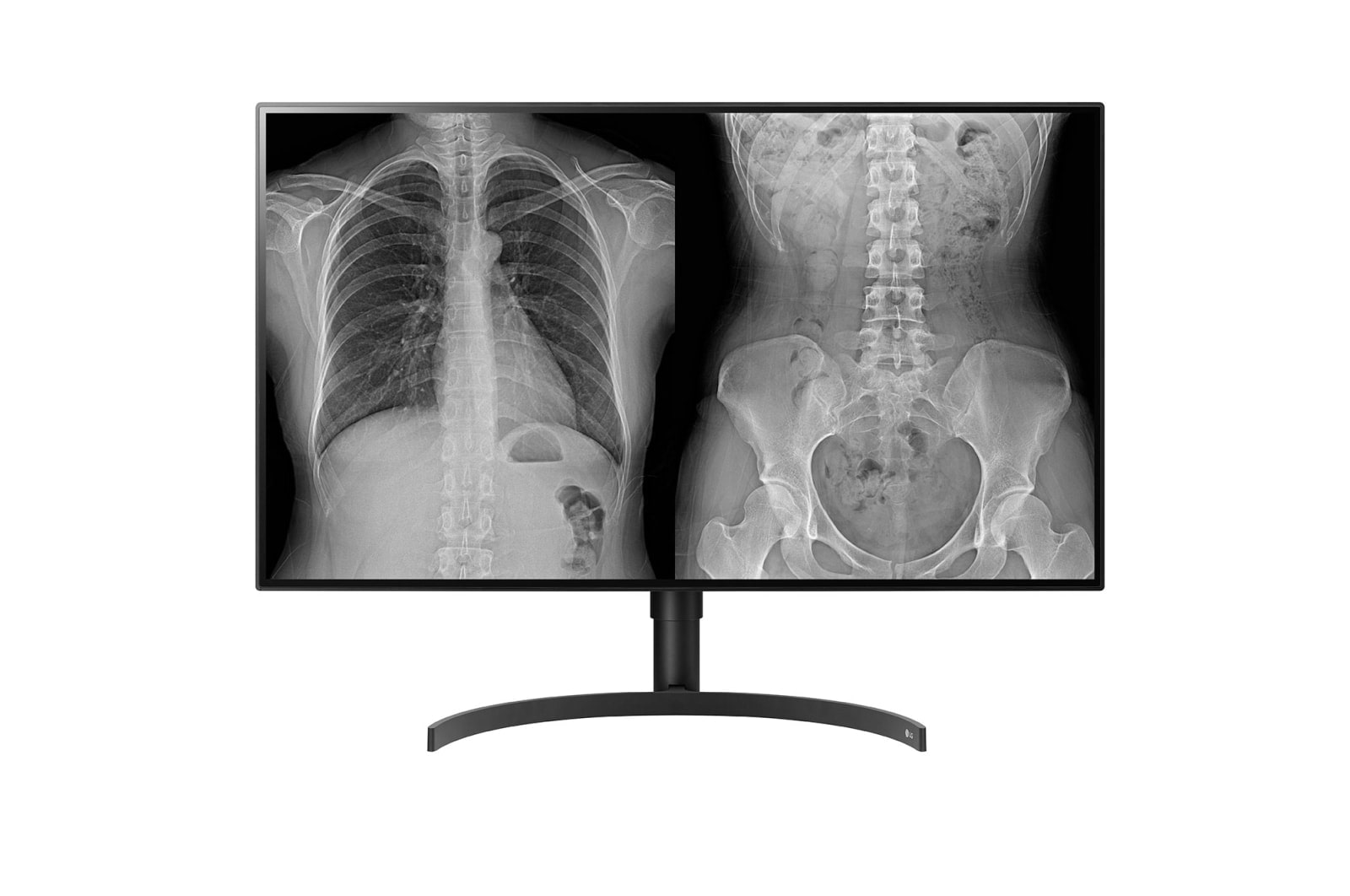

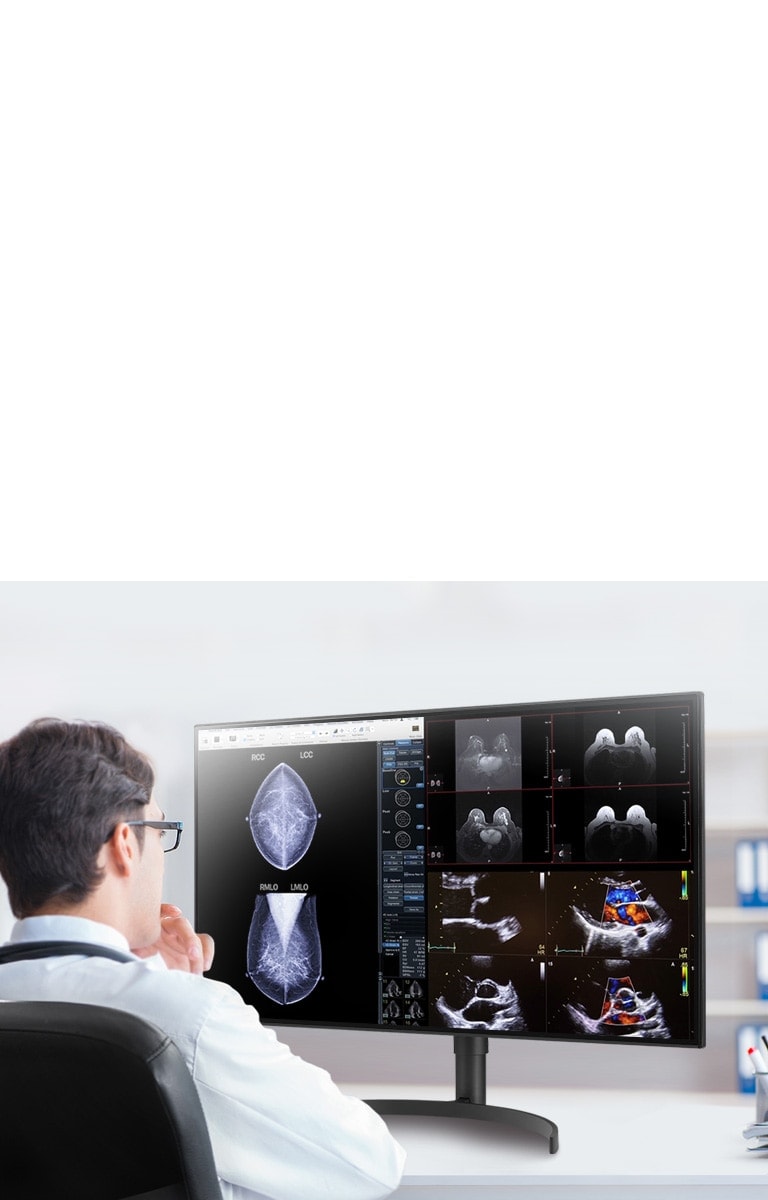

31.5" 8MP IPS Display

Accurate Image from Any Angle

The 31.5-inch 8MP IPS display facilitates precise diagnoses of medical images. The 178° wide viewing angle lets patients and doctors to see accurately reproduced images with minimal distortion.

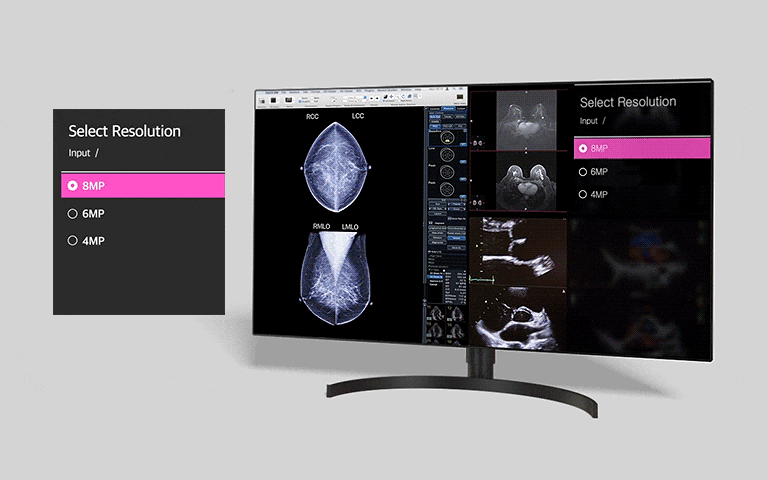

multi-resolution mode offering for users to select resolution between input of 4MP, 6MP and of 8MP
Multi-resolution Mode (8/ 6/ 4MP)

Compatible with Every Device

The connection to the various types of devices is essential for the diagnostic monitor. Thanks to 32HL512D’s multi resolution mode, you can adjust the resolution of monitor to optimize to the connected device.

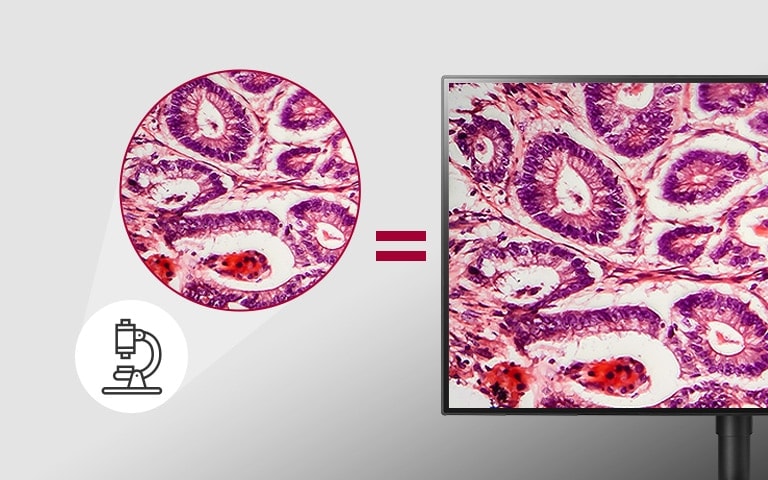

pathology mode offering imaging results as detailed and accurately colored as seen under a microscope
Pathology Mode

True-to-Life Color Reproduction

In Pathology Mode, the 32HL512D reproduces the same level of detail and color accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses.

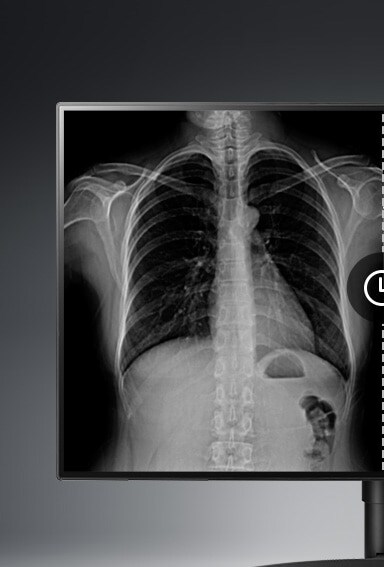

  • Conventional
  • Brightness Stabilization

Brightness Stabilization

A sensor measures the backlight brightness stability and automatically compensates for brightness fluctuations caused by display aging for a consistently stable display throughout the usage lifespan.

To Increase Efficiency &
Convenience

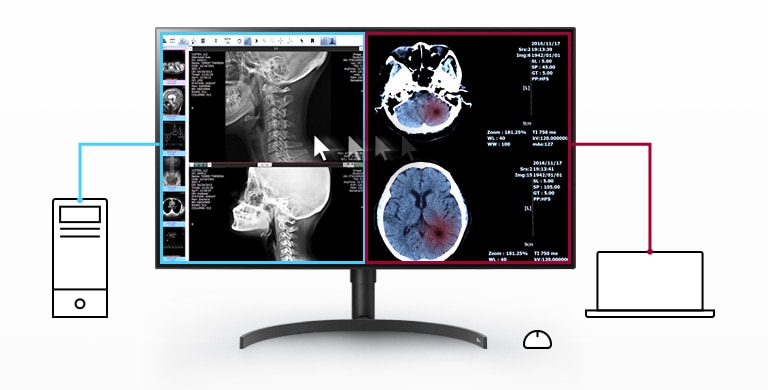

PBP & Dual Controller

Multiple Signals on One Screen

PBP (Picture By Picture) with Dual controller, control multi devices connected to one screen with one keyboard or mouse, helps to increase convenience in review. You can review multiple information in parallel on one screen.

Multiple Signals on One Screen

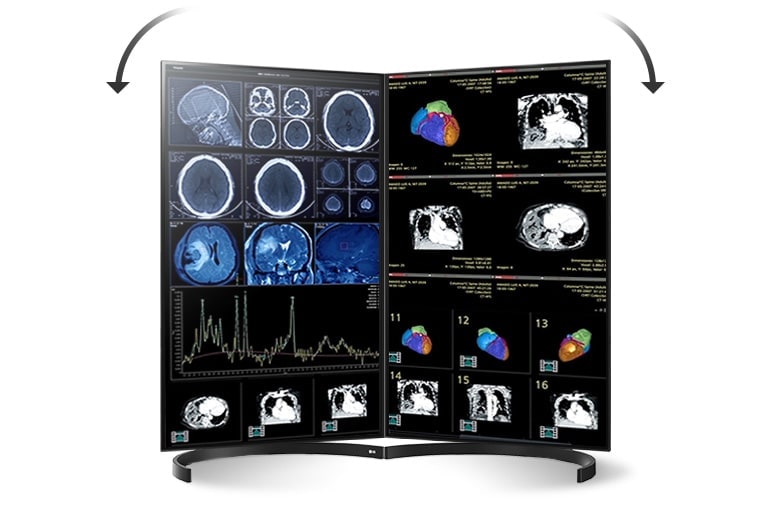

Designed for Comfort
Ergonomics Design

Designed for Comfort & Immersion

Its ergonomic stand and 4-side virtually borderless design can realize an optimized diagnostic workspace. Rotate two monitors in portrait and use side-by-side for the ultimate reading experience.
pivot adjustable stand bi-directionally

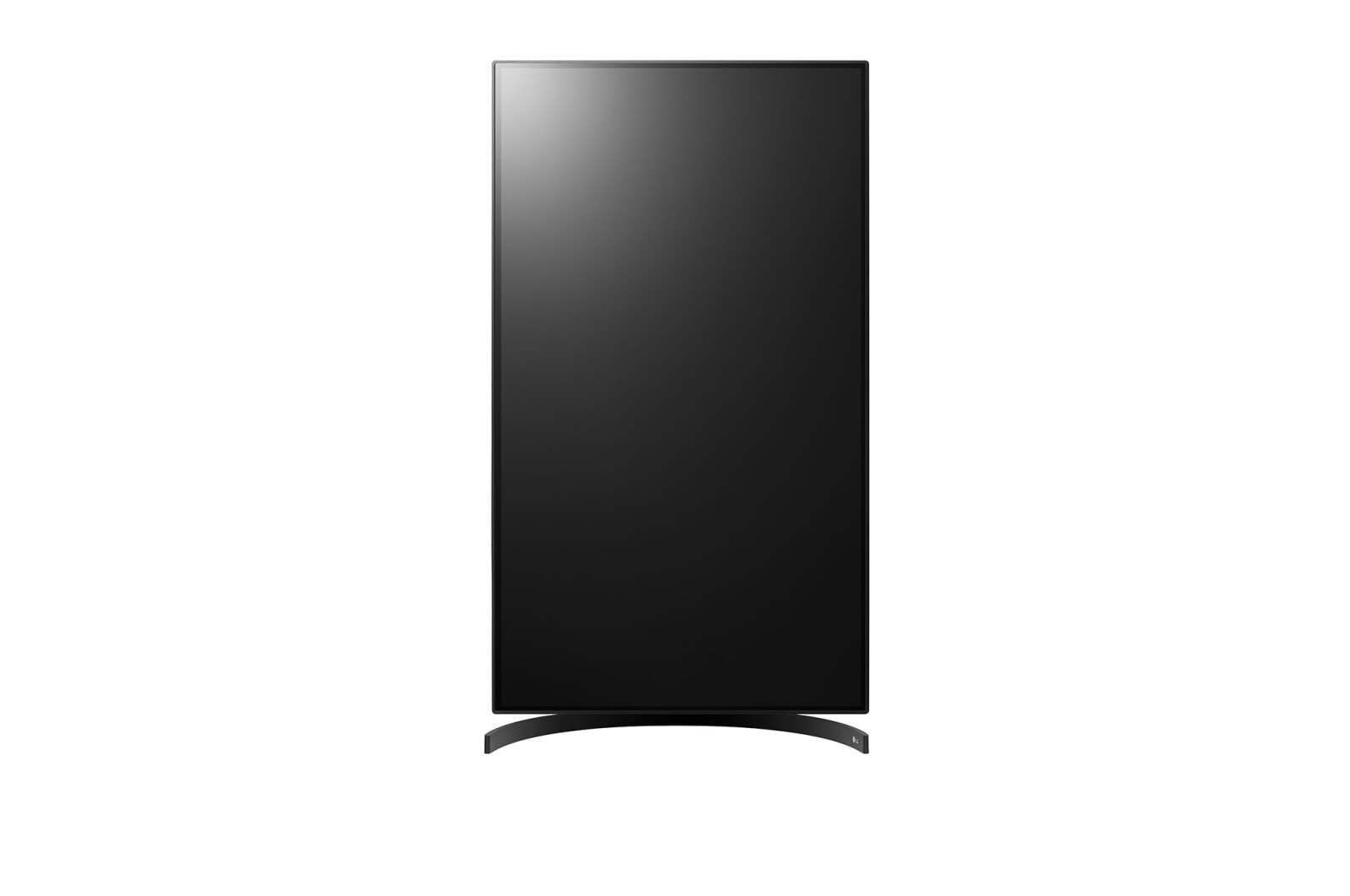

Pivot

Two-way
height adjustable stand within the range of 0m to 110mm

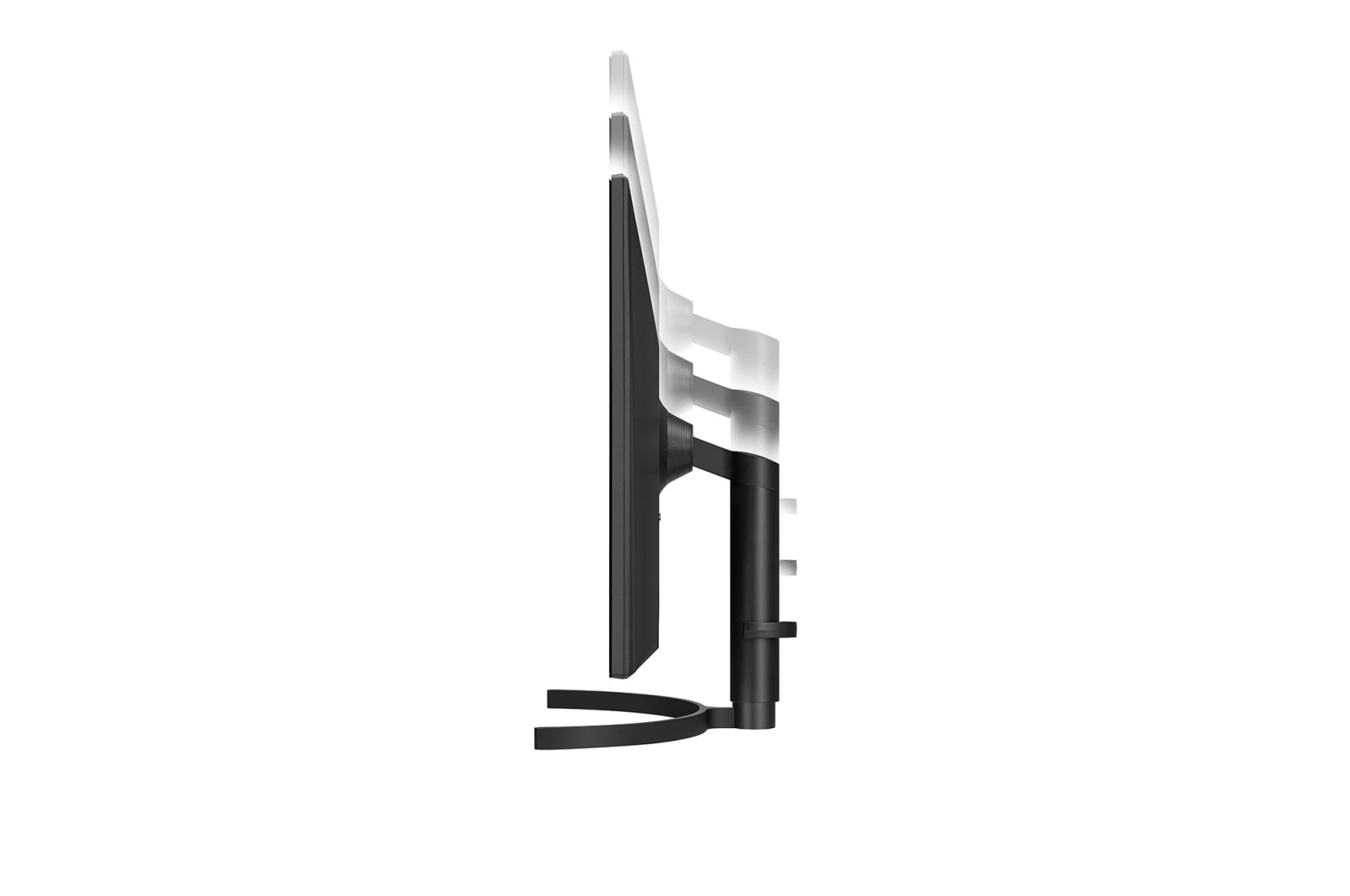

Height

0~110mm
tilt adjustable stand within the range of -5 degrees to 20 degrees

Tilt

-5~20°
design 4-side virtually borderless

Design

4-side virtually borderless design
พิมพ์

สเปคทั้งหมด

STANDARD

  • RoHS

    YES

  • CE

    YES

  • EN (EN 60601-1 / EN 60601-1-2)

    YES

  • EN (EN 60950-1 / EN 55032, 55024)

    YES

  • FDA

    Class II

  • GMP

    YES

  • IEC (IEC 60601-1 / IEC 60601-1-2)

    YES

  • IEC (IEC 60950-1 / IEC 55032, 55024)

    YES

  • IP(Front/Except for front)

    NO

  • ISO13485

    YES

  • KC (for Rep. of Korea)

    NO

  • KGMP

    YES

  • MFDS

    YES

  • REACH

    YES

  • UL (cUL)

    YES

  • Vandal-proof

    NO

  • WEEE

    YES

SW APPLICATION

  • Dual Controller

    YES

  • LG Calibration Studio (True Color Pro)

    NO

  • Qubyx

    YES

DIMENSIONS/WEIGHTS

  • Weight in Shipping [kg]

    11.4

  • Weight without Stand [kg]

    5.6

  • Weight with Stand [kg]

    7

MECHANICAL

  • Borderless Design

    4-Side Virtually Borderless Design

  • Display Position Adjustments

    Tilt/Height/Pivot

  • Machanical Power Switch

    NO

  • OneClick Stand

    YES

  • Wall Mountable [mm]

    100 x 100

DISPLAY

  • Aspect Ratio

    16:9

  • Brightness (Typ.) [cd/m²]

    450

  • Color Bit

    10bit (8bit+FRC)

  • Color Gamut (Typ.)

    DCI-P3 98% (CIE1976)

  • Contrast Ratio (Typ.)

    1300:1

  • Pixel Pitch [mm]

    0.18159 x 0.18159

  • Resolution

    3840 x 2160

  • Response Time

    5ms (GtG at Faster)

  • Size [Inch]

    31.5

  • Surface Treatment

    Anti-Glare

  • Viewing Angle (CR≥10)

    178º(R/L), 178º(U/D)

ACCESSORY

  • Adapter

    YES

  • Calibration Report (Paper)

    YES

  • Display Port

    YES

  • DVI-D (Color/Length)

    NO

  • D-Sub

    NO

  • HDMI (Color/Length)

    YES

  • Power Cord

    YES

  • USB3.0 Upstream Cable

    NO

POWER

  • AC Input

    100~240V (50/60Hz)

  • DC Output

    19V, 3.42A

  • Power Consumption (DC Off)

    Less than 0.3W

  • Power Consumption (Max.)

    65W

  • Type

    External Power(Adapter)

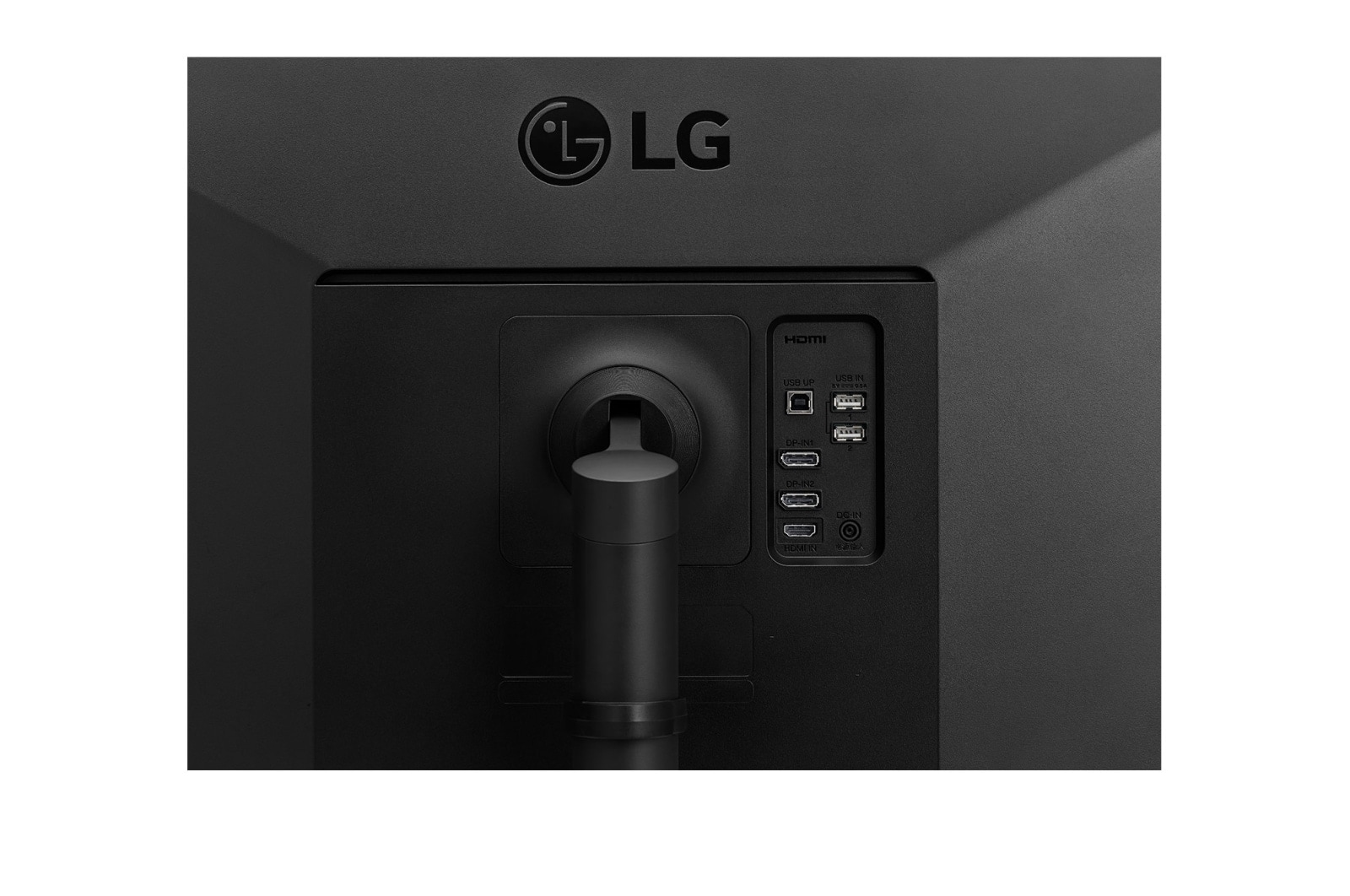

CONNECTIVITY

  • RS-232

    NO

  • 12G-SDI

    NO

  • 3G-SDI

    NO

  • Component (Resolution)

    NO

  • Composite (Resolution)

    NO

  • Daisy Chain

    NO

  • DisplayPort

    YES(2ea)

  • DVI-D

    NO

  • D-Sub

    NO

  • HDMI

    YES(1ea)

  • Headphone out

    NO

  • S-Video

    NO

  • Thunderbolt

    NO

  • USB Downstream Port

    YES(2ea/ver2.0)

  • USB Upstream Port

    YES(1ea/ver2.0)

FEATURES

  • Auto Luminance Sensor

    NO

  • Black Stabilizer

    YES

  • Brightness stabilization

    YES

  • Color Temperature

    6500K/7500K/9300K/Manual(5000K~10000K)

  • DICOM Compliant

    YES

  • Failover Input Switch

    NO

  • Flicker Safe

    YES

  • Focus View

    YES

  • Front Sensor

    NO

  • HDR 10

    NO

  • HDR Effect

    NO

  • Hot Key

    NO

  • HW Calibration

    HW Calibration Ready

  • Lighting

    NO

  • Light Box Mode

    NO

  • Pathology Mode

    YES

  • PBP

    2PBP

  • PIP

    NO

  • Presence Sensor

    NO

  • Reader Mode

    YES

  • Rotation & Mirror Mode

    NO

  • Smart Energy Saving

    YES

  • Super Resolution+

    YES
