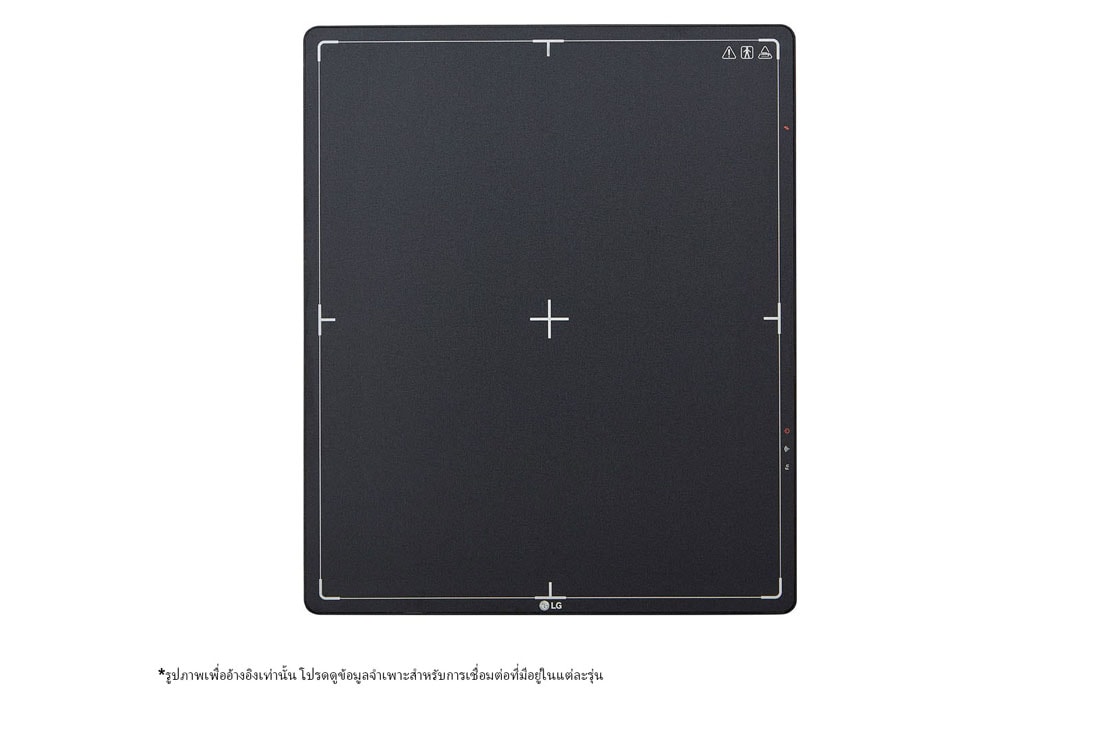

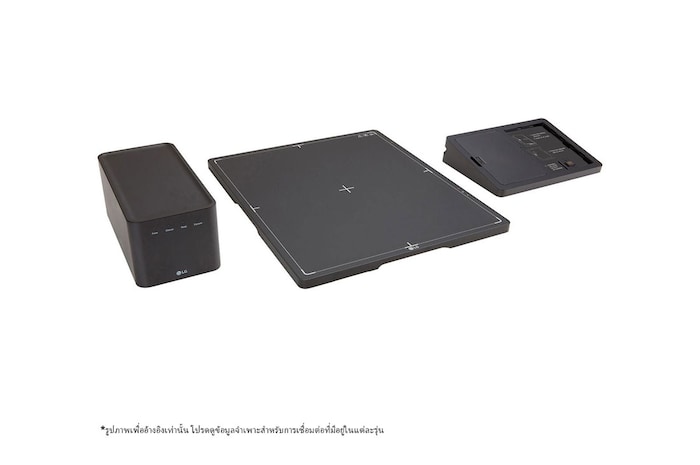

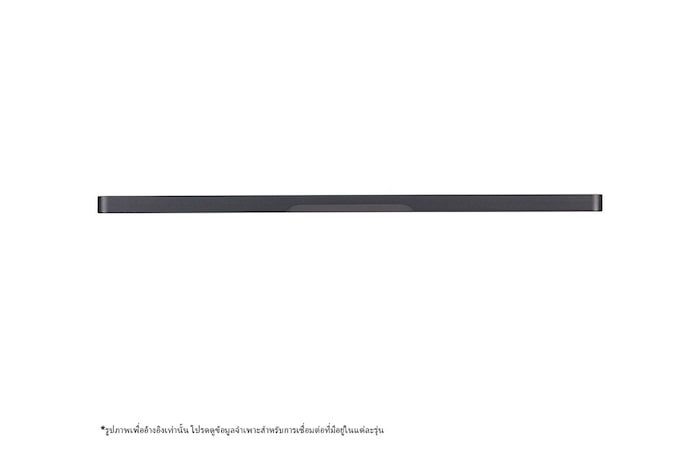

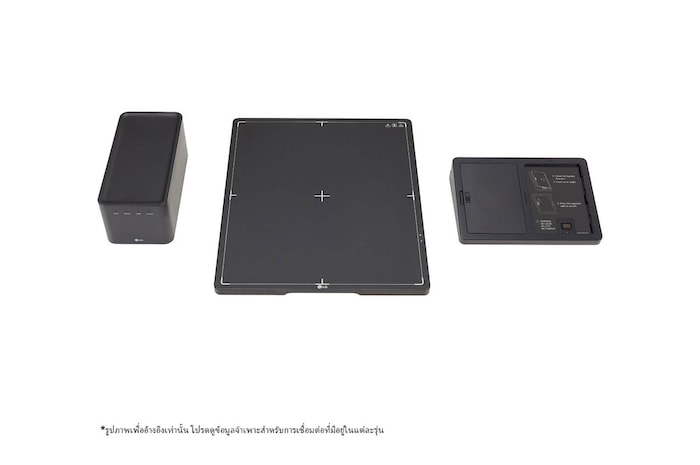

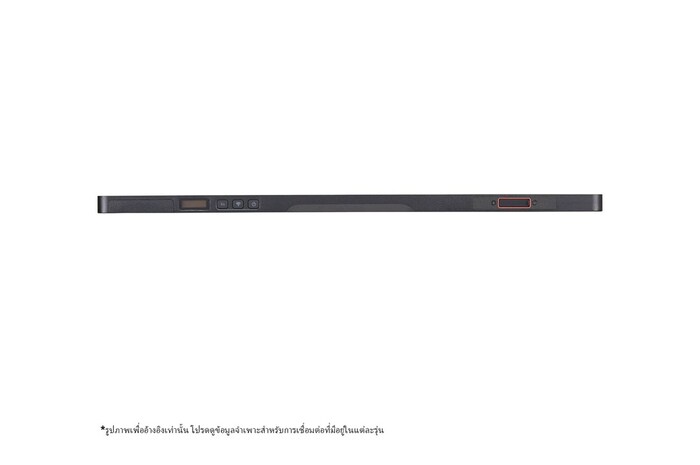

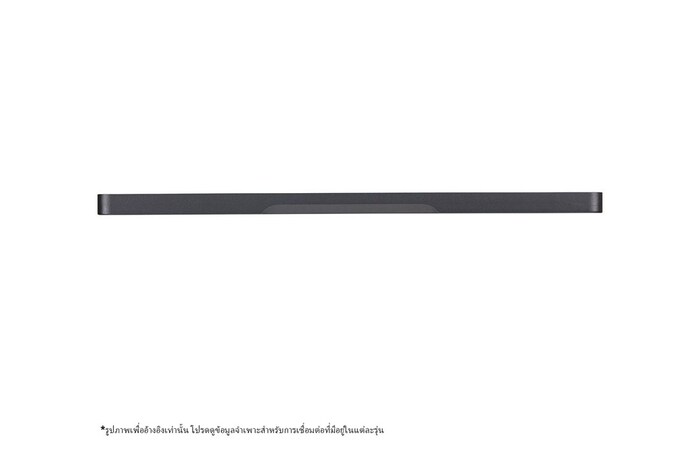

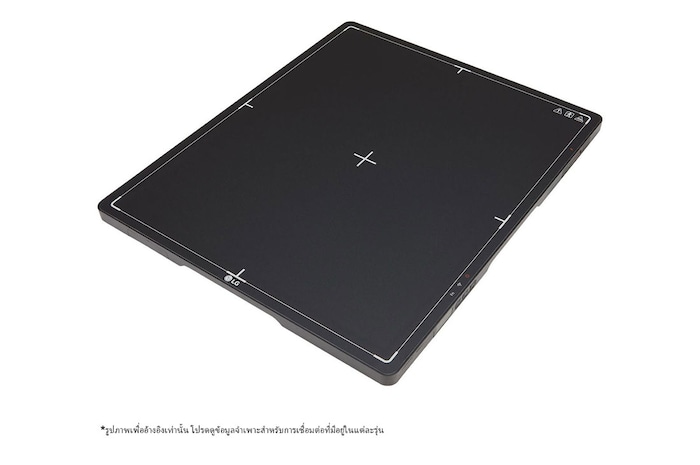

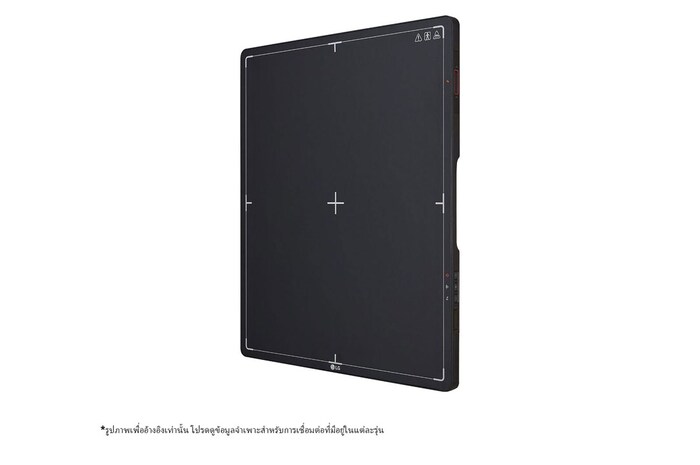

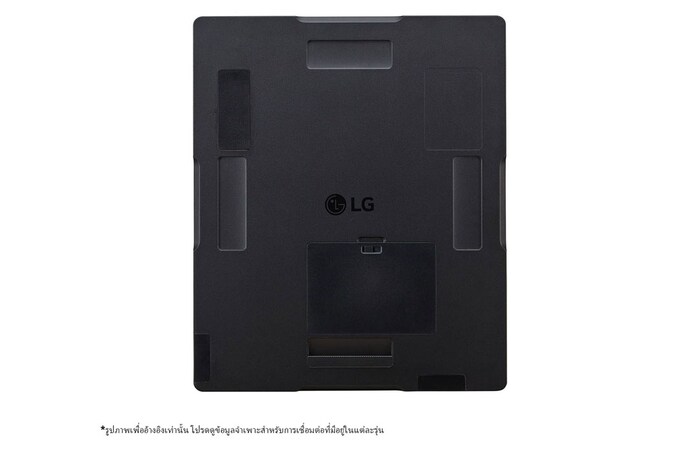

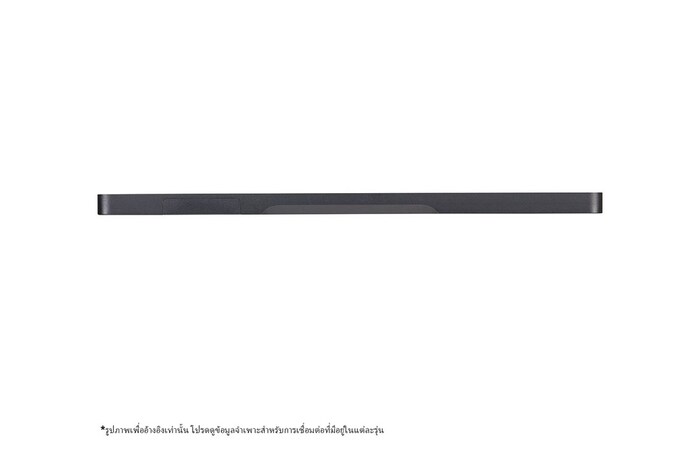

LG Digital X-ray Detector with a-Si TFT
14HQ701G-BP
ตัวเลือกการจัดส่งอาจแตกต่างกันไปตามภูมิภาคและชนิดสินค้า
ความล่าช้าในการจัดส่งอาจเกิดขึ้นเนื่องจากสถานการณ์ของ บริษัทจัดส่ง
การเลื่อนวันจัดส่งสินค้า จะสามารถเลื่อนได้ไม่เกิน 7 วันเท่านั้น
(หากต้องการเลื่อนส่งมากกว่า 7 วัน ทางแอลจีจะมีค่าใช้จ่ายเพิ่มเติมสำหรับการจัดเก็บสินค้า นับจากวันที่ลูกค้าเลือกการจัดส่งจนถึงวันที่ลูกค้าต้องการให้จัดส่ง)

- 140㎛ pixel size
- 16bit A/D conversion
- IP68, Magnesium & Carbon-fiber Body
- Raw Image in 1.5 sec.(Wired) / 2 sec.(Wireless)
- Uniform Load : 400kg / Max. Point Load : 200kg
สเปคทั้งหมด
STANDARD
RoHS
YES
SENSOR(PANEL) UNIT
AP mode
YES
Auto Exposure Detection
YES
A/D Conversion
16bit
Data Output
16bit
Detachable Wire(Easy to plug / unplug)
Magnetic
Falling (IEC60601-1 Test Condition)
1.5m
Image storage on DXD
200
Pixel Pitch
140㎛
Power unit interface
Connect to Control Box
Scintillator
CsI
Semi-dynamic Acquisition
5fps
Sensor protection plate
Carbon Fiber Plate
Shock monitoring
YES
TFT Type
a-Si
Unit Interface
Connect to Control Box
Wired Communication
YES
CONTROL BOX
AC Power Cord
1.5m (White)
BATTERY
Hot swap
YES (1min)
BATTERY CHARGER
Bundle battery Q'ty
2
Slot Q'ty
2
POWER
AC Input
100~240V (50/60Hz)
