30" Gas Cooktop | 22K BTU - CBGJ3027S

30” Gas Cooktop | UltraHeat™ 22K BTU, Dual Burner, LED Knobs, EasyClean^® & Smart, Stainless

CBGJ3027S

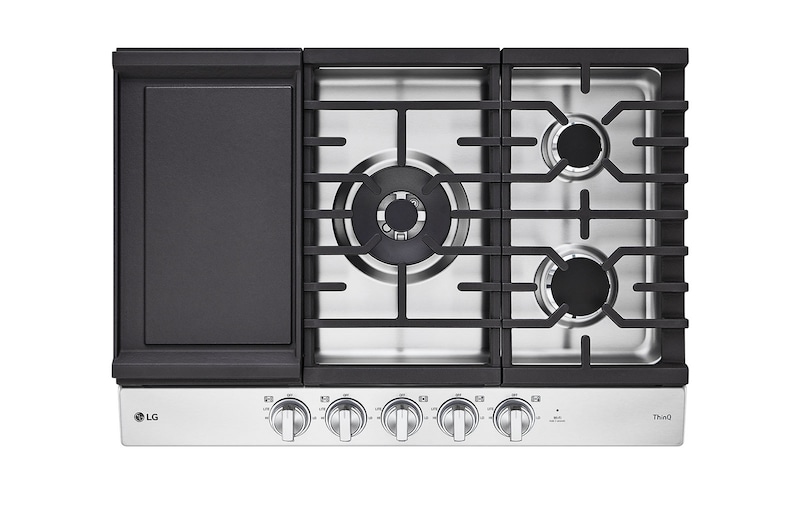

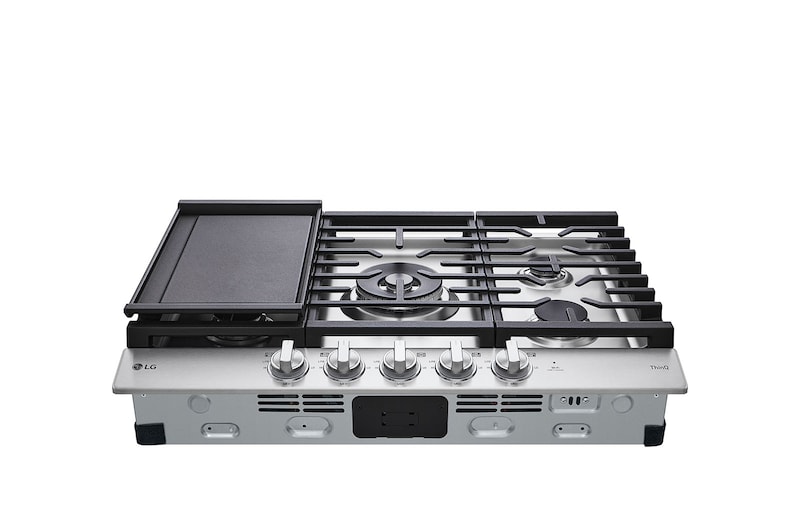

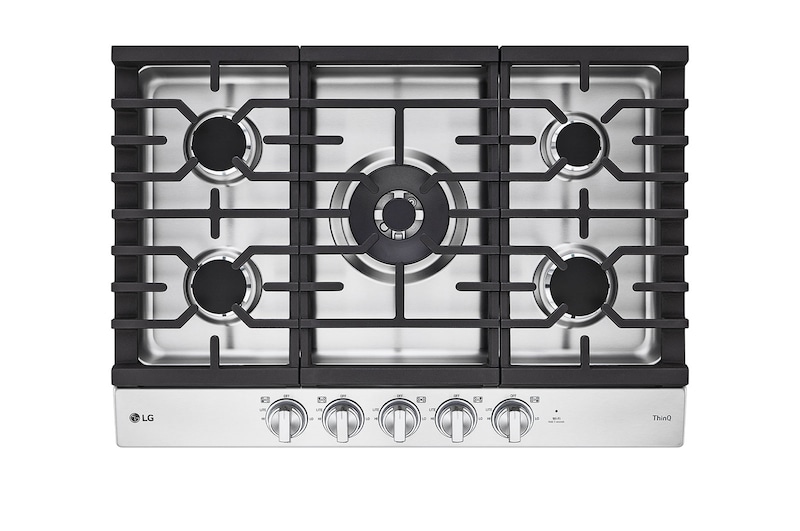

Front view of LG 30” Gas Cooktop | UltraHeat™ 22K BTU, Dual Burner, LED Knobs, EasyClean® & Smart, Stainless - CBGJ3027S

LG 30” Gas Cooktop | UltraHeat™ 22K BTU, Dual Burner, LED Knobs, EasyClean<sup>®</sup> & Smart, Stainless, CBGJ3027S

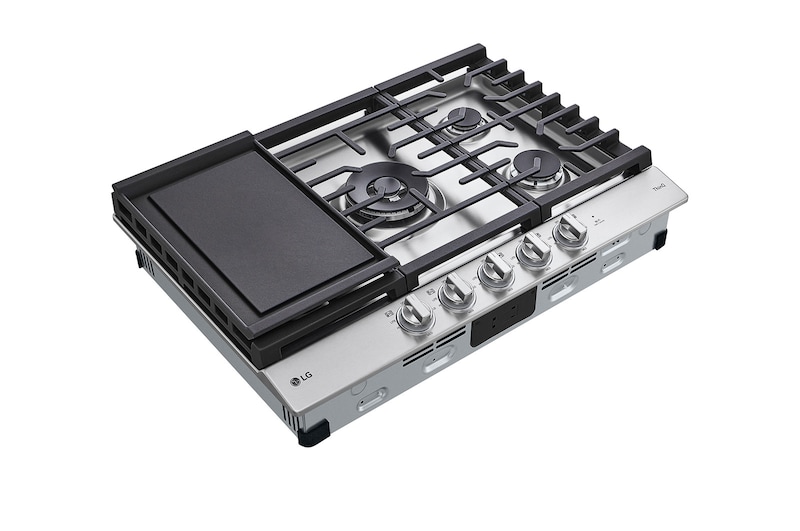

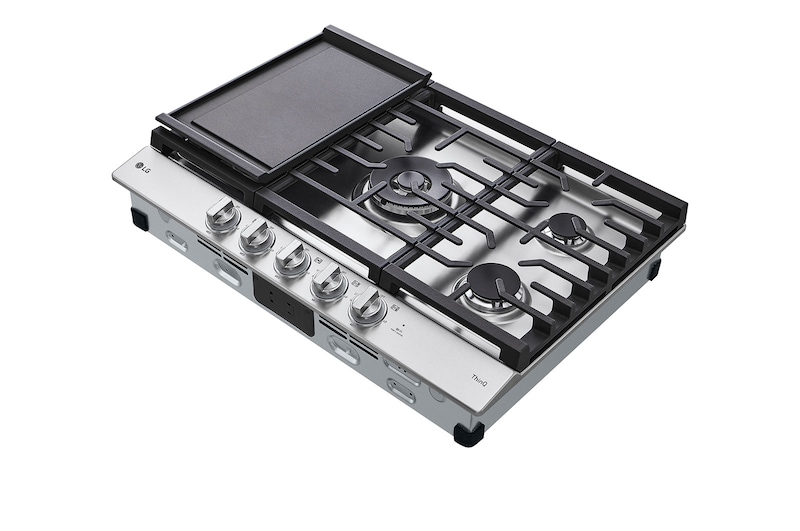

Side view of LG 30” Gas Cooktop | UltraHeat™ 22K BTU, Dual Burner, LED Knobs, EasyClean® & Smart, Stainless - CBGJ3027S

Key Features

5 Sealed Gas Burners
EasyClean^® Stainless Steel Cooktop
Continuous Cast-Iron Grates
UltraHeat™ 22K BTU Dual Power Burner
LED Illuminated Knobs
Auto Reignition

Five Sealed Burners with Continuous Cast‑Iron Grates

Cook more with five sealed burners & Cast‑Iron grates

This cooktop features five sealed gas burners in a range of sizes and power levels to support different cooking needs.

Heavy‑duty, continuous cast‑iron grates provide a durable cooking surface and allow cookware to move easily across the cooktop,

while contributing to a cohesive, built‑in appearance.

Versatile cooking with multiple burner sizes

Five cooktop burners of varying sizes and power levels provide all the power and precision you need.

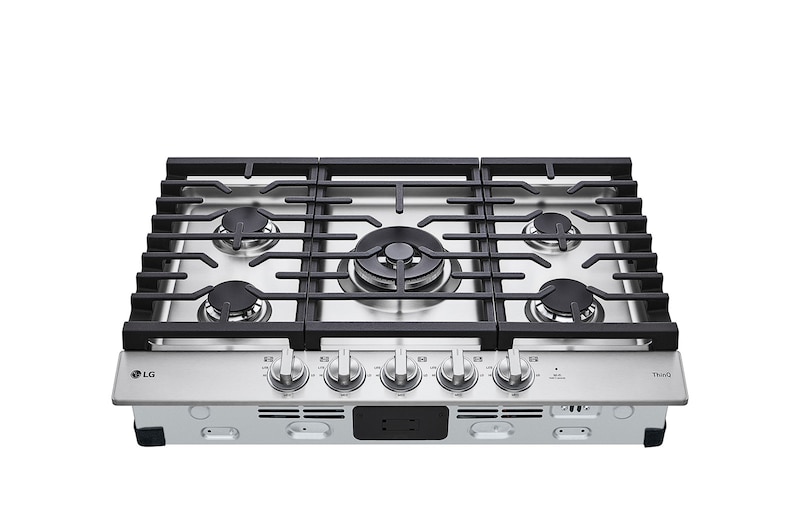

Close-up of an LG stainless steel gas cooktop featuring five sealed burners with heavy-duty black cast iron grates.

Stable, continuous grates for everyday cooking

Not only do our heavy-duty, continuous cast-iron grates look great, but they also help provide even heating and a stable surface for your cookware.

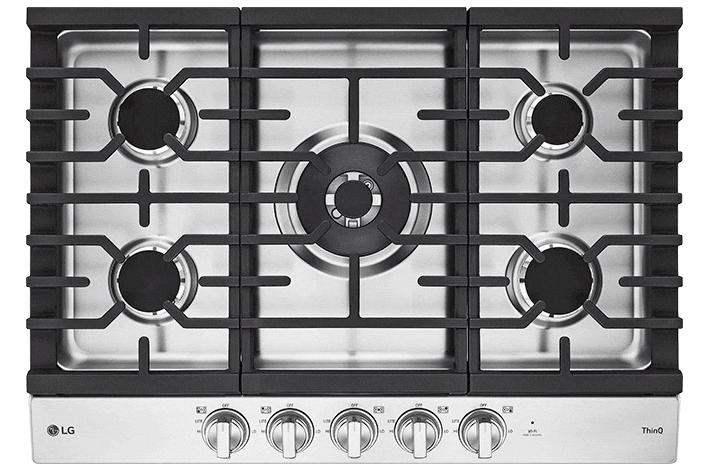

Close-up of heavy-duty black cast iron grates on a stainless steel gas cooktop.

EasyClean^® Stainless Steel Cooktop

Erase mealtime mishaps in minutes

Now, you can simply wipe away splatters thanks to the specially coated surface of LG’s EasyClean^® stainless steel cooktop*

LG 30-inch stainless steel gas cooktop with five burners and heavy-duty continuous cast iron grates.

*Available in Gas Stainless Steel model LSGL6337F. Heavy build-up may require additional manual effort or use of non aggressive detergent.

UltraHeat™ 22K BTU Dual Power Burner

Power up to faster boiling

When ordinary burners can’t keep pace with your on-demand dinner schedule, turn up the power with the UltraHeat™ 22K BTU dual power burner

that can rapidly go to high heat to quickly boil, or turn down to a true simmer.

Close-up of a stainless steel gas cooktop featuring a dual power burner with blue flames heating a metal pan.

*As compared with other LG gas models.

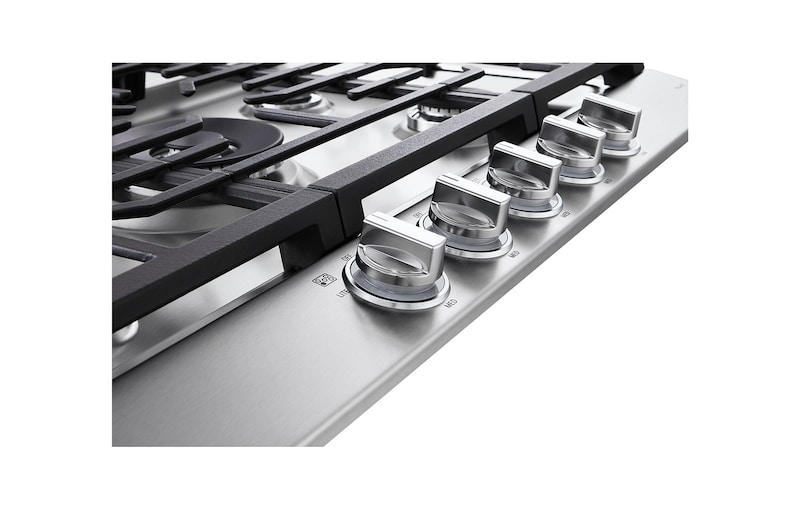

LED Illuminated Knobs

A flash of brilliance

The white LED knobs conveniently illuminate to let you know which burners are on at a quick glance, while delivering a bit of wow with every turn.

Auto Reignition

Safer, uninterrupted cooking

Auto reignition is a safety feature that automatically reignites the burners if the flame accidently goes out, preventing gas leakage and ensuring uninterrupted cooking.

LG ThinQ^® Smart Technology

A smarter home starts with the LG ThinQ® App

The ThinQ^® app offers control and convenience for smart LG appliances to help you simplify life and enjoy the comforts of home.

Manage and monitor your cooktop remotely, sync it with your smart LG hood or over-the-range microwave to auto-activate the light and vent, and more.

Stainless steel LG gas cooktop with five burners and heavy-duty grates installed in a modern kitchen counter.

*Available on select LG smart appliances. Features may vary by model.

^*Images may be simulated and dramatized for illustrative purposes. Actual features, functionality, and other product specifications may differ and are subject to change without notice.

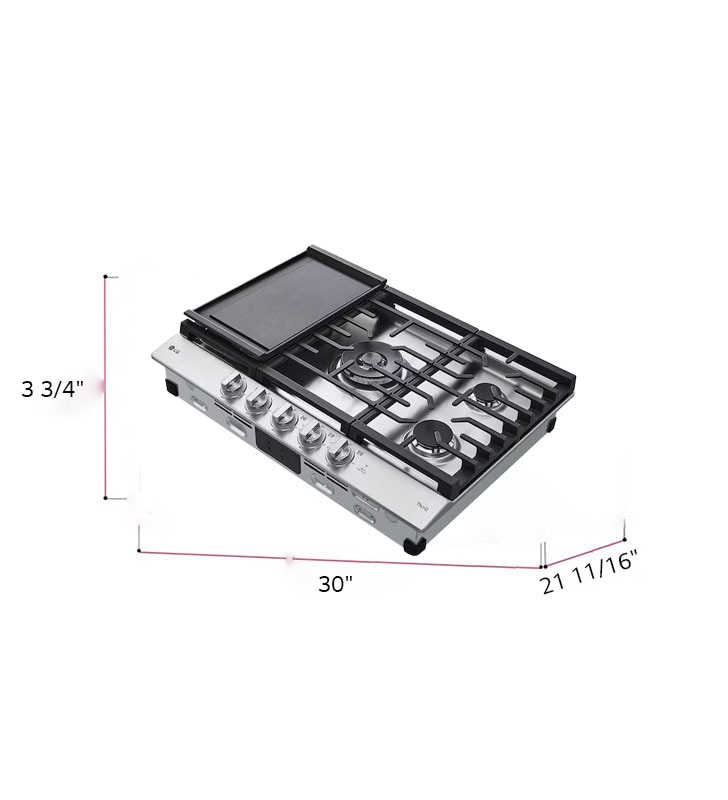

DIMENSIONS

Product (WxHxD)

30" x 3 3/4" x 21 11/16"

No. of Burners

All Spec

ACCESSORIES

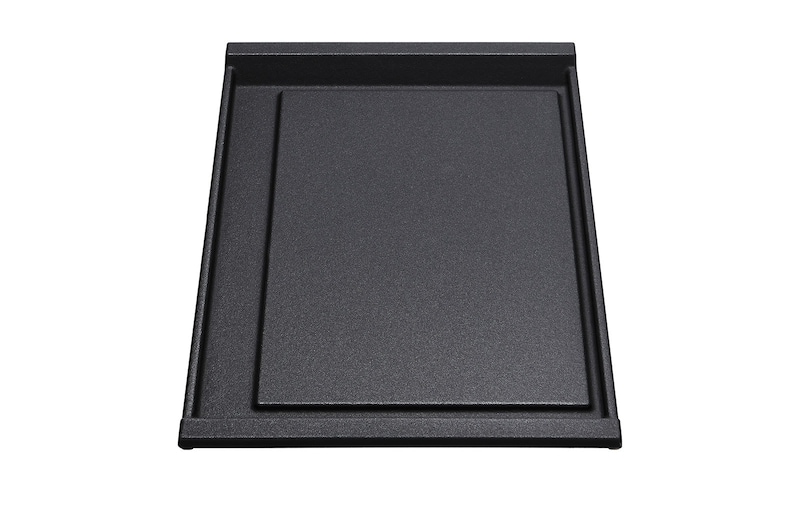

Griddle Plate
Yes
Conversion Kit
Yes

COOKTOP

Cooktop Burner Type
Sealed Gas Burner
No. of Burners
5
Burner/BTU - Left Rear
10000/7500
Burner/BTU - Right Rear
5000/4000
Burner/BTU - Left Front
10000/7500
Burner/BTU - Right Front
12000/10000
Burner/BTU - Center
22000/16000 (warming zone)
Burner Simmer / BTU - Left Rear
1270
Burner Simmer / BTU - Right Rear
670
Burner Simmer / BTU - Left Front
1270
Burner Simmer / BTU - Right Front
1270
Burner Simmer / BTU - Center
650/1270

APPEARANCE

All Available Colours
Stainless Steel
Cooktop Finish
EasyClean®

DIMENSIONS/CLEARANCES/WEIGHT

Product (WxHxD)
30" x 3 3/4" x 21 11/16"
Cut-Out (WxHxD)
28 1/2" x 3 3/4" x 19 5/8"
Shipping Dimensions (W x H x D)
34 21/64" x 10 5/32" x 25 25/32"
Weight (Product)
47 lbs
Shipping Weight (lbs)
63

CONTROLS

Cooktop Control Type
Weighted Backlit Knob
Control Location
Front Center

POWER/RATINGS

kW at 120V
120V 60Hz/0.12A
Requirements
120 V/60Hz AC

SUMMARY

Series
LG
Type
30" Gas Cooktop

WARRANTY/UPC

Parts & Labour (Internal/functional parts only)
1 Year
UPC
048231345224

THINQ® SMART FEATURES

ThinQ®
Yes
Wi-Fi Connectivity
Yes

Can I install my new LG gas cooktop on my own?

Make sure the cooktop is properly installed and grounded by a qualified installer, according to the installation instructions. Installation and service must be performed by a qualified installer, service agency, or the gas supplier. Provide proper clearance between the range and adjacent combustible surfaces.

What is an UltraHeat™ burner?

An UltraHeat™ burner is a versatile burner that can rapidly go to high heat to quickly boil, or turn down to a true simmer.

What are the benefits of connecting my cooktop to the LG ThinQ^® app?

The LG ThinQ^® app lets you monitor your cooktop's status, view cooking settings, and receive notifications from your smartphone. It can also provide firmware updates and, when paired with a compatible LG range hood, automatically turn the vent fan on or off while cooking. Features may vary by model.

Does the LG gas cooktop work during a power outage?

While gas is used for cooking, the electronic ignition system requires electrical power to ignite the burners. In case of a power failure, you can light the gas surface burners on the cooktop with a match but should use extreme caution when lighting burners this way. Refer to your owner's manual for model-specific instructions on operating the cooktop during a power outage.

Can I remove the burner grates for cleaning?

Yes. The burner grates are removable, making it easy to clean both the grates and the cooktop surface. Grates should be cleaned regularly and, of course, after spills. You can wash them in hot, soapy water and rinse with clean water. The grates may also be cleaned in a dishwasher. Ensure all components are completely dry and properly reinstalled before using the cooktop. When replacing the grates, be sure they are positioned properly over the burners.

How easy to clean is the cooktop surface?

With LG's EasyClean^® Stainless Steel Cooktop Surface, you can erase mealtime mishaps in minutes. You can simply wipe away splatters thanks to the specially coated surface of LG’s EasyClean^®stainless steel cooktop.

Does this model come with auto reignition?

Yes. Auto reignition is a safety feature that automatically reignites the burners if the flame accidently goes out, preventing gas leakage and ensuring uninterrupted cooking. Providing you with safer, uninterrupted cooking

Can I simmer delicate foods on an LG gas cooktop?

Yes. LG gas cooktops offer a wide range of heat settings, allowing you to simmer sauces, melt ingredients, and prepare delicate foods with greater precision.

Can I convert my cooktop from natural gas to propane?

This cooktop leaves the factory set for use with natural gas, but can be converted to be used with propane. When converting to propane gas, the conversion must be performed by a qualified propane gas installer. The conversion instructions and propane orifices are supplied with the cooktop. Consult the installation manual for complete details.
