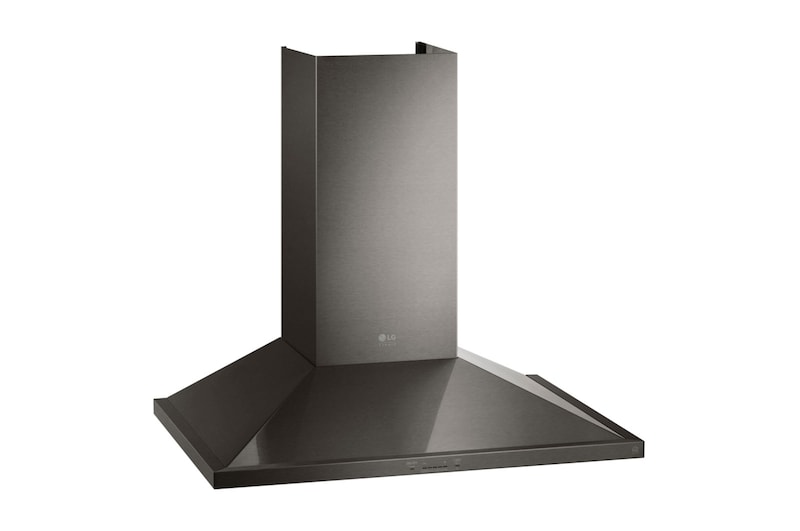

LG STUDIO 30" Wall Mount Chimney Hood, Stainless Steel

Q: What are the benefits of connecting my chimney hood to the LG ThinQ® app?

On select Wi-Fi enabled models, the LG ThinQ® app lets you control the fan and lighting, receive notifications, and download software updates. When paired with a compatible LG cooktop, the hood can also automatically adjust ventilation while you cook. Features may vary by model.

LG STUDIO 30" Wall Mount Chimney Hood

LSHD3089BD

Key Features

Powerful 600 CFM Blower
5" Low-Profile Body
Accommodates Ceilings up to 9'6"
5 Speed IR Touch Controls
Dual Level LED Lighting
Wi-Fi Capabilities

A family gathers in a modern kitchen featuring stainless steel appliances, white cabinetry, and a rustic wooden island.

Say hello to the LG STUDIO kitchen

With innovative freestanding and built-in appliances that perform flawlessly and look awesome, you may never want to leave your home again.

Learn More

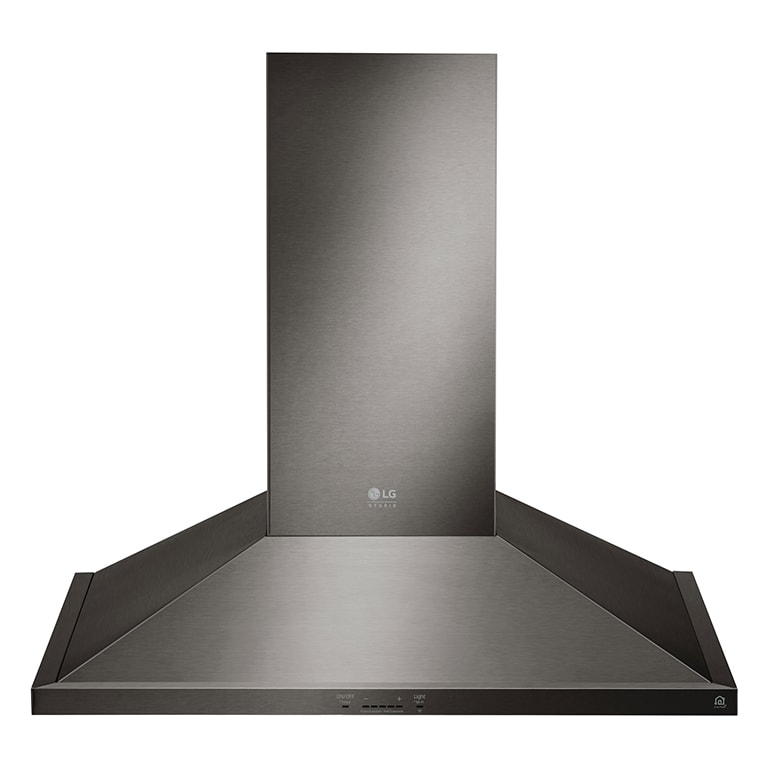

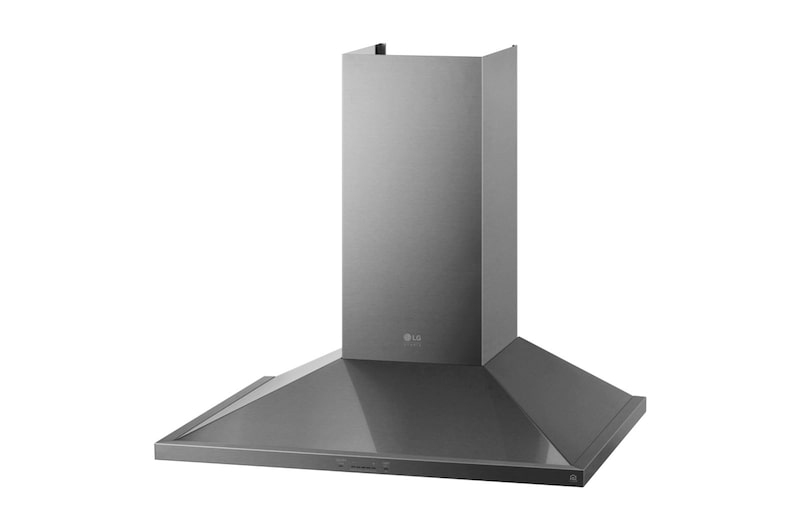

LG Studio wall-mount chimney range hood in black stainless steel with a sleek, tapered design.

Think of the Possibilities

Take control over lingering cooking odors by accessing hood vent functions remotely. Monitor and control air movement, operate LED lights, and even turn the vent fan on and off from your Android or iOS device using the LG SmartThinQ® app.

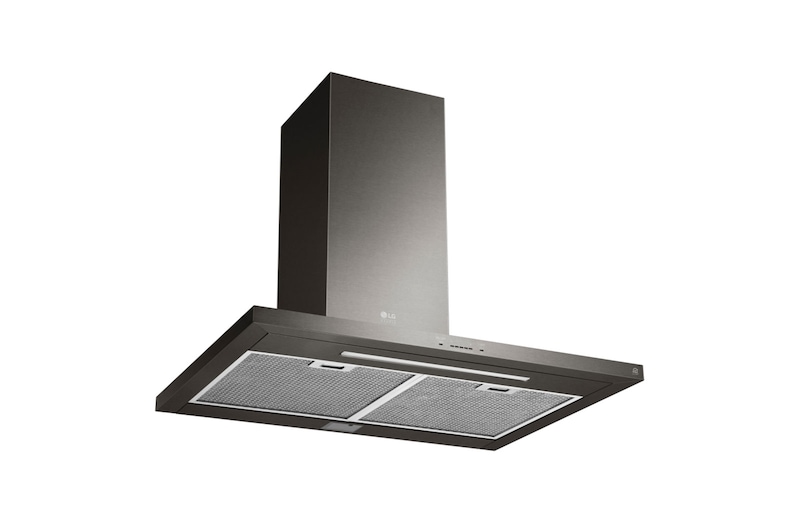

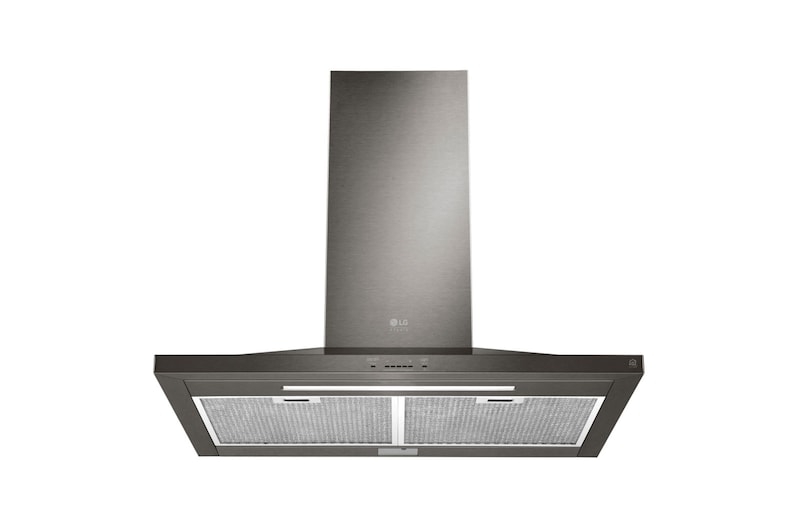

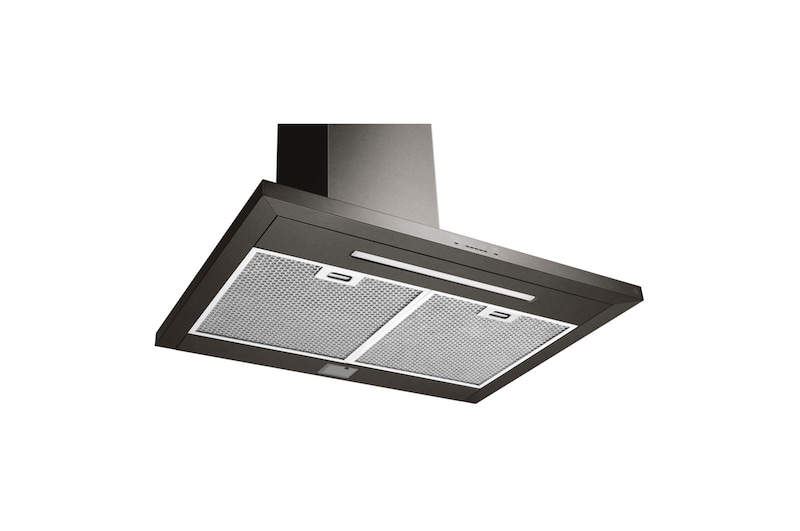

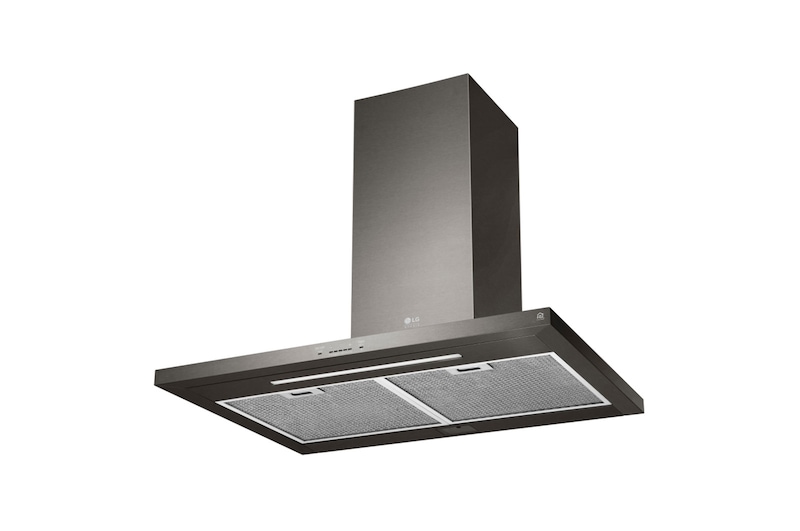

LG wall-mount range hood in dark stainless steel with mesh filters and a slim chimney.

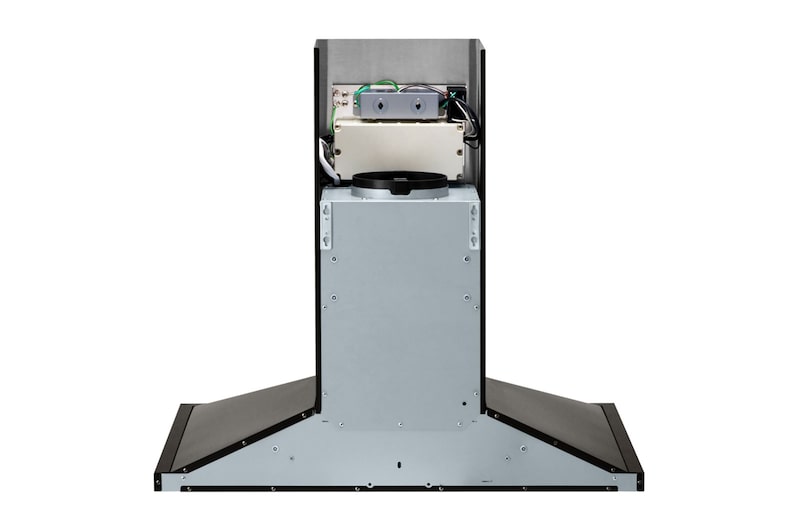

Check Under this Hood

The LG STUDIO hood vent offers superior ventilation to quickly neutralize smoke, grease and cooking odors. The professional-grade blower adjusts from 200 to 600 CFM for greater ventilation as well as moisture and odor removal when you need it most.

Four black fingerprints on a brushed metal surface with the text SMUDGE RESISTANT below.

Design You Can't Wait to Get Your Hands On

LG Black Stainless Steel Series brings an undeniable lustre to kitchen spaces. It elevates the traditional stainless steel look with a satin-smooth, warm and sophisticated smudge resistant finish* that easily wipes clean with a soft, dry cloth. So the only lasting impression is your impeccable taste.

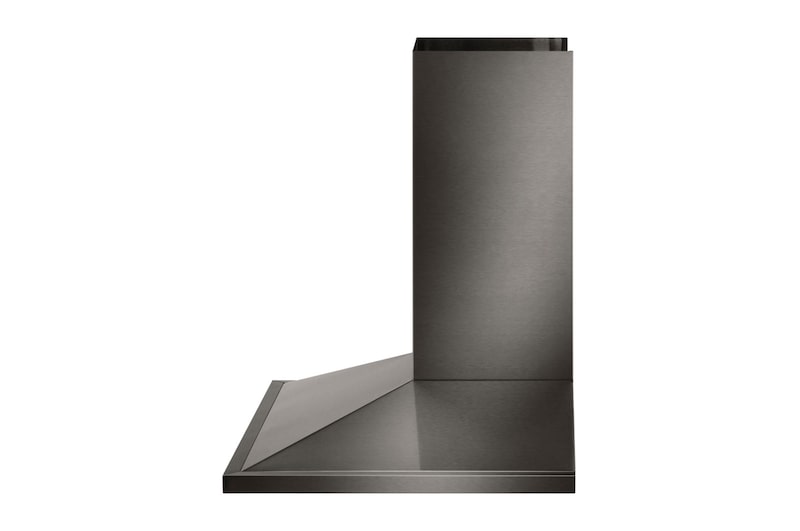

Low Profile. Big on Design.

The streamlined styling of the sleek chimney-style hood vent offers plenty of design appeal for 30” spaces without distracting from your overall kitchen aesthetic. Cooks can delight in the low-profile appearance while enjoying the high-tech power behind the hood.

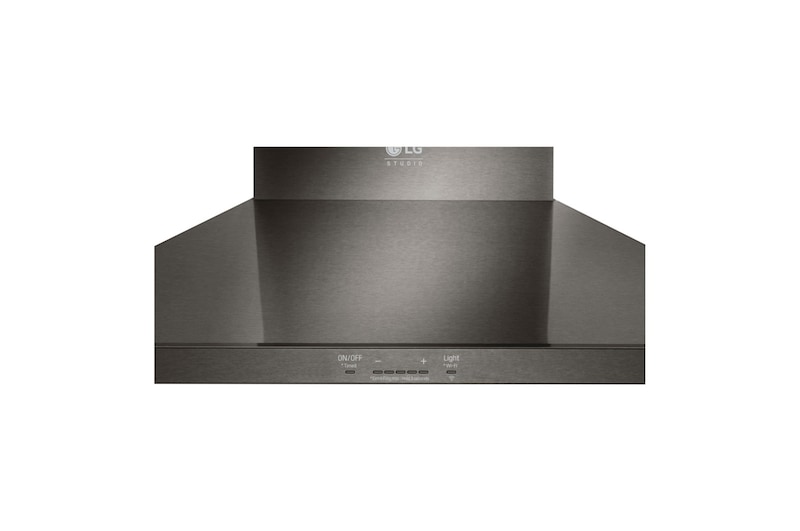

Top view of an LG Studio stainless steel range hood with touch control panel and digital display.

Sleek. Seamless. Stylish.

Seamlessly integrated into the hood, the touch pads give you complete control over 5 fan speeds, delay-off function, auto reminders and Airflow Control Technology. This LG STUDIO hood vent also illuminates your cooktop with brilliant dual-level LED lighting, so you'll always have perfect lighting for the task at hand.

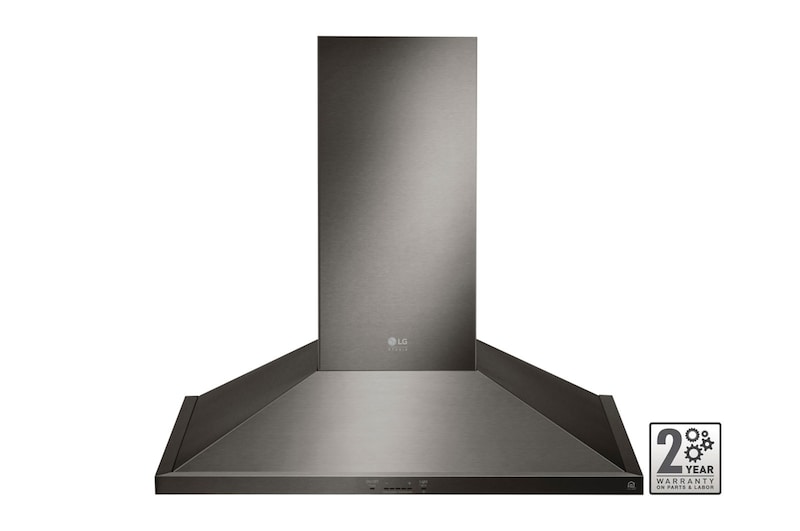

2 Year Warranty on Parts and Labor badge with gear icons.

Qualifications

DIMENSIONS

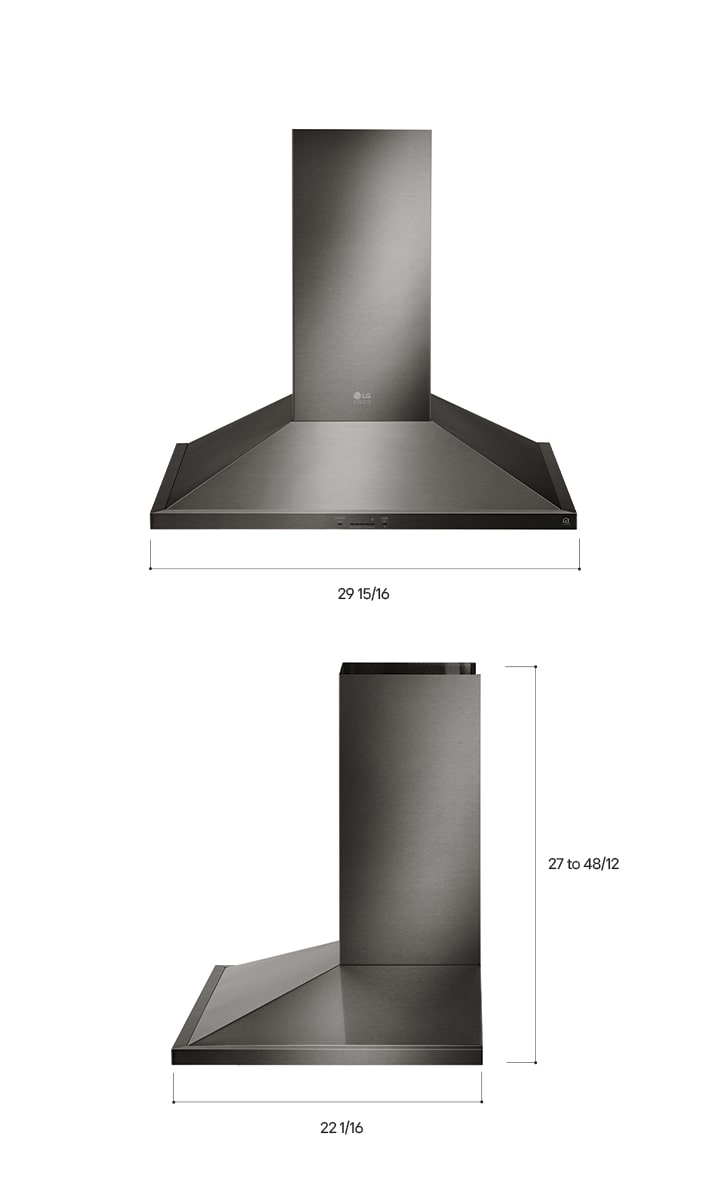

Product Dimensions (W x H x D) (inch)

29 15/16 x 27 to 48 1/2 x 22 1/16

Blower CFM (min-max)

200-600

All Spec

BAR CODE

Bar Code
048231338981

POWER / RATINGS

Required Power Supply (Volt/Hz)
120/60
Amp Rating at 120V (A)
4
Circuit Breaker Size(Amp)
15 Amps

HOOD FEATURES

Auto Delay-Off
Yes
Blower CFM(min-max)
200-600
Blower Sones(min-max)
1-6
Blower Speed Levels
5
Distance Over Cooking Surface (inch)
26-34
Dual-Level Lighting
Yes
Filter Type
Decorative Mesh Filters
Lighting Power (W)
9
Lighting Type
LED Light Strip
Outcase Color
Stainless Steel, Black Stainless Steel
RoHS Compliant
Yes
Size in Width (inch)
30
Vertical Internal Blower
6” Round

BASIC SPEC

Blower CFM(min-max)
200-600
Blower Sones(min-max)
1-6
Blower Speed Levels
5
Outcase Color
Stainless Steel, Black Stainless Steel

CONTROL FEATURES

Control Type
5-Speed IR Touch Controls
Wi-Fi Control CFM
Yes
Wi-Fi Control Lights
Yes
Wi-Fi Power On/Off
Yes

DIMENSIONS / WEIGHT

Packing Dimensions (W x H x D) (inch)
34 1/4 x 27 3/8 x 26 5/8
Product Dimensions (W x H x D) (inch)
29 15/16 x 27 to 48 1/2 x 22 1/16
Product Weight (lb.)
35
Shipping Weight (lb.)
52

Can this chimney hood be vented outside?

Yes. LG chimney hoods are designed for ducted (outside venting) installations to effectively reduce smoke, steam, and cooking odours. Refer to the installation guide for ducting requirements and compatible configurations.

Will this chimney hood fan adhere to local ventilation codes?

Local codes in some areas limit the maximum CFM of installed range hoods. You can adjust the maximum blower CFM of this hood to avoid the need for an expensive make-up air kit. During install, you can easily set the maximum blower speed to one of three commonly specified CFM levels. (600(default), 290 or 390). You may not need to adjust the CFM of the hood. Check local codes for CFM restrictions

What size chimney hood should I choose?

For the best ventilation performance, choose an LG hood that is at least as wide as the cooktop below the chimney hood. LG offers both 30-inch and 36-inch chimney hoods to suit a variety of kitchen layouts.

Will this hood fit my ceiling height?

LG chimney hoods come with an adjustable telescopic chimney that accommodates a range of standard ceiling heights. LG hoods out of box are designed for a maximum ceiling height of 9 feet 10 inches. For higher ceilings up to a maximum of 12 feet in height, there is a duct cover extension available for purchase separately in market from Zephyr (model# Z1C-00AN). Refer to the product specifications and installation guide for the supported installation height of your model.

What is the benefit of a 600 CFM blower?

The powerful 600 CFM blower helps quickly reduce smoke, steam, grease, and cooking odours, making it ideal for everyday cooking as well as high-heat techniques like frying and searing.

What are the benefits of connecting my chimney hood to the LG ThinQ^®app?

On select Wi-Fi enabled models, the LG ThinQ^® app lets you control the fan and lighting, receive notifications, and download software updates. When paired with a compatible LG cooktop, the hood can also automatically adjust ventilation while you cook. Features may vary by model.

Does the chimney hood include built-in lighting?

Yes. LG chimney hoods feature dual-level LED lighting to help illuminate your cooking surface while preparing meals.

Are the aluminum mesh grease filters dishwasher safe?

Yes. The decorative mesh grease filters are removable and dishwasher safe at low heat, making routine cleaning quick and convenient. If the filters are heavily soiled, spray them with a degreasing detergent and leave them to soak. Dry filters and re-install before using hood.

Can the fan turn off automatically?

Yes. LG chimney hoods include an Auto Delay-Off feature that continues running the fan for a short time after cooking before automatically shutting off, helping clear any remaining smoke or odours.

How high should the hood be installed above my cooktop?

For proper performance and safety, install the hood according to the height specified in the installation guide for your model. Most LG chimney hoods are designed to be installed approximately 26 to 34 inches above the cooking surface.
