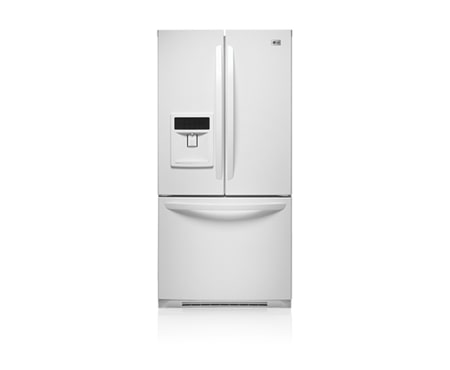

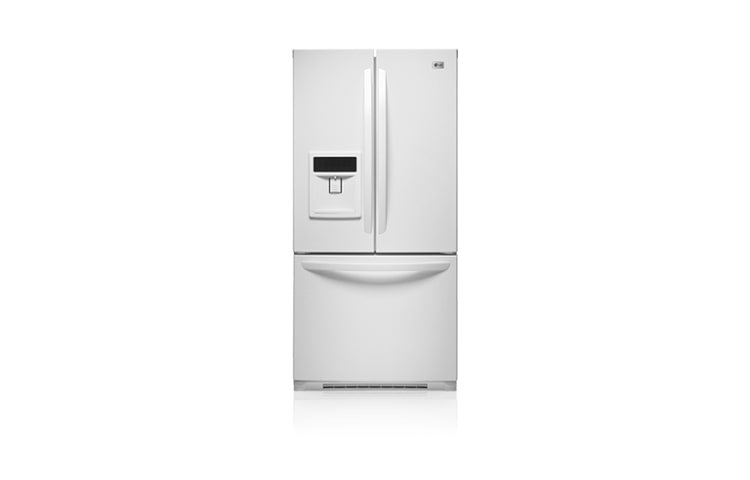

3-Door French Door Refrigerator with External Water Dispenser (22.7 cu.ft.)

3-Door French Door Refrigerator with External Water Dispenser (22.7 cu.ft.)

LFD23860SW

3-Door French Door Refrigerator with External Water Dispenser (22.7 cu.ft.)

All Spec

GENERAL

Capacity

22.7 cu.ft.

FEATURE

Freezer Door Type

Tilt-A-Drawer TM

Water Filter

LT600P

MultiAir Flow System

Yes

Digital Temperature Controls

External LED SmoothTouchTM

Door Alarm

Yes

LoDecibel Operation

Yes

REFRIGERATOR

No. of Shelves

4 Split

Shelf Style

2 Slide-Out / 1 Folding

Cantilevered Shelves

Yes

Shelf Construction

Spill Protector™ Tempered Glass

Bins

2 Humidity Crisper

Refrigerator Light

Reveal (2x60W)

REFRIGERATOR DOOR

No. of Door Bin

6

Door Bin Material

2 Piece Clear

Dairy Bin

Yes

FREEZER

Upper Drawer

Wire

Lower Drawer

Durabase Solid

Ice Maker

Twister Ice Maker

Divider

Yes

Express Freeze / Ice Plus

Ice Plus

Ice Bin

Yes

Freezer Light

40W

MATERIAL AND FINISHES

Foam Door Insulation

Cyclo Pentane (No CFC, No HCFC)

Door Style

Contour

Bio Shield AntI Bacterial Door Shield

Yes

Toe Grille

Yes

Back

Flush & Metal cover over mechanical parts

Handles

Matching Commercial Handles

Color

Smooth White

Cabinet Color

White

DIMENSIONS AND WEIGHT

Depth w/ Handles

34 5/8"

Depth w/o Handles

32 1/8"

Depth w/o Door

28 1/4"

Depth (Total with Door Open)

45 1/2"

Height to Top of Case

67 11/16"

Height to Top of Door Hinge

69 1/16"

Width

32 3/4"

Width (door open 90 deg. w/ handle)

41 1/4"

Width (door open 90 deg. w/o handle)

36 1/4"

Door Edge Clearance w/Handle

4 1/4"

Door Edge Clearance w/o Handle

1 3/4"

Installation Clearance

Sides 1/8" x Top 1" x Back 2"

Carton Dimensions (WxHxD)

35 1/8” x 73 1/4” x 36 1/2”

Weight (lbs): Unit/Carton

275/305

UPC CODE

UPC Code

772454026690

WARRANTY

Warranty

1 Year parts and Labour, 7 Years on the Sealed System
