Black Stainless
Yes
Refrigerator
16.8 cu. ft.

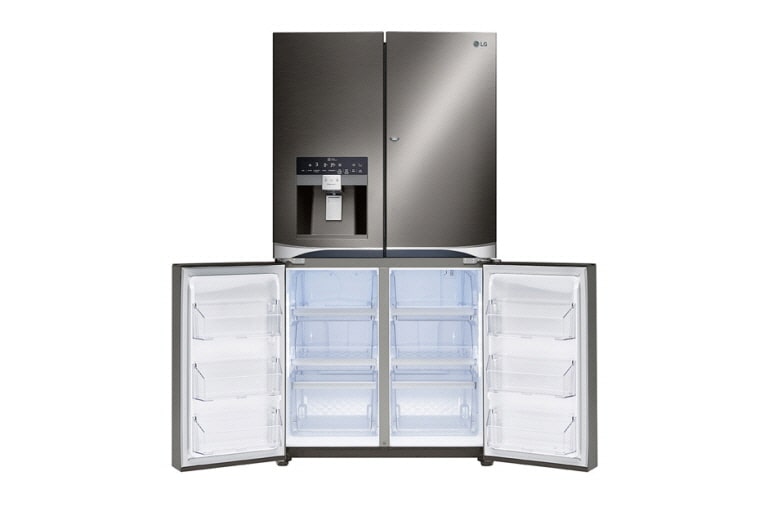

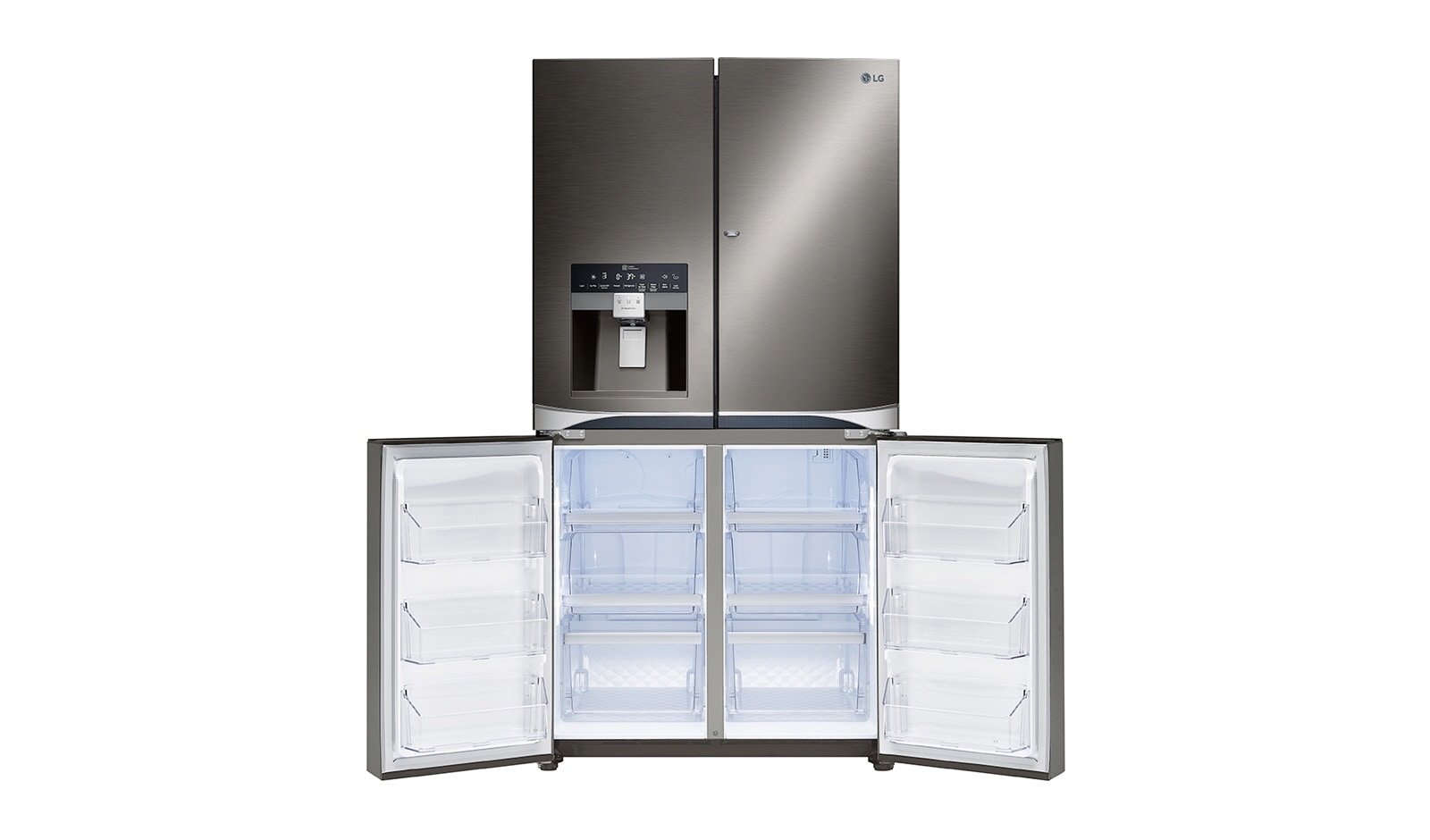

Freezer
13 cu. ft.
Total
29.8 cu. ft

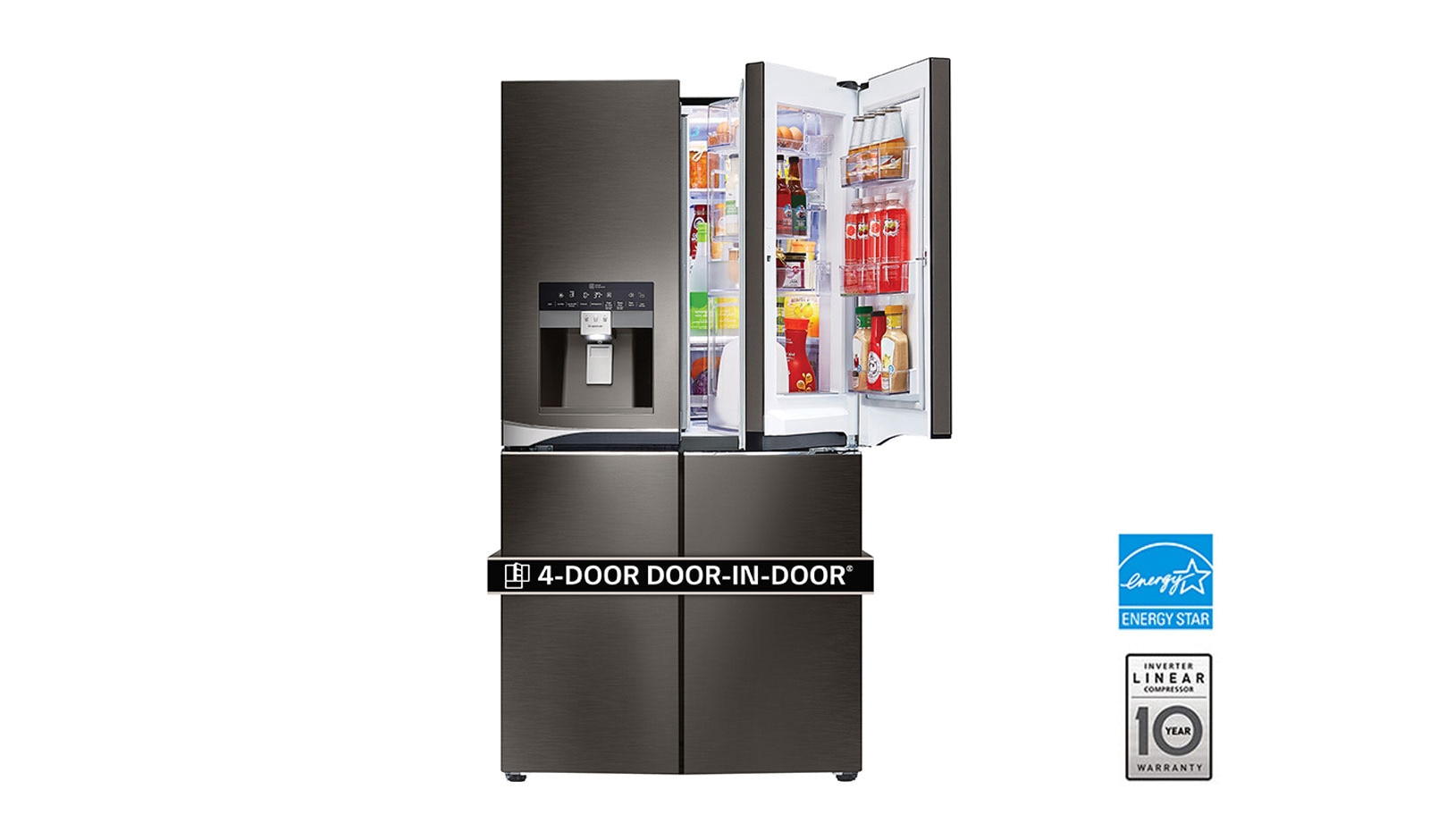

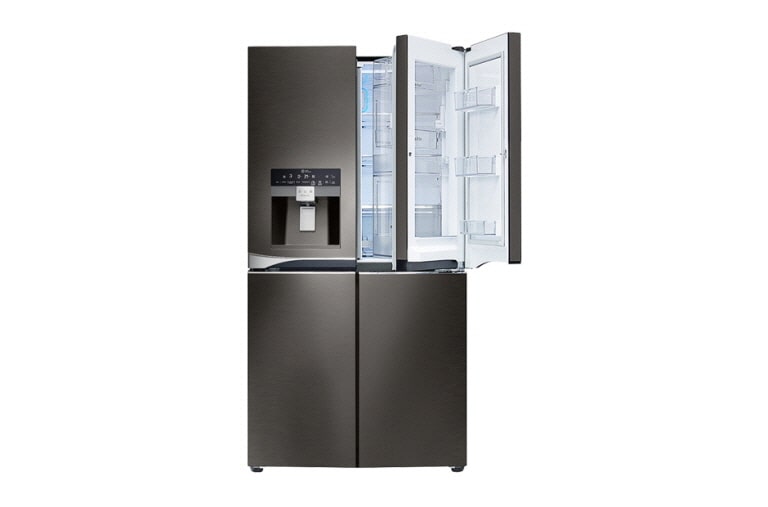

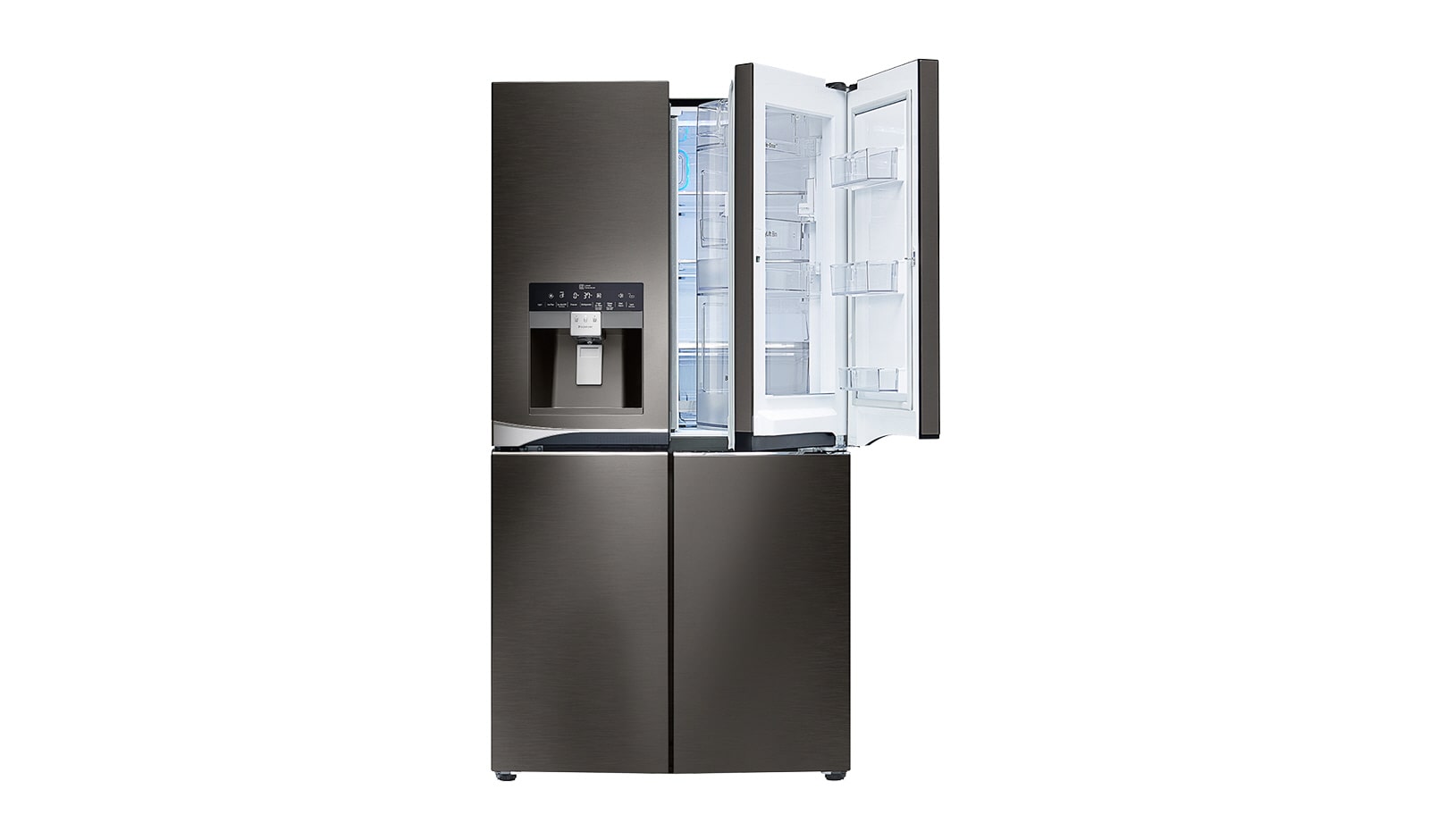

Door-in-Door™
Yes
ENERGY STAR® Qualified
Yes (766 kWh/Year)

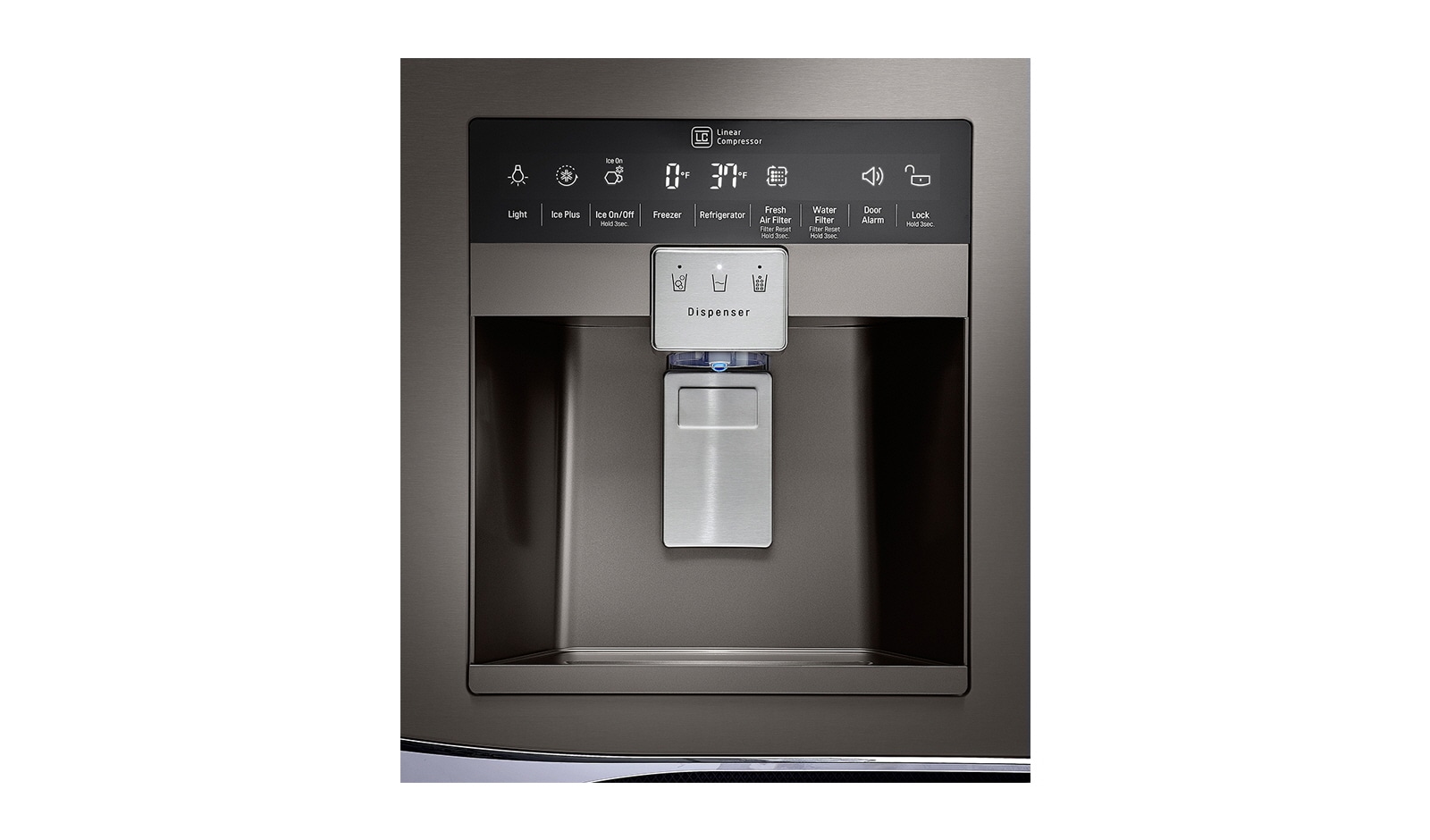

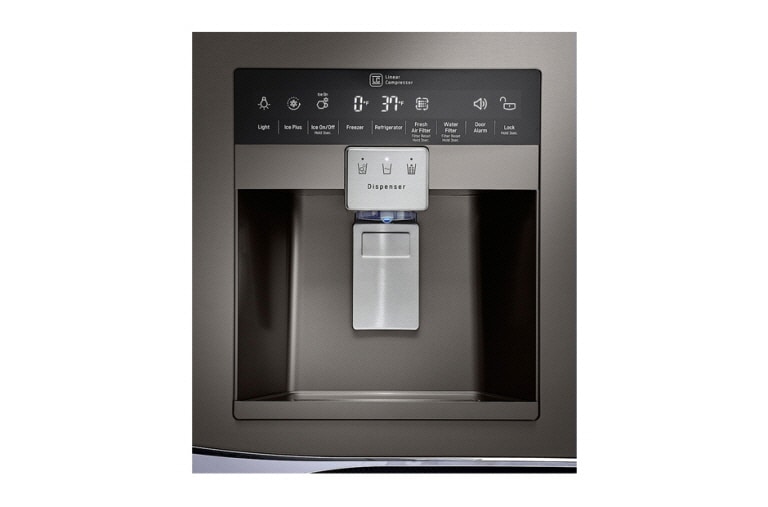

Ice & Water Dispenser
Yes
Dispenser Type
Integrated Dispenser
Ice System
Slim SpacePlus®
Daily Ice Production
4.5 lbs / 4.8 (IcePlus™)
Ice Storage Capacity
2.8 lbs
Water Filtration System
Compact Filter LT800P
Smart Cooling Plus System
Yes
Multi Air Flow Cooling
Yes
Temperature Sensors
7
Linear Compressor
Yes
Fresh Air Filter
Yes
Display Type
Smooth Touch Control (White LED)
Temperature Controls
Digital
Door Alarm
Yes
Child Lock
Yes
LoDecibel™ Quiet Operation
Yes
SmartDiagnosis™
Yes
Auto Closing Door Hinge
Yes
No. of Shelves
4 Split (3 Fixed/1 Folding)
Folding Shelf
Yes
Cantilevered Shelves
Yes
Shelf Construction
SpillProtector™ Tempered Glass
EasyReach™ Bins
Yes
Refrigerator Light
Premium LED (Ceiling and Side)
Space Plus Ice System
Slim Indoor Ice Maker
No. of Shelves/Bin
10 Total (EasyLift™ included)
Door Bin Construction
1 Piece (Clear)
Dairy Corner
Yes
Door Type
Side Swing
No. of Drawers / Shelves
6
No. of Door Bins
6
Handle
Pocket Handle
Freezer Light
Premium LED
Drawer Divider
Yes
Contour Door
Yes
Hidden Hinges
Yes
Surface
Black Stainless Steel
Back
Flush & Metal Cover Over Mechanical Parts
Available Colors
Black Stainless Steel (D)
Handles
Pocket Handles
Depth with Handles
36"
Depth without Handles
36 3/8"
Depth without Door
31 3/8"
Depth (Total with Door Open)
49 3/4"
Height to Top of Case
68 7/8"
Height to Top of Door Hinge
70 1/2"
Height to Top of Cover
70 "
Width
35 7/8"
Width (Door Open 90˚ with Handle)
40 1/8"
Width (Door Open 90˚ without Handle)
40 1/8"
Door Edge Clearance with Handle
4 5/8"
Door Edge Clearance without Handle
2 1/4"
Installation Clearance
Sides 1/8", Top 1", Back 1"
Weight (Unit/Carton)
344 lbs / 375 lbs.
Limited Warranty
1 Year Parts and Labor, 7 Years on the Sealed System 10 Years on Linear Compressor

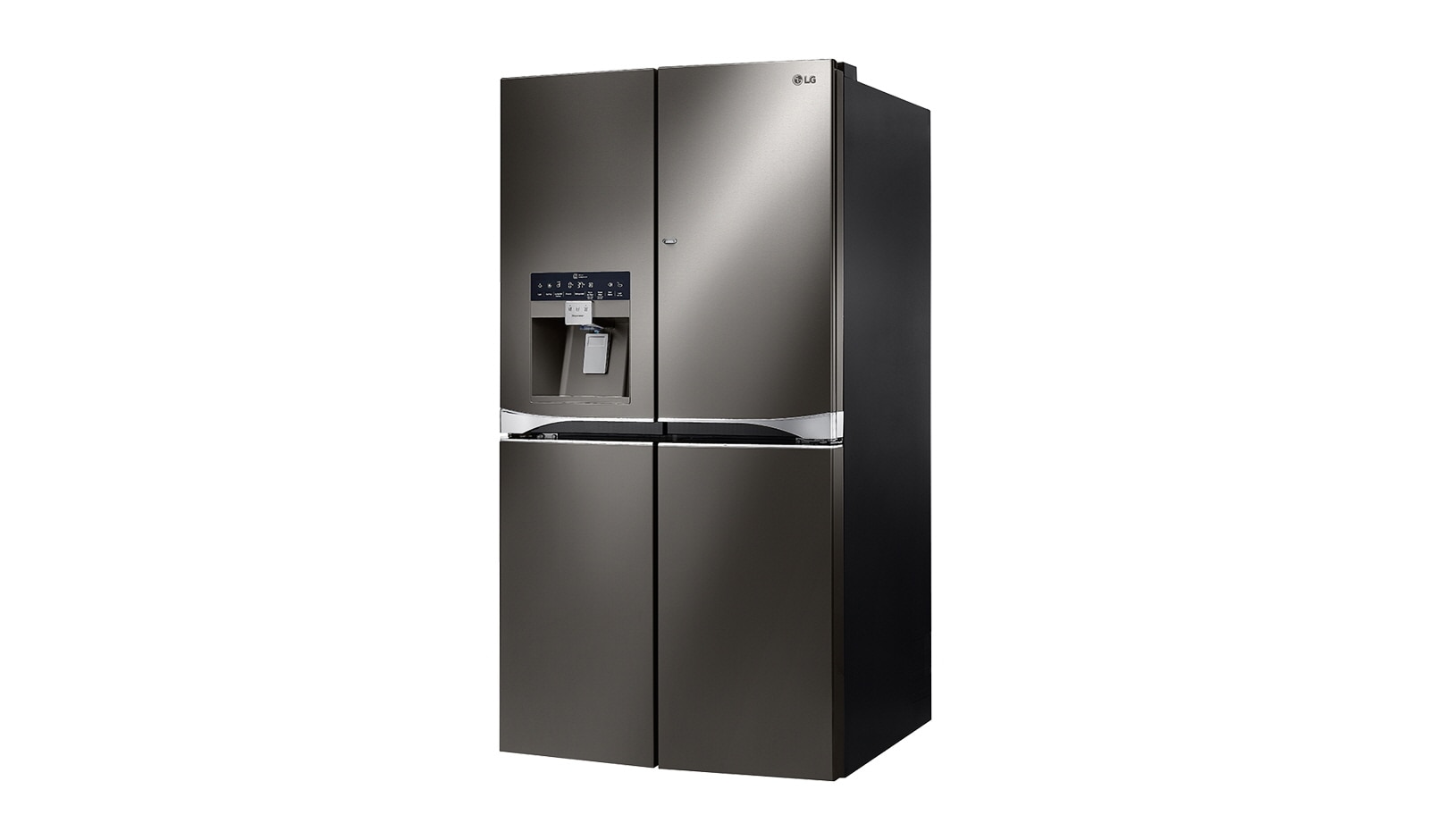

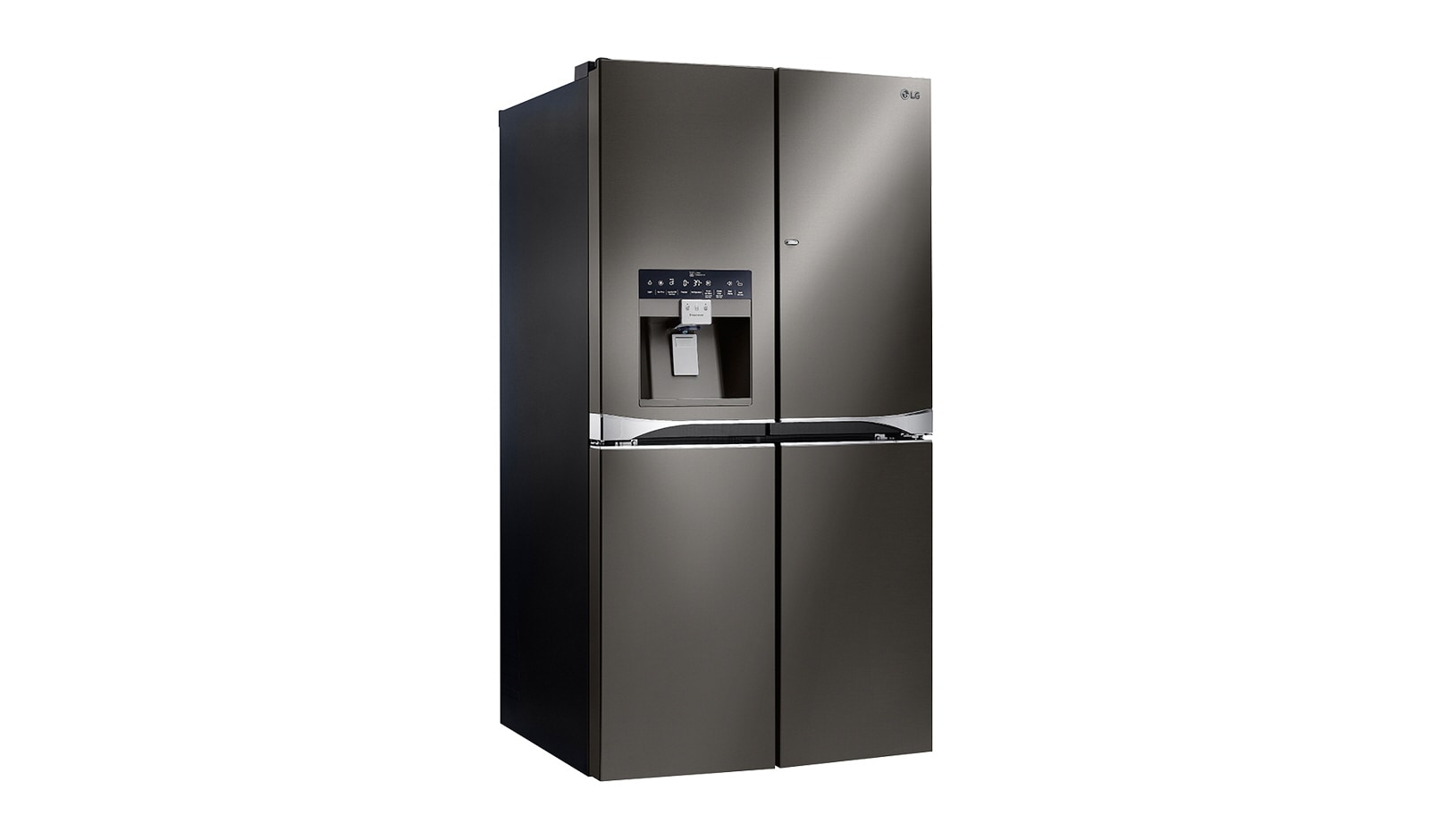

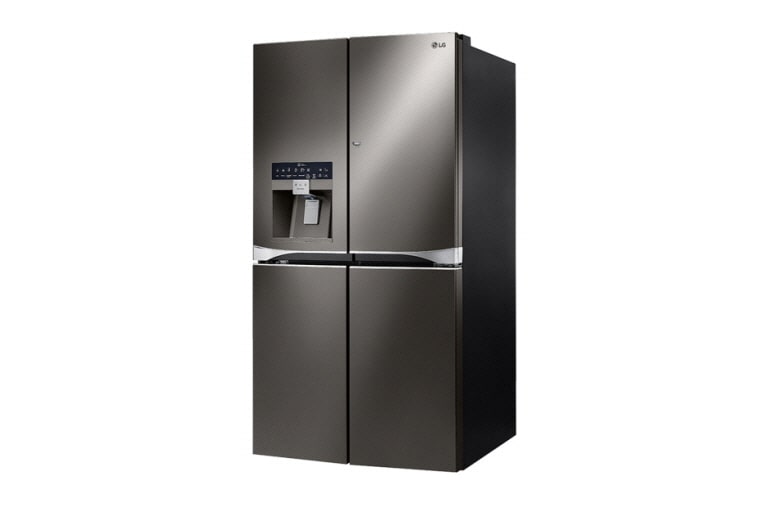

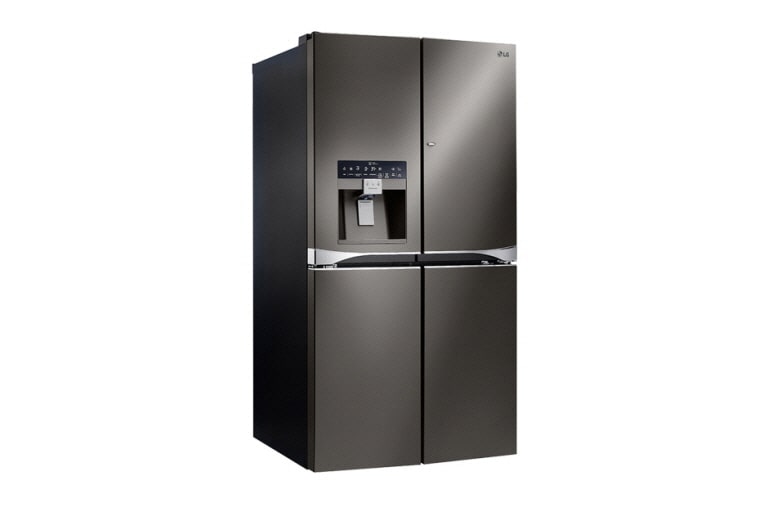

LPXS30866D Black Stainless Stee l
048231 786751
