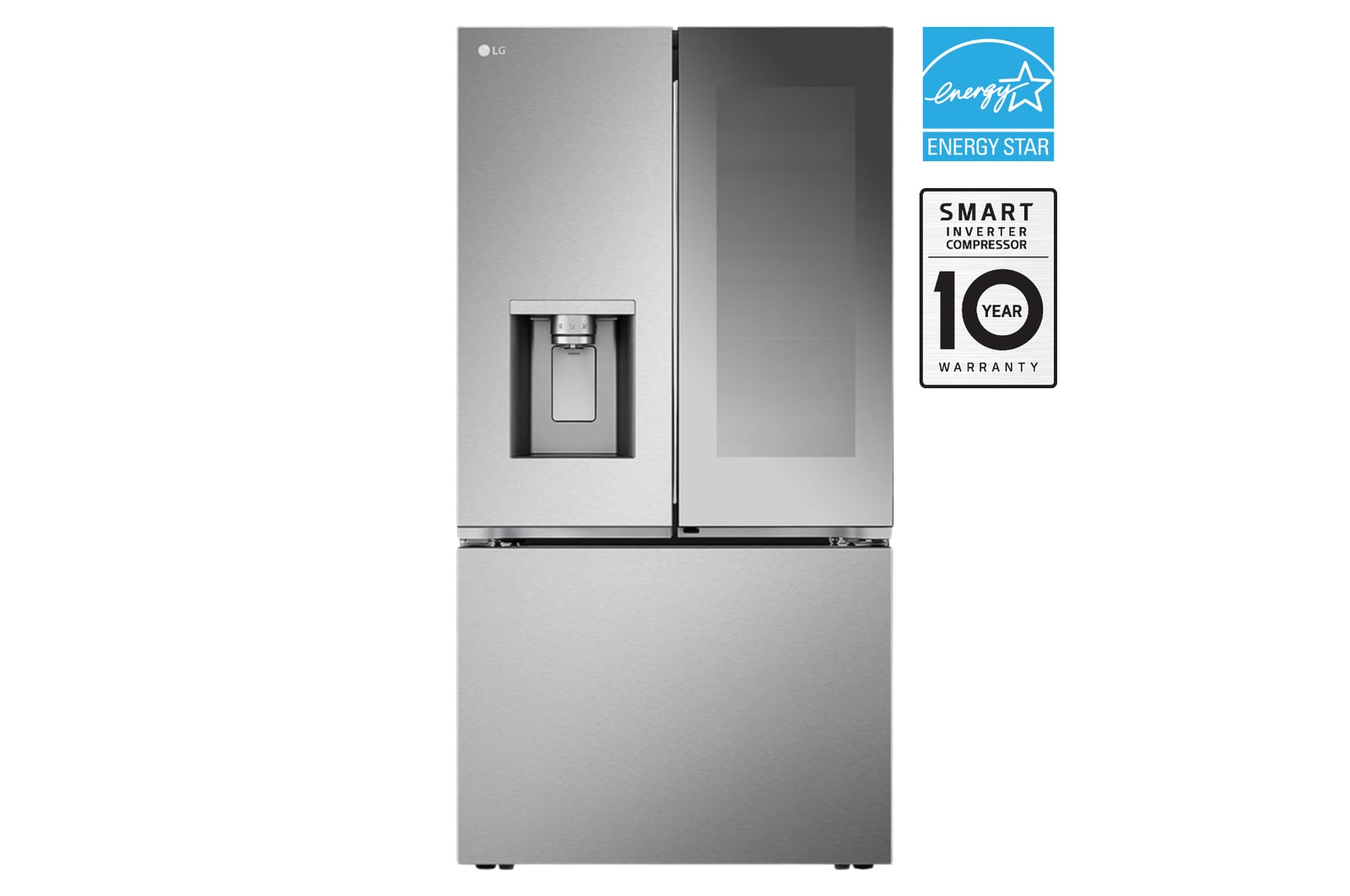

31 cu.ft InstaView Refrigerator - LRYKS3106S

36" 31 cu.ft. Mirror InstaView® Door-in-Door® Standard-Depth MAX® French 3-Door | Ice & Water Dispenser | 4 Types of Ice with Craft Ice®

LRYKS3106S

Key Features

Super-Capacity, 31 cu. ft.
Mirror InstaView^® Design
Integrated Tall Ice & Water Dispenser
Welcome Lighting
UVnano™ Water Dispenser

Super-Capacity, 31 cu. ft.

More Usable Space*

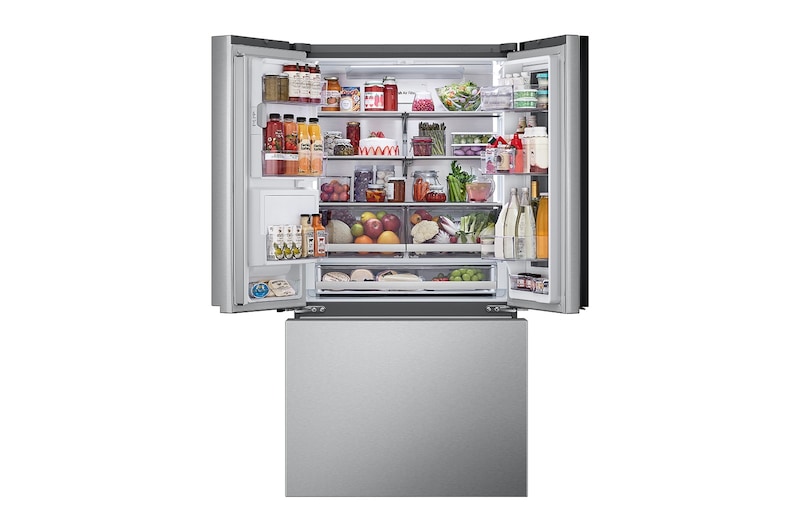

With the super-capacity 31 cu. ft. refrigerator, you have even more usable space* allowing you to store more food than ever before.¹

*Compared to LG's standard width French door refrigerator.

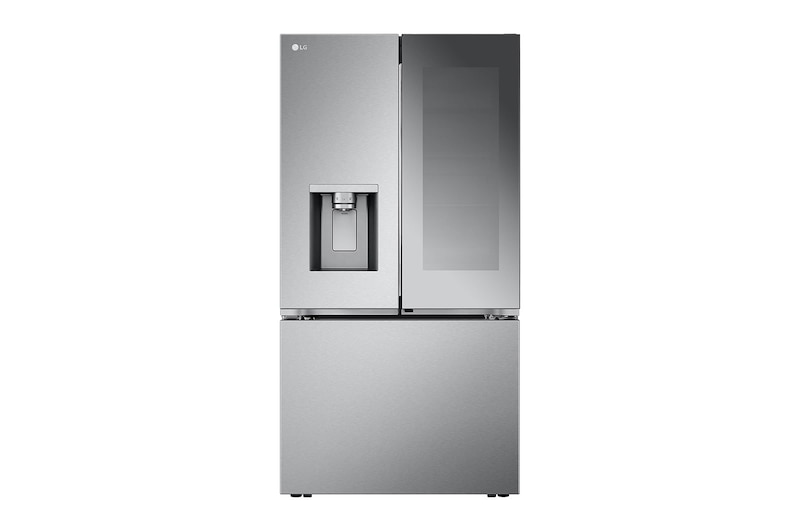

Mirror InstaView^® Design

Knock Twice to See Inside

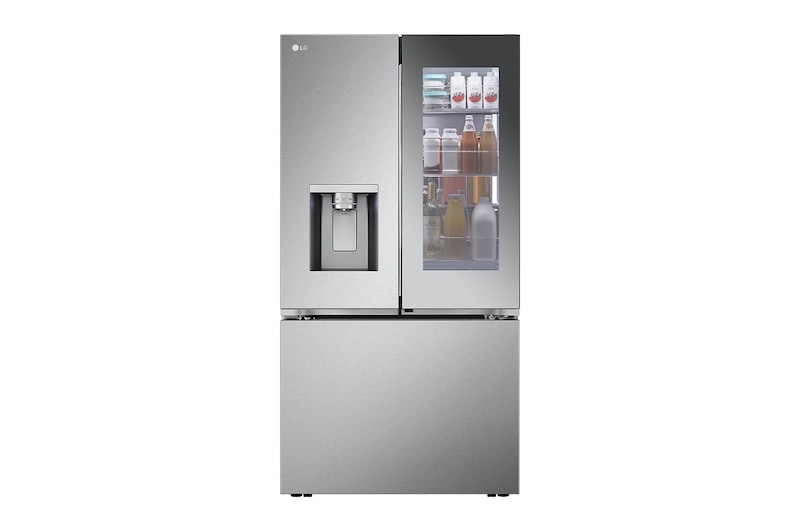

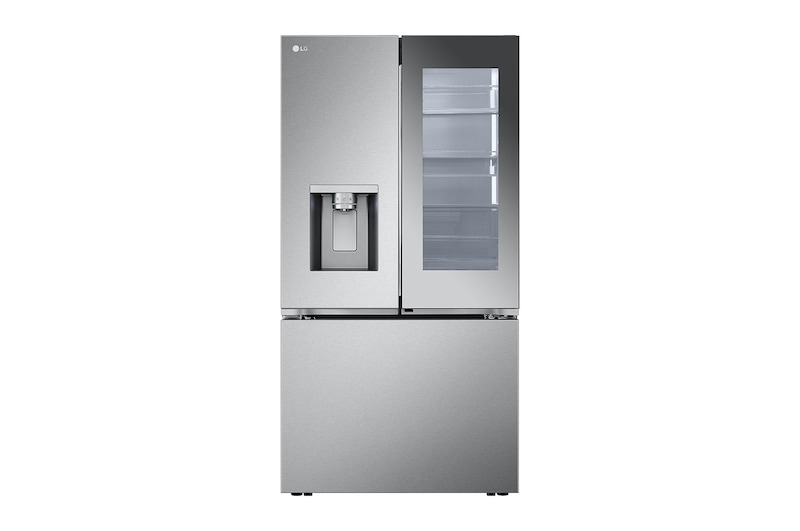

LG's Mirror InstaView™ refrigerator: tap twice to illuminate the contents without opening the door.¹

InstaView^® Door-in-Door^®

Raid the Refrigerator without Losing Your Cool

InstaView^® Door-in-Door^® refrigerators have a sleek glass panel that allows you to see inside the easy access door without letting the cold air out. Simply knock twice on the glass to illuminate the contents within.¹

Four Types of Ice

The First Refrigerator with 4 Different Types of Ice*

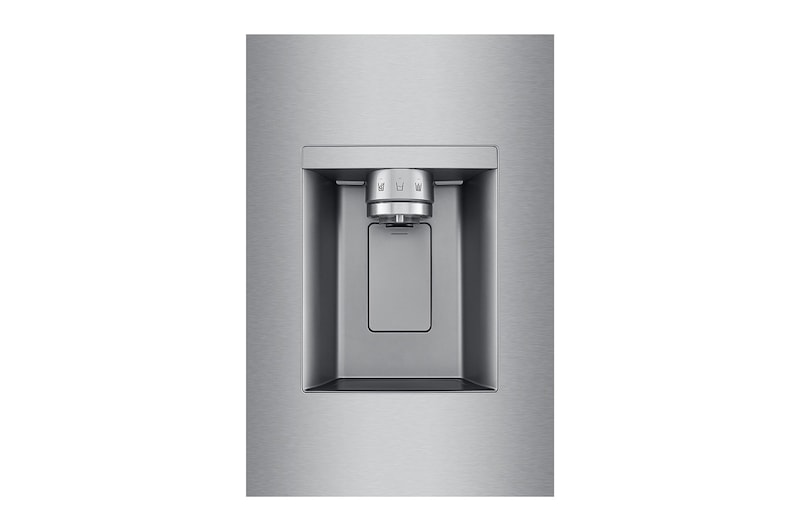

Touch the dispenser on the door to get cubed or crushed ice in an instant.

Two additional ice makers in the freezer produce mini cubed ice and LG’s exclusive slow-melting, round Craft Ice^®.

Craft Ice^® helps all kinds of beverages taste their best for longer, from craft cocktails** to soft drinks to iced coffee.

A generous supply of mini cubed ice is the perfect answer for filling water bottles or delivering a quick chill.¹

*Based on Marketplace Survey January 2023

**You must be of legal drinking age to drink alcoholic beverages. Please drink responsibly.

Slim SpacePlus^® Ice System

More Shelf Space.*

The LG Slim SpacePlus^® Ice System provides more shelf space.*¹

*Compared to standard width LG French door refrigerators

Flat Panel Door Design with Pocket Handles

Take another glimpse every time you walk by this fresh design from LG and take in the contemporary vibe.

Flat panels are enhanced with discreet pocket handles that offer easy access.¹

Flat Panel Door Design with Pocket Handles

Cool Guard with Backlit Lighting

A Fresh Interior View

The premium style of the Counter-Depth MAX exterior continues to the interior with an LED backlit Cool Guard wall panel.

It helps maintain your chill while adding a premium, pro-style look to the fridge interior—framed by brilliant LED lighting.¹

Door Cooling^®+

Consistent Temps from Top to Bottom

Located in the top of the fresh food section, the Door Cooling^®+ vent extends the reach of LG’s Smart Cooling system.

Blasts of cool air reach all areas of the refrigerator—including the door—to help maintain consistent temperatures

from top to bottom and help keep all foods fresh and flavorful.¹

Smudge Resistant Finish

Handle Real-Life in Style

LG's Smudge Resistant finish makes cleaning easy, giving a distinctive look to your kitchen without constant attention.¹

ThinQ^® WiFi

Stay Connected

The ThinQ^® app allows you to control key features and receive notifications from anywhere. It also works with Google Assistant and Amazon Alexa.¹

Built-In Peace of Mind

Smart Diagnosis™ feature detects and helps diagnose refrigerator problems via phone or app, saving time and money on repairs.¹

Smart Inverter Compressor with 10 Year Warranty

LG's Smart Inverter Compressor controls the temperature of your refrigerator evenly, allowing your food to taste fresher, longer.¹

ENERGY STAR^® Certified

Save money. Save energy.

This ENERGY STAR^® Certified LG refrigerator exceeds minimum federal energy standards to positively impact your energy bill,

your energy consumption, and most importantly, the environment.

¹Images may be simulated and dramatized for illustrative purposes. Actual features, functionality, and other product specifications may differ and are subject to change without notice.

DIMENSIONS

Volume Total (cu.ft)

30.7

Product Dimension (WxHxD, inch)

35 3/4" x 70 1/4" x 34 3/8"

Key Spec

CAPACITY - Volume Total (cu.ft)
30.7
DIMENSIONS & WEIGHT - Packing Dimension (WxHxD, inch)
37 7/8" x 72 3/8" x 36 3/8"
PERFORMANCE - Energy Consumption (kWh/Year)
755
BASIC SPEC - ENERGY CONSUMPTION GRADE
ENERGY STAR^® Certified
PERFORMANCE - Compressor Type
Smart Inverter Compressor (BLDC)
FEATURES - InstaView
Yes
FEATURES - Door-in-Door
InstaView Door-in-Door(Mirrored Glass)
SMART TECHNOLOGY - ThinQ (Wi-Fi)
Yes
MATERIAL & FINISH - Finish (Door)
Stainless Steel

All Spec

REFRIGERATOR COMPARTMENT

Shelf_Folding
1-step folding
Door Basket_Moving Basket
No
Door Basket_Transparent
8
Refrigerator Light
Top LED
Shelf_Cantilevered
Yes (Hybrid)
Shelf_Tempered Glass
4 Split(3 Fixed+1Folding)
Vegetable Box
Yes (2)
Wide Pantry
Yes (Temperature-Controllable)

BAR CODE

Bar Code
195174034811

BASIC SPEC

Brand
LG
ENERGY CONSUMPTION GRADE
ENERGY STAR^® Certified
Product Type
French Door (3Door)
Standard/Counter Depth
Standard Depth

CAPACITY

Volume Total (cu.ft)
30.7
Volume Freezer (cu.ft)
10.3
Volume Refrigerator (cu.ft)
20.4

CONTROL & DISPLAY

Internal LED Display
LED Display
Door alarm
Yes
Express Freeze
No

DIMENSIONS & WEIGHT

Product Weight (lb.)
350
Depth without door (inch)
30 1/8"
Depth without handle (inch)
34 3/8"
Gross Weight (lb.)
372
Height to Top of Case (inch)
68 7/8"
Height to Top of Hinge or Door Cap Deco (inch)
70 1/4"
Installation Clearance
Sides 1/8", Top 1", Back 2"
Packing Dimension (WxHxD, inch)
37 7/8" x 72 3/8" x 36 3/8"
Product Dimension (WxHxD, inch)
35 3/4" x 70 1/4" x 34 3/8"
Total Depth with Door 90 Open (inch)
48 7/8"
Width door open 90 without Handle (inch)
40"

FEATURES

Door Cooling+
Yes
Auto Closing Door Hinge
Yes (Left Door Only)
Door-in-Door
InstaView Door-in-Door(Mirrored Glass)
InstaView
Yes
Sabbath Mode
Yes

FREEZER COMPARTMENT

Door Type
Pull Drawer
Drawer Divider
Yes
Drawer_Freezer
3 - tier orgazation
Durabase Solid Drawer Base
Yes

ICE & WATER SYSTEM

Water Only Dispenser
No
Automatic Ice Maker
Yes (In Cabinet, Factory Installed)
Daily Ice Production (lb.)
4.5 / 4.9 (IcePlus)
Dispenser Light
Yes
Dual lce Maker
Yes (Craft Ice)
Ice Maker_Manual
No
Ice Storage Capacity (lb.)
3.0
Ice & Water Dispenser
Cube & Crushed Ice
Water Filter Model Name
LT1000P
Water Filtration System
Internal (1 stage)

MATERIAL & FINISH

Handle Type
Grip(Curved Handle)
Contour Door
Flat
Fingerprint & Smudge Resistant Exterior
Yes
Finish (Door)
Stainless Steel
Flat Metal Duct (Metal Fresh)
R Metal

MULTI ROOM COMPARTMENT

Convertible Drawer
No
Full-Convert Drawer
No

PERFORMANCE

Energy Consumption (kWh/Year)
755
Compressor Type
Smart Inverter Compressor (BLDC)

SMART TECHNOLOGY

ThinQ (Wi-Fi)
Yes
Proactive Customer Care
Yes
Smart Diagnosis
Yes
Smart Learner Ver.
No

What are the benefits of an InstaView® refrigerator?

Thanks to LG’s innovative InstaView® technology, you can check what’s inside your refrigerator without opening the door. Simply knock twice on the tinted glass, and it will illuminate so you can see the contents.

This helps reduce cold air loss, keeps the internal temperature stable, saves energy, and allows your food to stay fresher for longer.

With this feature, you can conveniently and efficiently see what’s inside your LG refrigerator without opening the door.

What is LG DoorCooling+®?

DoorCooling+® uses front air vents to deliver powerful, cool air to items stored in the door.

This helps keep all food stored in the refrigerator door stay fresh.

How can I change the temperature setting on my refrigerator?

You can adjust the temperature using the control panel on the door or inside the refrigerator.

If your model supports the LG ThinQ® app, you can also conveniently change the settings remotely from your smartphone.

How large should my refrigerator be?

This depends on your lifestyle, but as a guideline:

An LG refrigerator/freezer with a capacity of 12.0 – 13.6 cu.ft. is usually sufficient for a smaller household of 1–2 people.

Slim Multi-Door models (17.9 – 18.0 cu.ft.) are well-suited for a family of 3–4 people.

For larger families, we recommend the spacious LG Multi-Door models (22.1 – 24.9 cu.ft.).

Multi-Door models also provide extra-wide space, perfect for storing larger items such as trays or platters. At LG, we want every customer to find the refrigerator that best fits their needs, which is why we offer a variety of sizes within each product line.
