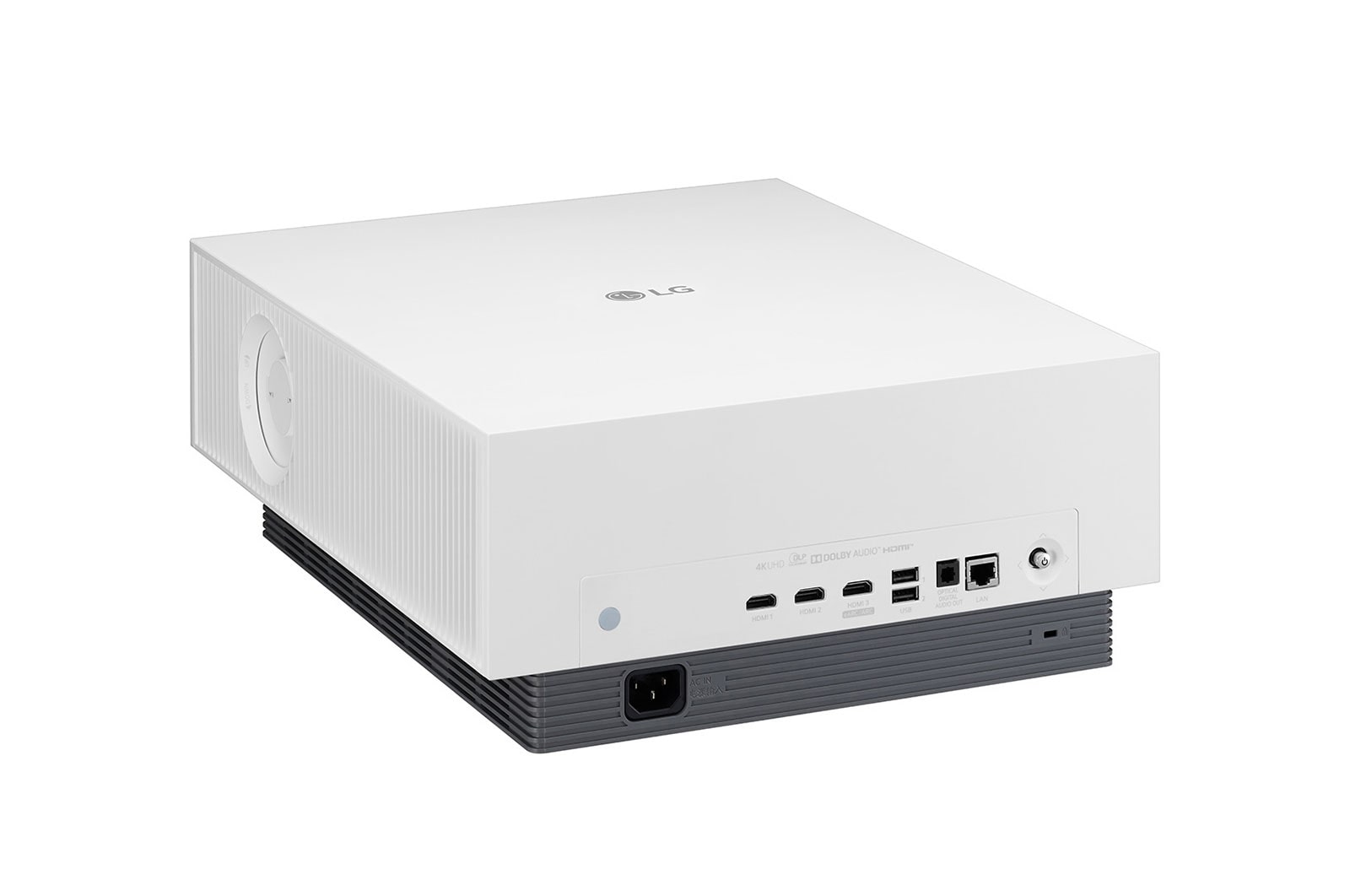

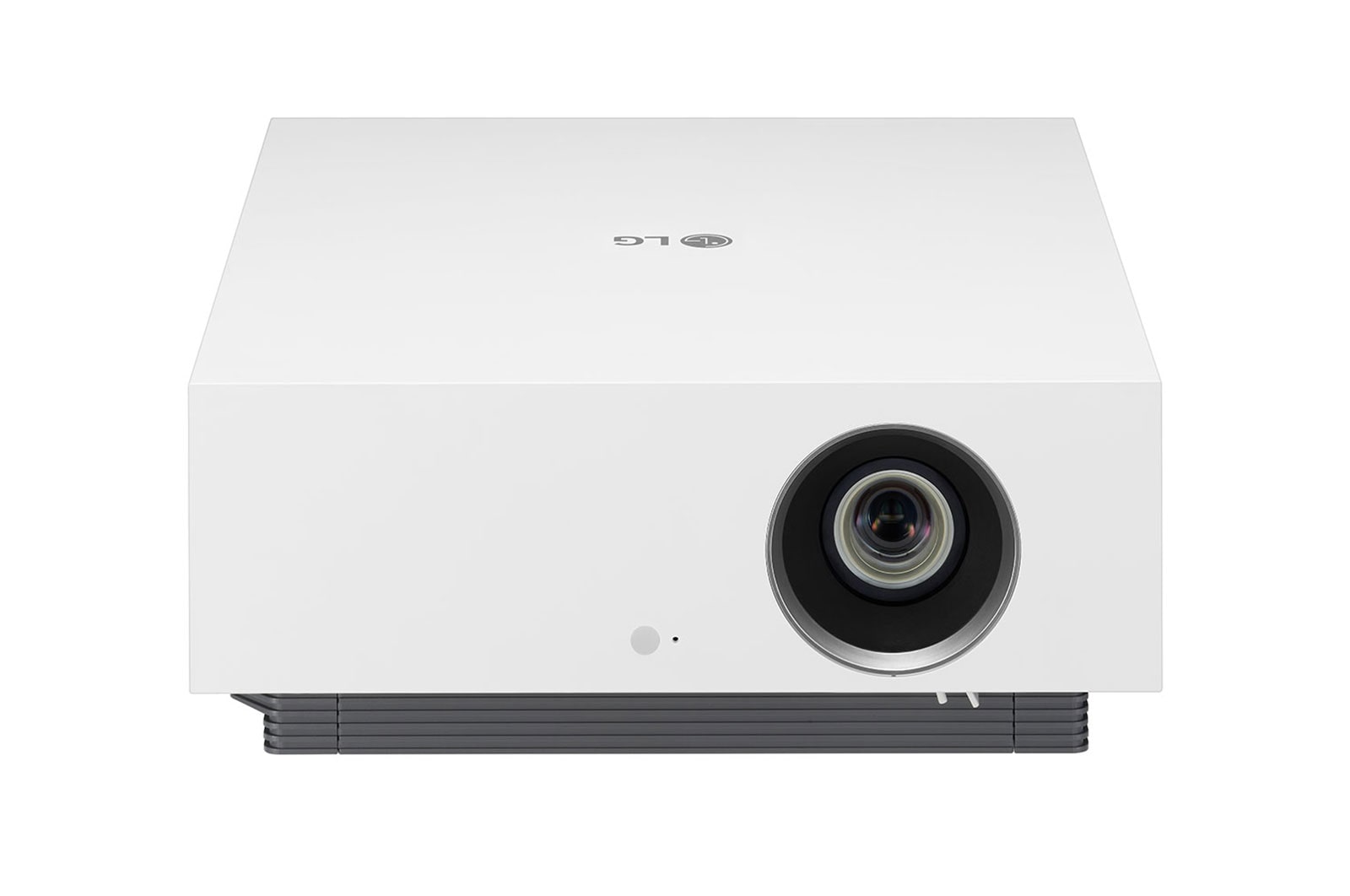

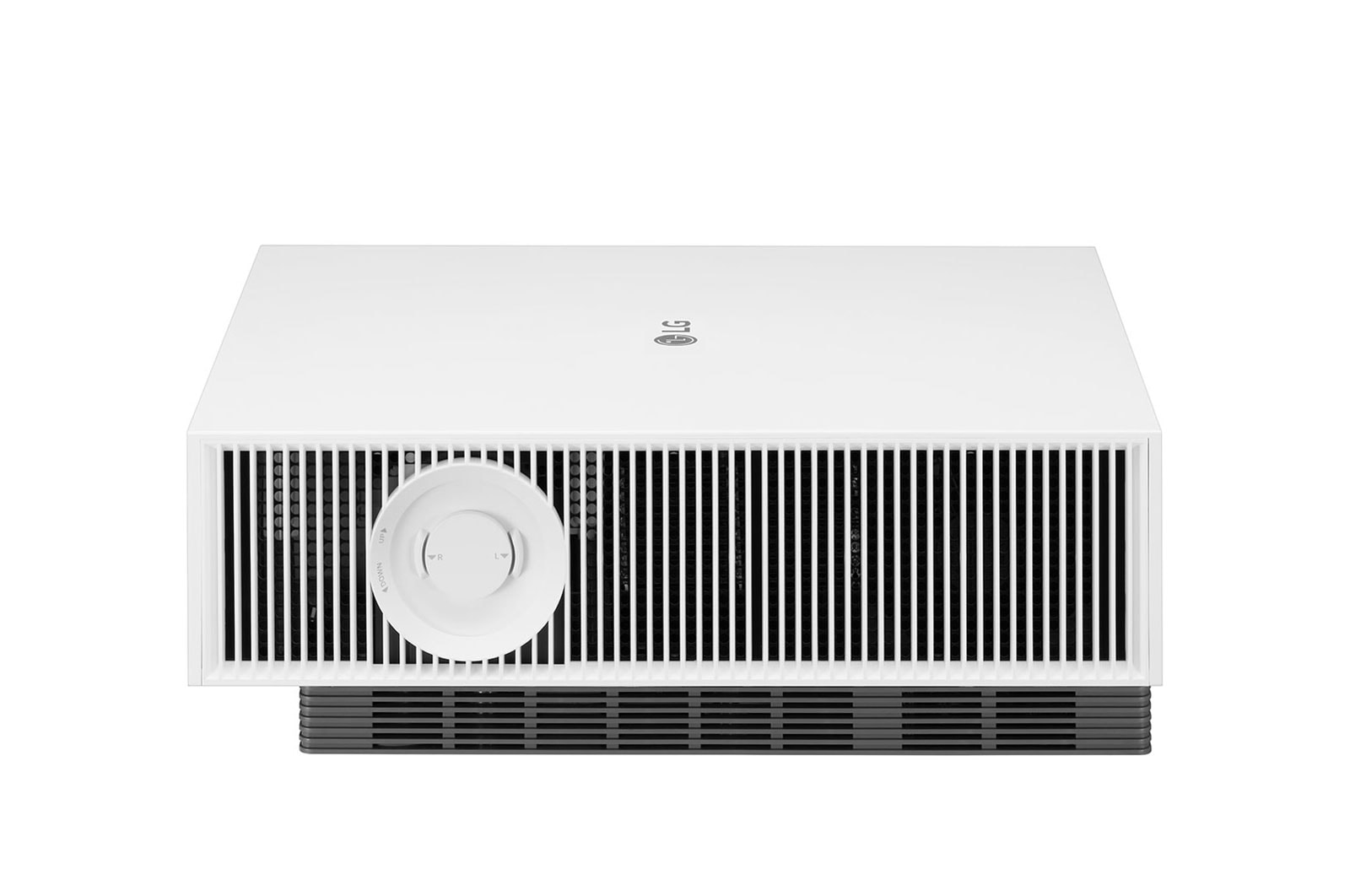

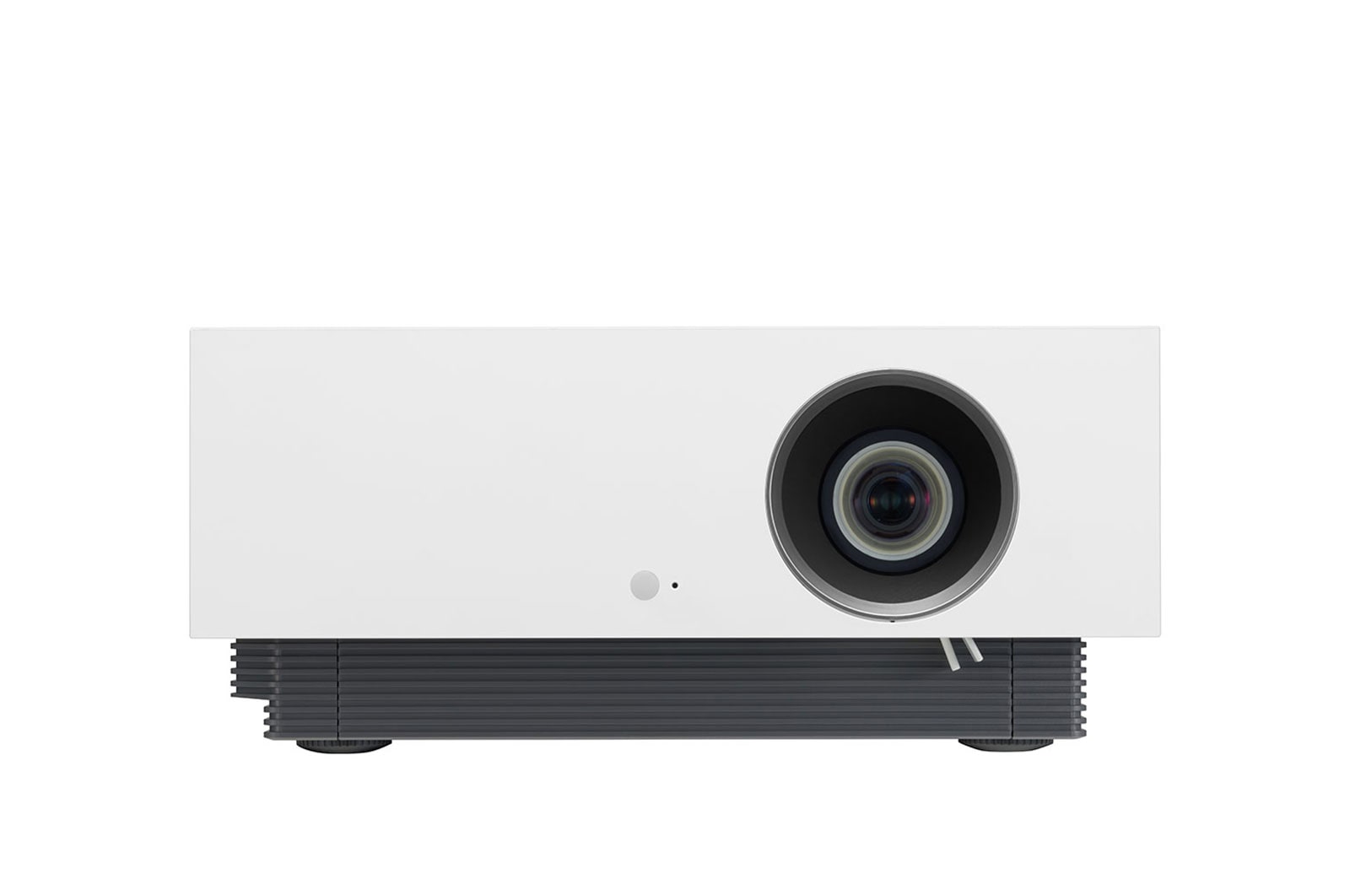

LG HU810P 4K UHD Laser Smart Home Theater CineBeam Projector

HU810PW

Key Features

Laser 4K UHD & 8.3 Mega pixel
DCI-P3 97% Dual Laser (Red & Blue)
Brightness Optimizer
Filmmaker Mode
Lens shift (H ±24%, V ±60%) / Zoom x1.6
webOS 5.0 / AirPlay

You can simulate LG projector in your space with LG Projection Calculator.

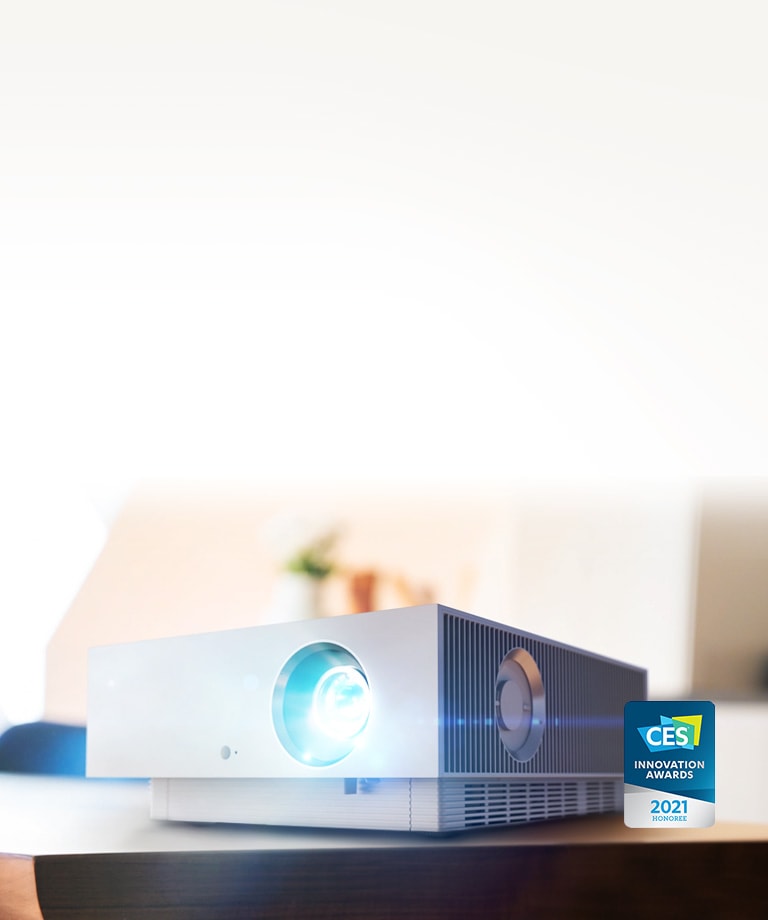

Optimal Quality for Any Image and Any Environment

All-around home cinema projector to consider your surroundings and the type of movie.

CALCULATE NOW!

Optimal Quality for Any Image and Any Environment

All-around home cinema projector to consider your surroundings and the type of movie.

Performance

8.3 Mega Pixels Real 4K UHD
DCI-P3 97% Dual Laser (Red & Blue)
2,000,000:1 Contrast Ratio Black Level

Imaging Technology

Brightness Optimizer
- Iris Mode
- Adaptive Contrast

Usability

webOS
AirPlay
Screen Share

Real 4K UHD Laser Projector

Exceptional Picture Quality

With 8.3 mega pixels utilizing 4K UHD Laser technology, LG CineBeam delivers impeccable precision and detail up to 762cm (300) screen. With 2,000,000:1 contrast ratio Black level, it can express the deep black. And it accurately represents colors, thanks to a wide color gamut 97% of DCI-P3.

8.3M Pixels

Real 4K UHD

DCI-P3 97%

Dual Laser (Red & Blue)

2,000,000:1

Contrast Ratio Black Level

FULL HD
UHD 4K 8.3 Megapixel

Brightness Optimizer

Iris Mode

Designed for Both Bright and Dark Environment

Depending on lighting condition of viewing environment, you can change iris mode.

Iris‘s maximum aperture
Iris‘s minimum aperture

Dark Room Mode

Optimized brightness for dark room. Recommended white brightness + lowest (best) black level with iris’s min. aperture.

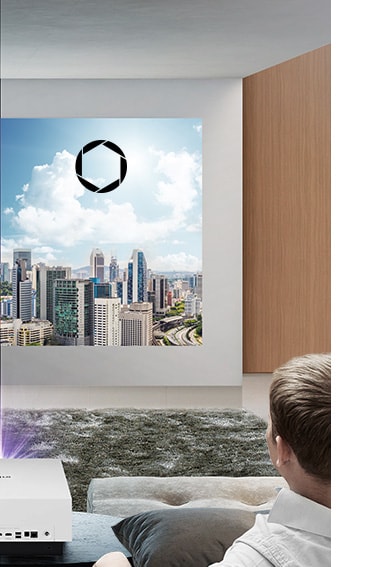

Bright Room Mode

White and black goes up together, which makes picture visible and vivid with iris’s max. aperture.

Adaptive Contrast

Fits Laser Output to the Scene

Adaptive Contrast gives more depth to your image by adaptively adjusting the Laser output to image, in order to create a high contrast ratio. Bright scenes appear brighter, while dark scenes remain detailed with deep blacks and shade detail.

Filmmaker Mode

Feel the Emotions of the Original Content Creator

Filmmaker Mode turns off motion smoothing and other video processing setting. So it can faithfully and accurately deliver the creator’s intent.

HDR pro

Covers HDR10, Dynamic Tone Mapping, HLG and HGiG

HDR pro improves quality by making the bright part brighter and the dark part darker while using the dark side details. So it is compatible with almost HDR industry standards.

Dynamic Tone Mapping - using meaningful signal range (frame by frame) instead of simple signal rage.

HDR10 – Individual tone can be adjusted for each color within a scene.

HLG is a backwards-compatible HDR standard and begins with a SDR signal that any TV can use.

HGiG helps you to enjoy HDR console games from PlayStation and Xbox.

*HDR pro covers almost all HDR specifications, including HDR10, Dynamic Tone Mapping, HLG, HGiG and other specifications.

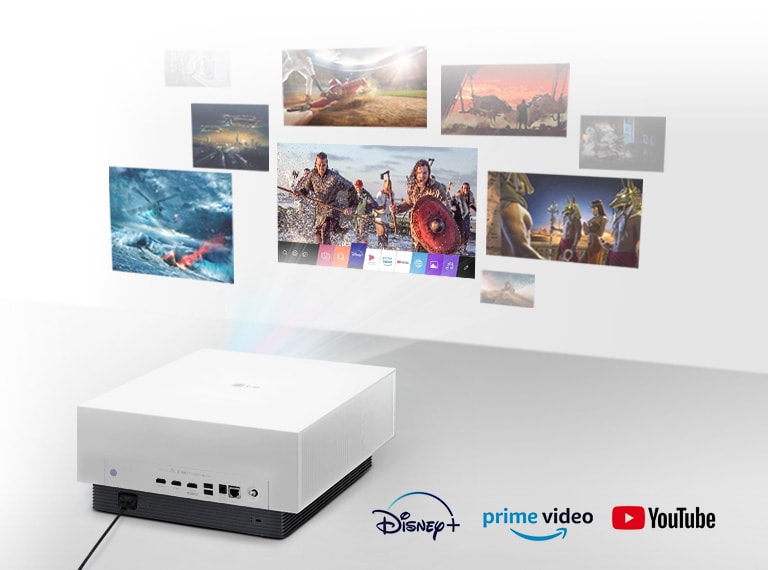

webOS 5.0

The Smart Way to Access Contents

With webOS 5.0, you can explore a variety of TV shows and movies with a simple connect to your Wi-Fi network. Also you can enjoy video contents with built-in apps like YouTube, Amazon Prime and Disney app.

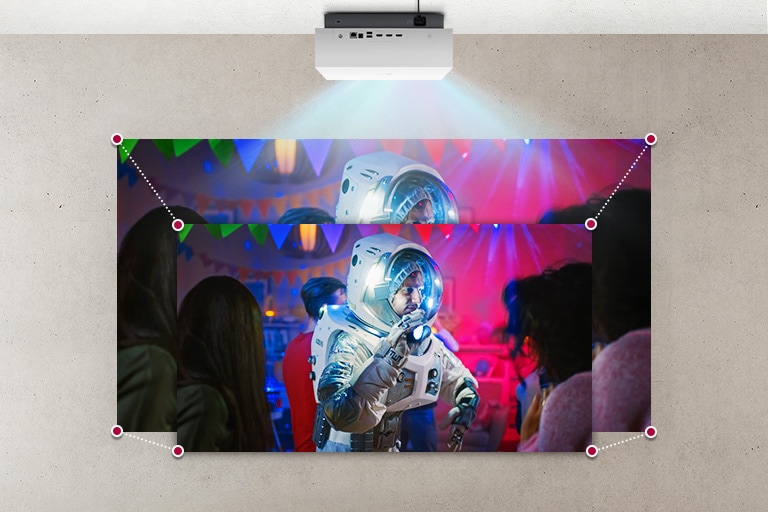

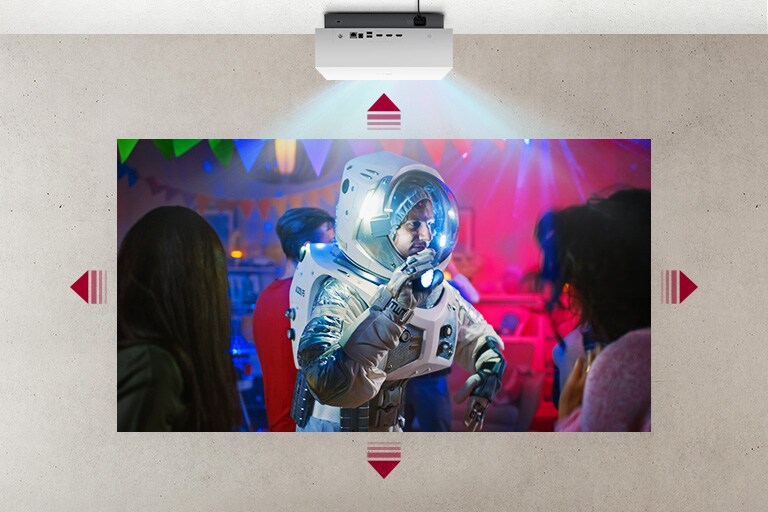

Lens Shift & Zoom x1.6

Flexible and Easy Installation

With Lens Shift (H ± 24%, V ± 60%) & Zoom x1.6 functionality, you can install the device virtually anywhere and set the screen to the exact size and location.

Lens Shift H ±24%, V ±60%

Zoom x1.6

Introduce the Latest Technologies for Home Cinema Specialists

eARC

eARC delivers up to 32 channels of audio, including 8-channel, 24-bit/192KHz uncompressed data stream at speeds of up to 38Mbps.

HDMI 2.1

The projector displays hi-resolution and hi-information images by HDMI 2.1 connection, can output 10-bit images with 444RGB specifications.

AirPlay + Miracast® + Bluetooth

Advanced Wireless Connection

You can share the screen and sound conveniently with AirPlay (for iOS devices), Screen Share (for wireless Miracast® supporting devices) and Bluetooth pairing.

Key Specs

Native Resolution
4K UHD (3840 x 2160)
Brightness (ANSI Lumen)
2700
Type
Dual Laser (B LD+G-rap Phophor, R LD)
Contrast Ratio
2,000,000:1
Digital Keystone Correction
V-Keystone
Output
5W + 5W Stereo
Airplay 2 (iOS/Mac Video Casting, Mirroring, Audio Streaming)
Yes (up to 4K/30Hz)
Screen Share (Wireless Mirroring with MiraCast supporting device)
Yes (up to 4K/30Hz)
Zoom
1.6x
Lens Shift
V +-60% / H +-24%

All Spec

NATIVE RESOLUTION

Native Resolution
4K UHD (3840 x 2160)

BRIGHTNESS (ANSI LUMEN)

Brightness (ANSI Lumen)
2700

CONTRAST RATIO

Contrast Ratio
2,000,000:1

DESIGN

Cabinet Color
White
Ceiling mount hole (for bracket)
Yes
Kensington Lock
Yes
Leg-Stand
Yes
Local Key
Joystick

SIZE

Net Size (mm) (W x D x H)
337 x 410 x 145

WEIGHT

Net Weight (kg or g)
11kg

FEATURES

Digital Keystone Correction
V-Keystone
HDR
HDR10, HLG
HDCP
HDCP2.2 (HDCP2.3)
TruMotion
Yes (up to 4096x2160)
Screen Share (Wireless Mirroring with MiraCast supporting device)
Yes (up to 4K/30Hz)
USB Host (Movie, Music, Photo)
Yes
Internet Browser
Yes
FILMMAKER mode
Yes
Brightness Optimizer - Iris Mode
Yes (BrightRoom/Medium/Darkroom/User)
Platform (OS, UI)
webOS 5.0 (Smart)
Brightness Optimizer - Adaptive Contrast
Yes (High/Medium/Low/Off)
Premium CP
Yes
HDMI ARC(Audio Return Channel)
Yes (eARC)
HDMI simplink(CEC)
Yes
Plug & Play(RGB/DVI/HDMI Auto Source Detection)
Yes
Eco Function - Auto Off / Auto Sleep
Yes
Eco Function - Automatic Standby / Auto Power Off
Yes
Eco Function - Energy Saving Mode
Yes (Min/Med/Max)
Eco Function - HDD Eco Mode
Yes
Eco Function - Sleep Timer
Yes
Eco Function - Time Power On/Off
Yes (On / Off)
Color Temperature Adjustment
Yes
AI Speaker Compatibility
Apple Homekit works-with
Image Flip
Yes (Horizontal/Vertical)
LG Sound Sync(with Sound Bar)
Yes
Airplay 2 (iOS/Mac Video Casting, Mirroring, Audio Streaming)
Yes (up to 4K/30Hz)
Noise Reduction
Yes
HDR Effect
Yes
HDR Tone Mapping
Yes (Auto, Dynamic/frame by frame)
Home Dashboard (Input, IoT with OFC device)
Yes (OCF/UEI IoT not supported)
Gamma Correction (Expert control)
Yes
Processor
Quad Core
Quick(Instant) Power on/off
Yes (on 12 Sec ↓ / off 2 Sec)
Self Diagnosis
Yes
Setting Guide
Yes (Bean Bird)
Store Mode
Yes
Super Resolution (Expert Control)
Yes (4K)
Upscaler
Yes (4K)
Real Cinema
Yes (up to 4096 x 2160)
White balance setting (Expert control)
Yes
Wireless Contents Share (with Android, iOS)
Yes (Thru TV Plus App)
Smooth Gradation
Yes
Bluetooth Sound out
Yes
Color gamut setting (Expert control)
Yes
Color Management System (Expert control)
Yes
Contents Sharing (with DLNA supporting device)
Yes
Contents Store / LG Smart World (App Store)
Yes
Contents Suggestion
Yes
Dynamic Color (Expert control)
Yes
Dynamic Contrast (Expert control)
Yes
Black Level Control
Yes
Background Image
Yes
Bluetooth AV Sync Control
Yes
HGiG (HDR Gamming Interest Group) mode
Yes
HID (Keyboard/Mouse/GamePad Connection Thru USB)
Yes

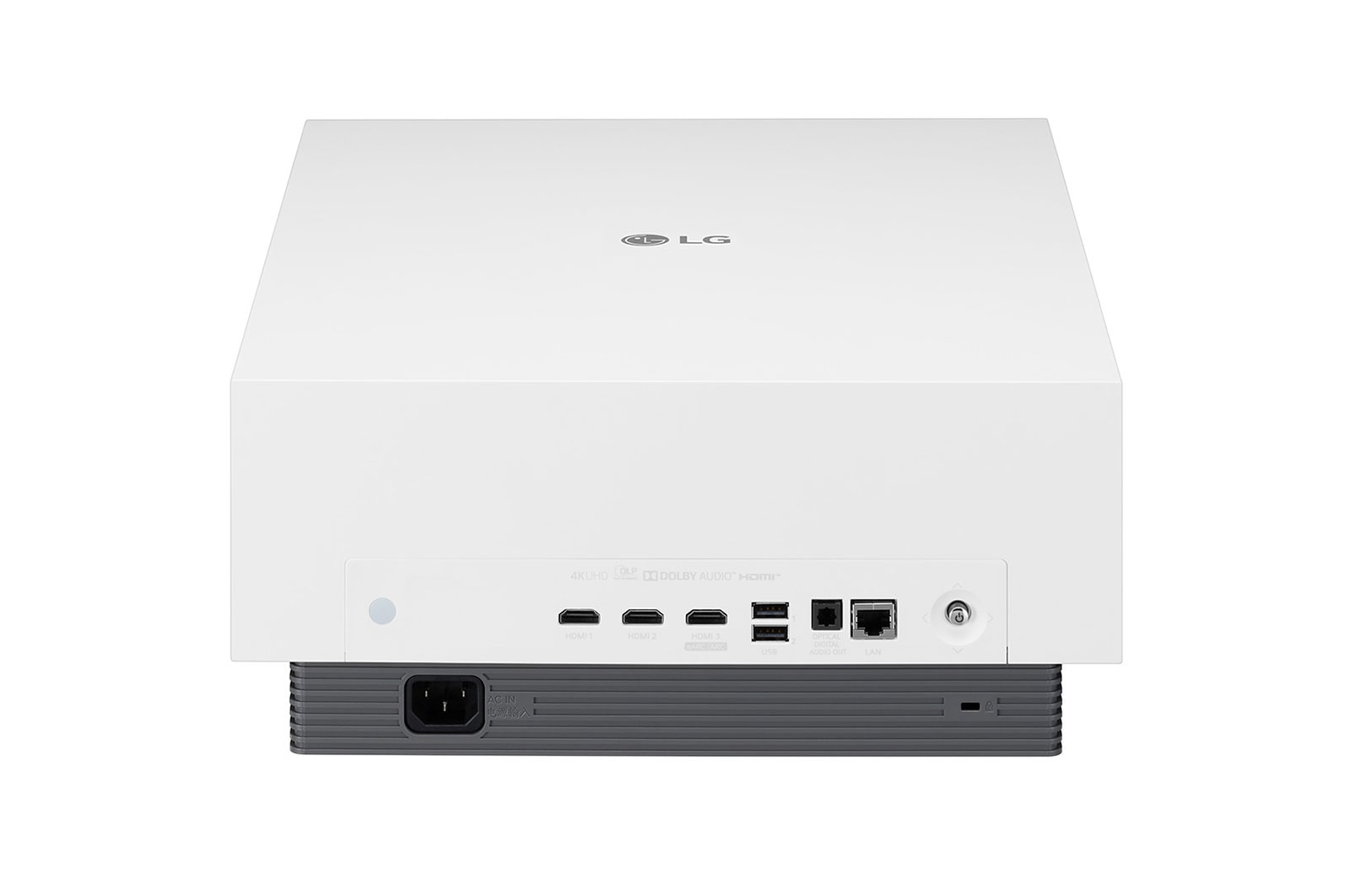

INPUT/OUTPUT TERMINALS

HDMI
3 (HDMI2.1* : 1EA / HDMI2.0 : 2EA)*ALLM (Auto Low Latency Mode),eARC (Enhanced Audio Return Channel),up to 24Gbps (input) / 4:4:4/RGB 10 bit (output)
Audio out
S/PDIF 1(Optical)
USB Type-A
2 (USB2.0)
RJ45
1

LIGHT SOURCE

Type
Dual Laser (B LD+G-rap Phophor, R LD)

PROJECTION IMAGE

Standard (lens to wall)
381cm (150) @4.3~6.9m 254cm (100) @2.9~4.6m 101.6 (40) @1.1~1.8m
Throw Ratio
1.3 - 2.08
Screen Size
101.6cm (40) ~ 762cm (300)

SOUND

Clear Voice
Yes (Clear Voice lll)
Output
5W + 5W Stereo
Dolby Atmos compatible
Yes (Pass through)

TEMPERATURE

Operation Temperature
0 ~ 40℃

UNIFORMITY

Uniformity (JBMMA 9 Point)
85%↑

ACCESSORY

Manual (Full or Simple Book)
Simple Book
Conformances(Regulation)
CE/CB
Warranty Card
Yes
Remote Control - Motion
Yes (Magic Lighting Remote)

LENS SHIFT

Lens Shift
V +-60% / H +-24%

NOISE

Energy Saving Max. (Eco)
26 dB(A)↓
Energy Saving Min. (Bright)
28 dB(A)↓
Energy Saving Med.
27 dB(A)↓

INPUT SIGNAL COMPATIBILITY

Digital(HDMI)
Up to 4K (4096x2160)(60Hz, 50Hz, 24Hz)

PROJECTION LENS

Focus (Auto / Manual)
Manual
Zoom
1.6x

PROJECTION OFFSET

Projection Offset
0% (+110% ~ -110%)

ASPECT RATIO

Aspect Ratio Control
16:9/Original/Full Wide/4:3/Vertical Zoom

POWER

Power Consumption (Max.)
300W
Stand-by Power
<0.5W
Power Supply
100V – 240V @ 50~60 Hz (PSU Built-in)
