4K UHD Hotel TV with Pro:Centric Solutions

Features

Gallery

Specs

Support

Resource

Find a Dealer

4K UHD Hotel TV with Pro:Centric Solutions

4K UHD Hotel TV with Pro:Centric Solutions

65UM660H
  • Front view with infill image

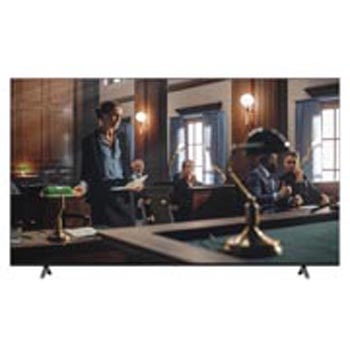

  • Front view
  • '-15 degree side view
  • '-45 degree side view

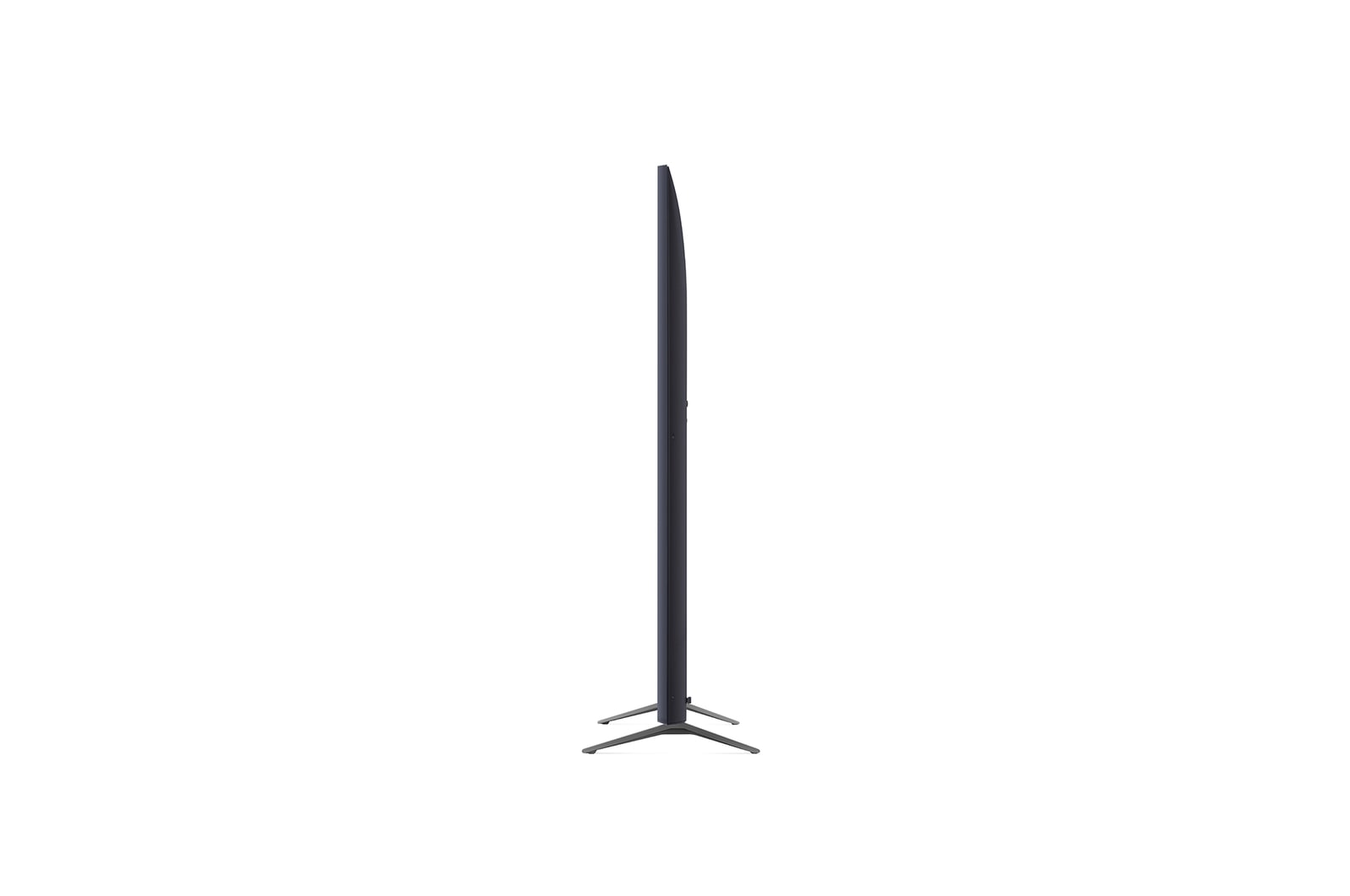

  • '-90 degree side view
  • '+45 degree side view
  • '+15 degree side view
  • Top view
  • Image taken from the top right
  • Close-up image of top right corner

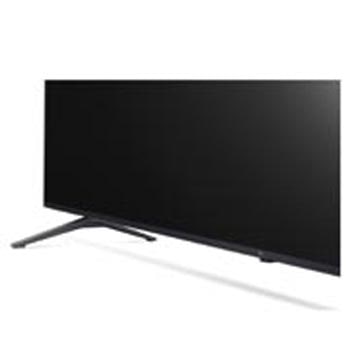

  • Close-up image of bottom

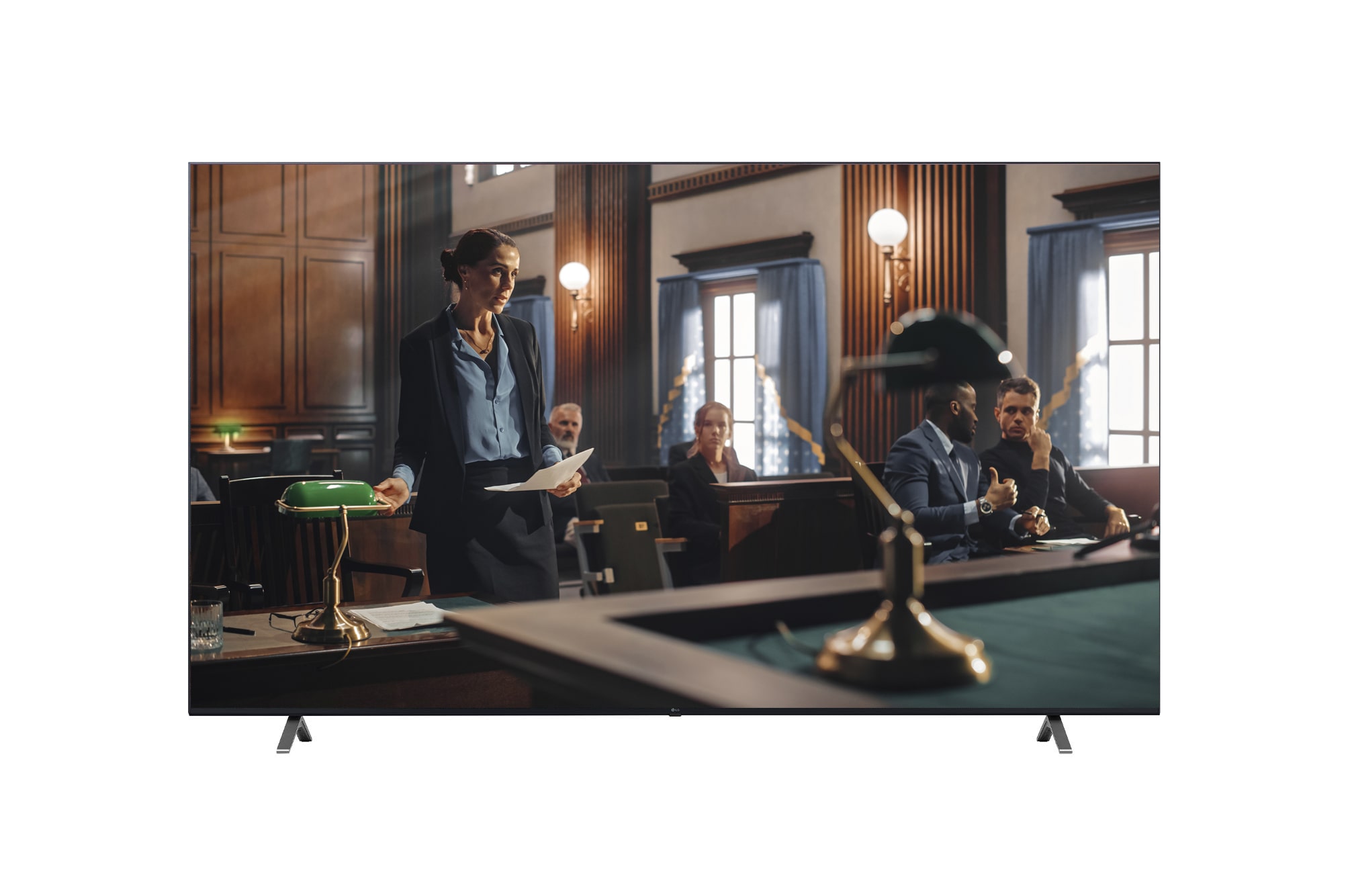

Front view with infill image

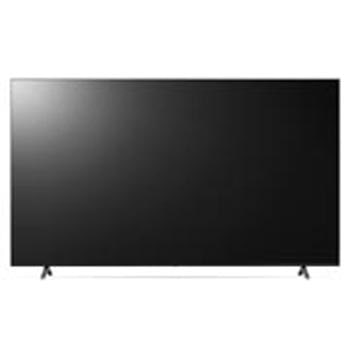

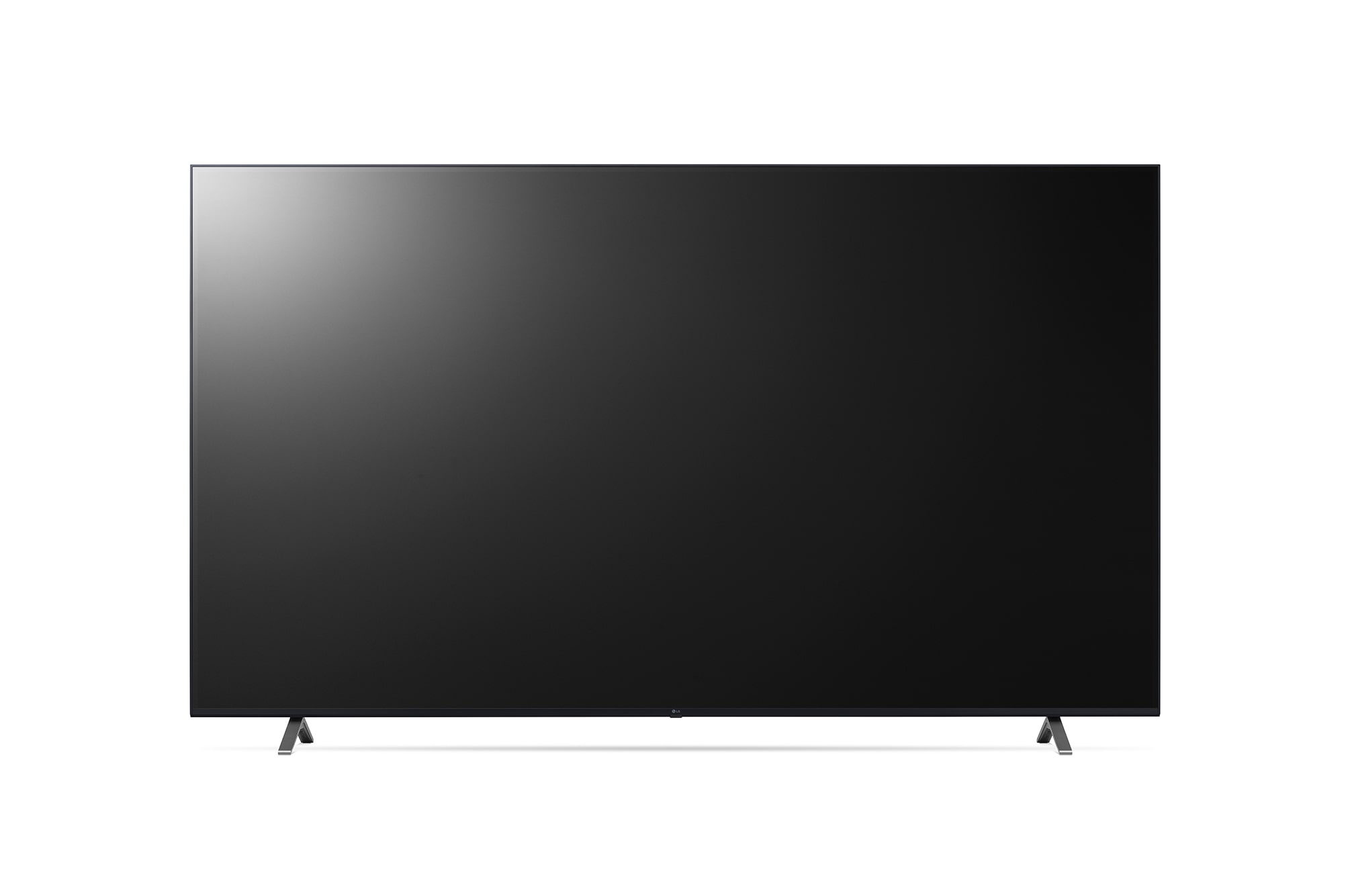

Front view

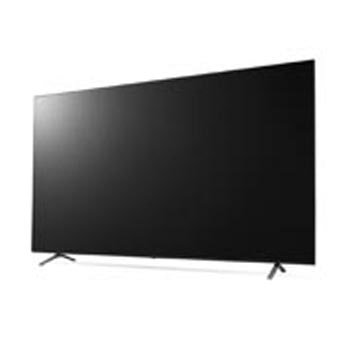

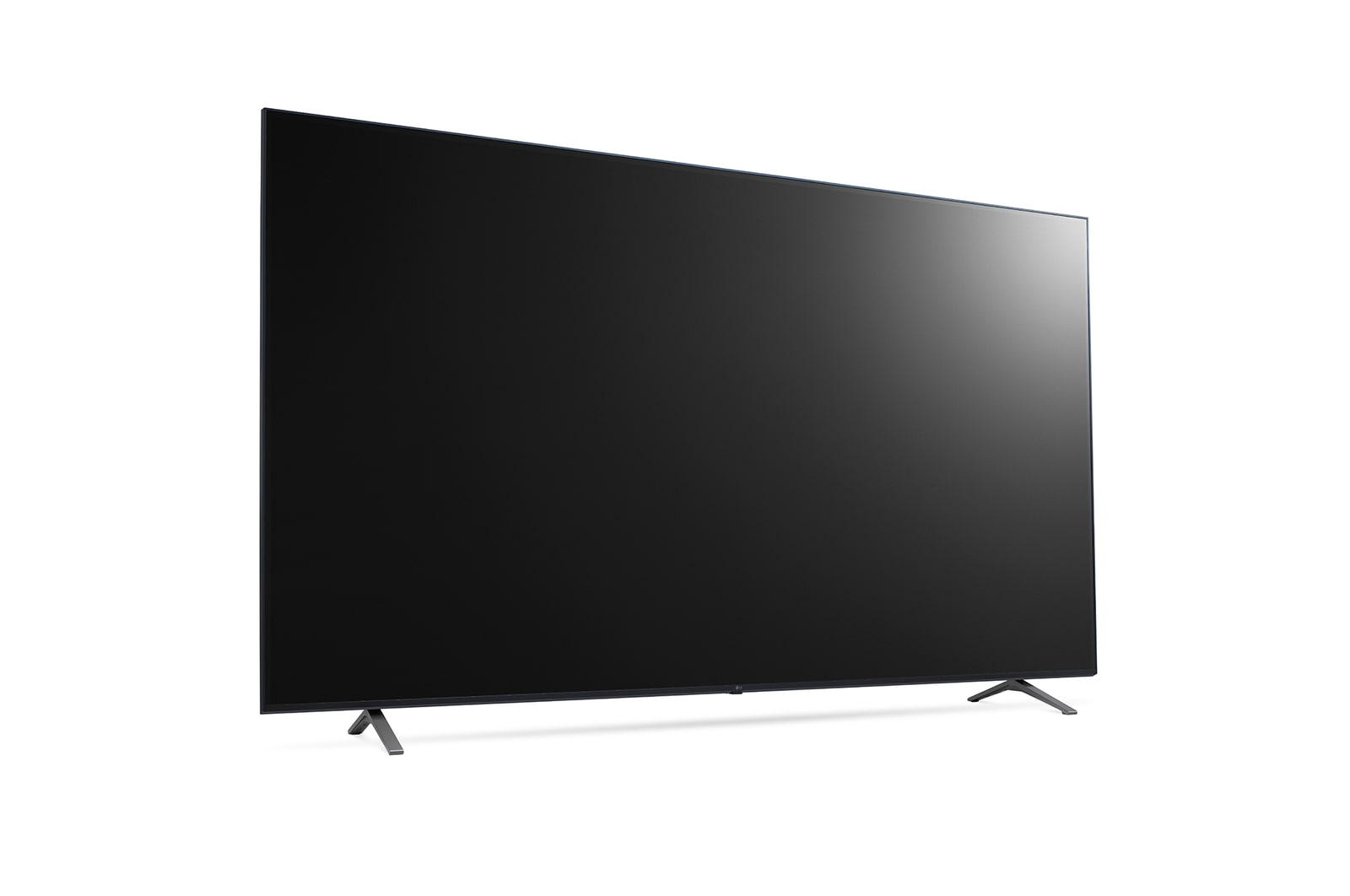

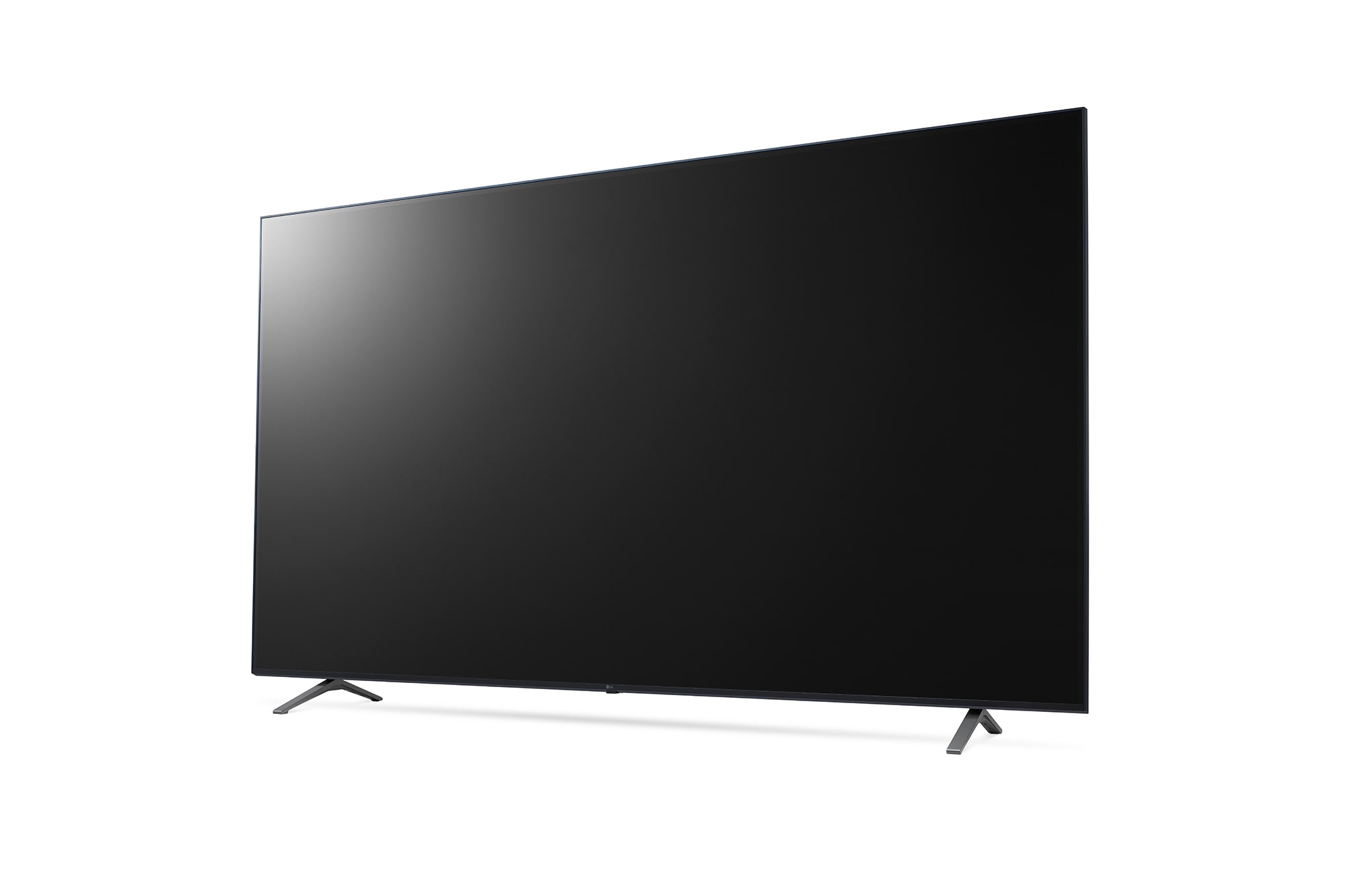

'-15 degree side view

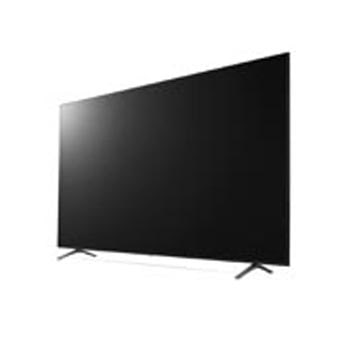

'-45 degree side view

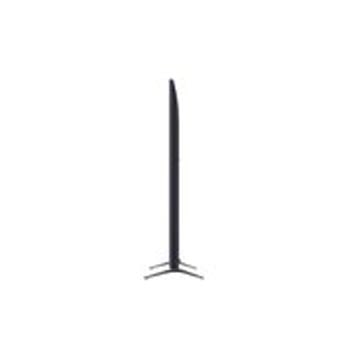

'-90 degree side view

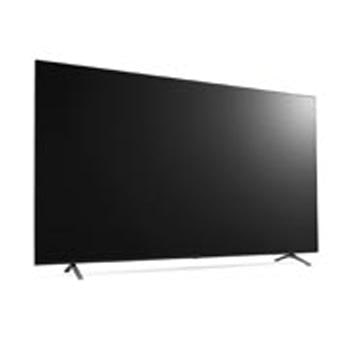

'+45 degree side view
'+15 degree side view

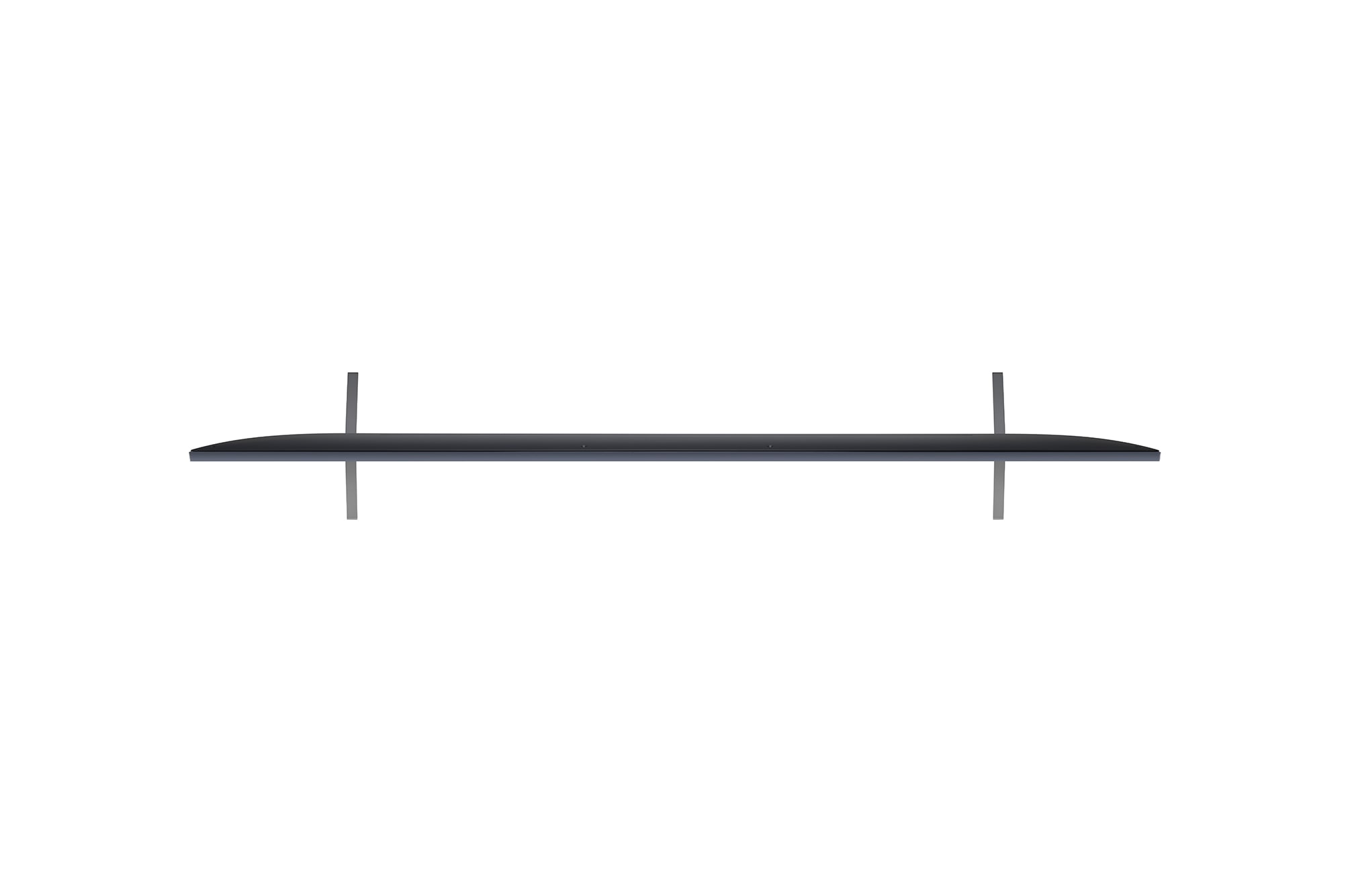

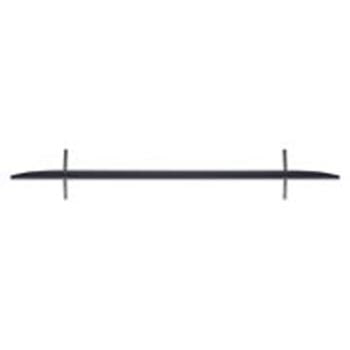

Top view

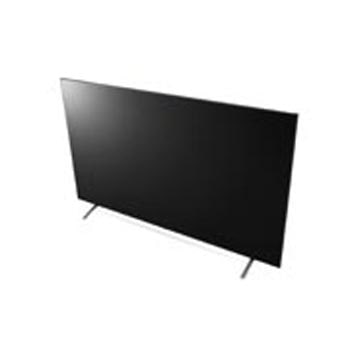

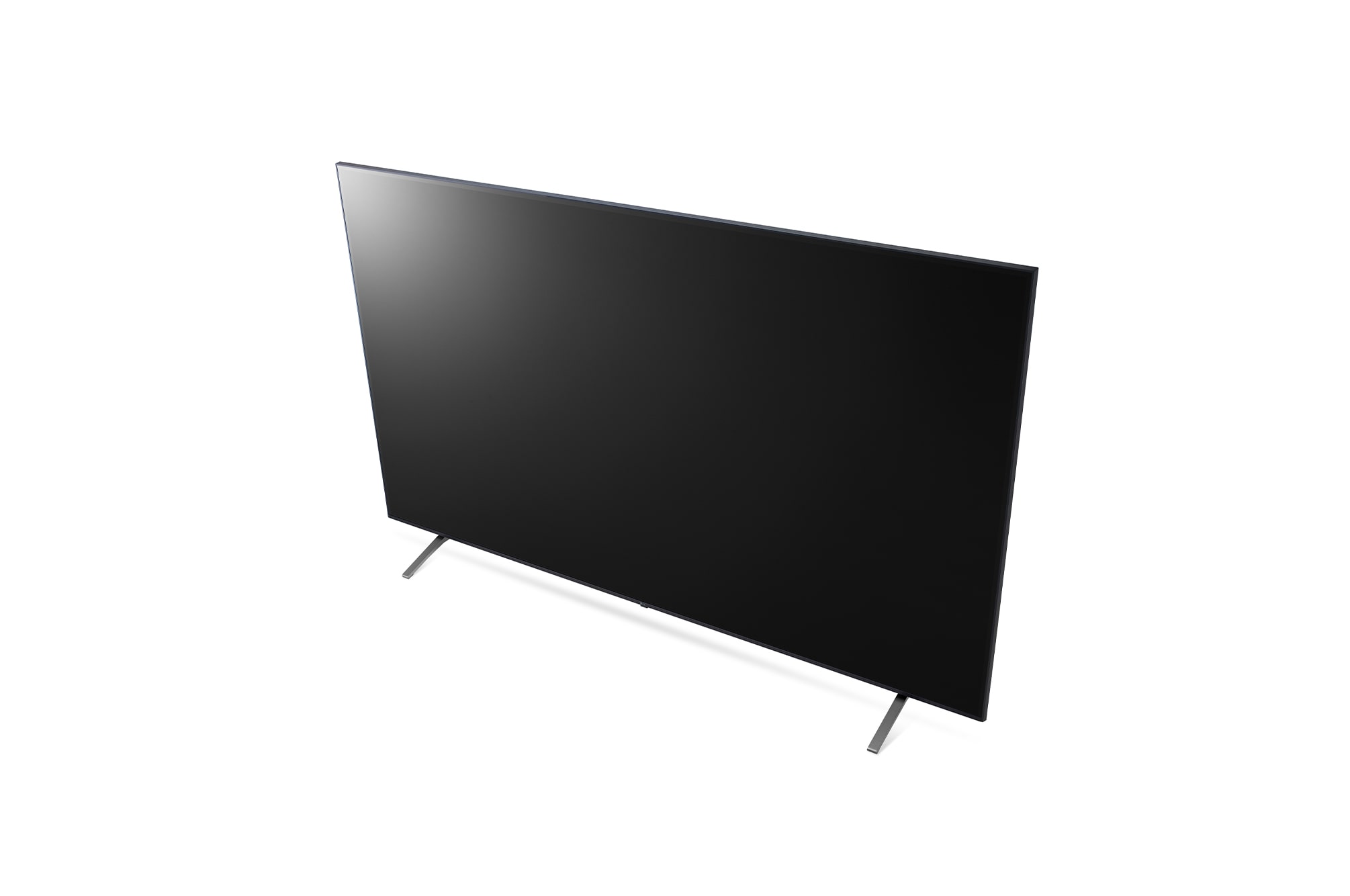

Image taken from the top right

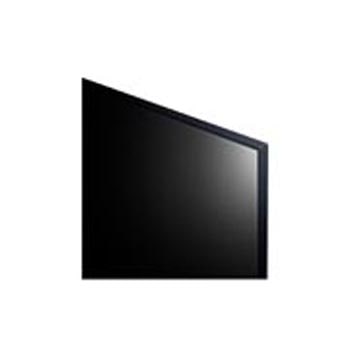

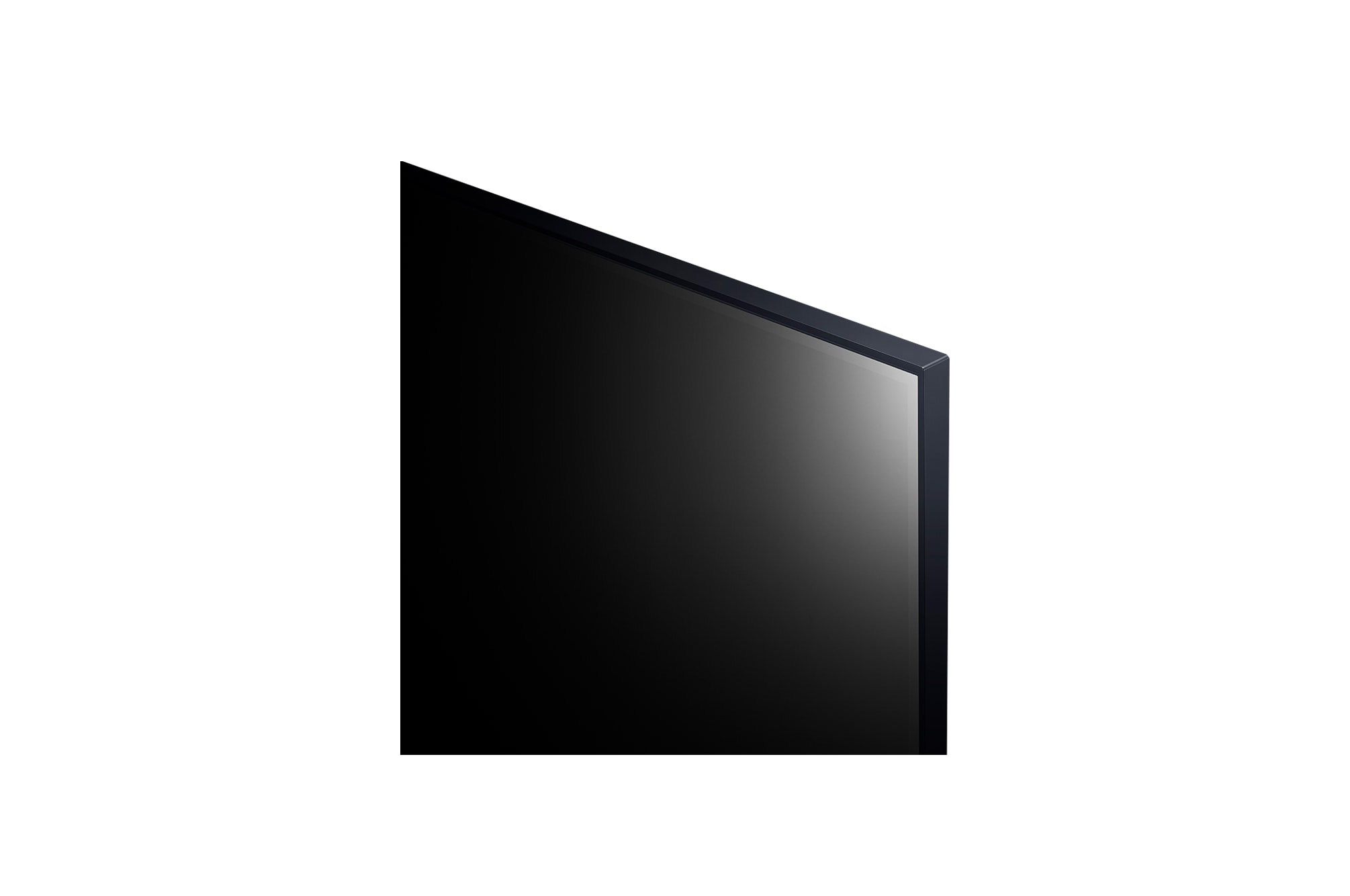

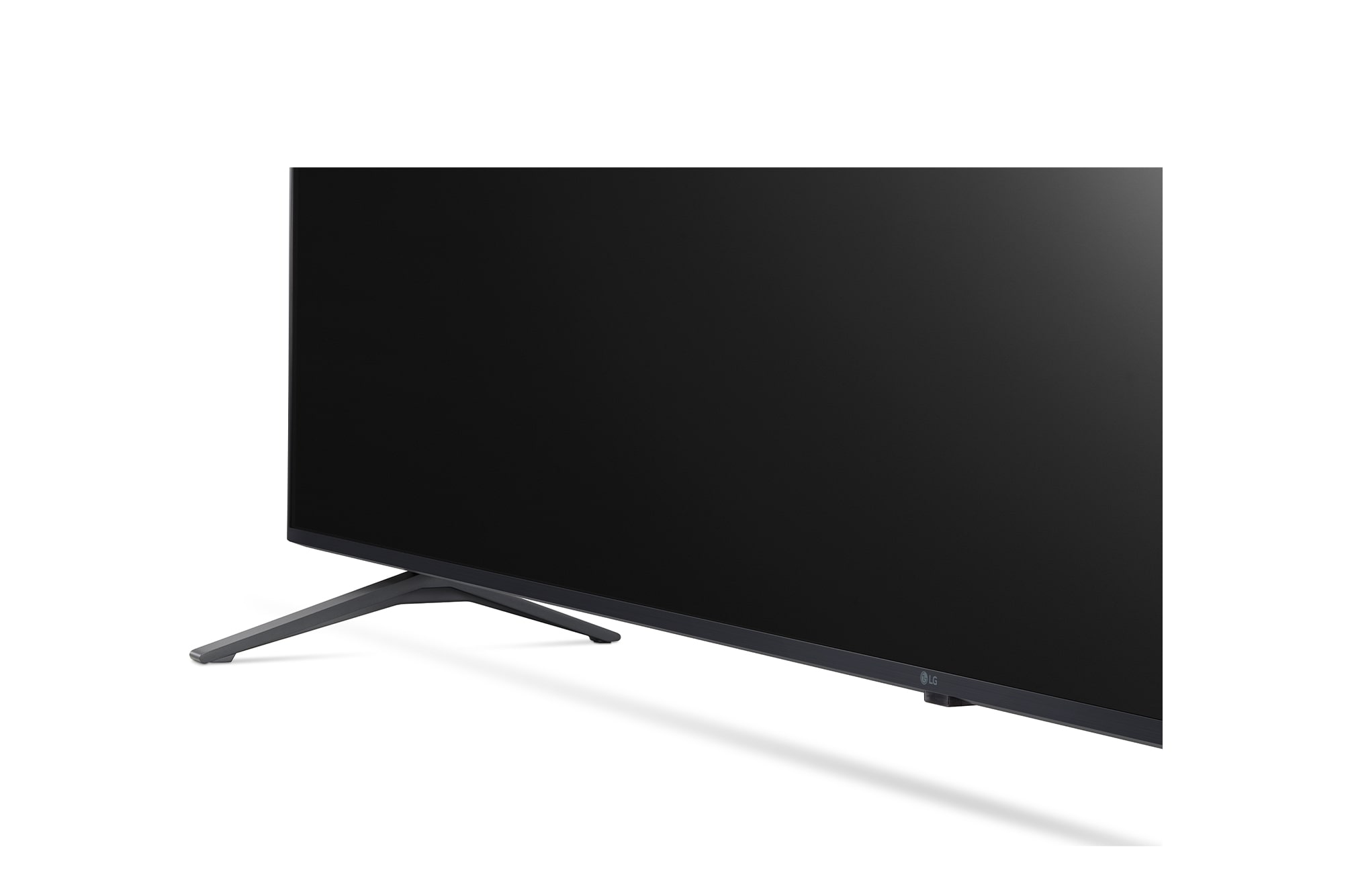

Close-up image of top right corner
Close-up image of bottom

Key Features

  • Pro:Centric Solutions
  • Google Cast
  • AirPlay
  • Netflix
  • Game Optimizer
More

4K UHD Hotel TV with Pro:Centric Solutions

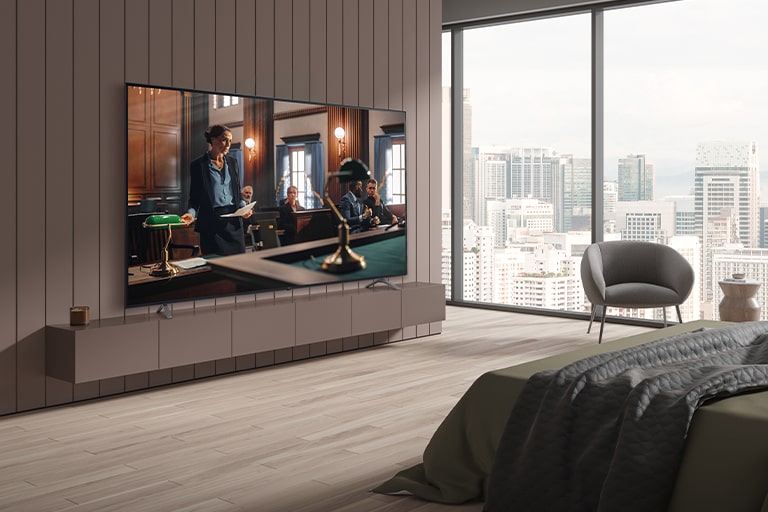

A TV is hanging on the wall of the hotel room, and the TV screen is bright and clear.

* 164 cm (65)

* All images in this page are for illustrative purposes only.

* All TV images with 2 poles are applied to only UM660H.

Pro:Centric Cloud

Pro:Centric Cloud improves the usability of enterprise's CMS solution and cloudification of system, reinforcing the service of 3rd party solution. It also offers various design templates, improving data collection and analytics platform with an eye-catching dashboard. In addition with new features; Mobile Application Creator lets you simplifies the process of setting up concierge services on mobile device for guests. Through this function, the guest' request will be satisfied with immediate response.

The woman is working through Pro:Centric Cloud.

* Currently supports in Germany, Spain, France, Finland, Ireland, Austria, Italy, Switzerland, Portugal and please check with your local sales for other EU countries.

LG Hotel TV works with
Google Cast

Enjoy quick access to your personal devices with a convenient QR code on LG Hotel TV for streaming your favorite OTT shows on the big screen, and experience secure checkout with automatic erasure of personal information for peace of mind. Plus, with persisted pairing, connect your devices once and stay linked throughout your entire stay!

Hotel guests are using Google Cast to pair a smartphone with the in-room TV to access content.

* Google Cast is a trademark of Google LLC.

Works with AirPlay

With Apple AirPlay, guests can stream content to LG Pro:Centric Smart Hotel TVs, right from their iPhone or iPad, whether it’s to watch movies and shows from their favorite apps or share what’s on their Apple devices, including photos, personal videos, games and more. Guests simply scan a unique, on-screen QR code after checking in to privately and securely pair their iPhone or iPad directly to the TV in the room for the duration of their stay.

A hotel guest is pairing their iPhone with the in-room TV through AirPlay.

Easily Accessible to Netflix Application

Experience a wide variety of video content from Netflix on UM660H with Pro:Centric solution. Enjoy the comfort of your room and a streaming service that offers a thousands of selections.

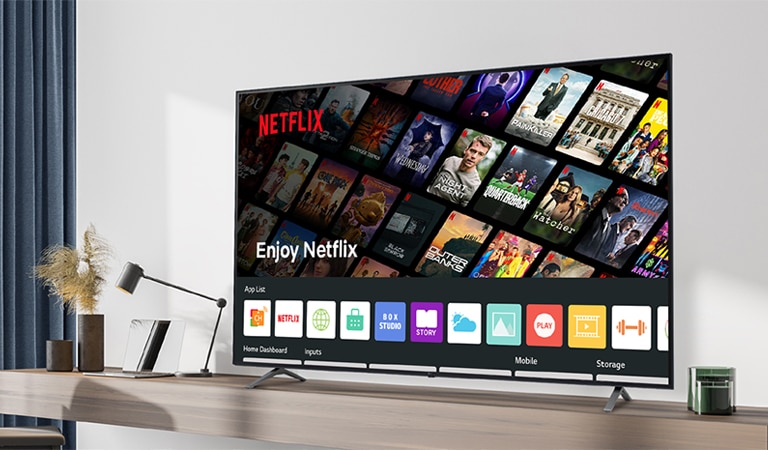

The hotel content including the Netflix App is shown on TV in the hotel room.

* Netflix membership required.

Pro:Centric Direct

The hotel content management solution Pro:Centric Direct offers easy and simple editing tools, making it easy to perform service and IP network-based remote management with a single click. The Pro:Centric Direct solution enables users to edit their interface easily by providing customized interface and efficiently manages all TVs in the room. The latest PCD version provides IoT-based in-room control that will be your starting point to prepare for the hotel rooms of next generation through artificial intelligence.

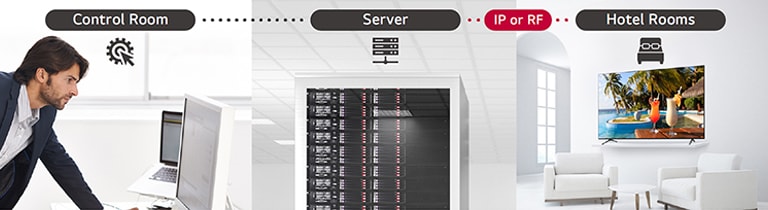

A man is managing some contents and settings of TV in the hotel using Pro:Centric Direct solution through server.

* Some features may not be supported based on PCD versions.

Conformal Coating

TVs in hotels or resorts can’t avoid exposure to environments with salt, dust, iron powder, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting TVs from salt, dust, iron powder, humidity, etc.

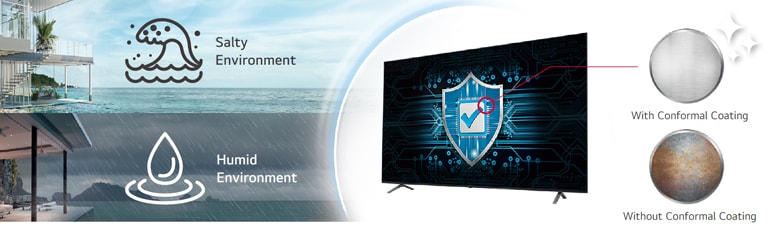

The UM660H / UM662H has conformal coating on the power board to protect display even in a salty or humid environment.

The man and woman are playing games, and the game's scene shown on the TV screen is realistically expressed.

Game Optimizer

LG Game Optimizer will get you and keep you in the action through selection of game mode, picture adjustment and etc.
The UM660H is harmoniously installed on the hotel room, and the side view is enlarged to show.

Slim Depth for a Sleek Look

With a slim design, the UM660H series integrates smoothly into the interiors, delivering a modern impression to guest.


* In case of  164 cm (65) TV (109.22 cm (43), 127 cm (50) : 57.1 mm, 127 cm (50) : 57.5 mm)

* Some features may require additional hardware , software or subscriptions.

Print

All Spec

INFO

  • Category

    Pro:Centric Smart

DESIGN

  • Tool Name

    UP8000

  • Stand Type

    2 Pole

  • Front Color

    Ashed Blue

DISPLAY

  • Resolution

    4K Ultra HD (3,840 x 2,160)

VIDEO

  • AI Picture Pro

    YES

  • HDR_HDR 10 Pro

    YES

  • HDR_HLG (Hybrid Log Gamma)

    YES

  • Game Optimizer

    YES

AUDIO (SOUND)

  • Speaker (Audio Output)

    20W

  • AI Sound

    YES

  • AI Acoustic Tuning

    YES (Ready, MMR Required)

  • LG Sound Sync

    YES

HOSPITALITY SOLUTION

  • Pro:Centric Smart

    YES

  • webRTC (Real Time Communication)

    YES

  • Pro:Centric Cloud

    YES

  • Pro:Centric Direct

    YES

  • Pro:Centric V

    YES

  • Pro:Centric Server

    YES

  • Quick Menu (Customizable Portal)

    YES

  • Pro:Idiom (DRM)

    YES

  • Pro:Idiom Media (DRM)

    YES

SMART FUNCTION

  • webOS version

    webOS 23

  • Web Browser

    YES

  • Magic Remote Compatibility

    YES (Ready)

  • Multi-View

    YES

  • Mood Display

    YES

  • Gallery Mode

    YES

  • Wi-Fi

    YES

  • Bluetooth

    YES

  • Soft AP

    YES

  • Screen Share

    YES

  • DIAL

    YES

  • Bluetooth Audio Playback

    YES

  • HDMI-ARC

    YES (HDMI2)

  • Voice Recognition (Standalone/Solution)

    YES

  • IoT

    YES

HOSPITALITY FEATURE

  • EzManager

    YES

  • USB Cloning

    YES

  • Wake on RF

    YES

  • WOL

    YES

  • SNMP

    YES

  • Diagnostics

    YES (IP Remote)

  • HTNG-CEC (Version)

    YES (1.4)

  • Simplink(HDMI-CEC) (Version)

    YES (1.4)

  • IR Out

    YES (RS-232C, HDMI)

  • Multi IR Code

    YES

  • Hotel Mode / PDM / Installer Menu

    YES

  • Welcome Video

    YES

  • Welcome Screen (Splash Image)

    YES

  • Insert Image

    YES

  • One Channel Map

    YES

  • External Speaker Out / Line Out

    YES (Ext. Speaker Out)

  • USB Auto playback / playback+

    YES (USB Auto playback)

  • Instant ON

    YES

  • V-Lan Tag

    YES

  • Port Block

    YES

  • Lock mode

    YES (Limited)

  • RJP (Remote Jack Pack) Compatibility

    YES

  • Conformal Coating

    YES

  • Energy Saving mode

    YES

VERTICAL FUNCTION (HOSPITAL)

  • Healthcare Headphone Mode

    YES

VERTICAL FUNCTION (CORPORATE/RETAIL)

  • RTC (Real Time Clock)

    YES

  • BEACON

    YES

  • Video Tag

    YES (2 Video)

CONNECTIVITIES

  • HDMI In

    YES (3ea)

  • USB (Ver.)

    YES (2ea / 2.0)

  • RF In

    YES (1ea)

  • Digital Audio Out (Optical)

    YES

  • External Speaker Out(3.5mm Phone jack)

    YES

  • Headphone Out

    YES

  • RJ45 (Usage Purpose)

    2 (Ethernet, Aux)

  • RS-232C (D-Sub 9pin / Phone jack)

    YES (Phone jack)

MECHANICAL

  • VESA Compatible

    300 x 300 mm

  • Kensington Lock

    YES

DIMENSIONS/WEIGHT

  • Dimension with Stand (W x H x D)

    1454 x 903 x 269 mm

  • Dimension without Stand (W x H x D)

    1454 x 838 x 57.7 mm

  • Dimension in Shipping (W x H x D)

    1600 x 970 x 172 mm

  • Bezel Width (L/R/U/B, On Bezel)

    12.8/12.8/12.8/19.9 mm

  • Bezel Width (L/R/U/B, Off Bezel)

    6.8/6.8/6.8/18.4 mm

  • Weight with Stand

    21.6 kg

  • Weight without Stand

    21.4 kg

  • Weight in Shipping

    27.6 kg

STANDARD

  • Safety

    CB

  • EMC

    CE

ACCESSORIES

  • Power Cable

    YES (1.5M / Detached Angle)

POWER SPEC.

  • Power Consumption(Max)

    168W

  • Power Consumption(Typ)

    142W

  • Power Supply (Voltage, Hz)

    AC 100~240V 50/60Hz

  • Standby Power Consumption

    Under 0.5W

Leaflet

extension : pdf
Information Display Range Catalogue_250221.pdf
Download
extension : pdf
UM660H Leaflet India_250620.pdf
Download

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
