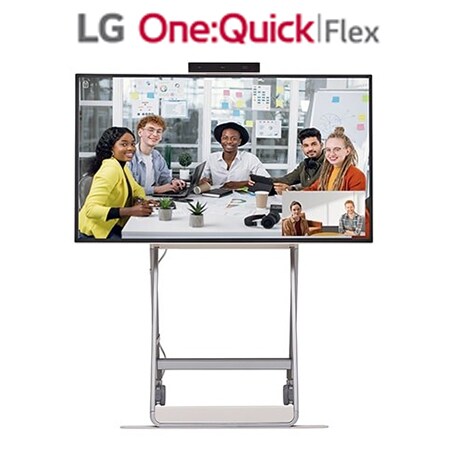

One:Quick Flex
![](/content/dam/channel/wcms/in/images/business/43ht3wj-b_atrz_eail_in_b/lg-43ht3wj-thumbnail-450.jpg)
All-in-One Display
for Effective Collaboration
*Camera mirror mode is only available for certain apps.
*All images in this page are for illustrative purposes only.
Effective Collaboration with Touch and Drawing

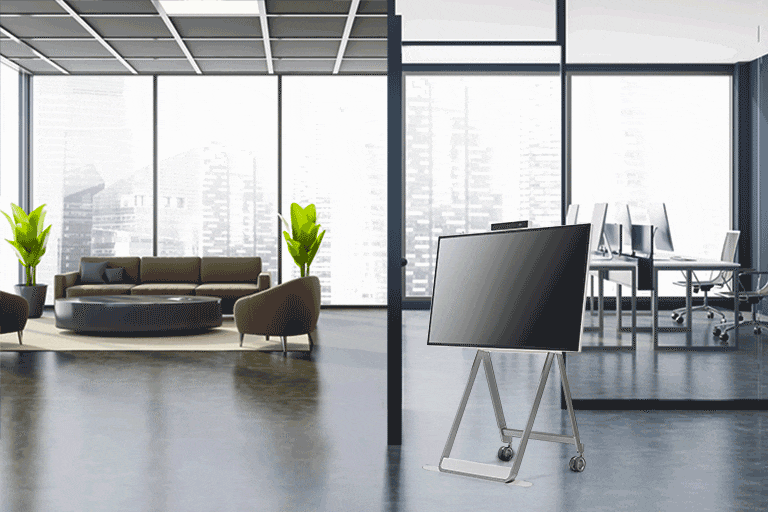

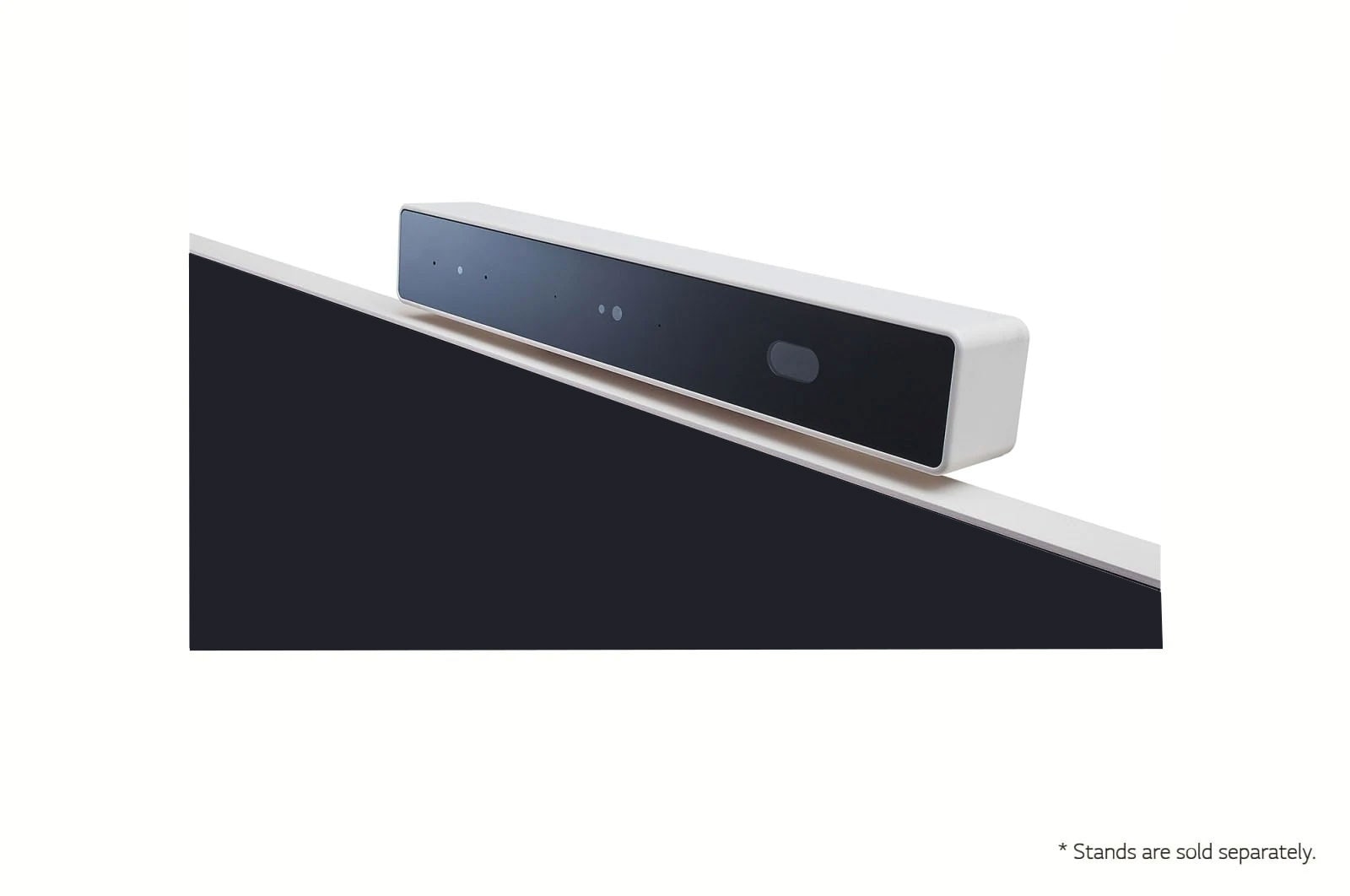

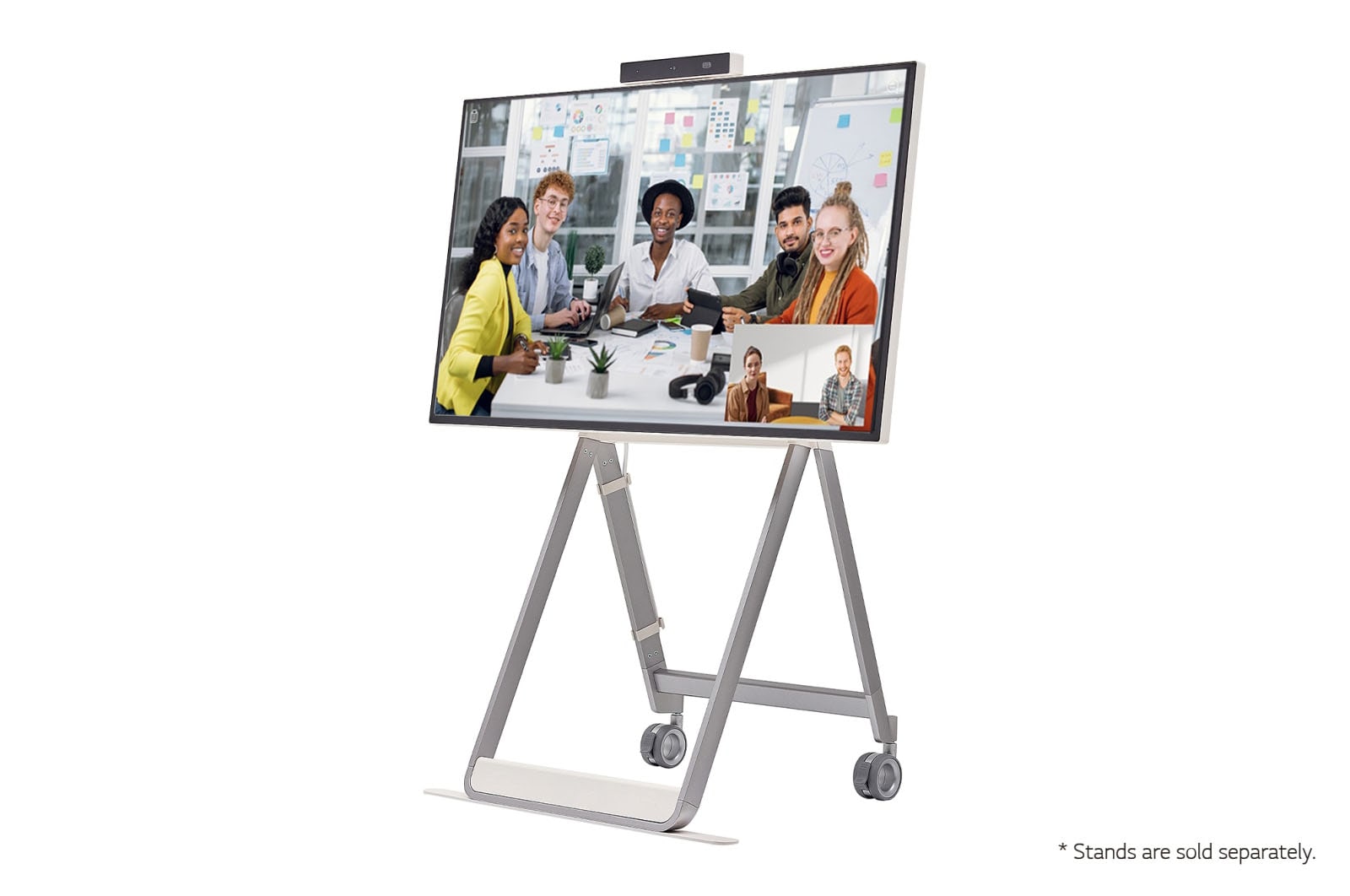

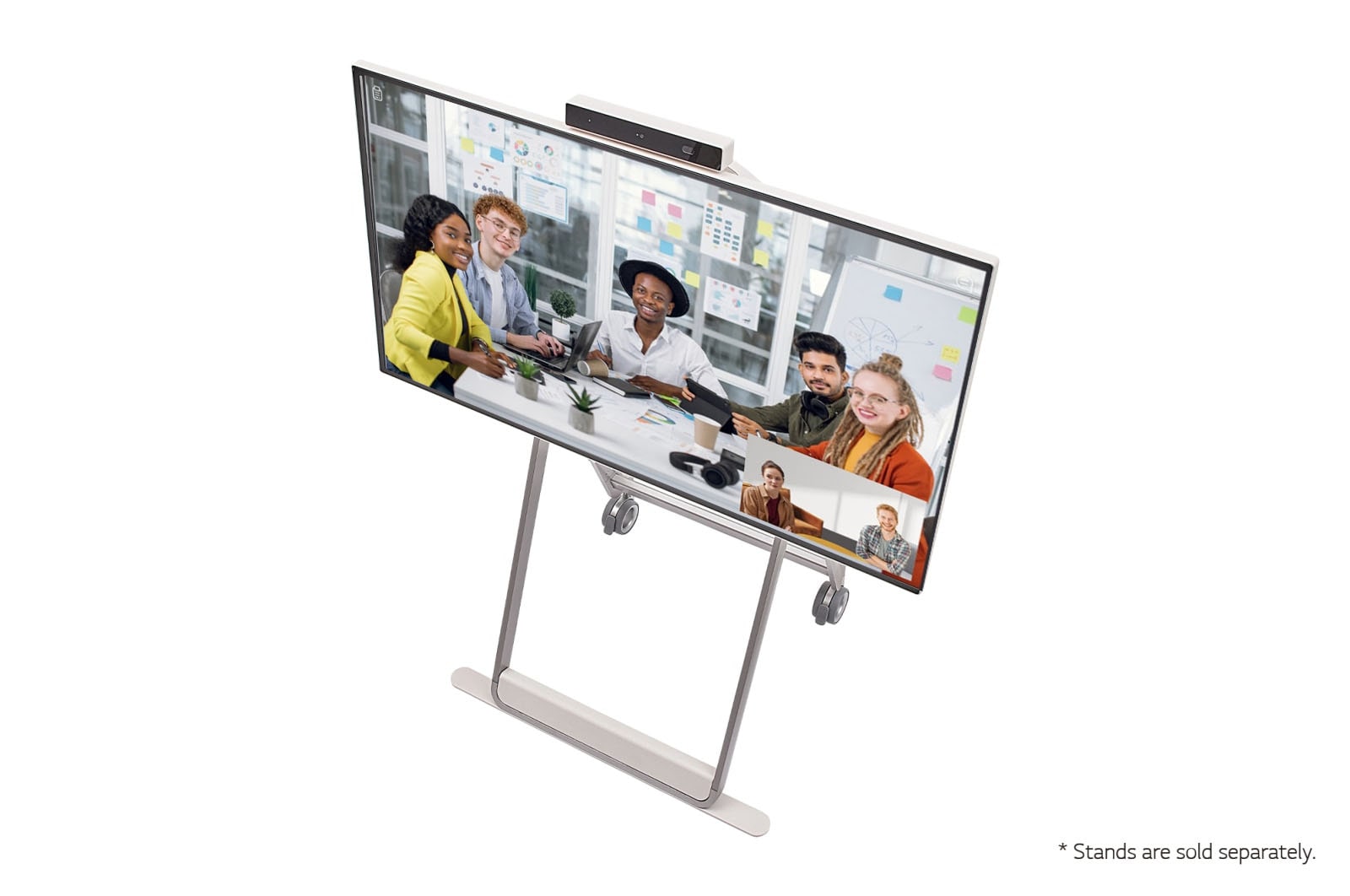

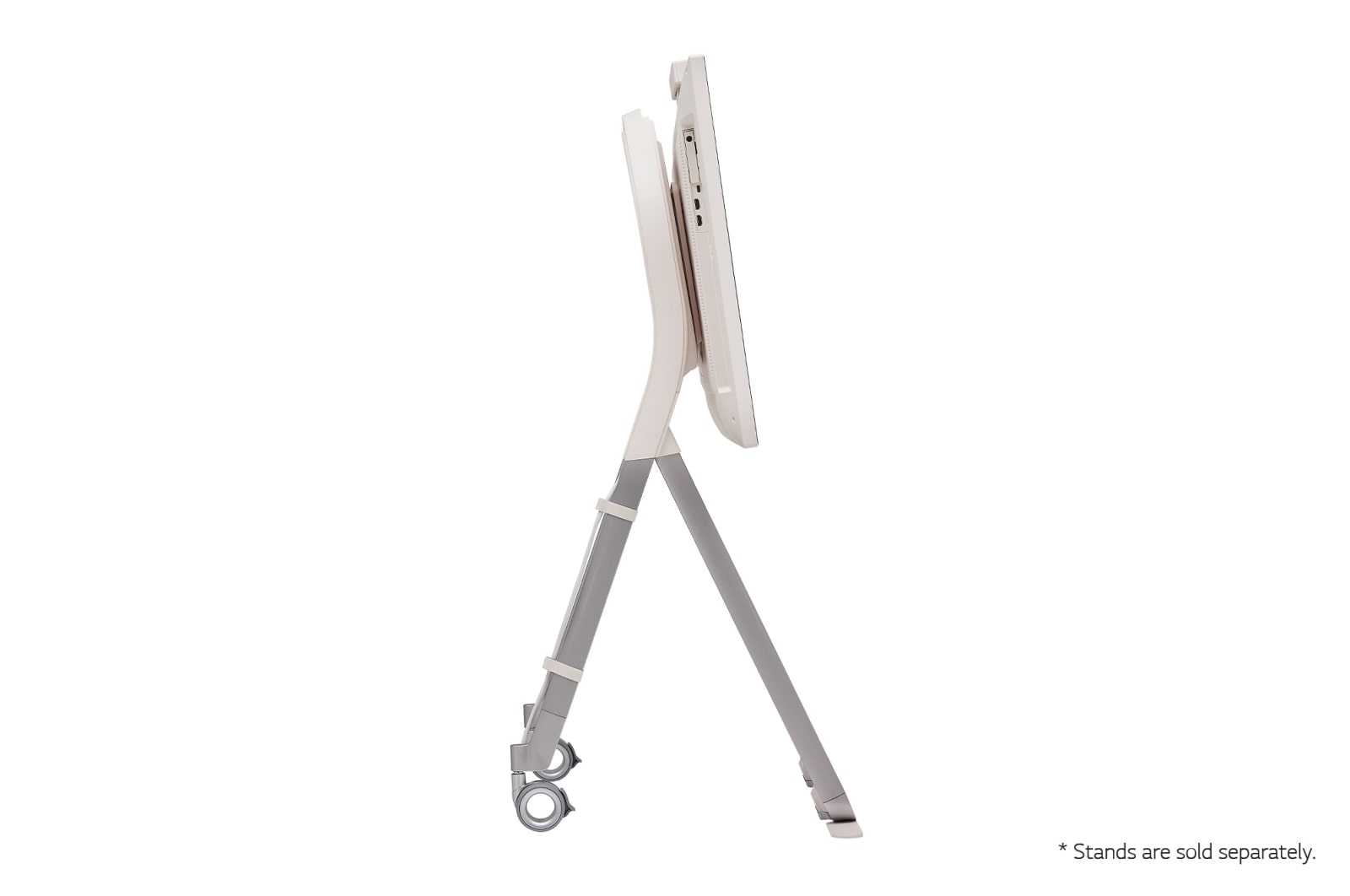

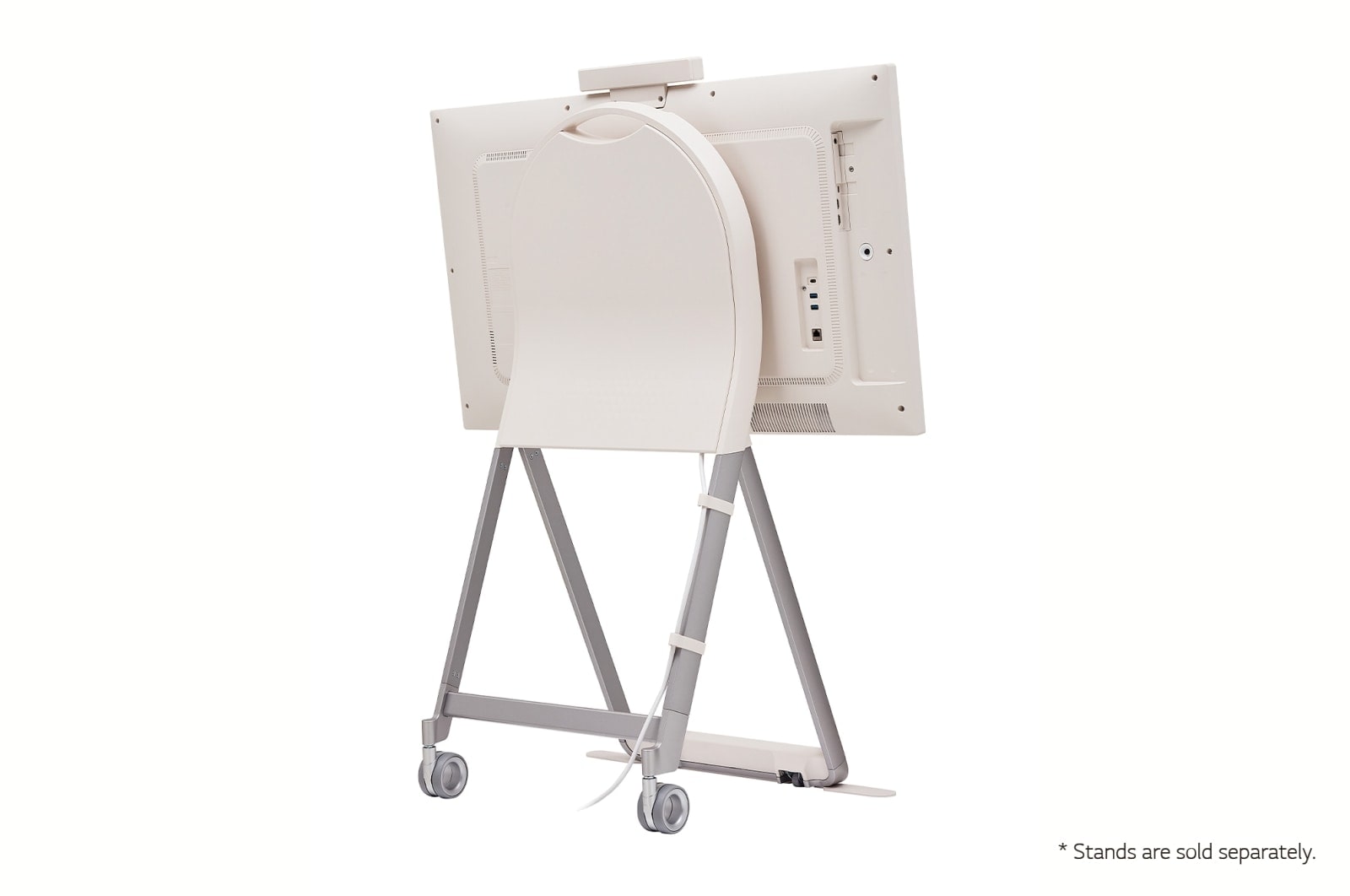

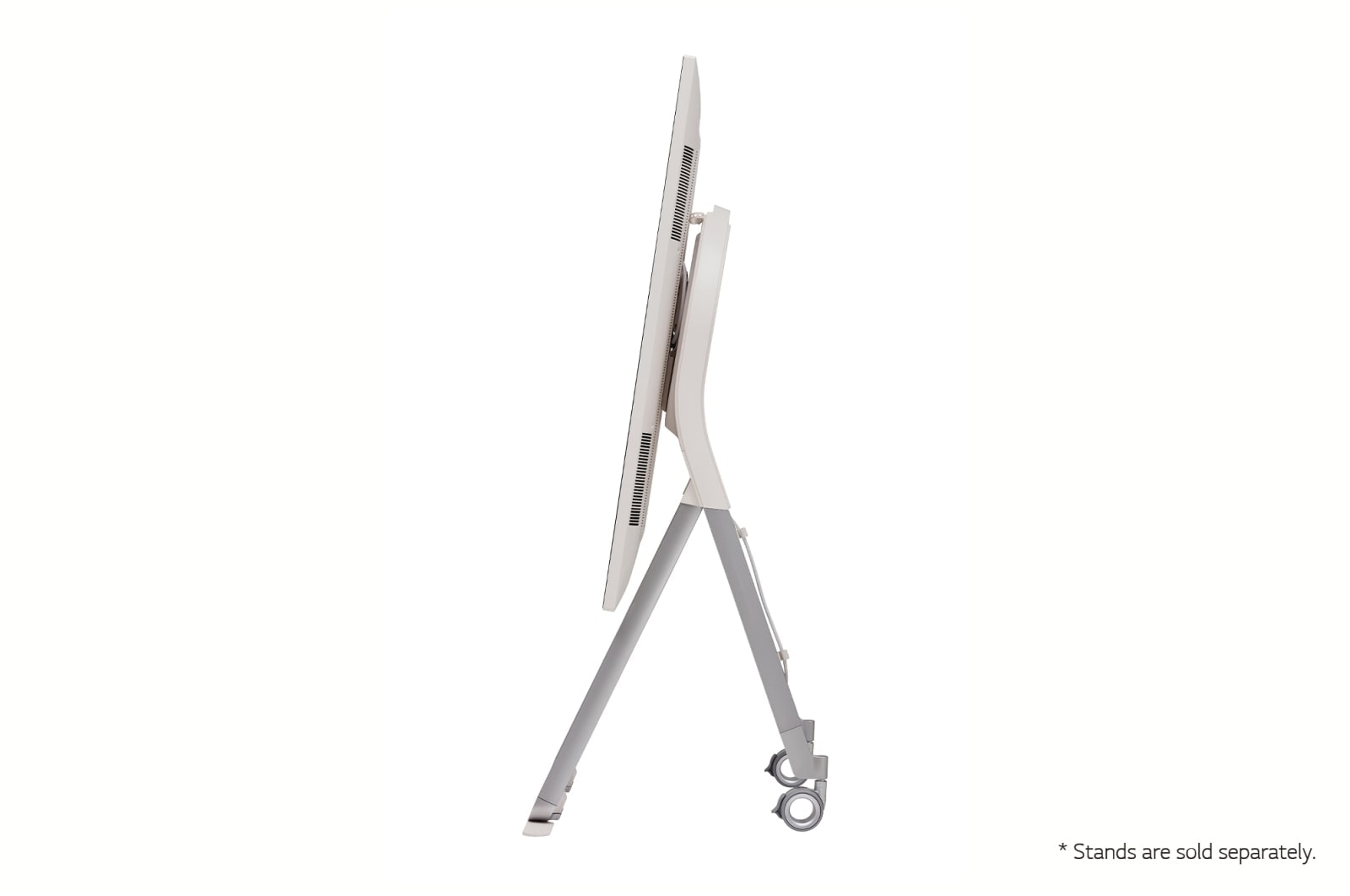

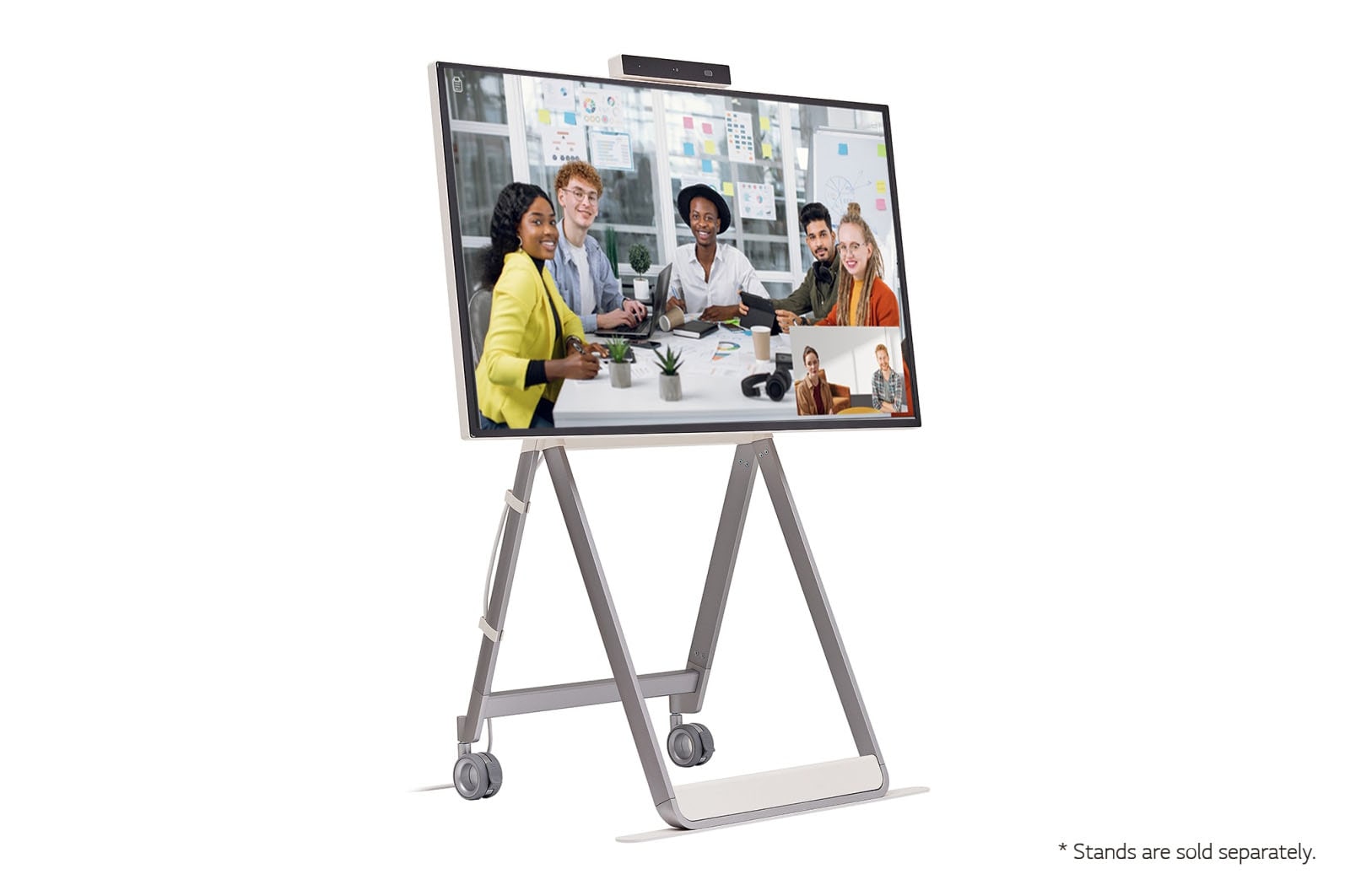

*Stands are sold separately.
*The product needs to be plugged into the appropriate power source to operate.

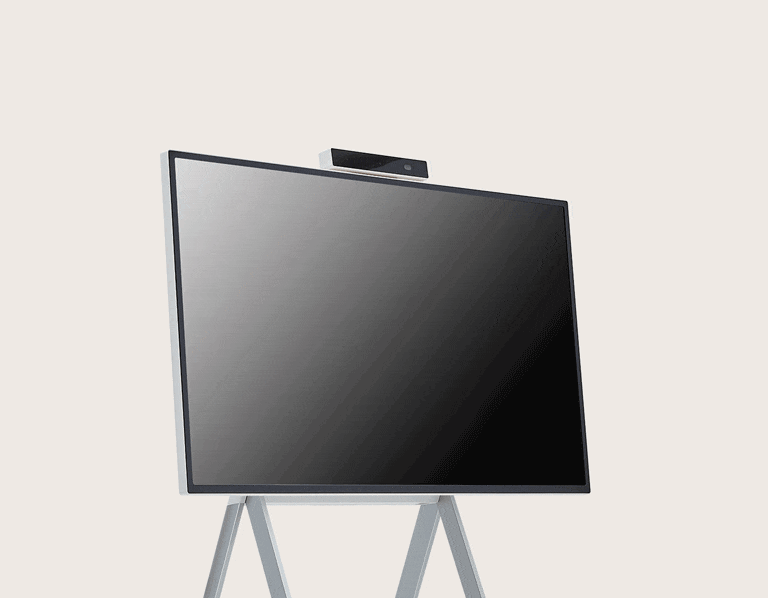

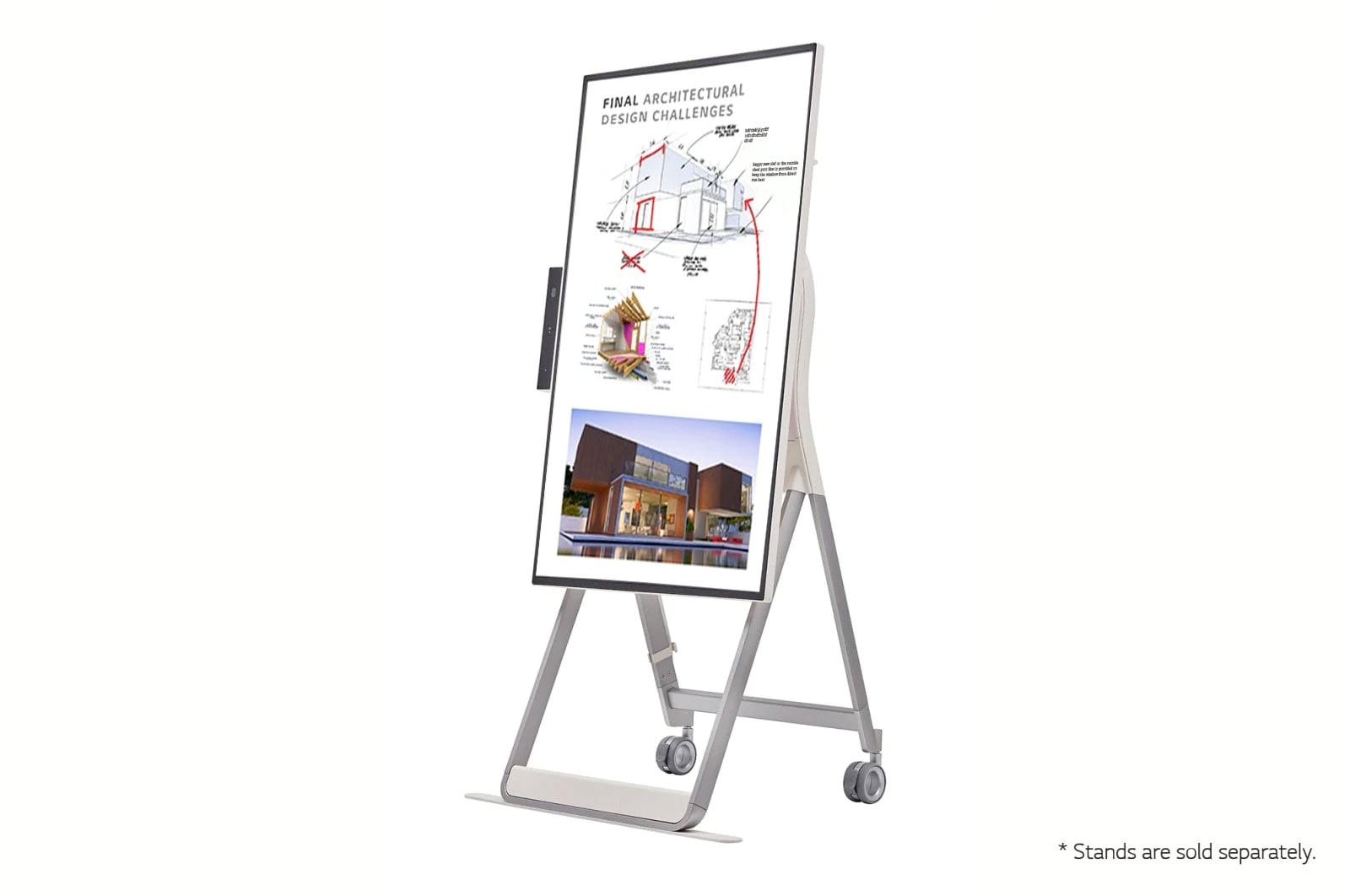

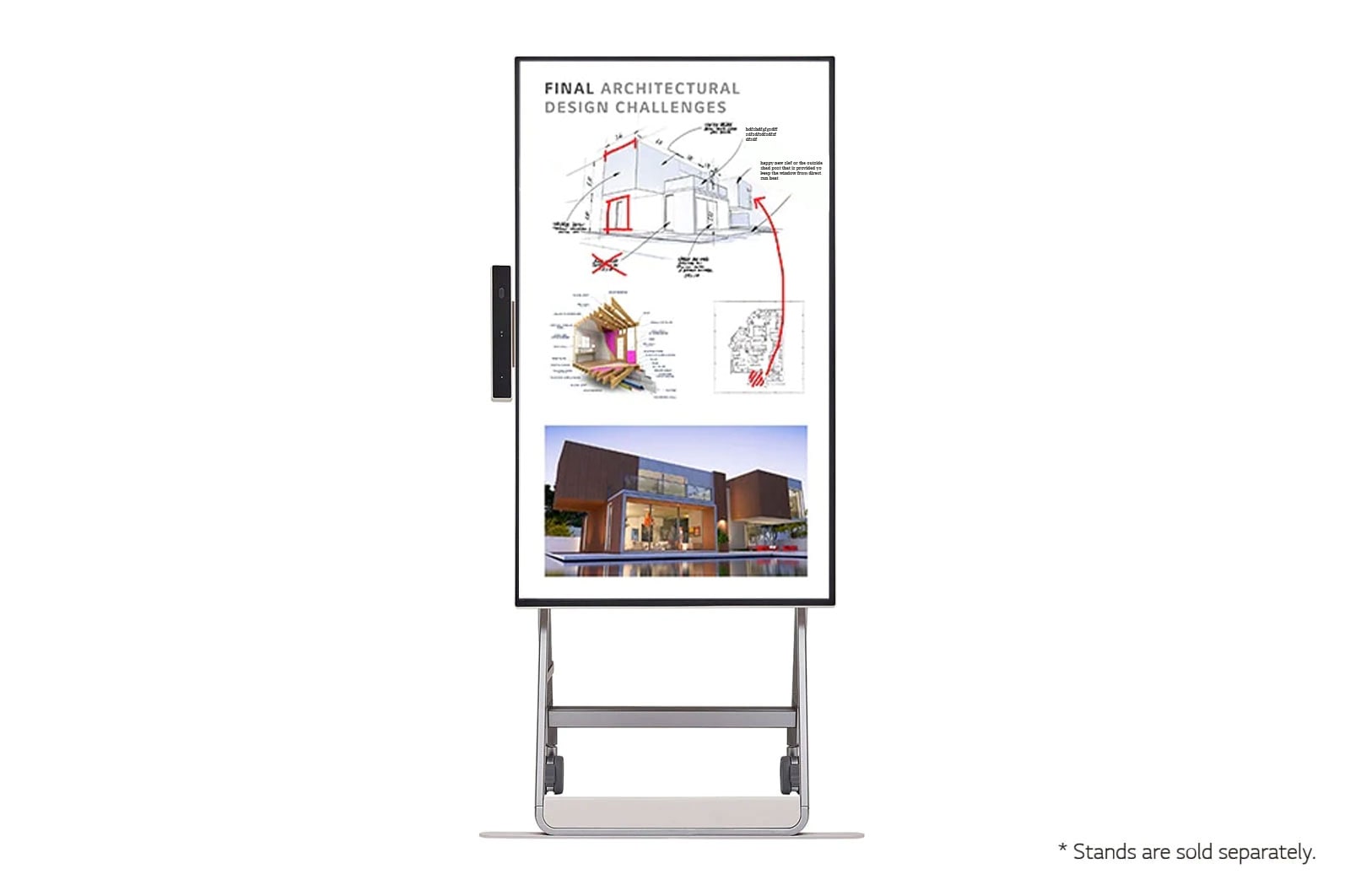

*Stands are sold separately. Screen is rotated manually.
*To use it vertically, users can rotate counter clockwise, and vice versa to switch back to landscape mode.
*Some apps may not support vertical view mode.
*The height is adjusted manually.
*Screen image simulated for illustrative purposes.

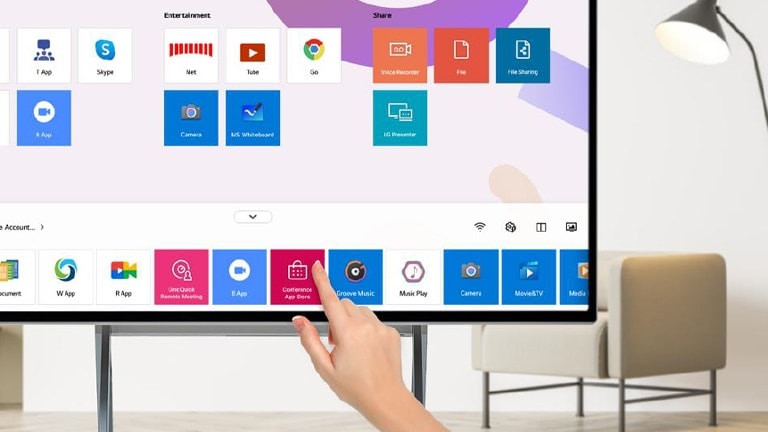

*The home dashboard (mid-screen app folder) is scheduled for release in November 2021.
*Voice ordering is limited to some specific functions: Power, volume, built-in apps, camera, reader mode.

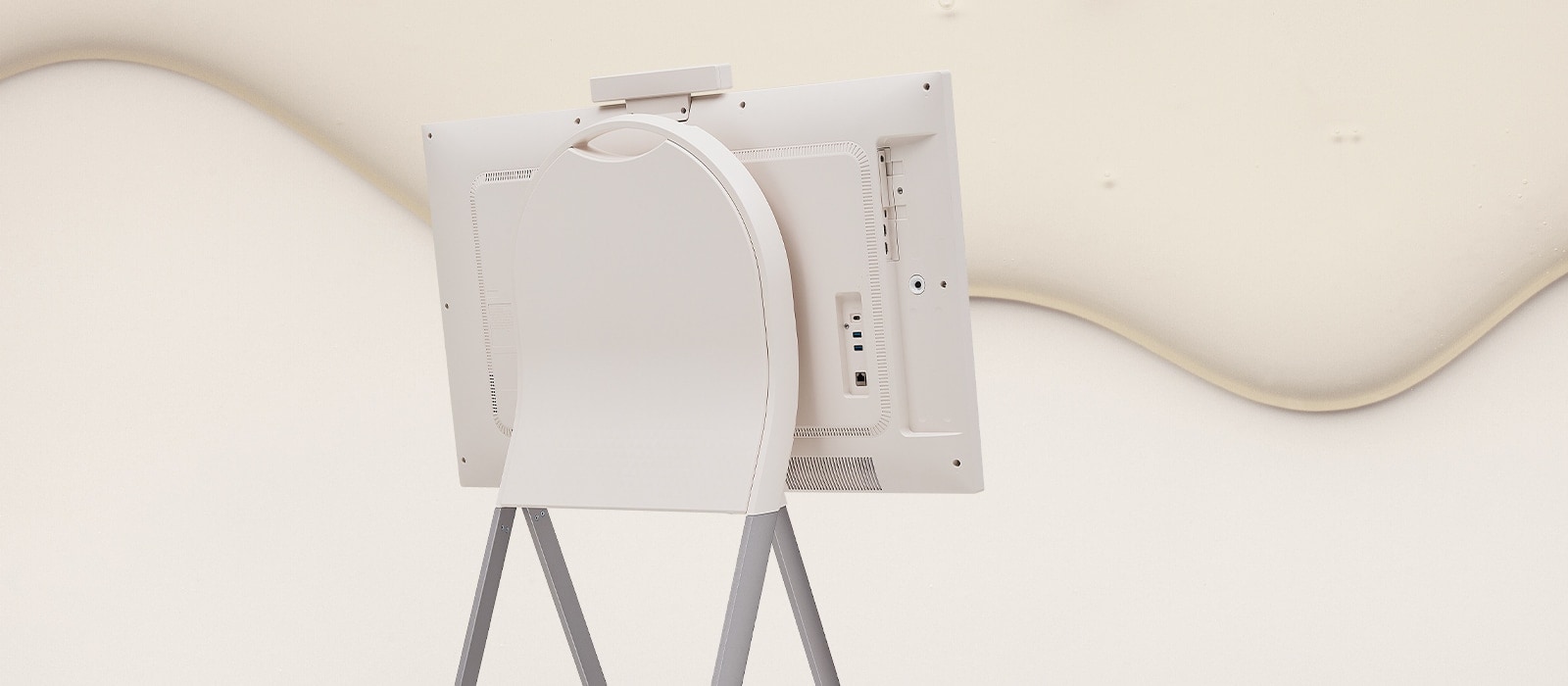

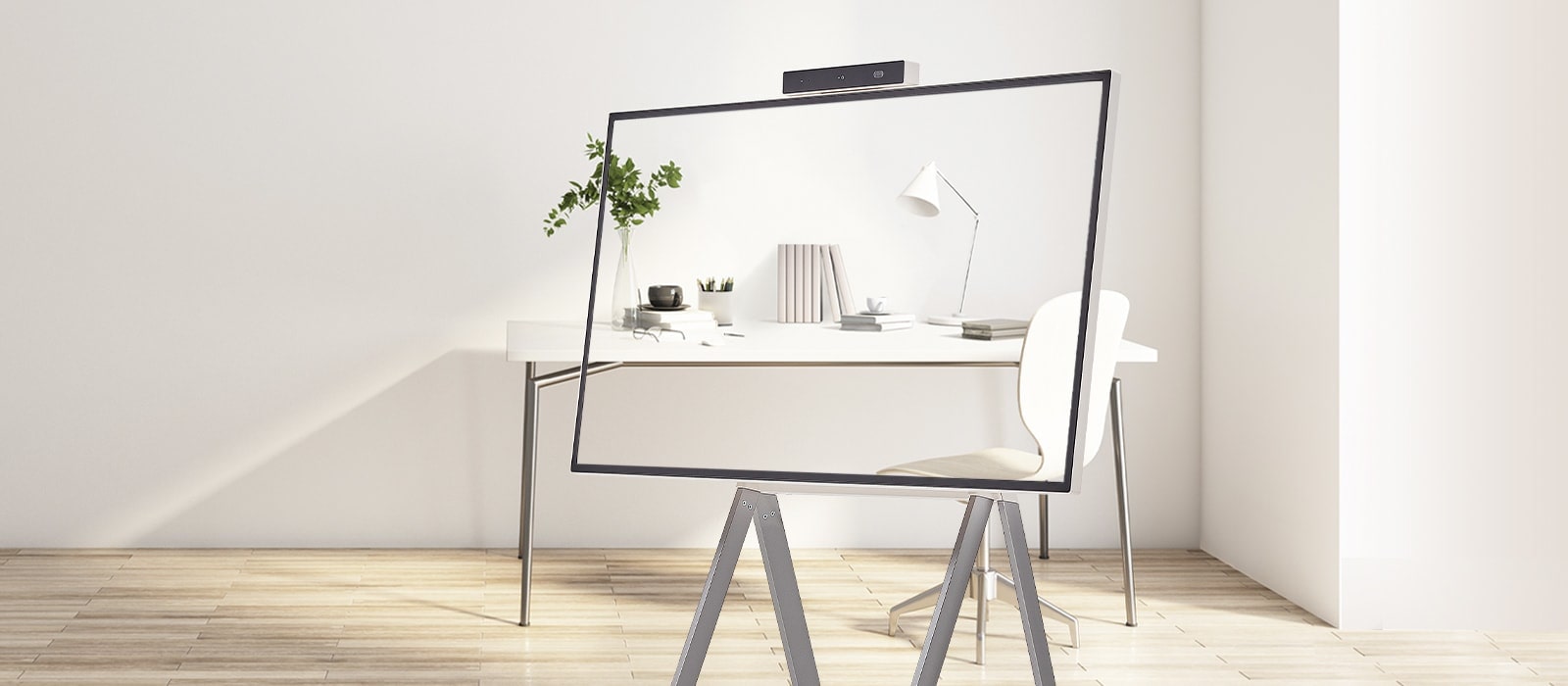

A Sleek Design that Blends
with the Space
![A Sleek Design that Blends with the Space](/content/dam/channel/wcms/in/images/business/43ht3wj-b_atrz_eail_in_b/feature/lg-43HT3WJ-07-A-Sleek-Design-that-Blends-with-the-Space-Digital-Signage-ID-2-D.jpg)
![A Sleek Design that Blends with the Space](/content/dam/channel/wcms/in/images/business/43ht3wj-b_atrz_eail_in_b/feature/lg-43HT3WJ-07-A-Sleek-Design-that-Blends-with-the-Space-Digital-Signage-ID-1-D.jpg)
RECOMMEND TO USE IN/FOR:
*The example is provided for information purposes only; LG does not offer separate solutions or services.
*Screen configuration and function support may vary depending on the app used.
Gallery
All Spec
PANEL
-
Screen Size (Inch)
43
-
Panel Technology
IPS
-
Back Light Type
Edge
-
Aspect Ratio
16:9
-
Native Resolution
3840 x 2160 (UHD)
-
Refresh Rate
60Hz
-
Brightness
350nit (Typ.)
-
Contrast Ratio
1,000:1
-
Dynamic CR
NO
-
Color Gamut
NTSC 72%
-
Viewing Angle (H x V)
178º x 178º
-
Color Depth (Number of Colors)
1.07 Billion colors
-
Response Time
9ms (G to G)
-
Surface Treatment (Haze)
Haze 12%
-
Life time
50,000Hrs (Min.)
-
Operation Hours (Hours/Day)
24/7
-
Portait / Landscape
YES / YES
CONNECTIVITY
-
HDMI In
YES (2ea)
-
HDMI In (HDCP Ver.)
2.2/1.4
-
DP In
YES (USB Type C)
-
DVI-D In
NO
-
RGB In
NO
-
Audio In
NO
-
RS232C In
NO
-
RJ45(LAN) In
YES (1ea)
-
IR In
NO
-
USB In
USB3.1 Type A (2ea), USB Type C (1ea)
-
HDMI Out
NO
-
DP Out
YES (USB Type C)
-
Audio Out
NO
-
Touch USB
NO
-
External Speaker Out
NO
-
RS232C Out
NO
-
RJ45(LAN) Out
NO
MECHANICAL SPECIFICATION
-
Bezel Color
Black
-
Bezel Width
T/R/L/B : 13.9/13.9/13.9/16.5mm
-
Weight (Head)
12.7Kg
-
Packed Weight
15.1Kg
-
Monitor Dimensions (W x H x D)
973.2 x 605.8 x 49.4mm
-
Monitor Dimension with Stand (W x H x D)
Floor stand : 973.2 x 1198.1 x 610.0mm (Landscape) Floor stand : 662.0 x 1360.9 x 610.0mm (Portrait) Desktop stand : 973.2 x 641.2 x 242.3mm
-
Handle
NO
-
VESA Standard Mount Interface
200 x 200 mm
-
Carton Dimensions (W x H x D)
1056 x 690 x 152mm (without Stand)
-
Weight (Head+Stand)
15.4Kg (Head + Stand) 29.3Kg (Head + Floor Stand)
FEATURE - HARDWARE
-
Temperature Sensor
YES
-
Auto Brightness Sensor
YES
-
Pixel Sensor
NO
-
Proximity Sensor
NO
-
Current Sensor
NO
-
BLU Sensor
NO
-
Humidity Sensor
NO
-
Acceleration(Gyro) Sensor
NO
-
Power Indicator
NO
-
Local Key Operation
YES
FEATURE - SOFTWARE
-
Smart Energy Saving
YES
-
Wake on LAN
YES
-
HDMI-CEC
YES
ENVIRONMENT CONDITIONS
-
Operation Temperature
0 °C to 40 °C
-
Operation Humidity
10 % to 80 %
POWER
-
Power Supply
AC 100-240V~, 50/60Hz
-
Power Type
Built-in Power
POWER CONSUMPTION
-
Smart Energy Saving (70%)
30±10% (for HDMI1/2)
-
DPM
0.5W
-
Power off
0.5W
-
Max.
190W
-
Typ.
75W
SOUND
-
Speaker (Built-in)
YES (10W x 2)
CERTIFICATION
-
Safety
CB / NRTL
-
EMC
FCC Class "B" / CE
-
ERP / Energy Star
YES / NO
-
ePEAT(US only)
NO
OPS COMPATIBILITY
-
OPS Type compatible
NO
-
OPS Power Built-in
NO
SOFTWARE COMPATIBILITY
-
Connected Care
NO
LANGUAGE
-
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
ACCESSORY
-
Basic
HDMI Cable, Remote Controller(include battery 2ea), Touch Pen, Pen tip, Manual, Regulation Book, Warranty Card, IG
-
Optional
1 pole Desktop Stand(ST-43HT), Floor Stand(ST-43HF)
SPECIAL FEATURE
-
Overlay Touch Compatibility
N/A
-
Smart Calibration
N/A
-
Tilt (Face up)
N/A
-
Tilt (Face down)
N/A
-
IP Rating
N/A
-
Conformal Coating (Power Board)
N/A
-
Power Protection
N/A
-
Direct Sunlight
N/A
DEDICATED FEATURE - TOUCH
-
Available Object Size for Touch
Ø8 mm
-
Response Time ('Paint' app on Windows 10 PC)
35ms ↓
-
Accuracy (Typ.)
3.5mm
-
Interface
USB1.1
-
Protection Glass Thickness
N/A
-
Protection Glass Transmission
N/A
-
Operating System Support
Windows 10 or higher
-
Multi Touch Point
Max. 10 Points
DEDICATED FEATURE - ONE:QUICK
-
CPU
AMD Ryzen R1505G
-
Memory(RAM)
8GB
-
Storage
128GB
-
Graphic
AMD Radeon Vega
-
Wi-Fi
802.11ac
-
Bluetooth
Bluetooth 5.0
-
Launcher Bar
YES
-
Home Dashboard
YES
-
SplitView_Full / Half
YES
-
SplitView_Customized Template
NO
-
Cloning
NO
-
Screen Capture
YES
-
Meeting(Voice) Record
YES
-
File Sharing
YES
-
Compatibility One:Quick Share
YES
-
One:Quick Remote Meeting
YES
-
Reader Mode (Bluelight)
YES
-
Built-in Apps
Chrome, Skype (Preloaded) Netflix, MS Whiteboard (Download link)
-

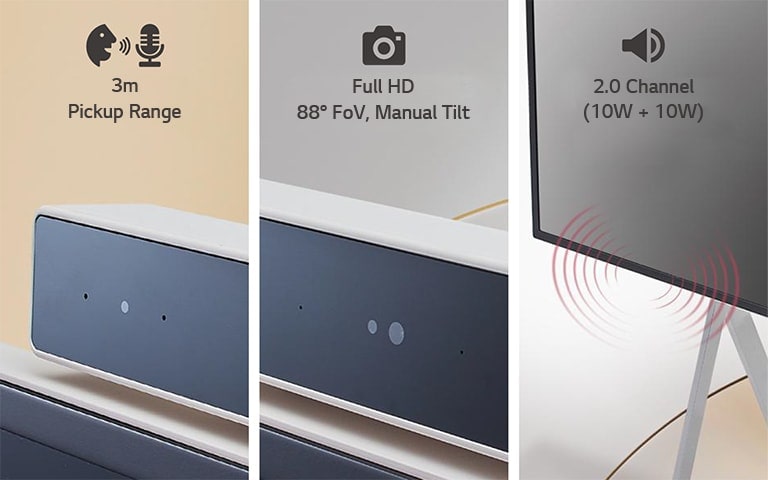

Camera_Resolution
1920 x 1080 (FHD)
-
Camera_Field of View (FoV)
88°
-
Camera_Zoom (ePTZ)
N/A
-
Camera_Video Framing
N/A
-
MIC_Array
2ea
-
MIC_Beamforming
N/A
-
MIC_Pickup Range
3m
-
Warranty
3 Years (Panel) 1 Year (PC Board)
-
OS ver.
Windows 10 IOT Enterprise (Basic)
-
