LG 32SM5J-B Full HD Standard Signage Features and Specifications

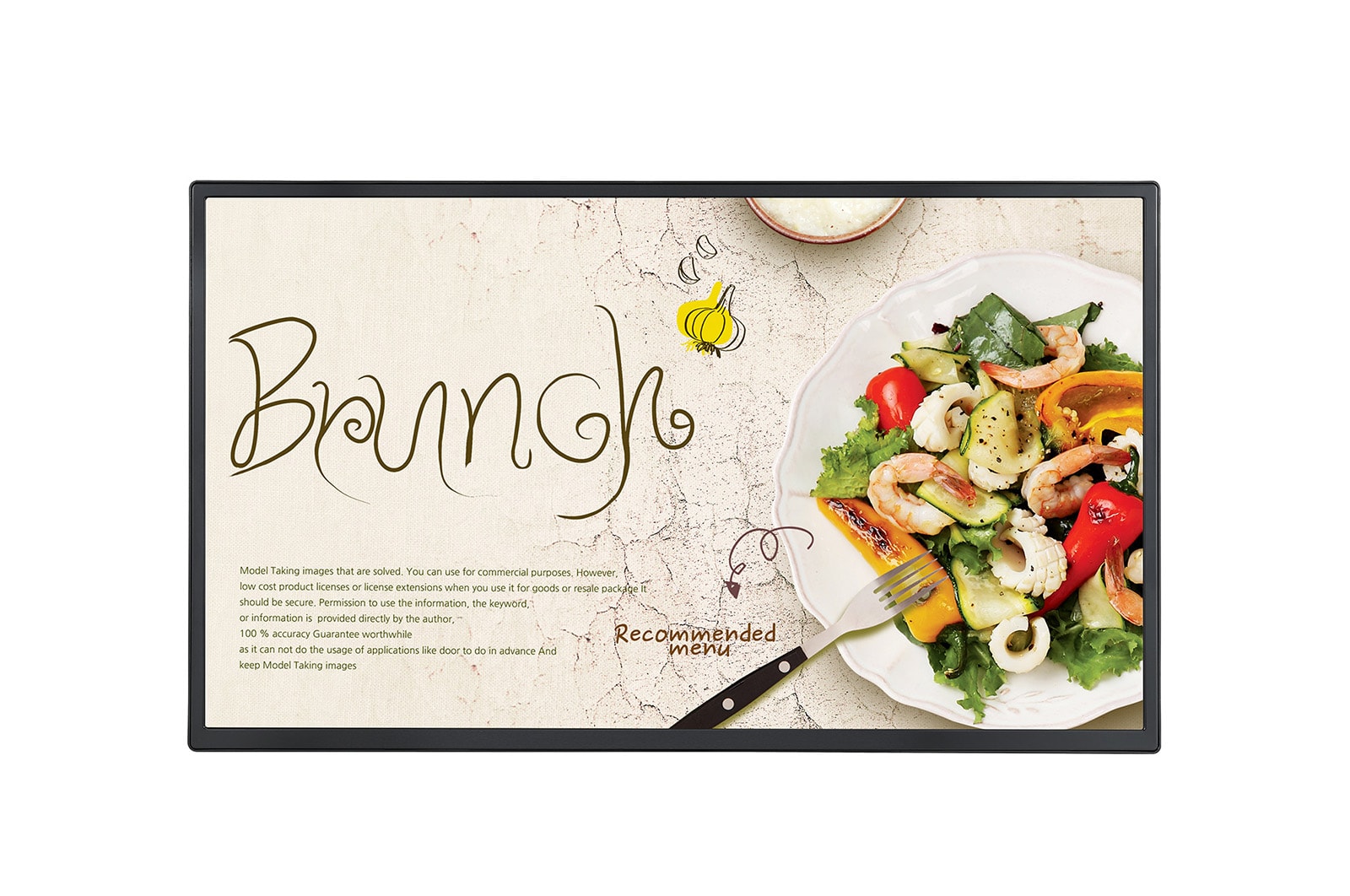

LG Full HD Standard Signage

32SM5J-B

Key Features

Brightness(Typ.) : 400 cd/m²
Bezel : 13 mm (T/R/L), 18 mm (B)

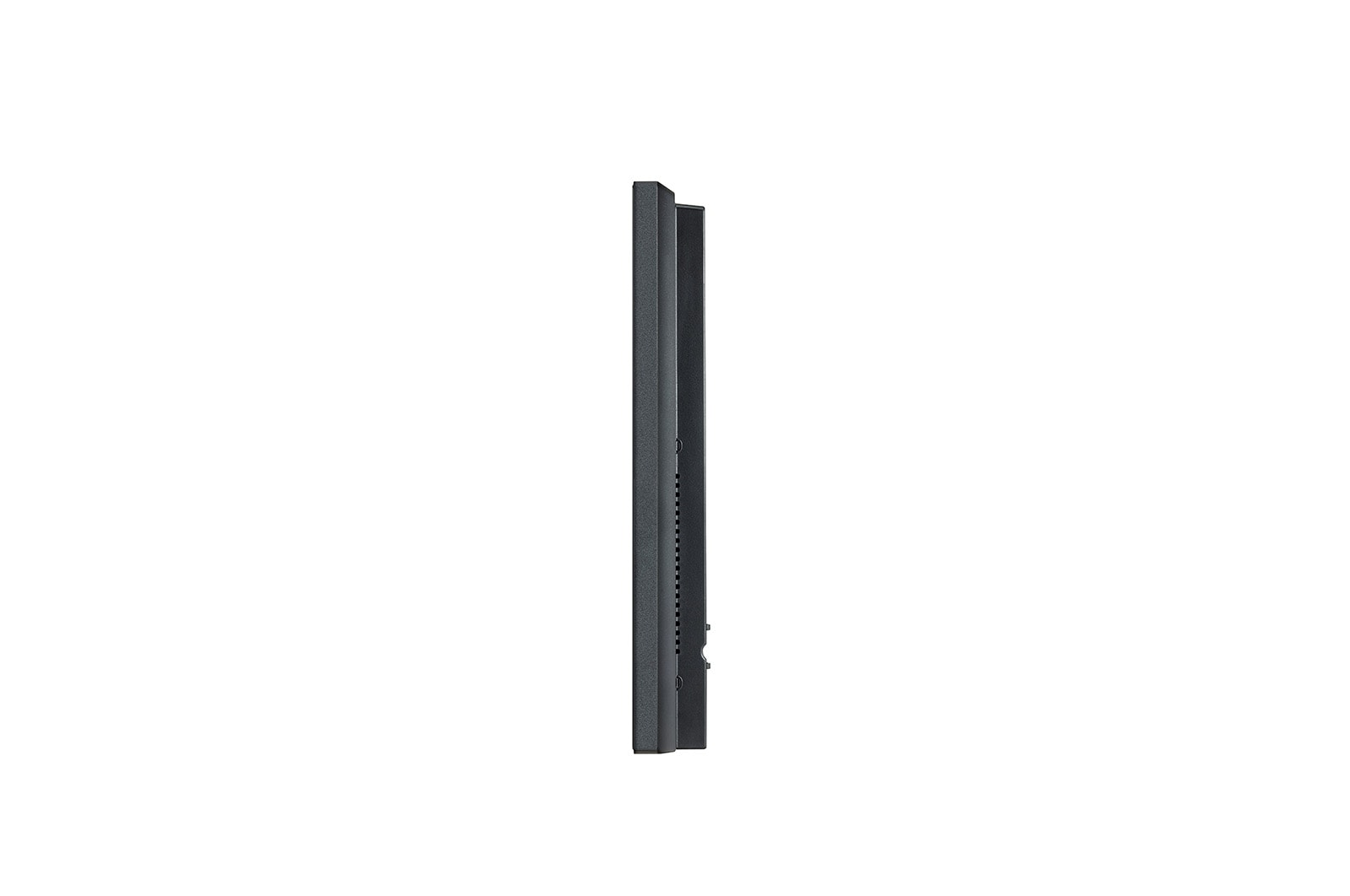

Depth : 55.5 mm
Interface : HDMI(3) /USB 2.0/ RS232C/ RJ45/ IR / Audio Out
Built-in Speaker : 10W + 10W

*All images in this web page are for illustrative purposes only and may differ from the actual product.

High-Performance with webOS 6.0

webOS 6.0, upgraded in SoC and web engine, is available on SM5J for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.

Various Sensor Connection

LG webOS smart signage platform helps to easily provide additional solutions by supporting simple connections with external sensors* such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.

*External sensors need to be purchased separately and tested for compatibility with webOS platform.

Mobile & Web Monitoring

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of the SM5J series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations.

*The mobile devices need be connected with the Signage IP address and can control one Signage at a time.
**Control Manager is optimized for Google Chrome 56 version and above.

Compatible with AV Control System

The SM5J series supports Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

*Network based control.

Real-Time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately.

Real-Time Promotion

With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.

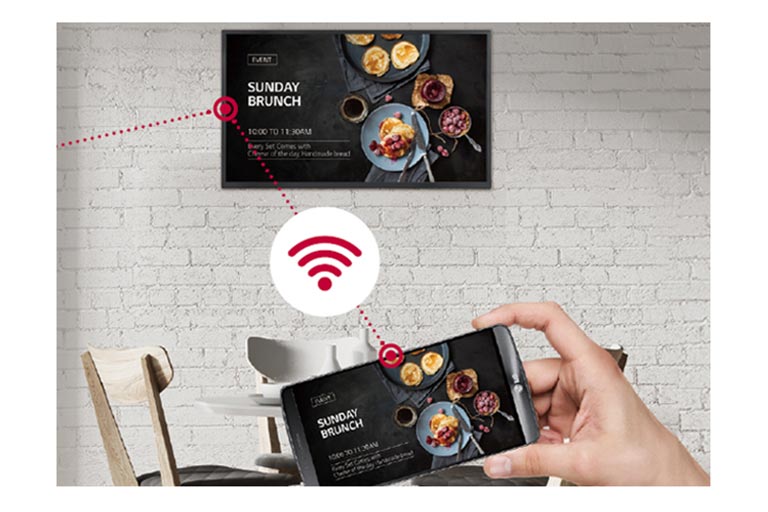

Content Sharing

Content Mirroring among devices is available on a Wi-Fi network.

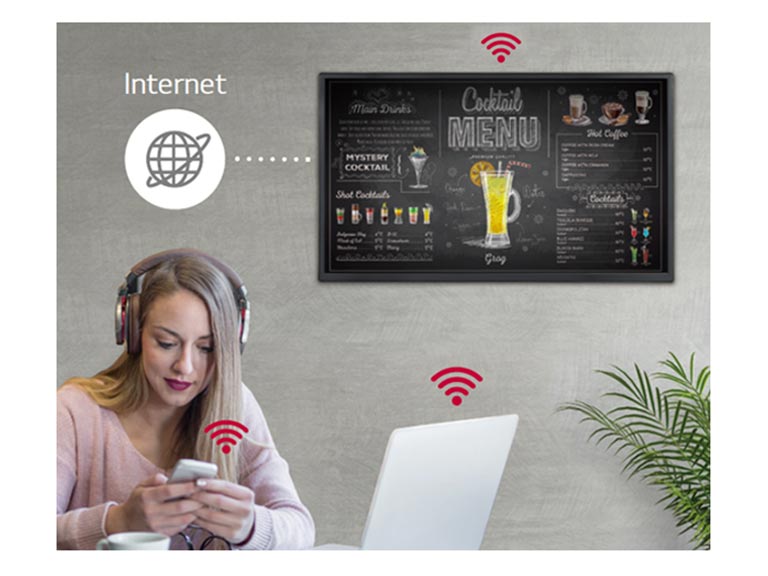

Wireless Access Point

The SM5J series operates as a virtual router which can be an wireless access point for mobile devices.

ENERGY STAR® Certified

All Spec

PANEL

Screen Size
80 CM (32)
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16 : 9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
60 Hz
Brightness
400 nit (Typ.)
Dynamic CR
1,000,000:1
Color Gamut
NTSC 68 %
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
10 ms (G to G)
Surface Treatment (Haze)
Haze 1 %
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
N/A

CONNECTIVITY

HDMI In
YES (3 ea)
HDMI In (HDCP Ver.)
2.2
DP In
NO
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
YES
RJ45(LAN) In
YES (1 ea)
IR In
YES
USB In
USB 2.0 Type A (1 ea)
HDMI Out
NO
DP Out
NO
Audio Out
YES
Touch USB
NO
External Speaker Out
NO
RS232C Out
YES
RJ45(LAN) Out
NO
IR Out
NO
Daisy Chain
NO

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
T/R/L: 13 mm, B: 18 mm
Weight (Head)
5.7 Kg
Packed Weight
7.4 Kg
Monitor Dimension (W x H x D, mm)
729.4 x 428.9 x 55.5 mm
Monitor Dimension with Stand (W x H x D)
729.4 x 481 x 154.2 mm
Handle
NO
VESA™ Standard Mount Interface (mm)
200 x 200 mm
Carton Dimensions (W x H x D, mm)
810 x 510 x 132 mm
Weight (Head+Stand)
6.5 Kg

FEATURE - HARDWARE

Internal Memory (eMMC)
8 GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
YES
Auto Brightness Sensor
YES
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration (Gyro) Sensor
NO
Power Indicator
NO
Local Key Operation
YES
FAN (Built-in)
NO

FEATURE - SOFTWARE

OS Ver. (webOS)
webOS 6.0
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail Over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
NO
PIP
NO
PBP
NO
Screen Share
YES
Video Tag
YES (4 Video Tag)
Play Via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
NO
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
YES
Crestron Connected
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
BEACON
YES
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

POWER

Power Supply
AC 100-240 V~, 50/60 Hz
Power Type
Built-in Power

POWER CONSUMPTION

Max.
75 W
Typ.
55 W
Power off
0.5 W
DPM
0.5 W
Others-BTU (British Thermal Unit)
188 BTU/Hr(Typ.), 256 BTU/Hr(Max.)
Smart Energy Saving (70%)
38.5 W

SOUND

Speaker (Built-in)
YES (10 W x 2)

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "A" / CE
ERP / Energy Star
NO / YES
ePEAT(US only)
NO

OPS COMPATIBILITY

OPS Type compatible
NO
OPS Power Built-in
NO

SOFTWARE COMPATIBILITY

SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
NO
Mobile CMS
NO
Connected Care
YES

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski

ACCESSORY

Basic
Remote Controller(include battery 2 ea), Power Cord, QSG, HDMI Cable, Phone to RS232C Gender
Optional
Stand(ST-322T)

SPECIAL FEATURE

Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
N/A
IP Rating
N/A
Conformal Coating (Power Board)
N/A
Power Protection
N/A
Direct Sunlight
N/A
