LG Full HD Standard Signage

LG Full HD Standard Signage

32SM5J-B
()

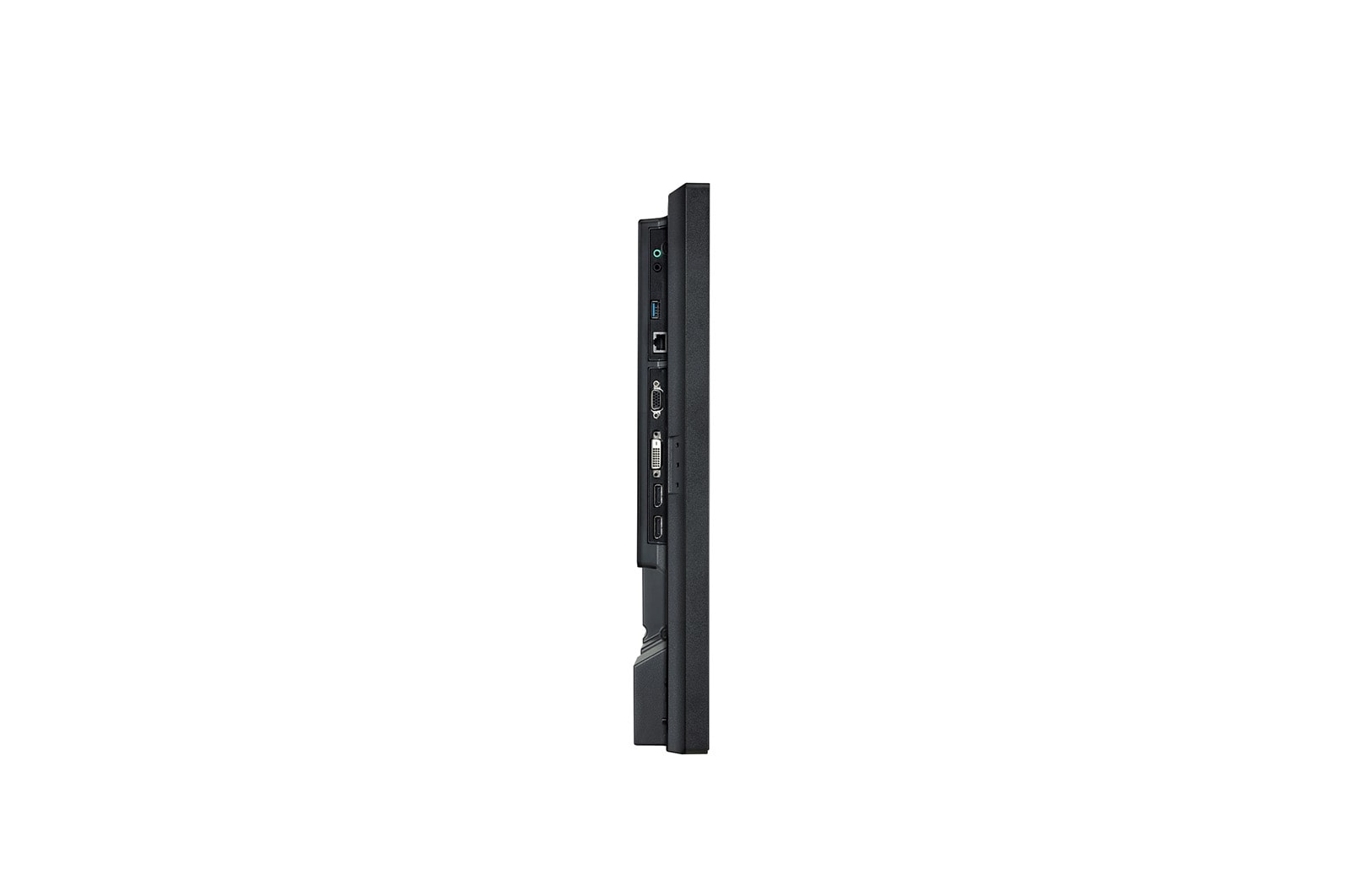

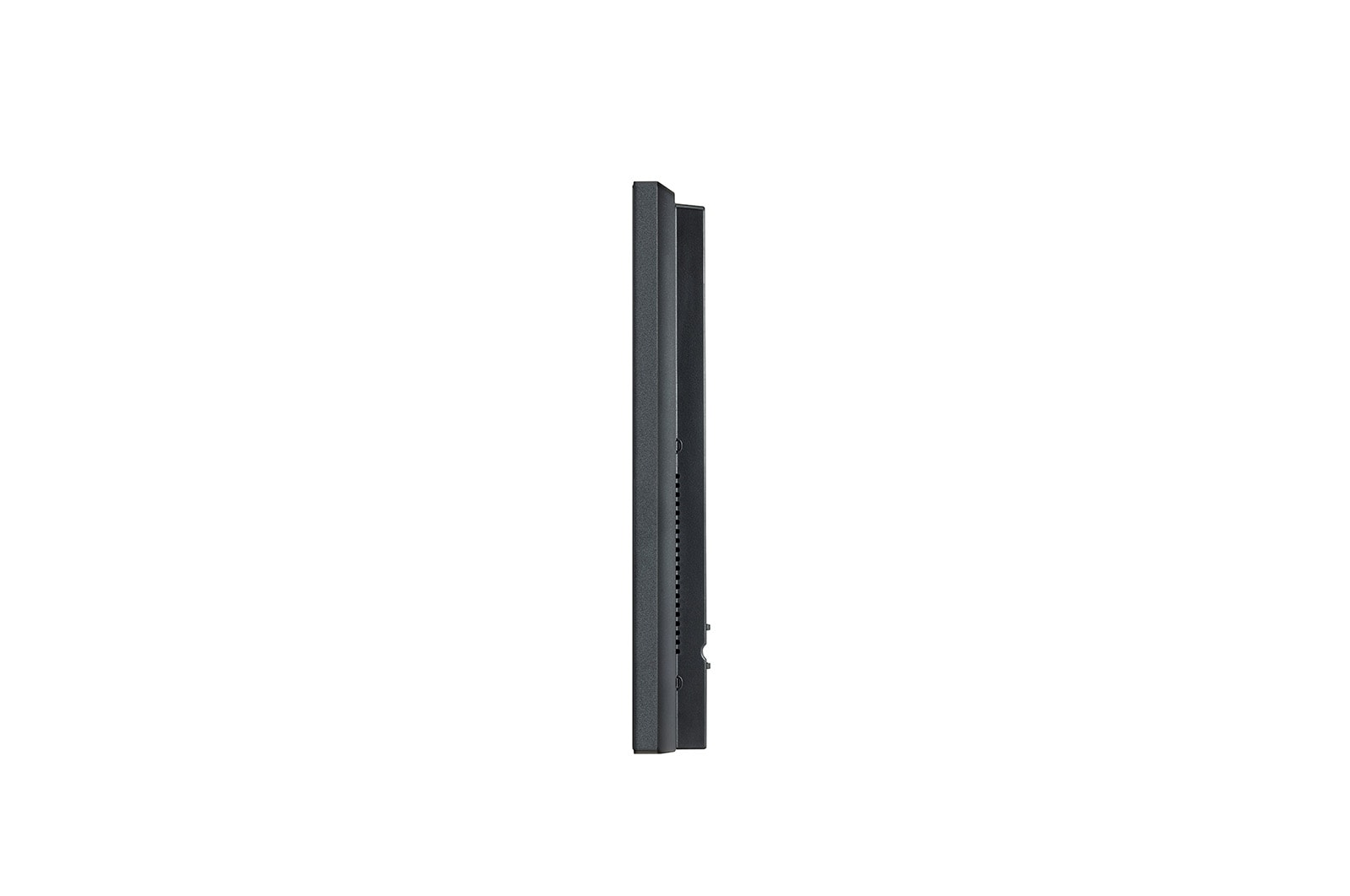

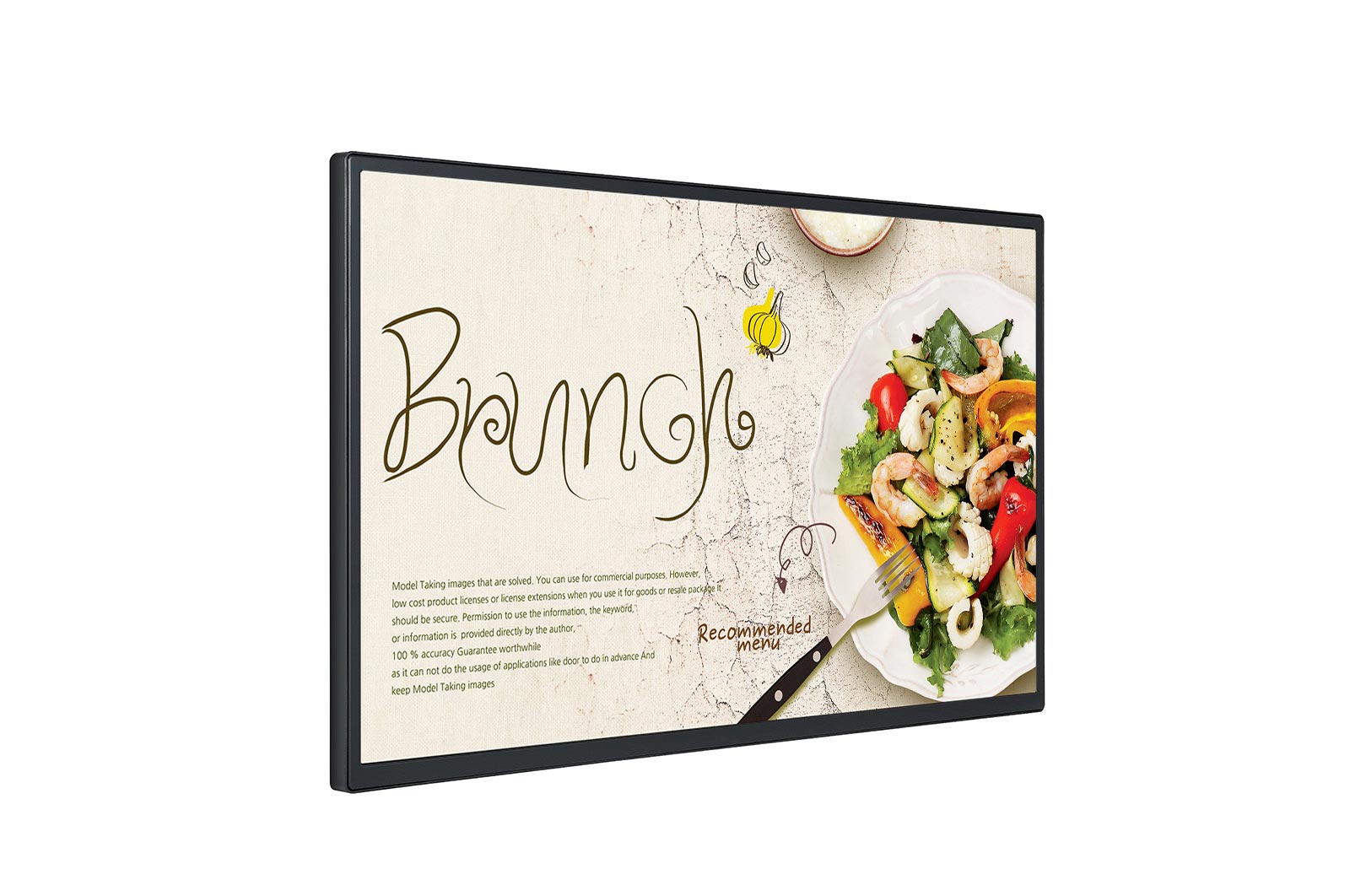

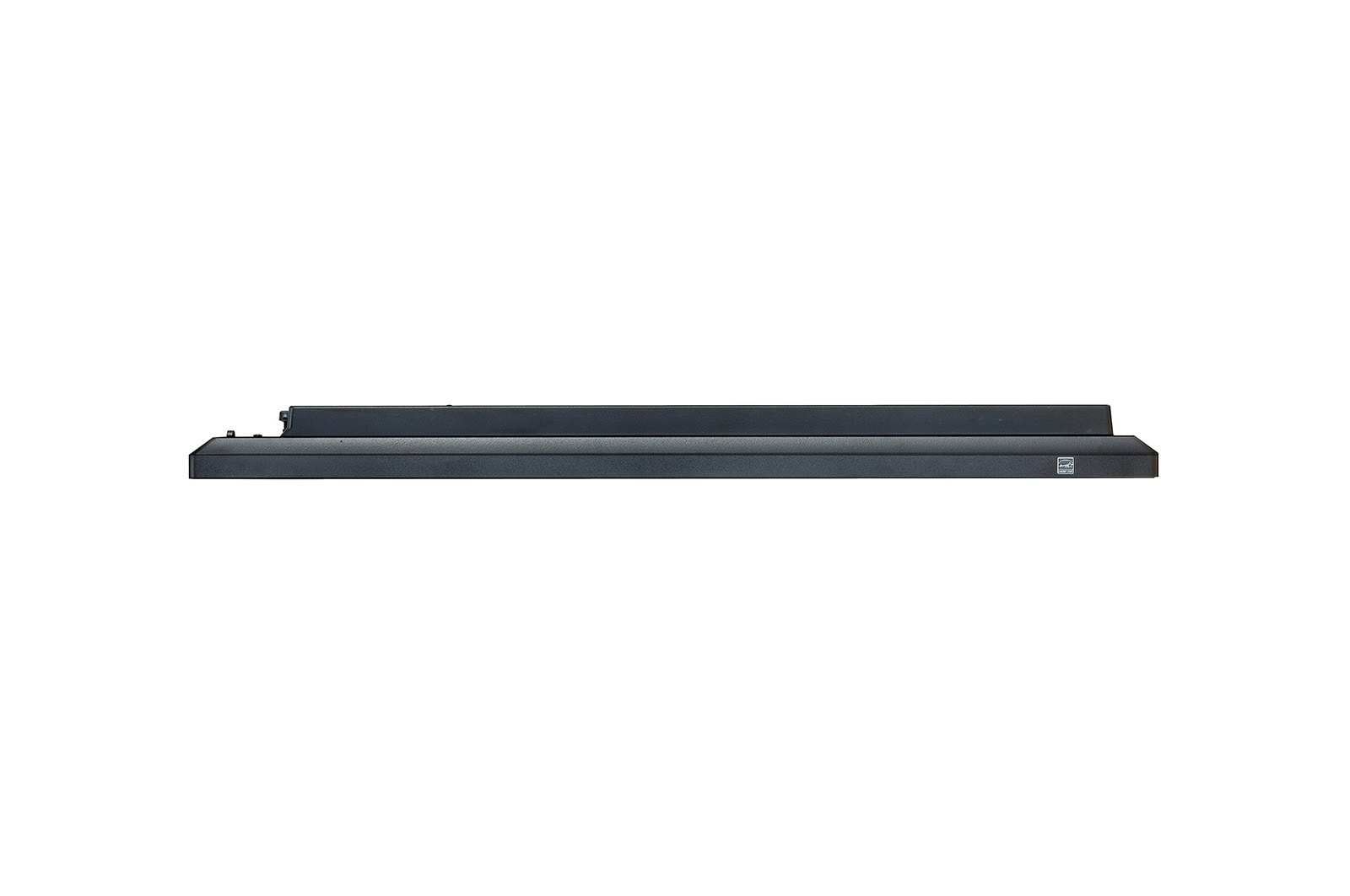

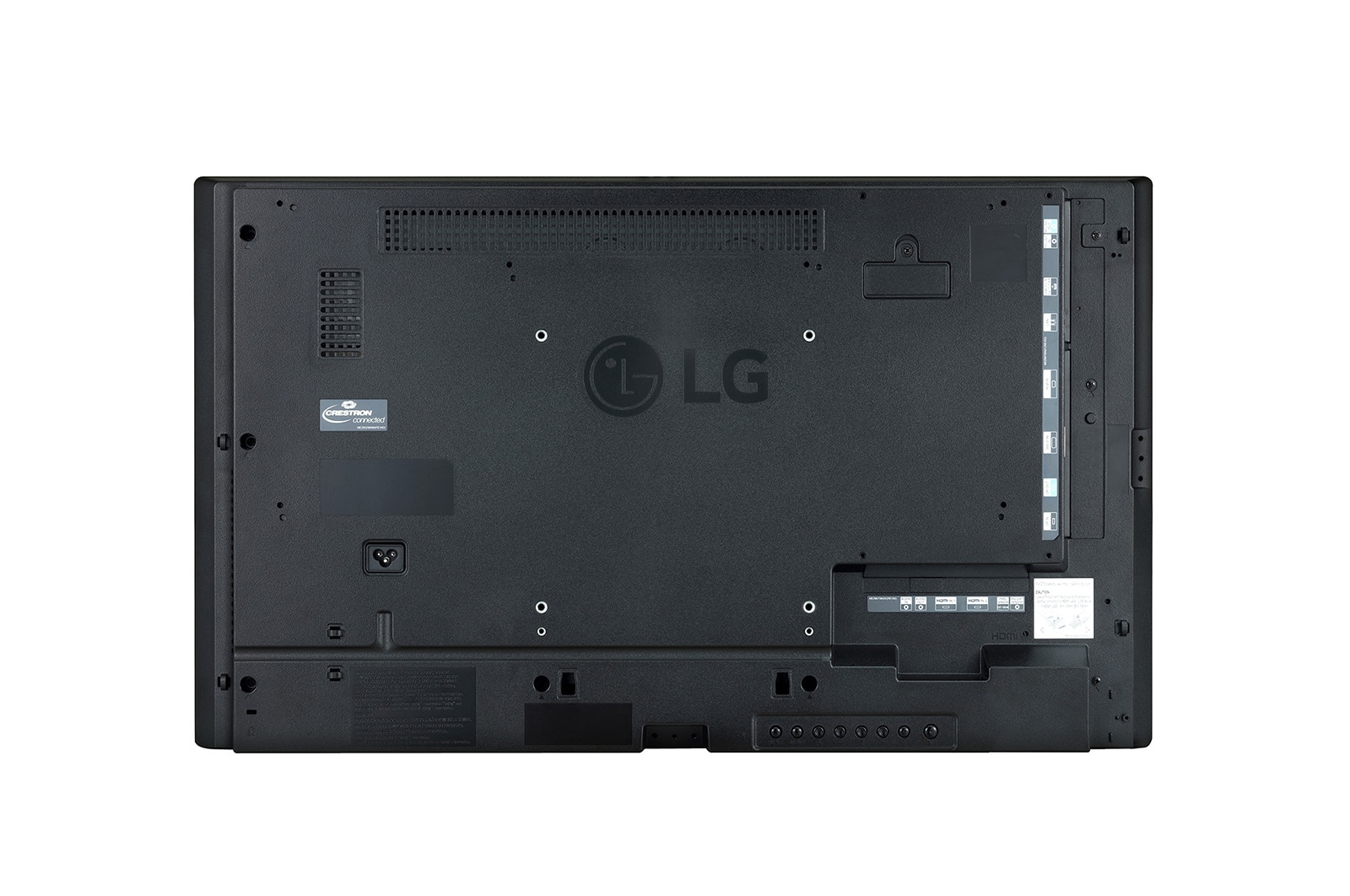

  • LG 32SM5J-B Front View

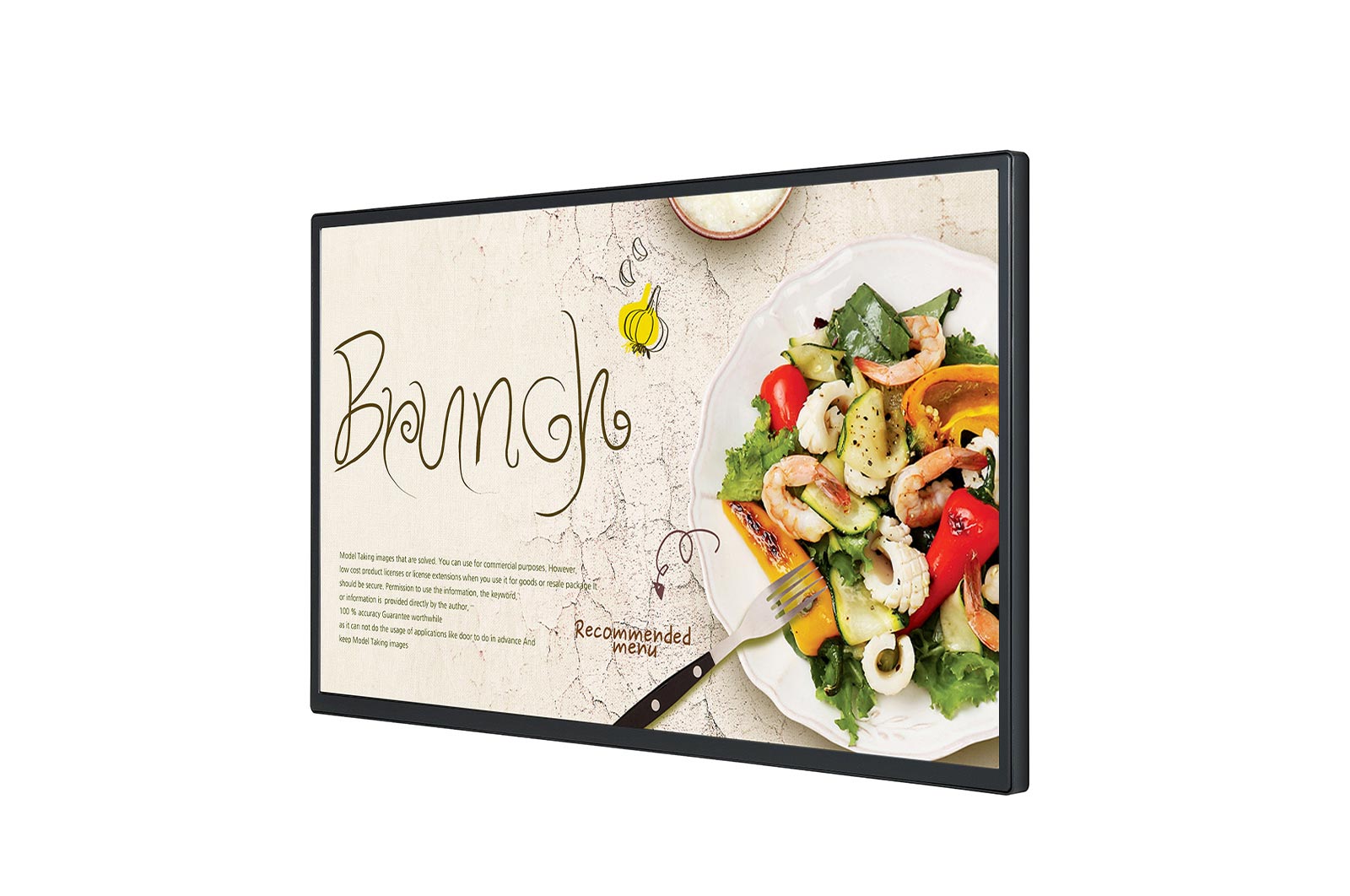

  • LG Full HD Standard Signage, 32SM5J-B
  • LG Full HD Standard Signage, 32SM5J-B
  • LG Full HD Standard Signage, 32SM5J-B
  • LG Full HD Standard Signage, 32SM5J-B
  • LG Full HD Standard Signage, 32SM5J-B
  • LG Full HD Standard Signage, 32SM5J-B

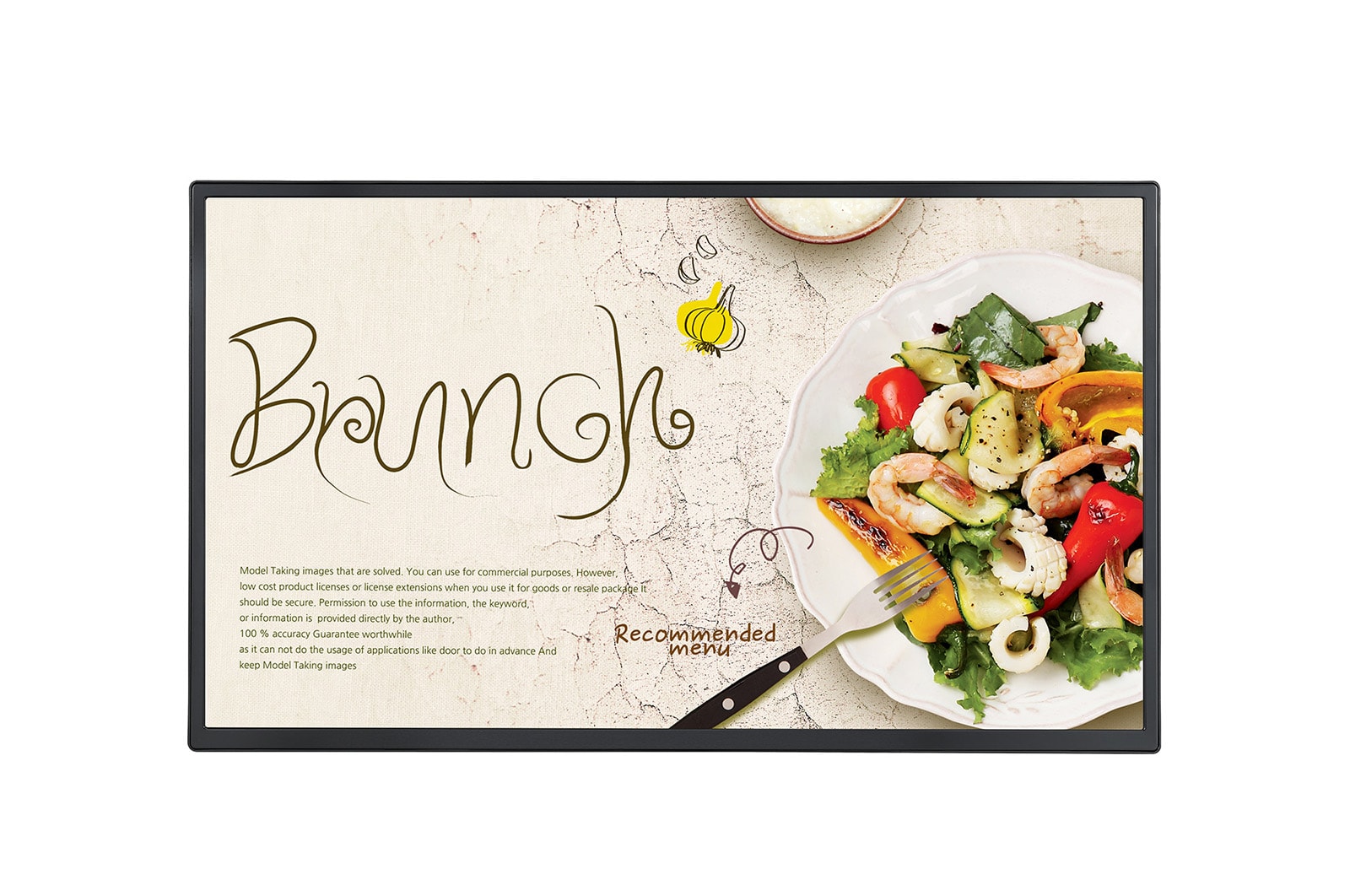

LG 32SM5J-B Front View
LG Full HD Standard Signage, 32SM5J-B
LG Full HD Standard Signage, 32SM5J-B
LG Full HD Standard Signage, 32SM5J-B
LG Full HD Standard Signage, 32SM5J-B
LG Full HD Standard Signage, 32SM5J-B
LG Full HD Standard Signage, 32SM5J-B

Key Features

  • Brightness(Typ.) : 400 cd/m²
  • Bezel : 13 mm (T/R/L), 18 mm (B)
  • Depth : 55.5 mm
  • Interface : HDMI(3) /USB 2.0/ RS232C/ RJ45/ IR / Audio Out
  • Built-in Speaker : 10W + 10W
More

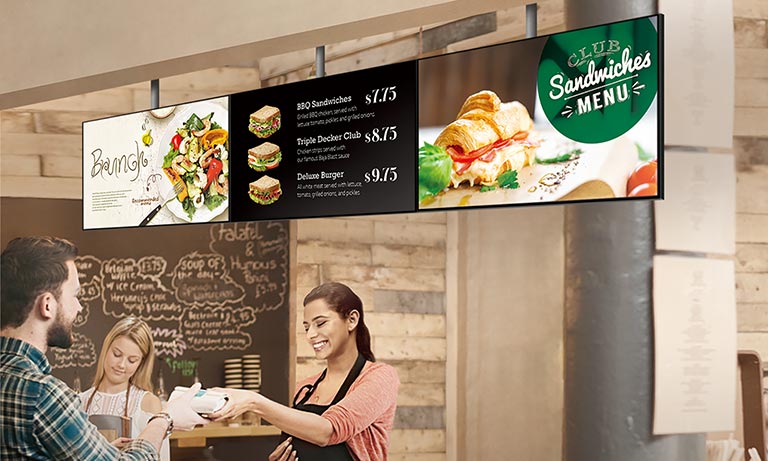

LG webOS Standard Signage

LG 32SM5J-B webOS Standard Signage

*All images in this web page are for illustrative purposes only and may differ from the actual product.

LG 32SM5J-B High-Performance

High-Performance with webOS 6.0

webOS 6.0, upgraded in SoC and web engine, is available on SM5J for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.
LG 32SM5J-B Various Sensor Connection

Various Sensor Connection

LG webOS smart signage platform helps to easily provide additional solutions by supporting simple connections with external sensors* such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.

*External sensors need to be purchased separately and tested for compatibility with webOS platform.

LG 32SM5J-B Mobile

Mobile & Web Monitoring

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of the SM5J series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations.

*The mobile devices need be connected with the Signage IP address and can control one Signage at a time.
**Control Manager is optimized for Google Chrome 56 version and above.

LG 32SM5J-B Compatible with AV Control System

Compatible with AV Control System

The SM5J series supports Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

*Network based control.

Real-Time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

LG 32SM5J-B Real-Time LG ConnectedCare Service

*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately.

LG 32SM5J-B Real-Time Promotion

Real-Time Promotion

With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.
LG 32SM5J-B Content Sharing

Content Sharing

Content Mirroring among devices is available on a Wi-Fi network.
LG 32SM5J-B Wireless Access Point

Wireless Access Point

The SM5J series operates as a virtual router which can be an wireless access point for mobile devices.
LG 32SM5J-B Energy Star Certified

ENERGY STAR® Certified

Print

All Spec

PANEL

  • Screen Size (Inch)

    32

  • Panel Technology

    IPS

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    1920 x 1080 (FHD)

  • Refresh Rate

    60Hz

  • Brightness

    400nit (Typ.)

  • Dynamic CR

    1,000,000:1

  • Color Gamut

    NTSC 68%

  • Viewing Angle (H x V)

    178º x 178º

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Response Time

    10ms (G to G)

  • Surface Treatment (Haze)

    Haze 1%

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    YES / YES

  • Transparency

    N/A

  • QWP (Quarter Wave Plate)

    N/A

CONNECTIVITY

  • HDMI In

    YES (3ea)

  • HDMI In (HDCP Ver.)

    2.2

  • DP In

    NO

  • DVI-D In

    NO

  • RGB In

    NO

  • Audio In

    NO

  • RS232C In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • IR In

    YES

  • USB In

    USB2.0 Type A (1ea)

  • HDMI Out

    NO

  • DP Out

    NO

  • Audio Out

    YES

  • Touch USB

    NO

  • External Speaker Out

    NO

  • RS232C Out

    YES

  • RJ45(LAN) Out

    NO

  • IR Out

    NO

  • Daisy Chain

    NO

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L: 13mm, B: 18mm

  • Weight (Head)

    5.7Kg

  • Packed Weight

    7.4Kg

  • Monitor Dimensions (W x H x D)

    729.4 x 428.9 x 55.5mm

  • Monitor Dimension with Stand (W x H x D)

    729.4 x 481 x 154.2mm

  • Handle

    NO

  • VESA Standard Mount Interface

    200 x 200 mm

  • Carton Dimensions (W x H x D)

    810 x 510 x 132mm

  • Weight (Head+Stand)

    6.5Kg

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    8GB

  • Wi-Fi/BT (Built-in)

    YES

  • Temperature Sensor

    YES

  • Auto Brightness Sensor

    YES

  • Pixel Sensor

    NO

  • Proximity Sensor

    NO

  • Current Sensor

    NO

  • BLU Sensor

    NO

  • Humidity Sensor

    NO

  • Acceleration(Gyro) Sensor

    NO

  • Power Indicator

    NO

  • Local Key Operation

    YES

  • FAN (Built-in)

    NO

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS 6.0

  • Local Contents Scheduling

    YES

  • Group Manager

    YES

  • USB Plug & Play

    YES

  • Fail Over

    YES

  • Booting Logo Image

    YES

  • No Signal Image

    YES

  • RS232C Sync

    YES

  • Local Network Sync

    YES

  • Backlight Sync

    NO

  • PIP

    NO

  • PBP

    NO

  • Screen Share

    YES

  • Video Tag

    YES (4 Video Tag)

  • Play Via URL

    YES

  • Screen Rotation

    YES

  • External Input Rotation

    YES

  • Gapless Playback

    YES

  • Tile Mode Setting

    NO

  • Setting Data Cloning

    YES

  • SNMP

    YES

  • ISM Method

    YES

  • Auto Set ID

    YES

  • Status Mailing

    YES

  • Control Manager

    YES

  • Cisco Certification

    YES

  • Crestron Connected

    YES

  • Smart Energy Saving

    YES

  • PM mode

    YES

  • Wake on LAN

    YES

  • Network Ready

    YES

  • BEACON

    YES

  • HDMI-CEC

    YES

  • SI Server Setting

    YES

  • webRTC

    YES

  • Pro:Idiom

    YES

  • Brightness Compensation

    NO

  • W/B Setting by Grey scale

    NO

  • Scan Inversion

    NO

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    188 BTU/Hr(Typ.), 256 BTU/Hr(Max.)

  • Smart Energy Saving (70%)

    38.5W

  • DPM

    0.5W

  • Power off

    0.5W

  • Max.

    75W

  • Typ.

    55W

SOUND

  • Speaker (Built-in)

    YES (10W x 2)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE

  • ERP / Energy Star

    NO / YES

  • ePEAT(US only)

    NO

OPS COMPATIBILITY

  • OPS Type compatible

    NO

  • OPS Power Built-in

    NO

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

  • SuperSign Cloud

    NO

  • Mobile CMS

    NO

  • Connected Care

    YES

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Phone to RS232C Gender

  • Optional

    Stand(ST-322T)

SPECIAL FEATURE

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face up)

    N/A

  • Tilt (Face down)

    N/A

  • IP Rating

    N/A

  • Conformal Coating (Power Board)

    N/A

  • Power Protection

    N/A

  • Direct Sunlight

    N/A
