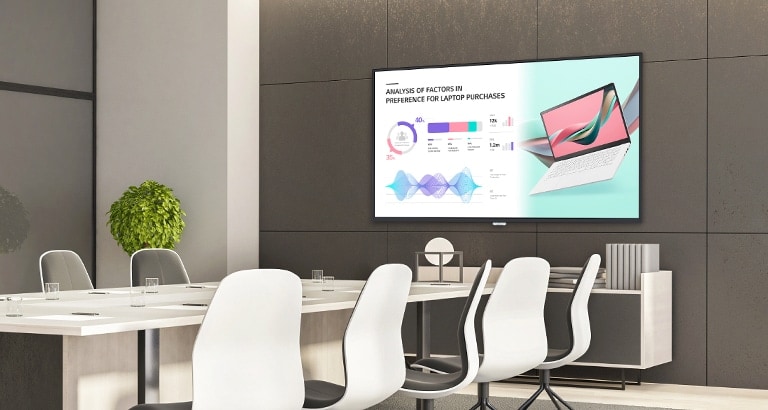

A screen showing the meeting’s contents is installed on the meeting room’s wall.
* All images in this web page are for illustrative purposes only.
UH5J-H has a brightness of 500 nits, so it is clearly visible, even under strong light.
* Actual images available may differ from the example images shown.
A number of tasks can be done at the same time with the intuitive GUI.
The UH5J-H has Conformal Coating on the power board to protect video wall even in a salty or humid environment.
* Actual images (signage display) available may differ from the example images shown.
UH5J-H is IP5x certified, so it is protected from dust and has less risk of performance degradation.
Screen Size
248.92 cm (98)
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60 Hz
Brightness
500 cd/m² (nits)
Contrast Ratio
1,200:1
Dynamic CR
1,000,000:1
Color Gamut
BT709 95 %
Viewing Angle (H x V)
178 º x 178 º
Color Depth (Number of Colors)
1.07 Billion colors, 10 bit (D)
Response Time
8 ms (G to G)
Surface Treatment (Haze)
Haze 28 %
Life time
50,000 Hrs (Typ.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
Yes / Yes
HDMI In
Yes (3 ea)
HDMI In (HDCP Ver.)
2.2/1.4 (HDMI 3 :HDCP 1.4)
DP In
Yes (HDCP 2.2 / 1.3)
DVI-D In
Yes (HDCP 1.4)
Audio In
Yes
RS232C In
Yes (4 Pin Phone Jack)
RJ45(LAN) In
Yes (1 ea)
IR In
Yes
USB In
USB 2.0 Type A (1 ea)
HDMI Out
Yes
Audio Out
Yes
RS232C Out
Yes (4 Pin Phone Jack)
Daisy Chain
Input : HDMI, DP / Output : HDMI
Bezel Color
Black
Bezel Width
Even bezel : 14.9 mm
Weight (Head)
66 kg
Packed Weight
104.5 kg
Monitor Dimension (W x H x D, mm)
2191.8 x 1246.8 x 86.1 (without Handle and LG Logo)
Handle
Yes
VESA™ Standard Mount Interface (mm)
800 x 400
Carton Dimensions (W x H x D, mm)
2342 x 1386 x 420
Internal Memory (eMMC)
16 GB
Wi-Fi/BT (Built-in)
Yes
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Acceleration (Gyro) Sensor
YES
Local Key Operation
YES
OS Ver. (webOS)
webOS 6.0
Local Contents Scheduling
Yes
Group Manager
Yes
USB Plug & Play
Yes
Fail Over
Yes
Booting Logo Image
Yes
No Signal Image
Yes
RS232C Sync
Yes
Local Network Sync
Yes
PIP
Yes
PBP
Yes (4 PBP)
Screen Share
Yes
Video Tag
Yes (4 Video Tag)
Play Via URL
Yes
Screen Rotation
Yes
External Input Rotation
Yes
Gapless Playback
Yes
Tile Mode Setting
Yes (Max.15x15)
Setting Data Cloning
Yes
SNMP
Yes
ISM Method
Yes
Auto Set ID
Yes
Status Mailing
Yes
Control Manager
Yes
Cisco Certification
Yes
Crestron Connected
Yes
Smart Energy Saving
Yes
PM mode
Yes
Wake on LAN
Yes
Network Ready
Yes
BEACON
Yes
HDMI-CEC
Yes
SI Server Setting
Yes
webRTC
Yes
Pro:Idiom
Yes
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240 V~, 50/60 Hz
Power Type
Built-in Power
Max.
620 W
Typ.
420 W
Power off
0.5 W
DPM
0.5 W
Others-BTU (British Thermal Unit)
1434 BTU/Hr (Typ.), 2117 BTU/Hr (Max.)
Smart Energy Saving (70%)
294 W
Speaker (Built-in)
Yes (10 W x 2)
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ERP / Energy Star
Yes (NewErP)
SuperSign CMS
Yes
SuperSign Control+
Yes
SuperSign WB
Yes
SuperSign Cloud
Yes
Mobile CMS
Yes
Connected Care
Yes
OSD
English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Türkçe, Arabic
Basic
Remote Controller (include battery 2 ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, EYE Bolt
