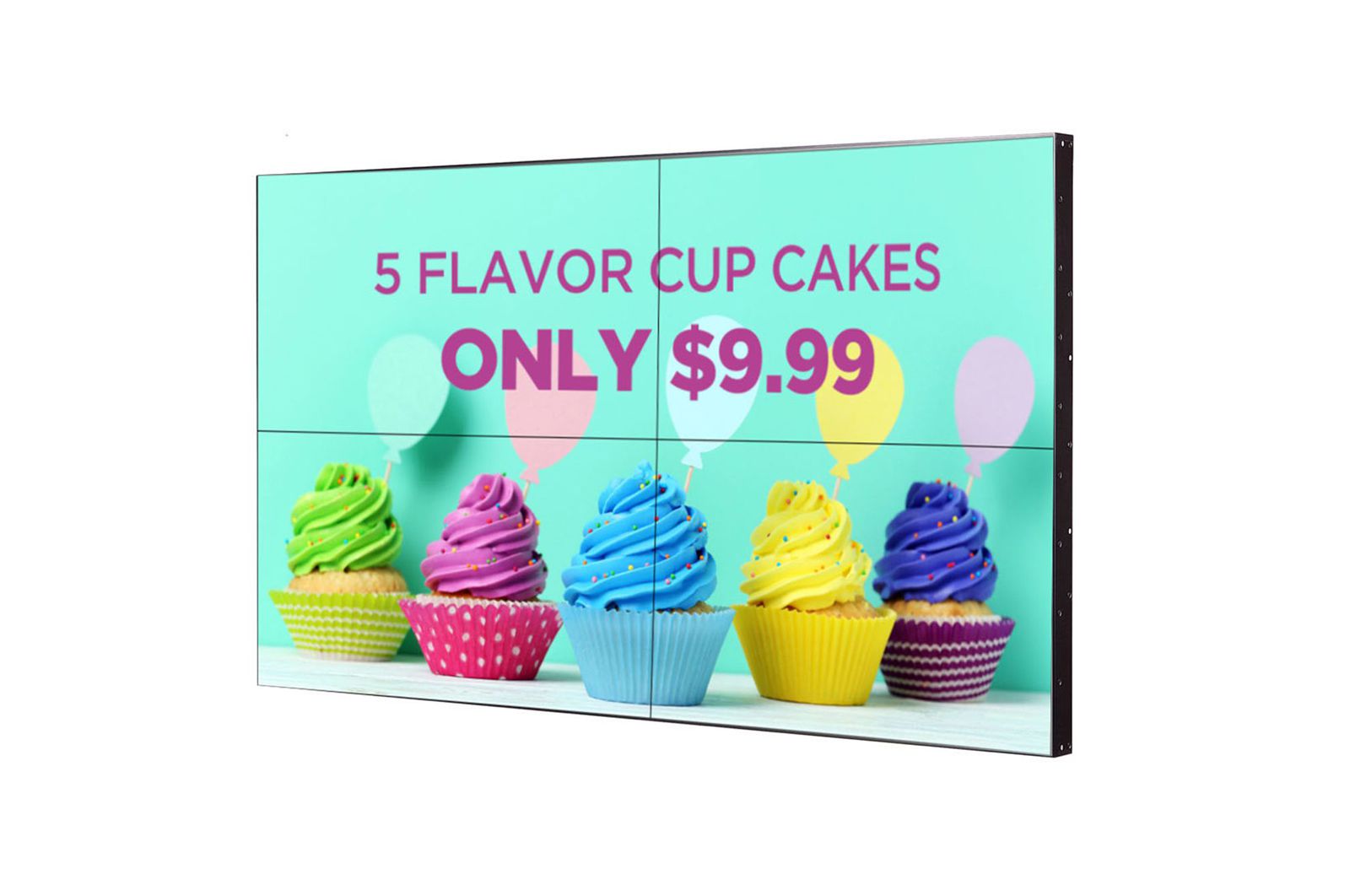

Smart Video Wall with Ultra Narrow Bezel

Smart Video Wall with Ultra Narrow Bezel

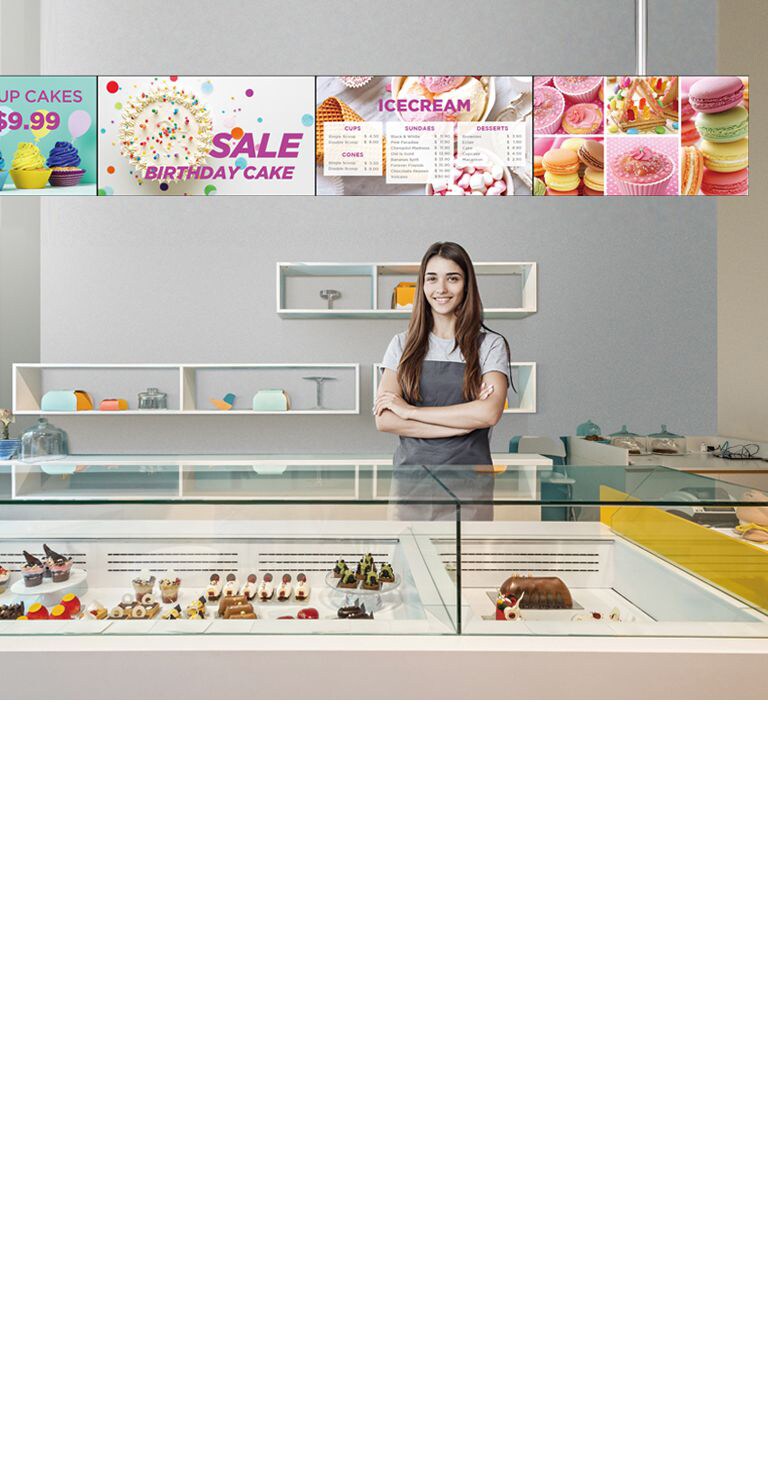

Video walls are key to differentiating your store's image, enriching the shopping experience of consumers, and promoting and displaying products. The 49VL5PJ-A is an optimum model for meeting such demands, with a smart platform that enhances operational efficiency.

Ultra Narrow Bezel1

IMMERSIVE VIEWING EXPERIENCE

Ultra Narrow Bezel

The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.

Smart Video Wall with Ultra Narrow Bezel
IMMERSIVE VIEWING EXPERIENCE

Wide Viewing Angle

Stable image reproduction is critical in video walls, as it is usually installed in places above eye level and is seen from various angles. Thanks to the IPS panel and the high half luminance angle, 49VL5PJ-A delivers the best picture quality from any viewer position.

*The angle from the center of the screen to have 50 % of the initial luminance.

Consistent White Balance1

IMMERSIVE VIEWING EXPERIENCE

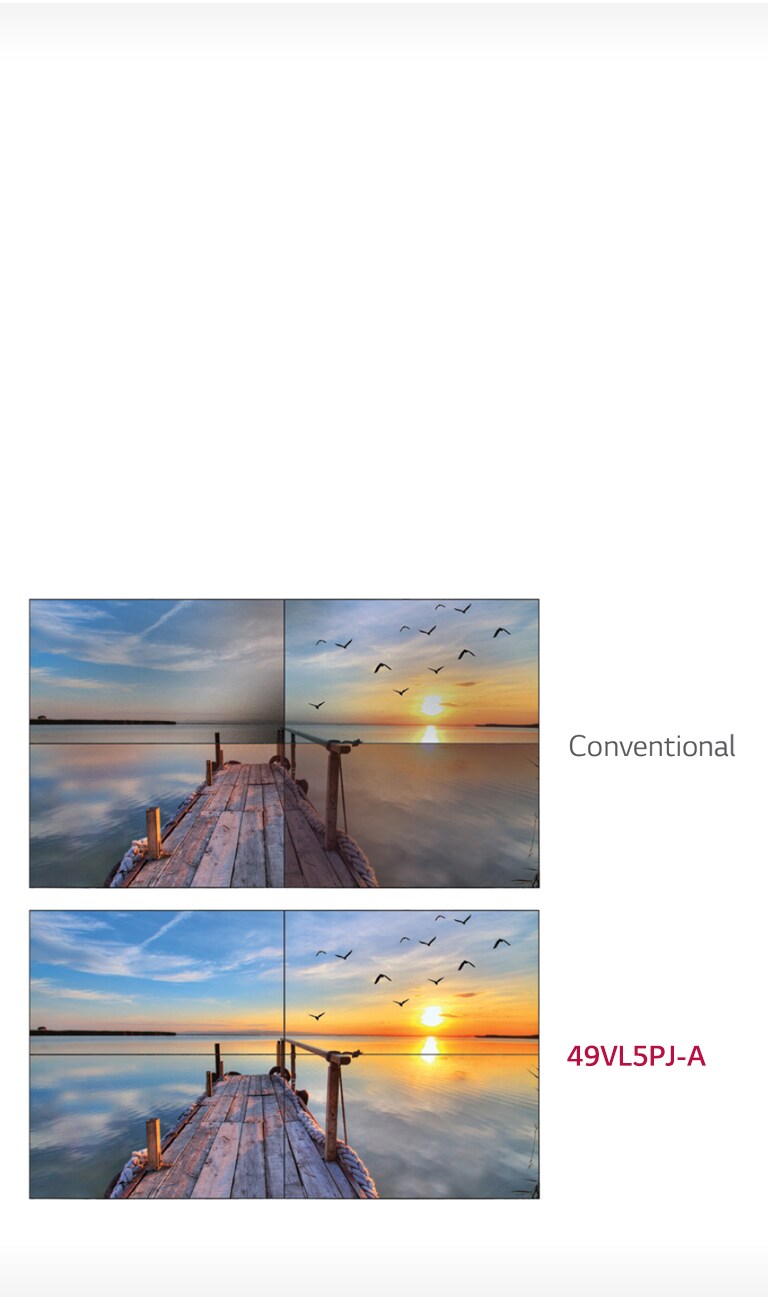

Consistent White Balance

Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.

SMART PLATFORM / ENHANCED USABILITY

High-Performance SoC with webOS

Quad Core SoC* can execute several tasks at the same time without a separate media player, saving TCO. Due to its internal memory, pre-loaded contents are displayed without external inputs. In addition, webOS platform enhances user convenience with intuitive UI and simple app development tools.

*System on Chip.
Dedicated Menu for Video Wall1

SMART PLATFORM / ENHANCED USABILITY

Dedicated Menu for Video Wall

Depending on the content, the color temperature of the screen can be easily adjusted by users with a remote control. Also, the settings for tile mode and white balance become more convenient because the dedicated menu is specialized based on the visual guide.

Daisy Chain Capability1

CONVENIENT MANAGEMENT

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST or Matrox graphics card.

Dust & Humidity Protection1
CONVENIENT MANAGEMENT

Dust & Humidity Protection

Conformal Coating Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.

All Spec

PANEL

  • Screen Size (Inch)

    124.46cm (49)

  • Panel Technology

    IPS

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    1,920X1,080 (FHD)

  • Refresh Rate

    60Hz

  • Brightness

    500nit (Typ.)

  • Contrast Ratio

    1,000:1

  • Dynamic CR

    500,000:1

  • Color Gamut

    NTSC 72%

  • Viewing Angle (H x V)

    178 X 178

  • Color Depth (Number of Colors)

    10bit, 1.07Billion colors

  • Response Time

    8ms(G to G)

  • Surface Treatment (Haze)

    3%

  • Life time

    60,000Hrs (Typ.) / 50,000Hrs (Min.)

  • Operation Hours (Hours/Day)

    24/7

CONNECTIVITY

  • HDMI In

    2

  • HDMI In (HDCP Ver.)

    2.2

  • DP In

    1 (HDCP 2.2)

  • DVI-D In

    1 (HDCP 1.4)

  • Audio In

    1

  • RS232C In

    1

  • RJ45(LAN) In

    1

  • IR In

    1

  • USB In

    USB2.0 Type A(1)

  • DP Out

    1, Input : HDMI / DVI / DP

  • Audio Out

    Yes(1)

  • RS232C Out

    Yes(1)

  • Daisy Chain

    Yes(Input HDMI, DP, DVI / Output DP)

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L/B : 2.25/1.25/2.25/1.25mm

  • Weight (Head)

    17.8Kg

  • Packed Weight

    21.9Kg

  • Monitor Dimensions (W x H x D)

    1077.6 x 607.8 x 89.7mm

  • Handle

    Yes

  • VESA Standard Mount Interface

    600 x 400

  • Carton Dimensions (W x H x D)

    1214 x 778 x 263mm

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    8GB

  • Temperature Sensor

    Yes

  • Acceleration(Gyro) Sensor

    Yes

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS

  • Local Contents Scheduling

    Yes

  • Group Manager

    Yes

  • USB Plug & Play

    Yes

  • Fail Over

    Yes

  • No Signal Image

    Yes

  • RS232C Sync

    Yes

  • Local Network Sync

    Yes

  • Video Tag

    Yes(4)

  • Play Via URL

    Yes

  • Screen Rotation

    Yes

  • External Input Rotation

    Yes

  • Gapless Playback

    Yes

  • Tile Mode Setting

    Yes(Max. 15x15)

  • Setting Data Cloning

    Yes

  • SNMP

    Yes

  • ISM Method

    Yes

  • Auto Set ID

    Yes

  • Status Mailing

    Yes

  • Control Manager

    Yes

  • Crestron Connected

    Yes

  • Smart Energy Saving

    Yes

  • PM mode

    Yes

  • Wake on LAN

    Yes

  • Network Ready

    Yes

  • HDMI-CEC

    Yes

  • SI Server Setting

    Yes

  • webRTC

    Yes

  • Pro:Idiom

    Yes

  • W/B Setting by Grey scale

    Yes

  • Scan Inversion

    Yes

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    375 BTU/Hr(Typ.)

  • Smart Energy Saving (70%)

    70W

  • DPM

    0.5W

  • Power off

    0.5W

  • Typ.

    110W

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ERP / Energy Star

    Yes / x

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign WB

    Yes

  • Connected Care

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek,Türkçe, Arabic

SPECIAL FEATURE

  • IP Rating

    IP5x

  • Conformal Coating (Power Board)

    Yes
