LG VSH7J Series
Contact us

LG VSH7J Series

Contact us

LG VSH7J Series

55VSH7J-H
LG VSH7J Series, 55VSH7J-H
LG VSH7J Series, 55VSH7J-H
LG VSH7J Series, 55VSH7J-H
LG VSH7J Series, 55VSH7J-H
LG VSH7J Series, 55VSH7J-H
LG VSH7J Series, 55VSH7J-H
LG VSH7J Series, 55VSH7J-H
LG VSH7J Series, 55VSH7J-H
LG VSH7J Series, 55VSH7J-H
LG VSH7J Series, 55VSH7J-H
LG VSH7J Series, 55VSH7J-H
LG VSH7J Series, 55VSH7J-H
LG VSH7J Series, 55VSH7J-H
LG VSH7J Series, 55VSH7J-H

Key Features

  • Brightness(Typ.) : 700 cd/m²
  • Bezel : 0.44 mm (Even)
  • Depth : 86.5 mm
  • Interface : HDMI(2)/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
  • Smart Calibration
More
0.44mm EVEN BEZEL VIDEO WALL

0.44mm EVEN BEZEL VIDEO WALL

Making use of LG's pioneering display technology, the 0.44mm Even Bezel Video Wall unlocks great opportunities in various markets, even in places that previously had avoided video walls due to the visible bezels.
Groundbreaking 0.44mm Even Bezel

Groundbreaking 0.44mm Even Bezel

The unprecedented razor-thin bezel – 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look like the actual original image by depicting a subject incredibly true to form, without any distortions.

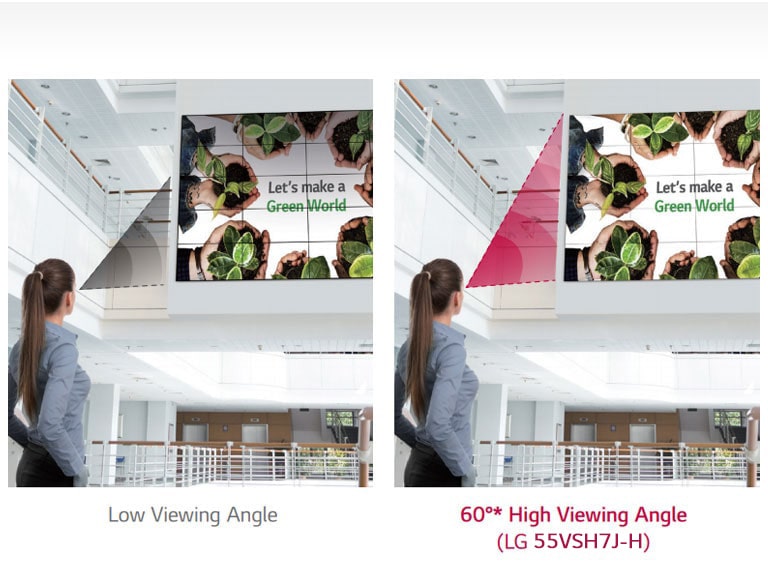

Higher Viewing Angle
VIVID AND DYNAMIC PICTURE QUALITY

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 55VSH7J-H is superior to that of conventional video walls, allowing it to display vivid colors throughout the screen with no distortion.

*Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

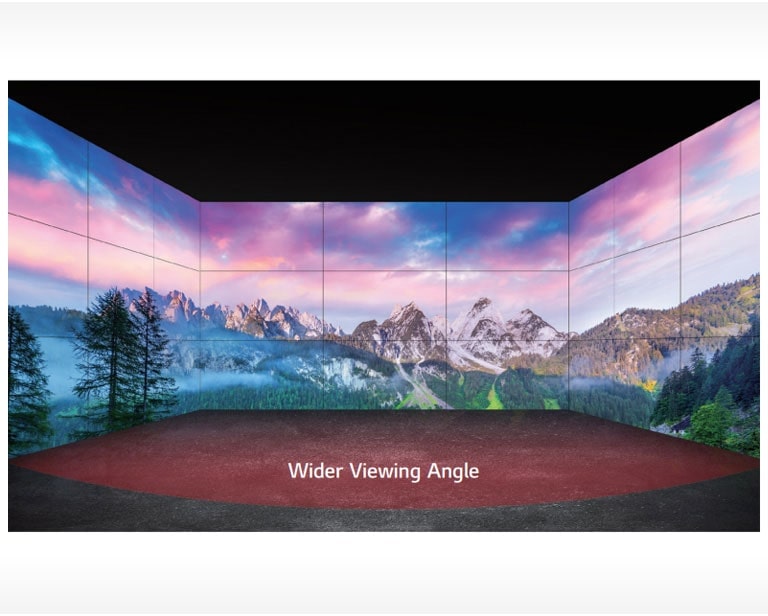

Wider Viewing Angle

VIVID AND DYNAMIC PICTURE QUALITY

Wider Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the 55VSH7J-H captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

Wider Viewing Angle
VIVID AND DYNAMIC PICTURE QUALITY

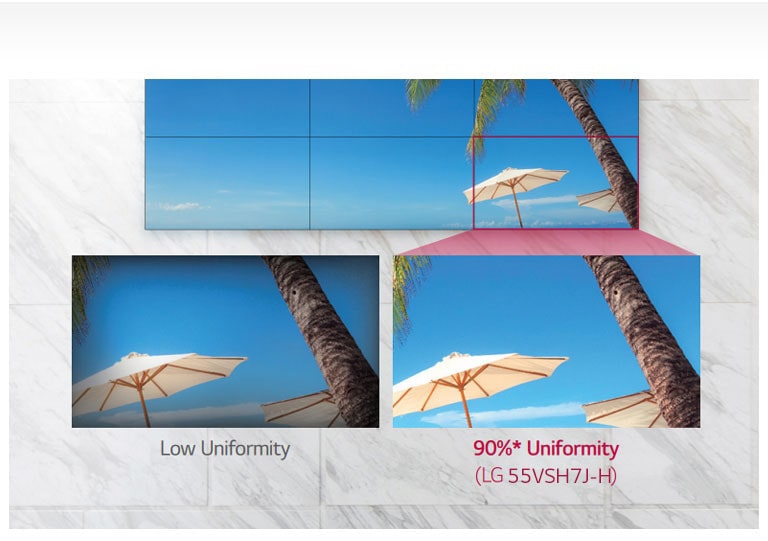

Uniform Color Expression

Poor uniformity around bezel boundaries can give the corners a darker appearance, which doesn't look good on a large screen. However, the 55VSH7J-H has enhanced uniformity, even within the four corners of the display, to deliver vivid and consistent color throughout the screen.

*Uniformity among 13 points of the screen. Results based on in-house testing. Actual test may differ depending on environment and measuring equipment.

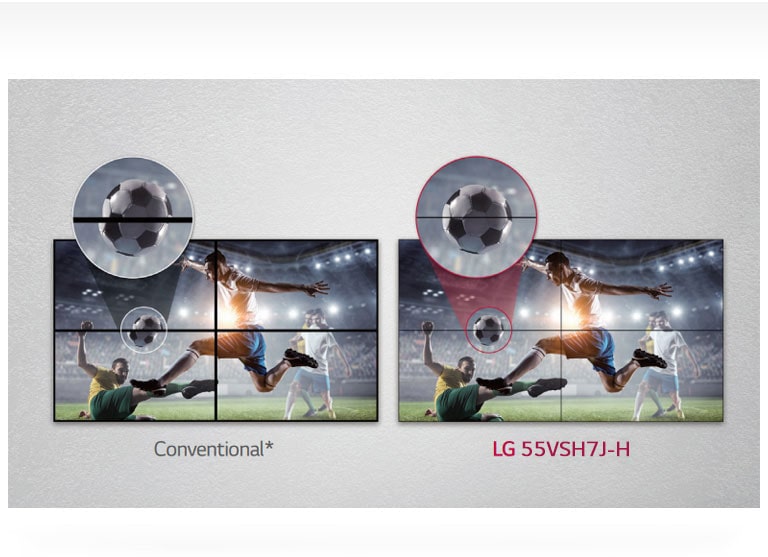

Image Gap Reduction
VIVID AND DYNAMIC PICTURE QUALITY

Image Gap Reduction

The 55VSH7J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

*The "Conventional" refers to displays which do not include an image improvement algorithm.

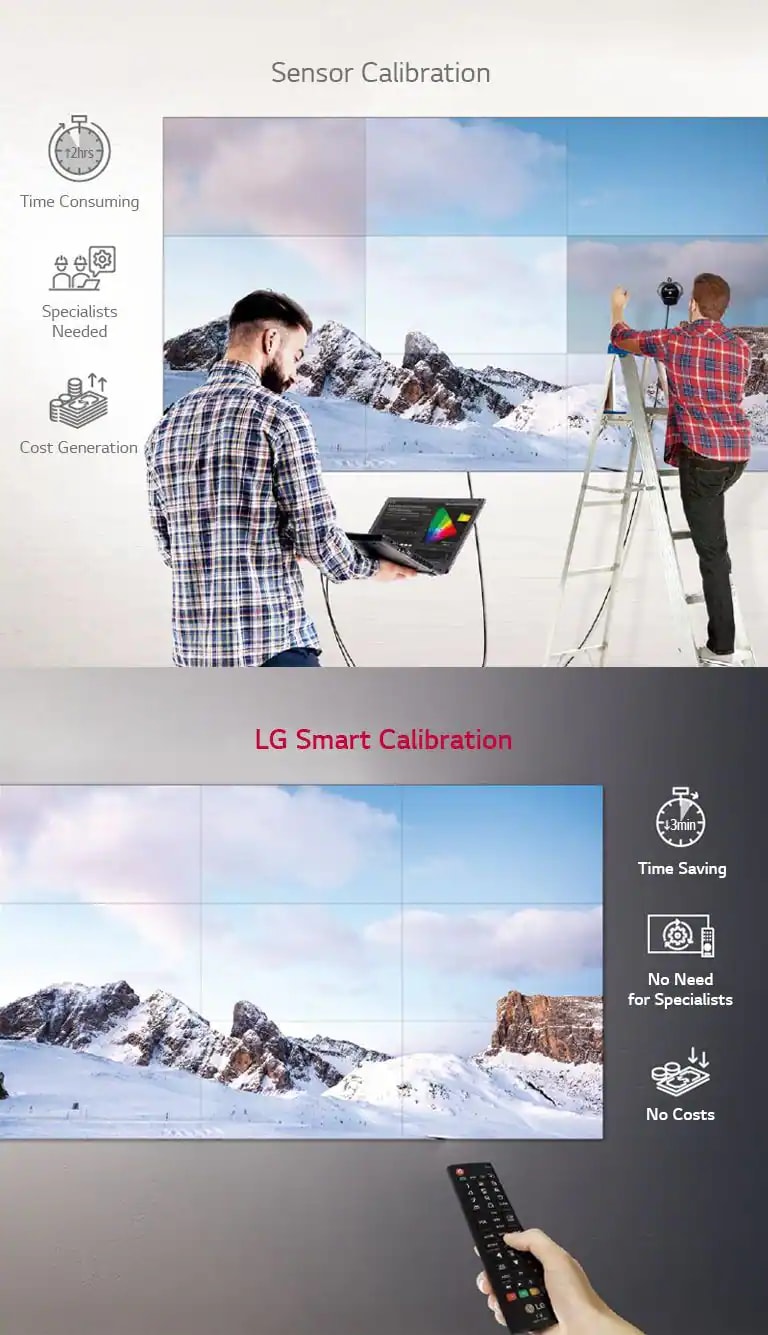

Smart Calibration

Smart Calibration is a solution that enables the reduction of time and costs compared to existing sensor calibration methods. It analyzes not only the color property differences within each individual display but also the differences between connected displays. With just few simple clicks of a remote control, this calibration process can be done in a matter of minutes. In addition, calibration can be set to automatically occur at regular intervals to always deliver optimum image quality.

Smart Calibration

* Depending on the user, the difference in color can be felt after smart calibration. In this case, adjusting the color manually is recommended.

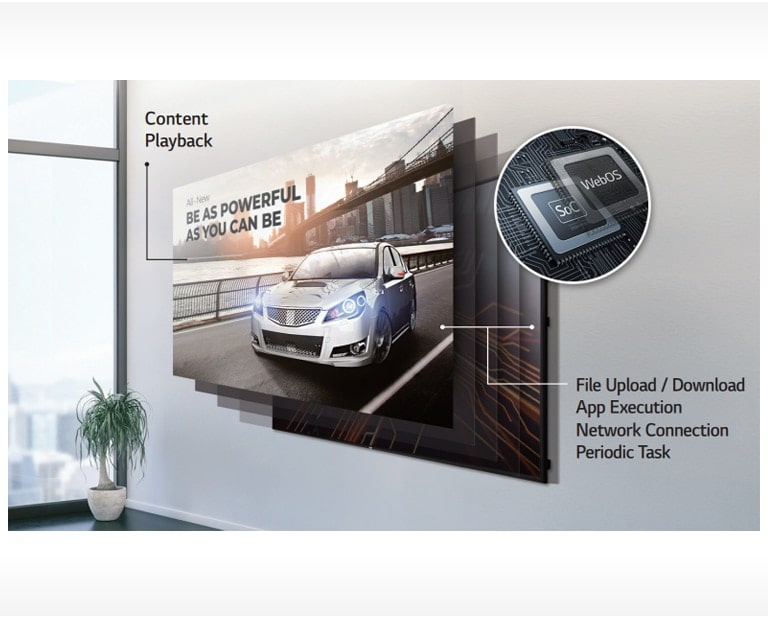

High Performance and Great Scalability

POWERFUL SMART SIGNAGE PLATFORM

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the 55VSH7J-H can execute several tasks at once while providing smooth content playback without the need for a media player.

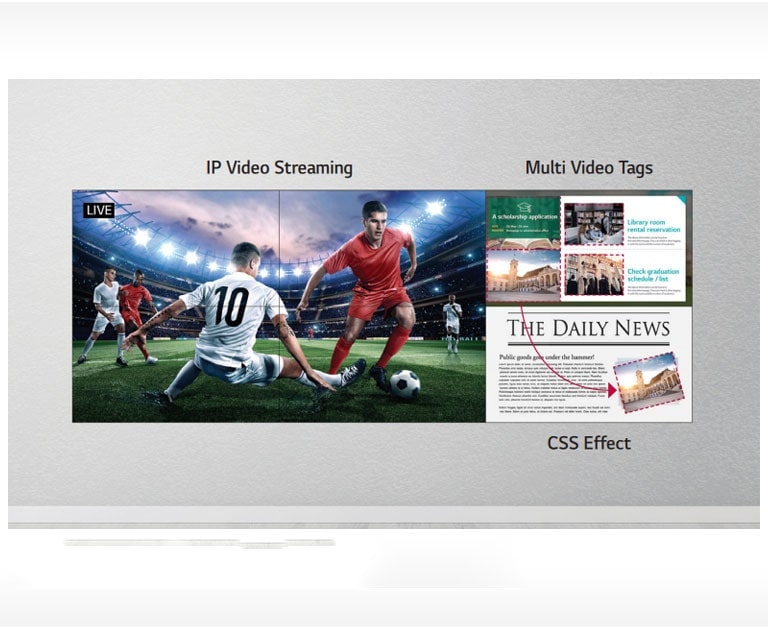

Flexible Content Creation
POWERFUL SMART SIGNAGE PLATFORM

Flexible Content Creation

Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS(Cascading Style Sheets) transition effects. Real-time streaming* is also available, providing the flexibility to organize and diversify content free from capacity limits.

*Supported protocols : RTSP,RTP,HLS,UDP Multicast

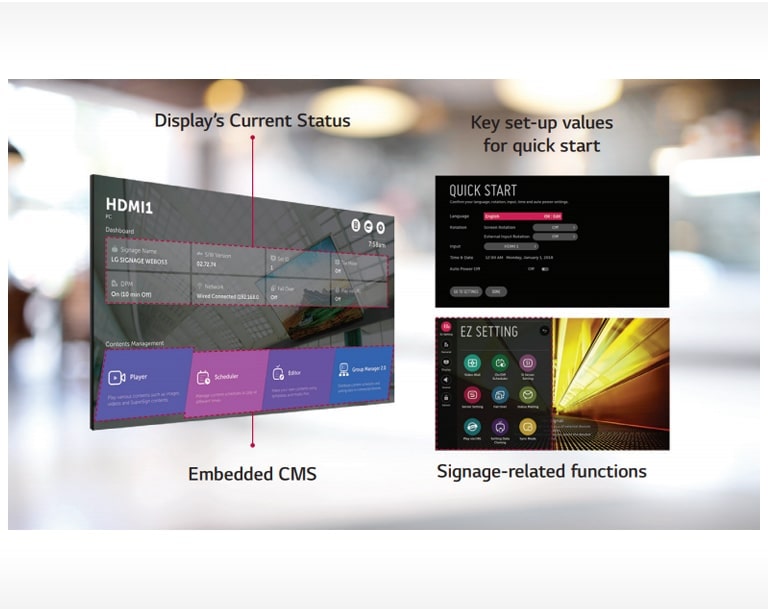

Intuitive Menu Structure
User-Friendly Smart Signage UX

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

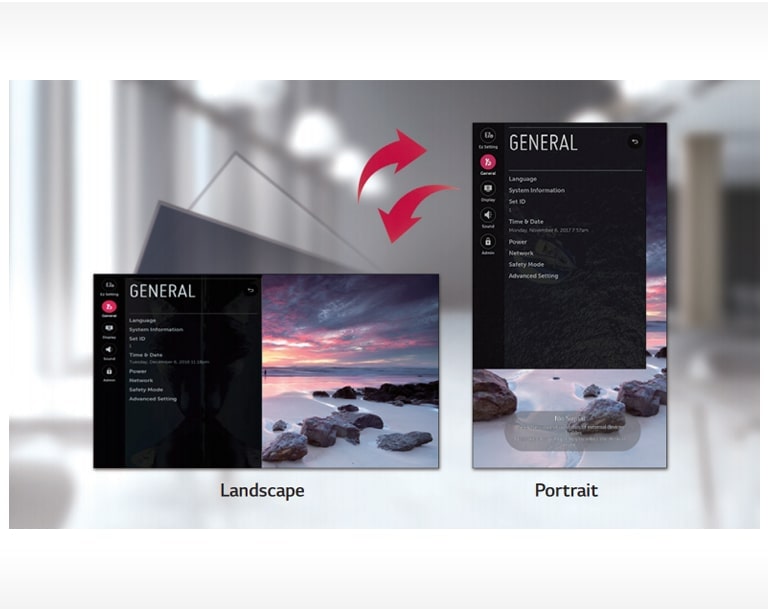

Dedicated GUI for Portrait Orientation
User-Friendly Smart Signage UX

Dedicated GUI for Portrait Orientation

The conventional GUI(Graphic User Interfac ) was designed based on landscape-oriented consumer TV usage, so OSD(On Screen Display) wasn't well-suited for screens in portrait mode. The OSD of the 55VSH7J-H, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable business environment.

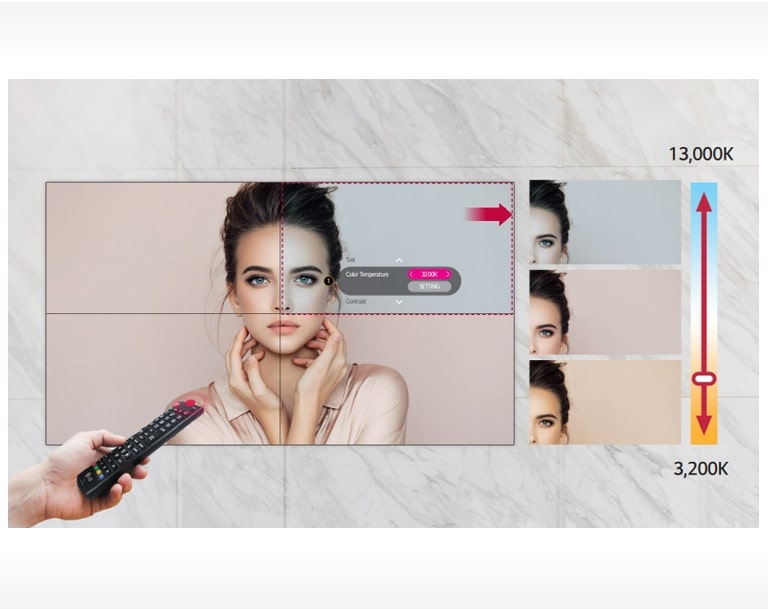

Easy Color Adjustment
USER CONVENIENCE

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

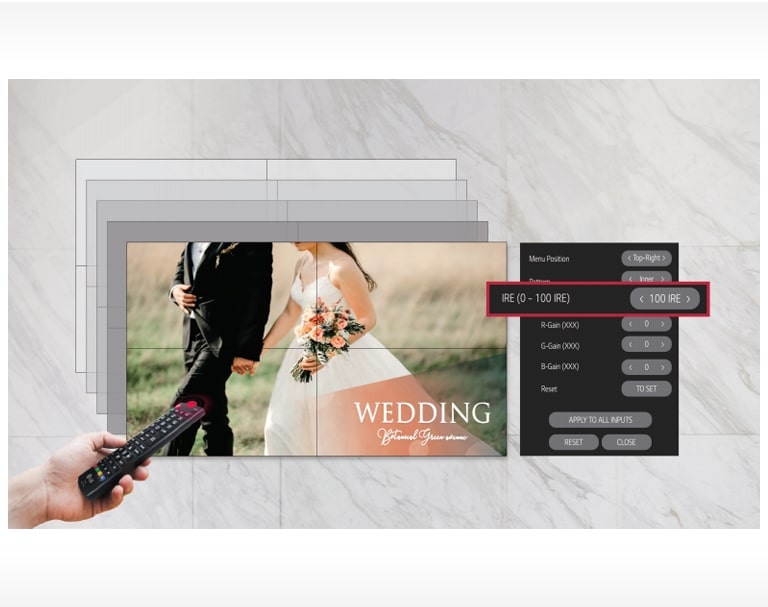

Simple White Balance Adjustment
USER CONVENIENCE

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in full-white mode, but the 55VSH7J-H allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

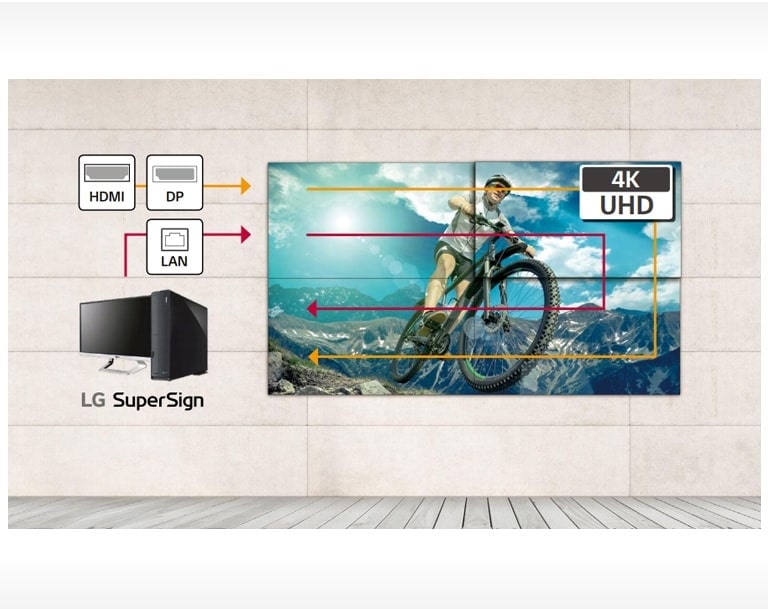

Daisy Chain Capability
USER CONVENIENCE

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST or Matrox graphics card.
USER CONVENIENCE
USER CONVENIENCE

Real-Time Care Service

The maintenance gets easier and faster with an optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

*The availability of "Signage365Care" service can differ by region, so please contact the LG sales representative in your region for further details.

Print

All Spec

SOUND

  • Speaker (Built-in)

    NO

ACCESSORY

  • Basic

    Remote Controller(include battery 2 ea), Power Cord, RS232C cable, Lan cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual

  • Optional

    OPS Kit(KT-OPSF)

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

OPS COMPATIBILITY

  • OPS Type compatible

    YES (Piggyback)

  • OPS Power Built-in

    NO

POWER

  • Power Supply

    AC 100-240 V~, 50/60 Hz

  • Power Type

    Built-in Power

SPECIAL FEATURE

  • Smart Calibration

    YES

  • Conformal Coating (Power Board)

    YES

  • Direct Sunlight

    N/A

  • IP Rating

    IP5X tested

  • Overlay Touch Compatibility

    N/A

  • Power Protection

    N/A

  • Tilt (Face down)

    N/A

  • Tilt (Face up)

    N/A

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

FEATURE - HARDWARE

  • Wi-Fi/BT (Built-in)

    NO

  • Acceleration (Gyro) Sensor

    YES

  • Auto Brightness Sensor

    NO

  • BLU Sensor

    YES

  • Current Sensor

    NO

  • FAN (Built-in)

    NO

  • Humidity Sensor

    NO

  • Internal Memory (eMMC)

    8 GB

  • Local Key Operation

    YES

  • Pixel Sensor

    NO

  • Power Indicator

    NO

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

CERTIFICATION

  • ERP / Energy Star

    YES / Energy Star 8.0

  • EMC

    FCC Class "B" / CE / KC

  • ePEAT (US only)

    NO

  • Safety

    CB / NRTL

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

  • Mobile CMS

    NO

  • SuperSign Cloud

    NO

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

CONNECTIVITY

  • RJ45 (LAN) In

    YES (1 ea)

  • Audio In

    YES

  • Audio Out

    YES

  • Daisy Chain

    Input : HDMI, DP, DVI-D / Output : DP

  • DP In

    YES (HDCP 2.2)

  • DP Out

    YES

  • DVI-D In

    YES (HDCP 1.4)

  • External Speaker Out

    NO

  • HDMI In

    YES (2 ea)

  • HDMI In (HDCP Ver.)

    2.2

  • HDMI Out

    NO

  • IR In

    YES

  • IR Out

    NO

  • RGB In

    NO

  • RJ45 (LAN) Out

    YES

  • RS232C In

    YES

  • RS232C Out

    YES

  • Touch USB

    NO

  • USB In

    USB 2.0 Type A (1 ea)

MECHANICAL SPECIFICATION

  • VESA™ Standard Mount Interface (mm)

    600 x 400 mm

  • Bezel Color

    Black

  • Bezel Width

    Even bezel : 0.44 mm

  • Carton Dimensions (W x H x D, mm)

    1353 x 855 x 263 mm

  • Handle

    YES

  • Monitor Dimensions (W x H x D, mm)

    1210.51 x 681.22 x 86.5 mm

  • Monitor Dimension with Stand (W x H x D, mm)

    N/A

  • Packed Weight

    23.6 Kg

  • Weight (Head)

    18.4 Kg

  • Weight (Head+Stand)

    N/A

PANEL

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Aspect Ratio

    16:9

  • Back Light Type

    Direct

  • Brightness

    700 nit (Typ.)

  • Color Gamut

    NTSC 72 %

  • Dynamic CR

    500,000:1

  • Native Resolution

    1920 x 1080 (FHD)

  • Operation Hours (Hours/Day)

    24/7

  • Panel Technology

    IPS

  • Portait / Landscape

    YES / YES

  • QWP (Quarter Wave Plate)

    N/A

  • Refresh Rate

    60 Hz

  • Response Time

    8 ms (G to G)

  • Screen Size

    139 cm (55)

  • Surface Treatment (Haze)

    Haze 28 %

  • Transparency

    N/A

  • Viewing Angle (H x V)

    178 º x 178 º

FEATURE - SOFTWARE

  • Scan Inversion

    YES

  • Auto Set ID

    YES

  • Backlight Sync

    NO

  • BEACON

    NO

  • Booting Logo Image

    NO

  • Brightness Compensation

    NO

  • Cisco Certification

    NO

  • Control Manager

    YES

  • Crestron Connected

    YES

  • External Input Rotation

    YES

  • Fail Over

    YES

  • Gapless Playback

    YES

  • Group Manager

    YES

  • HDMI-CEC

    YES

  • ISM Method

    YES

  • Local Contents Scheduling

    YES

  • Local Network Sync

    YES

  • Network Ready

    YES

  • No Signal Image

    YES

  • OS Ver. (webOS)

    webOS 4.1

  • PBP

    NO

  • PIP

    NO

  • Play Via URL

    YES

  • PM mode

    YES

  • Pro:Idiom

    YES

  • RS232C Sync

    YES

  • Screen Rotation

    YES

  • Screen Share

    NO

  • Setting Data Cloning

    YES

  • SI Server Setting

    YES

  • Smart Energy Saving

    YES

  • SNMP

    YES

  • Status Mailing

    YES

  • Tile Mode Setting

    YES

  • USB Plug & Play

    YES

  • Video Tag

    YES (4 Video Tag)

  • Wake on LAN

    YES

  • webRTC

    YES

  • W/B Setting by Grey scale

    YES

POWER CONSUMPTION

  • Others - BTU (British Thermal Unit)

    717 BTU/Hr(Typ.), 853 BTU/Hr(Max.)

  • DPM

    0.5 W

  • Max.

    250 W

  • Power off

    0.5 W

  • Smart Energy Saving (70%)

    110 W

  • Typ.

    210 W

Leaflet

extension : pdf
Information_Display_Range_Catalogue_250221.pdf
Download

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
