Key Features
The LED screen is prominently displayed across two sides of the building's exterior. Even though it is installed wrapping around the corner, the content appears seamless without interruption. Despite the bright sunlight and the high-mounted position, its visibility and clarity remain excellent.
*All images in this page are for illustrative purposes only.
Ideal for long-distance visibility, our GSPA6.6/10.0 models are perfect for large billboards and mid-to-high building facades. Capture attention from a distance with crisp, clear text and vibrant visuals.
Compared to LG’s traditional model, power consumption has decreased by more than 21%*, based on the same brightness. This means that operating costs are significantly reduced.
* Power consumption improvement is compared to the LG GSEG100-GS model.;

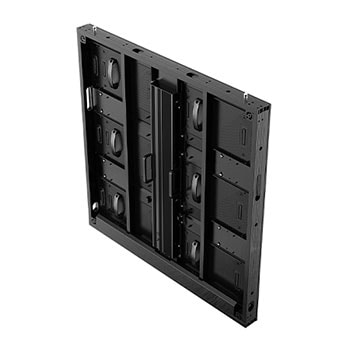

The GSPA series offers two sizes of cabinets, allowing for a screen size configuration that perfectly meets customer demands. Both side-cut cabinets can also be used as described. The GSPA series integrates seamlessly into the space and delivers smooth content to customers.
Optionally, users can choose among several models, such as P10 / 10,000 cd/m², P10 / 8,000 cd/m², P6.6 / 8,000 cd/m², and P6.6 / 6,000 cd/m². It can also be optimized for screen time, region, regulations, and power consumption, depending on different environmental conditions. The P10 operates at temperatures up to 60°C and can be reliably installed at altitudes of up to 5,000 meters.
* Brightness options are set before shipment from the factory, and cannot be changed after installation.
When connected with LG's CVGA system controller, the GSPA series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
The LG employee is remotely monitoring the GSPA series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables the GSPA series to be compatible with LG software solutions.
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
*The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
*Actual GUI may vary in different webOS versions.
*LG Software solutions needs to be purchased separately.
Certification
CE, CB, ETL, FCC,
Controller
CVGA
Frame Rate (Hz)
50 / 60
Heat Dissipation (BTU/h/Cabinet, Avg.)
526
Heat Dissipation (BTU/h/Cabinet, Max.)
1,583
Heat Dissipation (BTU/h/㎡, Max.)
1,720
Power Consumption (W/Cabinet, Avg.)
193
Power Consumption (W/Cabinet, Max.)
580
Power Consumption (W/㎡, Max.)
630
Power Supply (V)
100 to 240
Refresh Rate (Hz)
3,840
Environment
RoHS, REACH, UAE RoHS
Model name
GSPA100
LED Lifetime (Half brightness)
100,000
IP rating Front
IP66
IP rating Rear
IP66
Operating Humidity
10~90 % RH
Operating Temperature(℃)
-30 ℃ to +60 ℃
Brightness Uniformity(%)
0.97
Color Temperature (K)
3,200 ~ 9,300
Color Uniformity
±0.003 Cx,Cy
Contrast Ratio
15,000 : 1
Max Brightness (After Calibration, nit)
Max. 8000 cd/m² (8000 nits)
Processing Depth (bit)
14 (HDR10, HDR10 Pro)
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Cabinet Dimensions (W x H x D, mm)
960 x 960 x 68
Cabinet material
Aluminum
Cabinet Resolution (WxH)
96 x 96
Cabinet Surface Area (㎡)
0.92
Flatness of Cabinet (mm)
±0.5
Module Dimensions(WxH,mm)
480 x 320
Module Resolution (WxH)
48 x 32
No. of Modules per Cabinet (WxH)
2 x 3
Physical Pixel Density (pixels/㎡)
10,000
Pixel Configuration
3 in1 SMD
Pixel Pitch (mm)
P 10.0
Service access
Front & Rear
Weight per Cabinet (kg/unit)
20.5
Weight per Module (kg)
1.65
Weight per Square Meter (kg/㎡)
22.5
To access more technical documentation and resources, please visit the LG B2B Partner Portal.
