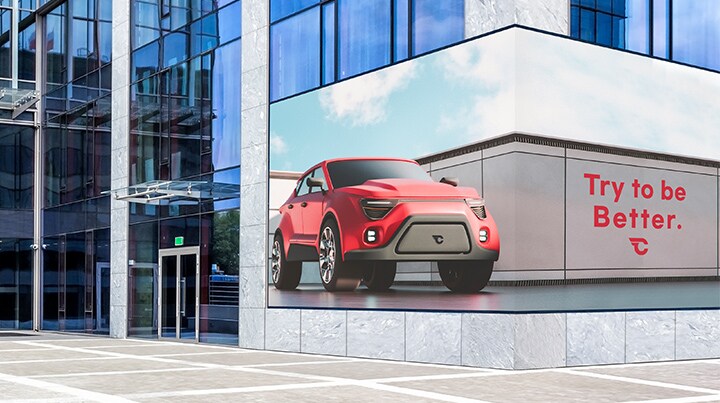

The LED screen is positioned at eye level near the bottom of the building, spanning two sides. Despite being installed across a corner, it displays content vividly without interruptions.
* All images in this page are for illustrative purposes only.

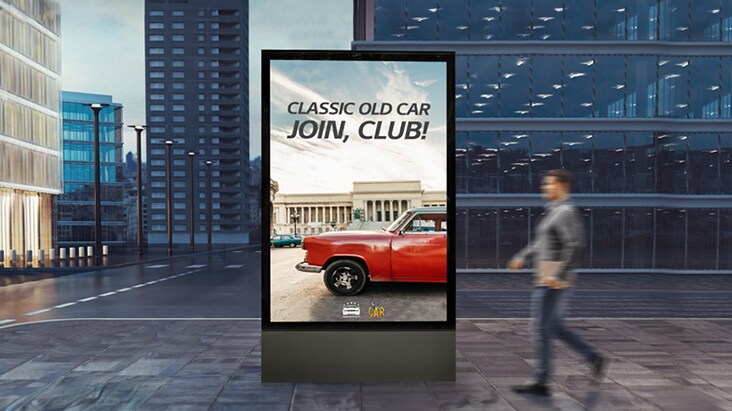

Unlike traditional large-scale screens that are typically installed at a height for visibility, the GSPC series features a low pixel pitch of 2.98 mm, allowing for installation at eye level and enabling clear image display even on smaller screens.
Compared to LG’s traditional model, power consumption has decreased by more than 27%*, based on the same brightness. This means that operating costs can be significantly reduced.
* Power consumption improvement is compared to the LG GSCF026-GP model.
* Test Information Details (1) Testing Institution: LGE Internal, (2) Testing Criteria: Power consumption measured while operating at 5,500 nits brightness (full white, after calibration), (3) Model Names: GSPC029-GA, GSCF026-GP, (4) Test Results: Each below 520 W/sqm, below 720 W/sqm
* Actual results may vary depending on the use environment.

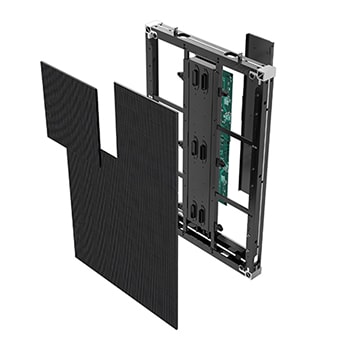

The GSPC series offers three sizes of cabinets, allowing for a screen size configuration that perfectly meets customer demands. Both side-cut cabinets can also be used as described. The GSPC series integrates seamlessly into the installation place and clear content to customers.

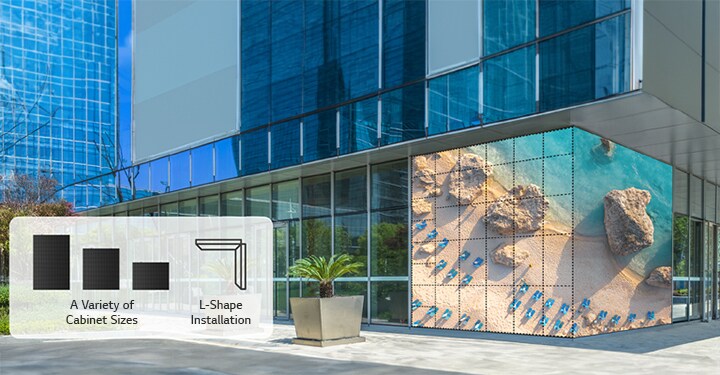

The use of three cabinet sizes and an L-shaped installation enables the LED screen to be seamlessly mounted on the building's cornered wall.
When connected with LG's CVGA system controller, the GSPC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

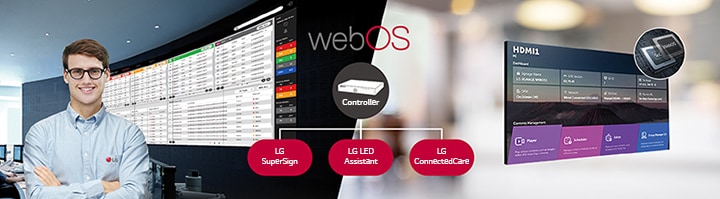

The LG employee is remotely monitoring the GSPC series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables the GSPC series to be compatible with LG software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.
Model name
GSPC029
Cabinet Dimensions (W x H x D, mm)
500 x 1000 x 68
Cabinet material
Aluminum
Cabinet Resolution (WxH)
168 x 336
Cabinet Surface Area (㎡)
0.5
Flatness of Cabinet (mm)
±0.2
Module Dimensions(WxH,mm)
250 x 250
Module Resolution (WxH)
84 x 84
No. of Modules per Cabinet (WxH)
2 x 4
Physical Pixel Density (pixels/㎡)
112,896
Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
2.98

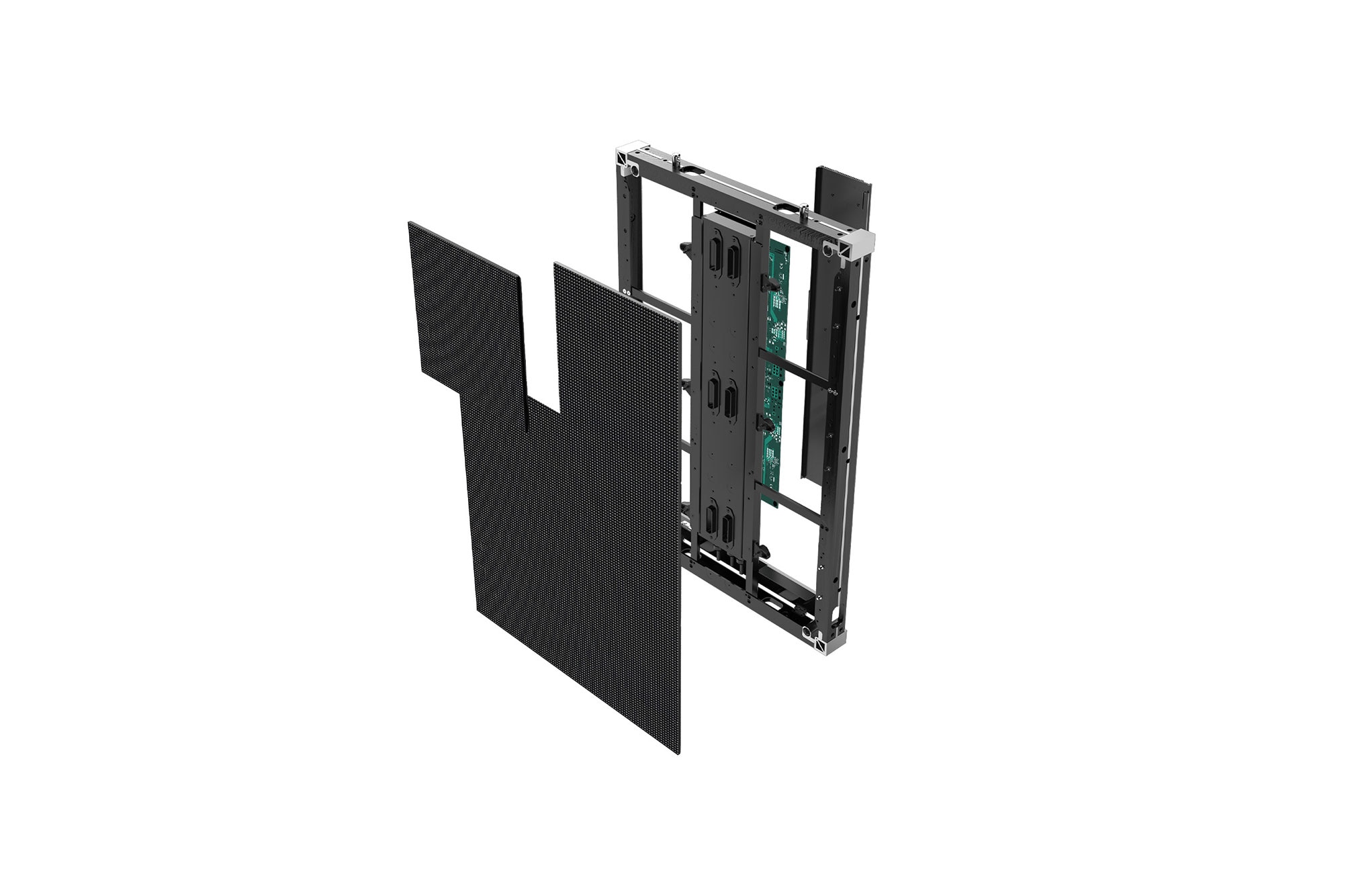

Service access
Front and Rear
Weight per Cabinet (kg/unit)
16
Weight per Module (kg)
1
Weight per Square Meter (kg/㎡)
32
Brightness Uniformity(%)
97
Color Temperature
3200-9300 k
Color Temperature (K)
3200 - 9300
Color Uniformity
±0.003 Cx,Cy
Contrast Ratio
10,000:1
Max. Brightness (After Calibration)
5500 nit
Max Brightness (After Calibration, nit)
5,500
Processing Depth (bit)
14 (HDR10, HDR10 Pro)
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Frame Rate (Hz)
50 / 60
Heat Dissipation (BTU/h/Cabinet, Avg.)
297
Heat Dissipation (BTU/h/Cabinet, Max.)
887
Heat Dissipation (BTU/h/㎡, Max.)
1,774
Power Consumption (W/Cabinet, Avg.)
87
Power Consumption (W/Cabinet, Max.)
260
Power Consumption (W/㎡, Max.)
520
Power Supply (V)
100 to 240
Refresh Rate (Hz)
3,840
LED Lifetime (Half brightness)
100,000
IP rating Front
IP66
IP rating Rear
IP66
Operating Humidity
10~90 % RH
Operating Temperature(℃)
-30 ℃ to +50 ℃
Certification
CE, CB, ETL, FCC, BIS
Environment
RoHS, REACH
90 degree corner cut
Optional
