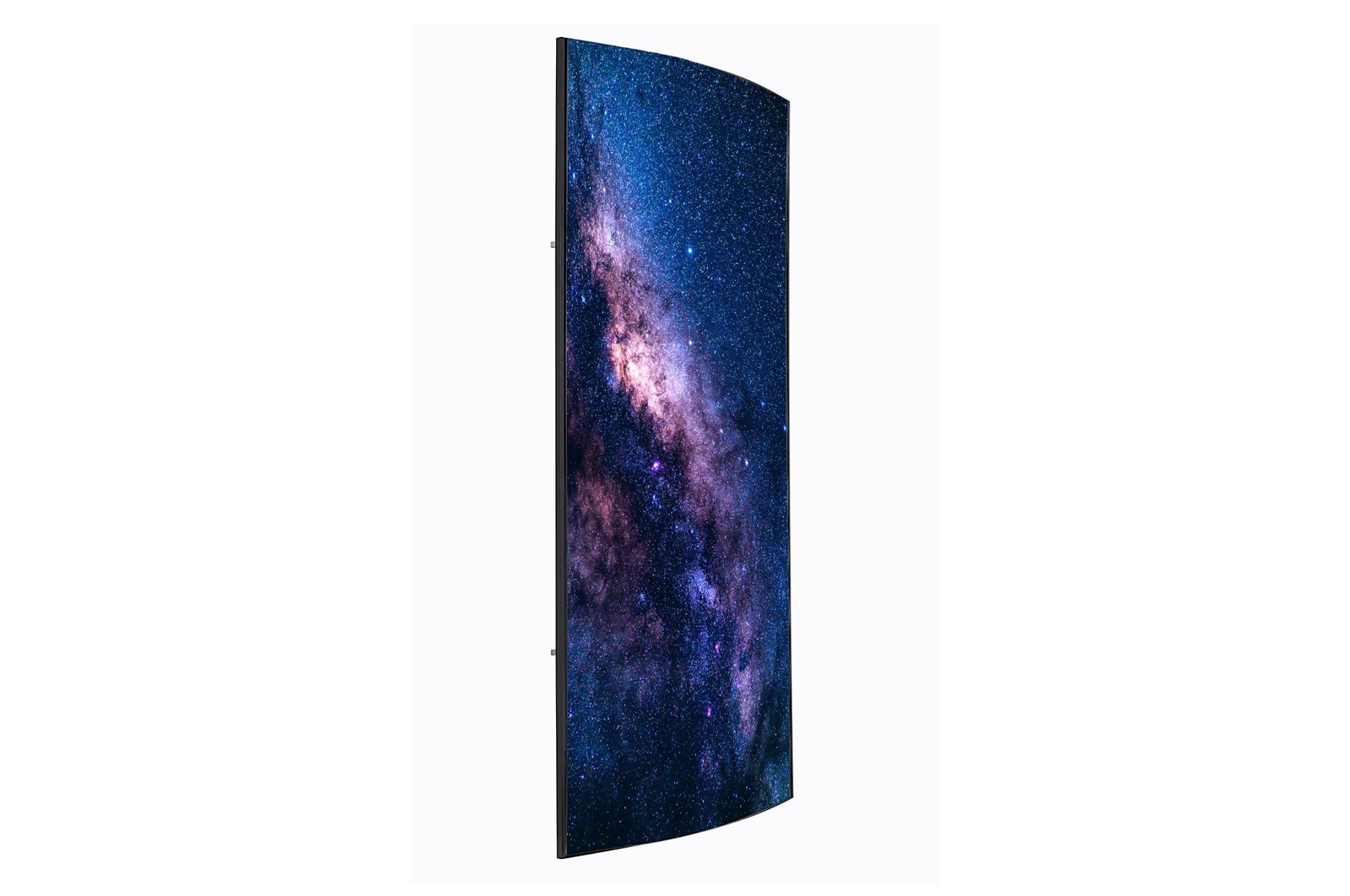

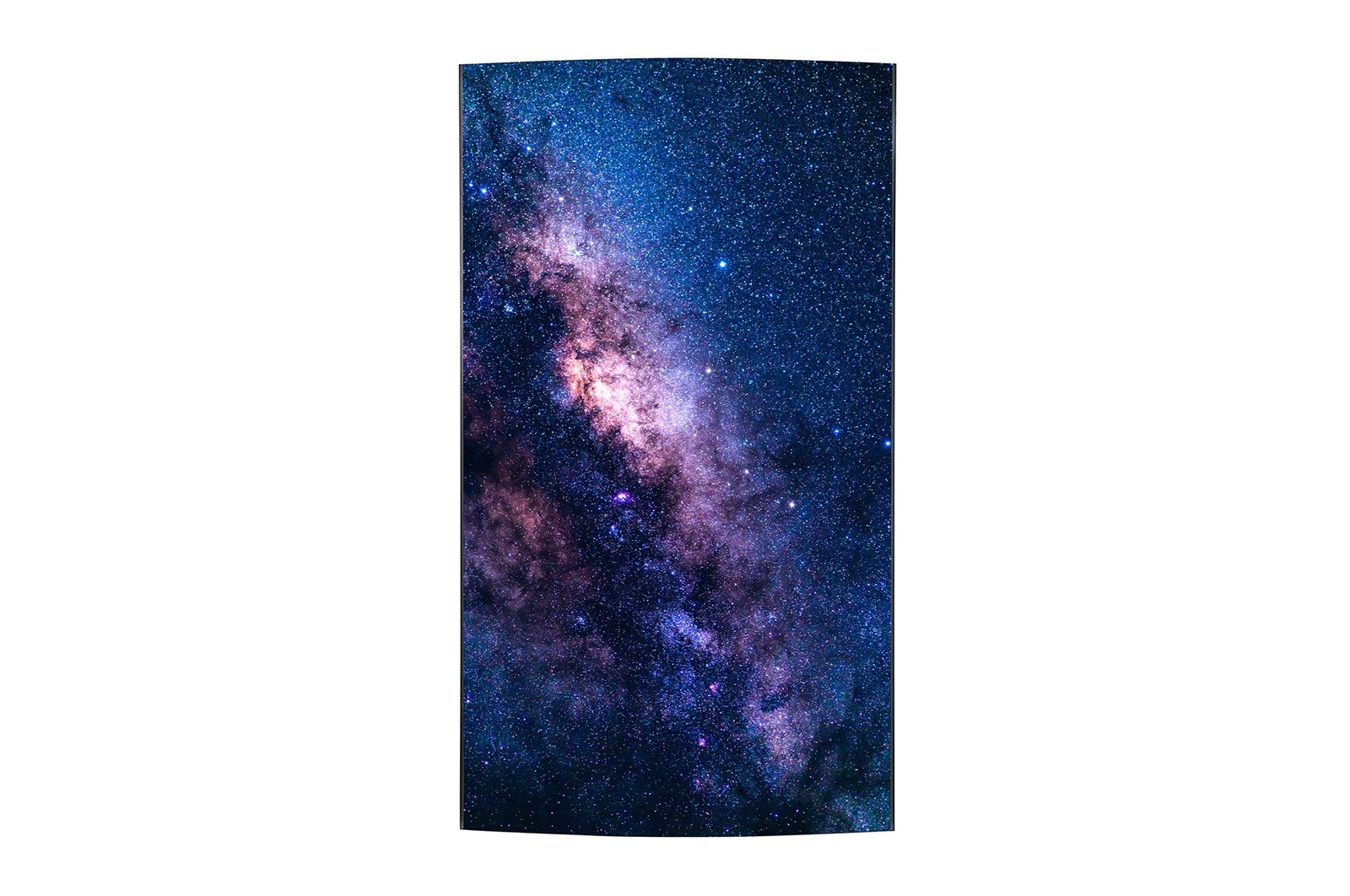

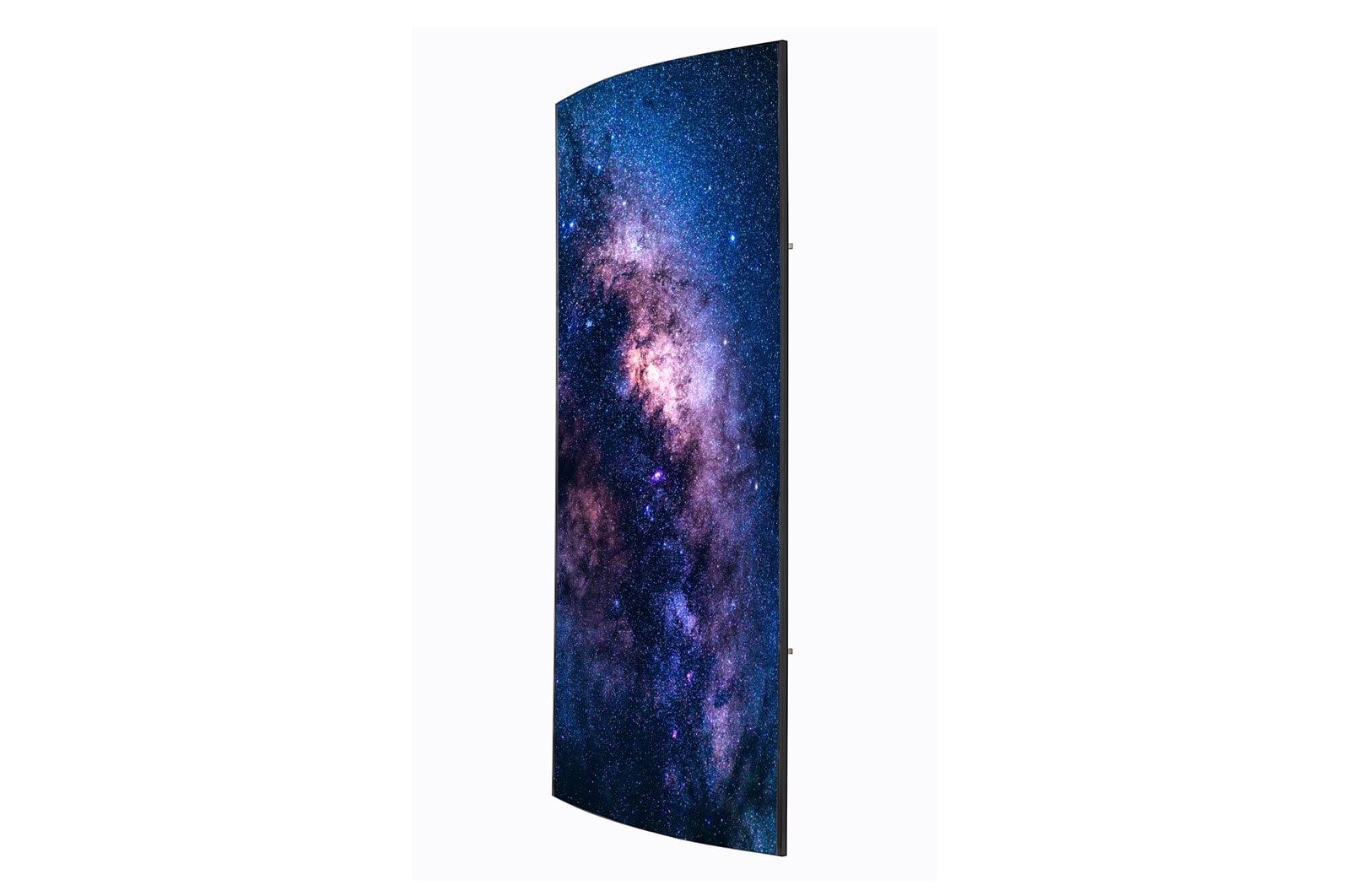

LG Curvable OLED Signage

55EF5G-P

Key Features

Brightness: 150/400nit (APL 100%/25%)

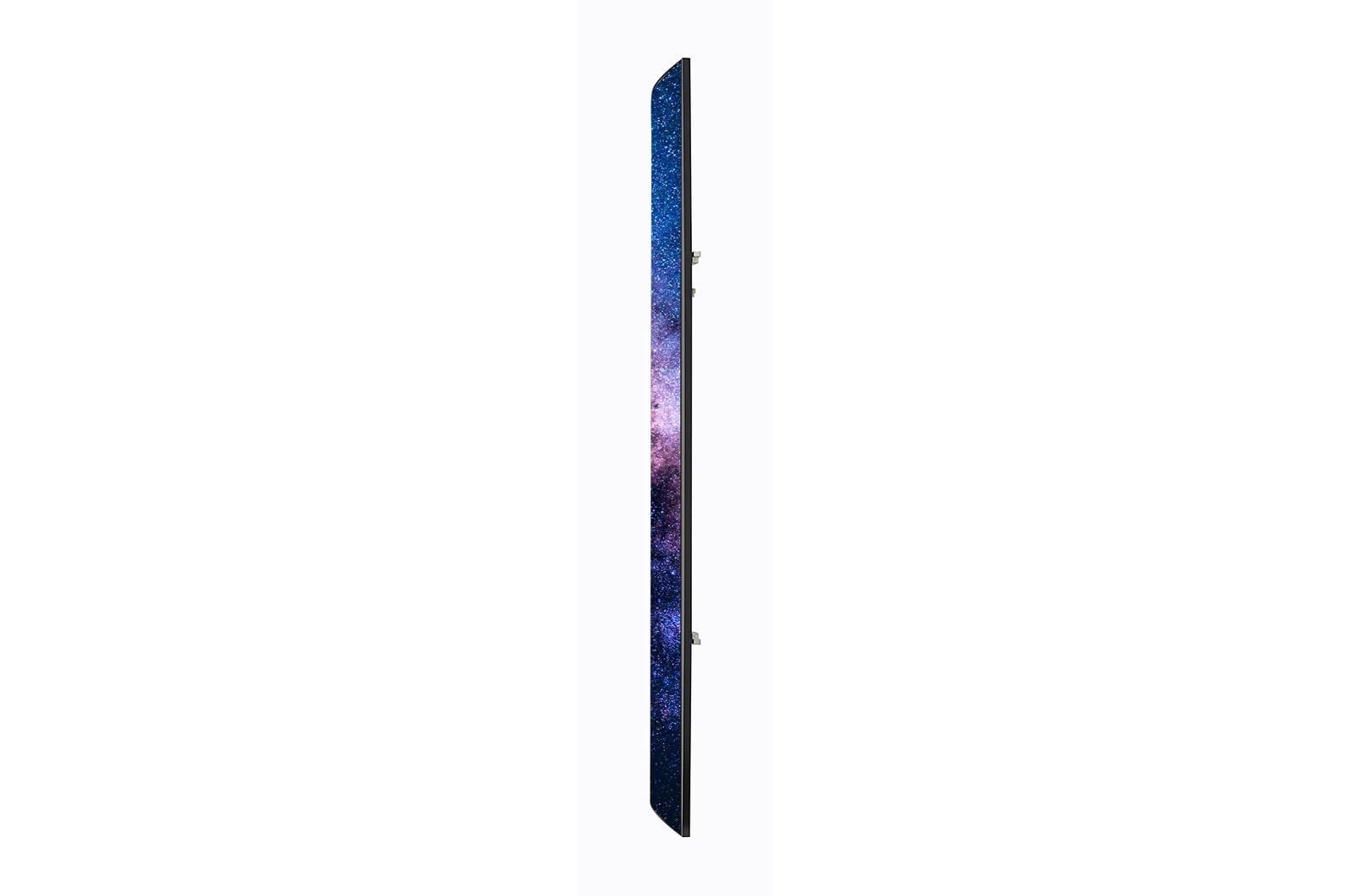

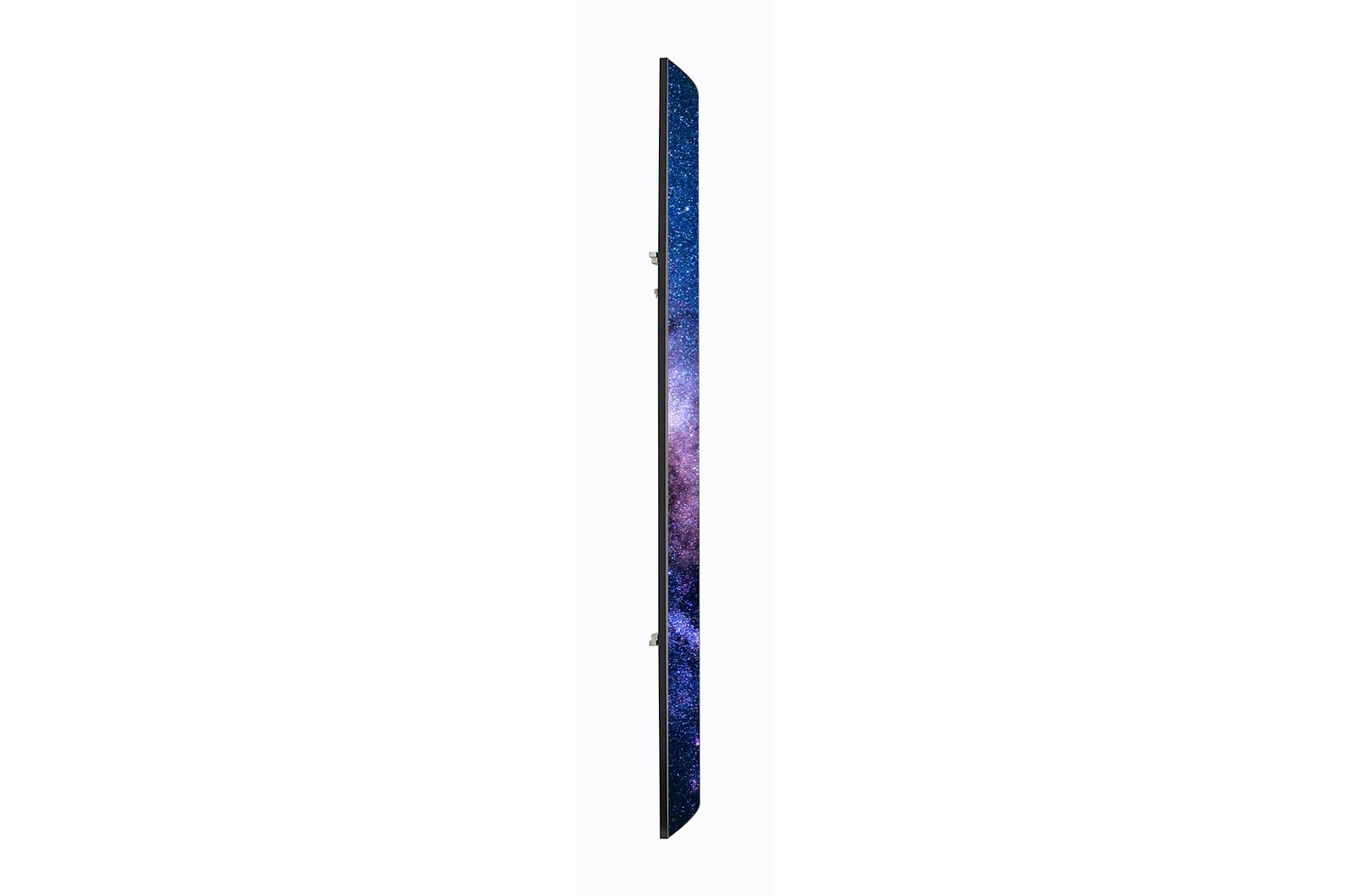

Depth: 12.4 mm (Head Only)
Curvature: ~1,000R(Concave/convex)
Interface: USB2.0 Type A(2), RJ45, IR

*All images are for illustrative purposes only.

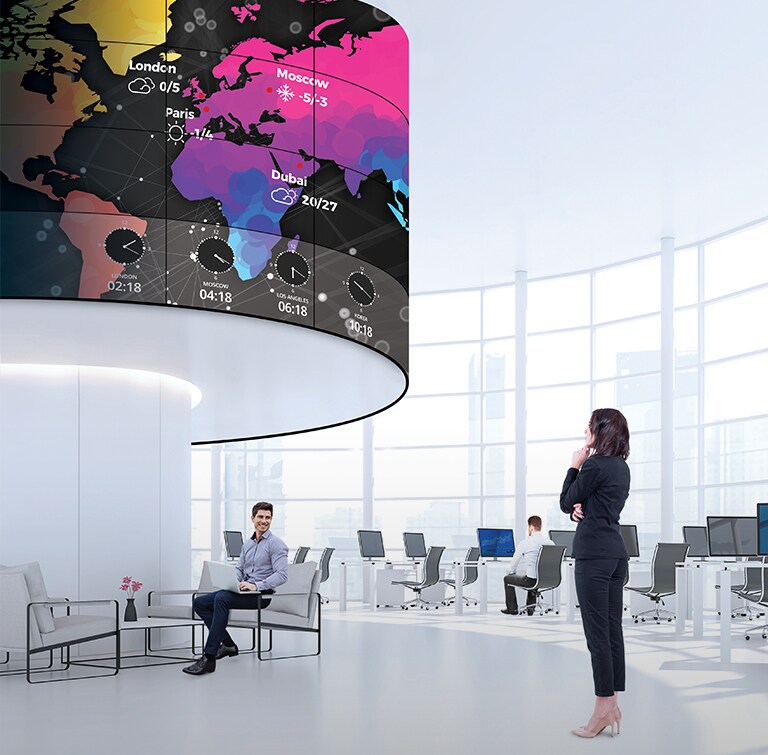

Blending in with the space while captivating everyone’s mind. LG OLED signage offers flexible design. Beyond its informative features, LG OLED signage delivers unsurpassed advertising effectiveness, redesigning space as a prestige enhancing landmark with perfect colors and innovative forms.

UNRIVALED PICTURE QUALITY

Absolute Black

Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.

UNRIVALED PICTURE QUALITY

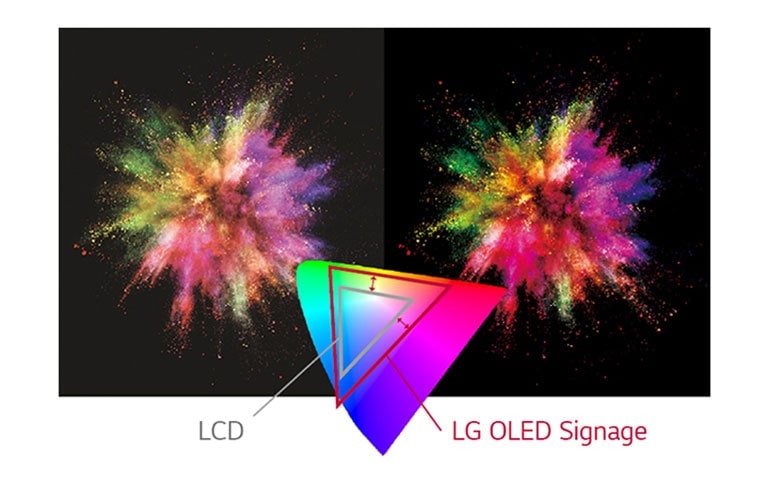

Rich Color

LG OLED Signage provides richness in all colors, bringing colors to life with great accuracy and vividness.

SPACE-FITTING DESIGN

Splendid Design

LG OLED technology doesn’t require a backlight unit nor a liquid crystal layer so it offers a flexible design with unbelievably lightweight and slim features.

SPACE-FITTING DESIGN

Expandable Screen Size

The screen size can be as large as users want by tiling up displays horizontally and vertically. This provides viewers with an incredibly immersive viewing experience.

DESIGN FLEXIBILITY

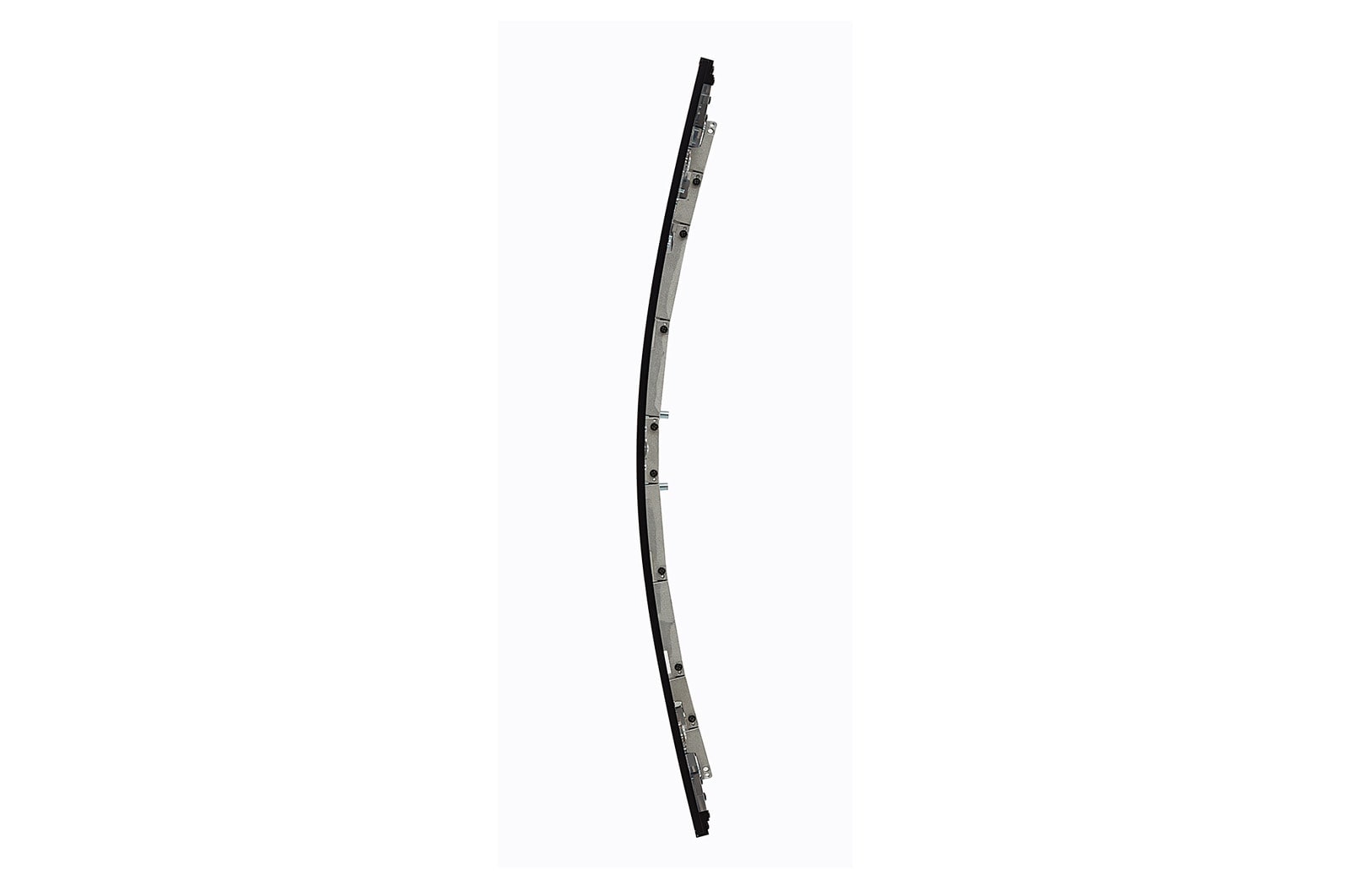

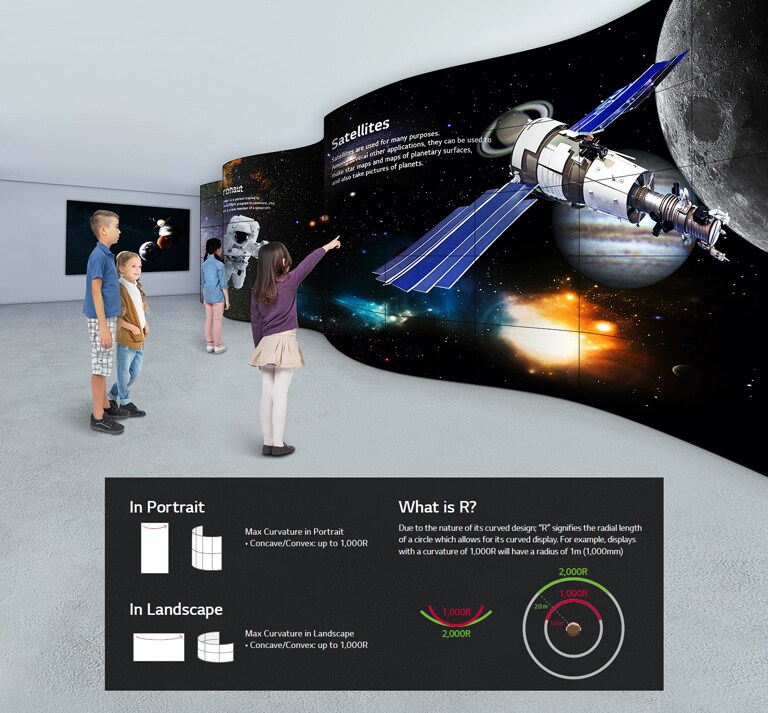

Variety of Curvature for Landmarks

The 55EF5G series supports various concave and convex curvature in both portrait and landscape orientations. You can differentiate your space in a variety of ways with beautifully curved displays to keep passengers captivated and immersed.

DESIGN FLEXIBILITY

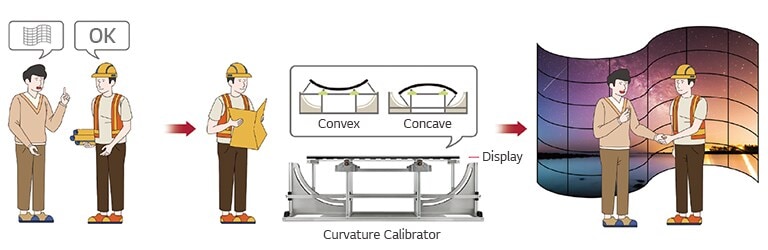

On-site Customization

The 55EF5G series enables a completely new approach for innovative and flexible designs. Its optional "Curvature Calibrator(CC)*" supports the coordination of displays with various convex and concave curvature, depending on the requirements. This makes it possible to rapidly respond to changes on-site, making it easier to successfully build an eyecatching landmark.

*A Curvature Calibrator needs to be purchased separately. Please contact your regional LG sales representatives for details.

EXCELLENT PERFORMANCE

LAN Daisy Chain Management

The LAN daisy chain allows users to control and monitor displays, transmit data and even update firmware all at once, reducing management burden.

EXCELLENT PERFORMANCE

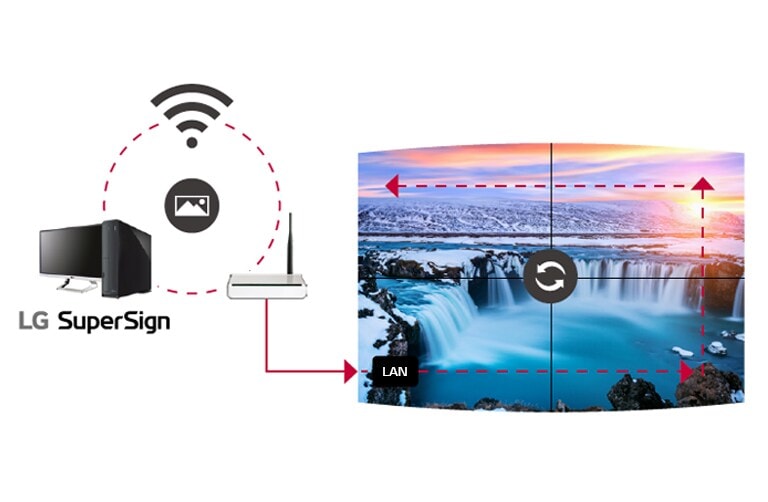

Videowall Playlist & Sync Playback

Through its built-in high performance SoC, each display plays its video tile for synchronized content playback.

All Spec

SOUND

Speaker (Built-in)
NO

ACCESSORY

Basic
Remote Controller(include battery 2 ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(220 mm x 4 ea for connection between panel and Signage box), DP Cable(2 M), LAN Cable(1.5 M), RS232 Cable(4 P-4 P,1.5 M), LC Cable(VLC,3 M), Tape(4 ea for Cabling), Screw(M 3 x L 4.5,30 ea / M 3xL 5.5,50 ea / M 3x3.5,10 ea), Shield Cover Assy', Tiling Set Fixer 6 ea, Flex Bar 2 ea
Optional
NO

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

OPS COMPATIBILITY

OPS Type compatible
N/A
OPS Power Built-in
N/A

POWER

Power Supply
AC 100-240 V~, 50/60 Hz
Power Type
Built-in Power

SPECIAL FEATURE

Smart Calibration
N/A
Conformal Coating (Power Board)
N/A
Direct Sunlight
N/A
IP Rating
N/A
Overlay Touch Compatibility
N/A
Power Protection
N/A
Tilt (Face down)
Max. 90 degree
Tilt (Face up)
Max. 90 degree

ENVIRONMENT CONDITIONS

Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 40 °C

FEATURE - HARDWARE

Wi-Fi/BT (Built-in)
NO
Acceleration (Gyro) Sensor
NO
Auto Brightness Sensor
NO
BLU Sensor
NO
Current Sensor
NO
FAN (Built-in)
YES
Humidity Sensor
NO
Internal Memory (eMMC)
16 GB
Local Key Operation
NO
Pixel Sensor
NO
Power Indicator
NO
Proximity Sensor
NO
Temperature Sensor
YES

CERTIFICATION

ERP / Energy Star
YES / NO
EMC
FCC Class "A" / CE / KC
ePEAT(US only)
NO
Safety
CB / NRTL

SOFTWARE COMPATIBILITY

Connected Care
YES
Mobile CMS
YES
Promota
NO
SuperSign Cloud
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES

CONNECTIVITY

RJ45(LAN) In
YES (1 ea)
Audio In
NO
Audio Out
YES
Daisy Chain
Input : HDMI, DP / Output : DP
DP In
YES (HDCP 1.3)
DP Out
YES
DVI-D In
NO
External Speaker Out
NO
HDMI In
YES (1 ea)
HDMI In (HDCP Ver.)
1.4
HDMI Out
NO
IR In
YES
IR Out
YES (Sharing RS232C Out)
RGB In
NO
RJ45(LAN) Out
YES
RS232C In
YES
RS232C Out
YES
Touch USB
NO
USB In
USB 2.0 Type A (2 ea)

MECHANICAL SPECIFICATION

VESA™ Standard Mount Interface (mm)
N/A
Bezel Color
Black
Bezel Width
T/R/L/B : 0.6/6.7/6.7/0.6 mm (Portrait, Off Bezel) T/R/L/B : 5.0/13.2/7.8/5.0 mm (Portrait, On Bezel)
Carton Dimensions (W x H x D, mm)
1360 x 842 x 252 mm
Handle
NO
Monitor Dimension (W x H x D, mm)
701.4 x 1219.7 x 38.0 mm (Portrait, Head, with Pemnut) 701.4 x 1219.7 x 12.4 mm (Portrait, Head, without Pemnut) 413 x 353 x 57.3 mm (Signage Box)
Monitor Dimension with Stand (W x H x D)
N/A
Packed Weight
17.6 Kg (Portrait)
Weight (Head)
7.0 Kg (Portrait, Head) 3.5 Kg (Signage Box)
Weight (Head+Stand)
N/A

PANEL

Color Depth (Number of Colors)
1.07 Billion colors
Aspect Ratio
16:9
Back Light Type
OLED
Brightness
150/400 nit (APL 100 % / 25 %)
Color Gamut
BT709 120 %
Contrast Ratio
150,000:1
Dynamic CR
NO
Life time
30,000 Hrs (Typ.)
Native Resolution
1920 x 1080 (FHD)
Operation Hours (Hours/Day)
18/7 (Moving Content Only)
Panel Technology
OLED
Portait / Landscape
YES / NO
QWP (Quarter Wave Plate)
N/A
Refresh Rate
120 Hz
Response Time
1 ms (G to G), 8 ms (MPRT)
Screen Size
139 cm (55)
Surface Treatment (Haze)
Haze 0 %
Transparency
N/A
Viewing Angle (H x V)
178 º x 178 º

FEATURE - SOFTWARE

Scan Inversion
YES
Auto Set ID
YES
Backlight Sync
NO
BEACON
NO
Booting Logo Image
NO
Brightness Compensation
NO
Cisco Certification
NO
Control Manager
YES
Crestron Connected
YES
External Input Rotation
YES
Fail Over
YES
Gapless Playback
YES
Group Manager
YES
HDMI-CEC
YES
ISM Method
YES
Local Contents Scheduling
YES
Local Network Sync
YES
Network Ready
NO
No Signal Image
NO
OS Ver. (webOS)
webOS 4.0
PBP
NO
PIP
NO
Play Via URL
NO
PM mode
YES
Pro:Idiom
YES
RS232C Sync
YES
Screen Rotation
YES
Screen Share
NO
Setting Data Cloning
YES
SI Server Setting
YES
Smart Energy Saving
NO
SNMP
YES
Status Mailing
YES
Tile Mode Setting
YES
USB Plug & Play
YES
Video Tag
YES (4 Video Tag)
Wake on LAN
YES
webRTC
NO
W/B Setting by Grey scale
NO

POWER CONSUMPTION

Others-BTU (British Thermal Unit)
1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max.)
DPM
0.5 W
Max.
318 W
Power off
0.5 W
Smart Energy Saving (70%)
N/A
Typ.
116 W (IEC 62087)

Leaflet

Information Display Range Catalogue_250221.pdf

Download

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
