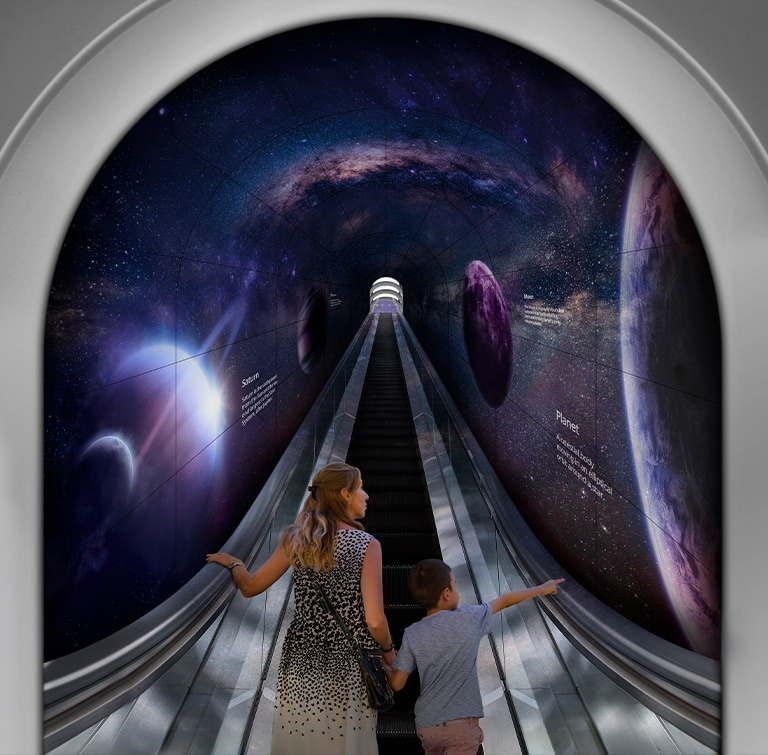

A woman and a child are going up a tunnel made of flexible Curved Open Frame OLED Signage through an escalator.
* All images in this web page are for illustrative purposes only.
Blending in with the space while captivating everyone’s mind. LG OLED signage offers flexible design. Beyond its informative features, LG OLED signage delivers unsurpassed advertising effectiveness, redesigning space as a prestige-enhancing landmark with perfect colors and innovative forms.

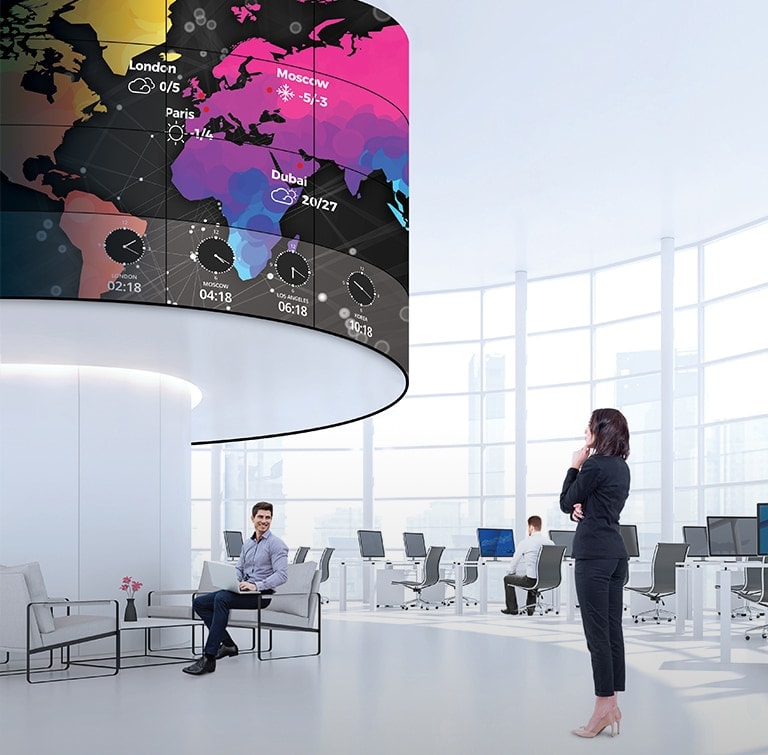

The woman is looking at the weather and time information displayed on the curved screen.

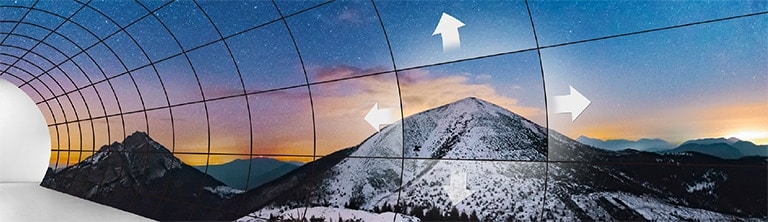

The screen size can be as large as users want by tiling up displays horizontally and vertically. This provides viewers with an incredibly immersive viewing experience.
Several screens can be arranged like tiles to embody the desired size.
LG OLED technology doesn’t require a backlight unit nor a liquid crystal layer so it offers a flexible design with unbelievably lightweight and slim features.
A screen of LG OLED Signage is slim, light, and flexible.

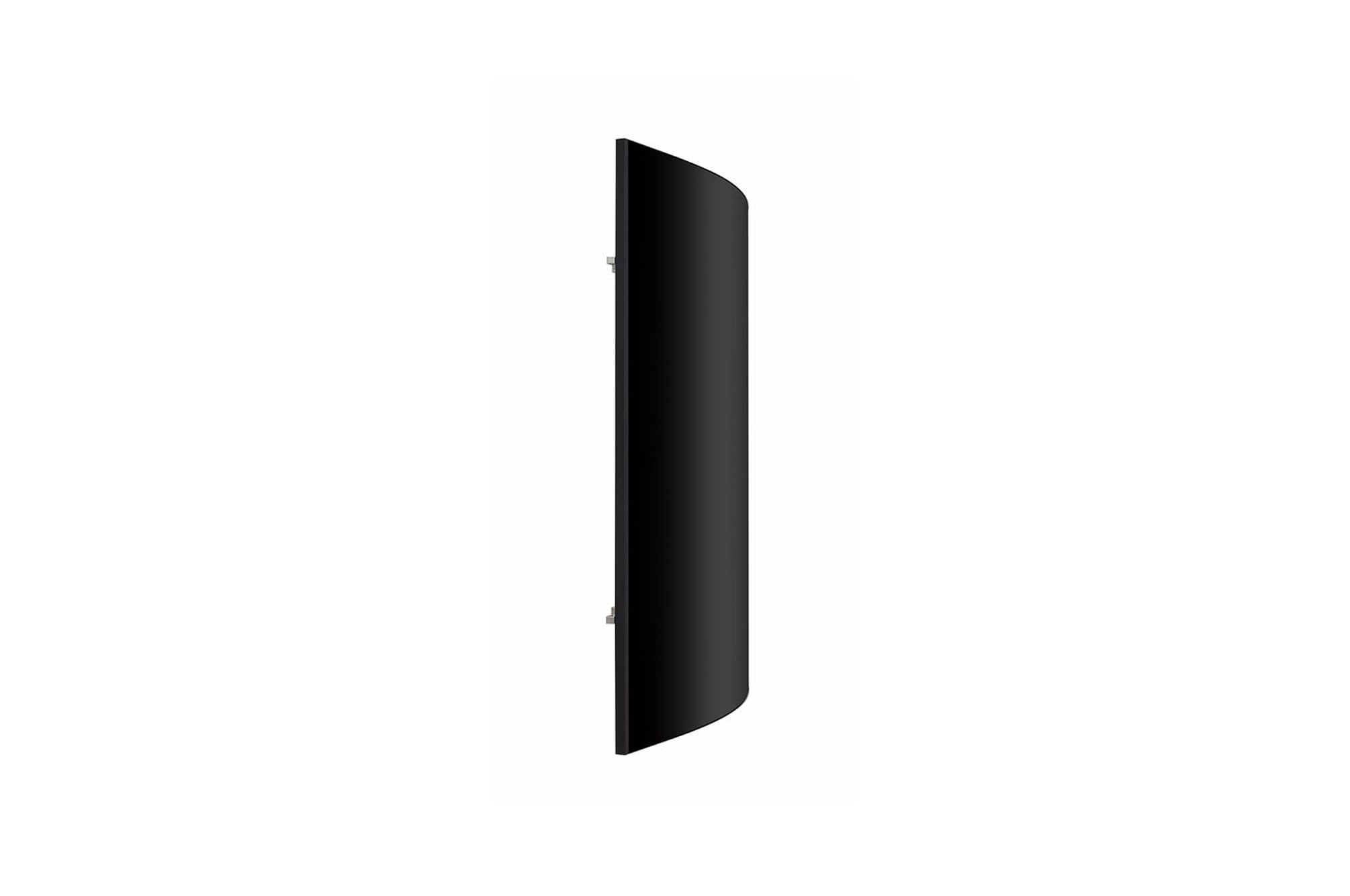

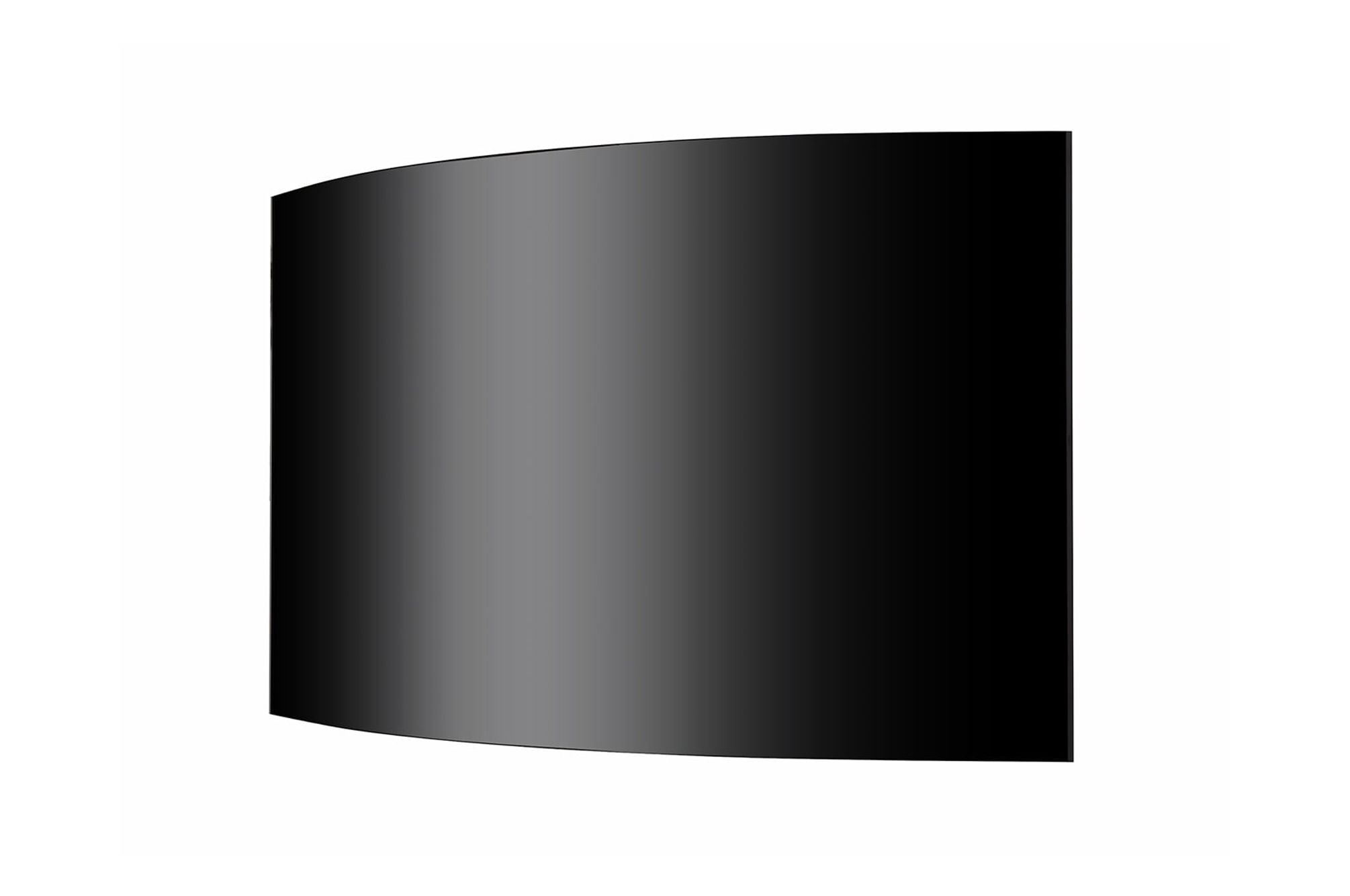

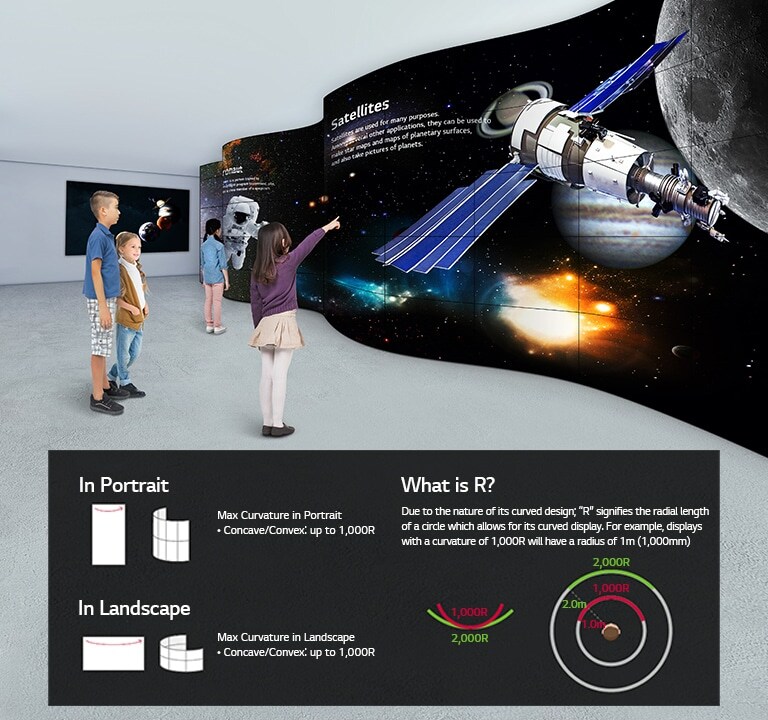

The EF5K series supports various concave and convex curvature in both portrait and landscape orientations. You can differentiate your space in a variety of ways with beautifully curved displays to keep passengers captivated and immersed.
Children are looking at the screen that curved in a wave-shaped interestingly in which the universe is expressed.

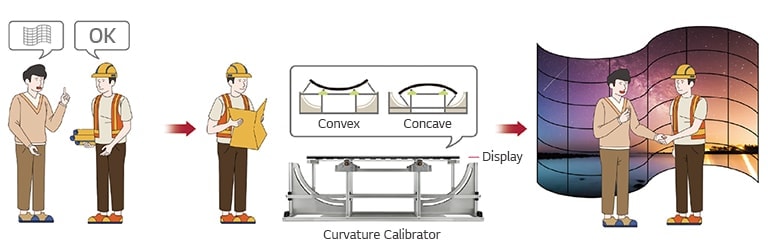

The EF5K series enables a completely new approach for innovative and flexible designs. Its optional "Curvature Calibrator(CC)*" supports the coordination of displays with various convex and concave curvature, depending on the requirements. This makes it possible to rapidly respond to changes on-site, making it easier to successfully build an eye-catching landmark.
The EF5K series is designed to bend the screen convex or concave, allowing flexibility in adjusting even when sudden requests are received on-site.
*A Curvature Calibrator needs to be purchased separately. Please contact your regional LG sales representatives for details.
Basic
Remote Controller(include battery 2 ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(220 mm x 4 ea for connection between panel and Sinage box), DP Cable(2 m), LAN Cable(1.5 m), RS232 Cable(4 P-4 P,1.5 m), LC Cable(VLC,3 m), Tape(4 EA for Cabling), Screw(M 3xL 4.5,30 EA / M 3 x L 5.5,50 EA / M 3 x 3.5, 10 EA), Shield Cover Assy', Tiling Set Fixer 6 EA, Flex Bar 2 EA
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
Power Supply
AC 100~240 V, 50/60 Hz
Power Type
Built-In Power
Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 40 °C
ERP / Energy Star
Yes/No
EMC
FCC Class "A" / CE / KC
Safety
CB / NRTL
Connected Care
Yes
Mobile CMS
Yes
SuperSign CMS
Yes
SuperSign Control+
Yes
SuperSign WB
Yes
RJ45(LAN) In
Yes (1)
Audio Out
Yes (1)

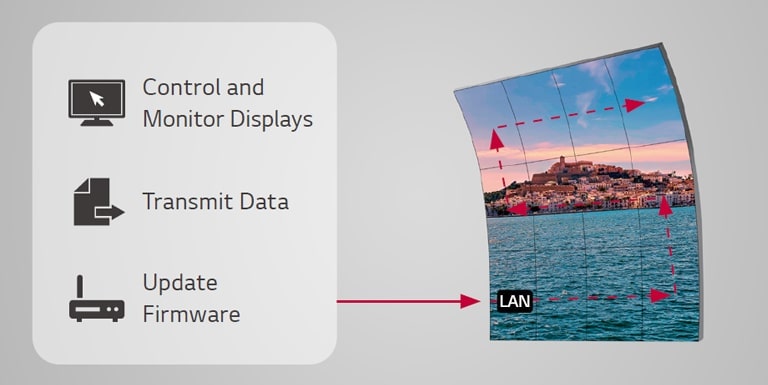

Daisy Chain
Input HDMI, DP/Output DP
DP In
Yes (1), HDCP 1.3
DP Out
Yes (1)
HDMI In
Yes (1)
HDMI In (HDCP Ver.)
1.4
IR In
Yes (1), External IR Receiver
IR Out
Sharing RS232C Out
RJ45(LAN) Out
Yes (1)
RS232C In
Yes (1)
RS232C Out
Yes (1)
USB In
USB 2.0 Type A (2)
Color Depth (Number of Colors)
10 bit(R), 1.07 Bilion colors
Aspect Ratio
16 : 9
Back Light Type
OLED
Brightness
150 / 400 nit (APL 100 % / 25%)
Color Gamut
BT709 120 %
Contrast Ratio
150,000 : 1
Life time
30,000 Hrs (Typ.)
Native Resolution
1920 x 1080 (FHD)
Operation Hours (Hours/Day)
18/7 (Moving Content Only)
Panel Technology
OLED
Portait / Landscape
Yes / Yes
Refresh Rate
120 Hz
Response Time
1 ms (G to G), 8 ms (MPRT)
Screen Size
139.7 cm (55)
Surface Treatment (Haze)
Haze 0 %, Hard coating (2 H) Reflectance Typ. 1.2 %
Viewing Angle (H x V)
178 x 178
Scan Inversion
Yes
Auto Set ID
Yes
Control Manager
Yes
Crestron Connected
Yes
External Input Rotation
Yes
Fail Over
Yes
Gapless Playback
Yes
Group Manager
Yes
HDMI-CEC
Yes
ISM Method
Yes
Local Contents Scheduling
Yes

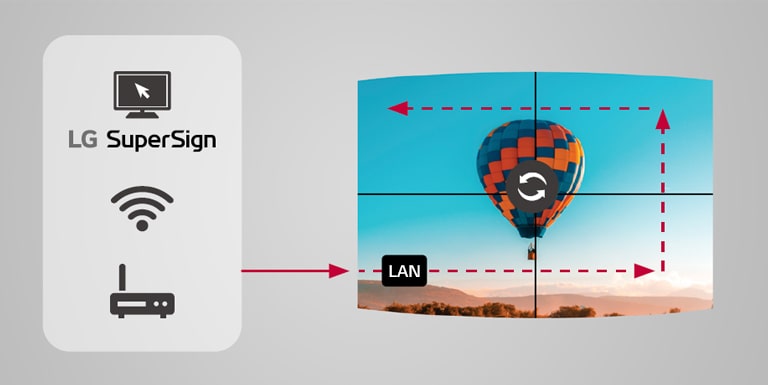

Local Network Sync
Yes
OS Ver. (webOS)
webOS 4.0
PM mode
Yes
Pro:Idiom
Yes
RS232C Sync
Yes
Screen Rotation
Yes
Setting Data Cloning
Yes
SI Server Setting
Yes
SNMP
Yes
Status Mailing
Yes
Tile Mode Setting
Yes
USB Plug & Play
Yes
Video Tag
Yes (4)
Wake on LAN
Yes
FAN (Built-in)
Yes
Internal Memory (eMMC)
16 GB
Temperature Sensor
Yes
Bezel Color
Black
Bezel Width
T/R/L/B : 0.6/6.7/6.7/0.6 mm (LandScape, Off Bezel) T/R/L/B : 0.6/6.7/6.7/0.6 mm (Portrait, Off Bezel) T/R/L/B : 5.0/7.6/7.6/10.6 mm (LandScape, On Bezel) T/R/L/B : 5.0/13.2/7.8/5.0 mm (Portrait, On Bezel)
Carton Dimensions (W x H x D, mm)
1360 x 842 x 252 mm
Monitor Dimension (W x H x D, mm)
1224.9 x 696.2 x 38.0 mm (LandScape, Head, w/Pemnut) 701.4 x 1219.7 x 38.0 mm (Portrait, Head, w/Pemnut) 1224.9 x 696.2 x 12.4 mm (Landscape, Head, w/o Pemnut) 701.4 x 1219.7 x 12.4 mm (Landscape, Head, w/o Pemnut) 413 x 353 x 57.3 mm (Signage Box)
Packed Weight
17.0 kg (LandScape) 17.6 kg (Portrait)
Weight (Head)
5.8 kg (LandScape, Head) 7.0 kg (Portrait, Head) 3.5 kg (Signage Box)
Others-BTU (British Thermal Unit)
1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max)
DPM
0.5 W
Max.
318 W
Power off
0.5 W
Typ.
116 W (IEC 62087)
Tilt (Face down)
Yes(Max 90 Degree)
Tilt (Face up)
Yes(Max 90 Degree)
