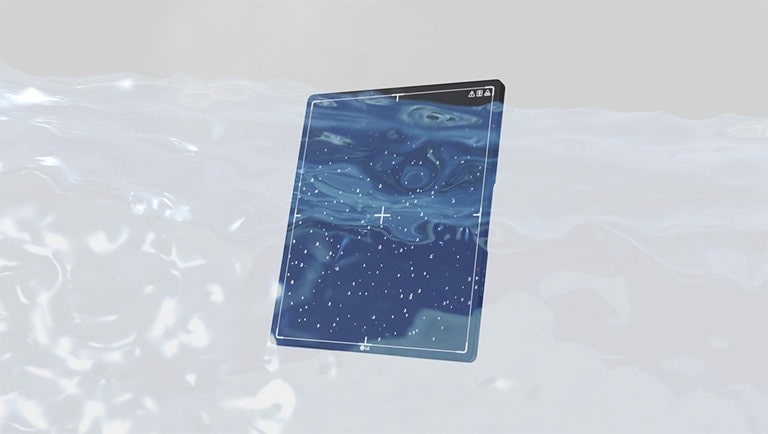

*IP68 includes Solids Level 6 (Dust-tight: no ingress of dust, and Liquid Level 8.
*Tested under controlled laboratory conditions with an IP68 rating. Water resistant up to 1 meter for 30 minutes. Dry before using. Do not charge while wet.
**Maximum total uniform load and maximum point load when tested for 60 seconds.
***IEC 60601-1 drop test in a controlled laboratory environment can differ from actual usage situation.
****All images are shown for illustrative purposes only, and may vary from the actual product/usage.
*****Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
*All images are shown for illustrative purposes only, and may vary from the actual product/usage.
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
*300 shots / 7.5 hours under conditions of cycle time 90 sec.
**Actual battery usage time and performance may vary depending on network connectivity and application use.
***All images are shown for illustrative purposes only, and may vary from the actual product/usage.
****Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
*All images are shown for illustrative purposes only, and may vary from the actual product/usage.
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
Cable
Power Cord, Main Cable 7 m (LAN Cable, Sync Cable Option)
Other

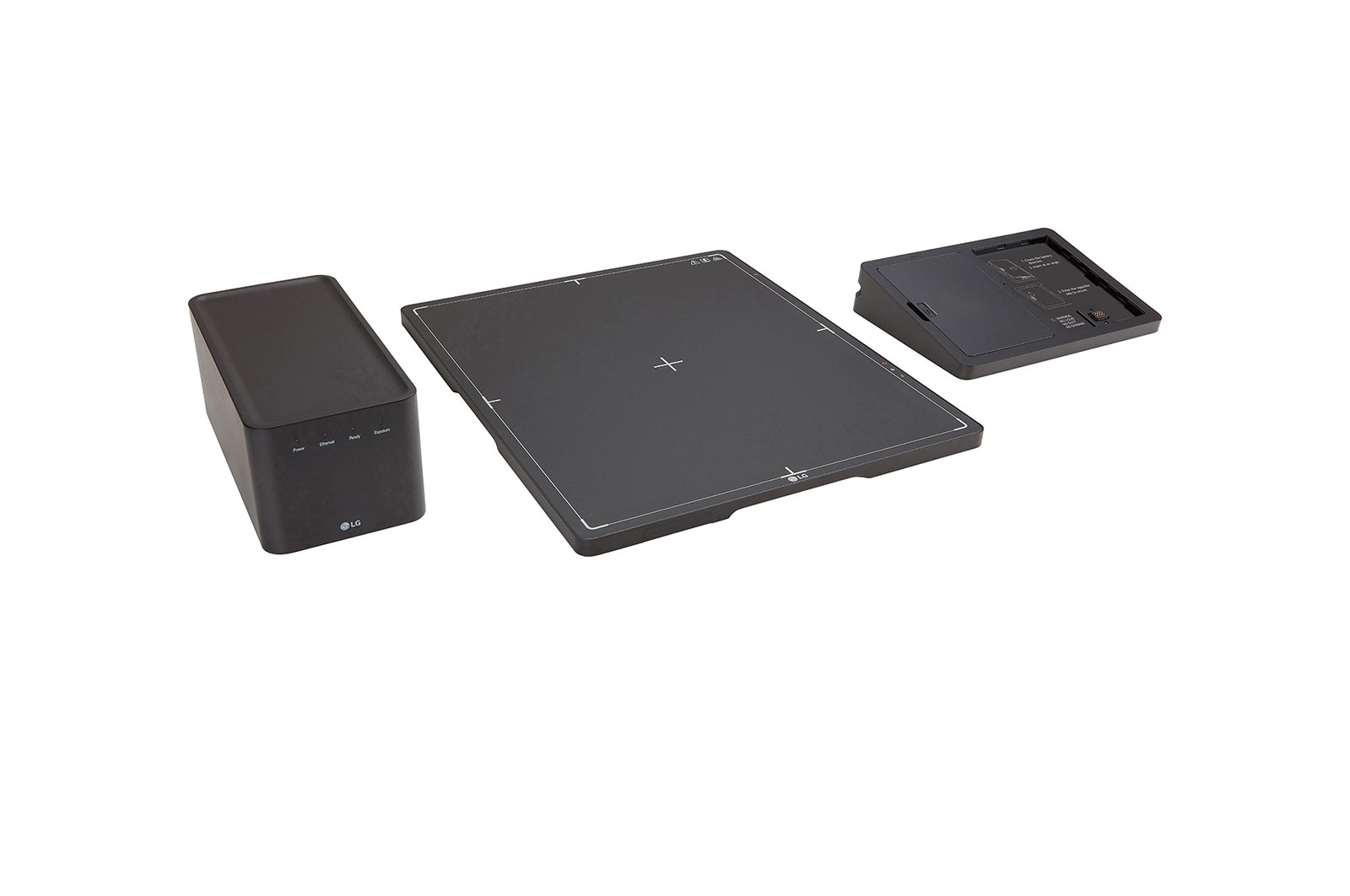

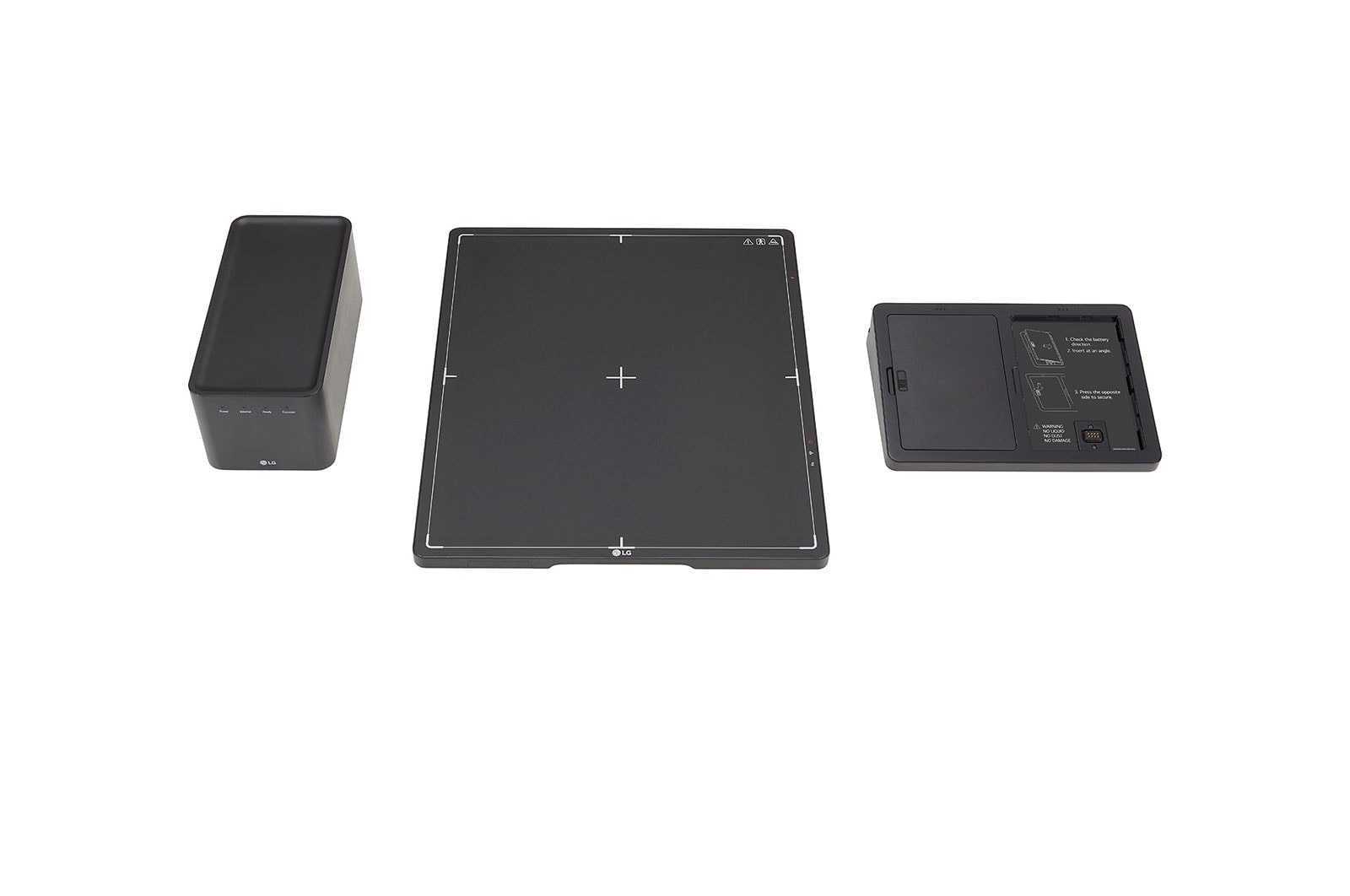

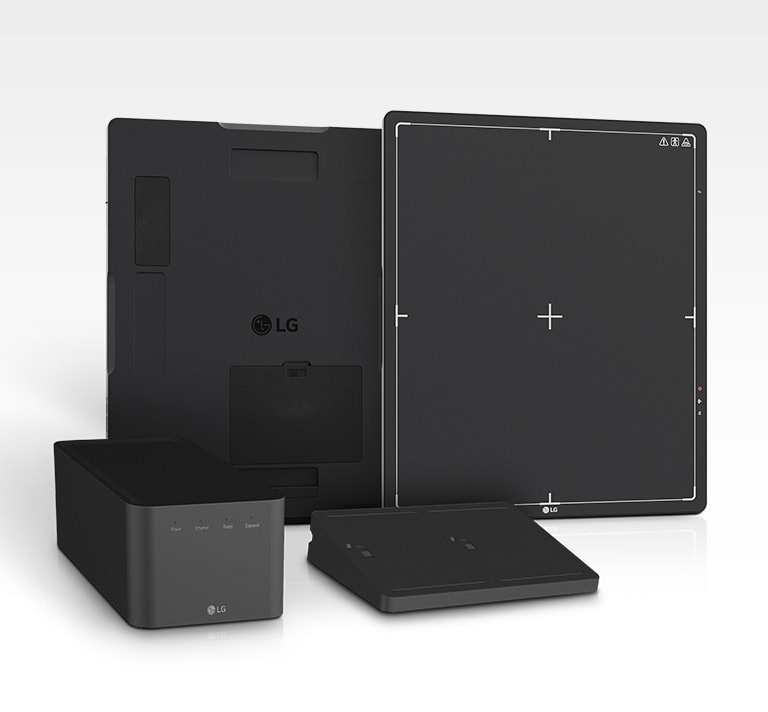

Battery Charger, 2 x Battery Packs, Control Box
Intended Use
General Radiography
TFT Type
A-si
Scintillator
CsI
Pixel Pitch
140 ㎛
A/D Conversion
16bit
Data Output
16bit
Cycle Time
4.5 sec (Wired) / 5 sec (Wireless)
Full Image Transfer (Typical) *Without window time
1.5 sec (Wired) / 2 sec (Wireless)
FDA 510(k) Clearance
K221394
X-ray Sensitive Pixel
2500 x 3052 pixels
TFT Active Area
358.40 x 430.08 mm
MTF @ 0.5lp/mm (Typical)
84%
Type
Wired / Wireless
WLAN
IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
Auto Exposure Detection
Yes
Maximum Load Weight
Full (Uniform Load) : 400 kg (881.8 lbs) , Local (Point Load) : 200 kg (440.9 lbs)
Water-Resistant
IP68
Sensor Protection Plate
Carbon Fiber Plate

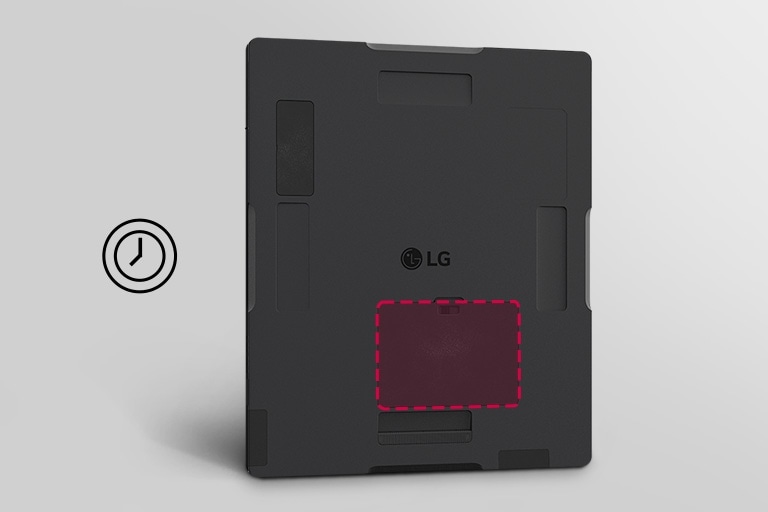

Operating Time
300 shots / 7.5 hrs (Typical) (Condition : Cycle Time 90 sec)
Charging Time
3 hrs (Type)

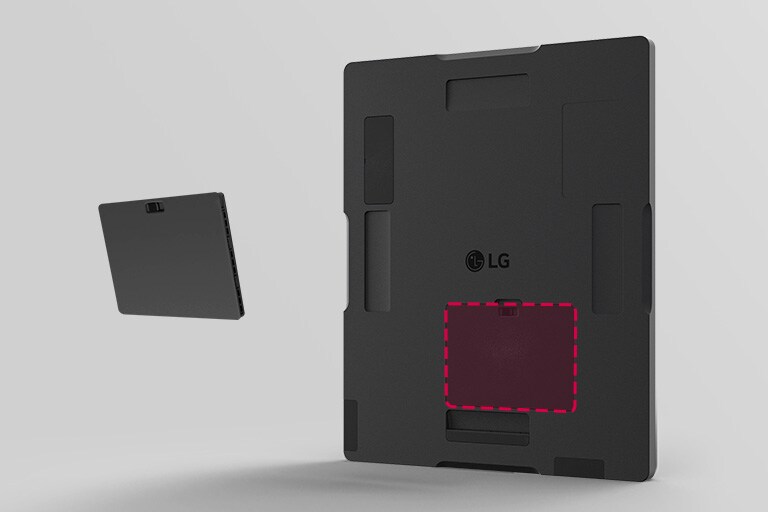

Hot Swap
Yes (1 Min)
