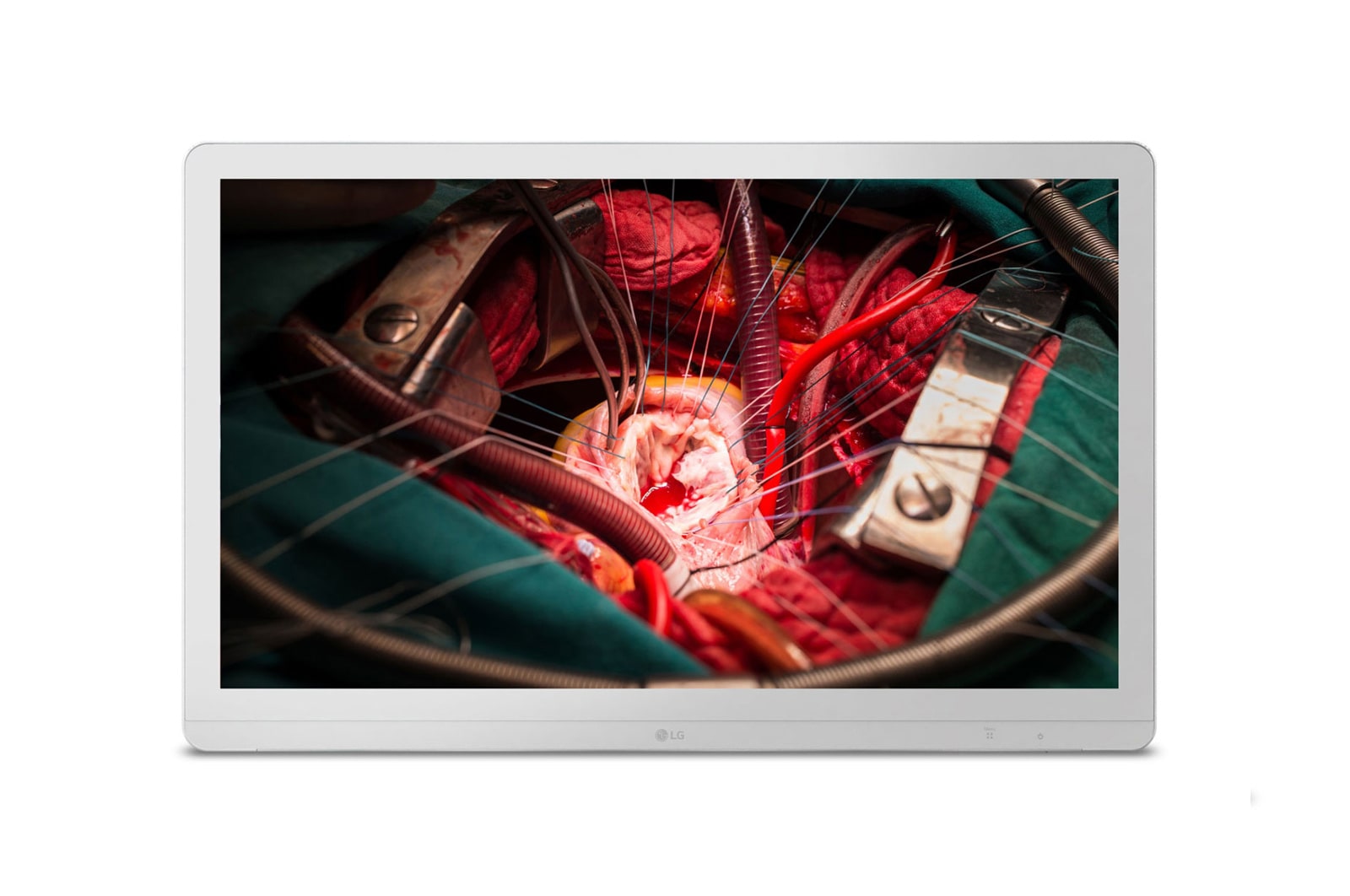

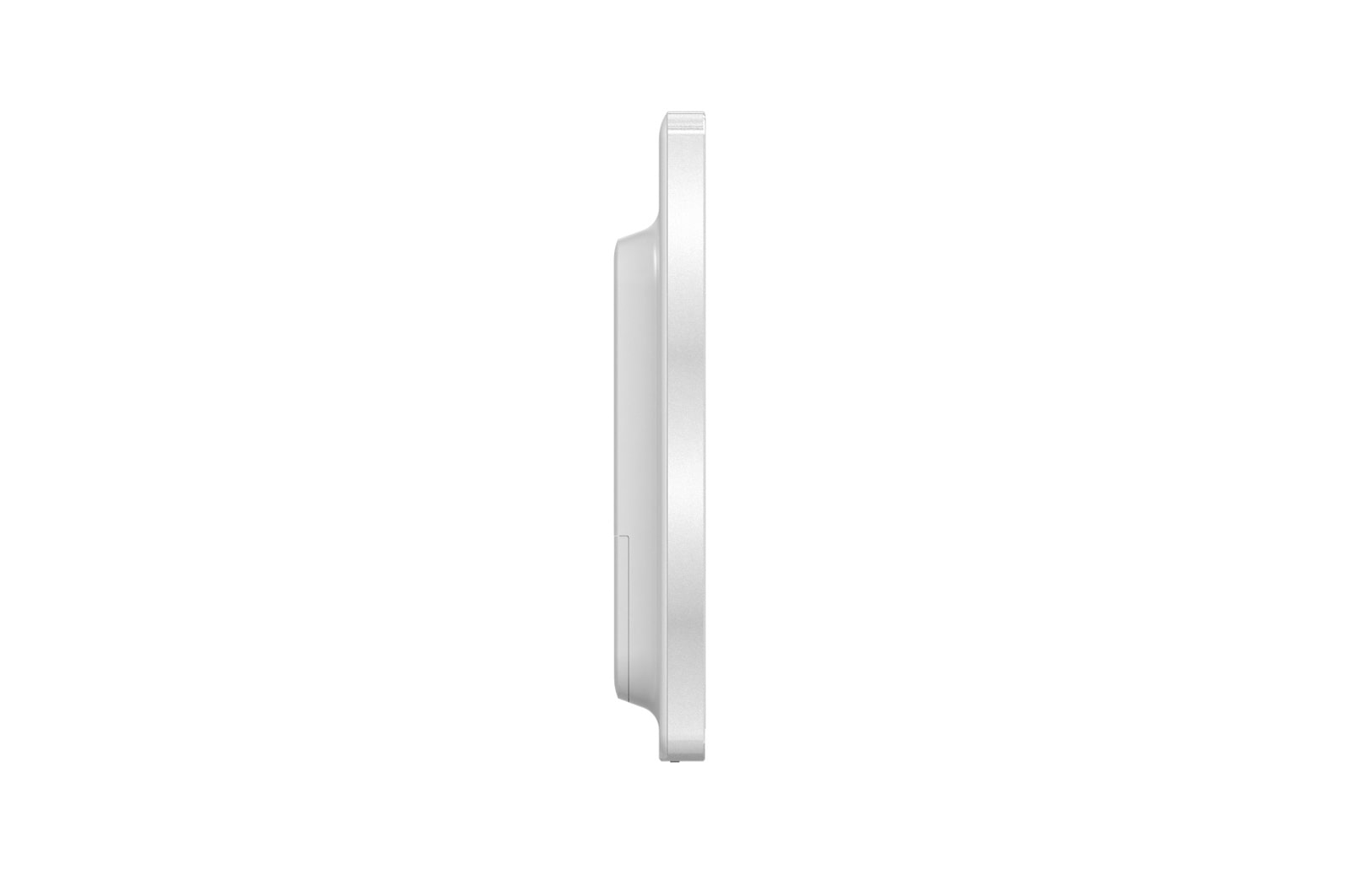

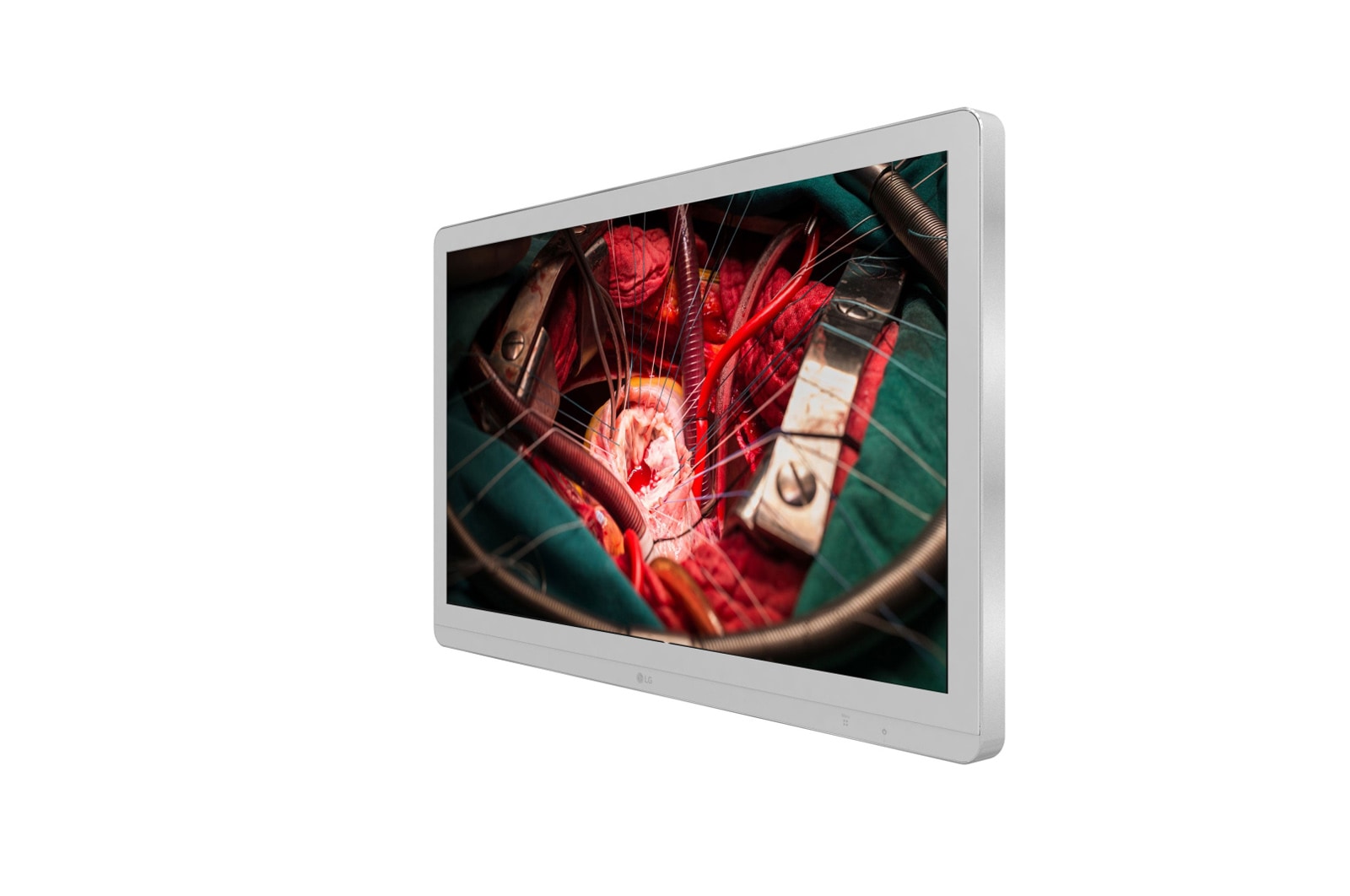

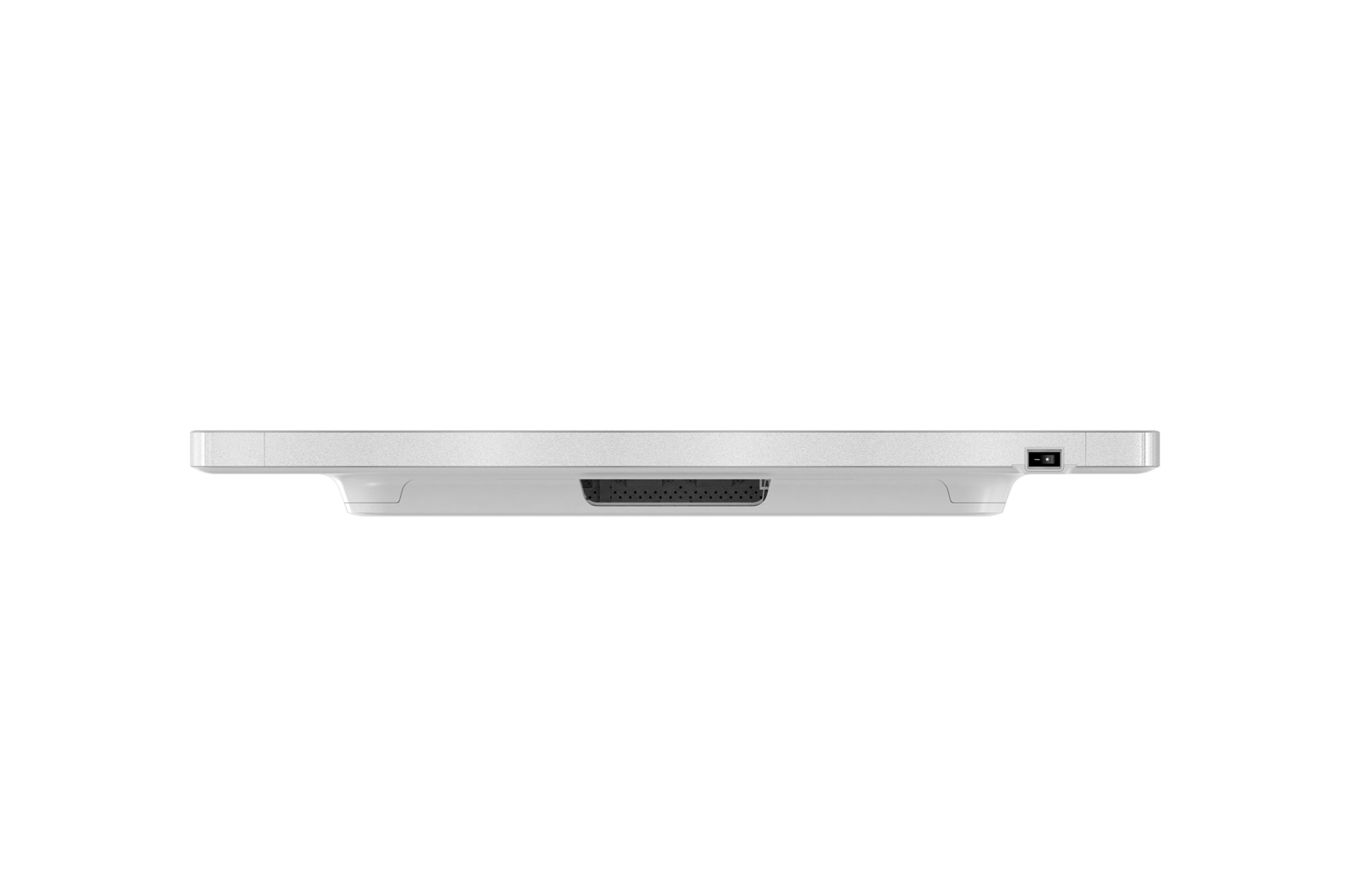

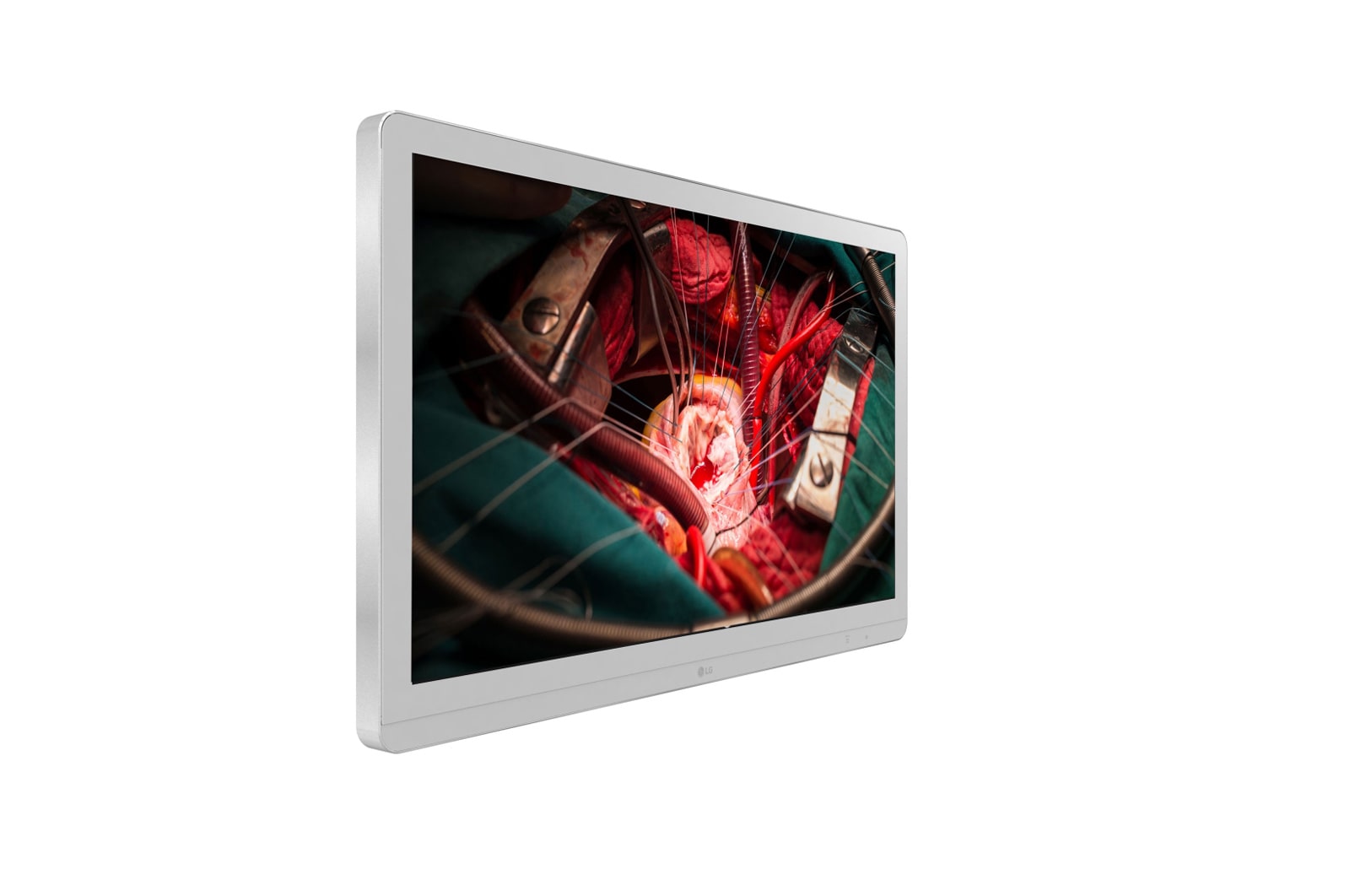

27 (68.58cm) UHD 8MP Surgical Monitor
*Bracket and PC sold separately.
*Monitor from the video clip may differ from the actual model.
*The image of the product are for illustration purpose only and may differ from actual product.
*DICOM (Digital Imaging and Commucation in Medicine): Standard applied to the grayscale tone characteristics of monitors used in the medical field.
*Wall mount sold separately.
*The image of the product are for illustration purpose only and may differ from actual product.
*Dynamic Sync Mode is only available to 60Hz input source.
*Wall mount sold separately.
*Monitor from the video clip may differ from the actual model.
*The image of the product are for illustration purpose only and may differ from actual product.
Gallery
All Spec
PANEL
-
Category
Surgical Monitors
-
Type
IPS + Glass
-
Size
68.58cm (27) (16:9)
-
Native Resolution

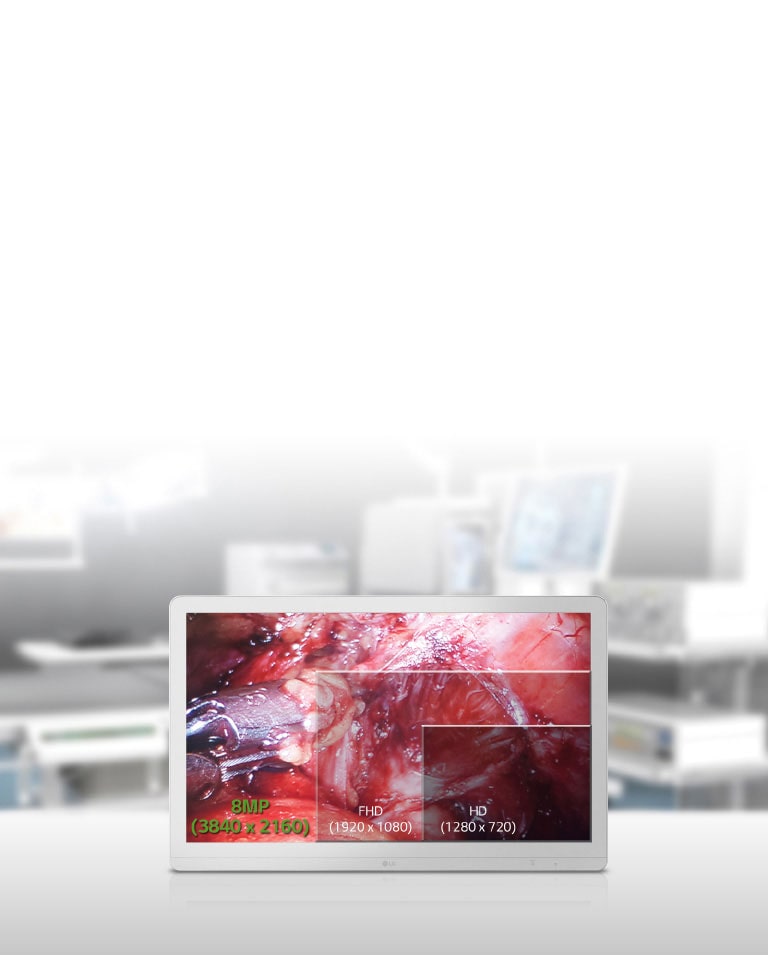

3840 x 2160
-
Pixel Pitch
0.1554mm x 0.1554mm
-
Display Colors

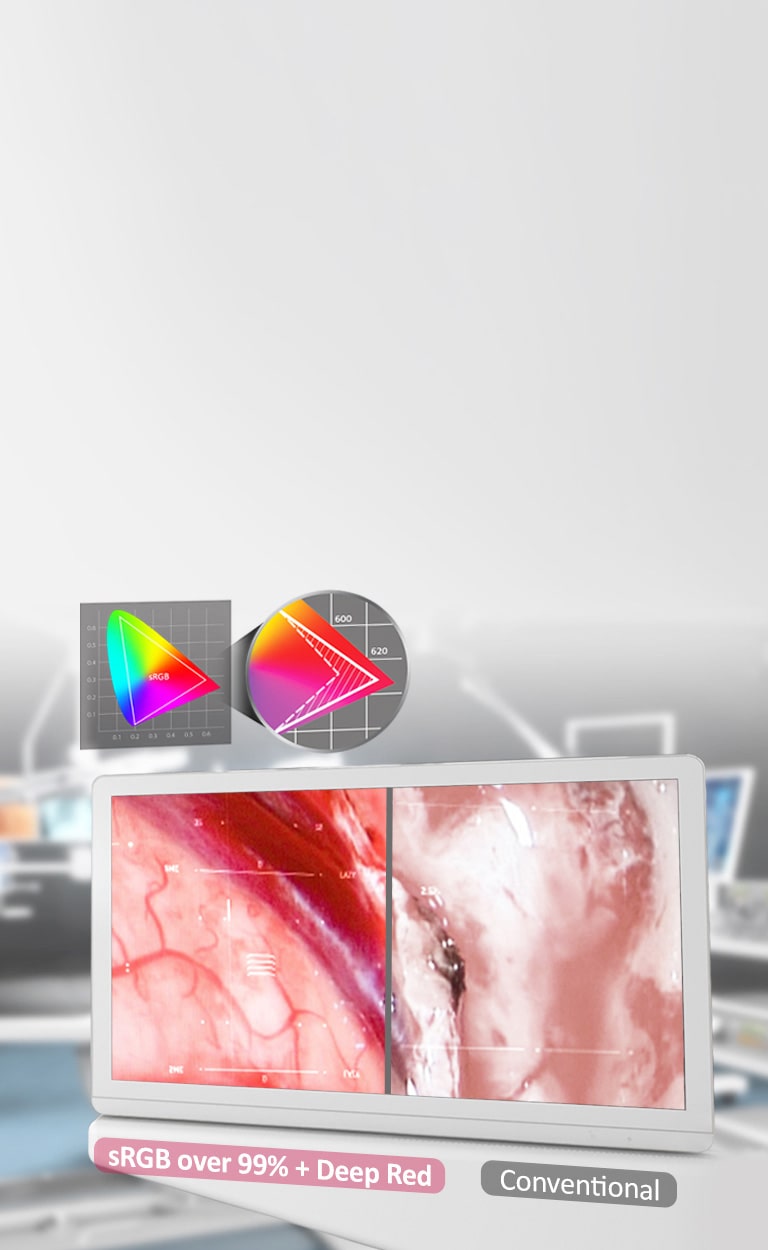

10bit/sRGB 99% + Deep Red
-
Viewing Angles
178/178
-
Brightness
800cd/m²
-
Surface Treatment

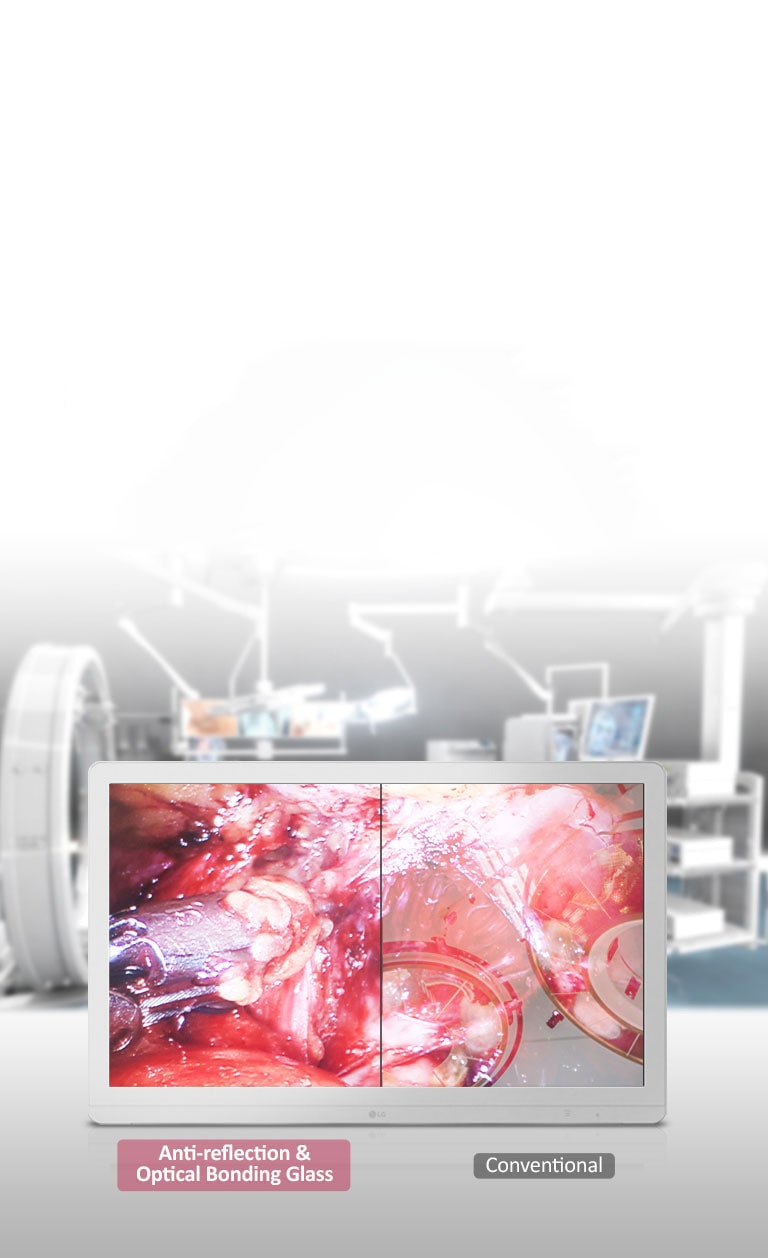

Optical Bonding Glass (1.3T)
-
Contrast Ratio (typical)
1000:1
-
Response Time (Typical)
14ms (Typ.)
VIDEO SIGNALS
-
Input Terminals
HDMI(2.0) x 1, DP(1.2) x 1, DVI-D x 1, 3G-SDI x 1
-
Output Terminals
DP(1.2) x 1, DVI-D x 1, 3G-SDI x 1
-
Digital Scanning Frequency (H/V)
HDMI, DP: 30~135kHz / 56~61Hz DVI-D: 30~83kHz / 56~61Hz
-
Sync Formats
Dynamic Sync Mode (Thru Mode)
USB
-
Function
1upstream, 1downstream (For calibration)
-
Standard
USB 3.0
POWER
-
Power Requirements
100-240Vac, 50/60Hz
-
Maximum Power Consumption
120W
-
Power Management
0.3W
SENSOR
-
Yes

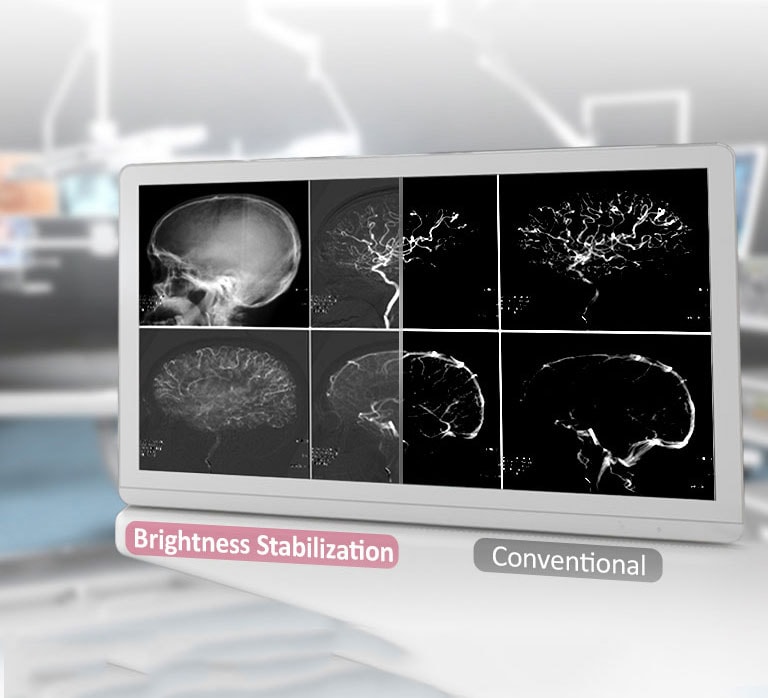

Brightness Stabilization
ENVIRONMENTAL REQUIREMENTS
-
Yes

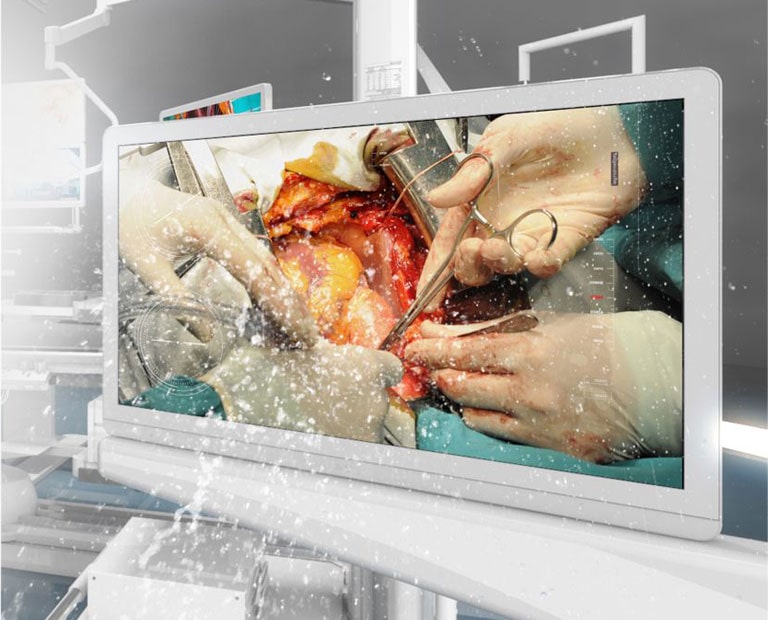

IP35 / IP32 (Front / Back)
CERTIFICATIONS & STANDARDS
-
Yes
IEC(IEC60601-1 / IEC60601-1-2), FCC(FCC part 15 Class A), CB, UL(UL60601-1), C-UL-US, KC, RoHS, REACH, WEEE, CISPR, EN, ANSI, AAMI, CE MDD(Class 1)
SUPPLIED ACCESSORIES
-
Yes
Power cord, HDMI Cable, DP Cable, Adapter, CD/Book Manual
PHYSICAL SPECIFICATIONS
-
Weight(Without Stand)
7.7kg
PRODUCT DETAILS
-
Net Quantity
1 N
-
Country of Origin
China
-
Manufactured By
LG Electronics Nanjing New Technology Co. Ltd, NO.346, YAOXIN ROAD ECONOMIC & TECHNICAL DEVELOPMENT ZONE, NANJING, 210038, PEOPLE'S REPUBLIC OF CHINA
-
Imported By
LG Electronics India Pvt. Ltd,A-24/6,Mohan Cooperative Industrial Estate, Mathura Road, New Delhi – 110044
-
