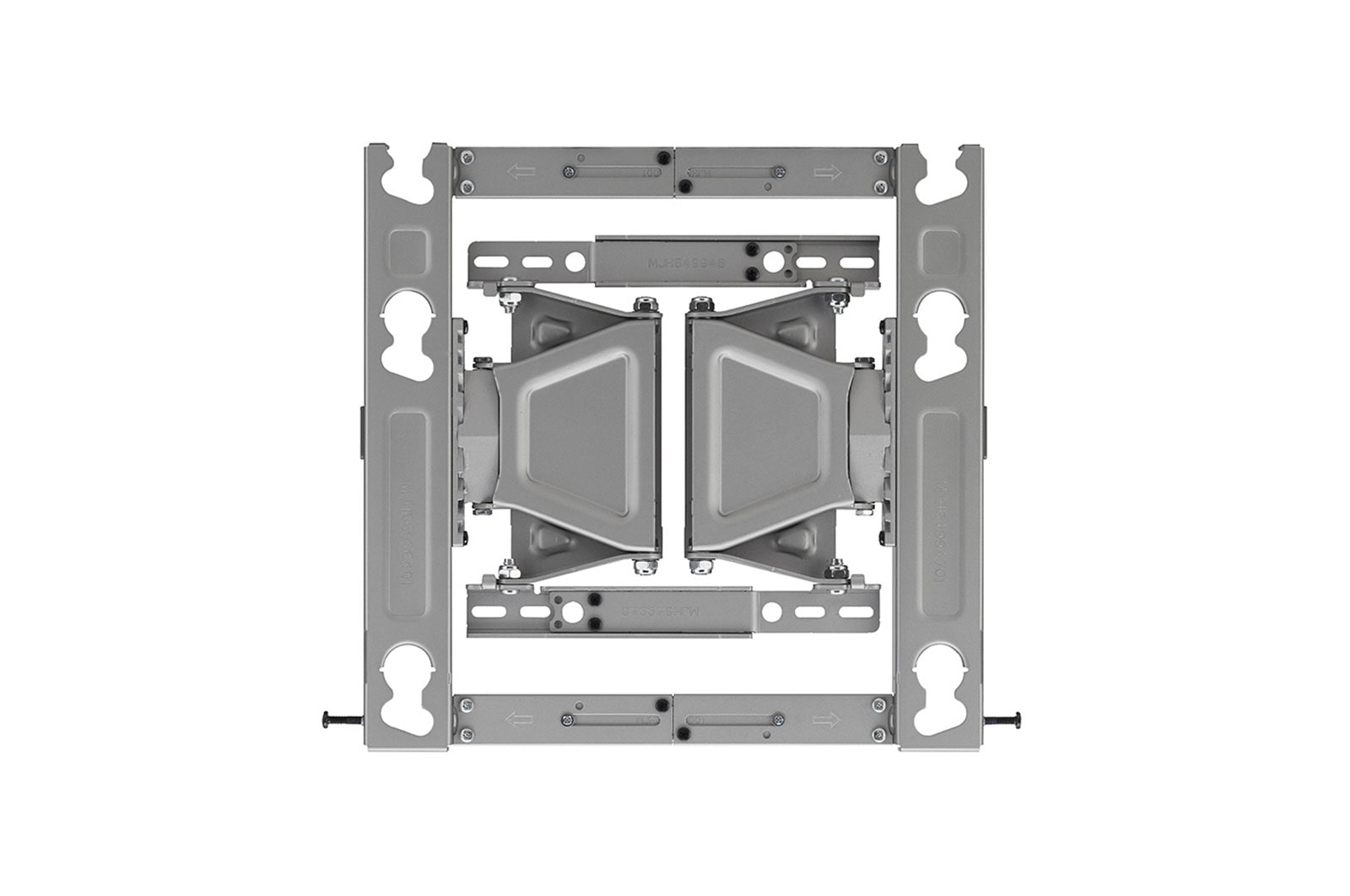

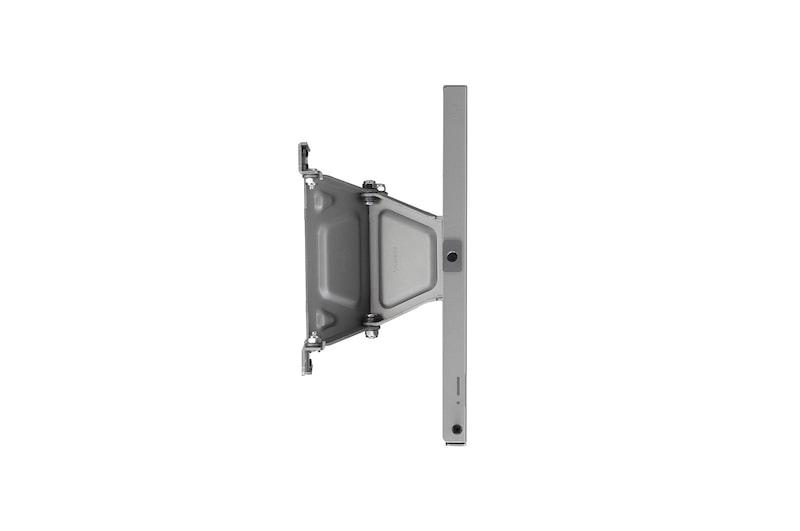

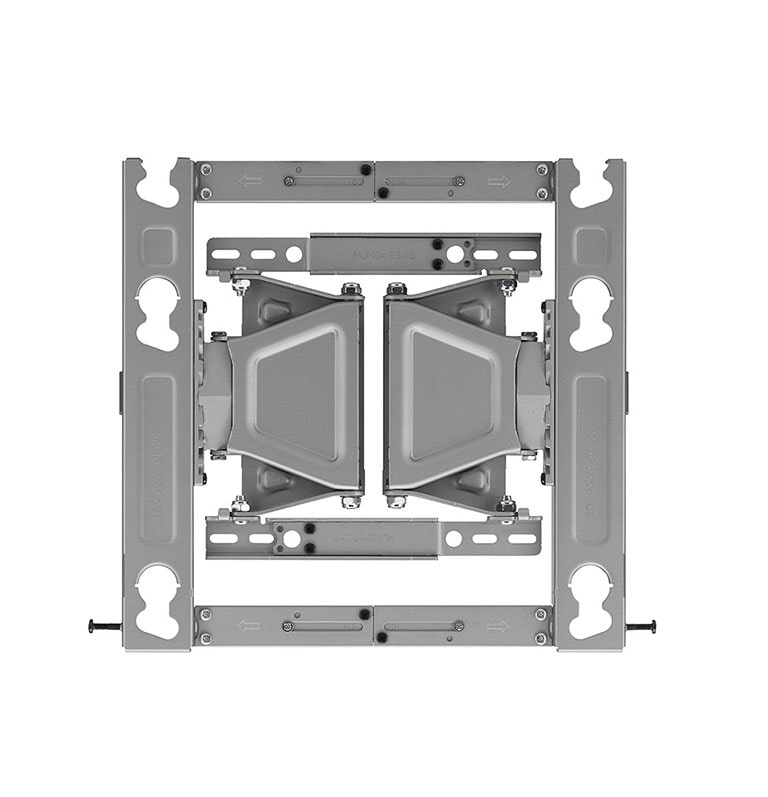

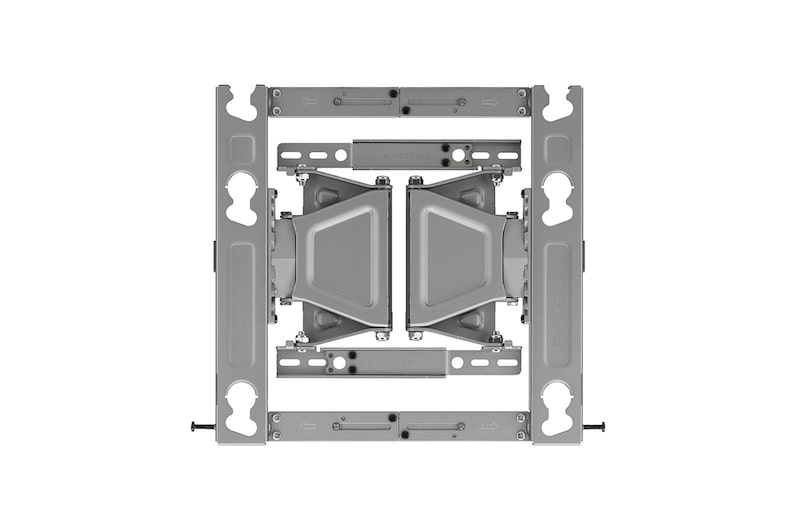

LG EZ Slim Wall Mount for TVs
All Spec
CONVENIENCE FEATURES
Vertical Adjustment
+/- 13˚
Horizontal Adjustment
+/- 15˚
Safety Locking Pins
Yes
Levelling Screws
Yes
VESA COMPATIBILITY
VESA 300 x 200
Yes
VESA 300 x 300
Yes
VESA 400 x 200
Yes
COMPATIBLE MODELS
2024 OLED
OLED77G4, OLED65G4, OLED55G4, OLED77C4, OLED65C4, OLED55C4, OLED48C4, OLED42C4, OLED65B4, OLED55B4
2023 OLED
OLED77G3, OLED65G3, OLED55G3 OLED77C3, OLED65C3, OLED55C3 OLED48C3, OLED42C3 OLED77B3, OLED65B3, OLED55B3
2022 OLED
OLED77G2, OLED65G2, OLED55G2, OLED77C2, OLED65C2, OLED55C2, OLED48C2, OLED42C2, OLED77CS, OLED65CS, OLED55CS, OLED65B2, OLED55B2, OLED65A2, OLED55A2
2021 OLED
OLED77G1, OLED65G1, OLED55G1 OLED77C1, OLED65C1, OLED55C1, OLED48C1 OLED65A1, OLED55A1, OLED48A1
2020 OLED
OLED77CXPTA, OLED65CXPTA, OLED55CXPTA, OLED65BXPTA, OLED55BXPTA
2019 OLED
OLED55E9PTA, OLED65E9PTA, OLED55C9PTA, OLED65C9PTA, OLED77C9PTA, OLED65B9PTA, OLED55B9PTA
2018 OLED
OLED55E8PTA, OLED65E8PTA, OLED55C8PTA, OLED65C8PTA, OLED77C8PTA, OLED55B8STB, OLED65B8STB
2024 QNED
75QNED86, 65QNED86, 55QNED86, 75QNED81, 65QNED81, 55QNED81
2023 QNED
55QNED86 65QNED81, 55QNED81 65QNED75, 55QNED75
2022 QNED
55QNED85, 65QNED80, 55QNED80
2021 QNED
65QNED99, 65QNED96, 65QNED91
2024 NANOCELL
65NANO81, 55NANO81
2022 NANOCELL
65NANO75, 65NANO75
2021 NanoCell
75NANO91, 65NANO91, 55NANO91, 75NANO86, 65NANO86, 55NANO86, 75NANO75, 65NANO75, 55NANO75
2020 NanoCell
65NANO91TNA, 65NANO86TNA, 55NANO86TNA, 65NANO80TNA, 55NANO80TNA
2024 UHD
65UT80, 55UT80
2023 UHD
65UR80, 55UR80
2022 UHD
65UQ90, 55UQ90
2021 UHD
65UP80, 55UP80
2020 UHD
55UN7300
SUPPLIED ACCESSORIES
Installation Manual
Yes (1)
Wall Mounting Supporters (Australian stud size)
Yes (2)
Wall Mounting Anchor
Yes (6)
Wall Mounting Screw
Yes (6)
Guide Spacer (Type A)
Yes (4)
Guide Spacer (Screw - M6 x L45)
Yes (4)
Guide Spacer (Type B)
Yes (4)
Guide Spacer (Screw - M6 x L18)
Yes (1)
TV Set protection cushions
Yes (4)
Lock Spring
Yes (2)
Paper Mounting Template
Yes (1)
Warranty Card
Yes
DIMENSIONS AND REGULATORY
Bracket (WxHxD)
600mm x 345mm x 29mm
Bracket Extended (WxHxD)
600mm x 345mm x 166mm
Net Weight (kg)
6.2kg
Gross weight of Carton (kg)
7.4kg
Carton (WxHxD)
700mm x 60mm x 405mm
EAN
8806098068203
WARRANTY PERIOD
Warranty Period
1 Year Warranty - Parts
