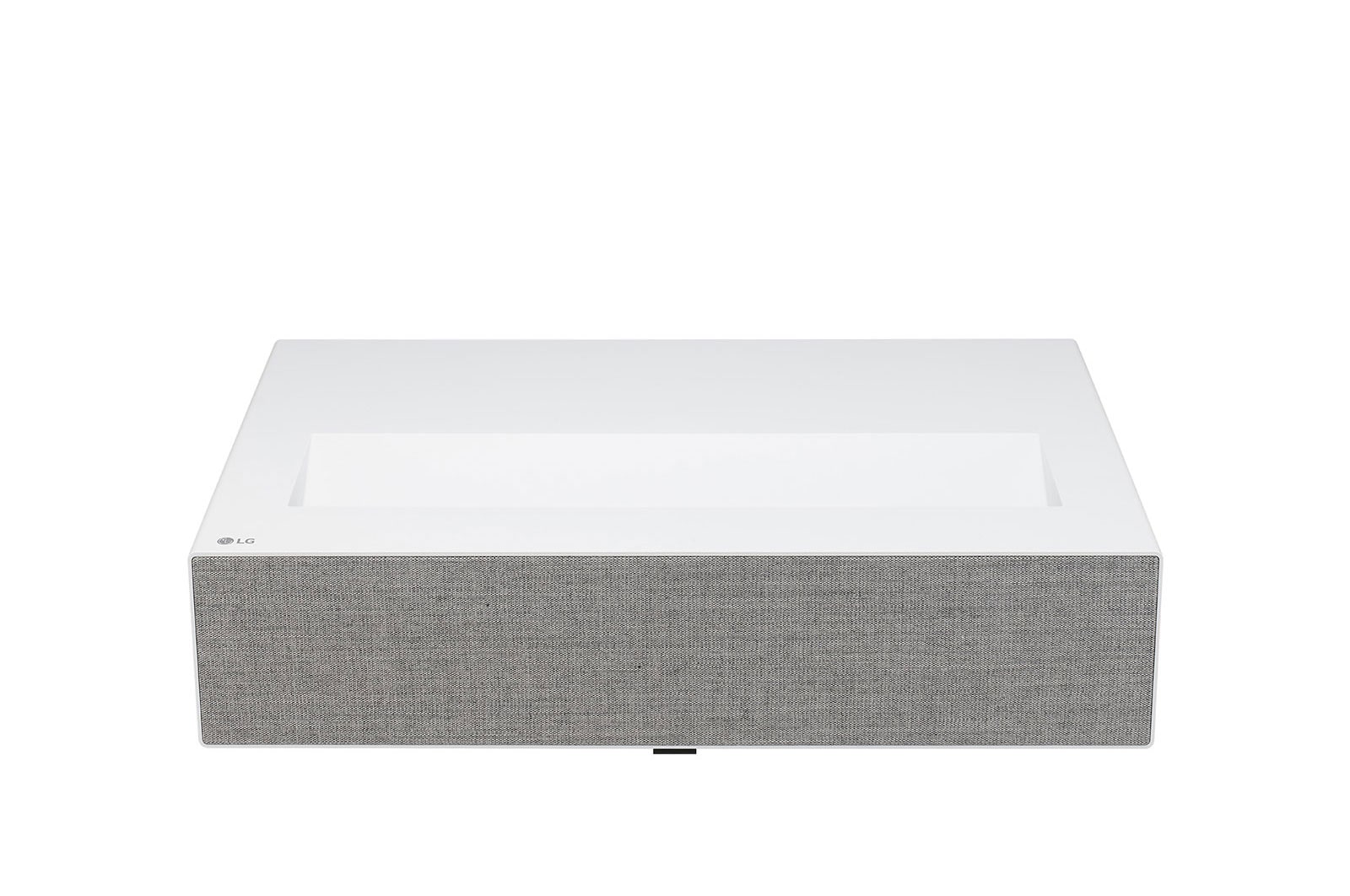

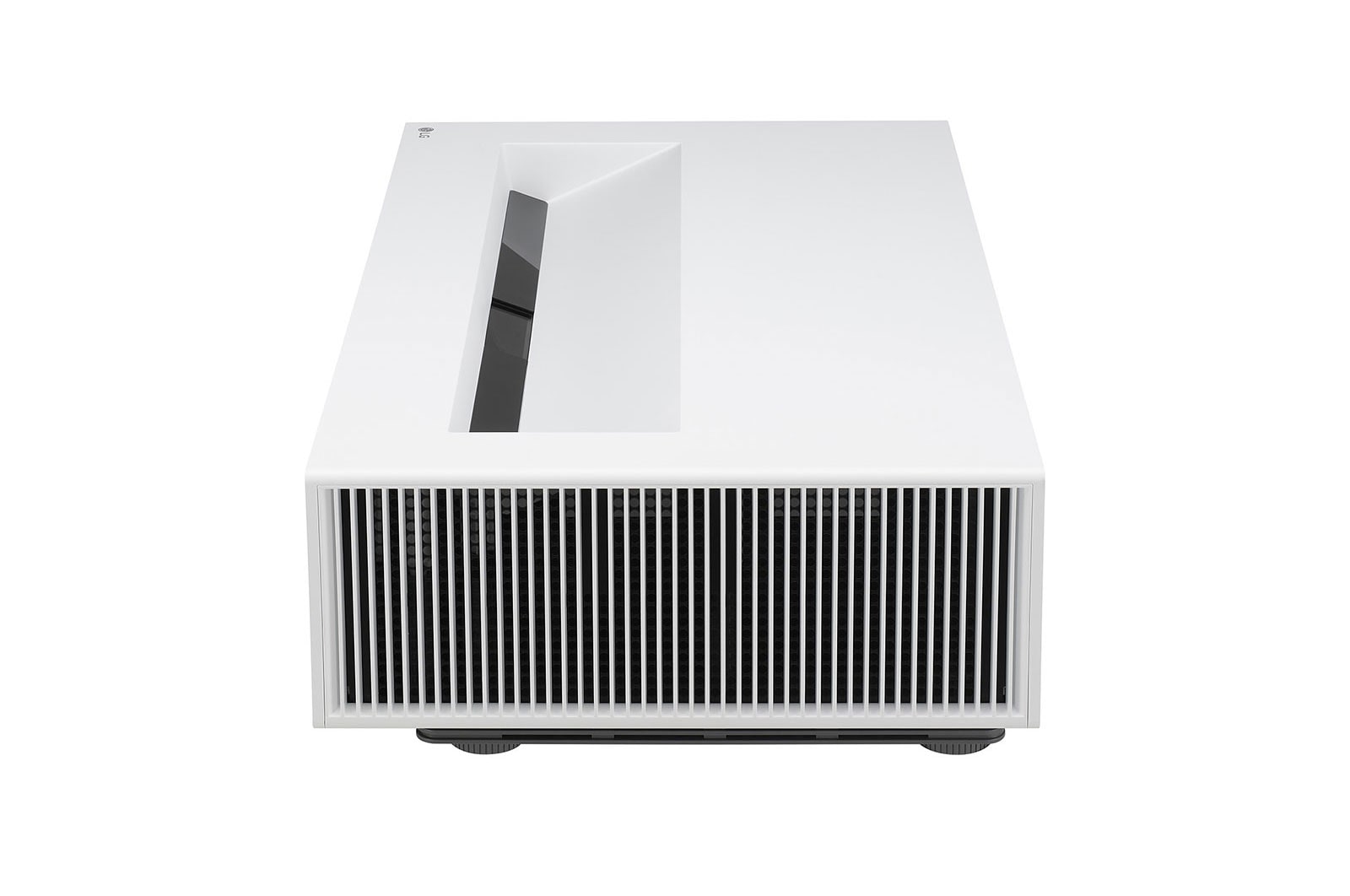

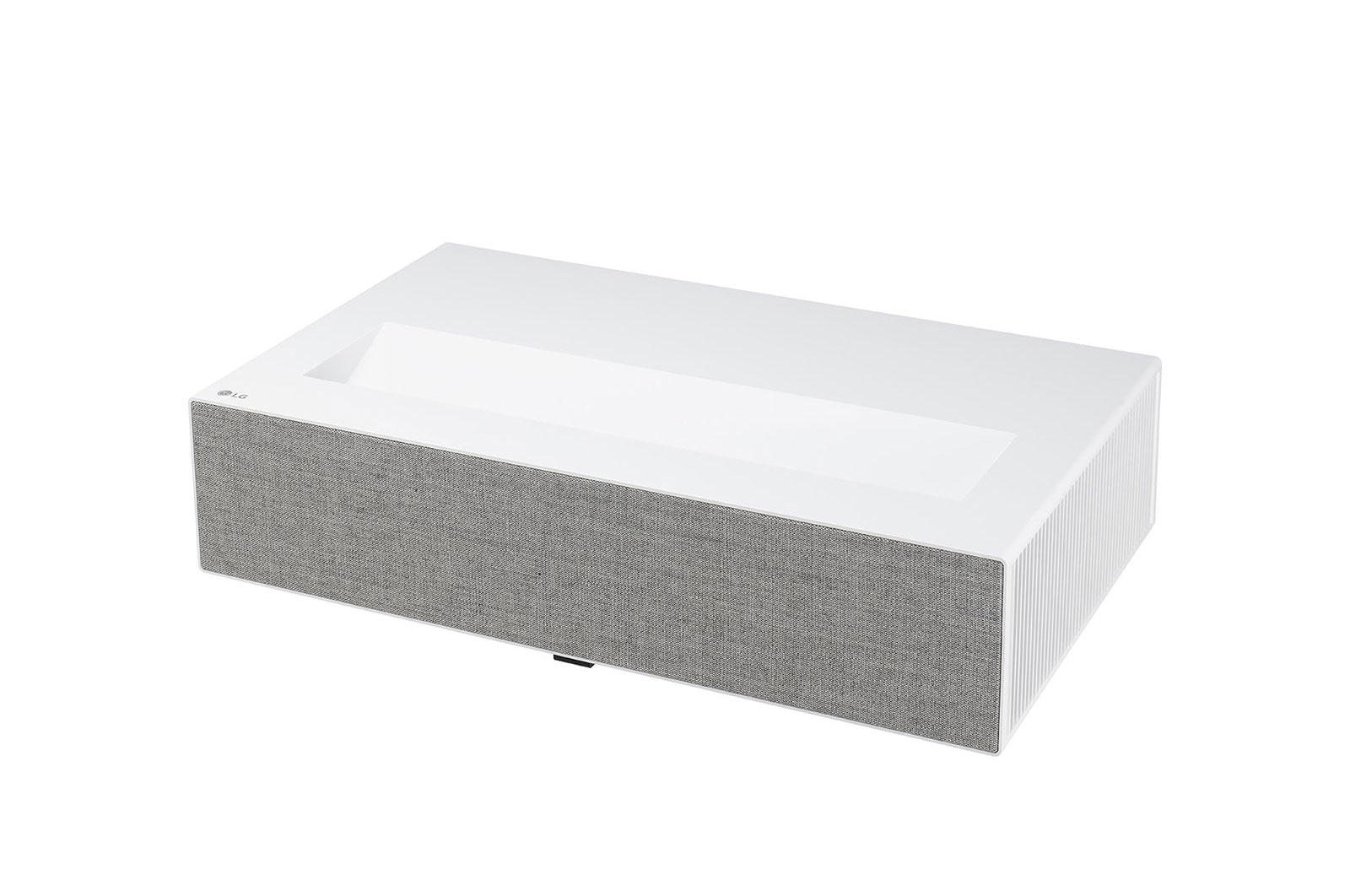

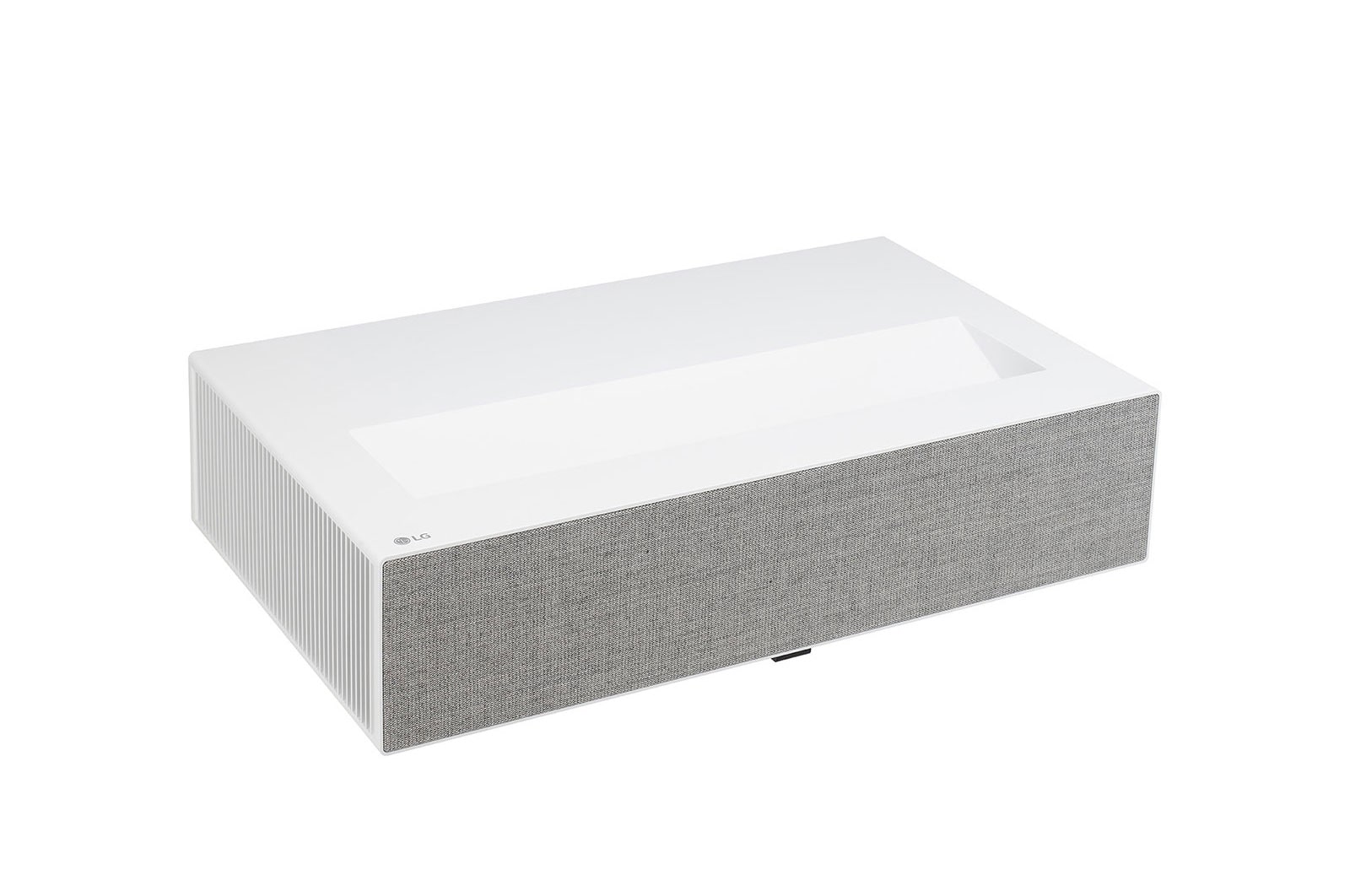

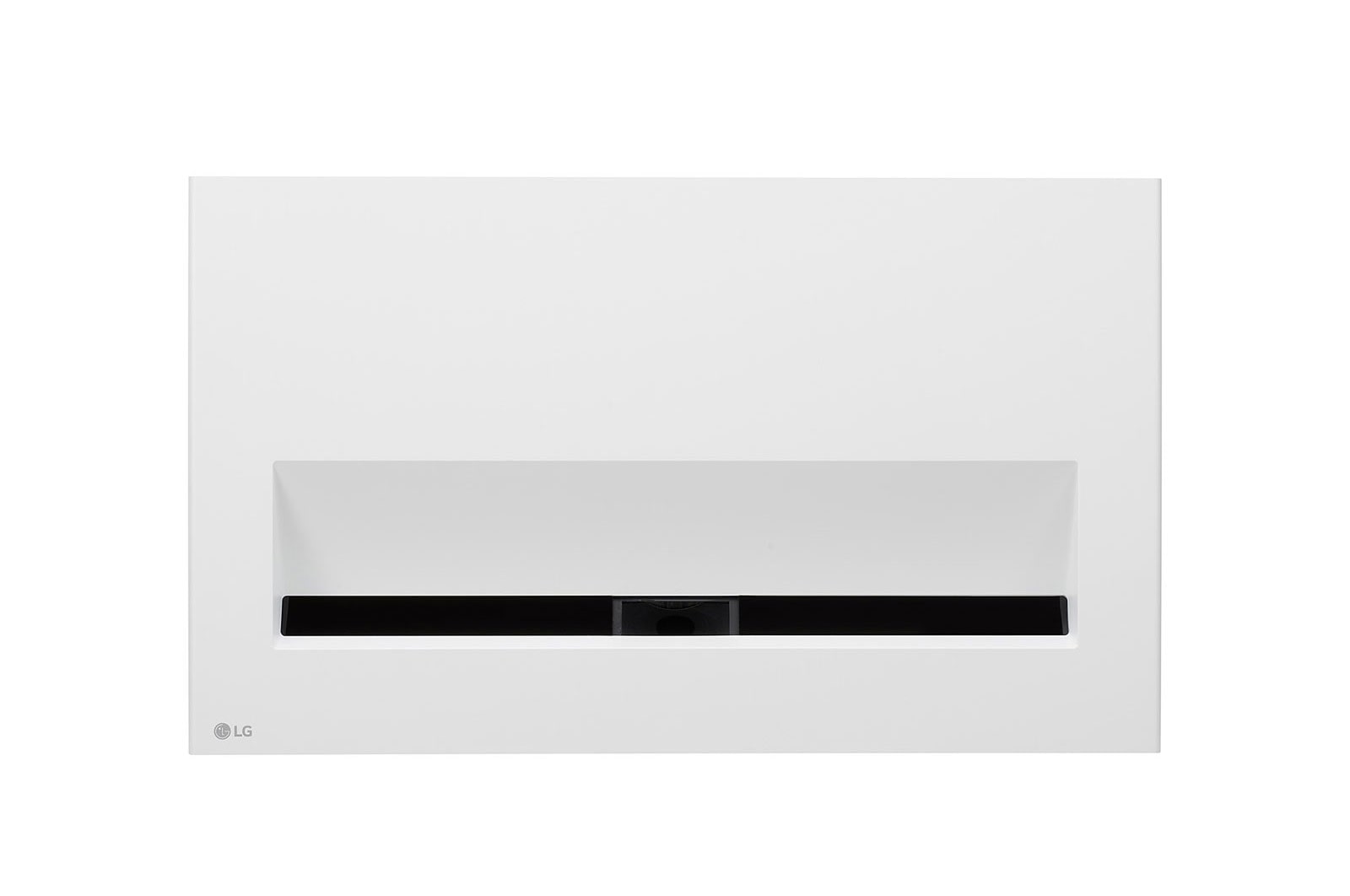

LG CineBeam 4K UHD Laser UST Projector
Depending on installation environment, cables may be visible.
Display
- Ultra Short Throw
- 4K UHD (3840x2160)
- 2,500 ANSI Lumens
Imaging Technology
- Brightness Optimizer Ⅱ
- Auto Brightness
- Adaptive Contrast
Usability
- webOS
- Apple AirPlay 2® & HomeKit®
- Built-in 20W+20W Stereo

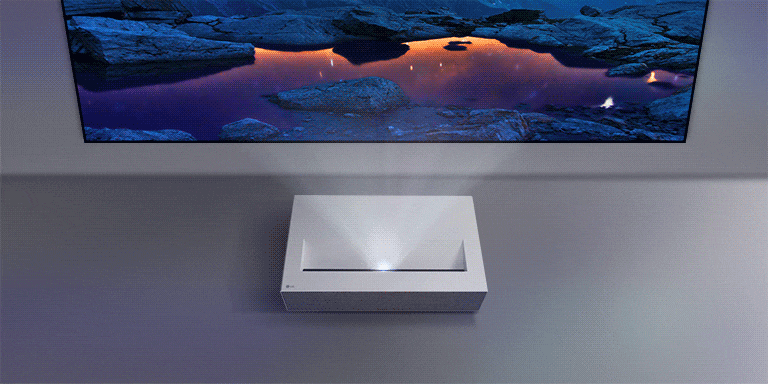

Ultra Short Throw Ratio
*It can project an 80-inch screen from a distance of 11.8cm, a 100-inch screen from a distance of 21.7cm, and a 120-inch screen from a distance of 31.7cm.

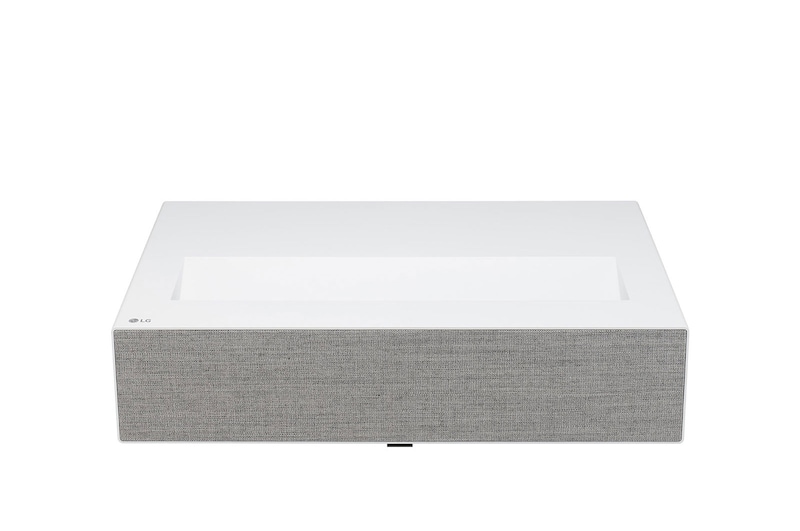

**Textiles by Kvadrat. Kvadrat is a Danish textile company.
4K UHD Laser Projector with Vivid and Clear Picture Quality
comparison of FULL HD and 4K UHD
Image illustrated to enhance feature understanding
*The figures of contrast ratio and colour gamut are the measured value from internal testing.
*The marked brightness, the measured value from internal testing, is based on the brightness standard that users perceive.
*The above figures are based on ‘Brightest mode’ and may vary depending on your environment.
*The colour gamut is based on 'Vivid mode’ and the colour reproduction range may vary depending on the picture mode you choose.
A New Level of Clarity
Dynamic Tone Mapping
HDR10
HLG
HGiG
*HDR covers almost all HDR specifications, including HDR10, Dynamic Tone Mapping, HLG, HGiG and other specifications.
*The images simulated to enhance feature understanding. It may differ from actual use.

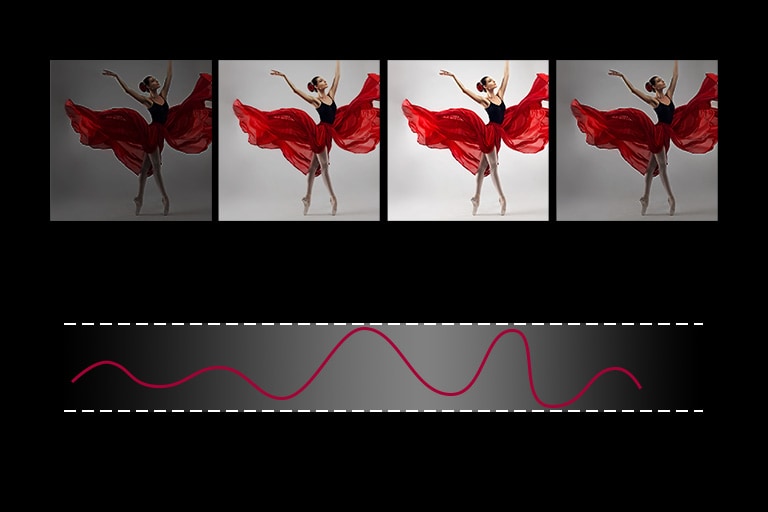

Check, Adjust, and Project Automatically

Dark Room

Bright Room
- Non Adaptive Contrast
- Adaptive Contrast

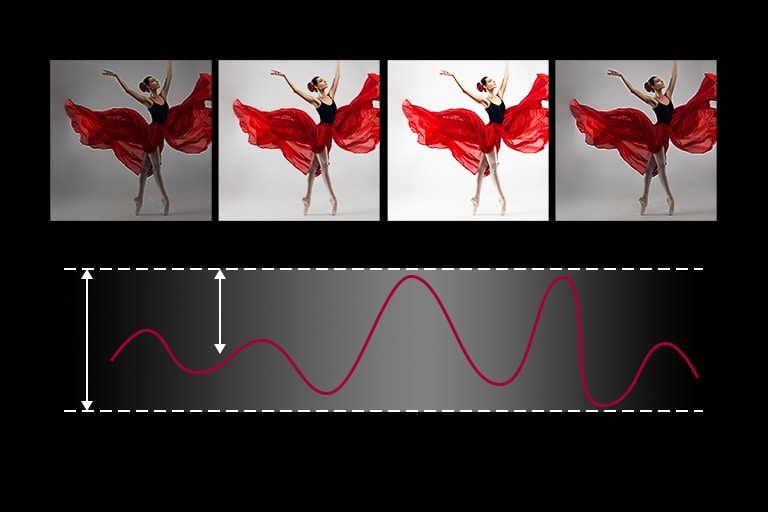

Fits Laser Output to the Scene
Image quality is dependent on source material quality.
*Brightness OptimizerⅡ includes Auto Brightness and Adaptive Contrast. It controls the amount of electric current depending on the brightness of the original image, while the ambient sensor optimizes the brightness by automatically recognizing the ambient lighting conditions.
*The images simulated to enhance feature understanding. It may differ from actual use.
**To run 'Auto Brightness', you can turn on the ambient sensor by accessing the ‘Brightness OptimizerⅡ’ menu using the magic remote control and turning ON/OFF the 'Auto Brightness’. (During use this function, Energy saving menu is disabled)
**Iris mode that physically controls the contrast ratio is NOT supported.
*Internet connection and subscription to streaming services are required.
*Supported services may differ by country.
Internet connection and subscriptions may be required for certain features and to access certain content.
Internet usage charges and conditions apply. Content, features and third party services will vary from time to time without notice.

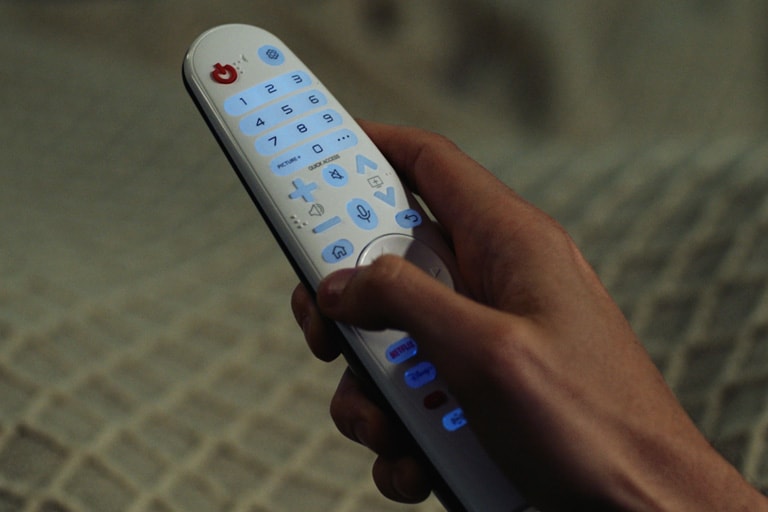

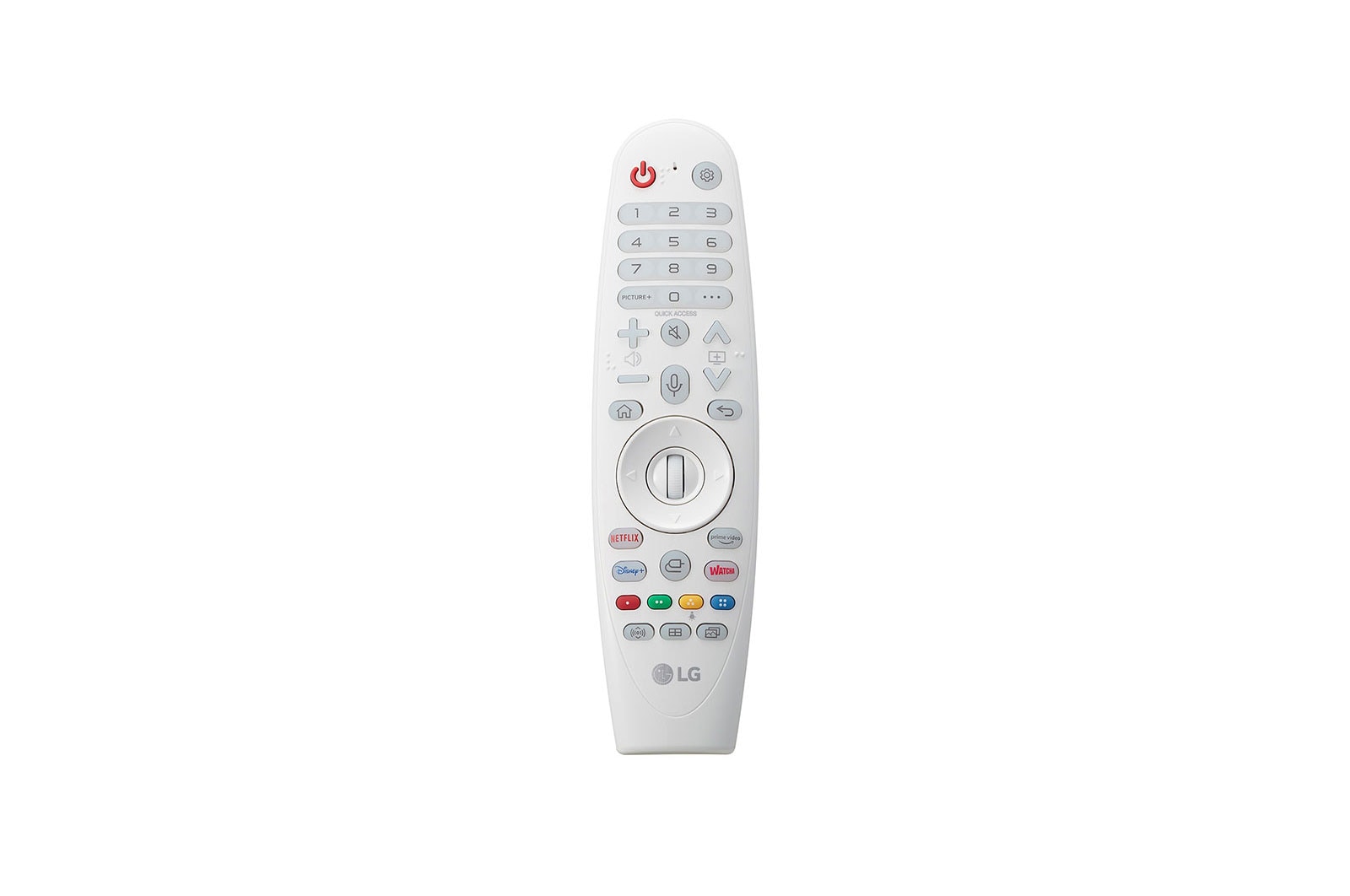

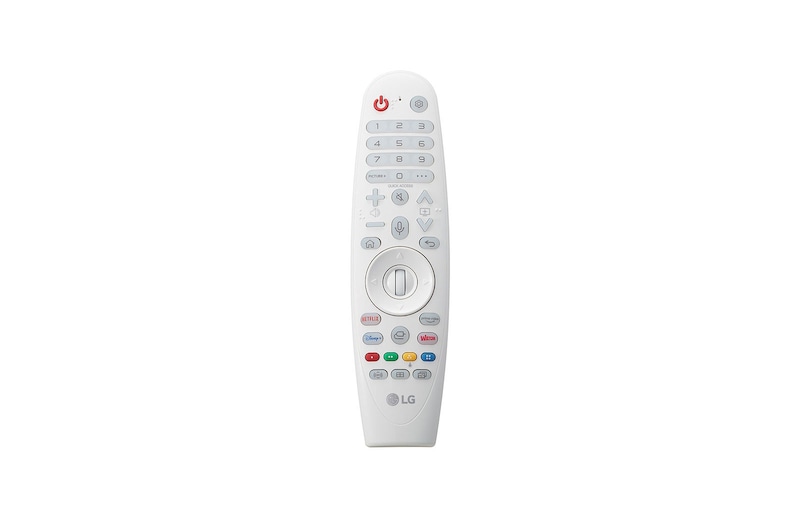

Magic Lighting Remote Control
With Magic Lighting Remote Control, you can just press the Home button and easily control the projector. The lighting function lets you control the projector conveniently even in a dark room.
How to Use Your Apple Devices with LG CineBeam Properly
Stream video from Apple device to LG CineBeam
1. Find the video that you want to stream.
2. Tap AirPlay icon.
3. Choose your LG CineBeam projector.
4. If an AirPlay passcode appears on your projector screen, enter the passcode on your Apple device.
Mirror your Apple device to LG CineBeam
1. Open Control Center.
2. Tap Screen Mirroring.
3. Select your LG CineBeam from the list.
4. If an AirPlay passcode appears on your projector screen, enter the passcode on your Apple device.
Set up HomeKit® on LG CineBeam
1. On 2nd depth Launcher of webOS 6.0, click AirPlay.
2. Click Open Settings and Select 'Set up HomeKit’.
3. Scan the QR Code on LG CineBeam using your Apple device.
4. Complete HomeKit Setting on LG CineBeam.
*Your Apple device must be connected to the same Wi-Fi network as your projector.
*Apple, the Apple logo, AirPlay, Apple TV, and HomeKit are trademarks of Apple Inc., registered in the U.S. and other countries.
*This LG CineBeam supports AirPlay 2 and requires iOS 12.3 or later or macOS 10.14.5 or later.

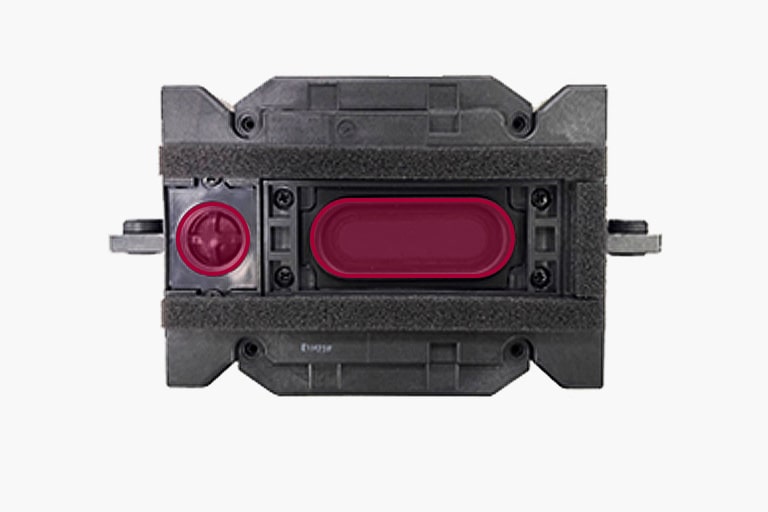

2.2 Ch included Quad Woofer
2.0 Ch : Tweeter 2ea + Woofer 2ea (L/R) on the front that can reproduce the full range
0.2 Ch : Woofer 2ea (L/R) on the back to enhance the bass range
Sound quality is dependent on source material.
*Needs to purchase Bluetooth speakers to use this function.
*4.2 channels effect : 2.2 Ch is implemented in virtual. Need to connect two Bluetooth speakers for 4.2 Ch effect.

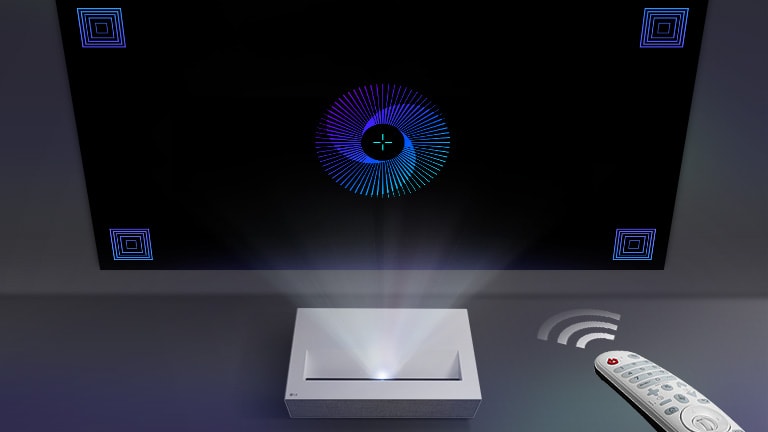

Motorised Focus
*The images simulated to enhance feature understanding. It may differ from actual use.

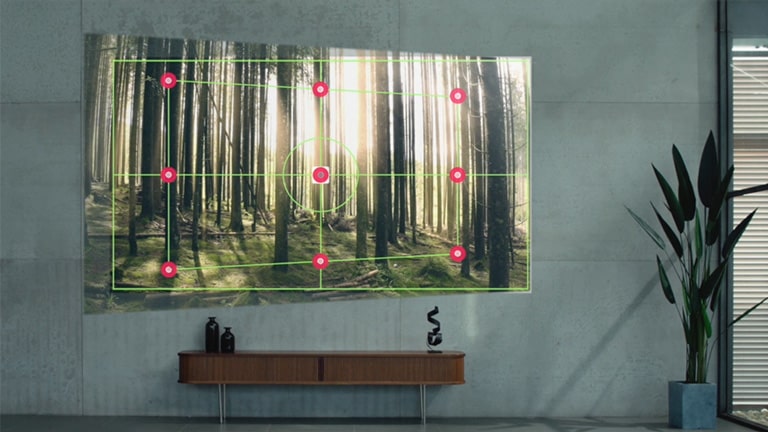

4/9/15 Point WARPING
LG Projection Calculator
Key Specs
Native Resolution
4K UHD (3840 x 2160)
Brightness (ANSI Lumen)
2500
Type
Laser (LD + P/W)
Contrast Ratio
2,000,000:1
Digital Keystone Correction
Edge Adjustment (4/9/15 Point Warping)
Output
20W + 20W Stereo
Airplay 2 (iOS/Mac Video Casting, Mirroring, Audio Streaming)
YES (up to 4K/30Hz)
Screen Share (Wireless Mirroring with MiraCast supporting device)
YES (up to 4K/30Hz)
Zoom
Fixed
All Spec
PROJECTION SYSTEM
Projection System
DLP
NATIVE RESOLUTION
Native Resolution
4K UHD (3840 x 2160)
BRIGHTNESS (ANSI LUMEN)
Brightness (ANSI Lumen)
2500
CONTRAST RATIO
Contrast Ratio
2,000,000:1
WEIGHT
Net Weight (kg or g)
11.1
CONVENIENCE FEATURES
Platform (OS, UI)
webOS 6.0 (Smart)
Home Dashboard (Input, IoT with OFC device)
YES (OCF/UEI IoT not supported)
Background Image
YES
Premium CP
YES
Contents Store / LG Smart World (App Store)
YES
Contents Suggestion
YES
Internet Browser
YES
Voice Recognition - Buit-in
LG ThinQ
AI Speaker Compatibility
Apple Homekit works-with
Screen Share (Wireless Mirroring with MiraCast supporting device)
YES (up to 4K/30Hz)
Airplay 2 (iOS/Mac Video Casting, Mirroring, Audio Streaming)
YES (up to 4K/30Hz)
Contents Sharing (with DLNA supporting device)
YES
Bluetooth Sound out
YES
LG Sound Sync(with Sound Bar)
YES
HDMI ARC(Audio Return Channel)
YES (eARC)
HDMI simplink(CEC)
YES
HDCP
HDCP 2.2
Plug & Play(RGB/DVI/HDMI Auto Source Detection)
YES
USB Host (Movie, Music, Photo)
YES
Setting Guide
YES (Bean Bird)
HID (Keyboard/Mouse/GamePad Connection Thru USB)
YES
Eco Function - Energy Saving Mode
YES (Min/Med/Max)
Eco Function - Sleep Timer
YES
Eco Function - Auto Off / Auto Sleep
YES
Eco Function - Time Power On/Off
YES (On / Off)
Eco Function - Automatic Standby / Auto Power Off
YES
Processor
Quad Core
HDR
HDR10, HLG
HDR Tone Mapping
YES (Auto, Dynamic/frame by frame)
Brightness Optimizer - Adaptive Contrast
YES (High / Medium / Low / Off)
TruMotion
YES (up to 4096x2160)
Real Cinema
YES (up to 4096x2160)
Upscaler
YES (4K)
Super Resolution (Expert Control)
YES (4K)
FILMMAKER mode
YES
HGiG (HDR Gamming Interest Group) mode
YES
Digital Keystone Correction
Edge Adjustment (4/9/15 Point Warping)
Image Flip
YES (Horizontal/Vertical)
Smooth Gradation
YES
Black Level Control
YES
Noise Reduction
YES
Color Temperature Adjustment
YES
Dynamic Contrast (Expert control)
YES
Dynamic Color (Expert control)
YES
Dynamic Black
YES
Color Management System (Expert control)
YES
Color gamut setting (Expert control)
YES
Gamma Correction (Expert control)
YES
White balance setting (Expert control)
YES
Quick(Instant) Power on/off
YES (on 12 Sec ↓ / off 2 Sec)
Store Mode
YES
Self Diagnosis
YES
PROJECTION LENS
Focus (Auto / Manual)
Motorized
Zoom
Fixed
PROJECTION IMAGE
Screen Size
80" - 120"
Standard (lens to wall)
Set to wall: 100"@21.7cm, Standard: @49.6cm
Throw Ratio
0.22
PROJECTION OFFSET
Projection Offset
1.18
LIGHT SOURCE
Type
Laser (LD + P/W)
Life Hours
20,000 Hrs
LANGUAGE
OSD Languages
Korean / English / English(UK) / French / Spanish / German / Portuguese / Brazilian Portuguese / Dutch / Russian / Polish / Hungarian/ Romanian / Slovenian / Croatian / Bulgarian / Serbian / Italian / Finnish / Swedish / Lithuanian / Norwegian / Latvian / Estonian / Canadian / Czech / Turkish / Slovak / Arabic / ChineseSimplified / Indonesian / L-Spanish / India / Japanese / Thai / Taiwanese / Vietnamese / Danish
SOUND
Output
20W + 20W Stereo
Clear Voice
YES (Clear Voice lll)
Dolby Atmos compatible
YES (Pass through)
SIZE
Net Size (mm) (W x D x H)
533 x 315 x 153
TEMPERATURE
Operation Temperature
0 - 40℃
UNIFORMITY
Uniformity (JBMMA 9 Point)
85%↑
INPUT SIGNAL COMPATIBILITY
Digital(HDMI)
Up to 4K (4096x2160) (60Hz, 50Hz, 24Hz)

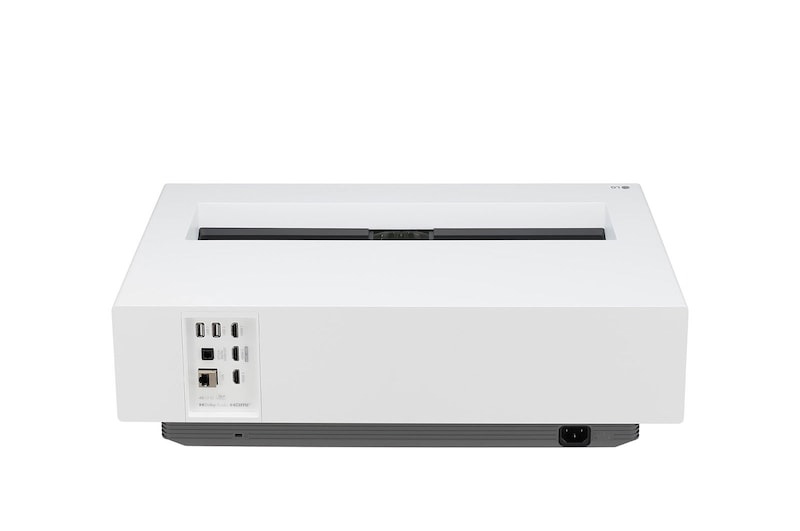

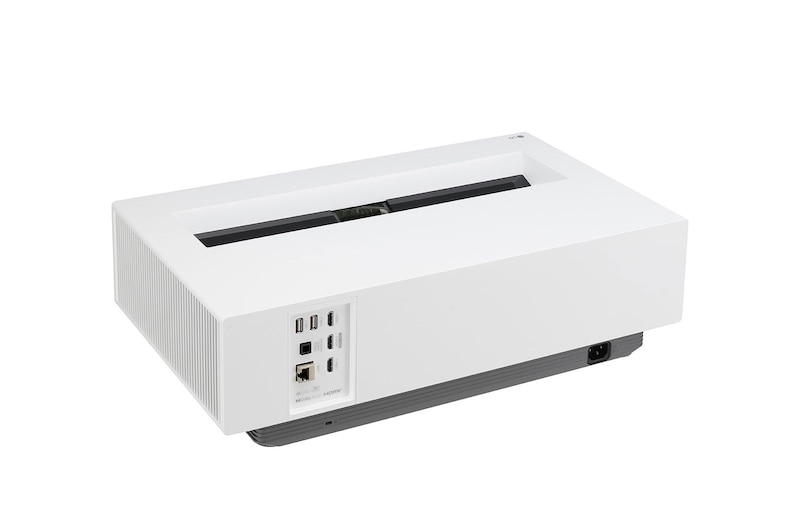

INPUT/OUTPUT TERMINALS
Audio out
S/PDIF 1(Optical)
IP control
YES (Control 4, Crestron, Savant, URC, ELAN)
RJ45
1
HDMI
3
USB Type-A
2 (USB2.0)
DESIGN
Cabinet Color
White
Local Key
Joystick
Kensington Lock
YES
Leg-Stand
YES (4 Leg)
Ceiling mount hole (for bracket)
YES
ACCESSORY
Manual (Full or Simple Book)
Simple Book
Quick User Guide (Quick Set-up Guide)
YES
Warranty Card
YES
Remote Control - Motion
YES (Magic Lighting Remote)
Conformances(Regulation)
KCC, KC, FCC, ETL, CE/CB, PSE
NOISE
Energy Saving Min. (Bright)
30dB(A)
Energy Saving Med.
28dB(A)
Energy Saving Max. (Eco)
26dB(A)
ASPECT RATIO
Aspect Ratio Control
16:9/Original/4:3/Vertical Zoom/All-Direction Zoom
POWER
Power Consumption (Max.)
350W
Stand-by Power
<0.5W
Power Supply
100V – 240V @ 50-60 Hz (PSU Built-in)
