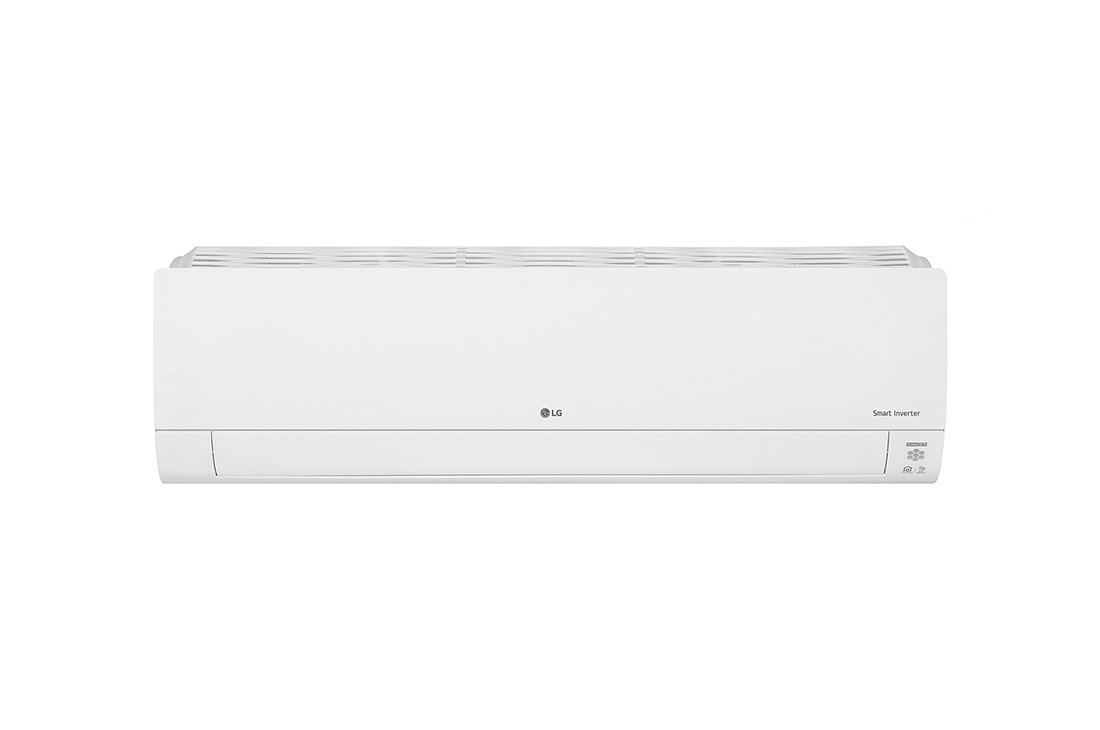

WH34SR-18
High Efficiency 9.4kW Reverse Cycle Split System
  • Built-in Wi-Fi Smart Control
  • Energy Display & Monitoring
  • Active Energy Control
  • Plasmaster™ Ioniser Plus
  • 10 Year Compressor Parts Warranty
High Efficiency 9.4kW Reverse Cycle Split System
$3417
*Feature can be accessed using LG ThinQ® app on Android or IOS smartphones. Internet connection and product registration on the ThinQ® app required.
Compatible smartphone required, iOS 8/Android 4.1.2 (Jellybean) or later required for LG ThinQ® app and Audible Smart Diagnosis feature.

Dimensions

  • COOLING CAPACITY (Kw)
    9.4
  • INDOOR DIMENSION (WxHxD)
    1200 x 360 x 265
  • 10 YR COMPRESSOR PARTS WARRANTY
    YES
  • BUILT IN Wi-Fi
    YES

PERFORMANCE

  • Cooling Capacity (Rating)
    9.40 kW
    Heating Capacity (Rating)
    10.30 KW
  • Power Input
    Cooling: 2.68kW, Heating: 2.74KW
    Rated Running Current
    Cooling: 12.00A, Heating: 12.30A
  • AEER Cooling
    3.51 W/W
    ACOP Heating
    3.76 W/W
  • Air Flow Rate (Indoor, Max/H/M/L)
    516/416/350/283
    Indoor Noise (dB(A) ± 3) (Sound Pressure Level¹) (H/M/L/S)
    51 / 46 / 42 / 33 (Actual installed noise levels vary depending on the installed location)
  • Outdoor Noise (dB(A) ± 3) (Sound Pressure Level¹) (H/M/L/S)
    66 (Actual installed noise levels vary depending on the installed location)
    Moisture Removal (l/h)
    2.60

MODEL

  • Set
    WH34SR-18
    Indoor
    WH34SRN-18
  • Outdoor
    WH34SRU-18

TECHNICAL

  • Refrigerant Charge (R32) at 7.5m
    2000 g
    Pipe Run (Min / Max) (max elevation 20m)
    3 m / 30 m
  • Circuit Breaker Size
    240 Volt 25 Amps
    Additional Refrigerant (g/meter)
    20 (Additional refrigerant required after 12.5m of piping)
  • Operating Range (Outdoor)
    Cooling -10 ~ 48°C, Heating -15 ~ 24°C
    Pipe Size Connection (Ø)
    Liquid mm (inch) - 9.52 (3/8), Gas mm (inch) - 15.88 (5/8)
  • Outdoor Sound Power Level² (SWL)
    66 dB(A) (Sound Power Level specification is measured in a reverberation test room according to ISO 3741)

ENERGY CONSUMPTION

  • Energy Rating (Heating)
    3 Stars
    Energy Rating (Cooling)
    2½ Stars

DIMENSIONS

  • Indoor (WxHxD)
    1200 x 360 x 265mm
    Outdoor (WxHxD)
    950 x 832 x 330mm
  • Indoor (Weight)
    18.5kg
    Outdoor (Weight)
    67.1kg

WARRANTY

  • Warranty Details
    Please see http://www.lg.com/au/support/warranty
