FAQs

How do I install an LG cooktop?

You must engage a qualified electrician to complete the installation of your LG Cooktop, in accordance with the Owner Manual. Incorrect installation by a non qualified electrician may result in product not working properly, failure or safety risk.

Does the Cooktop have any child safety features?

To prevent your children from inadvertently turning on the induction Cooktop, just hold down the lock button for 3 seconds. This turns the child lock on which disables all controls and helps the safety of your family. If you are already cooking something on one zone, the power slider still remains active, but you will not be able to turn on other zones. LG induction cooktops are also equipped with 2-stage residual heat indicators and automatic safety shut-off function.

Is the heat from the Cooktop dangerous?

The induction technology ensures heat is only transferred from the cooktop to the cookware. This means that the bottom of the cookware can heat the top glass to a potentially dangerous temperature. To help prevent accidental burns, LG Induction Cooktops come with 2-stage residual heat indicator lights that turn on when the surface is hot and stay on until it cools down.

How can I connect my LG Cooktop and Rangehood?

The LG Rangehood automatically activates with compatible LG Cooktops and adjusts extraction speed to match cooktop settings, once set-up via the LG ThinQ app (please consult owner's manual for instructions). With your Rangehood and Induction Cooktop synchronized, you can focus on cooking while smart connectivity takes care of the rest. The ThinQ app lets you turn the Hood on/off, monitor the operation status, and control the speed mode all from your phone. LG ThinQ® app & compatible smartphone required with mobile data or home Wi-Fi connection.

5 High Performance Sealed Burners

5 Cooktop Burners Simplify Meal Prep and Save Time

5 Cooktop burners with a range of BTU's give you the flexibility you need to simplify meal prep and safe time.1

5 High Performance Sealed Burners

5 High Performance Sealed Burners

2-in-1 Dual Element

With its 2-in-1 dual element design, you can adjust the size of the element to accommodate 6-inch and 9-inch cookware.1

Flexible Elements for Quick Boils and True Simmers

Quickly boil water or hold to a true simmer with ease.1

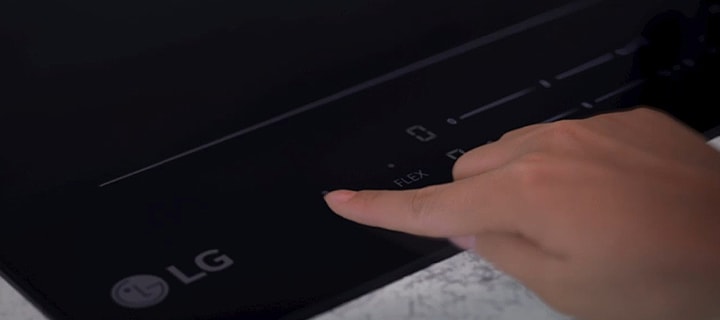

SmoothTouch® Glass Controls

Sleek, Intuitive Controls

The intuitive SmoothTouch® glass controls deliver sleek style and easy operation, with just a touch of your finger. Plus,

the smooth surface easily wipes clean for a design that is as practical as it is stylish.1

 SmoothTouch® Glass Controls

5 High Performance Sealed Burners

Hood & OTR Microwave Sync

Sync with Smart LG Hoods and Over-the-Range Microwaves

Sync with your smart LG Hood or Over-the-Range Microwave via the LG ThinQ® app to automatically activate the fan and lights

when the cooktop burners are in use and deactivate them when the burners are turned off.1

Hood & OTR Microwave Sync

5 High Performance Sealed Burners

ENERGY STAR® Certified

Save Money. Save Energy.

Products that earn the ENERGY STAR label meet strict energy-efficiency specifications set by the U.S. EPA,

helping you save energy and money while protecting our climate by making choices that count for a clean energy future.

1 Images may be simulated and dramatized for illustrative purposes. Actual features, functionality, and other product specifications may differ and are subject to change without notice.

SUMMARY

DIMENSIONS

CBEW3017BE
Product Dimensions (W x H x D) (inch)
30 11/16 x 4 1/8 x 21 1/16
Heater - Total (W)
9600

All Spec

DESIGN / FINISH

  • Control Display

    LED

  • Cooktop Control Type

    Glass Touch

  • Cooktop Glass

    Ceramic glass

ACCESSORIES

  • Cooktop Cream / Cleaner (Ea)

    1

  • Scouring Pad (Ea)

    1

BAR CODE

  • Bar Code

    048231347556

BASIC SPEC

  • Brand

    LG

  • Cooktop Type

    Radiant

  • Fuel Type

    Electric

  • Outcase Color

    Black

CONVENIENCE FEATURES

  • ADA Compliant

    Yes

  • Control Lock

    Yes (Cooktop)

  • Cookware Heating Index

    No

  • Kitchen Timer

    Yes

  • Pause

    Yes

  • Simmer

    Yes

  • Timed Cook

    No

COOKTOP FEATURES

  • Cooktop Type

    Radiant

  • EasyClean Cooktop

    Yes

  • Element/Burner Type(Dual)

    Center Rear, Right Front

  • Element/Burner Type(Single)

    Left Front, Left Rear, Right Rear

  • Fuel Type

    Electric

  • Heater - Total (W)

    9600

  • Hot Surface Indicator

    Yes

  • Number of Cooktop Elements/Burners

    5

  • Radiant Heater - Center Rear (W) (inch)

    1400(6 5/8), 3200(9 15/16)

  • Radiant Heater - Left Front (W) (inch)

    1500(7 5/8)

  • Radiant Heater - Left Rear (W) (inch)

    1500(7 5/8)

  • Radiant Heater - Right Front (W) (inch)

    1000(5 15/16), 2200(9 3/16)

  • Radiant Heater - Right Rear (W) (inch)

    1200(6 7/16)

  • Safety function(Cooktop)

    Yes

DIMENSIONS / WEIGHT

  • Cut-out Dimensions_Min (W x H x D)(inch)_Standard

    28 1/2 x 5 7/8 x 19 5/8

  • Packing Dimensions (W x H x D) (inch)

    33 7/8 x 5 3/8 x 24 1/4

  • Product Dimensions (W x H x D) (inch)

    30 11/16 x 4 1/8 x 21 1/16

  • Product Weight (lb.)

    36.02

  • Shipping Weight (lb.)

    41.73

  • Size in Width (inch)

    30 11/16

POWER / RATINGS

  • Required Power Supply (Volt/Hz)

    208/240V / 60Hz

  • Amp Rating at 208V(Amp)

    34.7

  • Amp Rating at 240V(Amp)

    40.0

  • Watt Rating at 208V(W)

    7200

  • Watt Rating at 240V(W)

    9600

SMART TECHNOLOGY

  • NFC Tag On

    No

  • Smart Recipe (3rd Party Recipe App)

    No

  • ThinQ(Wi-Fi)

    Yes

  • Voice Control (3rd Party Device)

    No

  • Works with

    LG ThinQ
