Bottom Freezer | Standard Depth - LRDNS2200W

Q: How long does it take for my LG refrigerator to get cold after installation?

After installation, allow up to 24 hours for the refrigerator to reach its set temperature. Cooling times may vary depending on room temperature, usage, and how much food is placed inside. For best results, wait until the unit has fully stabilized before loading large quantities of food.

Q: Does my LG refrigerator require manual defrosting?

Most LG refrigerators are equipped with an automatic defrost system, which helps prevent frost buildup and maintains efficient operation. Manual defrosting is typically not required. Refer to your owner’s manual for details specific to your model.

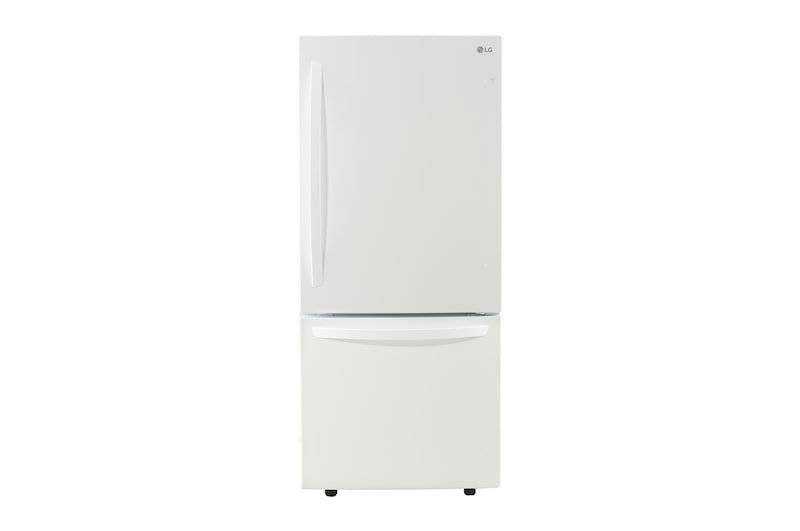

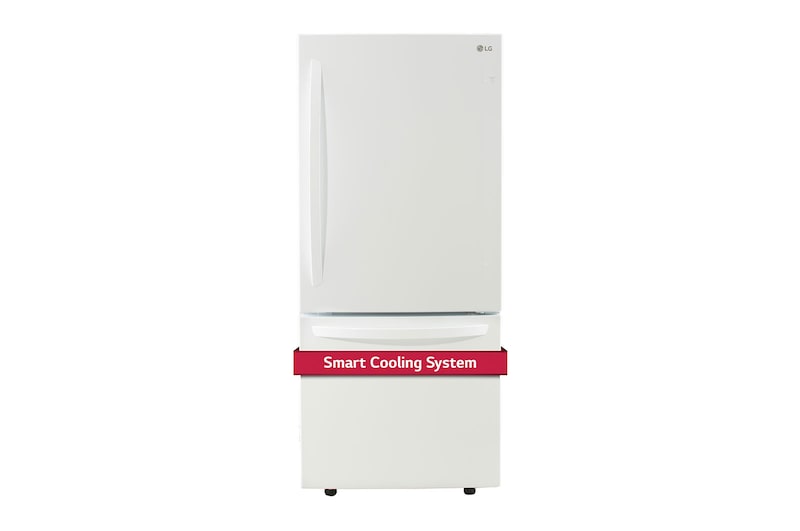

30" 22 cu. ft. Standard-Depth Bottom Freezer Refrigerator

LRDNS2200W

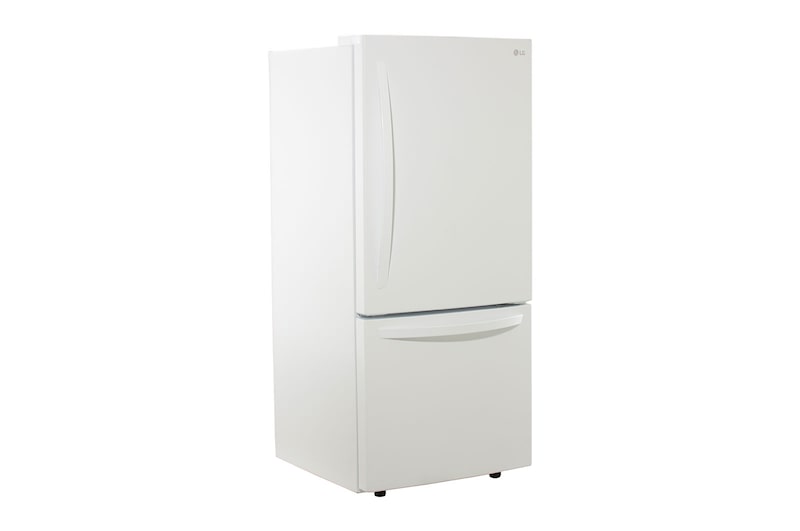

Side view of LG 30" 22 cu.ft. Standard-Depth Bottom Freezer Refrigerator - LRDNS2200W

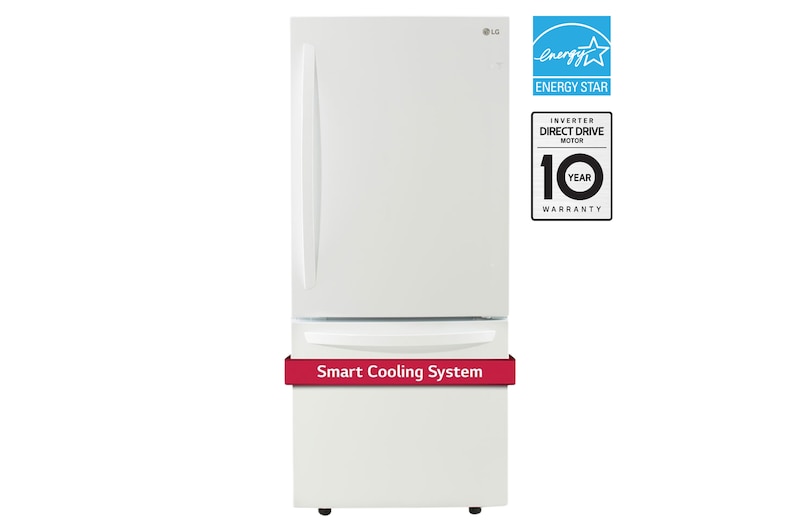

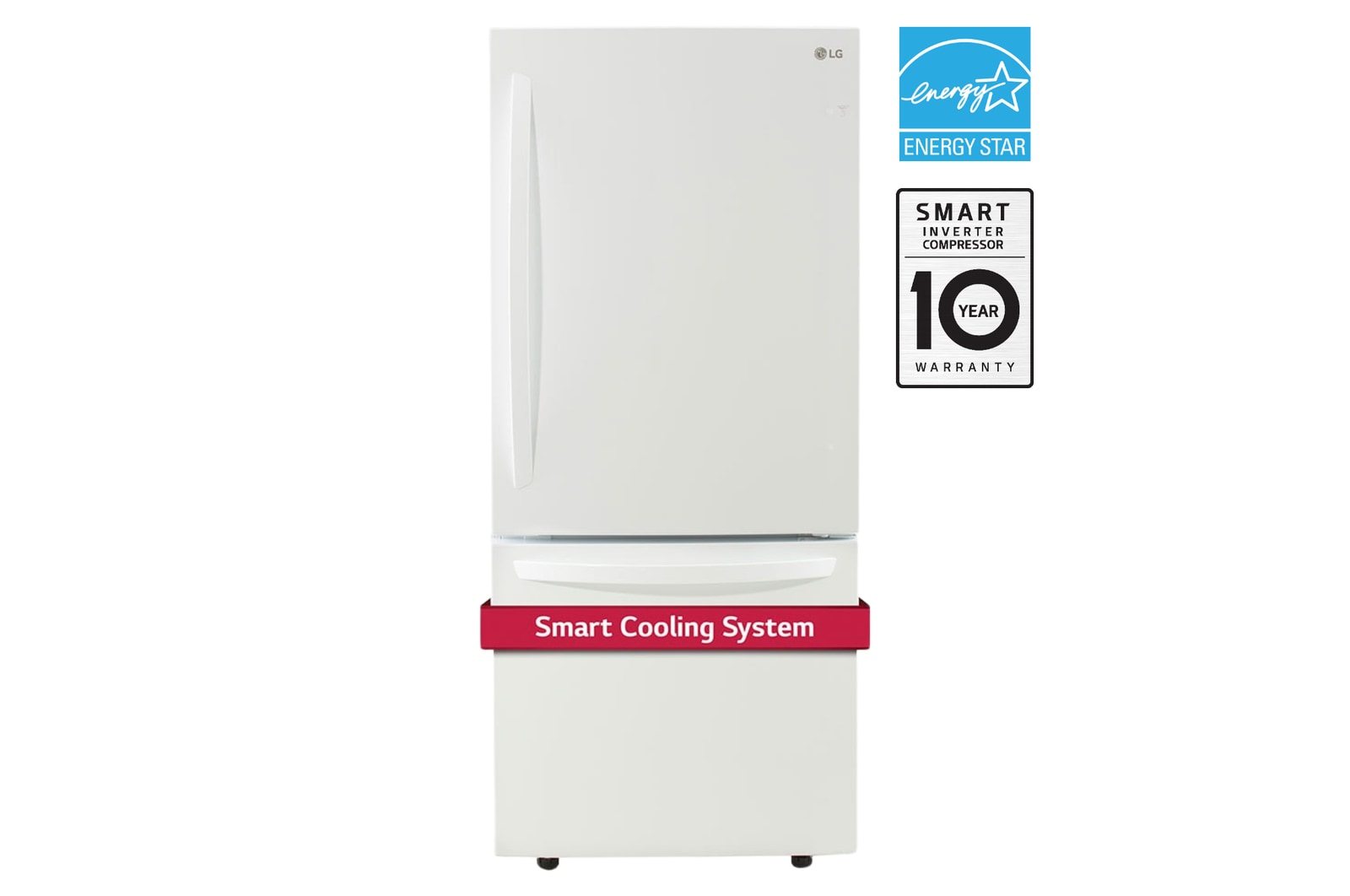

LG 30" 22 cu. ft. Standard-Depth Bottom Freezer Refrigerator, LRDNS2200W

Key Features

Large Capacity
Multi-Air Flow System
Smart Diagnosis^®
ENERGY STAR^® Certified
10-Year Manufacturer's Limited Warranty on Smart Inverter Compressor

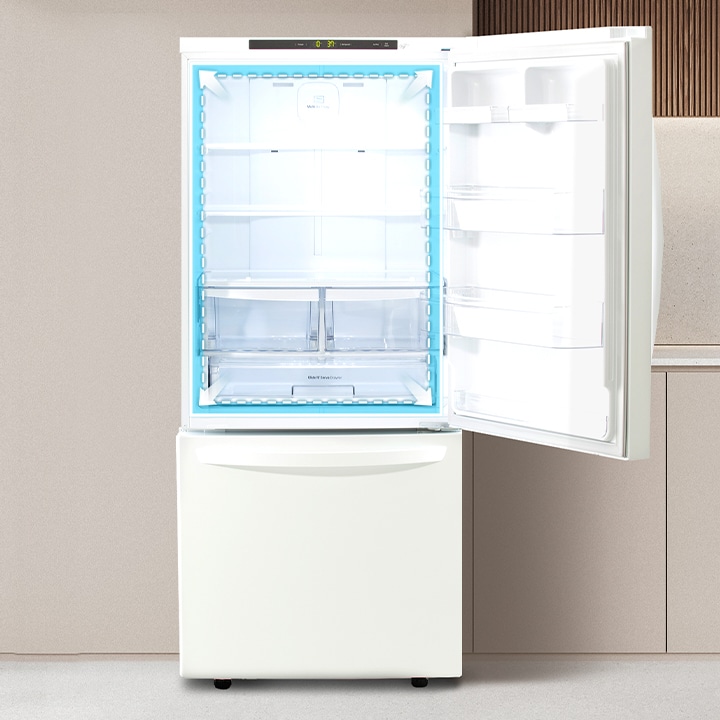

Large Capacity

Space when you need it

Get more space for groceries in a great feature-packed refrigerator.

Nothing beats the convenience of having more food when you need it, and with a generous 22 cu. ft. of space, you'll have room and room to grow.

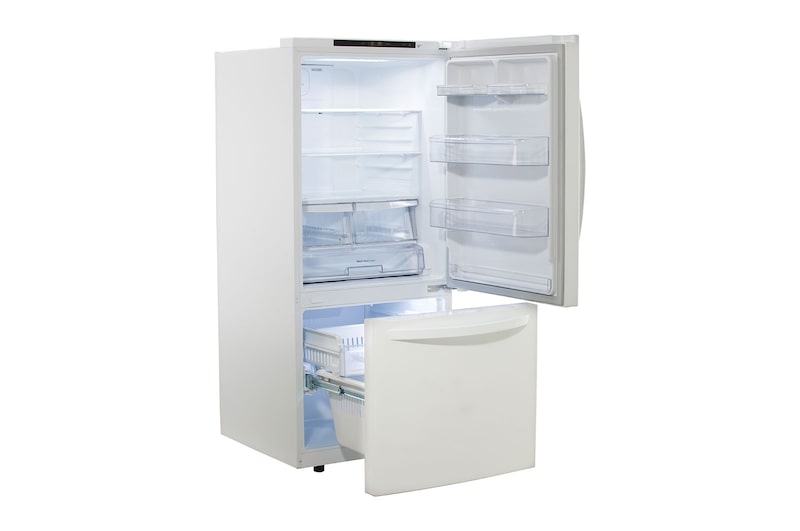

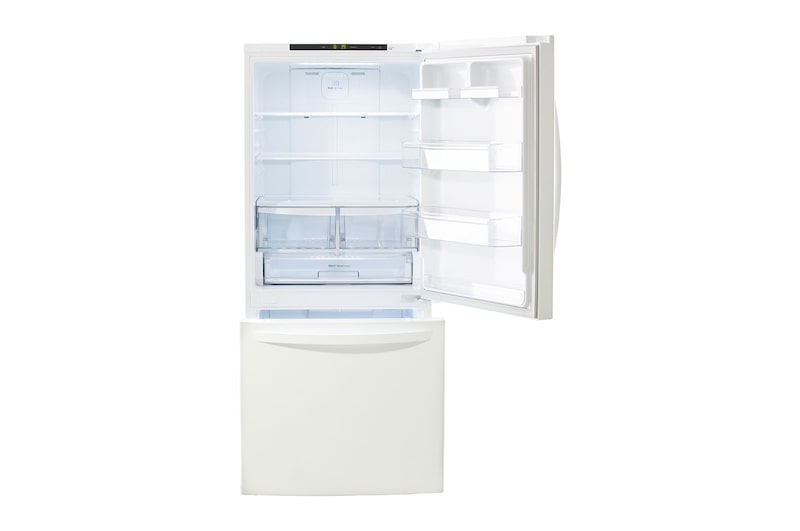

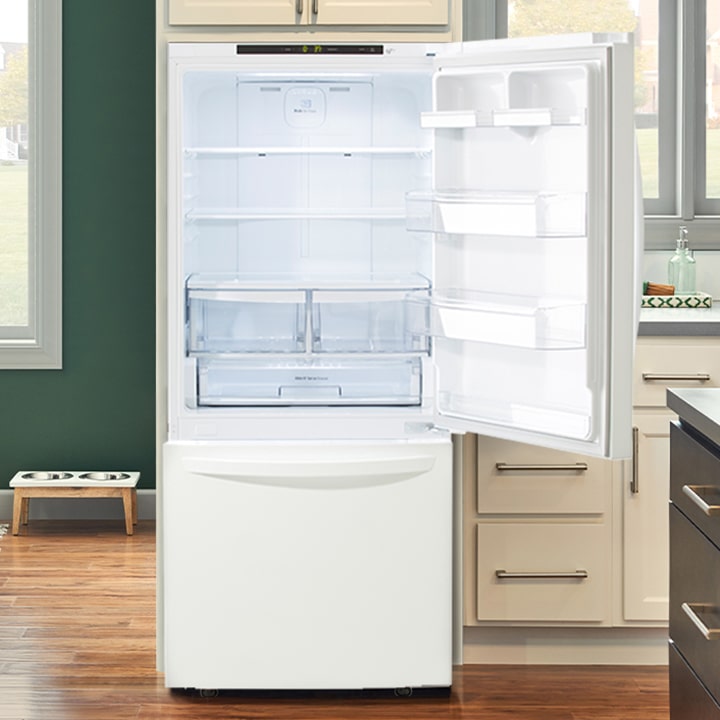

White bottom-freezer refrigerator with the top door open, showing glass shelves and clear crisper drawers.

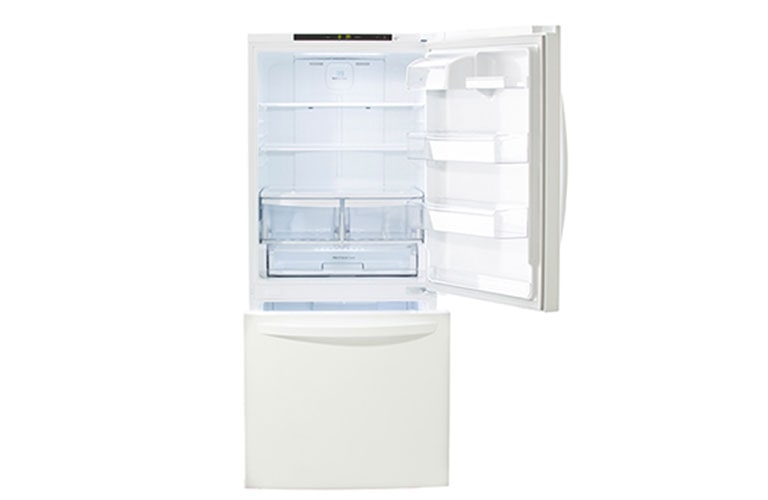

Multi-Air Flow System

Fresher is better

Multi-Air Flow System is designed to maintain superior humidity and temperature levels to help keep your food fresher, longer. Digital sensors constantly monitor conditions within the refrigerator and strategically-placed vents in every section to help surround your food with cool air no matter where you put it.

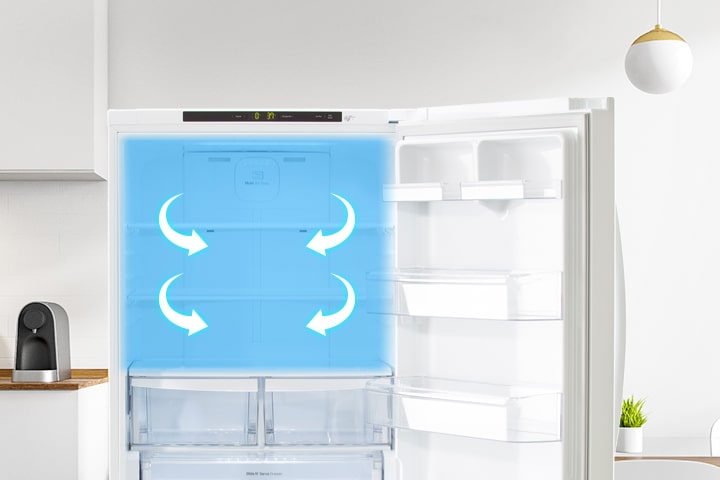

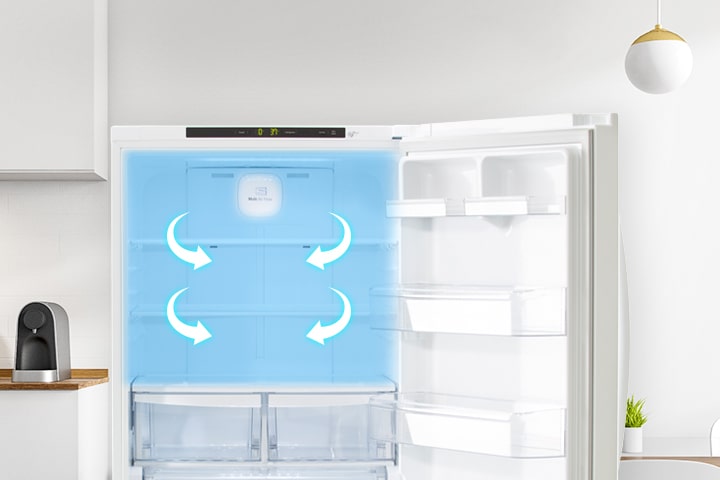

Open white refrigerator showing Multi Air Flow system with blue light and arrows indicating air circulation.

SmartDiagnosis^®

Built-In peace of mind

The SmartDiagnosis^® feature helps the service center diagnose problems you may have over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.

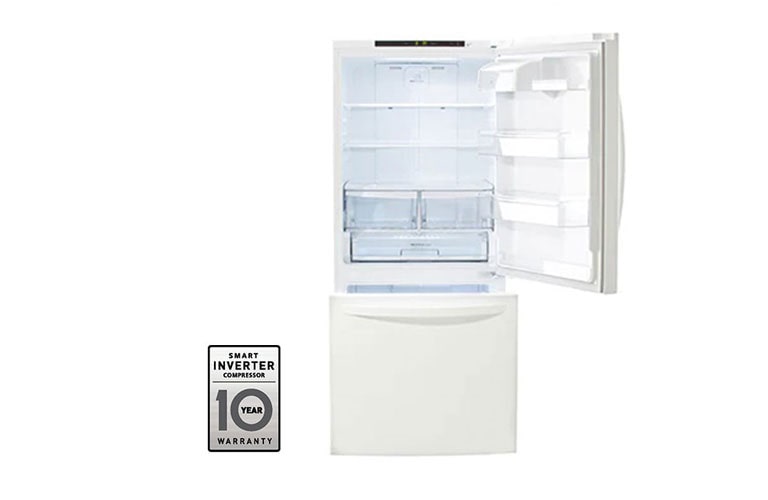

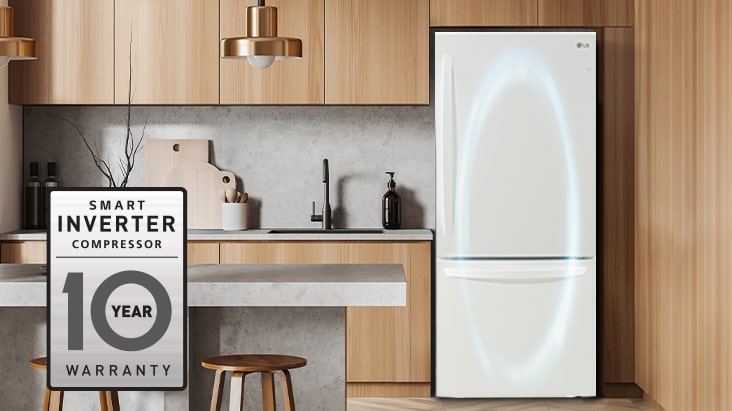

10-Year Manufacturer's Limited Warranty on

Smart Inverter Compressor

Peace of mind

When you buy a refrigerator, you don't want to worry that it won't last. Because the Inverter Compressor motor works smarter, LG confidently backs the motor with a 10-year limited warranty.

ENERGY STAR^® Certified

Save Money. Save Energy.

This ENERGY STAR^® Certified LG refrigerator exceeds minimum federal energy standards to positively impact your energy bill,

your energy consumption, and most importantly, the environment.

A white power plug next to green leaves and wooden icons of a water drop, leaf, and power symbol on a wooden table.

*Images may be simulated and dramatized for illustrative purposes. Actual features, functionality, and other product specifications may differ and are subject to change without notice.

DIMENSIONS

Packing Dimension (WxHxD, inch)

32 1/4" x 69 7/8" x 38 3/16"

Ice Storage Capacity (lb.)

N/A

ThinQ (Wi-Fi)

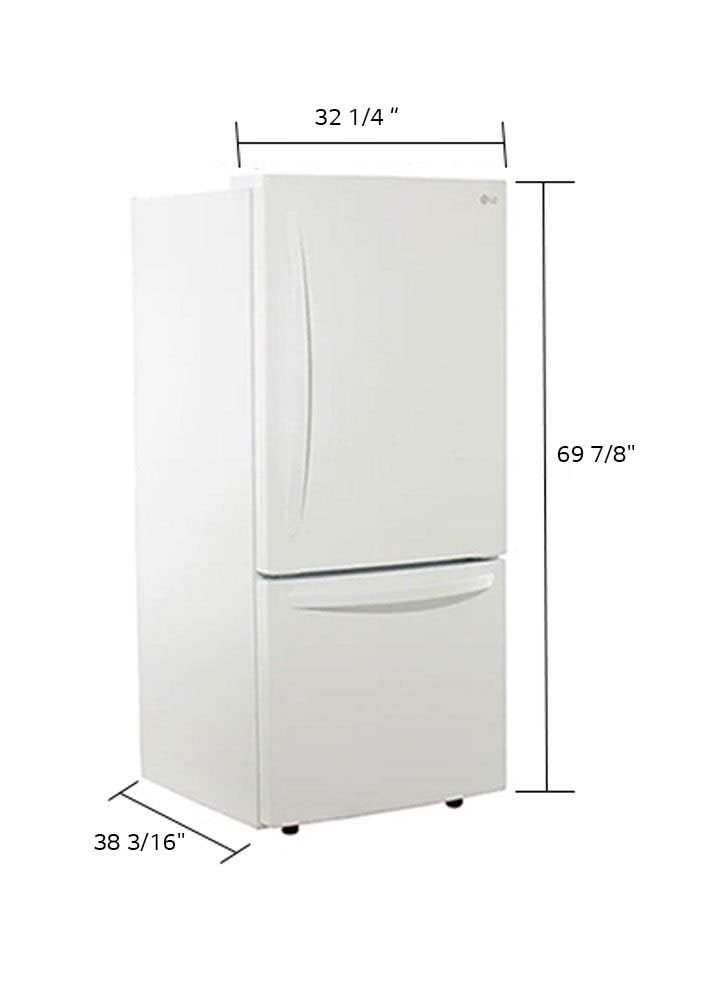

Product Dimension (WxHxD, inch)

32 1/4" x 69 7/8" x 38 3/16"

Key Spec

CAPACITY - Volume Total (cu.ft)
22.1
DIMENSIONS & WEIGHT - Packing Dimension (WxHxD, inch)
32 1/4" x 69 7/8" x 38 3/16"
PERFORMANCE - Energy Consumption (kWh/Year)
505
BASIC SPEC - ENERGY CONSUMPTION GRADE
ENERGY STAR^® Certified
PERFORMANCE - Compressor Type
Smart Inverter Compressor (BLDC)
FEATURES - InstaView
No
SMART TECHNOLOGY - ThinQ (Wi-Fi)
No
MATERIAL & FINISH - Finish (Door)
Super White

All Spec

REFRIGERATOR COMPARTMENT

Shelf_Folding
No
Door Basket_Transparent
4
Refrigerator Light
Top LED
Shelf_Tempered Glass
2
Vegetable Box
Yes (2)
Vegetable Box (Fresh Converter)
No

BAR CODE

Bar Code
195174028353

BASIC SPEC

Brand
LG
ENERGY CONSUMPTION GRADE
ENERGY STAR^® Certified
Product Type
B/Freezer
Standard/Counter Depth
Standard Depth

CONTROL & DISPLAY

Internal LED Display
LED Display
Door alarm
Yes
Express Freeze
Yes

DIMENSIONS & WEIGHT

Installation Clearance
Sides 3/10", Top 1"
Packing Dimension (WxHxD, inch)
32 1/4" x 69 7/8" x 38 3/16"

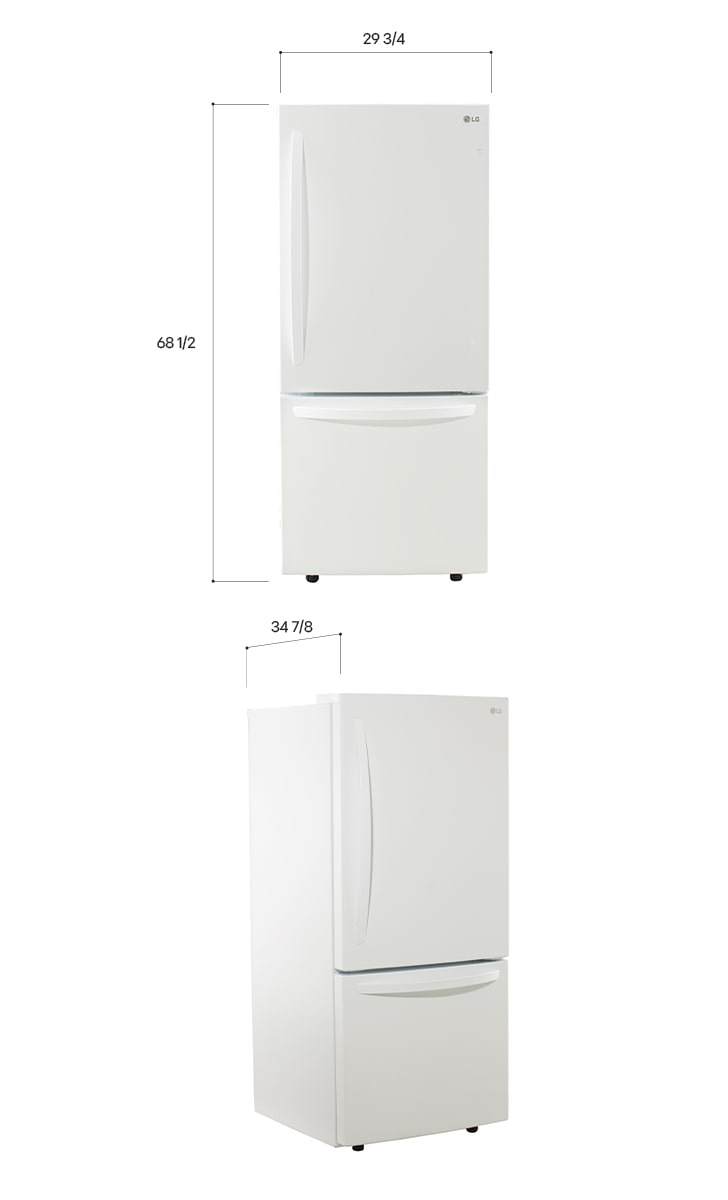

Product Dimension (WxHxD, inch)
29 3/4" x 68 1/2" x 34 7/8"

FEATURES

Door Cooling+
No
Auto Closing Door Hinge
No
Reversible Door
Yes
Sabbath Mode
No
Zero Clearance
No
InstaView
No

FREEZER COMPARTMENT

Door Type
Side Swing
Drawer_Freezer
2 Non-Transparent
Freezer Light
Top LED

CAPACITY

Volume Total (cu.ft)
22.1
Volume Refrigerator (cu.ft)
14.8
Volume Freezer (cu.ft)
7.3

ICE & WATER SYSTEM

Water Only Dispenser
No
Automatic Ice Maker
No
Daily Ice Production (lb.)
N/A
Ice Maker_Manual
No
Ice Storage Capacity (lb.)
N/A

MATERIAL & FINISH

Handle Type
Grip(Curved Handle)
Contour Door
Yes
Fingerprint & Smudge Resistant Exterior
No
Finish (Door)
Super White
Flat Metal Duct (Metal Fresh)
No

PERFORMANCE

Energy Consumption (kWh/Year)
505
Compressor Type
Smart Inverter Compressor (BLDC)

SMART TECHNOLOGY

ThinQ (Wi-Fi)
No
Proactive Customer Care
No
Smart Diagnosis
Yes
Smart Learner Ver.
No

How long does it take for my LG refrigerator to get cold after installation?

After installation, allow up to 24 hours for the refrigerator to reach its set temperature. Cooling times may vary depending on room temperature, usage, and how much food is placed inside. For best results, wait until the unit has fully stabilized before loading large quantities of food.

Can I plug in my refrigerator to electrical power immidiately after transporting it on its side?

If the refrigerator was stored for a long period of time or moved on its side, it is necessary for the refrigerator to stand upright for 24 hours before connecting it to power.

Is it normal for my refrigerator to make noise?

Yes, some sound during operation is normal. You may hear fans, compressors, or ice-making cycles as the refrigerator maintains temperature and produces ice (on models with ice makers). These sounds are part of normal operation and may vary throughout the day.

How can I adjust the temperature setting on my refrigerator?

Temperature settings can be adjusted using the control panel, which may be located inside the refrigerator or on the door, depending on the model. You can also change the temperature remotely unsing your phone on select models that are also equipped with ThinQ® wifi (you must first download the ThinQ® app to your phone and connect the fridge in order to enable this functionality). LG generally recommends maintaining a refrigerator temperature around 3°C (37°F) and a freezer temperature around -18°C (0°F) for optimal performance. Refer to your owner’s manual for model-specific guidance.

How much space should I leave around the refrigerator for installation?

Proper clearance is important for airflow and performance. Installation spacing requirements can vary by model. Refer to your owner’s manual for exact clearance specifications. Some LG refrigerators feature Zero Clearance™ hinges on select models, which are designed to allow doors to open fully even in tighter installation spaces. *For optimal performance, LG recommends 0.16 inches (4 mm) clearance between the sides of the refrigerator and the wall.

How do I clean and maintain my refrigerator?

For routine cleaning, use a soft cloth with mild detergent and warm water. Do not use abrasive cleaners or harsh chemicals. Interior shelves and bins can typically be removed for easier cleaning. Always refer to your owner’s manual for recommended cleaning methods and maintenance guidelines.

Does my LG refrigerator require manual defrosting?

Most LG refrigerators are equipped with an automatic defrost system, which helps prevent frost buildup and maintains efficient operation. Manual defrosting is typically not required. Refer to your owner’s manual for details specific to your model.
