26 cu.ft. InstaView® French 3-Door Refrigerator

36" 26 cu.ft. InstaView® Door-in-Door® Counter-Depth MAX™ French 3-Door Refrigerator | Ice & Water Dispenser | Dual Ice Maker

LF26C6360S

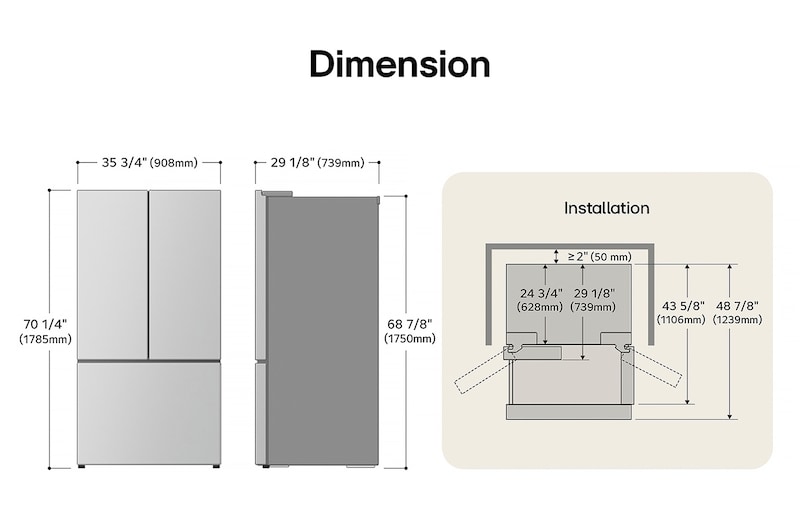

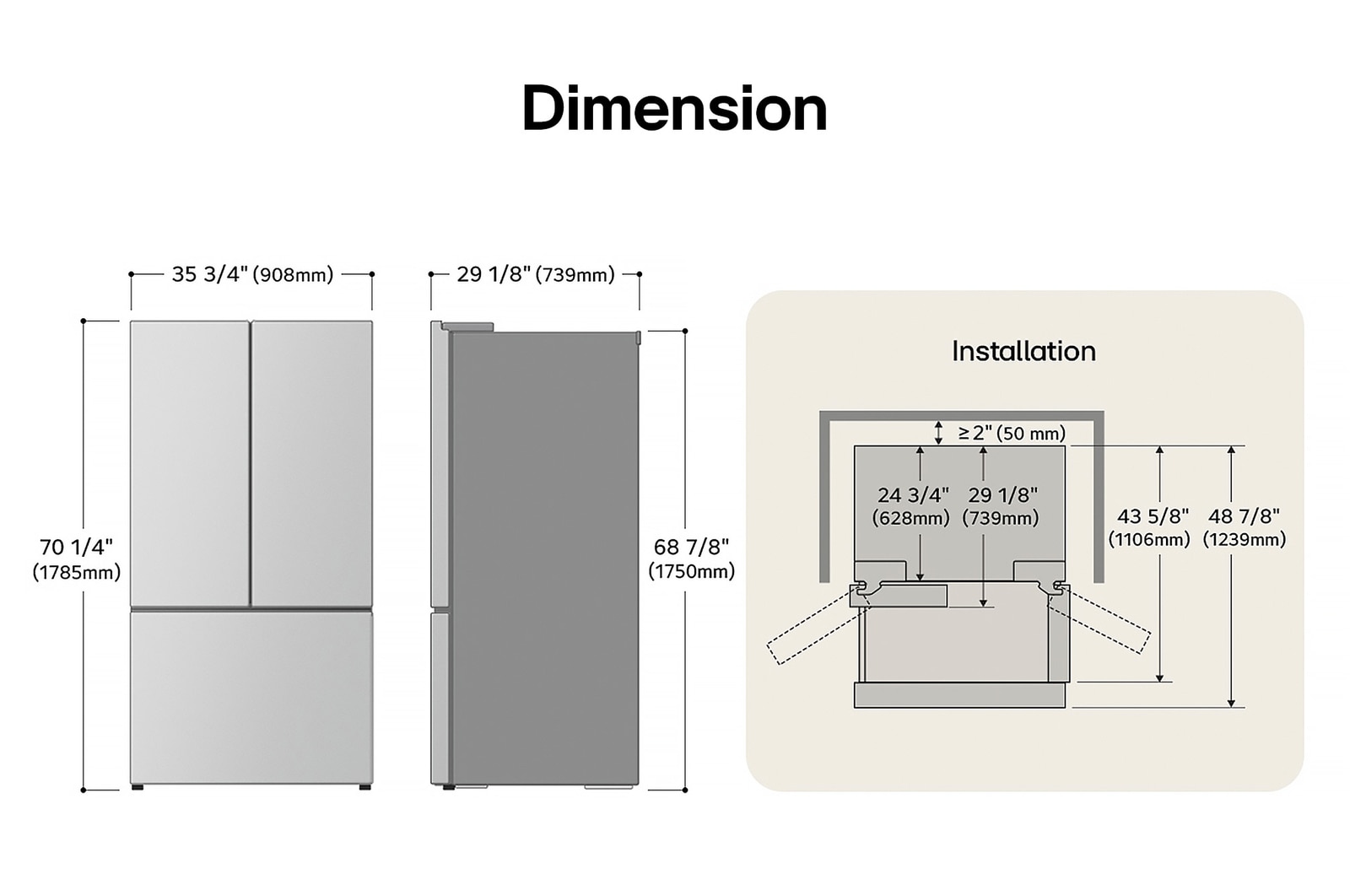

LG LF26C6360S French Door Refrigerator technical drawing: H 70 1/4"(1785mm), W 35 3/4"(908mm), D 29 1/8"(739mm), incl. clearances.

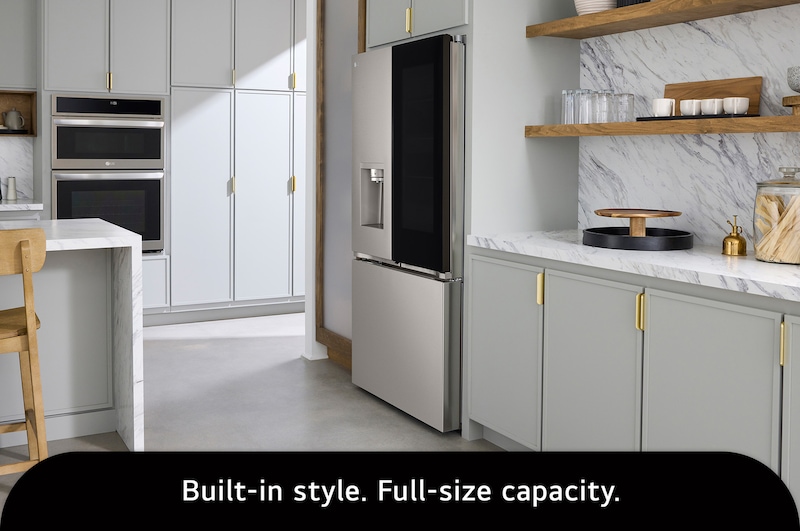

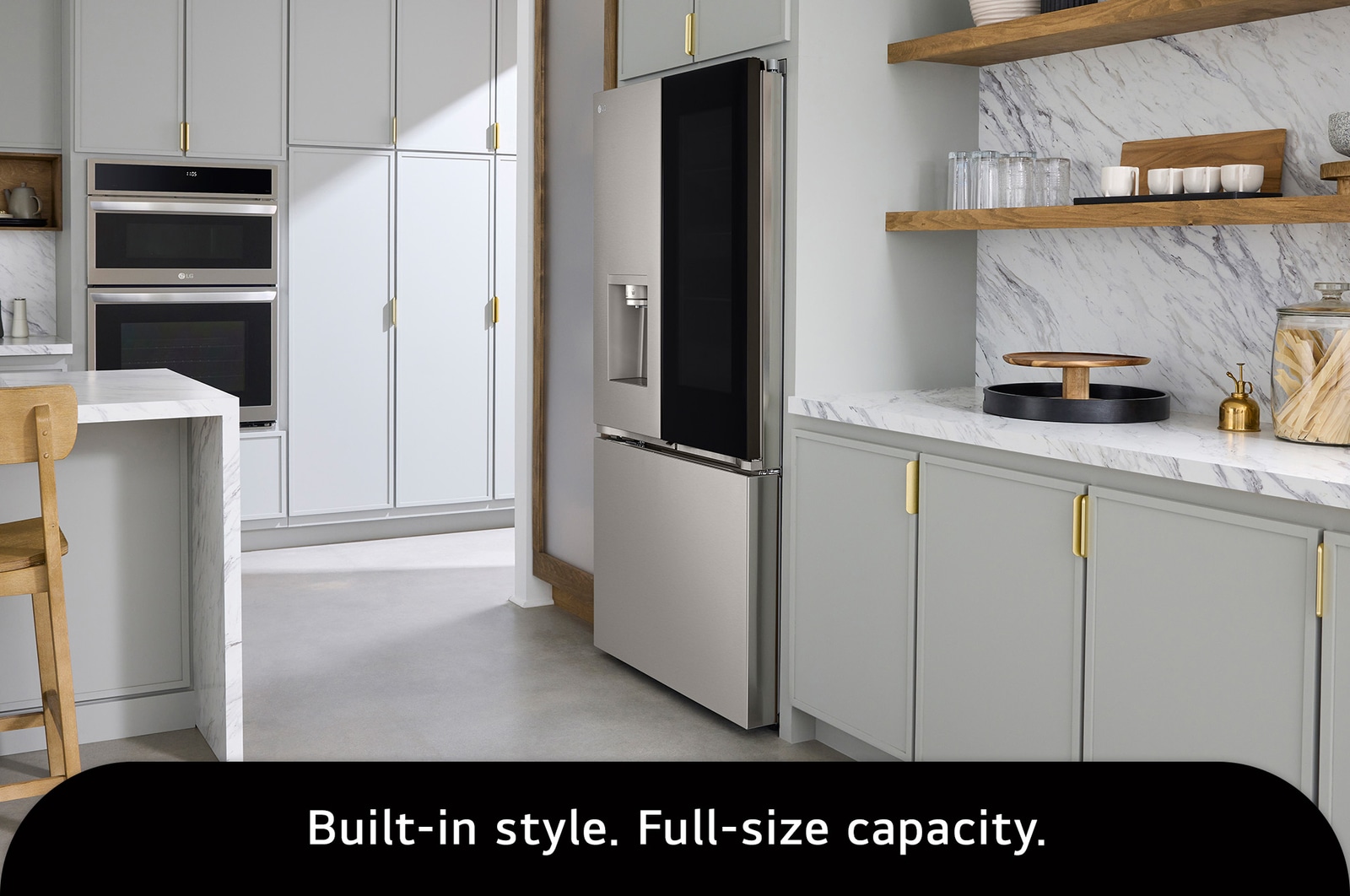

The LG LF26C6360S refrigerator's Counter-Depth MAX™ design, offering a built-in look with large 26 cu.ft. capacity.

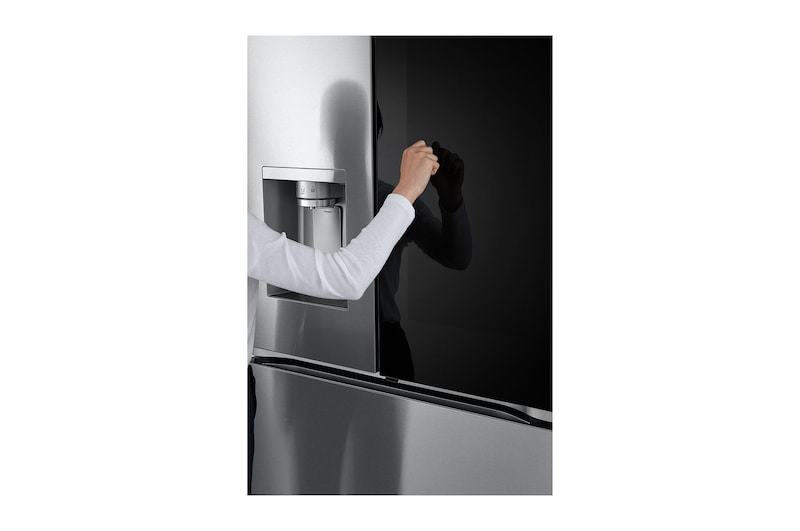

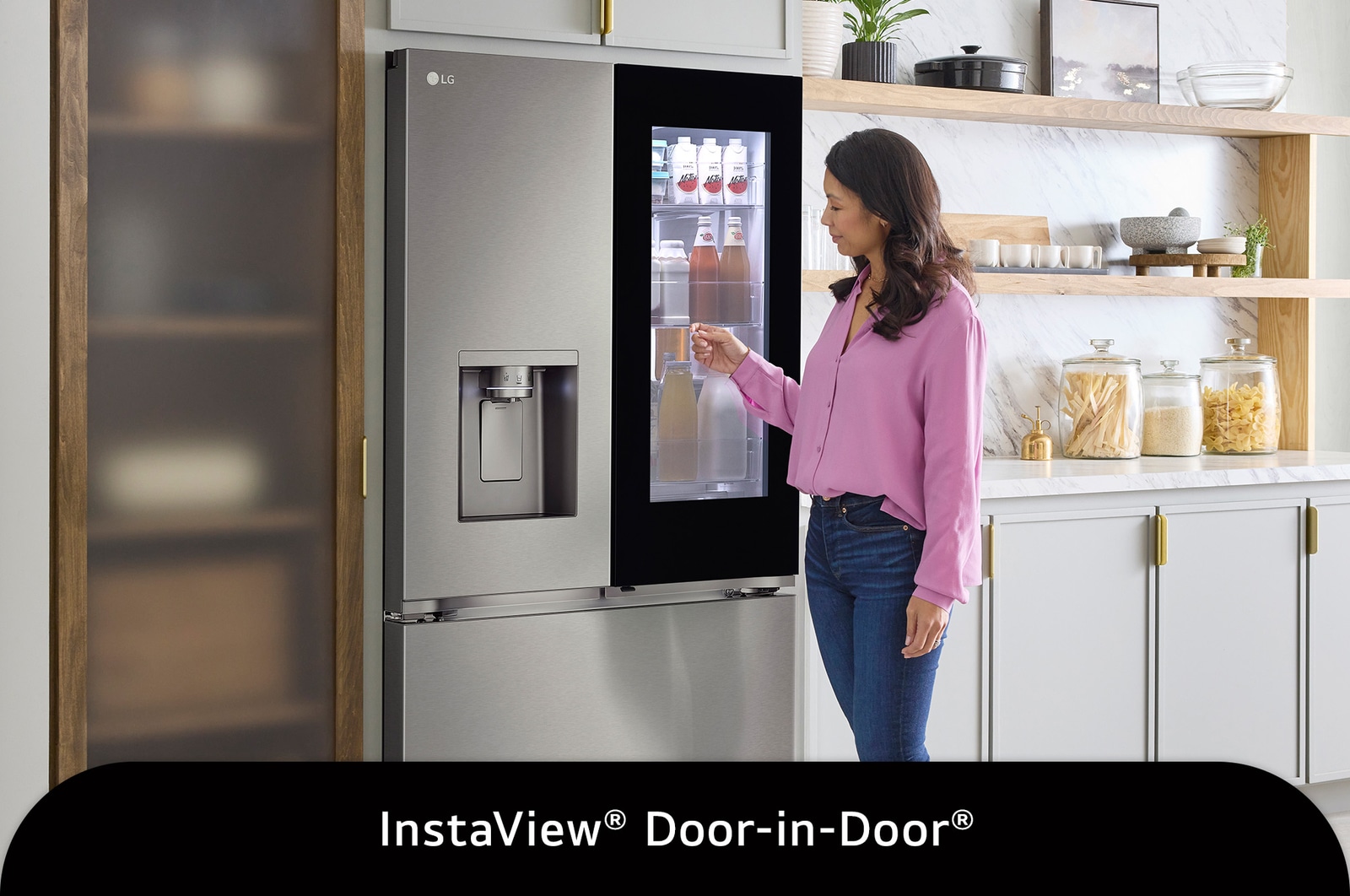

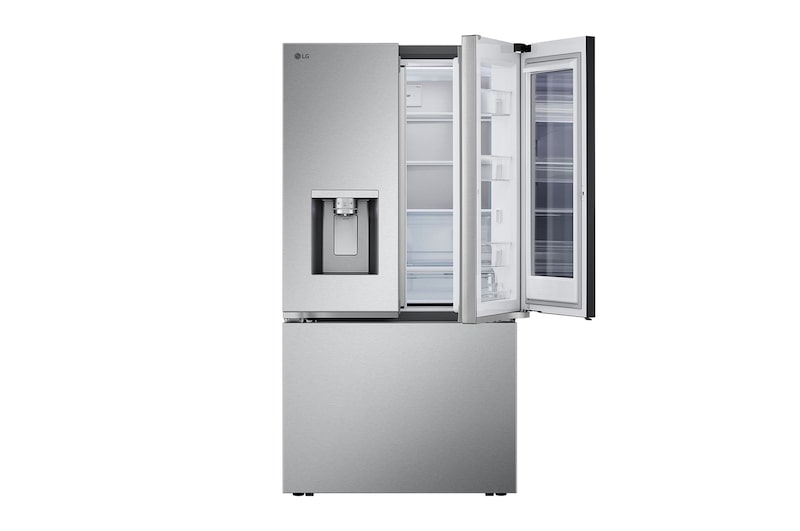

The LG 26 cu.ft. French Door Refrigerator LF26C6360S, showing the InstaView® Door-in-Door® panel being knocked on to see inside.

The PrintProof™ Stainless Steel LG 36-inch 26 cu.ft. French Door Refrigerator LF26C6360S with InstaView® Door-in-Door®, shown in a bright modern kitchen.

Key Features

Built-in style. Full-size capacity.
InstaView^® Door-in-Door^®
Maximizing Your Shelf Space
Fresher is Better with Door Cooling+
Save money. Save energy.

Built-in style. Full-size capacity.

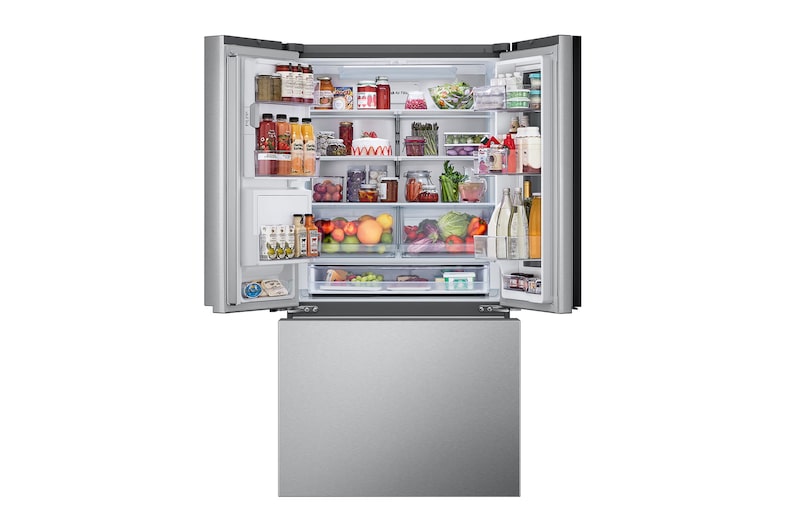

Store More. Stock-up and store everything you need. With a cavernous 26 cubic feet of space, this LG French Door refrigerator gives you ample space for all of your family’s favorite foods and keeps them conveniently organized and within reach.

*Based on marketplace survey May 2022.

**Based on the internal study utilizing average cans to quantify available storage space, conducted in March 2022, comparing LG models LRFVC2406S and LRFOC2606S.

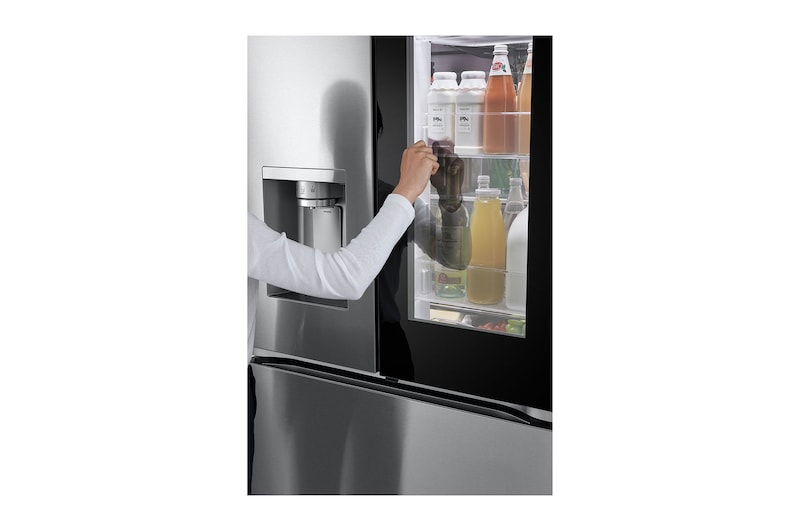

InstaView® Door-in-Door®

Raid the Fridge without Losing Your Cool

InstaView Door-in-Door^® refrigerators have a sleek glass panel that allows you to see inside the easy access door without letting the cold air out. Simply knock twice on the glass to illuminate the contents within.

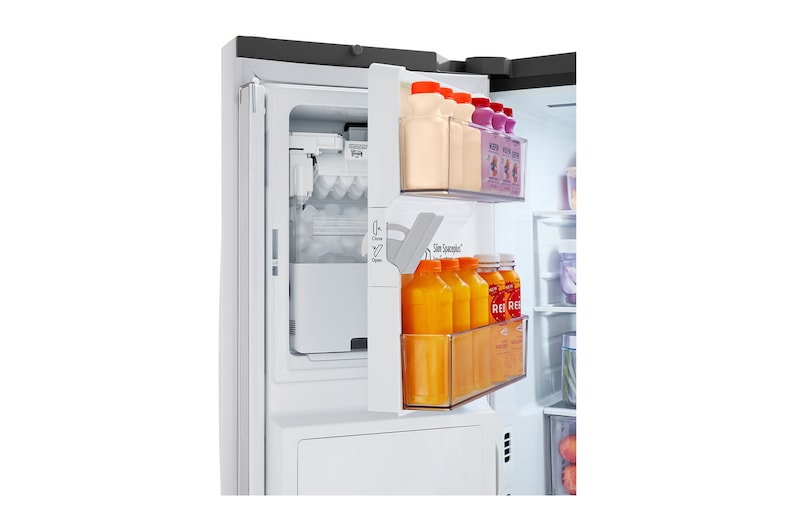

Maximizing Your Shelf Space

Ice makers are great, but not if it means you can't fit all of your food in the fridge. Our innovative Slim SpacePlus^® Ice System is located inside the freezer door, providing you more shelf space in the refriergator for additional storage.

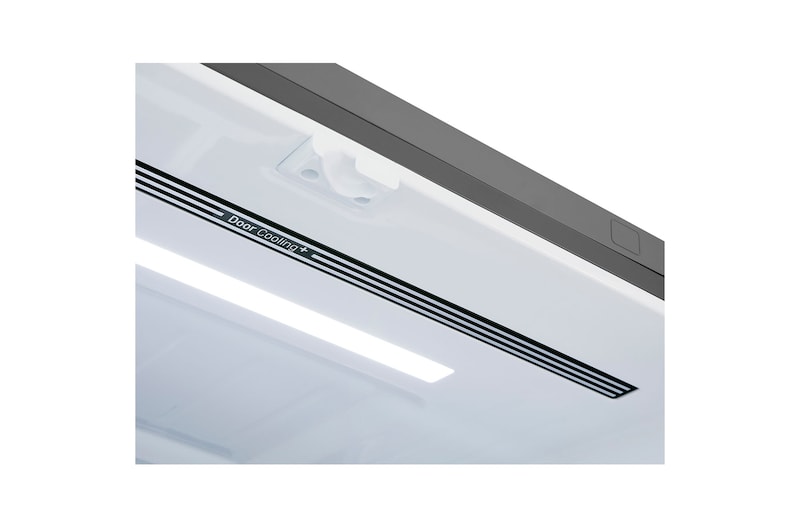

Fresher is Better with Door Cooling+

LG took its Smart Cooling system one step further by adding Door Cooling+ to provide a steady supply of cold air to help keep door contents at peak freshness.

Save money. Save energy.

When your refrigerator uses at least 20% less energy than required by federal standards, you’re going to make an impact — on your energy bill, your energy consumption, and most importantly, the environment.

Step-by-step guide

Set up your new LG refrigerator: quick and easy

Follow our simple step-by-step video guide to install your new LG French door refrigerator, including unpacking, connections, levelling, and door alignment. Start storing today.

LG French door refrigerator installation guide: step-by-step video for unpacking, connections, levelling, and door alignment

*Images based on a representative 3D model for illustrative purposes and may differ from the actual product. Installation steps, components, or features may vary by product model and local regulations. Always refer to your product manual for safety and model-specific instructions.

DIMENSIONS

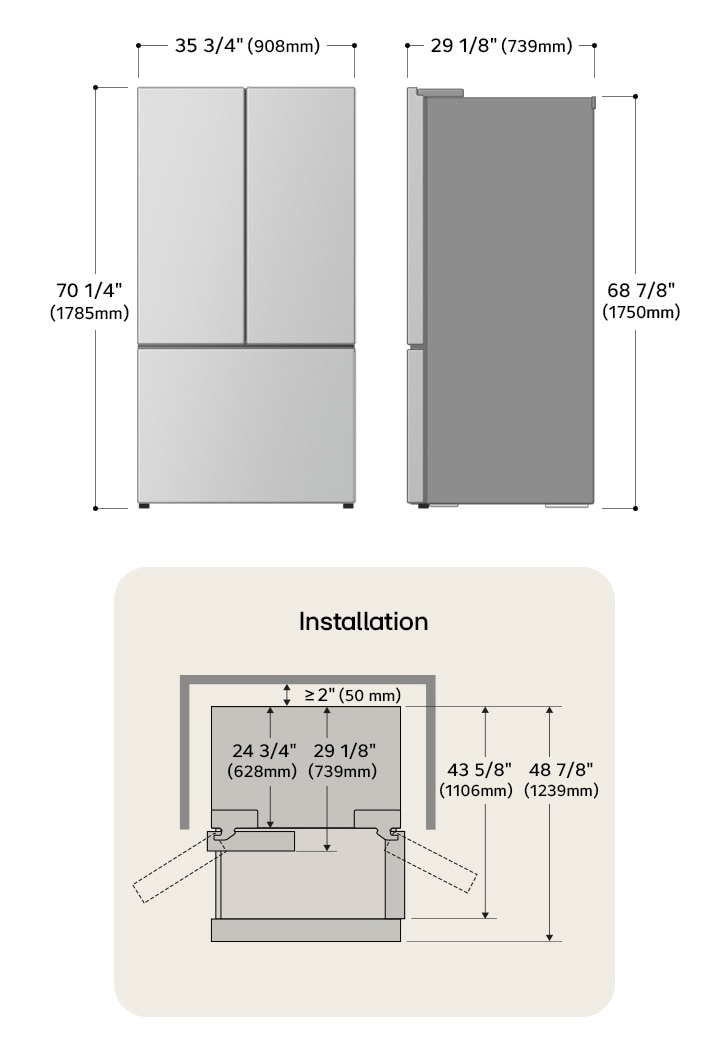

LG French Door Refrigerator technical drawing: H 70 1/4"(1785mm), W 35 3/4"(908mm), D 29 1/8"(739mm), incl. clearances.

Key Spec

CAPACITY - Volume Total (cu.ft)
25.5
DIMENSIONS & WEIGHT - Packing Dimension (WxHxD, inch)
37 5/8" x 71 1/2" x 31 1/4"
PERFORMANCE - Energy Consumption (kWh/Year)
699
BASIC SPEC - ENERGY CONSUMPTION GRADE
ENERGY STAR
PERFORMANCE - Compressor Type
Smart Inverter Compressor (BLDC)
FEATURES - InstaView
Yes
FEATURES - Door-in-Door
InstaView Door-in-Door(Tinted Glass)
SMART TECHNOLOGY - ThinQ (Wi-Fi)
Yes
MATERIAL & FINISH - Finish (Door)
Stainless Steel

All Spec

REFRIGERATOR COMPARTMENT

Shelf_Folding
1-step folding
Door Basket_Moving Basket
No
Door Basket_Transparent
8
Refrigerator Light
Top LED
Shelf_Cantilevered
Yes (Hybrid)
Shelf_Tempered Glass
4 Split
Vegetable Box
Yes (2)
Wide Pantry
Yes (Temperature-Controllable)

BAR CODE

Bar Code
195174081532

BASIC SPEC

Brand
LG
ENERGY CONSUMPTION GRADE
ENERGY STAR
Product Type
French Door (3Door)
Standard/Counter Depth
Counter Depth

CAPACITY

Volume Total (cu.ft)
25.5
Volume Freezer (cu.ft)
8.7
Volume Refrigerator (cu.ft)
16.8

CONTROL & DISPLAY

Internal LED Display
LED Display
Door alarm
Yes
Express Freeze
No

DIMENSIONS & WEIGHT

Product Weight (lb.)
304
Depth without door (inch)
24 3/4"
Depth without handle (inch)
29 1/8"
Depth with handle (inch)
31 5/8"
Gross Weight (lb.)
326
Height to Top of Case (inch)
68 7/8"
Height to Top of Hinge or Door Cap Deco (inch)
70 1/4"
Installation Clearance
Sides 1/8", Top 1", Back 2"
Packing Dimension (WxHxD, inch)
37 5/8" x 71 1/2" x 31 1/4"
Product Dimension (WxHxD, inch)
35 3/4" x 70 1/4" x 29 1/8"
Total Depth with Door 90 Open (inch)
43 5/8"
Width door open 90 without Handle (inch)
40"
Width door open 90 with Handle (inch)
44 7/8"

FEATURES

Door Cooling+
Yes
Auto Closing Door Hinge
Yes (Left Door Only)
Door-in-Door
InstaView Door-in-Door(Tinted Glass)
InstaView
Yes
Sabbath Mode
Yes

FREEZER COMPARTMENT

Door Type
Pull Drawer
Drawer Divider
No
Drawer_Freezer
2 - tier organization
Durabase Solid Drawer Base
Yes

ICE & WATER SYSTEM

Water Only Dispenser
No
Automatic Ice Maker
Yes (In Cabinet, Factory Installed)
Daily Ice Production (lb.)
3.0 / 3.3 (IcePlus)
Dispenser Light
Yes
Dual lce Maker
Yes (Cube Ice)
Ice Maker_Manual
No
Ice Storage Capacity (lb.)
3.0
Ice & Water Dispenser
Cube & Crushed Ice
Water Filter Model Name
LT1000P
Water Filtration System
Internal (1 stage)

MATERIAL & FINISH

Handle Type
Pocket (F Easy Open)
Contour Door
Flat
Fingerprint & Smudge Resistant Exterior
Yes
Finish (Door)
Stainless Steel
Flat Metal Duct (Metal Fresh)
R Metal

MULTI ROOM COMPARTMENT

Convertible Drawer
No
Full-Convert Drawer
No

PERFORMANCE

Energy Consumption (kWh/Year)
699
Compressor Type
Smart Inverter Compressor (BLDC)

SMART TECHNOLOGY

ThinQ (Wi-Fi)
Yes
Proactive Customer Care
Yes
Smart Diagnosis
Yes
Smart Learner Ver.
No

What are the benefits of an InstaView® refrigerator?

Thanks to LG’s innovative InstaView® technology, you can check what’s inside your refrigerator without opening the door. Simply knock twice on the tinted glass, and it will illuminate so you can see the contents.

This helps reduce cold air loss, keeps the internal temperature stable, saves energy, and allows your food to stay fresher for longer.

With this feature, you can conveniently and efficiently see what’s inside your LG refrigerator without opening the door.

What is LG DoorCooling+®?

DoorCooling+® uses front air vents to deliver powerful, cool air to items stored in the door.

This helps keep all food stored in the refrigerator door stay fresh.

How can I change the temperature setting on my refrigerator?

You can adjust the temperature using the control panel on the door or inside the refrigerator.

If your model supports the LG ThinQ® app, you can also conveniently change the settings remotely from your smartphone.

How large should my refrigerator be?

This depends on your lifestyle, but as a guideline:

An LG refrigerator/freezer with a capacity of 12.0 – 13.6 cu.ft. is usually sufficient for a smaller household of 1–2 people.

Slim Multi-Door models (17.9 – 18.0 cu.ft.) are well-suited for a family of 3–4 people.

For larger families, we recommend the spacious LG Multi-Door models (22.1 – 24.9 cu.ft.).

Multi-Door models also provide extra-wide space, perfect for storing larger items such as trays or platters. At LG, we want every customer to find the refrigerator that best fits their needs, which is why we offer a variety of sizes within each product line.
