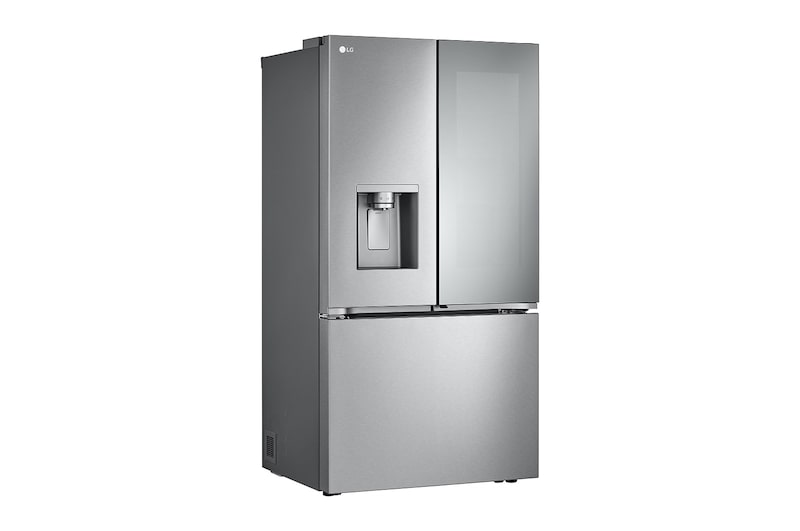

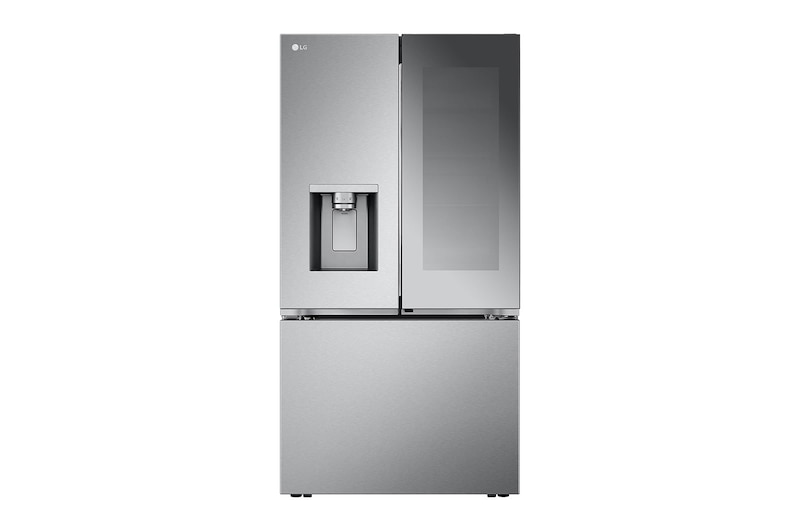

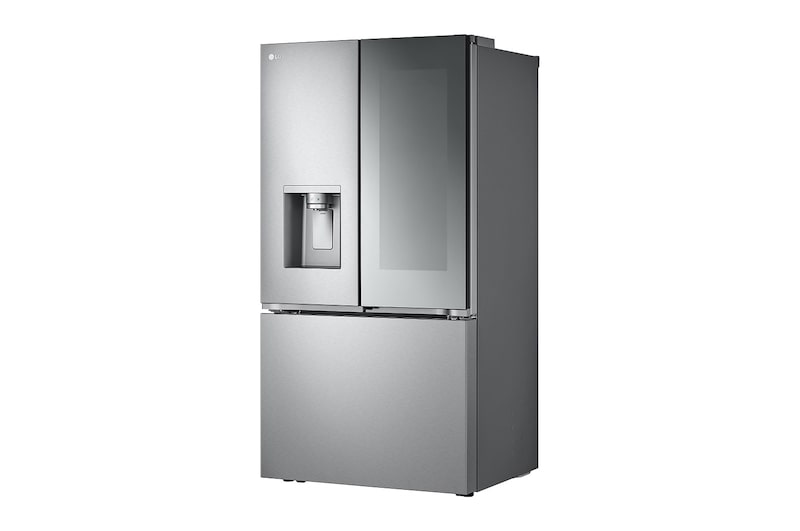

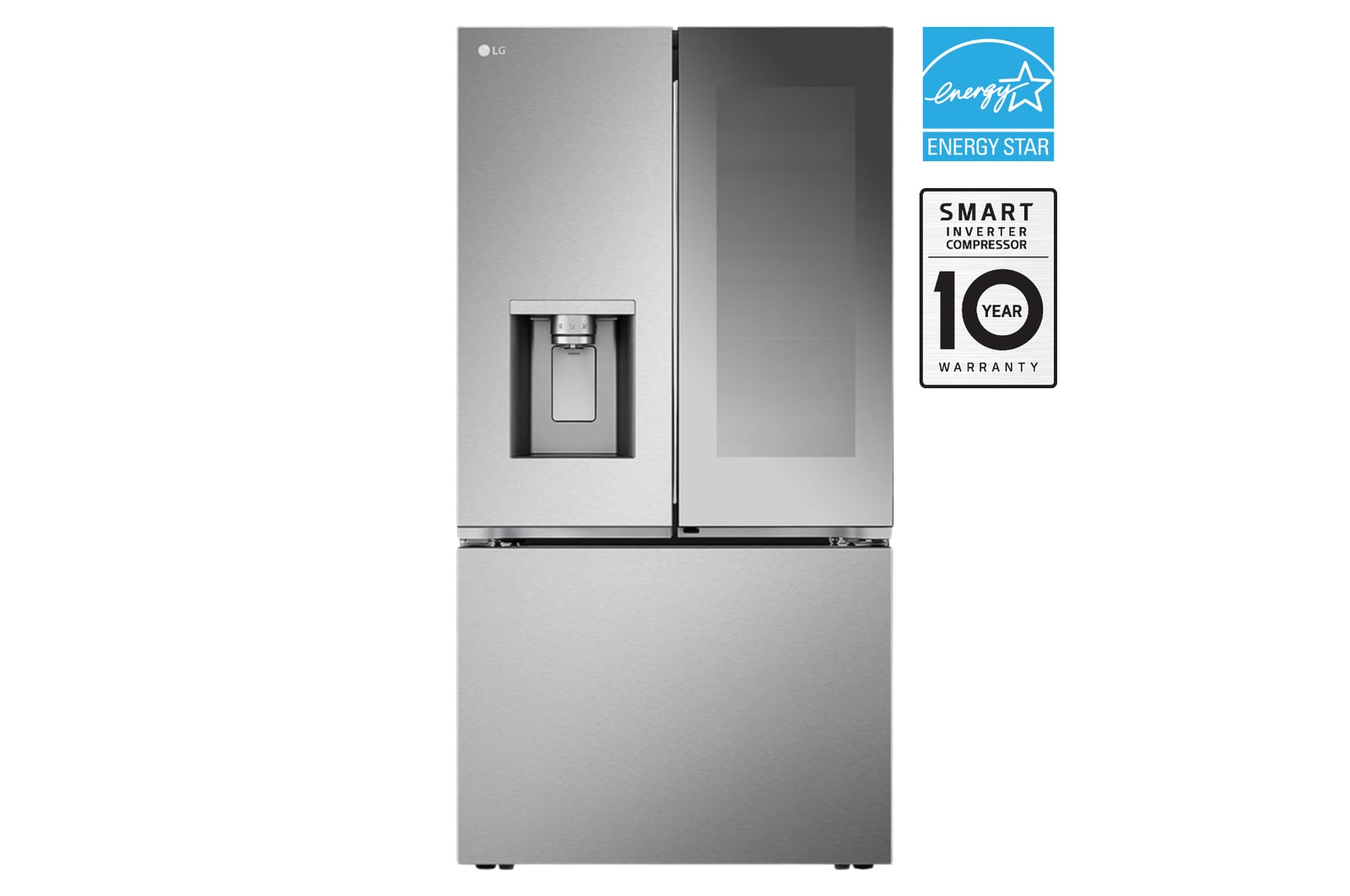

36" 31 cu.ft. Mirror InstaView® Door-in-Door® Standard-Depth MAX™ French 3-Door | Ice & Water Dispenser | 4 Types of Ice with Craft Ice®

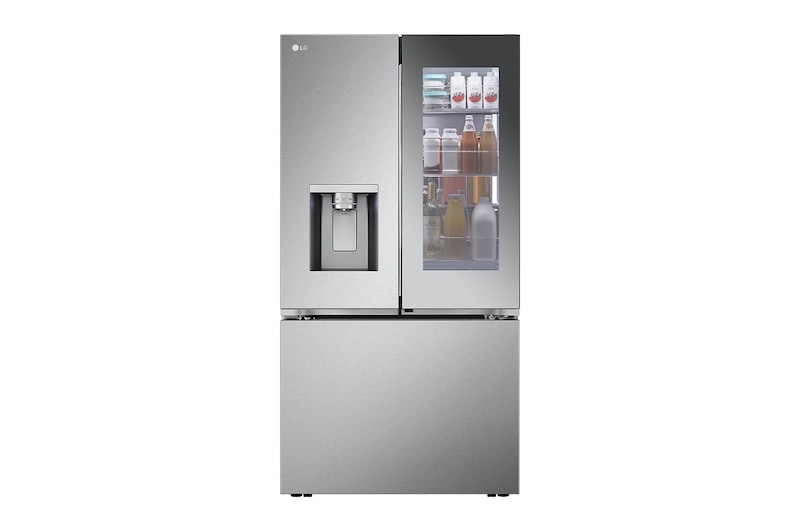

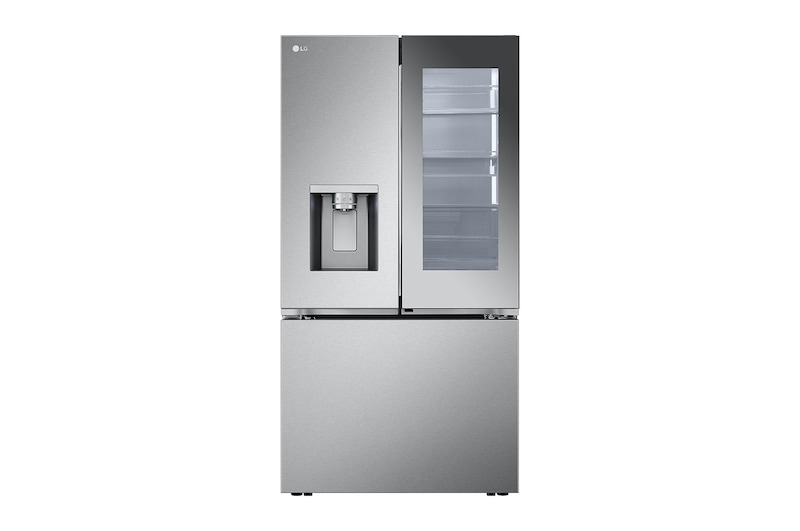

Knock Twice to See Inside
4 Types of Ice
Cooling technologies
*Available on select LG smart appliances.
*Than other LG models. Based on LG internal tests between LFXS30796D and LRFDS3006S and in combination with Smart Inverter and Smart Cooling technologies.
SUMMARY
DIMENSIONS

Key Spec
CAPACITY - Volume Total (cu.ft)
30.7
DIMENSIONS & WEIGHT - Packing Dimension (WxHxD, inch)
37 7/8" x 72 3/8" x 36 3/8"
PERFORMANCE - Energy Consumption (kWh/Year)
755
BASIC SPEC - ENERGY CONSUMPTION GRADE
ENERGY STAR® Certified
PERFORMANCE - Compressor Type
Smart Inverter Compressor (BLDC)
FEATURES - InstaView
Yes
FEATURES - Door-in-Door
InstaView Door-in-Door(Mirrored Glass)
SMART TECHNOLOGY - ThinQ (Wi-Fi)
Yes
MATERIAL & FINISH - Finish (Door)
Stainless Steel
All Spec

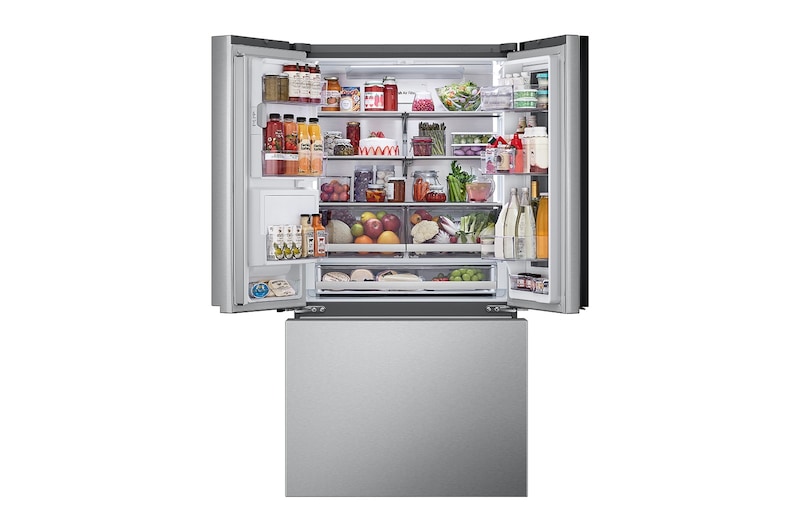

REFRIGERATOR COMPARTMENT
Shelf_Folding
1-step folding
Door Basket_Moving Basket
No
Door Basket_Transparent
8
Refrigerator Light
Top LED
Shelf_Cantilevered
Yes (Hybrid)
Shelf_Tempered Glass
4 Split(3 Fixed+1Folding)
Vegetable Box
Yes (2)
Wide Pantry
Yes (Temperature-Controllable)
BAR CODE
Bar Code
195174034811
BASIC SPEC
Brand
LG
ENERGY CONSUMPTION GRADE
ENERGY STAR® Certified
Product Type
French Door (3Door)
Standard/Counter Depth
Standard Depth
CAPACITY
Volume Total (cu.ft)
30.7
Volume Freezer (cu.ft)
10.3
Volume Refrigerator (cu.ft)
20.4
CONTROL & DISPLAY
Internal LED Display
LED Display
Door alarm
Yes
Express Freeze
No
DIMENSIONS & WEIGHT
Product Weight (lb.)
350
Depth without door (inch)
30 1/8"
Depth without handle (inch)
34 3/8"
Gross Weight (lb.)
372
Height to Top of Case (inch)
68 7/8"
Height to Top of Hinge or Door Cap Deco (inch)
70 1/4"
Installation Clearance
Sides 1/8", Top 1", Back 2"
Packing Dimension (WxHxD, inch)
37 7/8" x 72 3/8" x 36 3/8"
Product Dimension (WxHxD, inch)
35 3/4" x 70 1/4" x 34 3/8"
Total Depth with Door 90 Open (inch)
48 7/8"
Width door open 90 without Handle (inch)
40"
FEATURES
Door Cooling+
Yes
Auto Closing Door Hinge
Yes (Left Door Only)
Door-in-Door
InstaView Door-in-Door(Mirrored Glass)
InstaView
Yes
Sabbath Mode
Yes
FREEZER COMPARTMENT
Door Type
Pull Drawer
Drawer Divider
Yes
Drawer_Freezer
3 - tier orgazation
Durabase Solid Drawer Base
Yes

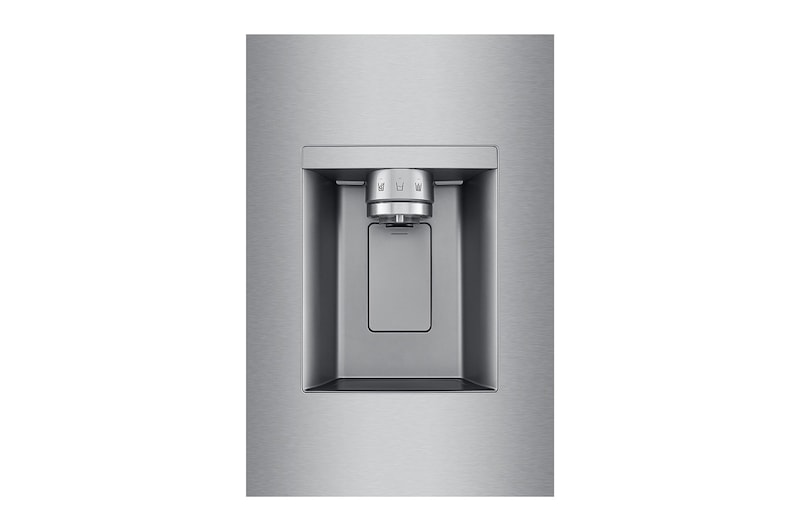

ICE & WATER SYSTEM
Water Only Dispenser
No
Automatic Ice Maker
Yes (In Cabinet, Factory Installed)
Daily Ice Production (lb.)
4.5 / 4.9 (IcePlus)
Dispenser Light
Yes
Dual lce Maker
Yes (Craft Ice)
Ice Maker_Manual
No
Ice Storage Capacity (lb.)
3.0
Ice & Water Dispenser
Cube & Crushed Ice
Water Filter Model Name
LT1000P
Water Filtration System
Internal (1 stage)
MATERIAL & FINISH
Handle Type
Grip(Curved Handle)
Contour Door
Flat
Fingerprint & Smudge Resistant Exterior
Yes
Finish (Door)
Stainless Steel
Flat Metal Duct (Metal Fresh)
R Metal
MULTI ROOM COMPARTMENT
Convertible Drawer
No
Full-Convert Drawer
No
PERFORMANCE
Energy Consumption (kWh/Year)
755
Compressor Type
Smart Inverter Compressor (BLDC)
SMART TECHNOLOGY
ThinQ (Wi-Fi)
Yes
Proactive Customer Care
Yes
Smart Diagnosis
Yes
Smart Learner Ver.
No
What people are saying
FAQ
What are the benefits of an InstaView® refrigerator?
Thanks to LG’s innovative InstaView® technology, you can check what’s inside your refrigerator without opening the door. Simply knock twice on the tinted glass, and it will illuminate so you can see the contents.
This helps reduce cold air loss, keeps the internal temperature stable, saves energy, and allows your food to stay fresher for longer.
With this feature, you can conveniently and efficiently see what’s inside your LG refrigerator without opening the door.
What is LG LINEARCooling®?
LINEARCooling® is a technology that carefully controls cooling to maintain the refrigerator’s temperature within ±0.5℃.
This minimizes temperature fluctuations, helping to preserve food moisture and keep items fresh for longer.
What is LG DoorCooling+®?
DoorCooling+® uses front air vents to deliver powerful, cool air to items stored in the door.
This helps keep all food stored in the refrigerator door cooler and fresher.
What do I need for a permanent water connection to my refrigerator?
How can I change the temperature setting on my refrigerator?
You can adjust the temperature using the control panel on the door or inside the refrigerator.
If your model supports the LG ThinQ® app, you can also conveniently change the settings remotely from your smartphone.
What should I consider when buying a refrigerator?
LG offers a wide range of stylish, energy-efficient refrigerators and freezers with smart features. From spacious side-by-side models and practical multi-door designs, to InstaView Door-in-Door® technology, combi units, and slim models—LG has the perfect fit for every home.
If you’re planning a brand-new kitchen, it’s easy to integrate your dream appliance. But if you’re filling an existing space, your choice may depend on the available room.
Once you’ve selected a refrigerator that best matches your lifestyle, consider factors such as storage capacity, advanced cooling technologies that keep food fresher longer, and convenient features like Total No Frost, the self-cleaning UVnano® water and ice dispenser, folding shelves, and the FRESHBalancer® drawer system.
And don’t forget to check energy efficiency and product warranty.
How large should my refrigerator be?
This depends on your lifestyle, but as a guideline:
An LG fridge-freezer combination (capacity: 340–384L) is usually enough for a smaller household of 1–2 people.
Slim multi-door models (506–508L) are ideal for families of 3–4 people.
For larger households, we recommend spacious LG multi-door or side-by-side models (capacity: 625–705L).
Multi-door models also offer extra-wide storage for large items like pots and trays.
At LG, we want every customer to find the refrigerator that suits them best, so we provide a variety of sizes within each product line.
What is the difference between refrigerators with a water connection and those without?
LG gives you the freedom to choose between models with or without a water connection.
Models with a water connection are directly connected to your home’s water supply to provide ice and water dispensing.
Models without a direct connection come with a built-in, refillable water tank connected to the door-mounted dispenser. Simply refill the tank as needed and enjoy chilled water or ice anytime.
