LG 7.4 cu.ft. Large Capacity Front Load Gas Dryer

7.4 cu. ft. Ultra Large Capacity Smart Front Load Gas Dryer with Sensor Dry & Steam Technology

DLGX5501V

Front view of LG 7.4 cu. ft. Ultra Large Capacity Gas Dryer

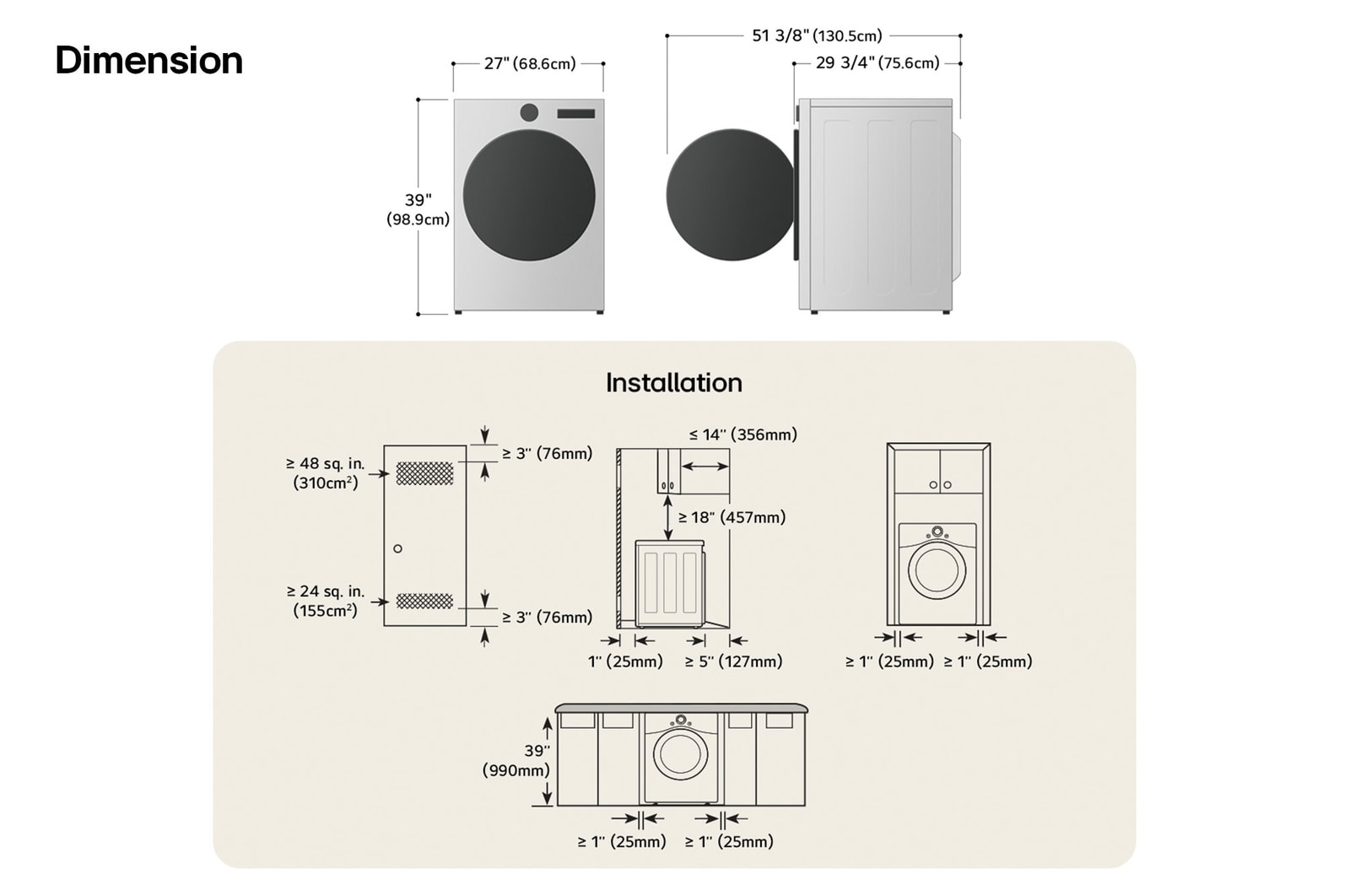

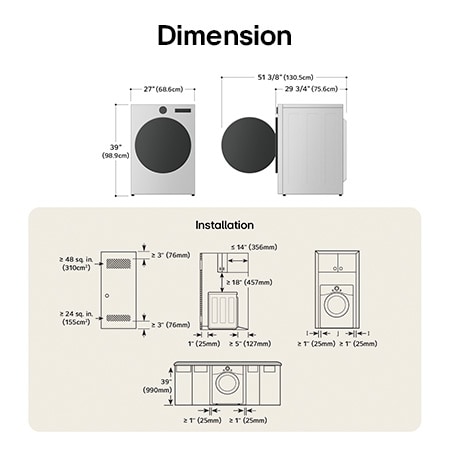

LG dryer technical drawing: W 27"(68.6cm), H 39"(98.9cm), D 29 3/4"(75.6cm) (door open 51 3/8"/130.5cm), incl. clearances.

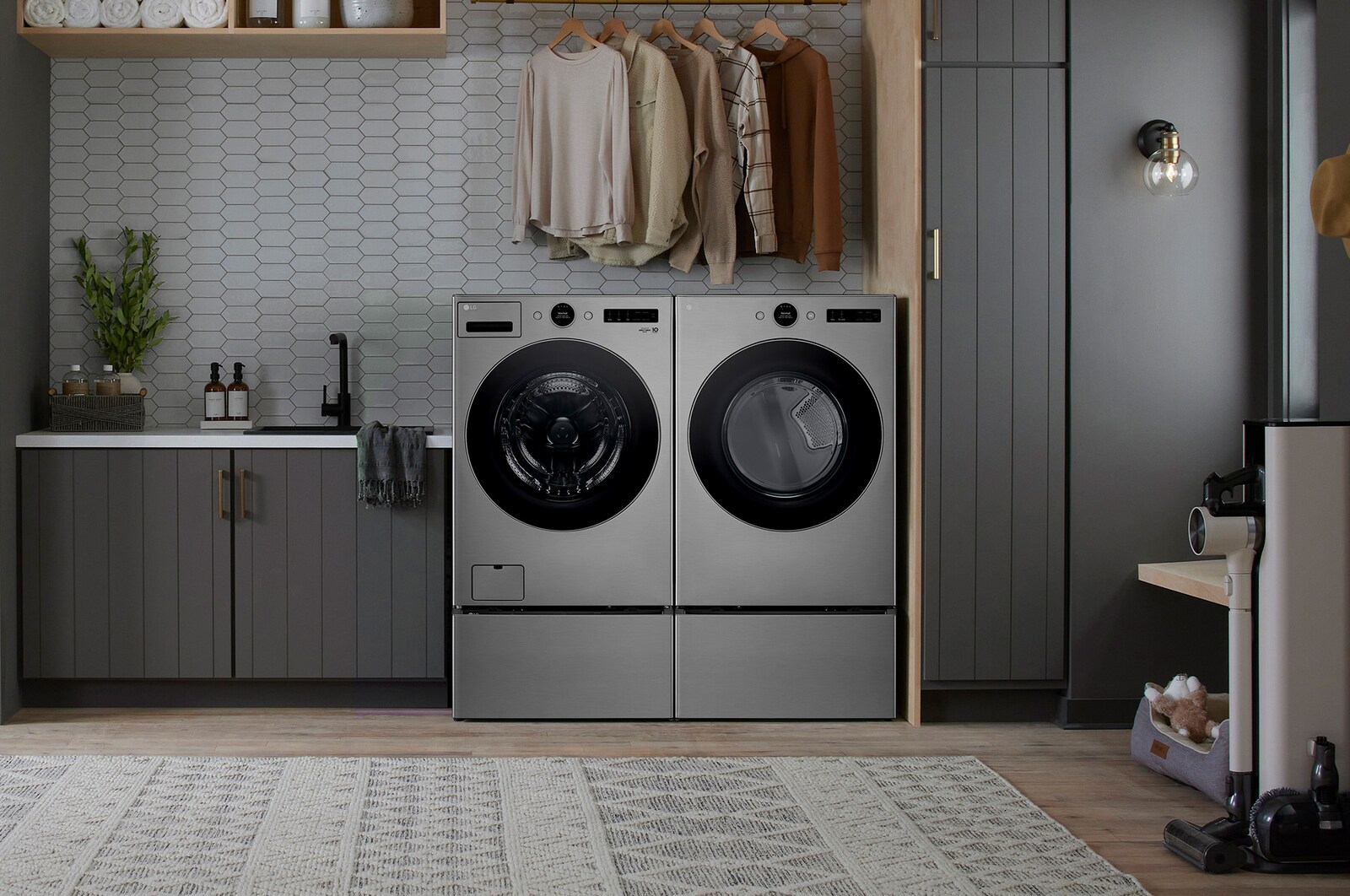

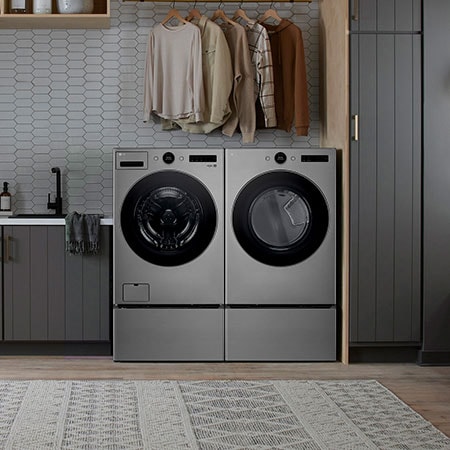

The Graphite Steel LG 7.4 cu.ft. dryer DLGX5501V, installed side-by-side with a matching washer on pedestals in a modern laundry room.

Key Features

LG Sensor Dry Dryer, AI Sensor Dry, and Manual Dry
Steam Technology: LG TurboSteam^®, LG StreamFresh^®, SteamSanitary^®
ENERGY STAR^® Certified Dryer
Smart WiFi Enabled ThinQ^® Technology with ThinQ Care Remote Start and Cycle Monitor, Energy Monitoring, LG Smart Diagnosis Dryer, and FlowSense^® Duct Clogged and Dryer Full Lint Filter Indicators,
7.4 cu. ft. Ultra Large Capacity
Stackable Washer and Dryer or LG Pedestal Compatible, Reversible Door, LP Conversion Kit & Side Venting Kit available

Save $200 on any laundry pair. Offer valid from Nov 20, 2025 to Jan 7, 2026.

Stack up the savings

Save $200 when you purchase any LG Laundry Pair*

Buy Now

*Offer valid November 20, 2025 to January 7, 2026.

Available with purchase of eligible new LG Laundry Pairs, while supplies last. The LG WashTower® and LG WashCombo® units are included in this promotion as single units. Excludes Accessories and LG STUDIO Major Appliances. Offer subject to change without notice and is not combinable with any other offer. Other conditions apply.

Steam Refresh Clothes in Between Washes

Refresh instantly* with TurboSteam® that generates steam penetrating deep into fabrics.

More Style in Less Space

LG closet-depth dryers have a shallower depth to fit in more places & add sleek style to any room.

Warranty/Certifications

Headline can be up to 150 characters.

Body Copy can be up to 1000 characters.

Headline can be up to 150 characters.

Body Copy can be up to 1000 characters.

DIMENSIONS

Product (WxHxD)

27" x 39" x 29 3/4"

Capacity

7.4 cu. ft.

All Spec

CAPACITY

Capacity
7.4 cu. ft.

ENERGY

ENERGY STAR® Qualified
Yes
CEF
3.49

FABRIC CARE FEATURES

AI Sensor Dry™
Yes
Sensor Dry
Yes
Precise Temperature Control with Variable Heater
Yes
Steam
TurboSteam™

CONVENIENCE FEATURES

3 Minute Installation Check
Yes
End of Cycle Signal
Yes
Drum Light
Yes
Reversible Door
Yes
FlowSense® Duct Clogging Indicator
Yes
Wrinkle Care Option
Yes
Control Lock
Yes
Venting Option
3 Way Venting
4 Adjustable Legs
Yes
Remaining Time Display/Status Indicator(s)
Yes

MATERIALS AND FINISHES

NeveRust® Stainless Steel Drum
Yes
Cabinet
Painted Steel
Door
Tempered Glass Door
All Available Colours
Graphite Steel (V)

DIMENSIONS

Product (WxHxD)
27" x 39" x 29 3/4"
Depth with Door Open
51 3/8"
Carton (WxHxD)
28 7/8" x 43 1/8" x 31 3/8"
Weight (Product)
136.0 lbs
Weight (Carton)
146.6 lbs
Pedestal (WxHxD)
27" x 13 5/8" x 28" (43 7/8" D with door open)

POWER SOURCE

Ratings
CSA Listed
Electrical Requirements
120V, 60Hz, 11.5A
Type
Electric
BTU Rating
20,000

SUMMARY

Type
Front Load Dryer, Gas
Vent Type
Vented
Matching Washer
WM5500HVA
Steam
Yes
Colour
Graphite Steel (V)
LCD Display
Yes
Dial-A-Cycle<sup>®<sup>
Yes
Touch Buttons
Yes

DRYER PROGRAMS

No. of Programs
23
Programs (Sensor Dry)
Normal, AI Dry, Bedding, Delicates, Towels, Quick Dry,Timed Dry, Power Dry, Perm.Press, SteamFresh™, Heavy Duty, Air Dry, Steam SanitaryTM, Super Dry, Active Wear, Jeans, Blanket Refresh, Low Temp Dry, Overnight Dry, Easy Ironing, Small Load, Large Load Dry,X Large Load Dry
No. of Options
12
Options
Cycle Optimization, Damp Dry Signal, Wrinkle Care, Control Lock, Wi-Fi, Energy Saver, TurboSteam®, Reduce Static, Remote Start, Drum Light, Signal, Cycle List Edit
Temperature Settings
High, Med.High, Medium, Low, Ultra Low
Drying Levels
Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Manual Dry Times
10 min ~ 100 min (10 min incremental)

OPTIONS/ACCESSORIES

LP Conversion Kit
383EEL3002D
Side Venting Kit
3911EZ9131X (replaces 383EEL9001B)
Pedestal
WDP6V

THINQ® TECHNOLOGY

SmartDiagnosis™ (v3.0)
Yes
Wi-Fi
Yes
Remote Start and Cycle Monitor
Yes
Energy Monitoring
Yes

WARRANTY & UPC

Parts & Labour
1 Year
Drum
3 Years
UPC
195174056424

Do LG tumble dryers require additional vent installation?

LG's condenser dryers are ventless and can be installed anywhere without space constraints.

What should I consider when buying a tumble dryer?

When selecting a tumble dryer, consider capacity, energy efficiency, and drying technology. LG dryers feature Sensor Dry technology to optimise drying times based on moisture levels, ensuring perfect results while conserving energy. LG's heat pump technology provides greater energy efficiency than conventional vented dyers, using less energy with every load.

With LG ThinQ™ technology, you can remotely control your LG dryer, making laundry management more convenient. LG's sleek designs integrate seamlessly into any laundry space, enhancing both functionality and style.

What is heat pump dryer?

A heat pump tumble dryer operates by recycling warm air within the drum, meaning it uses less energy and is gentler on your clothes. Here’s how it works:

1. Heating the air: The heat pump heats the air and sends it into the drum to absorb moisture from your clothes.

2. Condensation: The moist air is then cooled in an evaporator, where the water is condensed and collected in a tank or drained away.

3. Recycling air: The cool, dry air is reheated and sent back into the drum to continue drying your clothes.

What tumble dryers are energy efficient?

Heat pump tumble dryers are widely regarded as energy-efficient dryers. Specially, LG heat pump tumble dryers are designed with energy efficiency in mind. LG’s Dual Inverter Heat Pump™ technology further reduces energy consumption, offering substantial savings compared to conventional models. This makes LG dryers a good choice, lowering your electricity bills while delivering outstanding drying performance.
