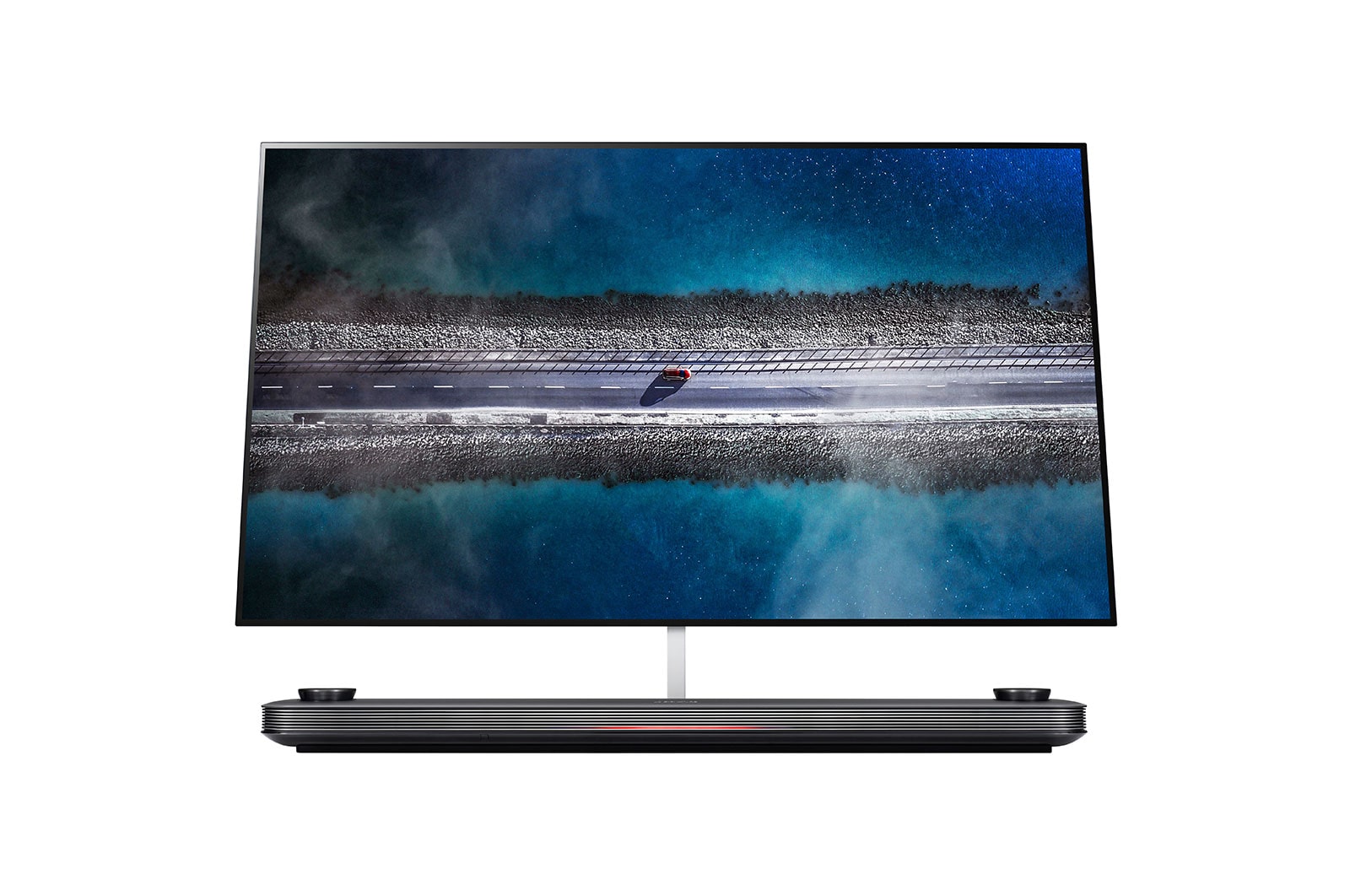

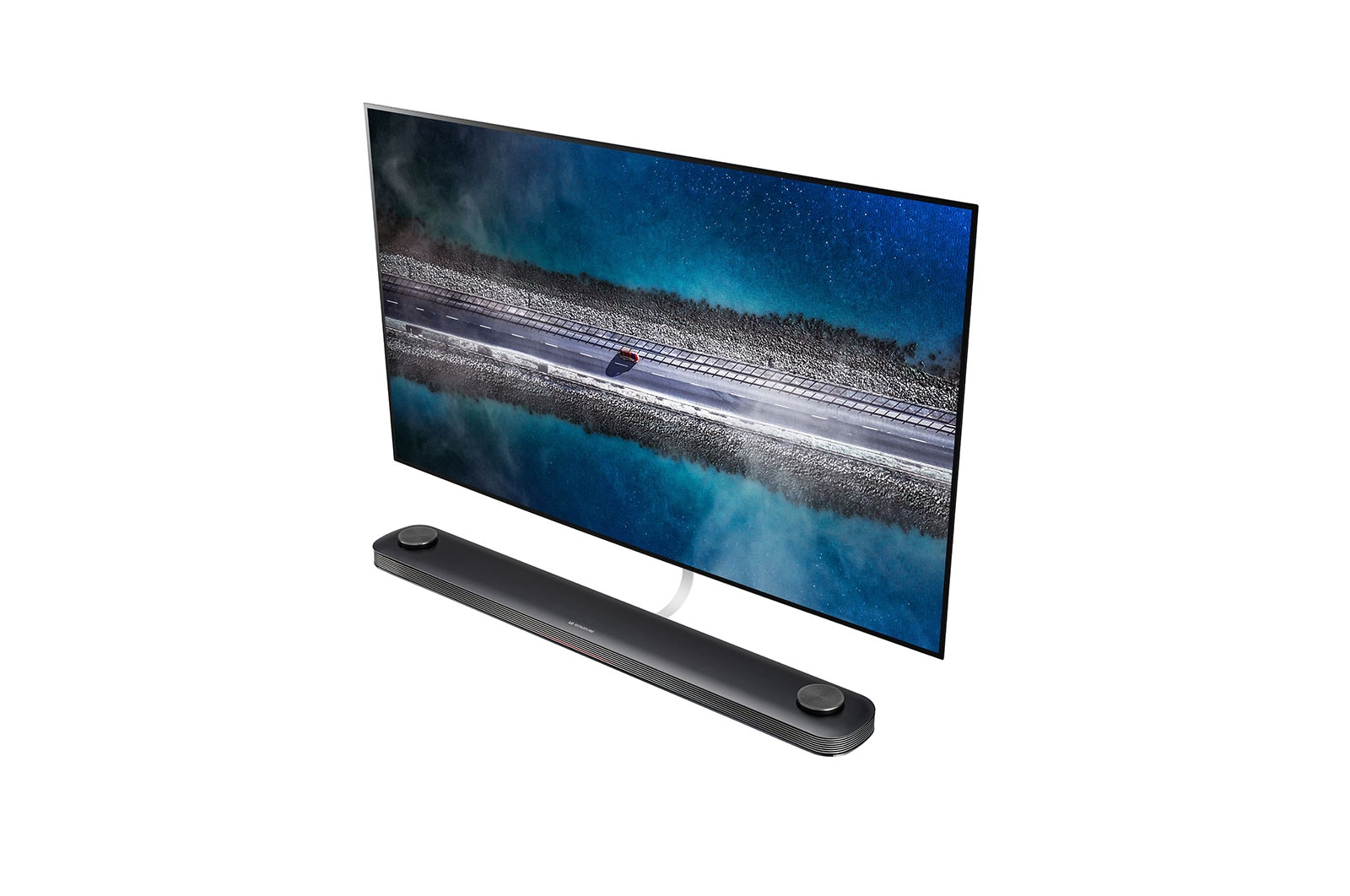

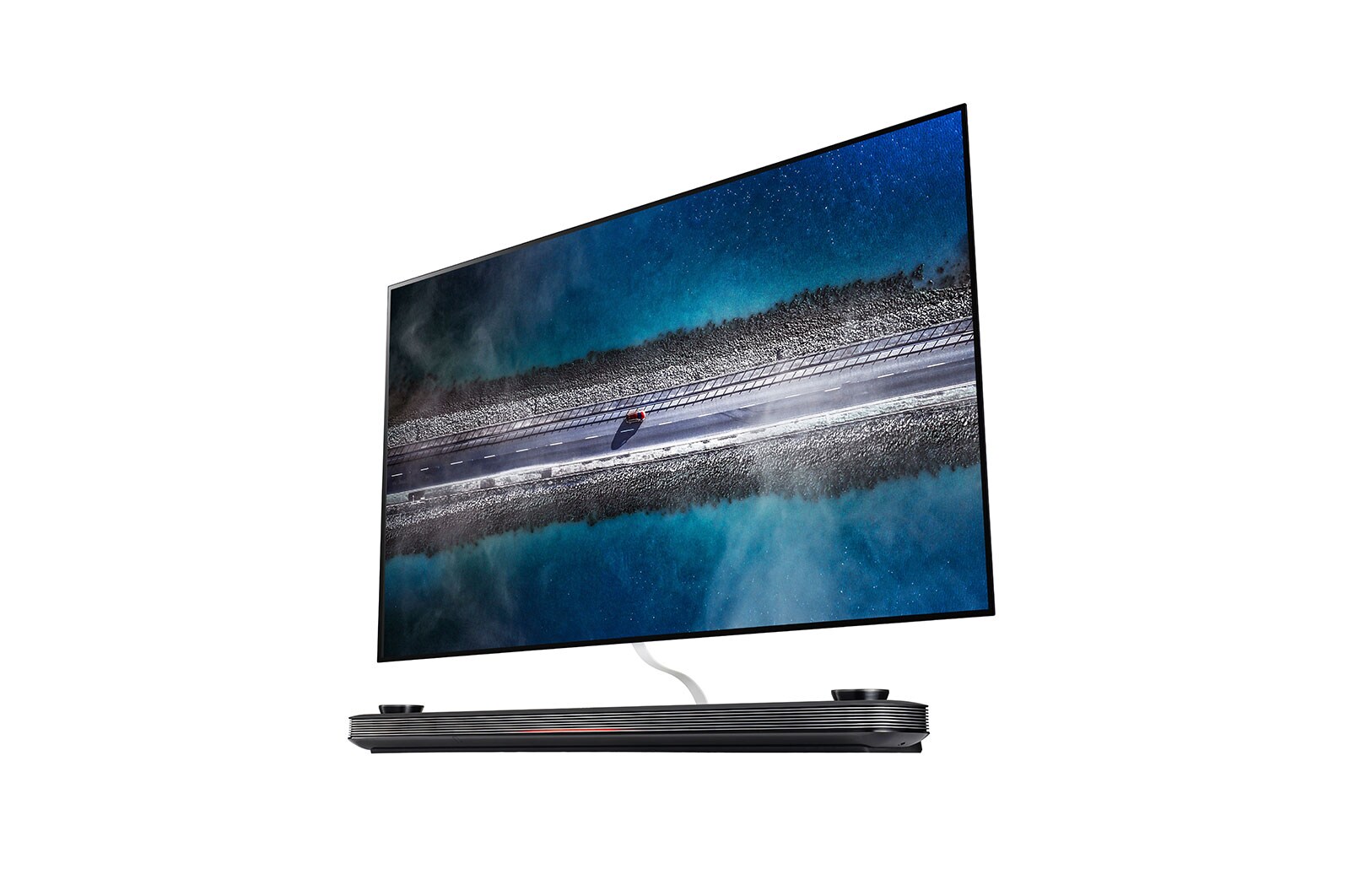

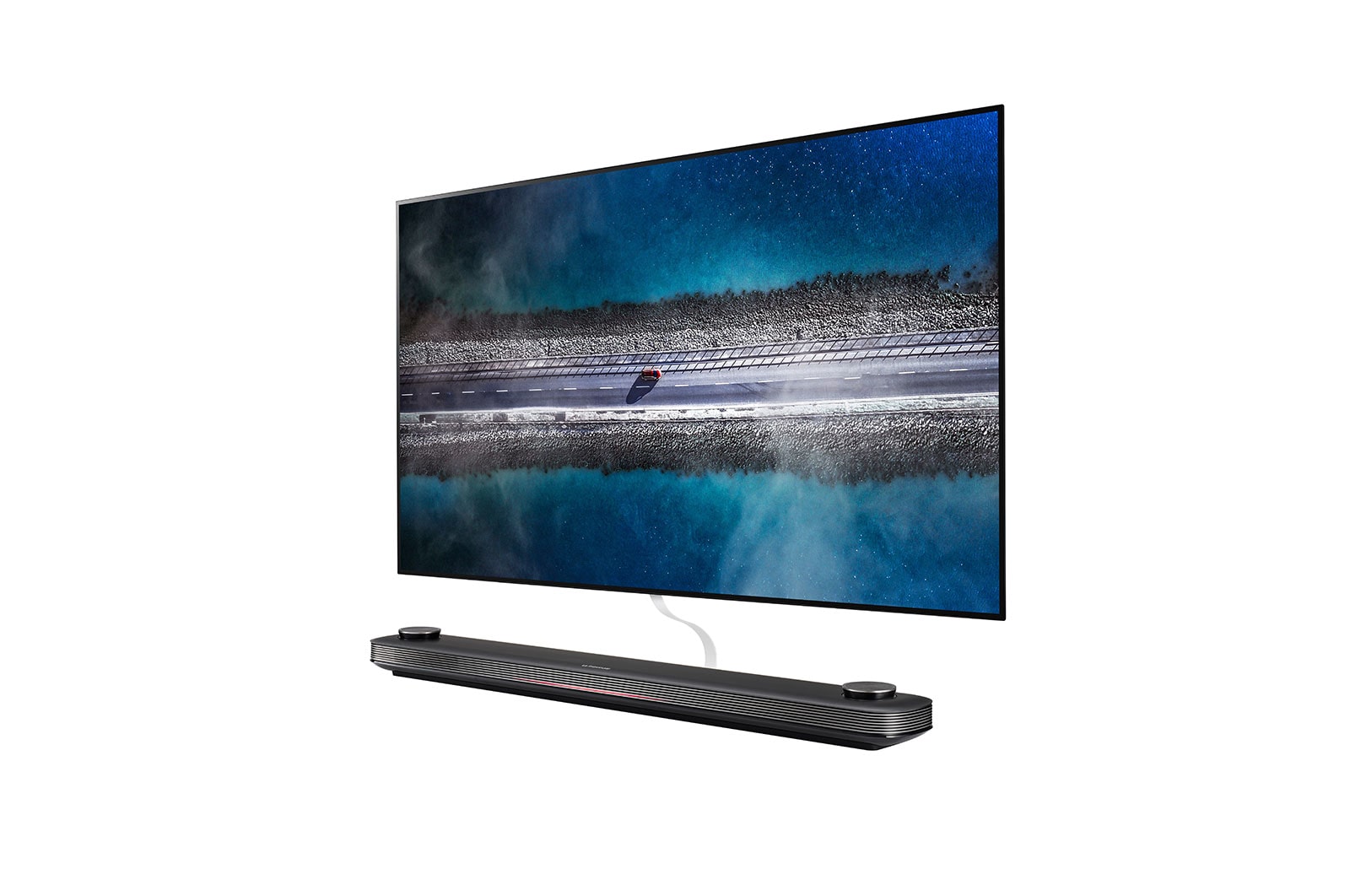

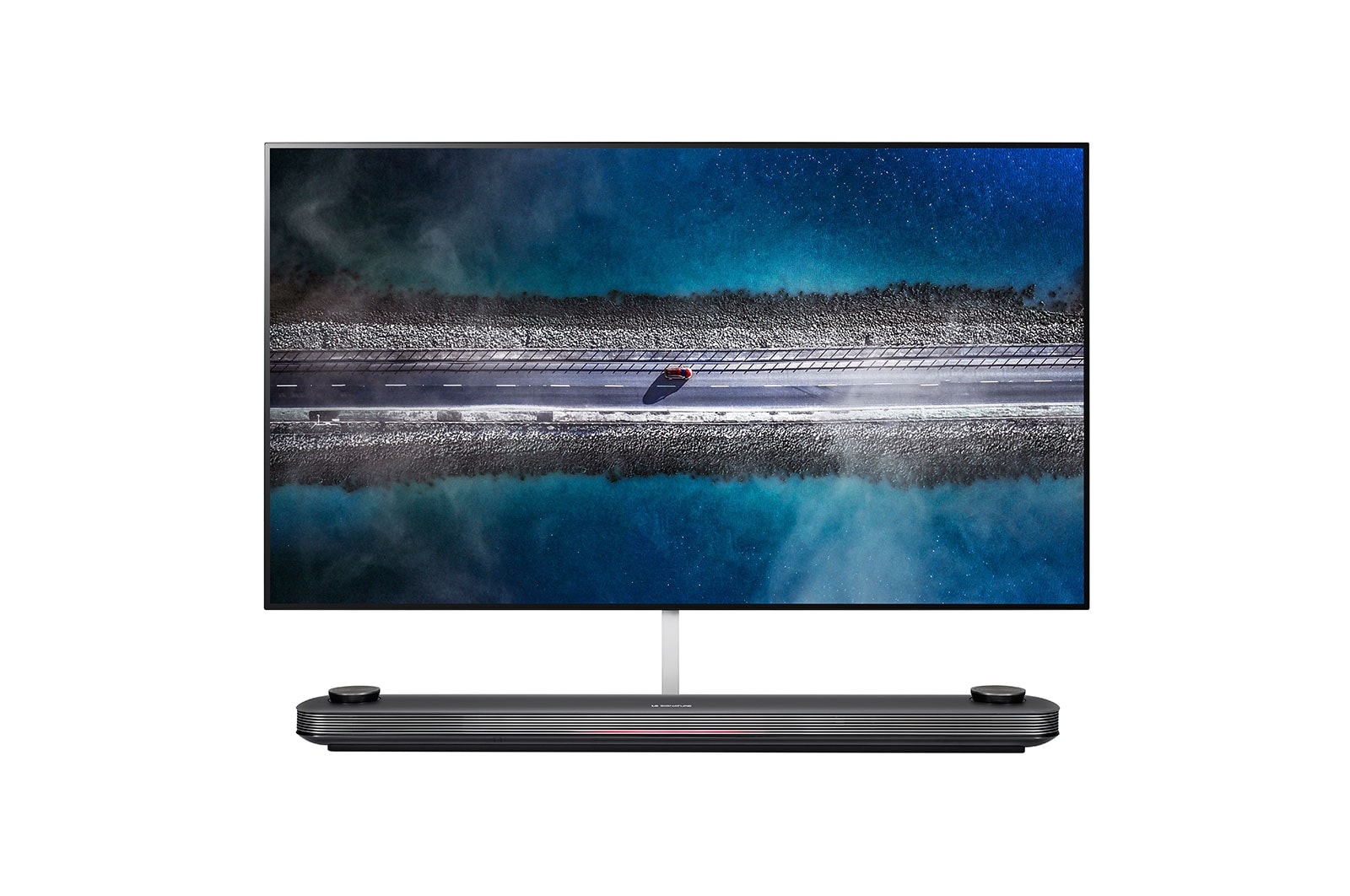

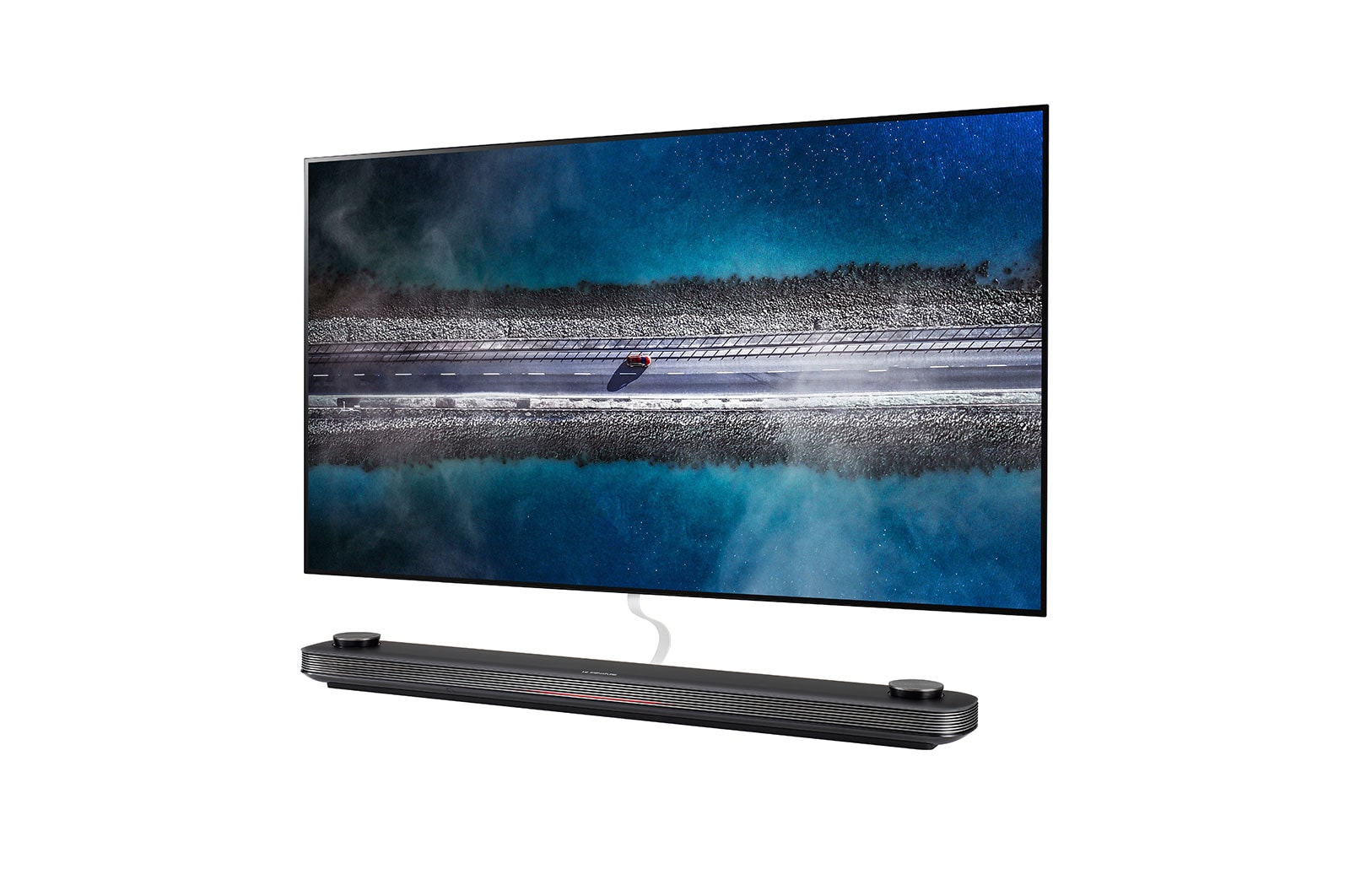

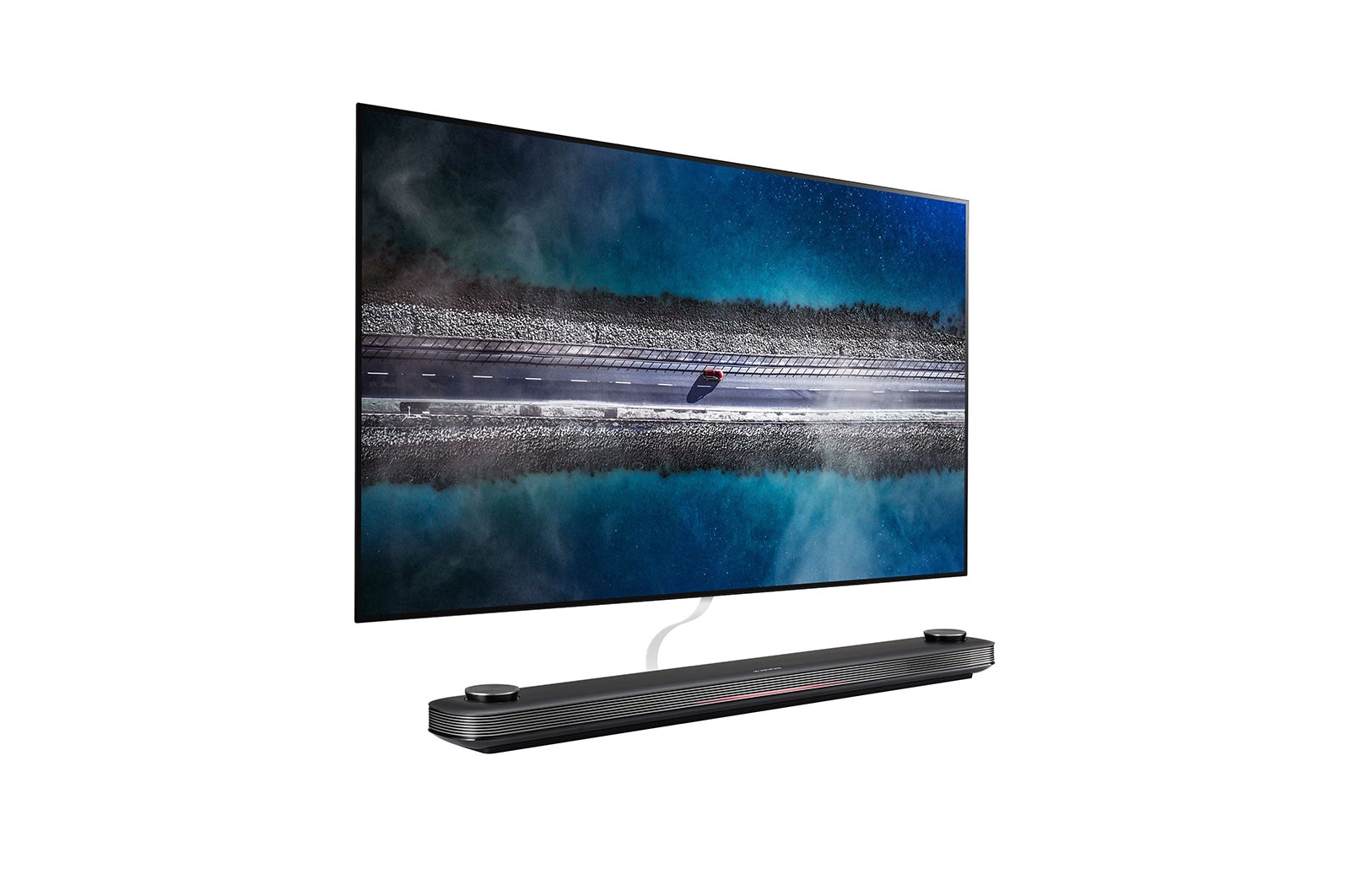

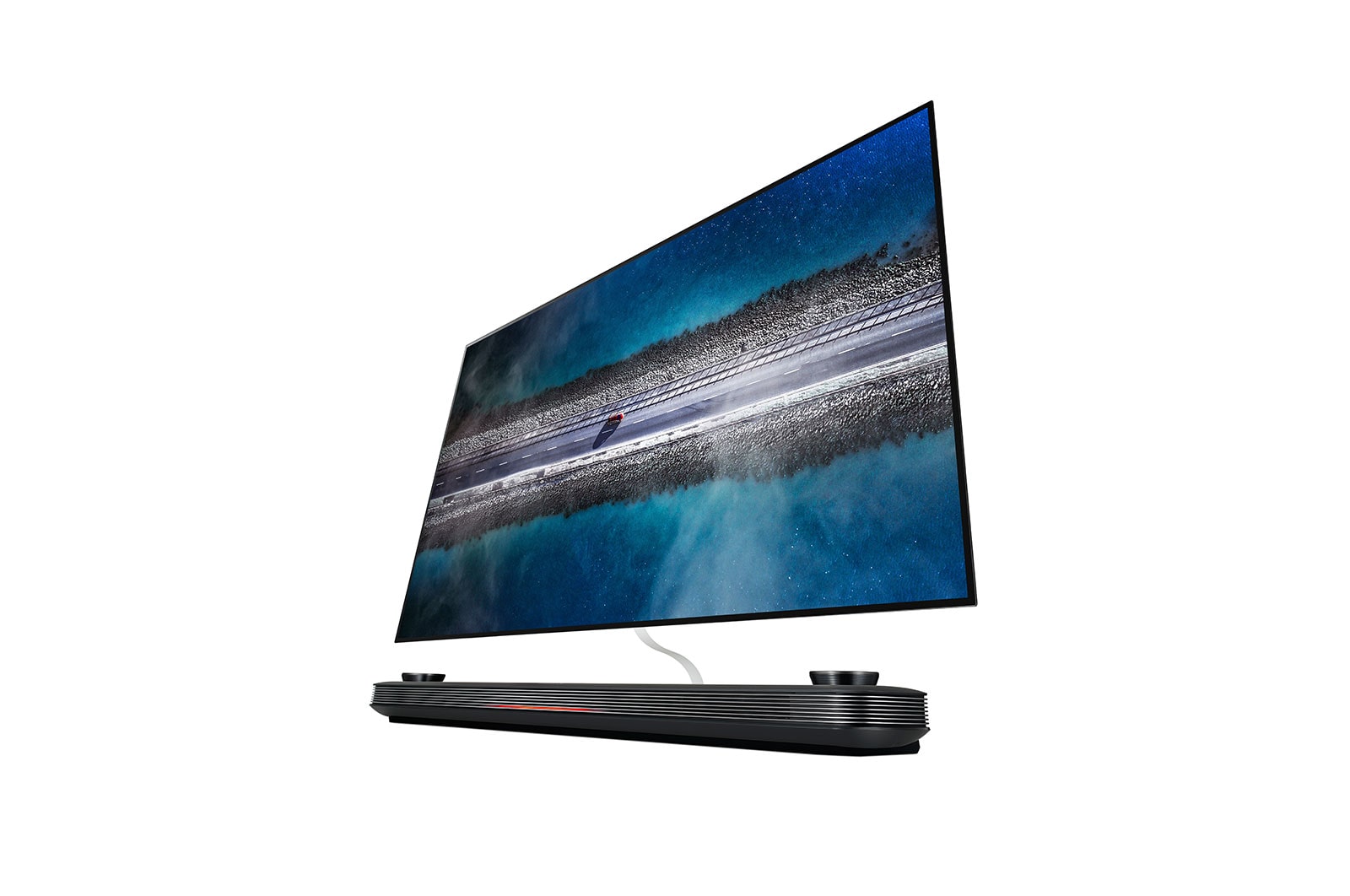

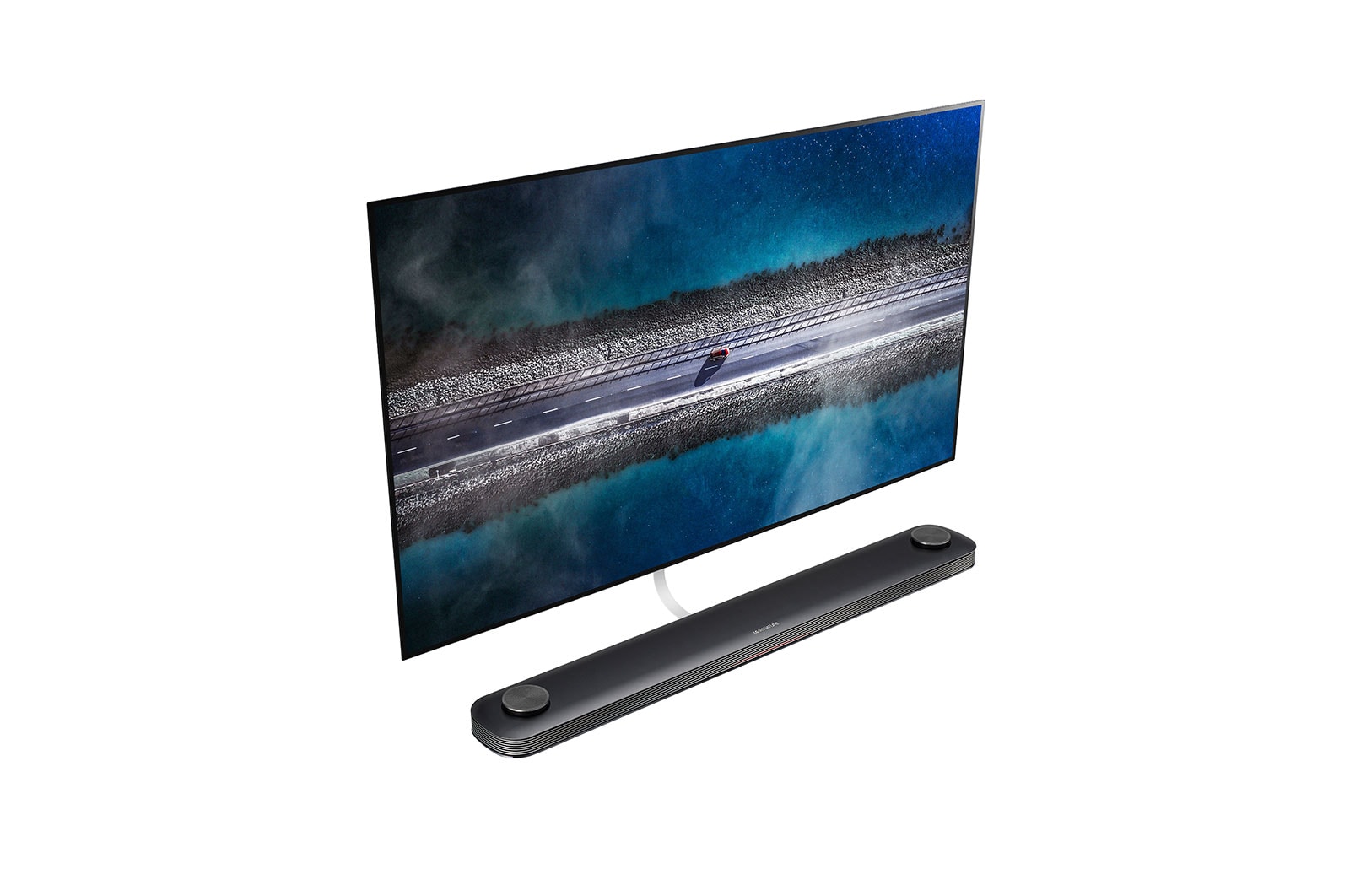

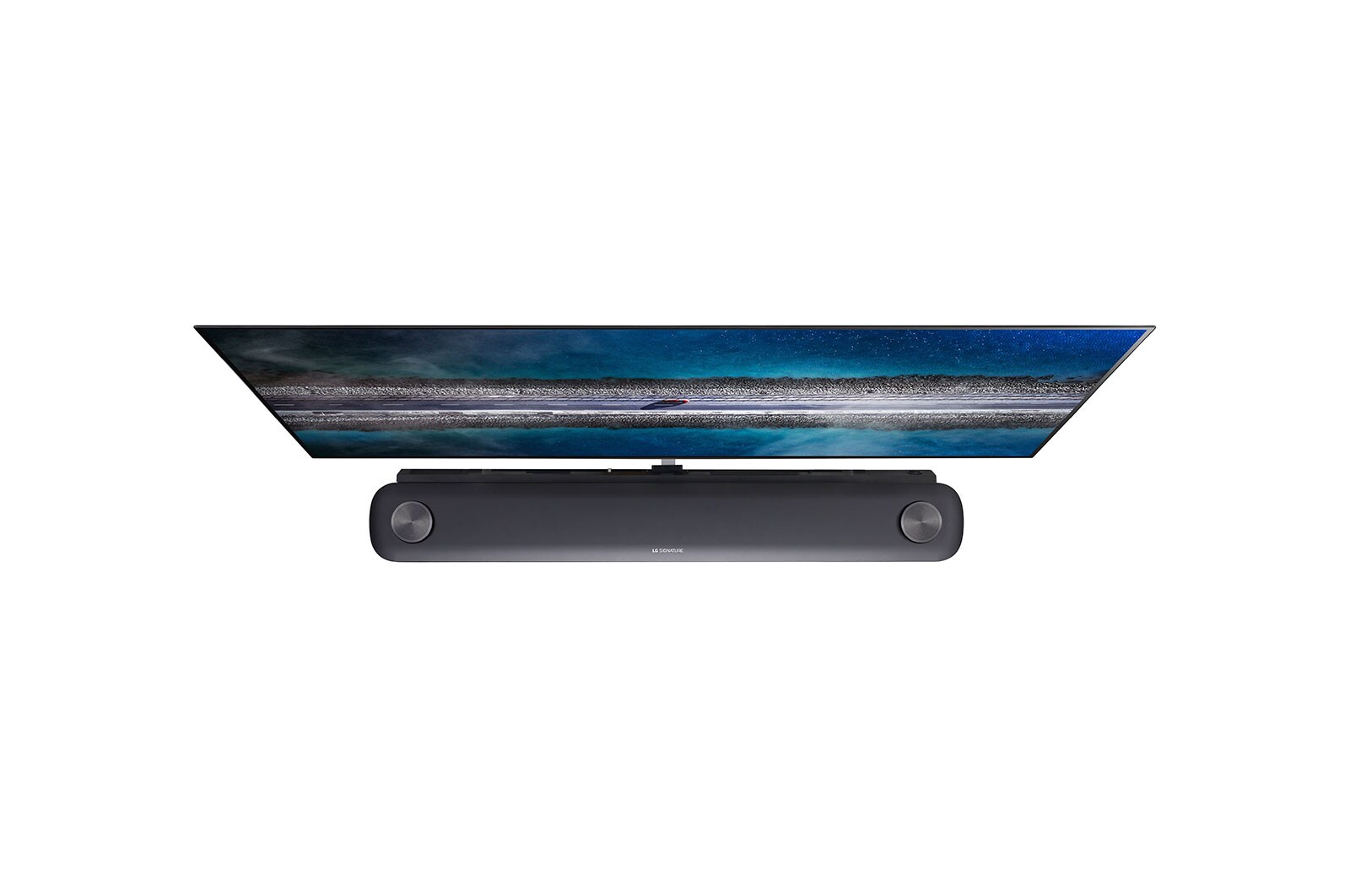

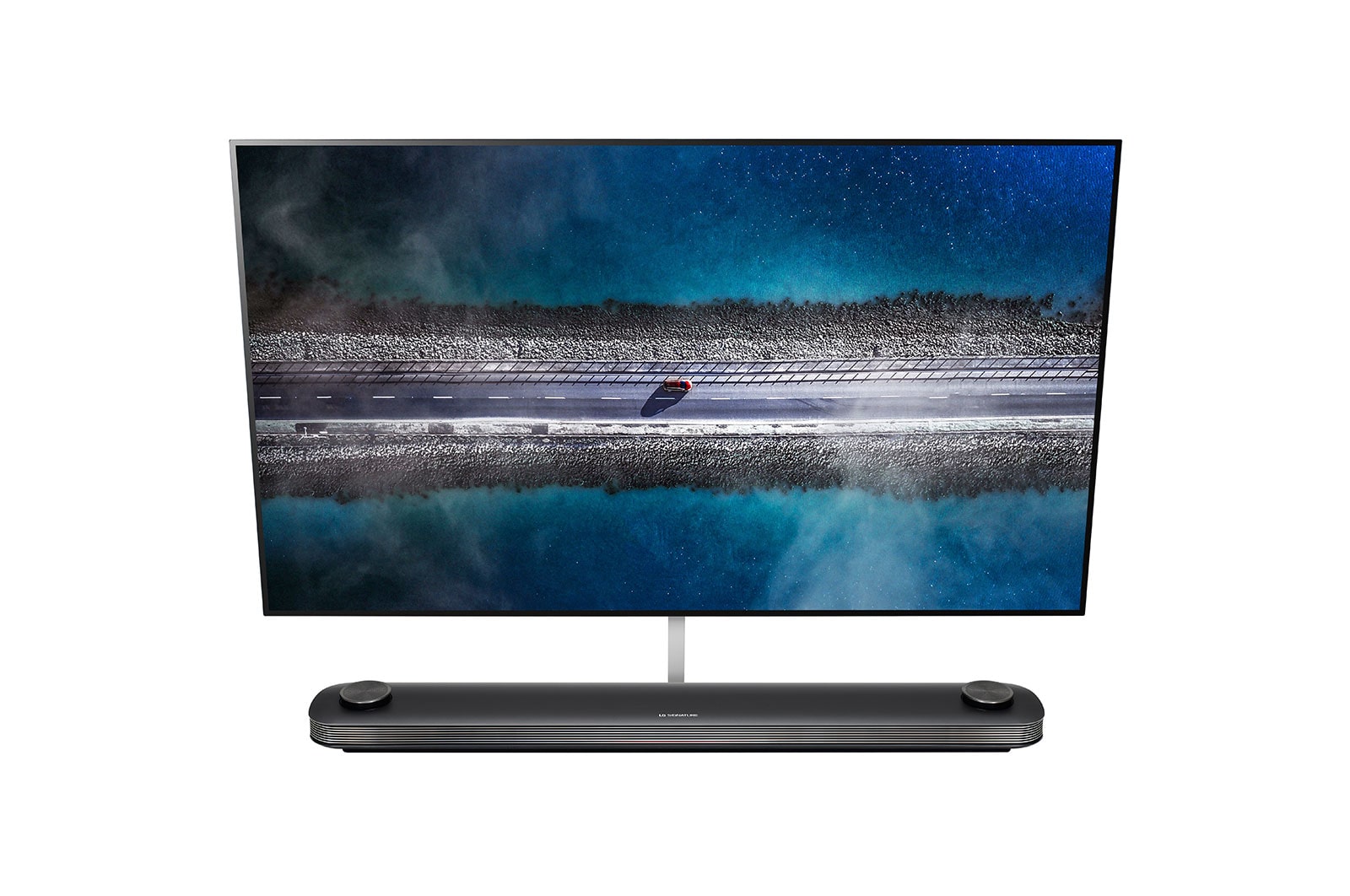

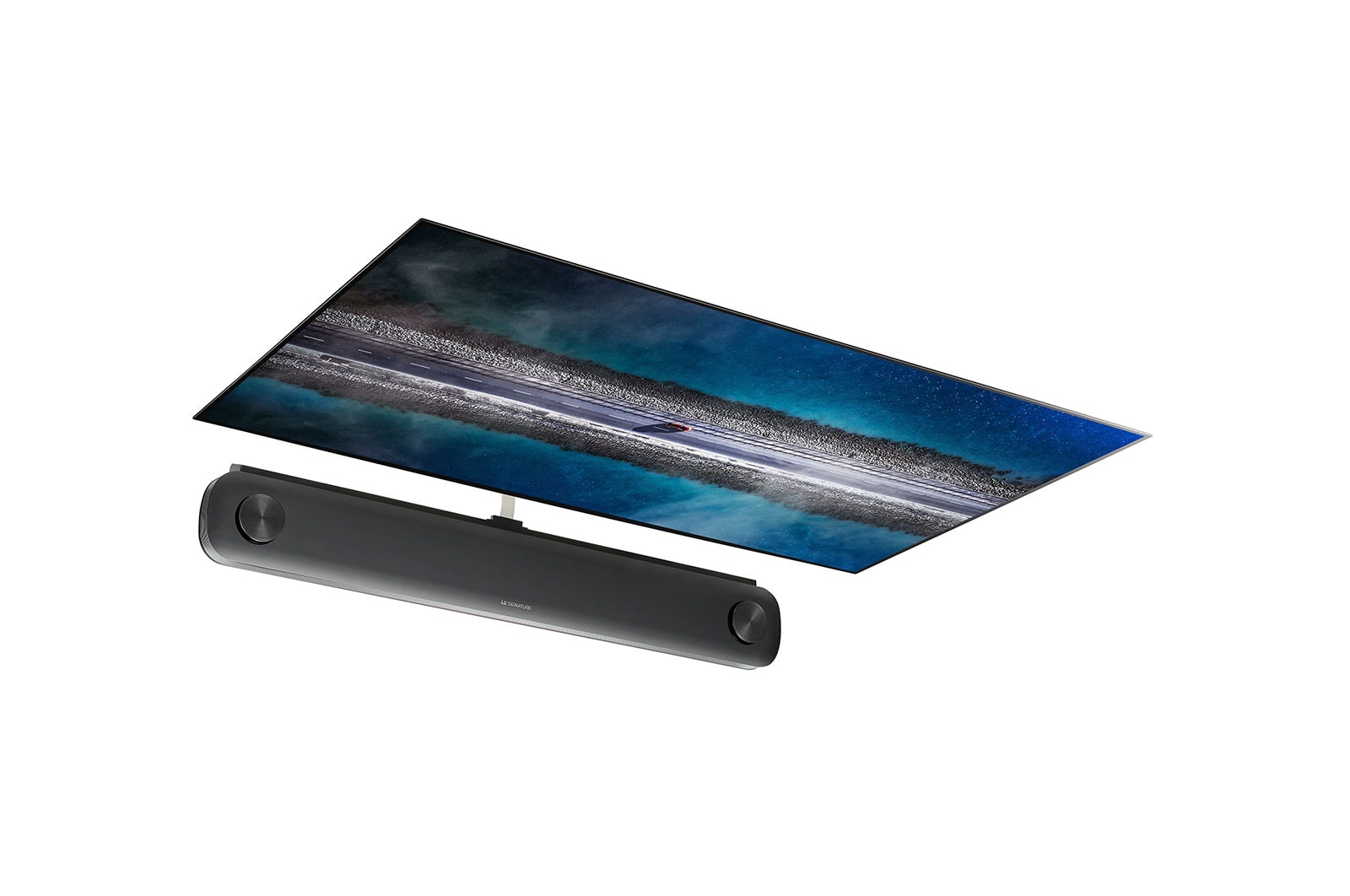

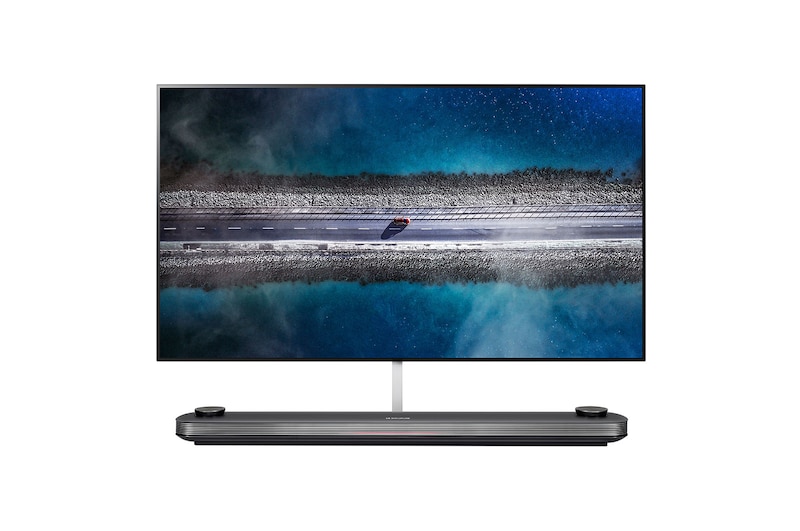

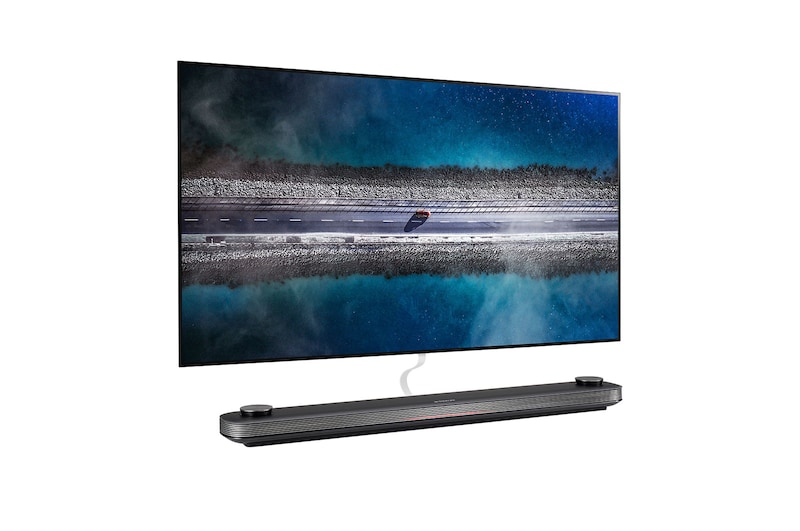

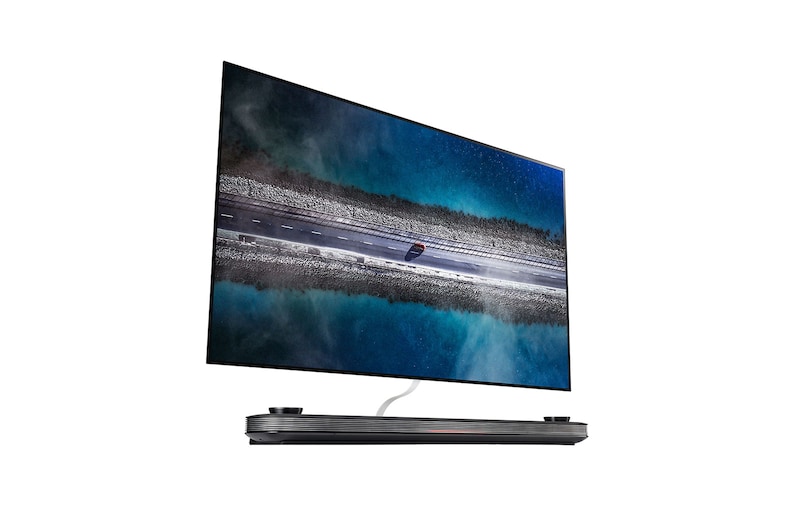

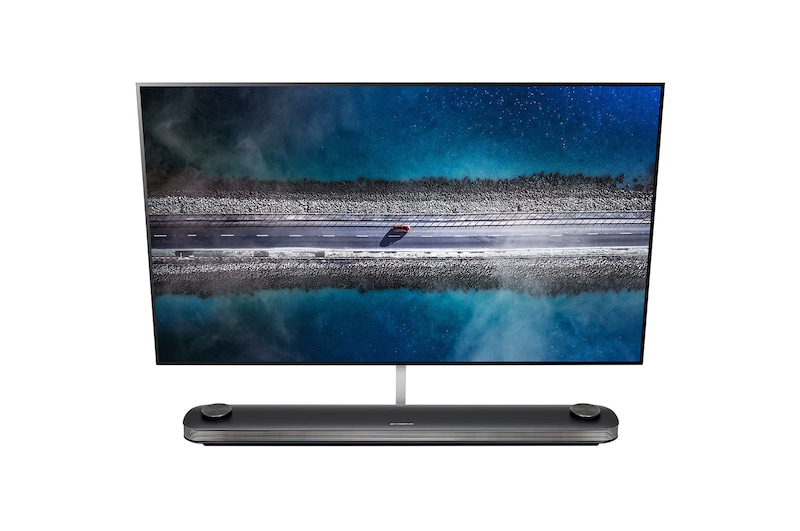

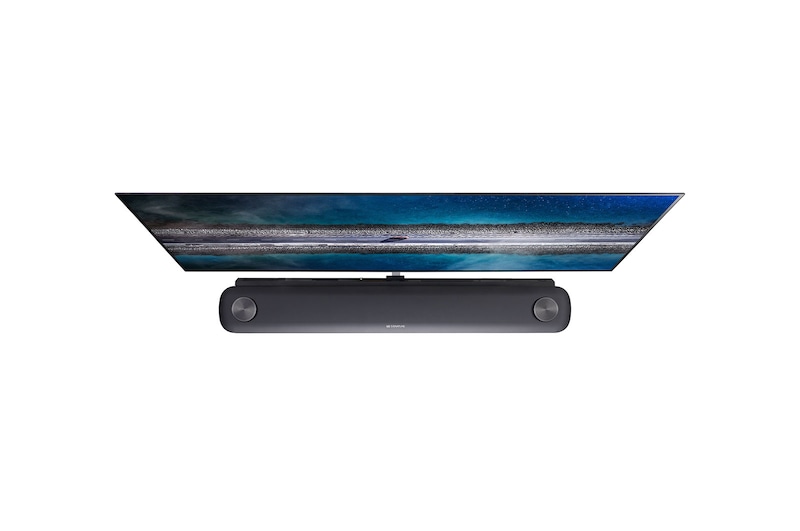

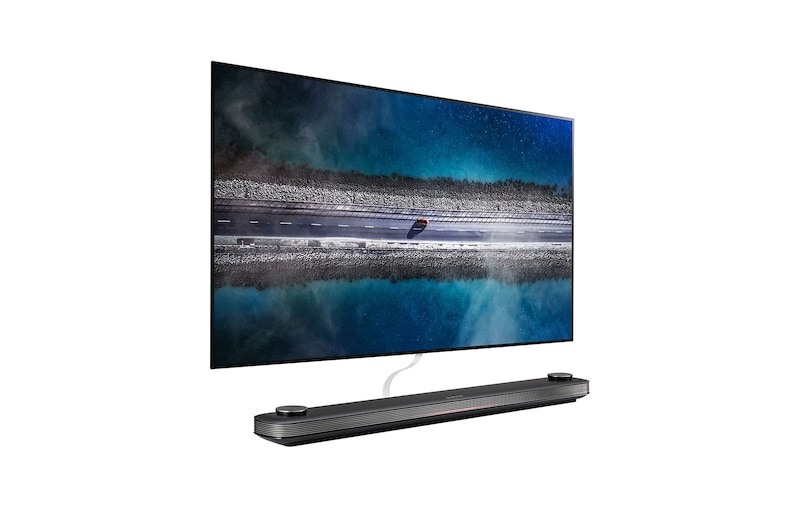

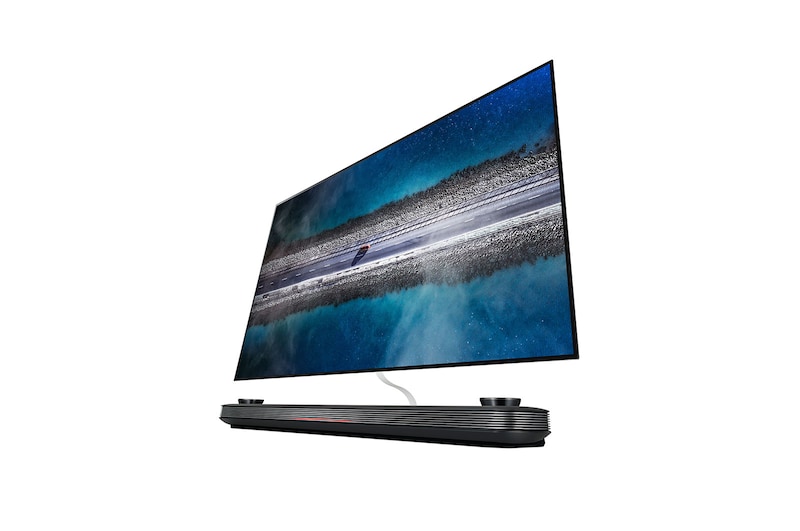

77” LG SIGNATURE OLED TV W9 ThinQ AI

Specs

Reviews

Support

77” LG SIGNATURE OLED TV W9 ThinQ AI

OLED77W9PUA

77” LG SIGNATURE OLED TV W9 ThinQ AI

(2)
Print

All Spec

PICTURE(PANEL)

  • Display Type

    OLED

  • Display Resolution

    4K Ultra HD (3,840 x 2,160)

  • Wide Viewing Angle

    Yes

  • Dimming Technology

    Pixel Level Dimming

PICTURE(PROCESSING)

  • Picture Processor

    α9 Gen 2 Intelligent Processor

  • HDR (High Dynamic Range)

    4K Cinema HDR (Dolby Vision®, HDR10, HLG)
    HDR Dynamic Tone Mapping Pro

  • Contrast

    Object Depth Enhancer
    Ultra Luminance Pro

  • Clarity

    Quad Step Noise Reduction
    Frequency Based Sharpness Enhancer

  • Colour

    Intense Colour
    Billion Rich Colours
    Advanced Colour Enhancer
    True Colour Accuracy Pro

  • Resolution Upscaler

    4K Upscaler

AI TV(ARTIFICIAL INTELLIGENCE)

  • LG ThinQ® AI

    Yes

  • Google Assistant

    Yes

  • Alexa Built-In

    Yes (Available via firmware update)

  • Google Home Compatible

    Yes (Google Home device sold separately)

  • Amazon Alexa Compatible

    Yes (Amazon Alexa device sold separately)

  • Intelligent Voice Recognition

    Yes

SMART TV

  • Operating System

    webOS®

  • Magic Remote Control

    Yes (Point, Click, Scroll, Voice)

  • Universal Remote Control

    Yes (Auto Device Detection)

  • LG Content Store (App Store)

    Yes

  • Full Web Browser

    Yes

AUDIO

  • Speaker System

    4.2 Channel

  • Output Power

    60W (20W Woofer)

  • Dolby Atmos

    Yes

  • WiSA Ready

    Yes (Separate Dongle Purchase Required)

  • DTS Decoder

    DTS-HD

  • Bluetooth Audio Playback

    Yes

  • LG Sound Sync

    Yes

CONNECTIVITY

  • Wi-Fi® Standard

    Wi-Fi Certified 802.11ac

  • Bluetooth® Support

    Version 5.0

  • IP Control

    Yes

  • HDMI-CEC (Simplink)

    Yes

  • TV Tuner

    ATSC, Clear QAM

  • Smart Phone Connectivity

    Yes

INPUTS & OUTPUTS

  • HDMI Input (HDCP 2.2)

    4 (rear)

  • HDMI Audio Return Channel (ARC)

    eARC (HDMI 2)

  • USB Ports (v 2.0)

    3 (rear)

  • RF Connection Input (Antenna/Cable)

    1 (rear)

  • Composite Input (AV)

    1 (rear)

  • Ethernet Input

    1 (rear)

  • RS-232C Input (Mini Jack)

    1 (rear)

  • Digital Audio Output (Optical)

    1 (rear)

POWER

  • Power Supply (Voltage, Hz)

    AC 120V, 50/60 Hz

  • Standby Power Consumption

    Under 0.5W

  • Power Consumption

    206W

  • Annual Power Consumption

    379Wh/y

DIMENSIONS/WEIGHTS/UPC

  • TV Dimensions (WxHxD)

    1721 x 989 x 5.96mm / 67.8” x 38.9” x 0.23”

  • AV Box Dimensions (WxHxD)

    1460 x 84 x 208mm / 57.5” x 3.3” x 8.2”

  • Packaging Dimensions (WxHxD)

    1908 x 1222 x 330mm / 75.1” x 48.1” x 13”

  • TV Weight

    12.3kg / 27.1 lbs

  • AV Box Weight

    13.1kg / 28.9 lbs

  • Packaging Weight

    49.3kg / 108.7 lbs

  • UPC

    719192628892

ACCESSORIES INCLUDED

  • Remote Magic Remote

    Included

  • Remote Control Battery

    Yes

  • Power Cable

    Yes

  • Quick Start Guide

    Yes

  • E-Manual

    Yes

WARRANTY

  • Limited Warranty

    1 Year Parts & Labour

  • Model Year

    2019
