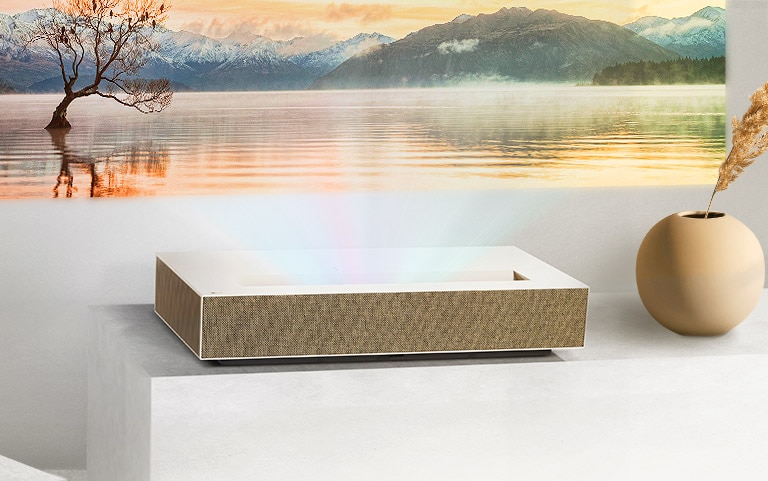

3,700 ANSI Lumens
4K UHD (3840 x 2160)
Ultra Short Throw

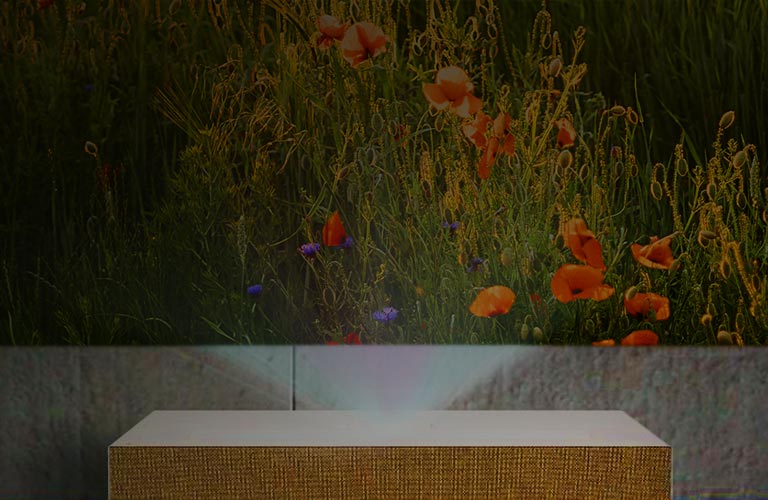

Brightness Optimizer II
webOS
Apple AirPlay 2 & HomeKit
2.2Ch 40W Sound
*The brightness (ANSI Lumen) is based on the perceived brightness of projected image.
*Image for illustration purposes only, and it may differ from actual use.
*Compared to LG HU85L, the value may vary depending on the external environment or others.
With 8.3 mega pixels utilizing 4K UHD Laser technology, LG CineBeam delivers precisive details up to 304.8 cm (120) screen. With 2M:1 contrast ratio it can express the deep darkness and brightness.

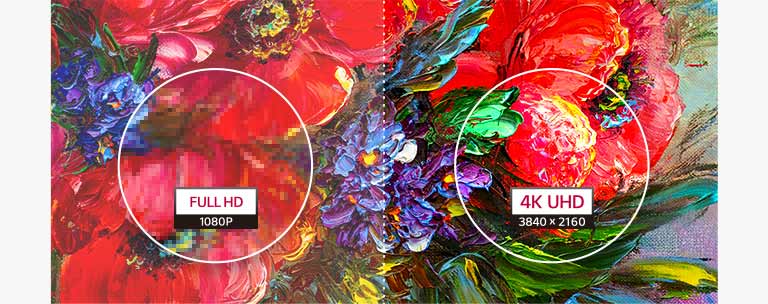

Comparison of FULL HD and 4K UHD.
*Image for illustration purposes only, and it may differ from actual use.

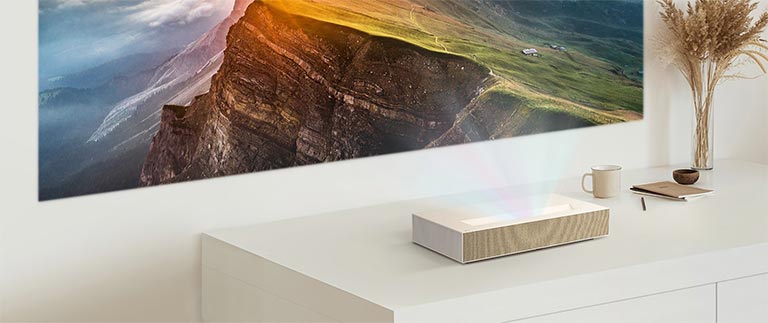

LG CineBeam gives vivid imagery within a remarkably short throw distance (0.19 Throw Ratio*). Create an impressive home cinema screen up to 304.8CM (120).
*It can project a 228.6CM (90) screen from a distance of 5.6cm, a 254CM (100) screen from a distance of 9.8cm, and a 304.8CM (120) screen from a distance of 18.3cm.

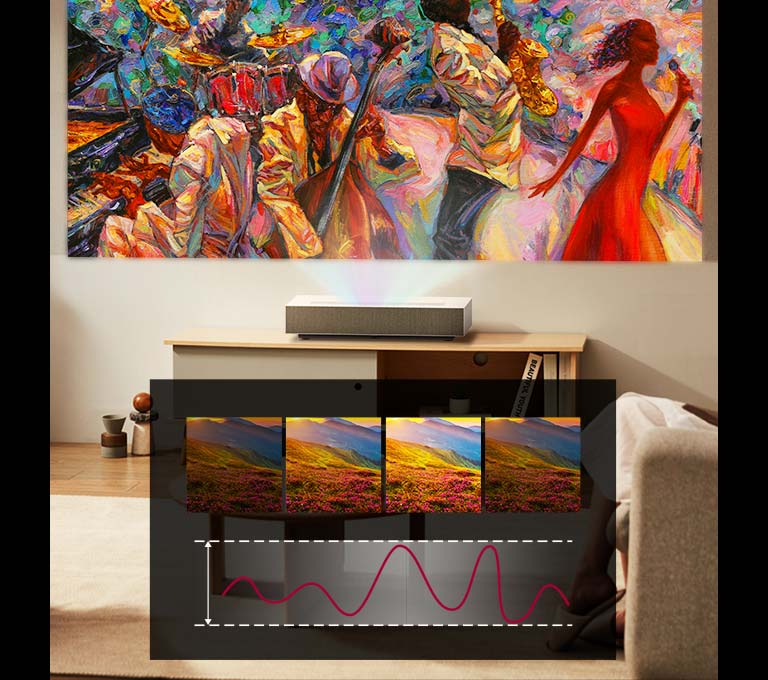

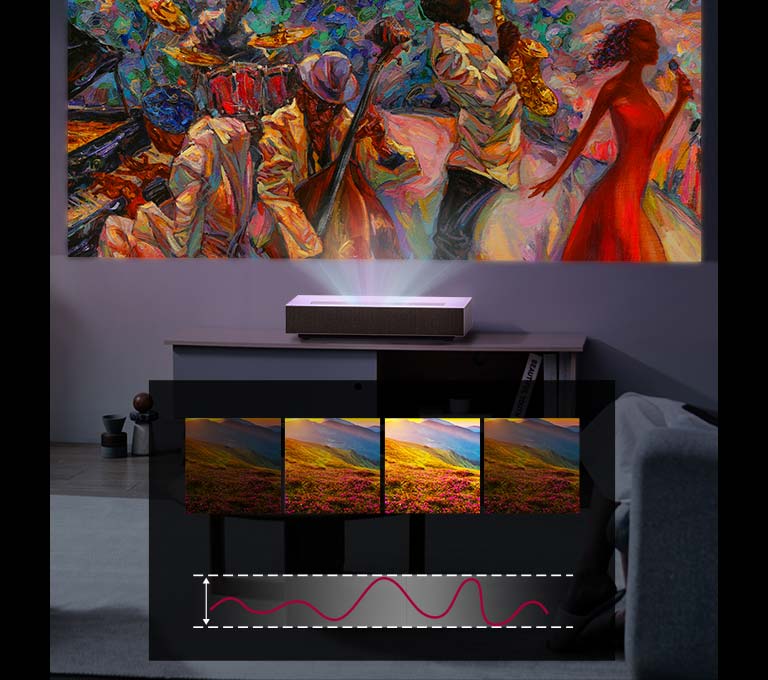

*To run 'Auto Brightness', you can turn on the ambient sensor by accessing the ‘Brightness OptimizerⅡ’ menu using the magic remote control and turning ON/OFF the 'Auto Brightness’.
*During using this function, Energy saving and IRIS Mode are disabled.
*Image for illustration purposes only, and it may differ from actual use.
*Image for illustration purposes only, and it may differ from actual use.
*Image for illustration purposes only, and it may differ from actual use.
*Internet connection and subscription to streaming services are required.
*Supported services may differ by country.

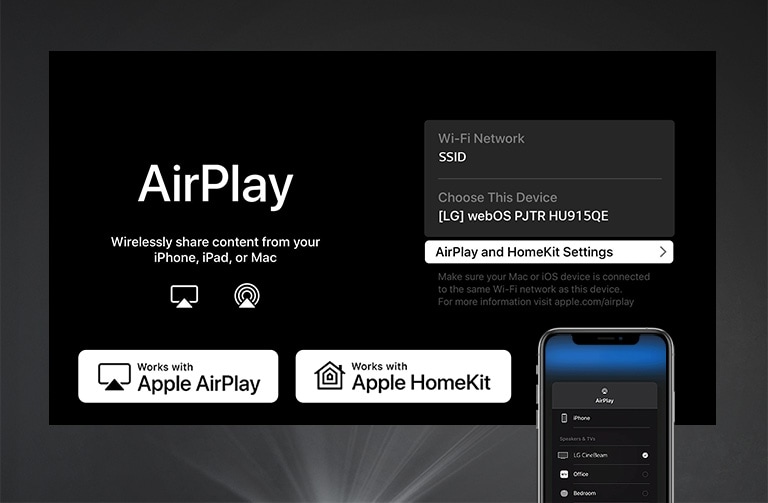

*Your Apple device must be connected to the same Wi-Fi network as your projector.
*Apple, the Apple logo, AirPlay, Apple TV, and HomeKit are trademarks of Apple Inc., registered in the U.S. and other countries.
*This LG CineBeam supports AirPlay 2 and requires iOS 12.3 or later or macOS 10.14.5 or later.
Native Resolution
4K UHD (3840 x 2160)
Brightness (ANSI Lumen)
3700
Type
3Ch Laser
Contrast Ratio
2,000,000:1
Digital Keystone Correction
Edge Adjustment (4/9/15 Point Warping)
Output
40W (2.2ch)
Airplay 2 (iOS/Mac Video Casting, Mirroring, Audio Streaming)
YES (up to 4K/30Hz)
Screen Share (Wireless Mirroring with MiraCast supporting device)
YES (up to 4K/30Hz)
Zoom
Fixed
Native Resolution
4K UHD (3840 x 2160)
Brightness (ANSI Lumen)
3700
Contrast Ratio
2,000,000:1
Cabinet Color
White
Ceiling mount hole (for bracket)
YES
Kensington Lock
YES
Leg-Stand
YES (4 Leg)
Local Key
YES
Net Size (mm) (W x D x H)
680 x 347 x 128
Net Weight (kg or g)
13.1
Digital Keystone Correction
Edge Adjustment (4/9/15 Point Warping)
HDR
HDR10, HLG
HDCP
HDCP 2.2
TruMotion
YES (up to 4096x2160)
Screen Share (Wireless Mirroring with MiraCast supporting device)
YES (up to 4K/30Hz)
USB Host (Movie, Music, Photo)
YES
Internet Browser
YES
FILMMAKER mode
YES

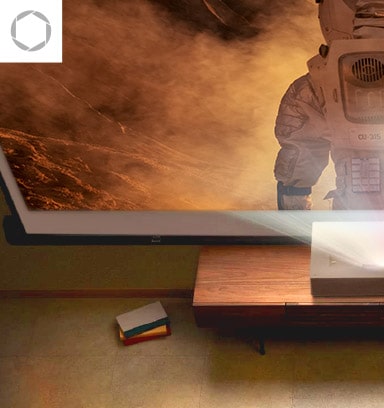

Brightness Optimizer - Iris Mode
YES (BrightRoom / Medium / Darkroom / User)
Platform (OS, UI)
webOS 6.0 (Smart)
Brightness Optimizer - Adaptive Contrast
YES (High / Medium / Low / Off)
Premium CP
YES
HDMI ARC(Audio Return Channel)
YES (eARC)
HDMI simplink(CEC)
YES
Plug & Play(RGB/DVI/HDMI Auto Source Detection)
YES
Eco Function - Auto Off / Auto Sleep
YES
Eco Function - Automatic Standby / Auto Power Off
YES
Eco Function - Energy Saving Mode
YES (Min/Med/Max)
Eco Function - Sleep Timer
YES
Eco Function - Time Power On/Off
YES (On / Off)
Color Temperature Adjustment
YES
Voice Recognition - Buit-in
LG ThinQ
AI Speaker Compatibility
Apple Homekit works-with
Image Flip
YES (Horizontal/Vertical)
LG Sound Sync(with Sound Bar)
YES
Airplay 2 (iOS/Mac Video Casting, Mirroring, Audio Streaming)
YES (up to 4K/30Hz)
Noise Reduction
YES
HDR Tone Mapping
YES (Auto, Dynamic/frame by frame)
Home Dashboard (Input, IoT with OFC device)
YES (OCF/UEI IoT not supported)
Gamma Correction (Expert control)
YES
Processor
Quad Core
Quick(Instant) Power on/off
YES (on 12 Sec ↓ / off 2 Sec)
Self Diagnosis
YES
Setting Guide
YES (Bean Bird)
Store Mode
YES
Super Resolution (Expert Control)
YES (4K)
Upscaler
YES (4K)
Real Cinema
YES (up to 4096x2160)
White balance setting (Expert control)
YES
Wireless Contents Share (with Android, iOS)
YES
Smooth Gradation
YES
Bluetooth Sound out
YES
Color gamut setting (Expert control)
YES
Color Management System (Expert control)
YES
Contents Sharing (with DLNA supporting device)
YES
Contents Store / LG Smart World (App Store)
YES
Contents Suggestion
YES
Dynamic Color (Expert control)
YES
Dynamic Contrast (Expert control)
YES
Black Level Control
YES
Background Image
YES
Bluetooth AV Sync Control
YES
HGiG (HDR Gamming Interest Group) mode
YES
HID (Keyboard/Mouse/GamePad Connection Thru USB)
YES
Dynamic Black
YES
HDMI
3
Audio out
S/PDIF 1(Optical)
USB Type-A
2 (USB2.0)
RJ45
1
IP control
YES (Control 4, Crestron, Savant, URC, ELAN)
Type
3Ch Laser
Life Hours
20,000 Hrs
Projection System
DLP
Standard (lens to wall)
Set to wall: 254 cm (100) @10cm, Standard: 254 cm (100) @42cm
Throw Ratio
0.19
Screen Size
228.6 cm (90) ~ 304.8 cm (120)
Clear Voice
YES (Clear Voice lll)
Output
40W (2.2ch)
Dolby Atmos compatible
YES (Pass through)
Operation Temperature
0 ~ 40℃
Uniformity (JBMMA 9 Point)
85%↑
Manual (Full or Simple Book)
Simple Book
Conformances(Regulation)
KCC, KC, FCC, ETL, CE/CB, PSE
Warranty Card
YES

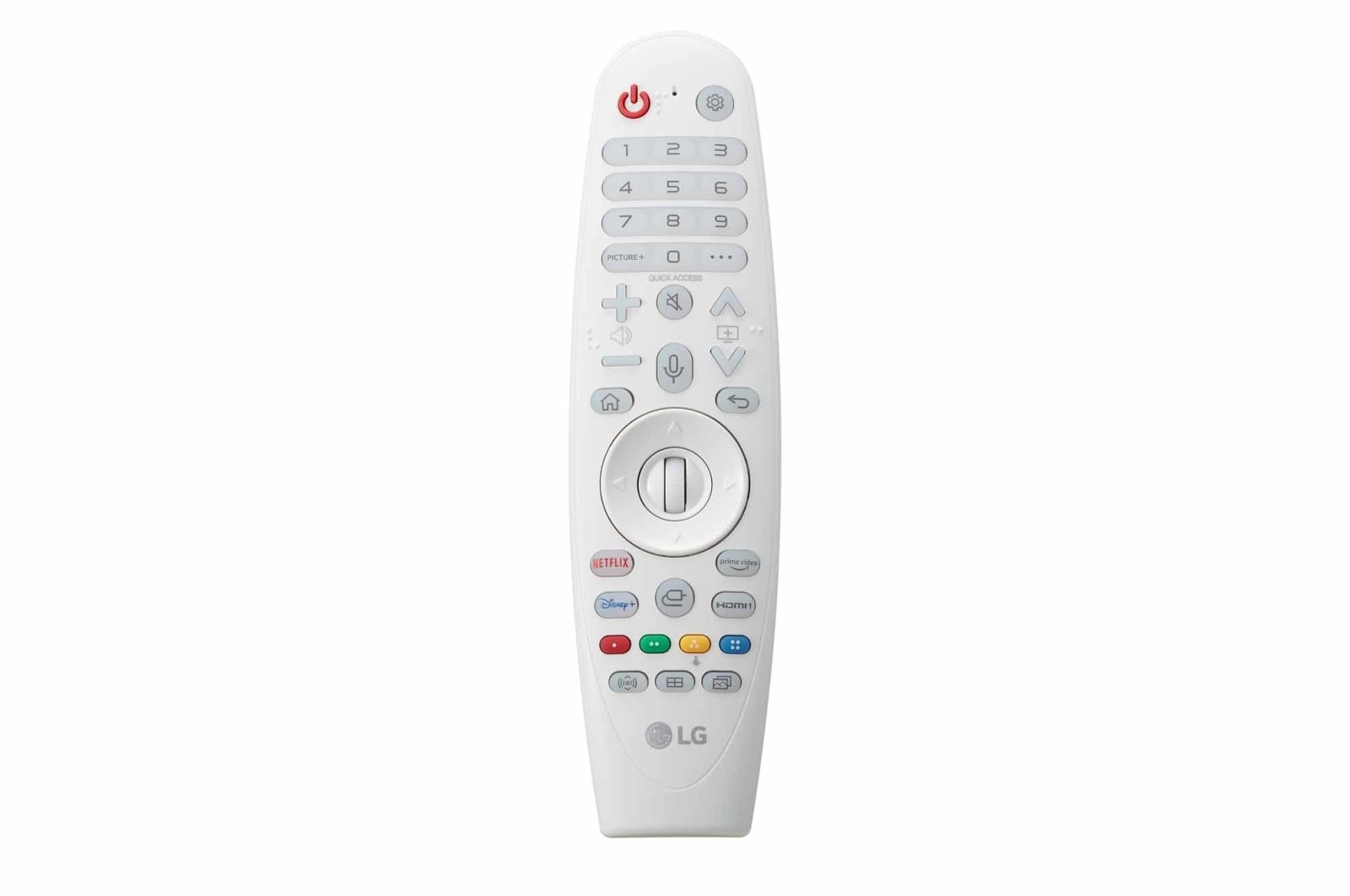

Remote Control - Motion
YES (Magic Lighting Remote)
Quick User Guide (Quick Set-up Guide)
YES
Energy Saving Max. (Eco)
26dB(A)
Energy Saving Min. (Bright)
30dB(A)
Energy Saving Med.
28dB(A)
Digital(HDMI)
Up to 4K (4096x2160) (60Hz, 50Hz, 24Hz)
Focus (Auto / Manual)
Manual
Zoom
Fixed
Projection Offset
1.2
Aspect Ratio Control
16:9/Original/4:3/Vertical Zoom/All-Direction Zoom
Power Consumption (Max.)
350W
Stand-by Power
<0.5W
Power Supply
100V – 240V @ 50~60 Hz (PSU Built-in)
To access more technical documentation and resources, please visit the LG B2B Partner Portal.
