LG UHD TV Signage

LG UHD TV Signage

LG UHD TV Signage

75UR640S0TD

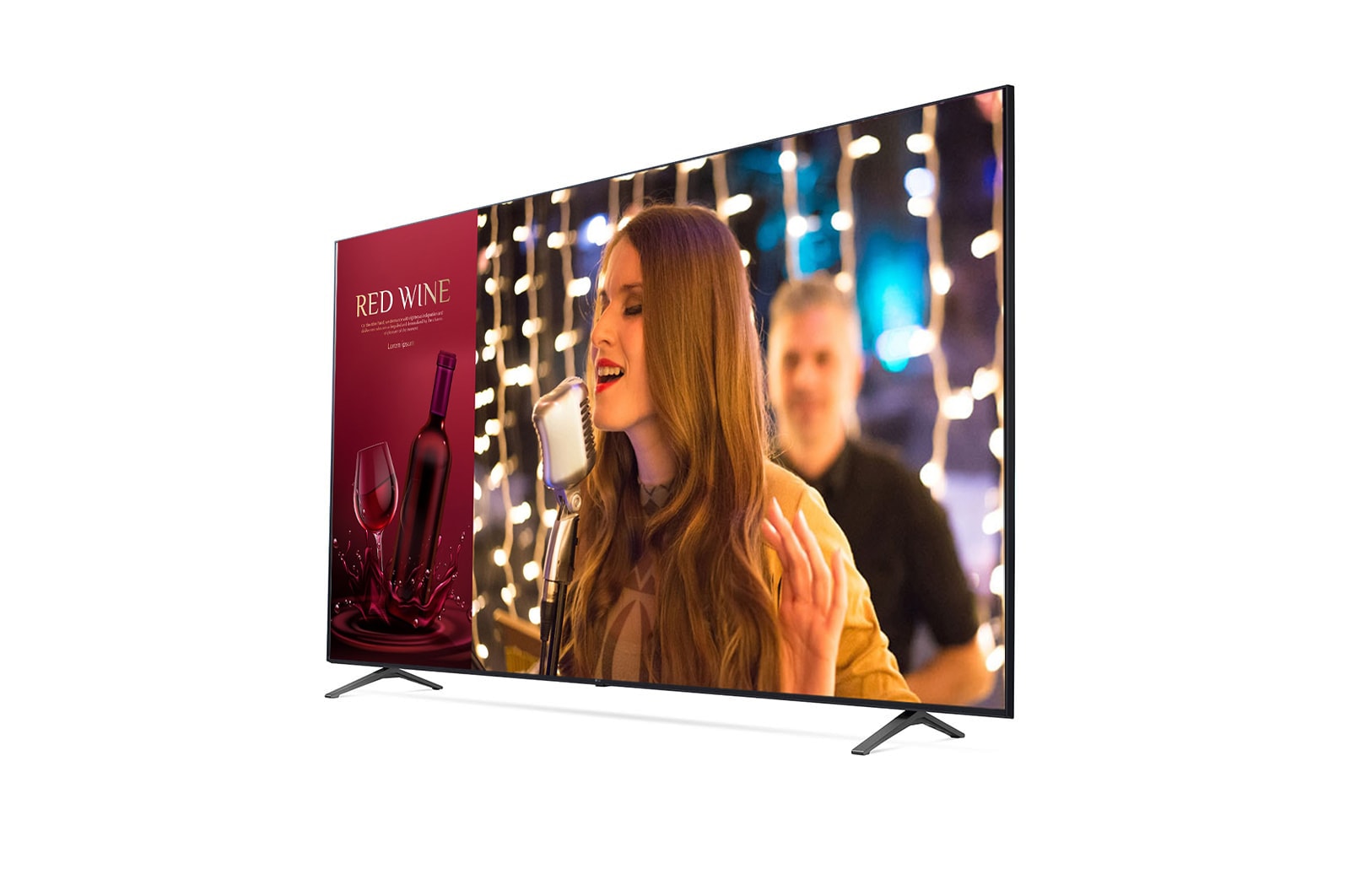

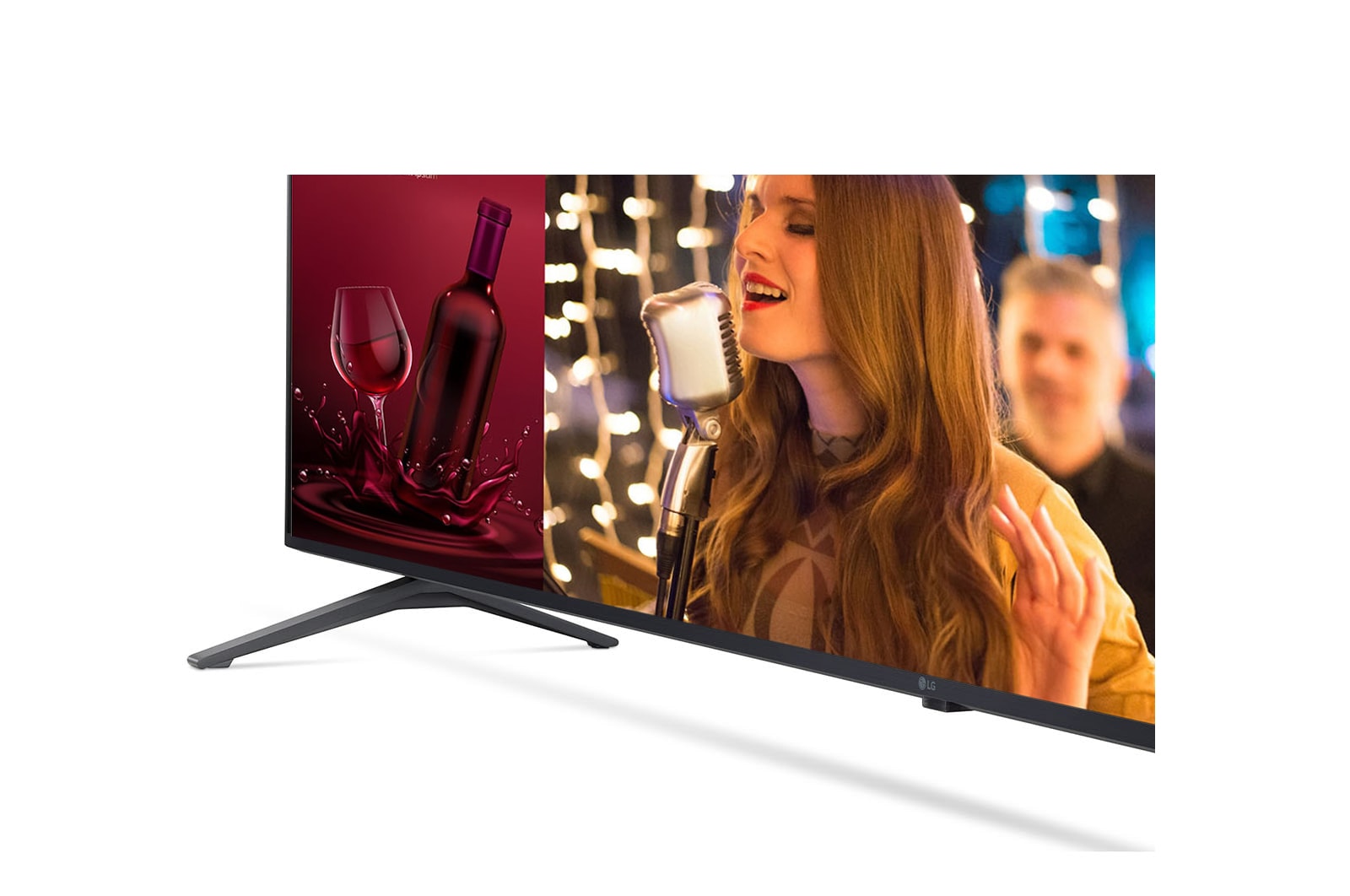

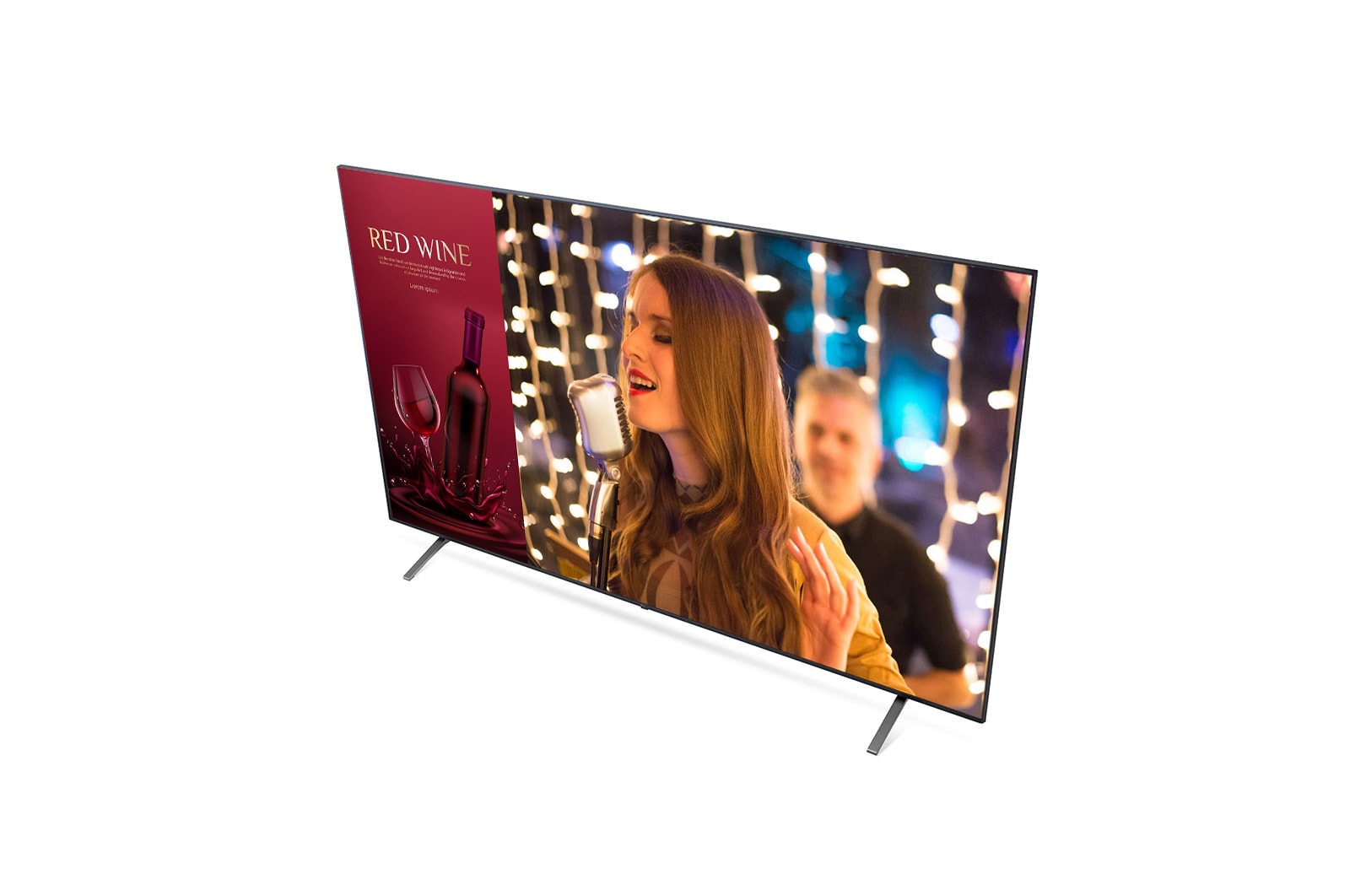

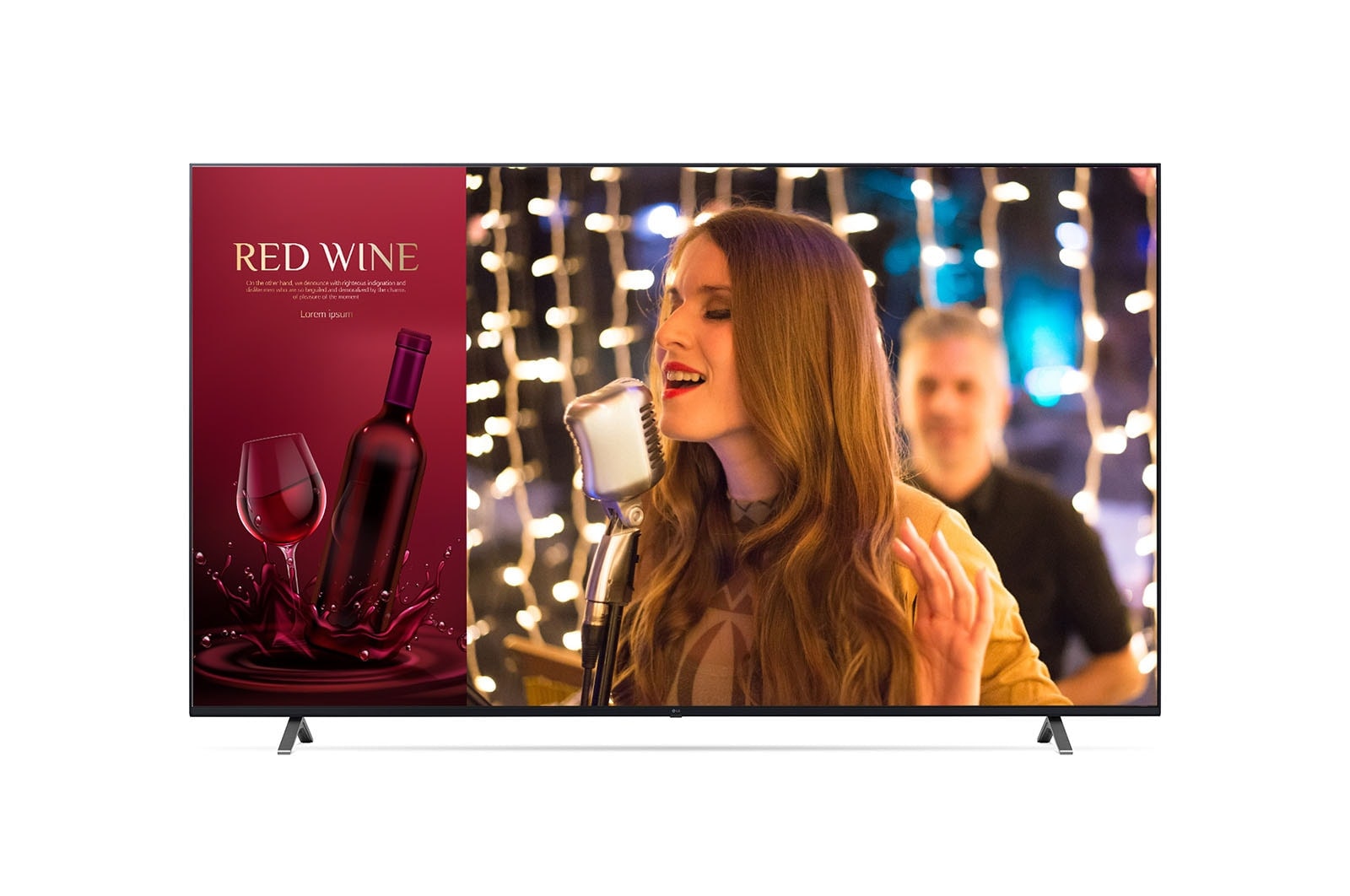

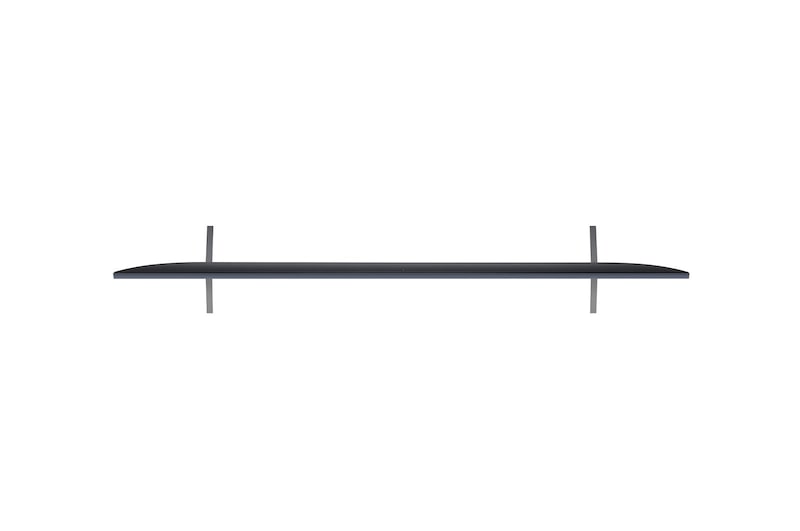

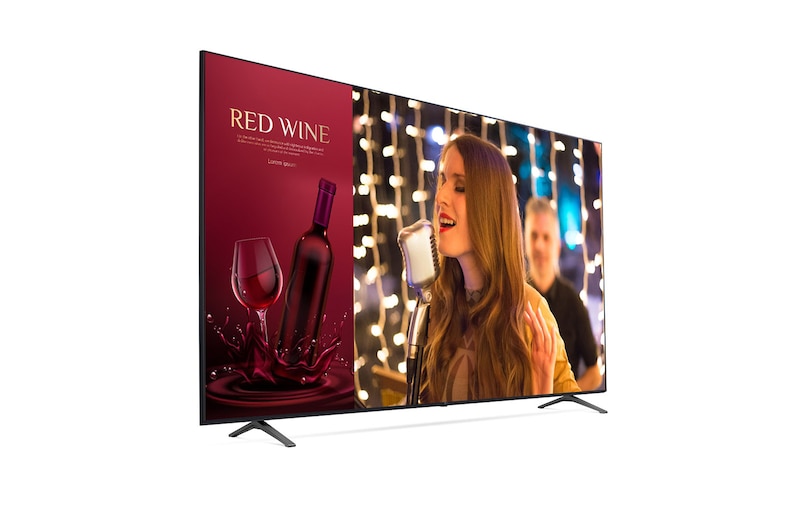

LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD
LG UHD TV Signage, 75UR640S0TD

Key Features

  • Brightness(Typ.) : 330 nits

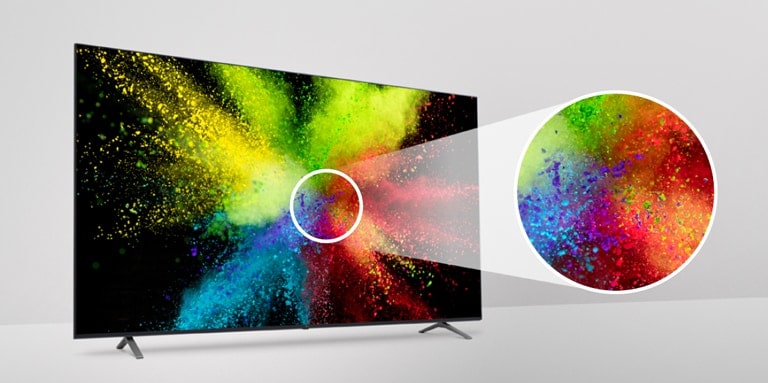

  • Resolution : ULTRA HD (3,840 x 2,160)

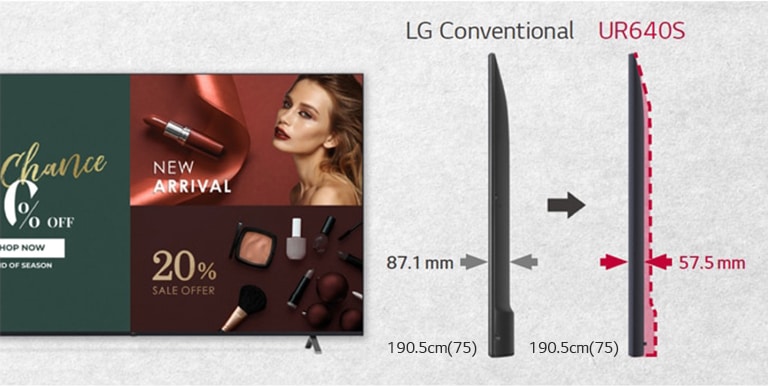

  • Improved Design with Slim Depth
  • webOS-based High Performance

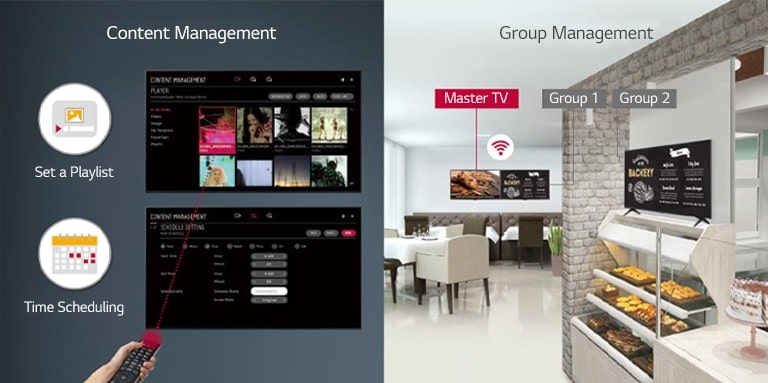

  • Easy Content Management / Group Management

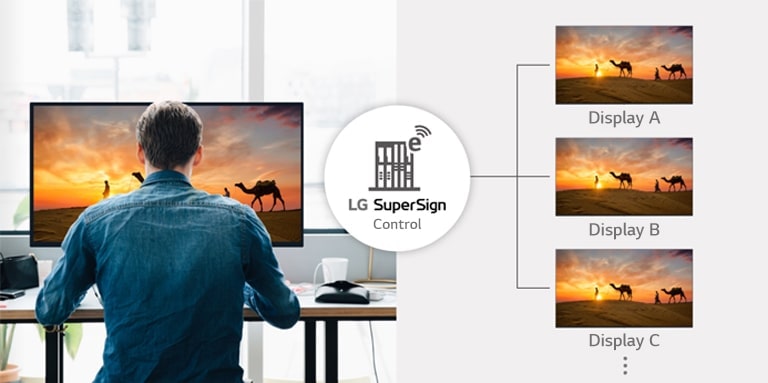

  • SuperSign Control / CMS Compatibility
More
Print

All Spec

INFO

  • Category

    Smart TV Signage

SUPERSIGN SW COMPATIBILITY

  • CMS(Premium)

    YES

  • Control / Control Plus

    YES

  • LG Connected Care

    YES

  • Simple Editor

    YES

VERTICAL FUNCTION (HOSPITAL)

  • Healthcare Headphone Mode

    -

  • Pillow Speaker

    -

  • Protection Cover (Glass)

    -

ACCESSORIES

  • Power Cable

    - (Attached)

  • Remote type

    S-con

BROADCASTING SYSTEM

  • Analog (NTSC / SECAM / PAL)

    PAL

  • Digital

    DVB-T2/C

  • Teletext (Auto Teletext)

    YES

POWER SPEC.

  • Power Consumption(Max)

    228 W

  • Power Consumption(Typ)

    202 W

  • Power Supply (Voltage, Hz)

    AC 100~240 V 50/60 Hz

  • Standby Power Consumption

    Under 0.5 W

STANDARD

  • Others

    -

  • EMC

    CE

  • Safety

    CB, CU TR

STANDARD (EU_NEW LABEL(`21.3~))

  • HDR Grade

    -

  • HDR On mode

    -

  • SDR Grade

    -

  • SDR On mode

    -

AUDIO (SOUND)

  • AI Acoustic Tuning

    -

  • AI Sound

    -

  • LG Sound Sync

    YES

  • Speaker (Audio Output)

    20 W

DISPLAY

  • Brightness (Typ.)

    330 nit

  • Resolution

    4K Ultra HD (3,840 x 2,160)

  • Size (Inch)

    189 CM (75)

MECHANICAL

  • Credenza/Security Screw Hole

    -

  • Kensington Lock

    YES

  • Lock Down Plate (for easy installing)

    -

  • VESA Compatible

    400 x 400 mm

STANDARD (EU_OLD LABEL(~`21.3))

  • Average Annual Consumption(kWh)

    -

  • ErP Class

    -

  • Luminance Ratio (%)

    -

  • On Power Consumption

    -

VIDEO

  • Game Optimizer

    -

  • AI Picture Pro

    -

  • HDR_HDR 10 Pro

    YES

  • HDR_HLG (Hybrid Log Gamma)

    YES

SMART FUNCTION

  • AOD

    -

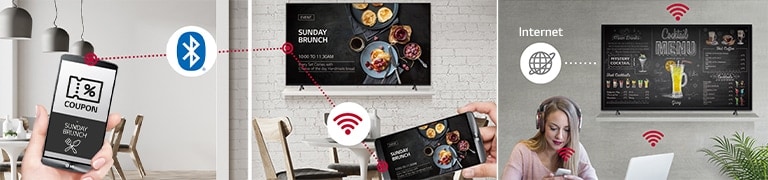

  • Bluetooth

    YES

  • Bluetooth Audio Playback

    YES

  • DIAL

    YES

  • Gallery Mode

    -

  • HDMI-ARC

    YES (HDMI 2)

  • Home Office

    -

  • IoT

    -

  • Magic Remote Compatibility

    -

  • Mood Display

    YES

  • Multi-View

    -

  • Screen Share

    YES

  • Soft AP

    YES

  • Voice Recognition (Standalone/Solution)

    -

  • webOS version

    webOS 6.0

  • Web Browser

    YES

  • Wi-Fi

    YES

DIMENSIONS/WEIGHT

  • Bezel Width (L/R/U/B, Off Bezel)

    7.9/7.9/7.9/18.4 mm

  • Bezel Width (L/R/U/B, On Bezel)

    13.9/13.9/13.9/19.9 mm

  • Dimension in Shipping (W x H x D)

    1880 x 1115 x 200 mm

  • Dimension without Stand (W x H x D)

    1678 x 964 x 59.9 mm

  • Dimension with Stand (W x H x D)

    1678 x 1027 x 362 mm

  • Weight in Shipping

    41.5 kg

  • Weight without Stand

    31.4 kg

  • Weight with Stand

    32.1 kg

CONNECTIVITIES

  • External Speaker Out(3.5mm Phone jack)

    YES

  • Audio Line Out(3.5mm Phone jack)

    -

  • AV In

    YES

  • CI Slot

    -

  • Component in (Y,Pb,Pr-Video)

    -

  • DC Adapter In

    -

  • Digital Audio Out (Optical)

    YES

  • ECI (RJ12 jack)

    -

  • Expansion slot (60pin)

    -

  • EXT. IR In

    -

  • HDMI In

    YES (3 ea)

  • Headphone Out

    YES

  • LG SVC only (Phone jack type)

    YES

  • MPI Port (RJ12 jack)

    -

  • PC Audio Input

    -

  • Pillow Speaker interface (6pin)

    -

  • PoC (Power over Coax)

    -

  • RF In

    YES (1 ea)

  • RGB In (D-sub 15pin) - PC

    -

  • RJ45 (Usage Purpose)

    YES (LAN)

  • RS-232C (D-Sub 9pin / Phone jack)

    YES (Phone jack)

  • TV link Configuration (Phone jack type)

    -

  • USB (Ver.)

    YES (1 ea / 2.0)

HOSPITALITY SOLUTION

  • Other DRM

    -

  • Pro:Centric Cloud

    -

  • Pro:Centric Direct

    -

  • Pro:Centric Server

    -

  • Pro:Centric Smart

    -

  • Pro:Centric V

    -

  • Pro:Idiom (DRM)

    -

  • Pro:Idiom Media (DRM)

    -

  • Quick Menu (Customizable Portal)

    -

  • webRTC (Real Time Communication)

    -

VERTICAL FUNCTION (CORPORATE/RETAIL)

  • BEACON

    YES

  • CISCO Certi. Compatibility

    YES

  • Crestron Certi. Compatibility

    YES

  • DPM (Digital Power Management)

    YES

  • Embedded CM (Contents Manager)

    YES

  • Embedded GM (Group Manager)

    YES

  • Fail Over

    YES

  • NTP Server Setting

    YES

  • NTP sync timer

    YES

  • Play Via URL

    YES

  • Promota / Mobile CMS

    YES

  • RTC (Real Time Clock)

    YES

  • Time scheduler

    YES

  • Vertical Setup

    YES

  • Video Tag

    -

HOSPITALITY FEATURE

  • One Channel Map

    YES

  • b-LAN

    -

  • Conformal Coating

    -

  • Diagnostics

    YES (Self Diagnostics(USB))

  • Energy Saving mode

    YES

  • Enterprise Mode

    -

  • External Power Out

    -

  • External Speaker Out / Line Out

    YES (Ext. Speaker Out)

  • EzManager

    -

  • Full Touch Screen

    -

  • Hotel Mode / PDM / Installer Menu

    YES

  • HTNG-CEC (Version)

    YES

  • Insert Image

    YES

  • Instant ON

    -

  • IR Out

    YES (RS-232C, HDMI)

  • Lock mode

    YES (Limited)

  • Mobile Remote

    -

  • Multi IR Code

    YES

  • Port Block

    YES

  • RJP (Remote Jack Pack) Compatibility

    YES

  • Simplink(HDMI-CEC) (Version)

    YES (1.4)

  • SNMP

    YES

  • USB Auto playback / playback+

    -

  • USB Cloning

    YES

  • V-Lan Tag

    -

  • Wake on RF

    -

  • Welcome Screen (Splash Image)

    YES

  • Welcome Video

    -

  • WOL

    YES

DESIGN

  • Front Color

    Ashed Blue

  • Stand Type

    2 Pole

  • Tool Name

    UP8000

Leaflet

extension : pdf
Information_Display_Range_Catalogue_250221.pdf
Download
extension : pdf
UR640S Leaflet India_241119.pdf
Download

To access more technical documentation and resources, please visit the LG B2B Partner Portal.
