LG CreateBoard

86TR3DK-I

Key Features

Brightness : 440 nit
Resolution : 3,840 × 2,160 (UHD)
Multi-Touch Point : 40 Points (Max.)

A New Level of Classroom with LG CreateBoard

*All images in this page are for illustrative purposes only.

Various Teaching Templates

LG CreateBoard offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes.
Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through QR codes.

Multi-touch

LG CreateBoard can simultaneously detect up to 40 points for multi-touch functionality. This creates a lifelike board touch experience, helping students easily become accustomed and truly engage in classes. This leads to the maximum concentration and organic engagement of students.

*A max of 32 points are recognized in the Android environment, and a max of 40 points are detected in the Windows environment.
*Up to 10 points can be recognized in the writing app.

Easy to Save / Import / Export

LG CreateBoard includes simple import and export functionality.
Resources can be saved and imported directly to and from Google Drive or OneDrive, and files can be imported from a USB drive (Users can browse resources saved on USB storage).

LG ConnectedCare DMS

LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard installed in educational environments. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.

*'LG ConnectedCare DMS' needs to be purchased separately.
*The availability of the 'LG ConnectedCare DMS' service differs by region,
so please contact the LG sales representative in your region for more details.

Issue Management

Remote issue management can be carried out by the LG ConnectedCare DMS solution. This makes management safer and more efficient, facilitating the stable operation of the classroom.

Remote-control Services

Frequently used controls such as the power on/off, scheduling, brightness, and screen lock functions can be applied using a remote control. Content including images, videos, audio messages, or live streaming can be remotely shared with connected devices.

Broadcasting

In case of emergency situations such as a fire or a natural disaster, emergency warning alerts will be sent from the main system, which help teachers and students promptly take safety action. When the message is sent out to the device, LG CreateBoard interrupts the current display and sends out emergency messages along with warning sounds.

Google Certification

LG CreateBoard has received Google certification, enabling users to seamlessly integrate with the Google ecosystem by connecting their Google accounts.

Google Play Store

Users have access to the Google Play Store, where they can download a wide range of applications, including educationrelated games, tools, and more for an expanded experience.

*Exceptions apply in countries without Google services.

Wireless ScreenShare

LG CreateBoard Share enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device.
Also, files from the host can be easily sent to any devices connected to the LG CreateBoard Share app, and several quick controls by the host are available.

*LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network.
*For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).

Bluetooth Connectivity

LG CreateBoard supports wireless Bluetooth connections to various devices such as a speaker, mouse, keyboard, etc. This is optimal for building a hybrid environment so that online and offline classes can proceed smoothly.

C-type Connection

USB-C connectivity simplifies connections
which enables charging and sending data simultaneously over just one single cable.

*USB Type-C cables are sold separately.

QR Login for Easy Cloud Access

The QR code on the home screen reduces preparation time for class by enabling personal device verification. Users can sign up for a variety of apps on the LG CreateBoard including Google Drive and OneDrive with just one QR verification without any additional login process. Once a lesson is finished, users can simply click the Logout button to disconnect, thus the risk of a personal information leak is reduced.

Advanced Eye-Care

LG CreateBoard has introduced a flicker-free function. With the reduced flickering of the monitor's backlight, users can use the device with more comfort even when using it for a long time.

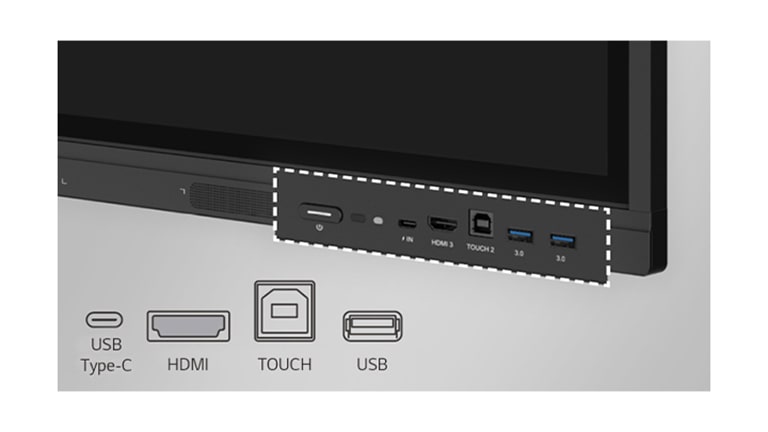

Front Connectivity Design

LG CreateBoard features front display ports and speakers which are ideal for both teachers and students, enabling content to be delivered easier with more immersive sound.

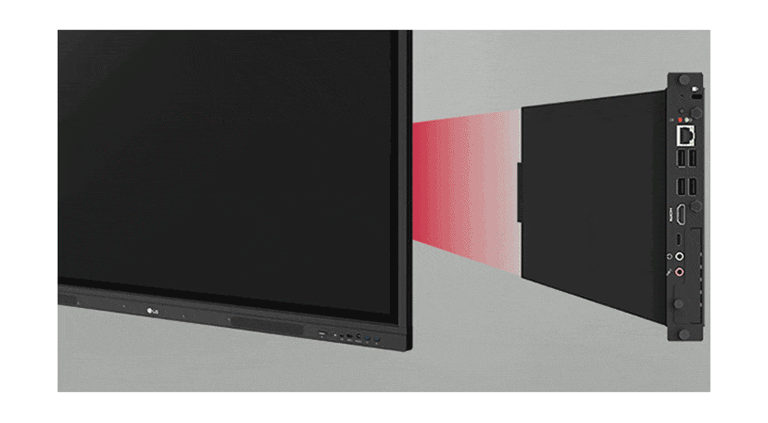

Built-in OPS Slot

LG CreateBoard supports OPS slots, allowing you to easily and conveniently mount OPS desktop at the back of the LG CreateBoard without the hassle of connecting to an external desktop, offering you more expanded functions.

*OPS : Open Pluggable Specification

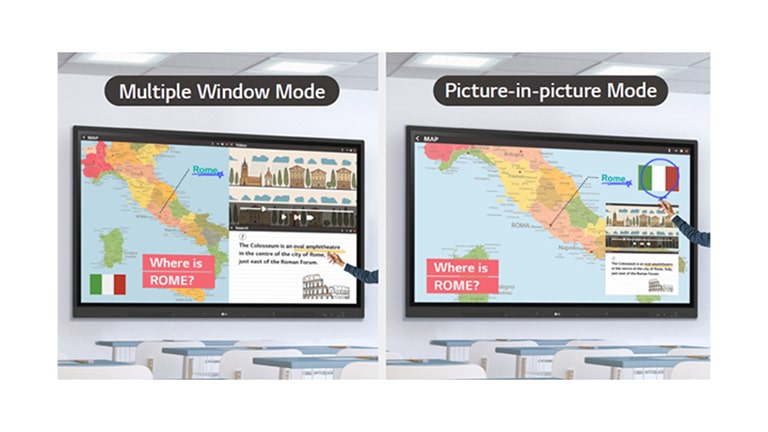

Smart Viewing

The Smart Viewing feature of LG CreateBoard enables efficient teaching. Two or more materials can be displayed on the same screen simultaneously without having to repeat Alt-tab, making teaching more convenient and efficient. Two materials can be displayed side by side (multi window mode), or one material can be overlaid on the other one (picture-in-picture mode).

*Multi window mode may not work for some apps.
*PIP mode is available for the external source screen.

Power Saving

When a device doesn’t receive an external input signal for a specific amount of time set by the user, the device goes into standby mode. Devices can also be automatically turned on or off at specific time or day set by the user, which contributes to save energy.

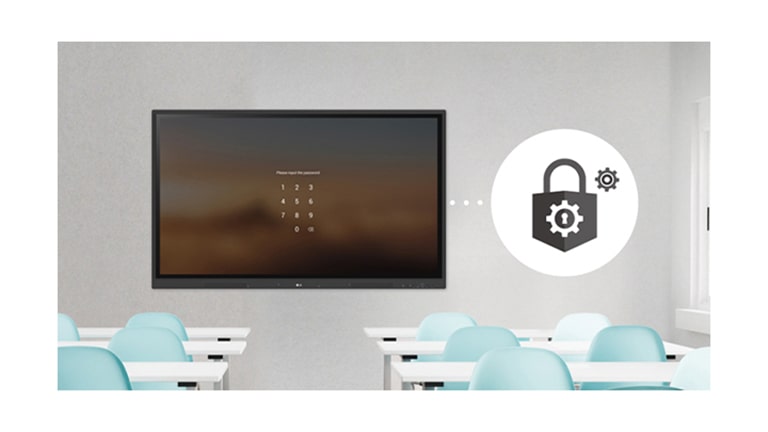

Screen Lock

Teachers can lock the screen using the Screen Lock function, and unlock it by entering a password. Users can set the Screen Lock in the Settings menu to protect the device from unidentified users.

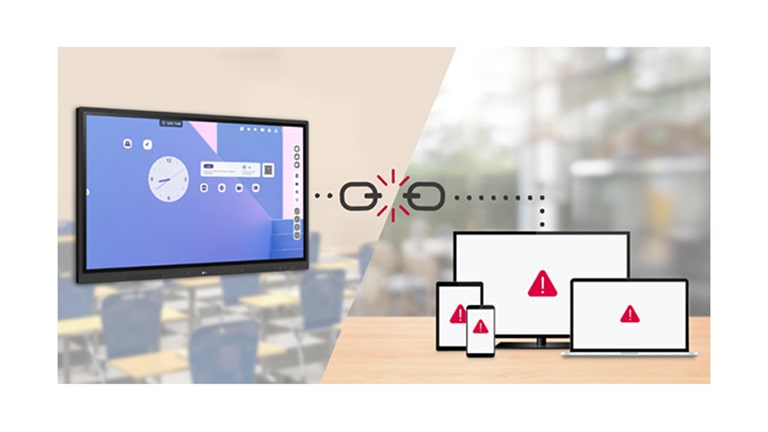

Secure Mode

LG CreateBoard supports Secure Mode that disables the LG CreateBoard Share function to prevent unauthorized content from being shown on various devices.

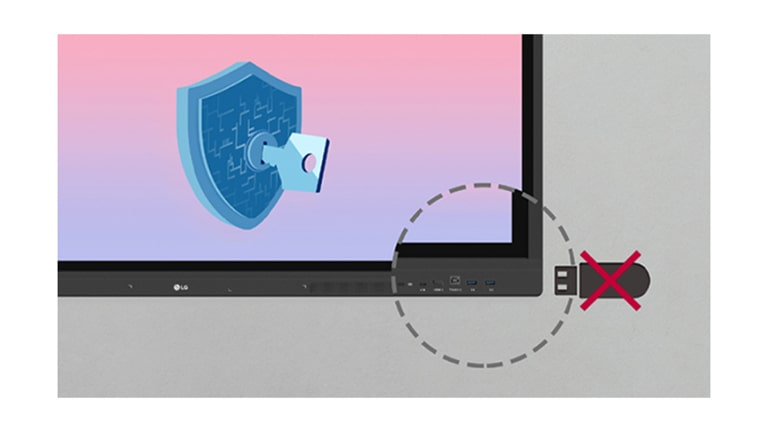

USB Lock Mode

USB Lock Mode is a security measure that helps prevent data from being copied to unauthorized devices, which is essential when being used in spaces where security is critical.

Auto-remove Files

Users can set LG CreateBoard to delete files regularly for enhanced security.

All Spec

PANEL

Screen Size
218.44 cm (86)
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
440 nits
Dynamic CR
5,000:1
Color Gamut
NTSC 68%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
Haze 28%
Operation Hours (Hours/Day)
16/7
Portait / Landscape
NO / YES

CONNECTIVITY

HDMI In
YES (3ea)
HDMI In (HDCP Ver.)
2.2
RGB In
YES
Audio In
YES
RS232C In
YES
RJ45(LAN) In
YES (1ea)
USB In
USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea)
HDMI Out
YES
Audio Out
YES
Touch USB
USB2.0 Type B (2ea)
RJ45(LAN) Out
YES

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
T/R/L/B : 15/15/15/44mm
Weight (Head)
58.6Kg
Packed Weight
75.9Kg
Monitor Dimensions (W x H x D)
1957 × 1160 × 100mm
Handle
YES
VESA Standard Mount Interface
800 x 600 mm
Carton Dimensions (W x H x D)
2110 × 1283 × 225mm

FEATURE - HARDWARE

Internal Memory (eMMC)
64GB
Wi-Fi/BT (Built-in)
YES
Auto Brightness Sensor
YES
Power Indicator
YES

FEATURE - SOFTWARE

Booting Logo Image
YES
PIP
YES
PBP
YES (2PBP)
Screen Share
YES
Smart Energy Saving
YES
Wake on LAN
YES

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10% to 90%

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power

POWER CONSUMPTION

BTU (British Thermal Unit)
1314 BTU/Hr(Typ.), 1979 BTU/Hr(Max.)
DPM
0.5W
Power off
0.5W
Max.
580W
Typ.
385W

SOUND

Speaker (Built-in)
YES (15W x 2)

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "A" / CE
ERP / Energy Star
YES / YES

OPS COMPATIBILITY

OPS Type compatible
YES (Slot)
OPS Power Built-in
YES

SOFTWARE COMPATIBILITY

Connected Care
YES

LANGUAGE

OSD
English, Denmark, Finnish, German, Korean, Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Spanish, Swedish, Hungarian, Thai

ACCESSORY

Basic
Power Cord 3M*1, USB Cable (Type A-Type B) 5M*1, HDMI Cable 3M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
Optional
Wall Mount(WM-L000S), Floor Stand(ST-000F, ST-860F)

SPECIAL FEATURE

Conformal Coating (Power Board)
YES

DEDICATED FEATURE - TOUCH

Available Object Size for Touch
Ø2 mm ↑
Response Time ('Paint' app on Windows 10 PC)
5ms ↓
Accuracy (Typ.)
±1mm
Interface
USB2.0
Protection Glass Thickness
3mm (Anti-Glare)
Protection Glass Transmission
88%
Operating System Support
Windows 7/8/10/Linux/Mac/Android (Linux/Mac Support one point touch)
Multi Touch Point
Max. 40 Points(Windows), Max. 32 Points(Android)
